WITTMANN MCS12H41-RS4P1-A19N-ST5S00N-R0SU servo motor

Name: WITTMANN MCS12H41-RS4P1-A19N-ST5S00N-R0SU servo motor
Brand: Wittmann
SKU: 12
Price: 420.00 EUR
Availability: InStock

€420,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Unterlagen und Einbauhinweise

Übertragen Sie den Typ vollständig, Zeichen für Zeichen. Motoren, die sich nur in den letzten Stellen unterscheiden, sehen von außen gleich aus, haben aber einen anderen Geber – und laufen an Ihrem Regler nicht.

Notieren Sie auch die Achse. Geber und Bremse unterscheiden sich je nach Einbauort; der Motor der Z-Achse hat in der Regel eine Haltebremse.

Servomotoren – Typenschlüssel lesen und Ersatz finden→

Wittmann Servo motor Used

WITTMANN MCS 12H41 Servo Motor with Brake – Part No. 13061891

Wittmann 3-phase servo motor, 2.9 kW, 4050 rpm, 7 Nm, with holding brake and RS4 encoder – compact and powerful, for plastics machinery and automation.

13061891

Part no.

2.9 kW

Power

7.0 Nm

Rated torque

4050 rpm

Rated speed

IP54

Protection

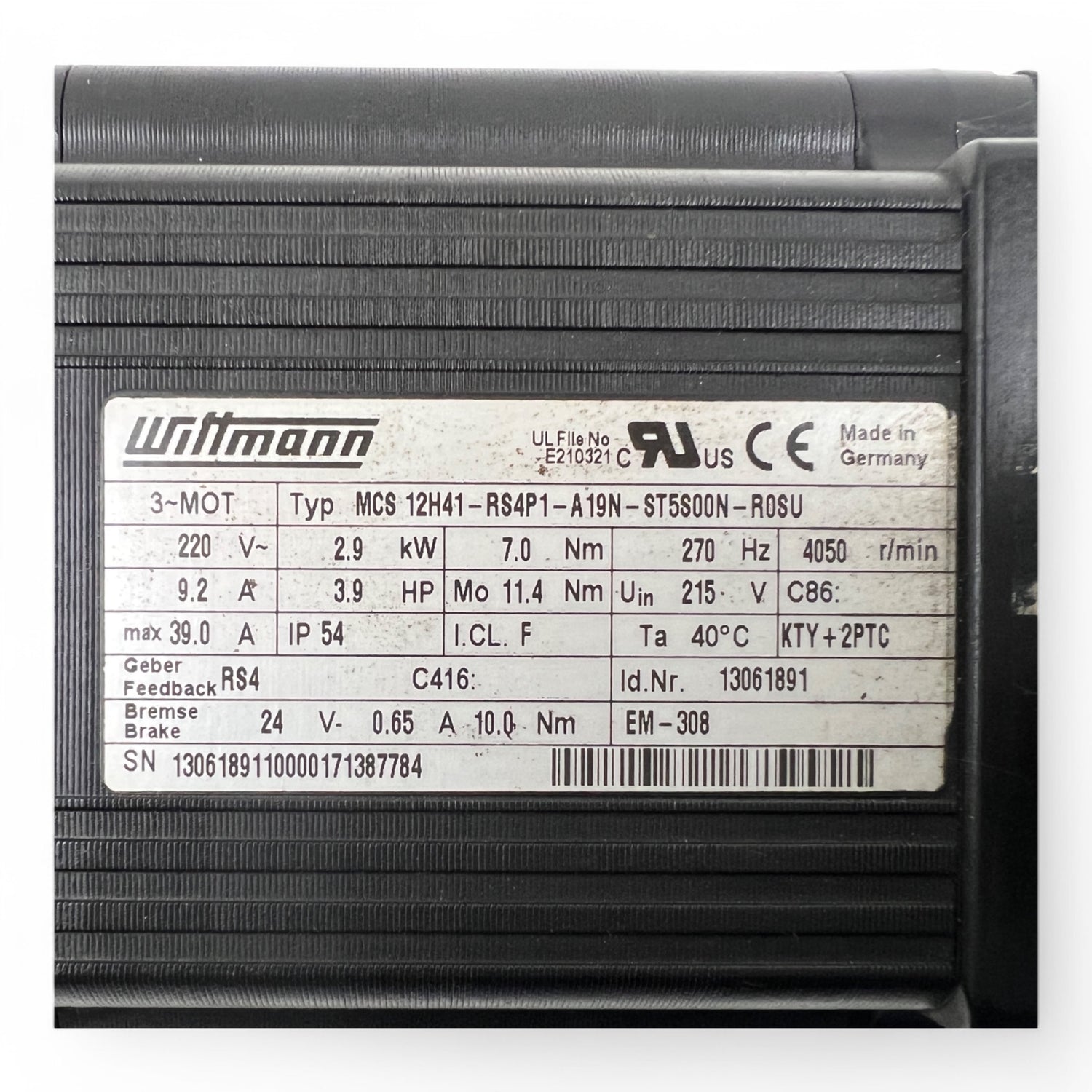

Before you order: compare the full type code MCS 12H41-RS4P1-A19N-ST5500N-ROSU, the encoder (RS4) and the brake voltage on your motor’s nameplate. Send us a photo of your nameplate and we confirm the fit before shipping.

Technical data

Manufacturer	Wittmann
Type	MCS 12H41-RS4P1-A19N-ST5500N-ROSU
Part no.	13061891
Serial no.	1306189110000171387784
Operating voltage	220 V
Current	9.2 A · max. 39.0 A
Power	2.9 kW (3.9 HP)
Rated torque	7.0 Nm
Peak torque	11.4 Nm
Rated speed	4050 rpm
Frequency	270 Hz
Protection	IP54
Encoder	RS4 – C416
Brake	24 V / 0.65 A
Insulation class	F
Sensors	KTY + 2 PTC
Ambient temperature	up to 40 °C (104 °F)

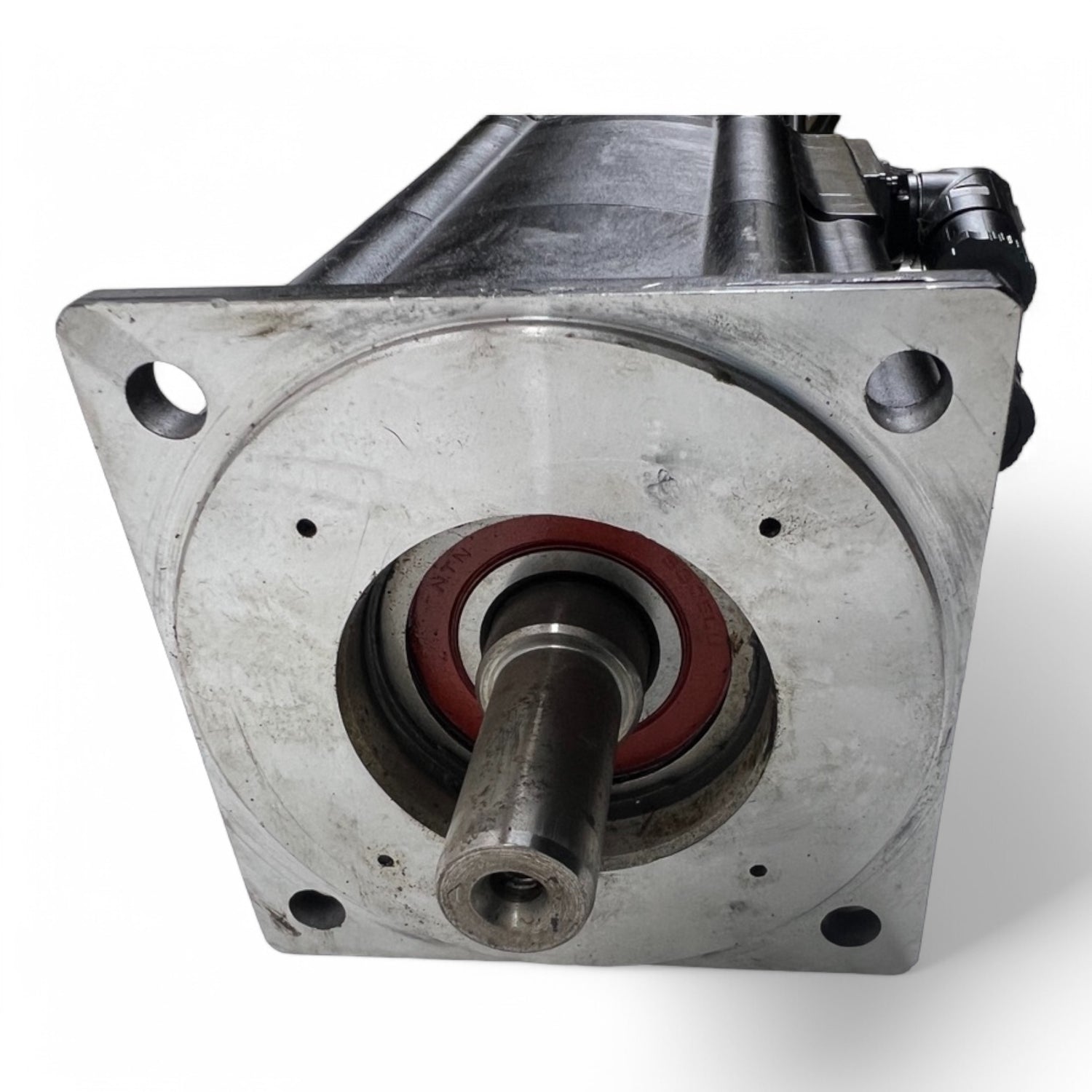

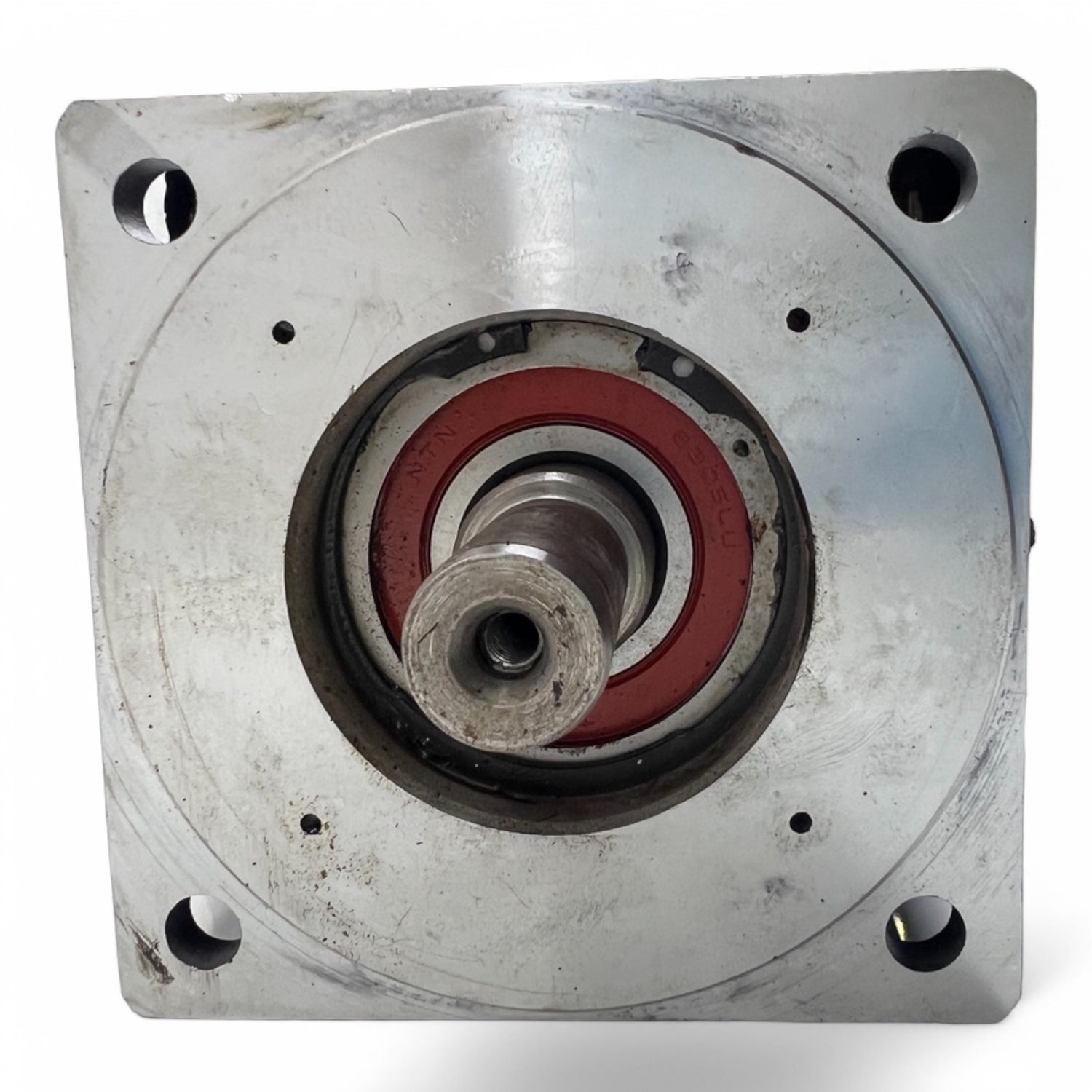

Shaft	Plain with keyway and M8 internal thread
Dimensions	approx. 320 × 180 × 140 mm
Weight	approx. 15 kg (33 lb)
Condition	Used · 2 – Good

Product description

Powerful 3-phase servo motor from Wittmann for precise drive and positioning tasks in industrial applications. Compact design, rugged housing and high efficiency make it ideal for plastics machinery and robot axes. Equipped with integrated holding brake, temperature monitoring and RS4 encoder.

The motor appears to be unused; it is sold as used.

Compatibility & applications

Wittmann robotsPlastics machineryRobot axesAutomation

Scope of delivery

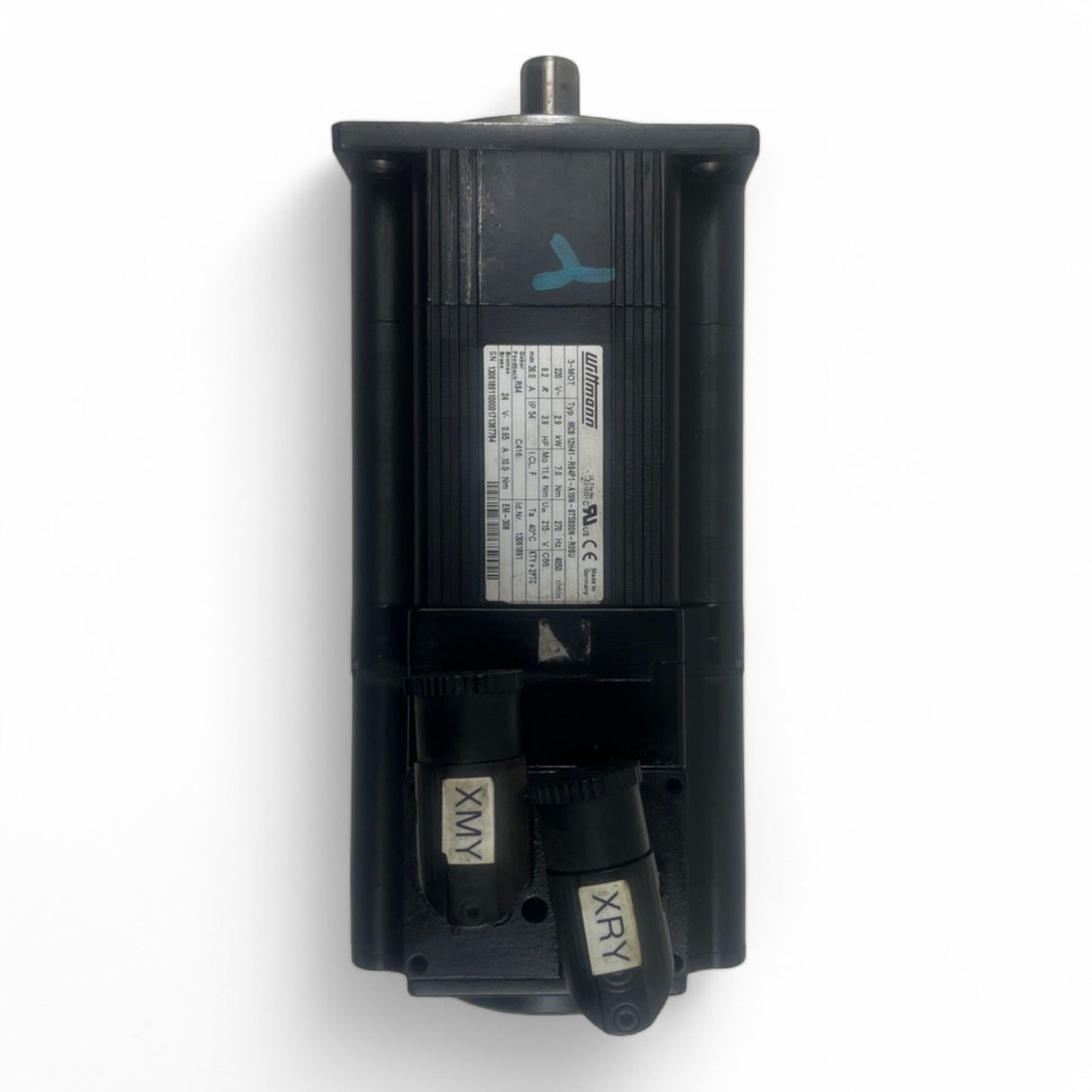

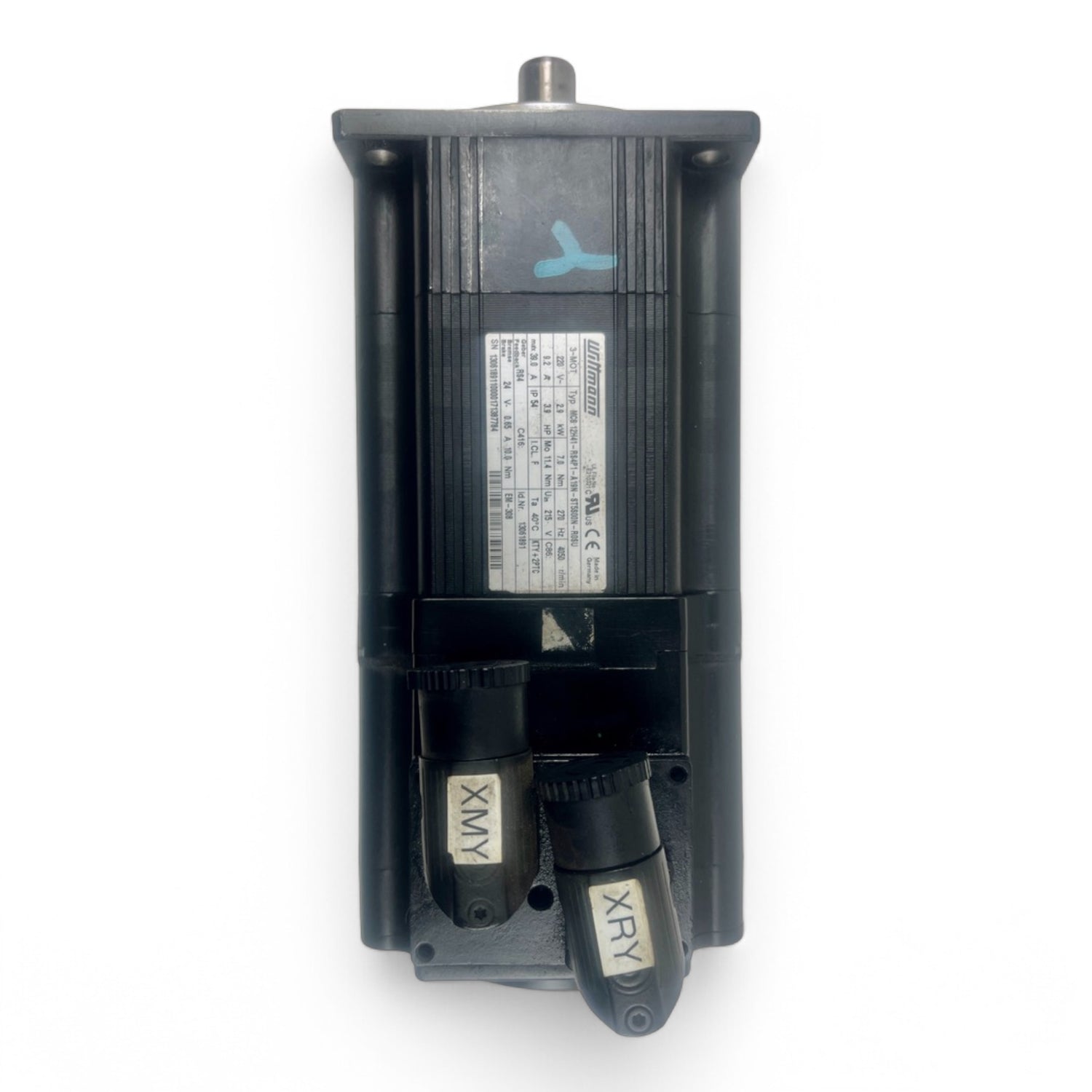

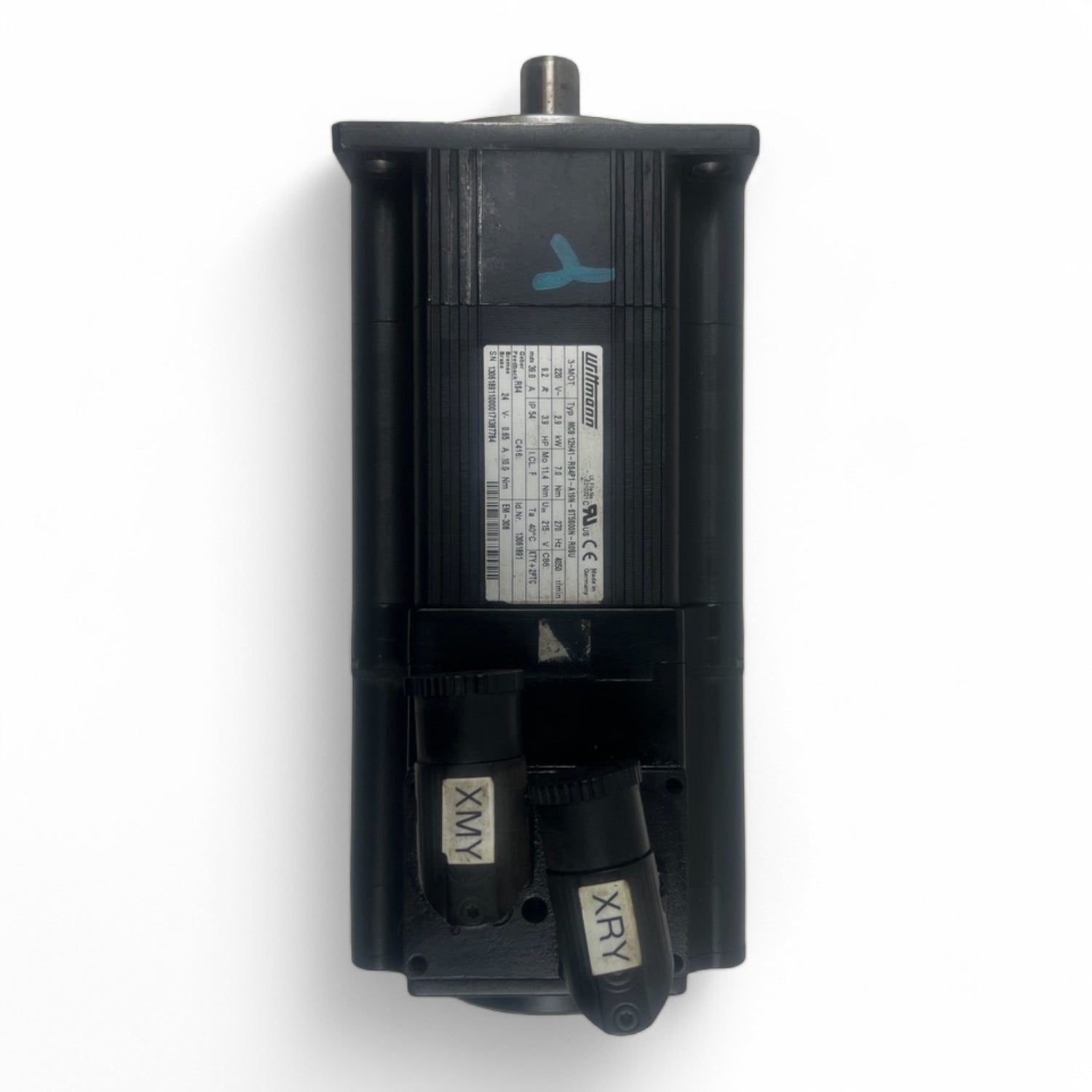

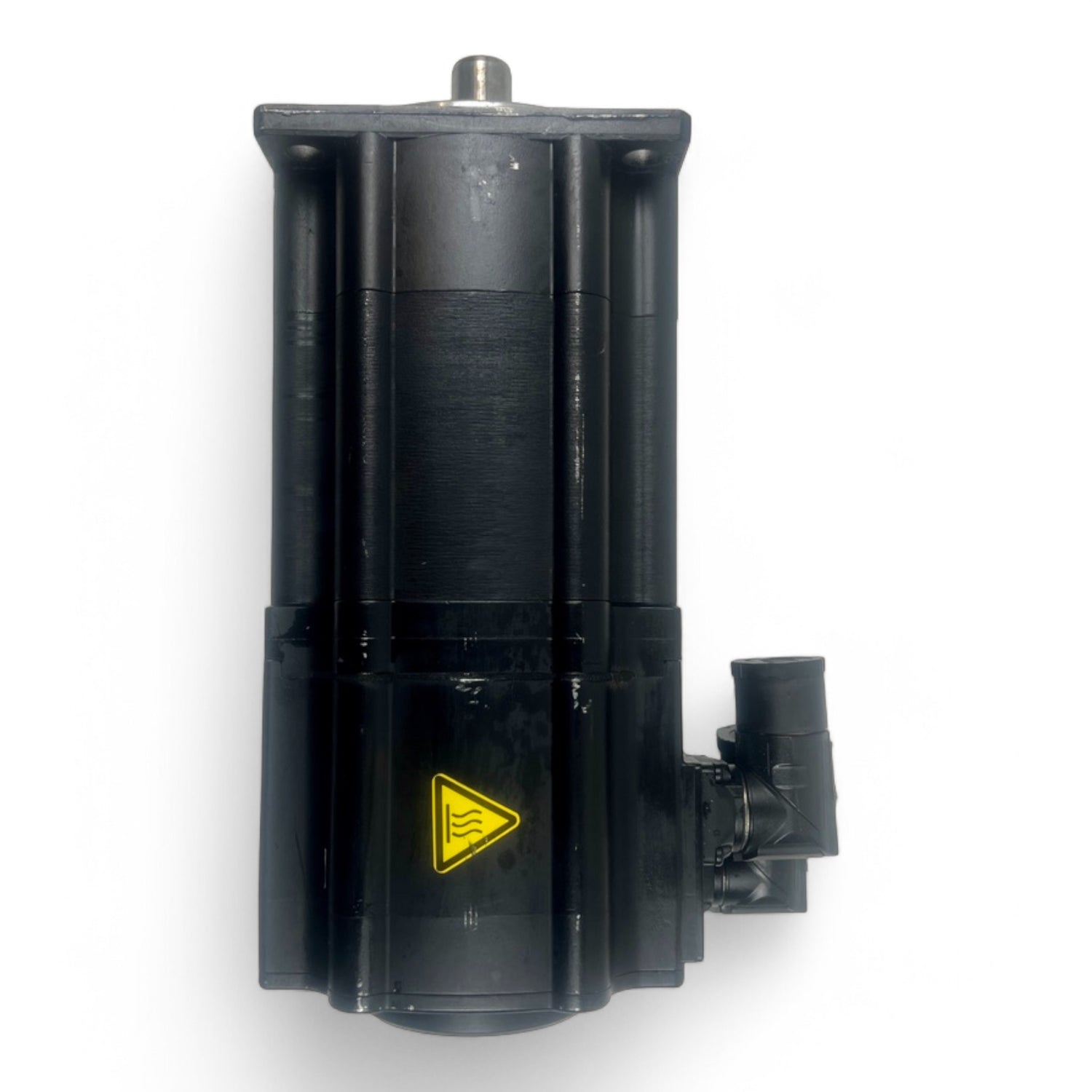

1 × Wittmann servo motor with mounted connectors (XMY, XRY), as shown.
