Transport chassis roller set HTS ECO-Skate I60L+S / 12t load capacity

Transport Dolly Skate HTS ECO-Skate I60L+S / 6t Load Capacity

Dolly set for professional heavy-duty transport

Description:

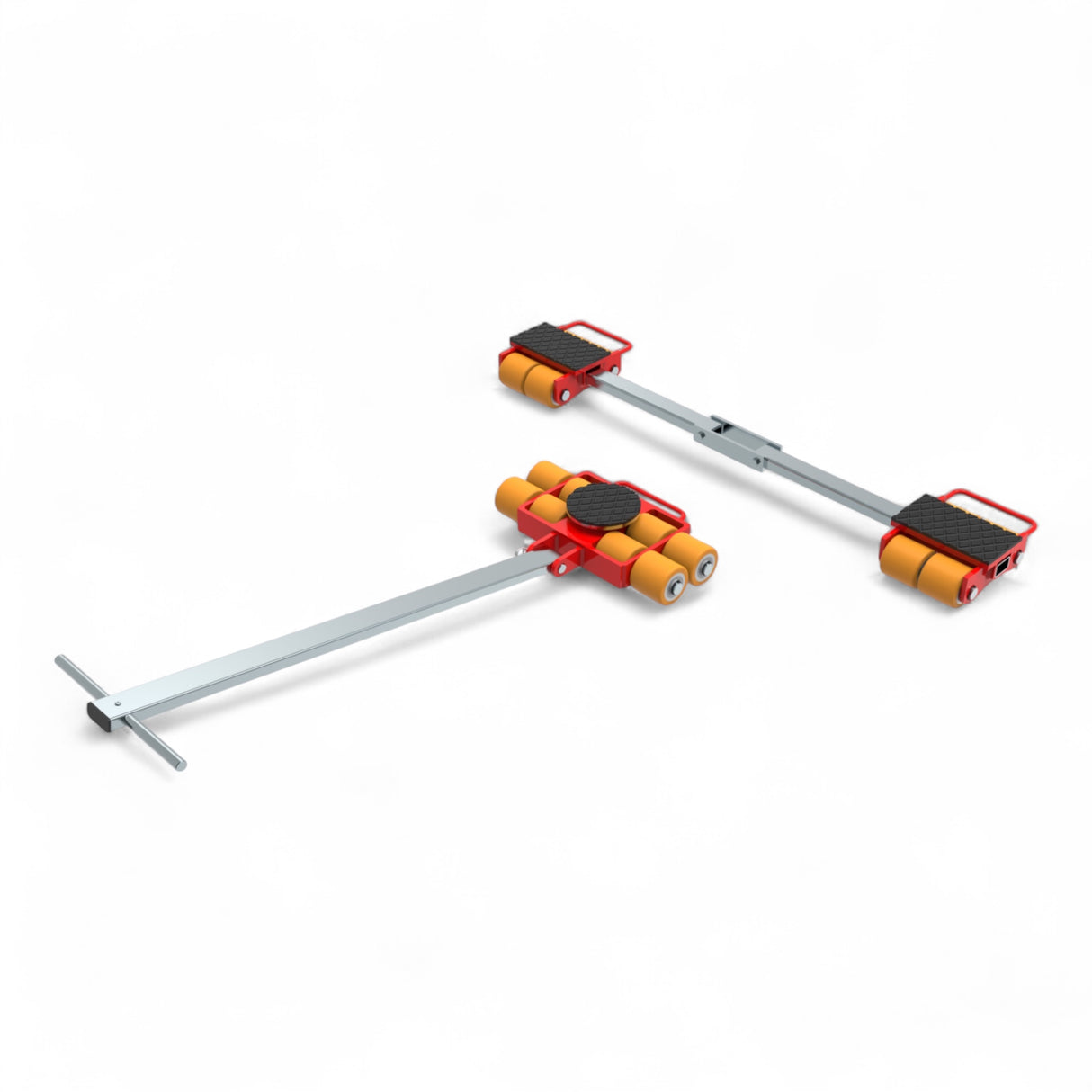

The ECO-Skate® I60L+S is a perfectly matched heavy-duty transport dolly set for in-house use. It consists of a steerable dolly (i60L) with a 6,000 kg load capacity and a rigid dolly (i60S) with 2 × 3,000 kg load capacity, which in combination forms a stable and secure 3-point support system for transporting the heaviest machinery.

The set is ideal for clean and even floors with slight irregularities – thanks to the high-quality, non-marking and cut-resistant HTS 3-component polyurethane rollers. Both dollies are equipped with non-slip waffle rubber pads, guaranteeing maximum safety during movement.

The i60L features a robust drawbar with a handle and towing eye, as well as a rotating load plate. The i60S is equipped with a foldable connecting rod and is optimally prepared for load reception.

The machine dolly should always be as good as the machine it transports.

Remember: An expensive machine dolly is always cheaper than a destroyed machine!

That's why we only offer products made in Germany – with spare parts supply and overhaul directly from the manufacturer or in our workshop.

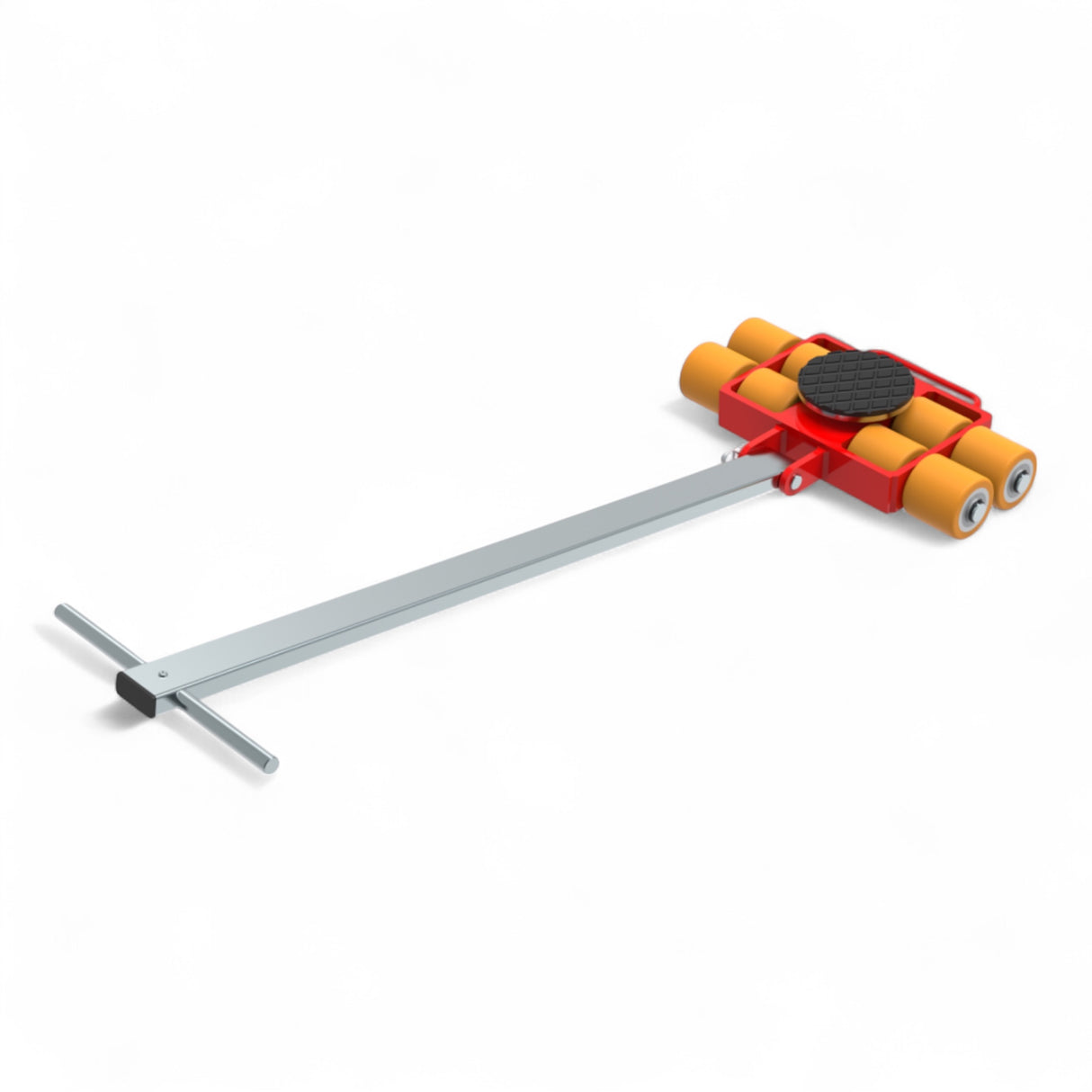

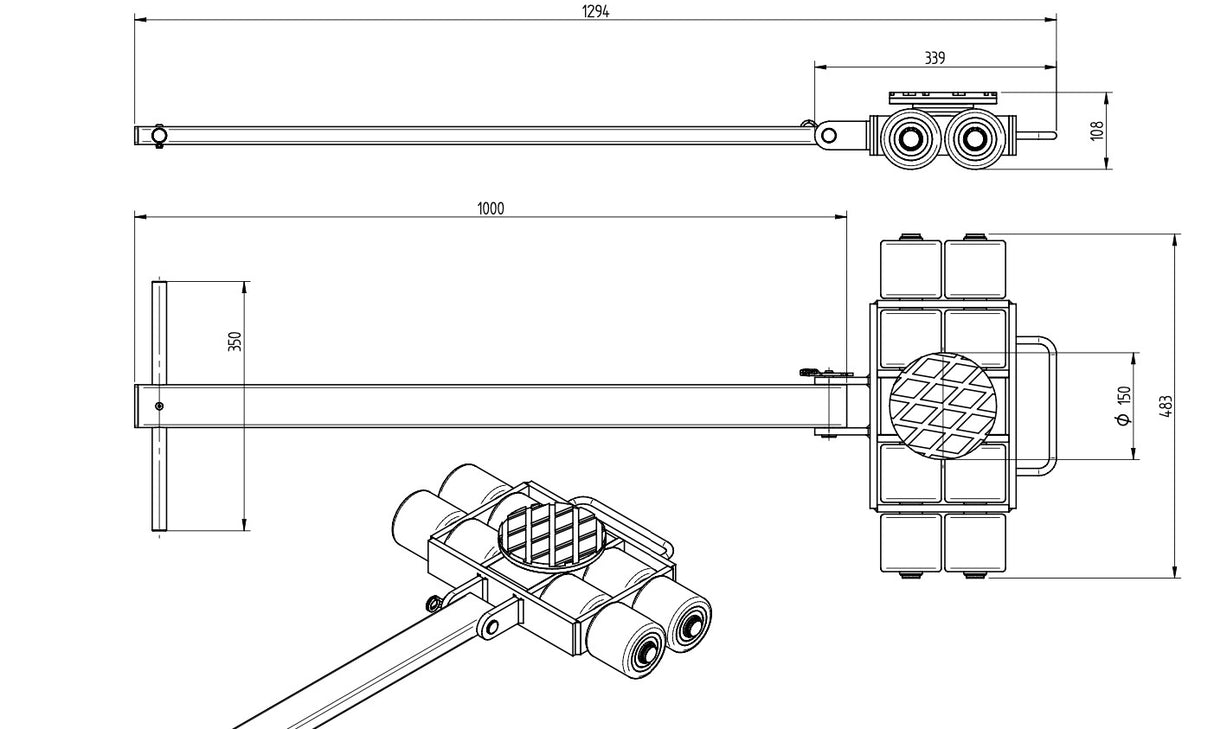

Technical data i60L (steerable):

• Load Capacity: 6,000 kg

• Number of rollers: 8

• Roller type: Polyurethane, Ø85 x 87 mm, 3-component, HTS

• Support surface: with swivel plate and waffle rubber pad

• Dimensions (L x W x H): 339 x 483 x 110 mm

• Drawbar length: 1000 mm

• Tractive force (2 km/h): 300 daN*

• Starting tractive force: 180 daN*

• Weight: 26 kg

• Max. speed: ≤ 2 km/h

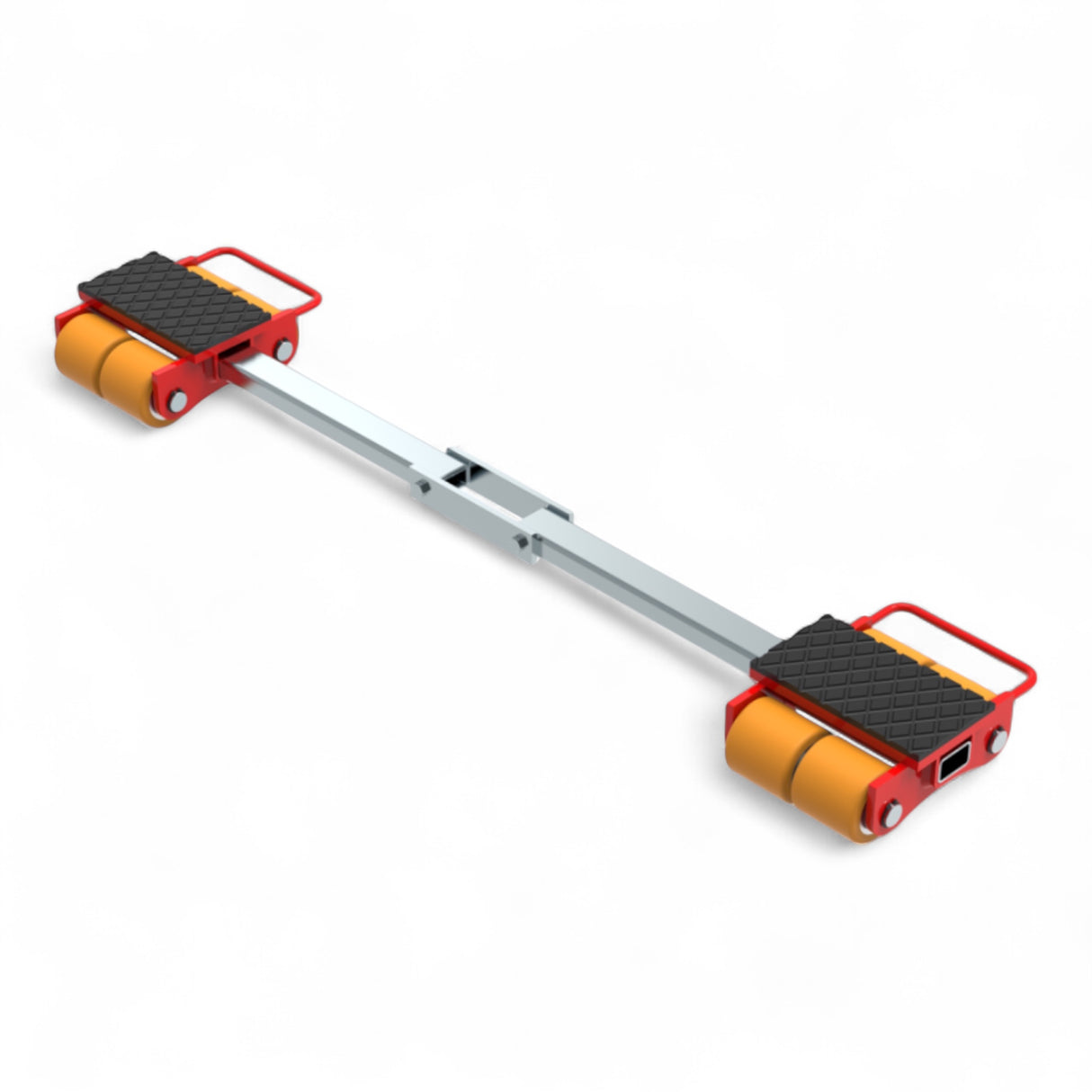

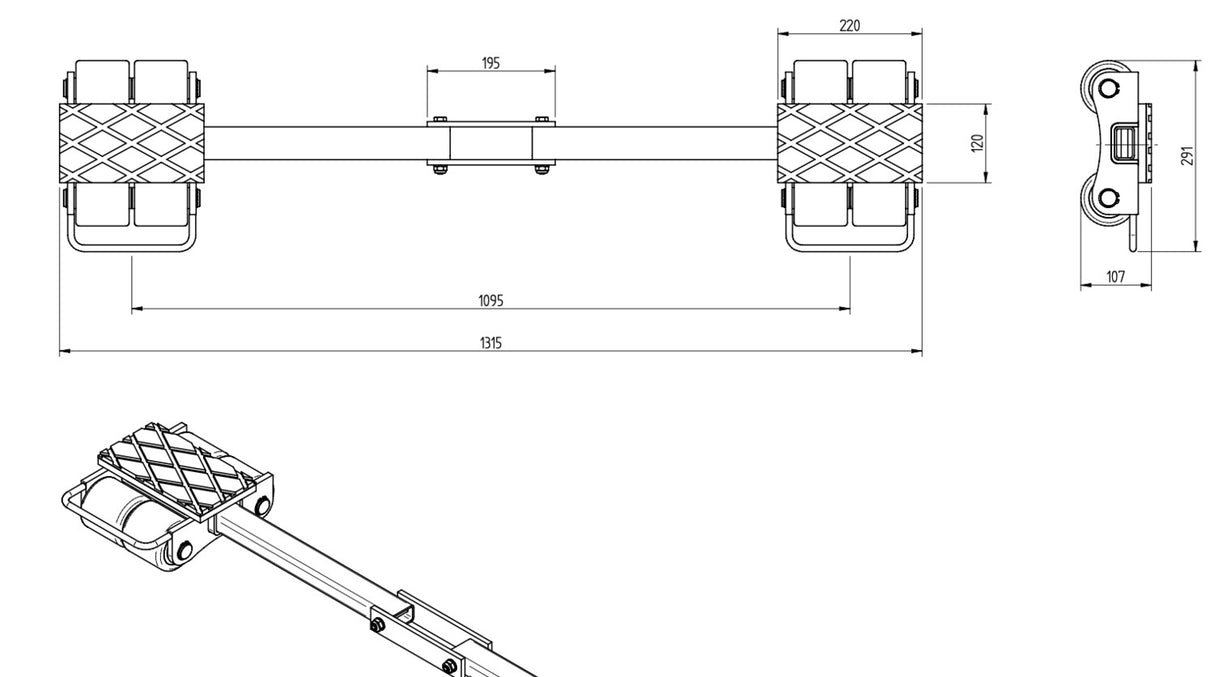

Technical data i60S (rigid):

• Load Capacity: 2 × 3,000 kg

• Number of rollers: 2 × 4

• Roller type: Polyurethane, Ø85 x 87 mm, 3-component, HTS

• Support surface: 120 x 220 mm with waffle rubber pad

• Connecting rod: foldable, adjustable from 420–1100 mm

• Dimensions (L x W x H): 291 x 220 x 110 mm

• Tractive force (2 km/h): 300 daN*

• Starting tractive force: 180 daN*

• Weight: 29 kg

• Max. speed: ≤ 2 km/h

Scope of delivery:

• 1x ECO-Skate® i60L (steerable)

• 1x ECO-Skate® i60S (rigid) with foldable connecting rod

• Delivery as pictured and described
