Transport chassis roller set HTS ECO-Skate I30L+S / 6t load capacity

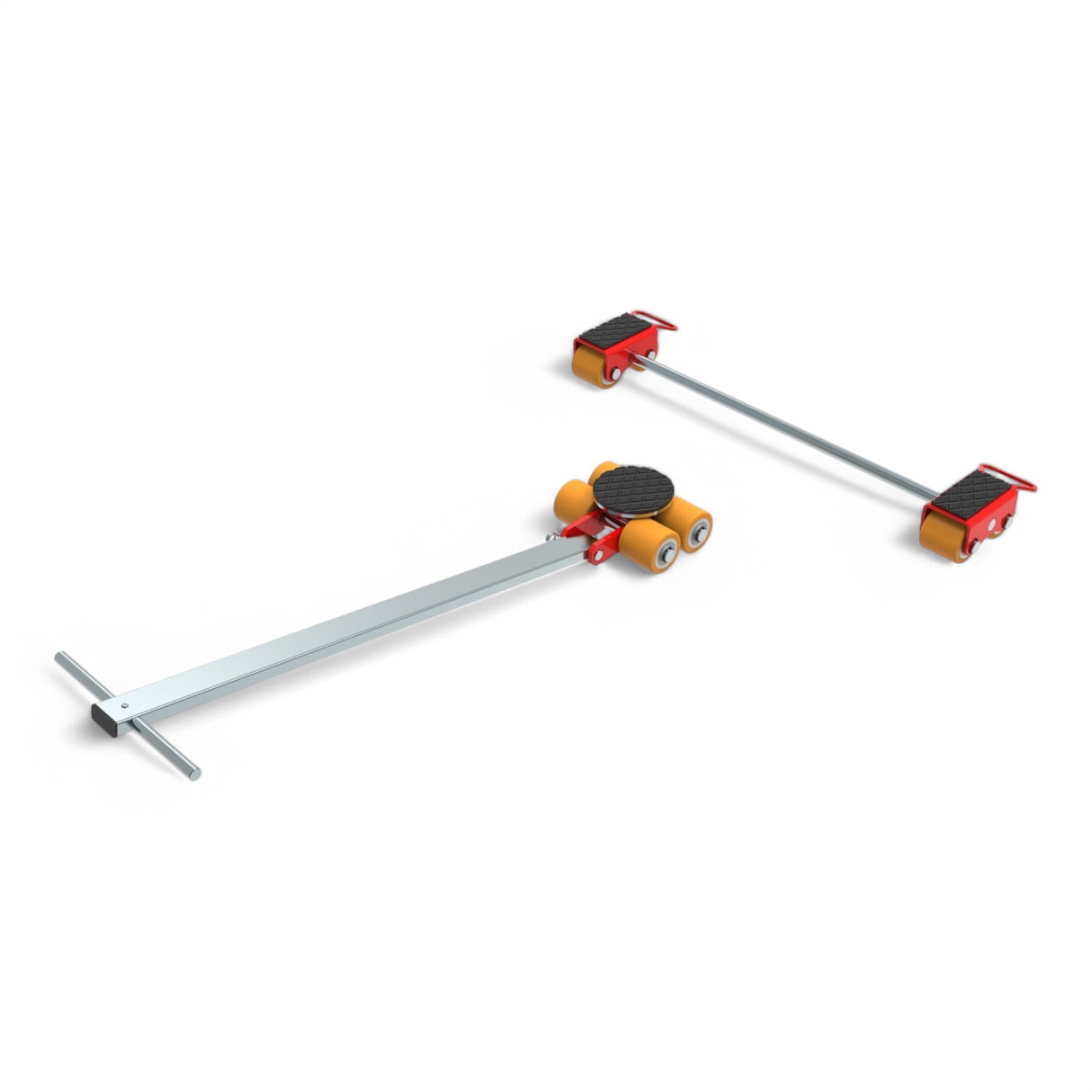

ECO-Skate Transport Dolly I30L+S 6t – Set consisting of steerable and rigid trolleys

Roller type: Ø85 x 87 mm PU, 3-component polyurethane

Description:

The ECO-Skate® Transport Dolly I30L+S is a high-quality set of 2, consisting of one steerable (i30L) and one rigid (i30S) dolly with a total load capacity of 6,000 kg – ideal for in-house transport of heavy machinery and equipment on level, clean floors. The combination of L and S dollies ensures maximum stability through a secure 3-point support system.

The steerable dolly i30L is equipped with a drawbar including a handle and towing eye, and features a rotating plate with non-slip waffle rubber. The high-quality polyurethane rollers ensure particularly quiet, safe operation and maximum floor compatibility.

The rigid dolly i30S comes with a foldable connecting rod and also has a non-slip rubber pad. The HTS 3-component rollers are abrasion-resistant, cut-resistant, non-marking, and ideally suited for minor unevenness.

The machine dolly should always be as good as the machine it transports.

Remember: An expensive machine dolly is always cheaper than a destroyed machine!

That's why we exclusively offer tested quality from German manufacturing – including spare parts supply and optional overhaul in our own workshop.

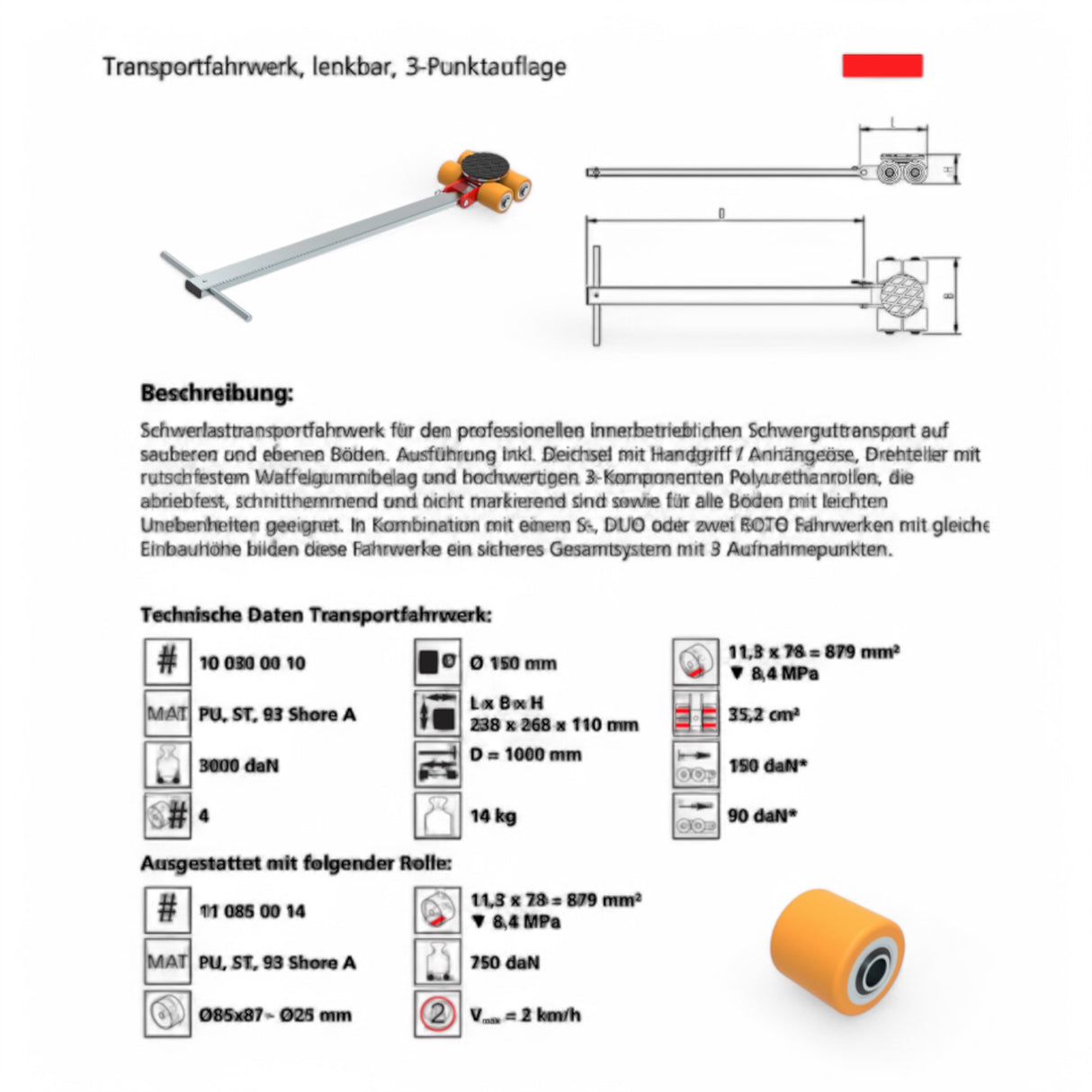

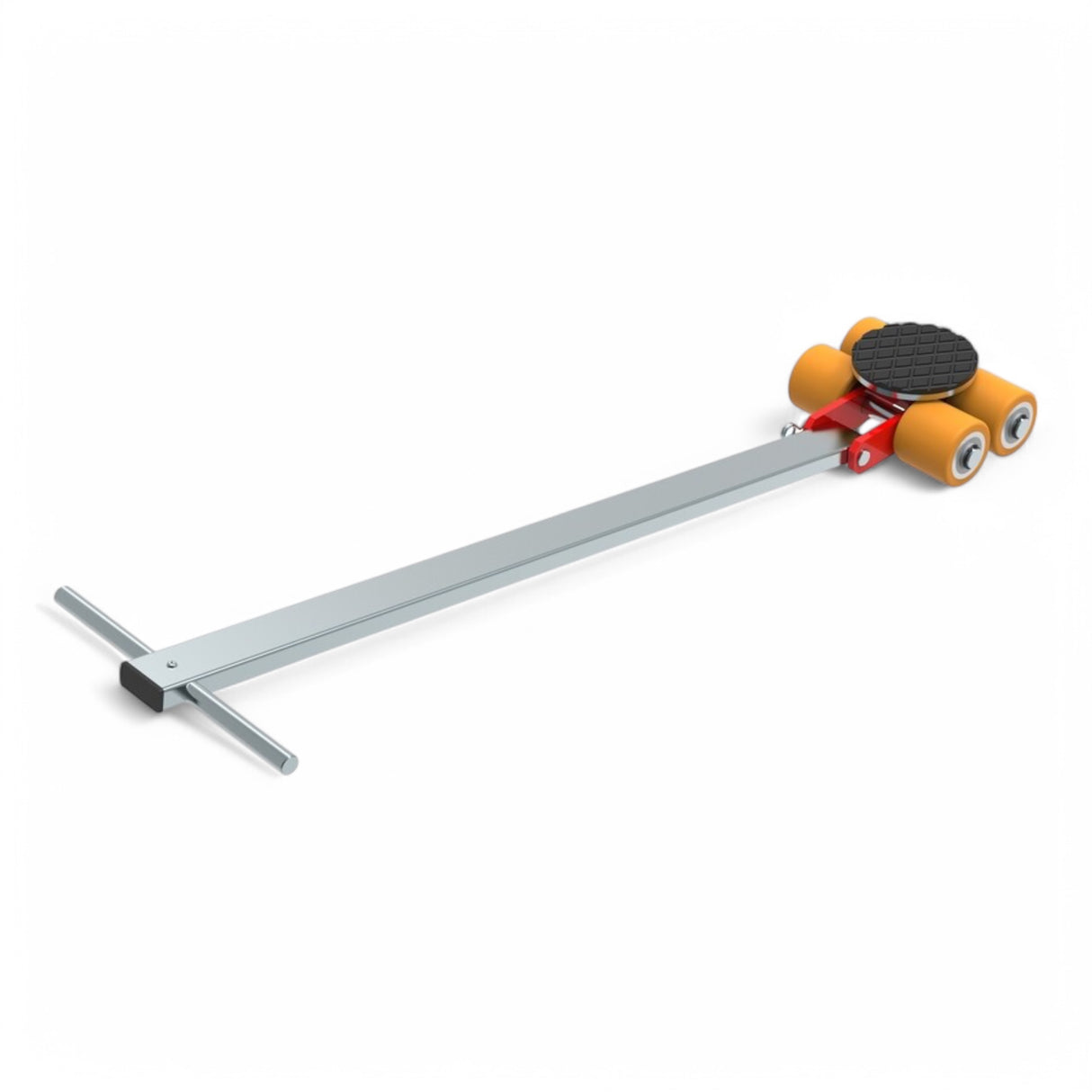

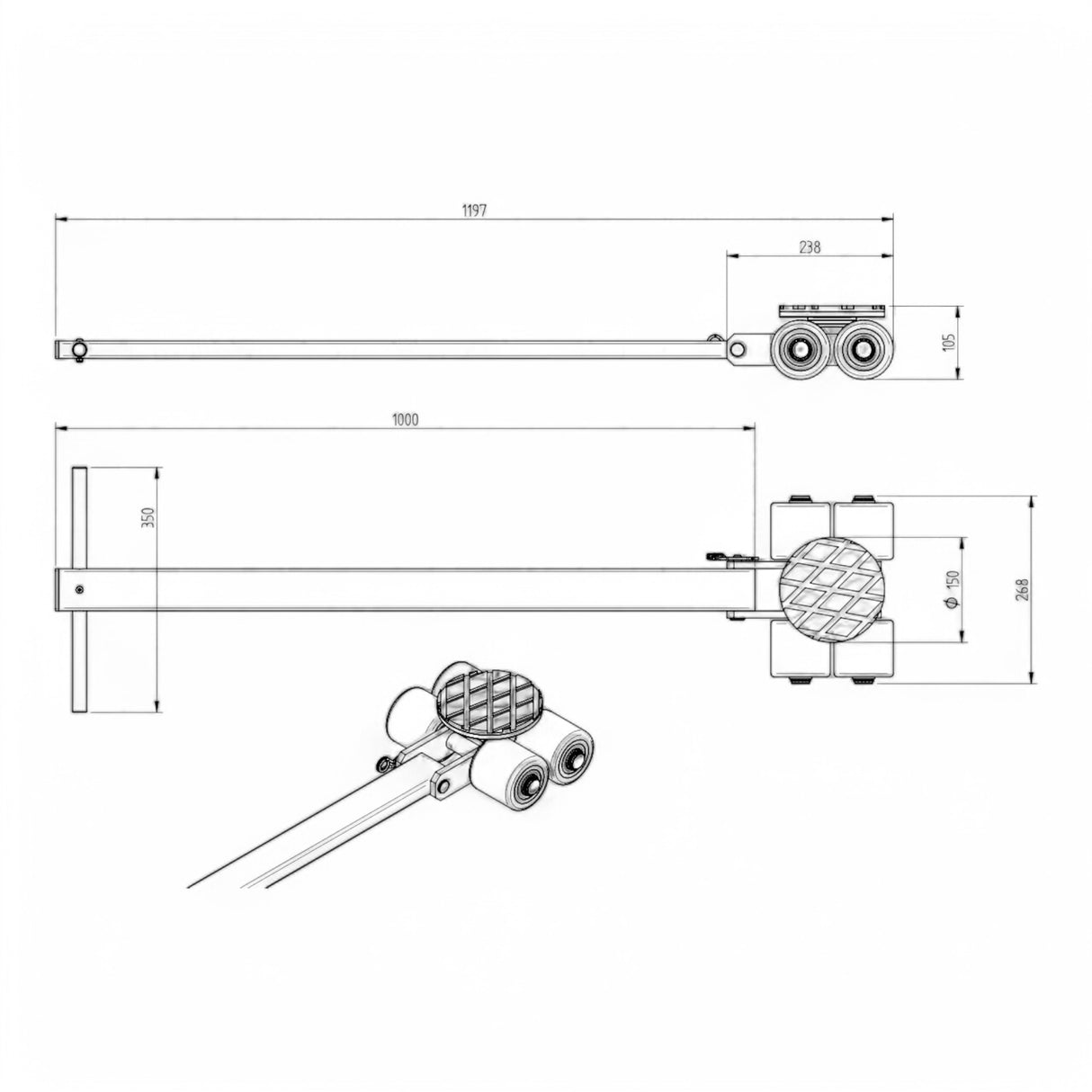

Technical data i30L (steerable):

• Load capacity: 3,000 kg

• Roller material: Polyurethane, Ø85 x 87 mm

• Features: Drawbar with handle and towing eye

• Support surface: Turntable with non-slip rubber

• Speed: max. 2 km/h

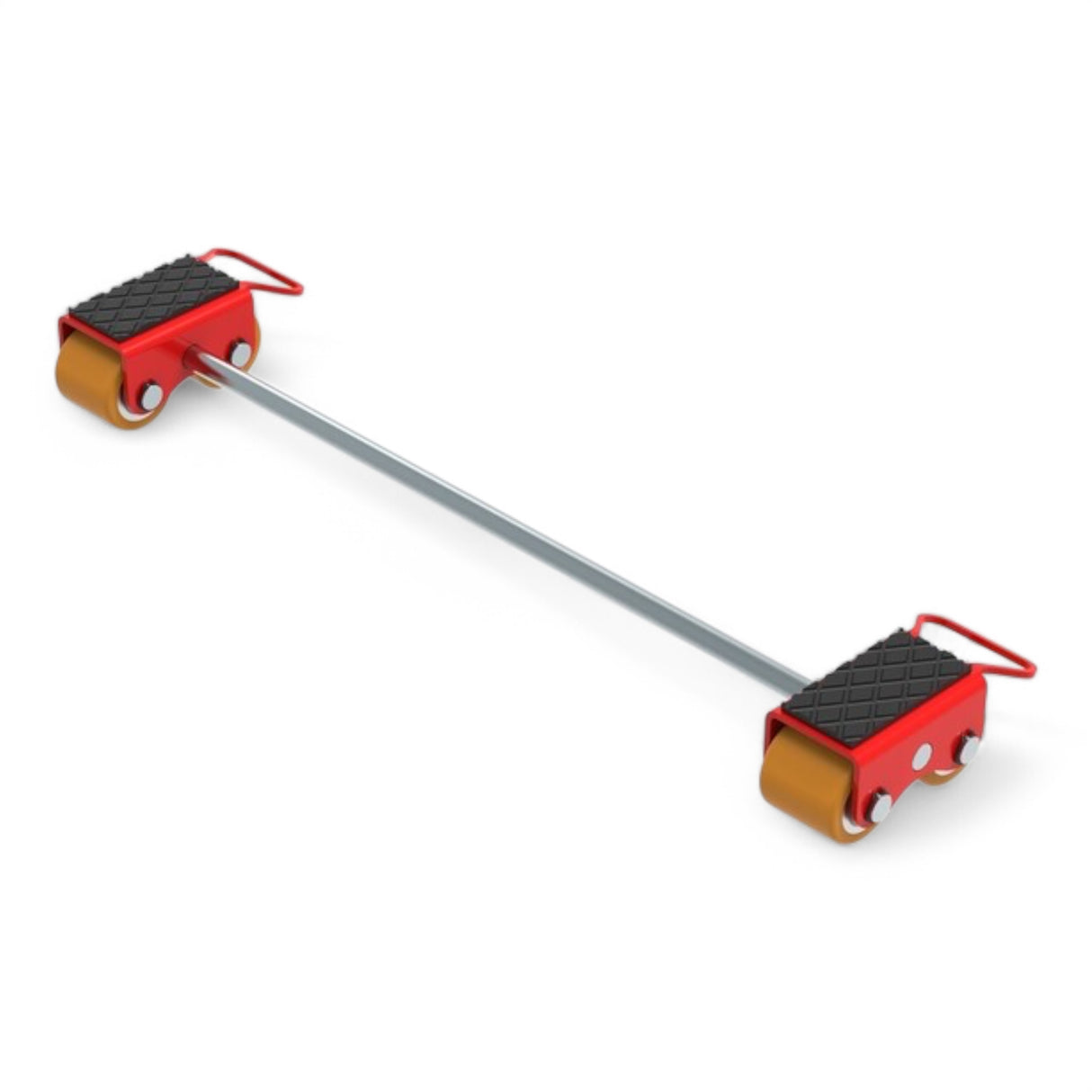

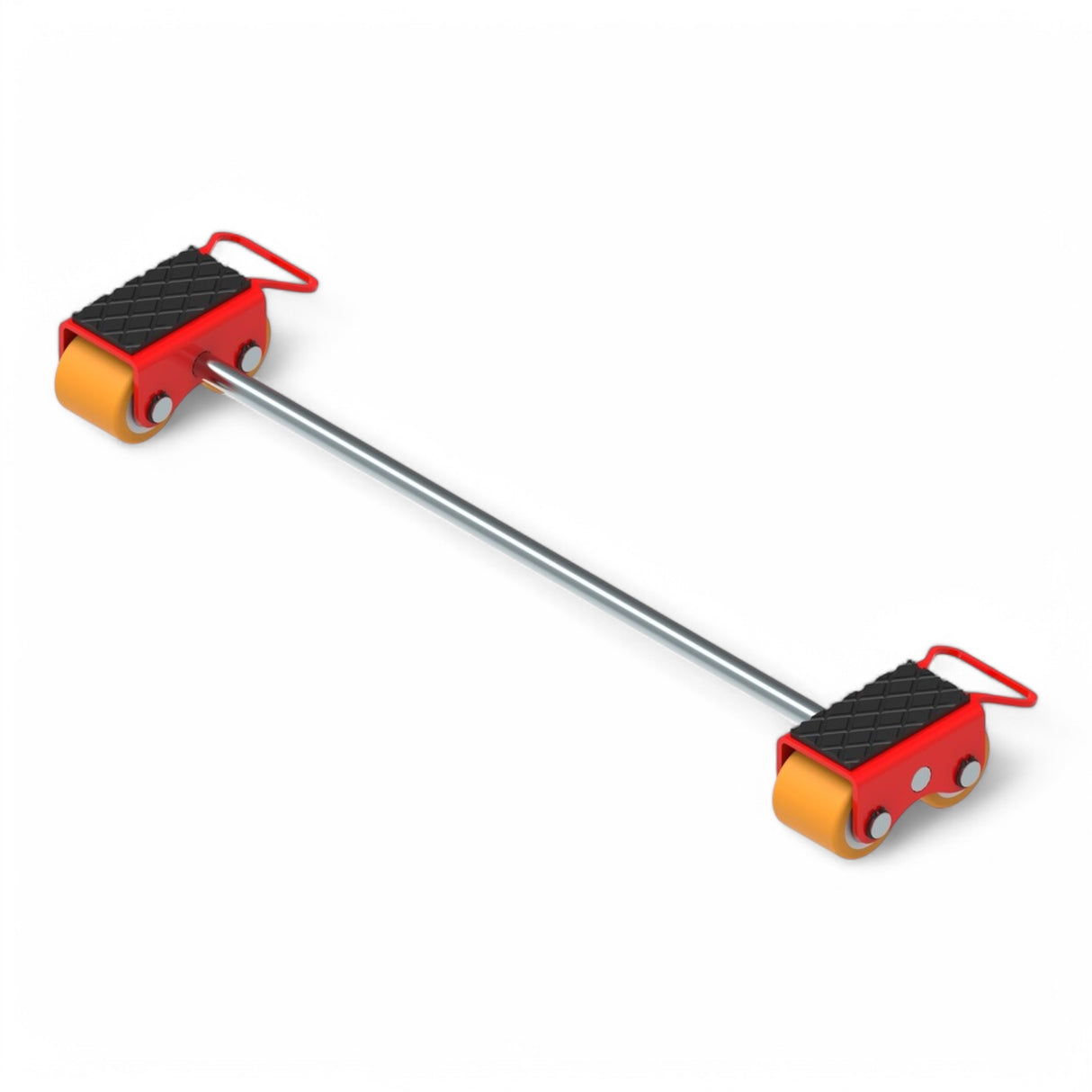

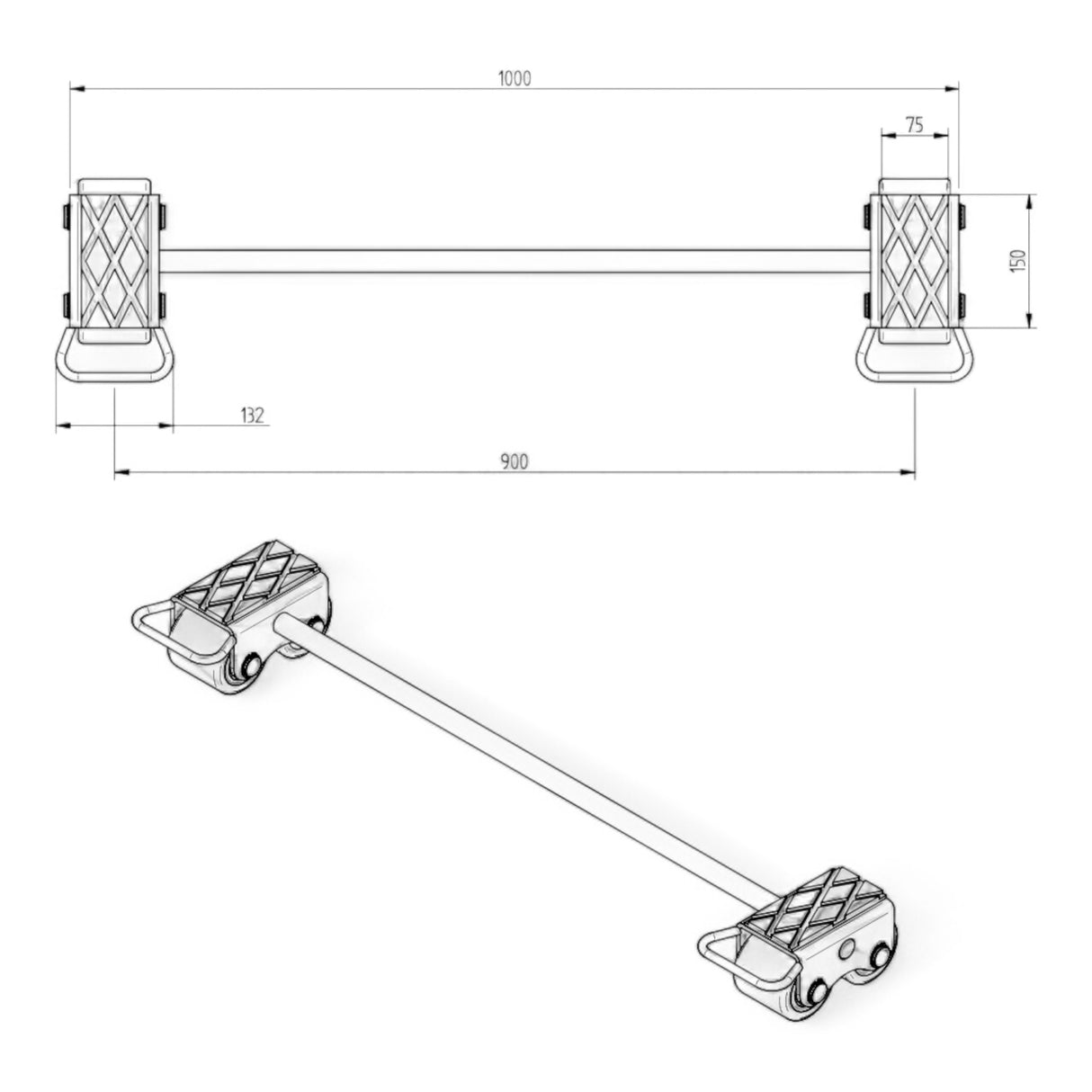

Technical data i30S (rigid):

• Load capacity: 2 x 1,500 kg

• Number of rollers: 4 (2 x 2)

• Roller material: Polyurethane, Ø85 x 87 mm

• Support surface: 150 x 75 mm with rubber coating

• Connection: foldable connecting rod

• Dimensions (L x W x H): 246 x 120 x 110 mm

• Weight: 14 kg

• Adjustment range: 120–880 mm

• Starting tractive force: 90 daN

• Tractive force at 2 km/h: 150 daN

Scope of delivery:

• 1x ECO-Skate® Transport Dolly i30L (steerable)

• 1x ECO-Skate® Transport Dolly i30S (rigid) with connecting rod

• As shown and described in the photos

Note:

New part – manufactured in Germany, spare parts and service available directly from the manufacturer or our workshop.

Highlights:

• 6t load capacity in a 3-point system – ideal for heavy loads

• Low-noise, cut-resistant HTS polyurethane rollers

•  Manufactured in Germany with excellent service
