Machine Moving Skates / Tank Rollers HTS ECO-Skate I90L+S, 18 t Load Capacity, Part No. 10.090.00.10

Your machine skates should always be as good as the machine they carry. Expensive machine skates are always cheaper than a wrecked machine. That is why we offer only products made in Germany.

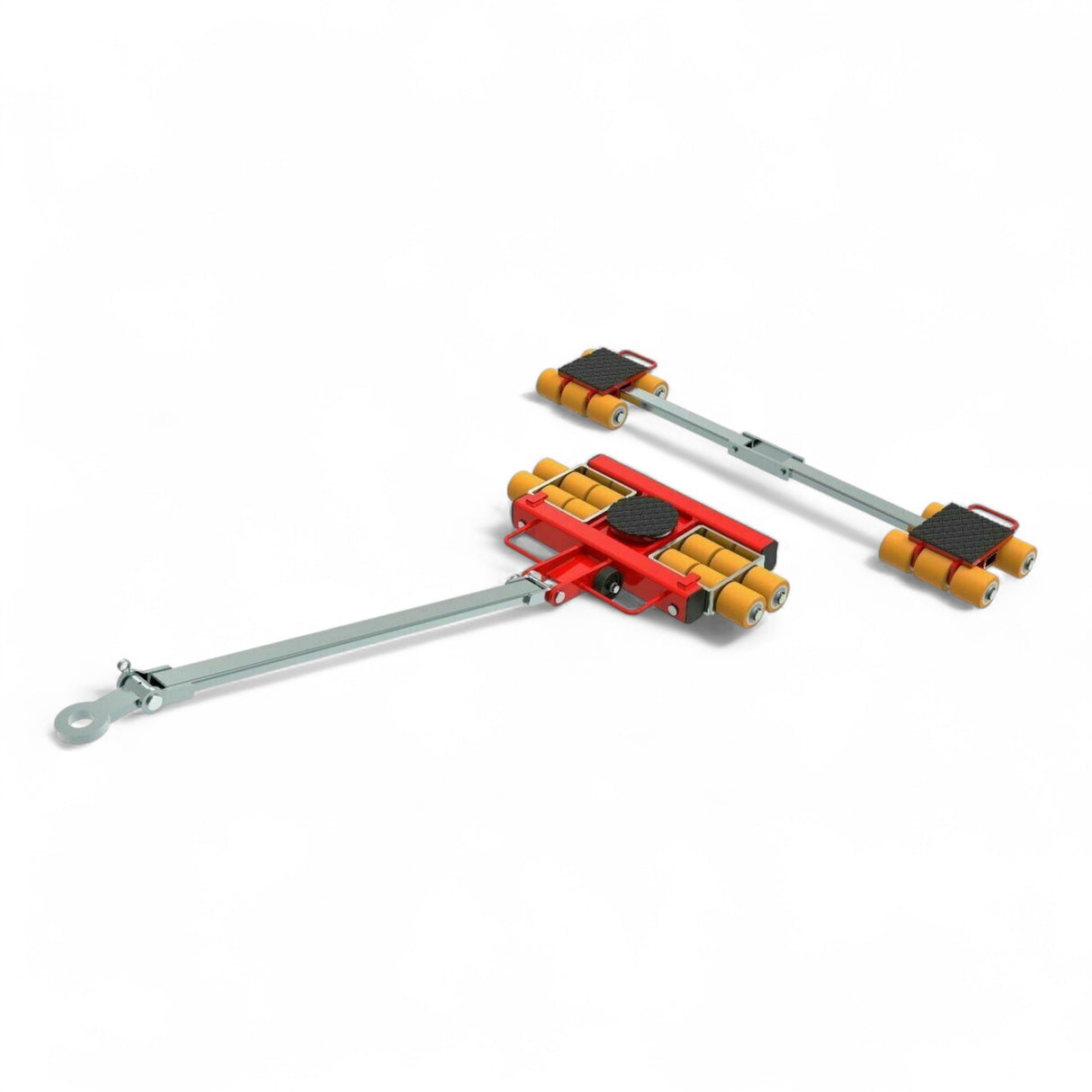

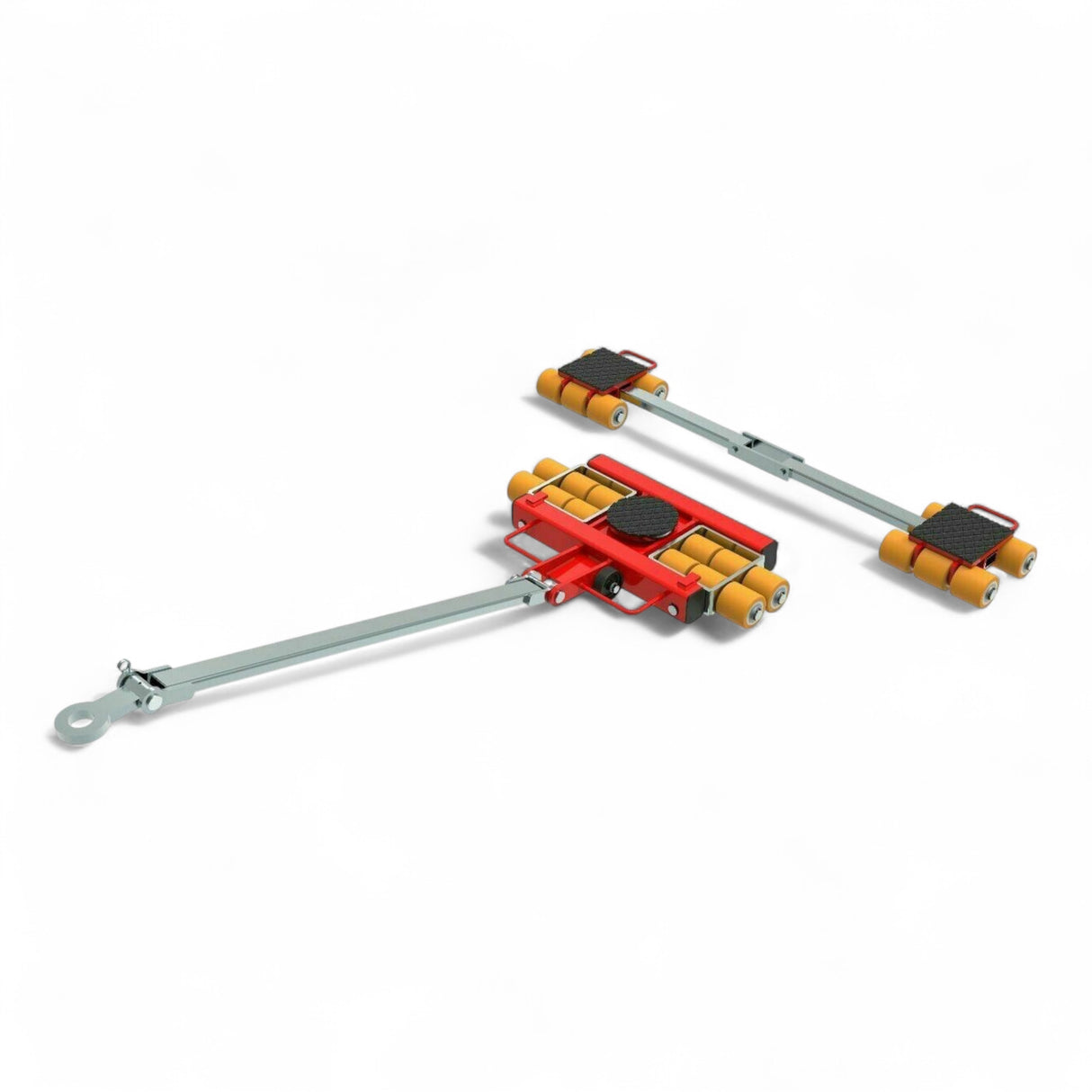

The HTS ECO-Skate IDEAL skate set i90L+i90S is the ideal solution for professional in-plant moving of heavy loads up to 18,000 kg on level, clean industrial floors.

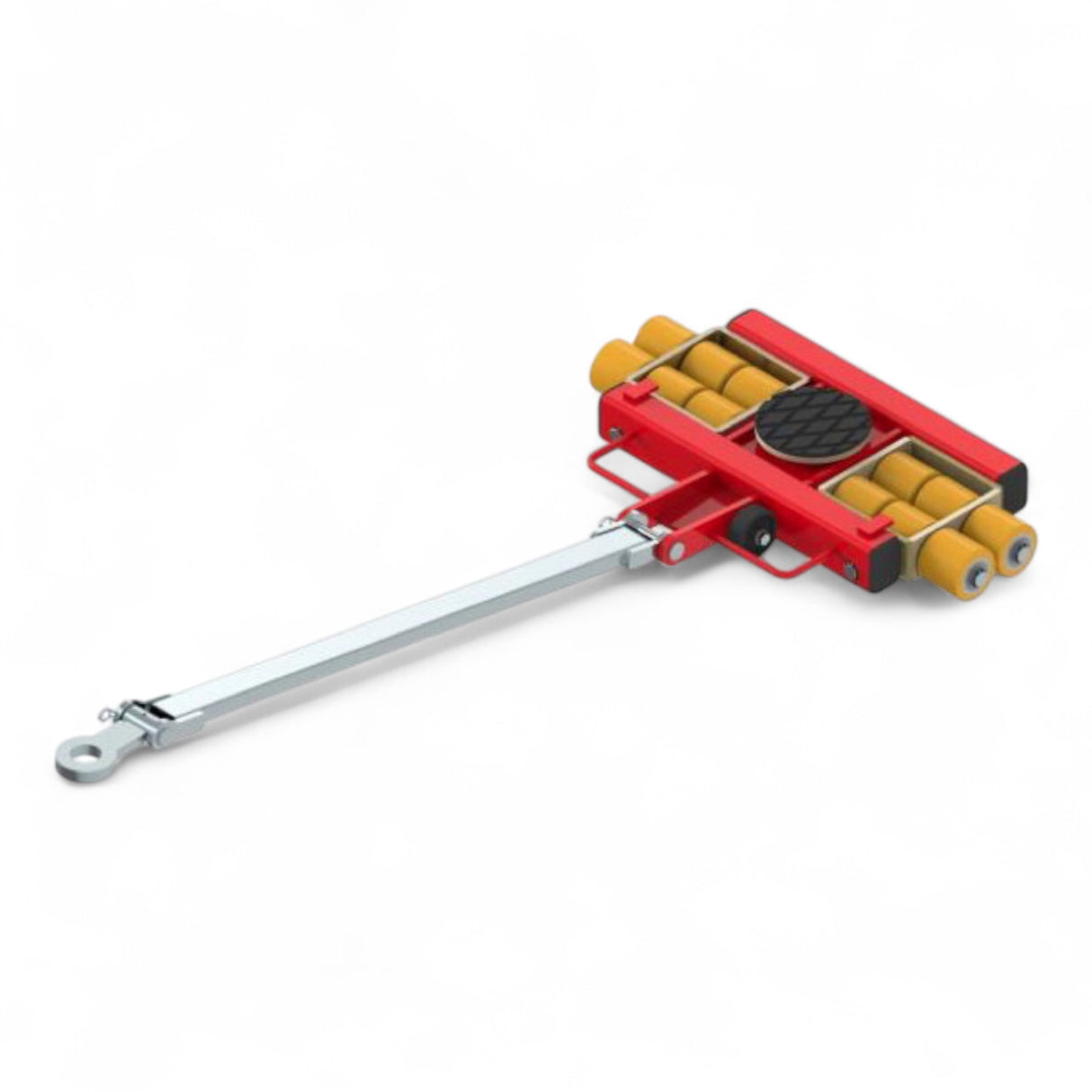

The set consists of the ECO-Skate IDEAL skate i90L (PU), a steerable skate with a load capacity of 9,000 kg, fitted with high-quality polyurethane rollers Ø85x87 mm and a sturdy drawbar with towing eye. The skate has a turntable with a non-slip waffle rubber pad and wear-resistant, cut-resistant, non-marking 3-component polyurethane rollers. These are especially suited to clean floors with slight unevenness. Combined with S, DUO or two ROTO skates of the same height, it forms a safe 3-point moving system.

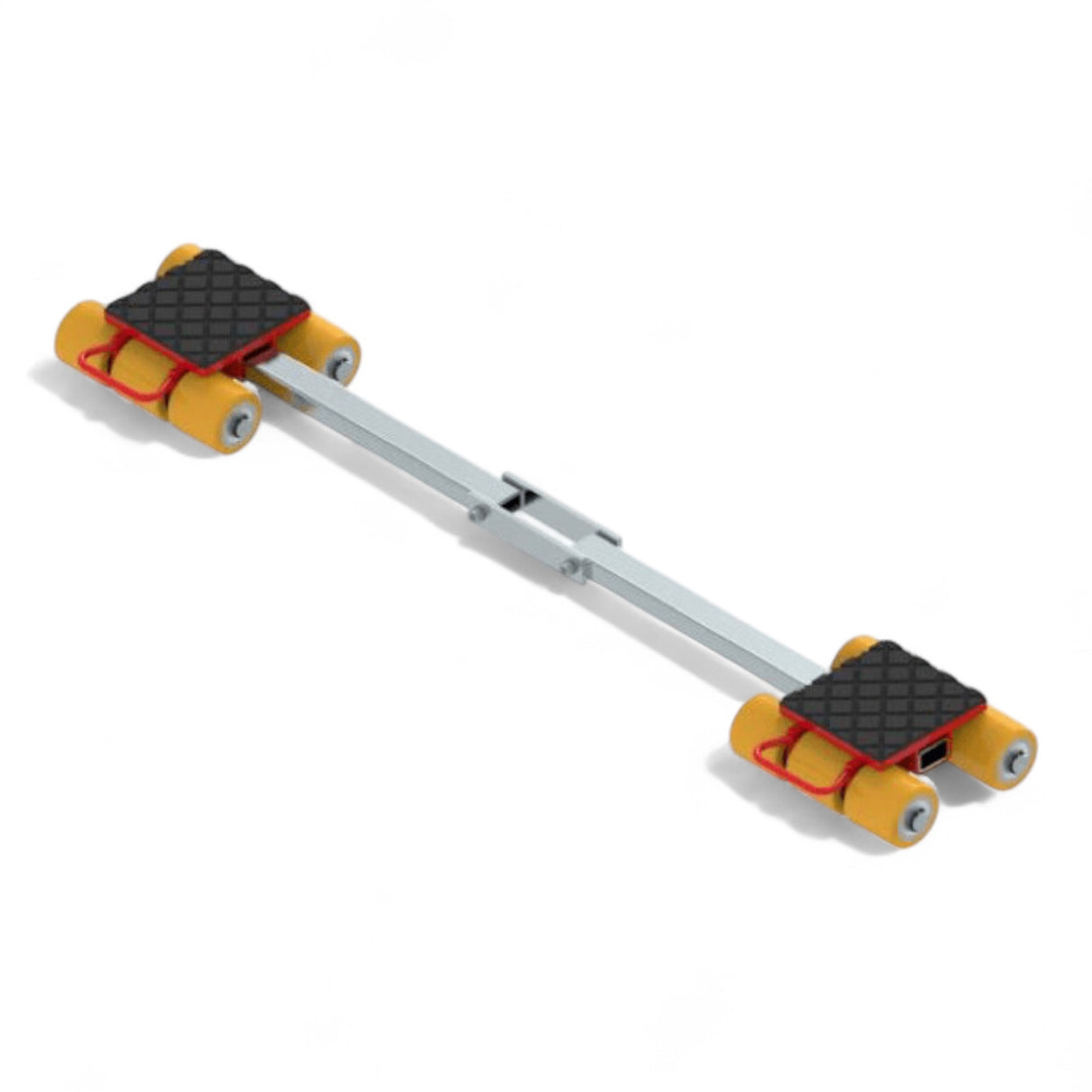

The ECO-Skate IDEAL skate i90S (PU) is a fixed skate with a load capacity of 2 x 4,500 kg, also fitted with polyurethane rollers Ø85x87 mm and a folding connecting bar. The load surface has a non-slip waffle rubber pad. Together with the L skate or a ROTO skate of the same height, it forms a safe complete system with three load points. When using DUO or two ROTO skates, follow the operating instructions for 4-point support.

All skates are made in Germany and offer top quality as well as full replacement part and repair service from the manufacturer or our in-house shop.

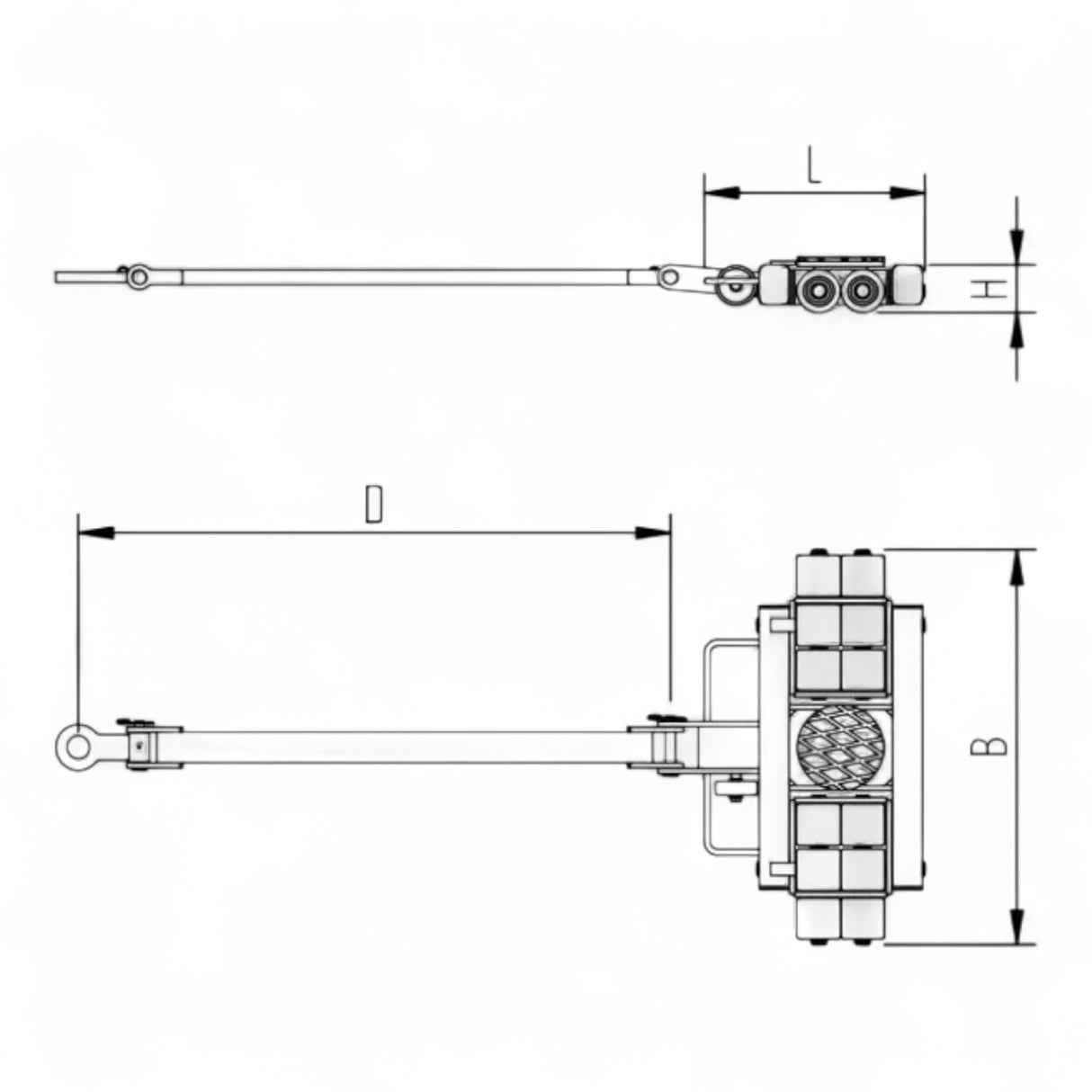

Technical data i90L (steerable):

Part number: 10.090.00.10

Load capacity: 9,000 kg

Number of rollers: 12

Roller size: Ø 85 x 87 mm / Ø 25 mm

Load surface diameter: Ø 170 mm

Drawbar length: 1170 mm

Dimensions (L x W x H): 528 x 780 x 110 mm

Weight: 57 kg

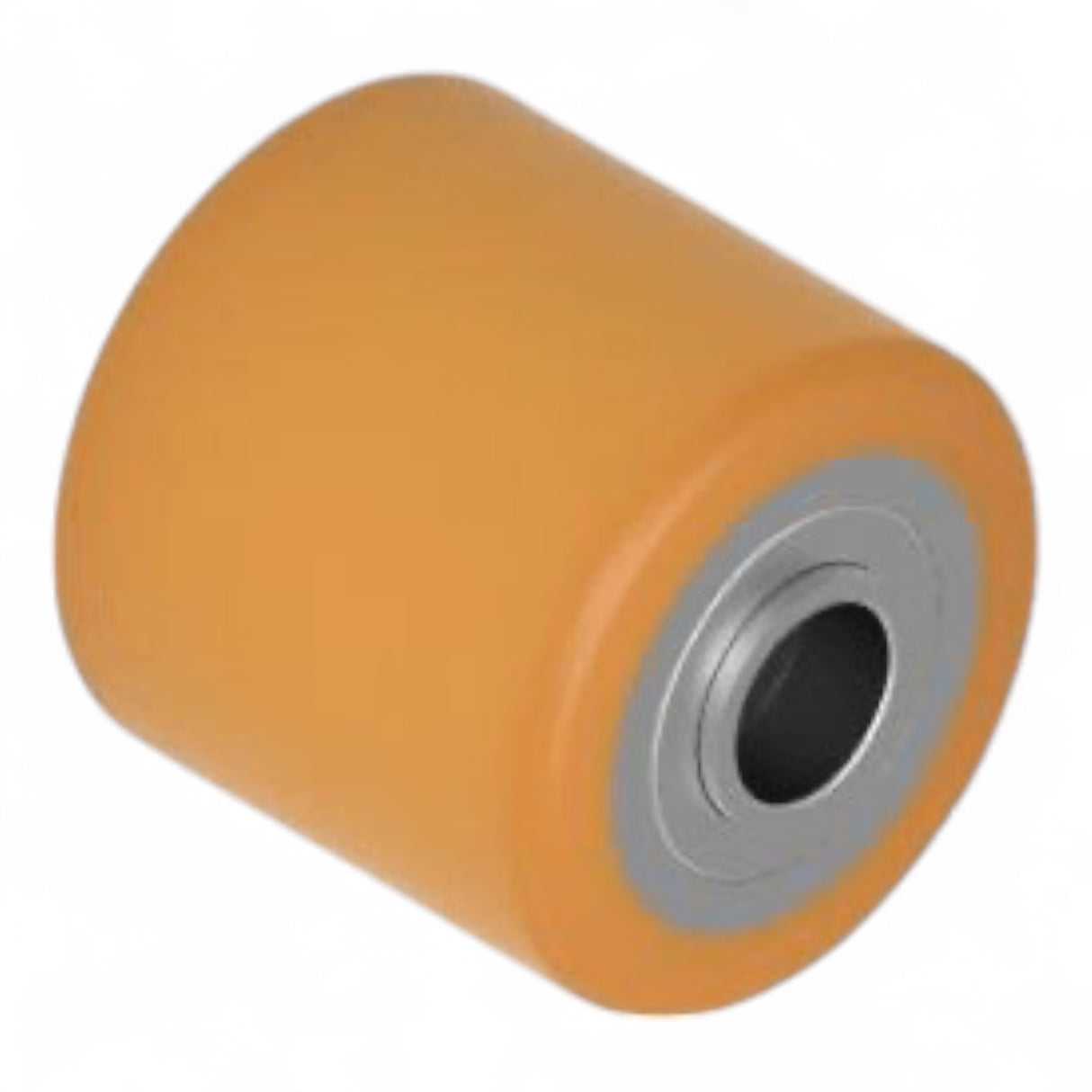

Roller material: polyurethane (PU) / steel core (ST), 93 Shore A

Roller type: 11.085.00.14

Roller load rating: 750 daN

Surface pressure: 8.4 MPa

Maximum speed: 2 km/h

Starting pull force*: 270 daN

Pull force at 2 km/h*: 450 daN

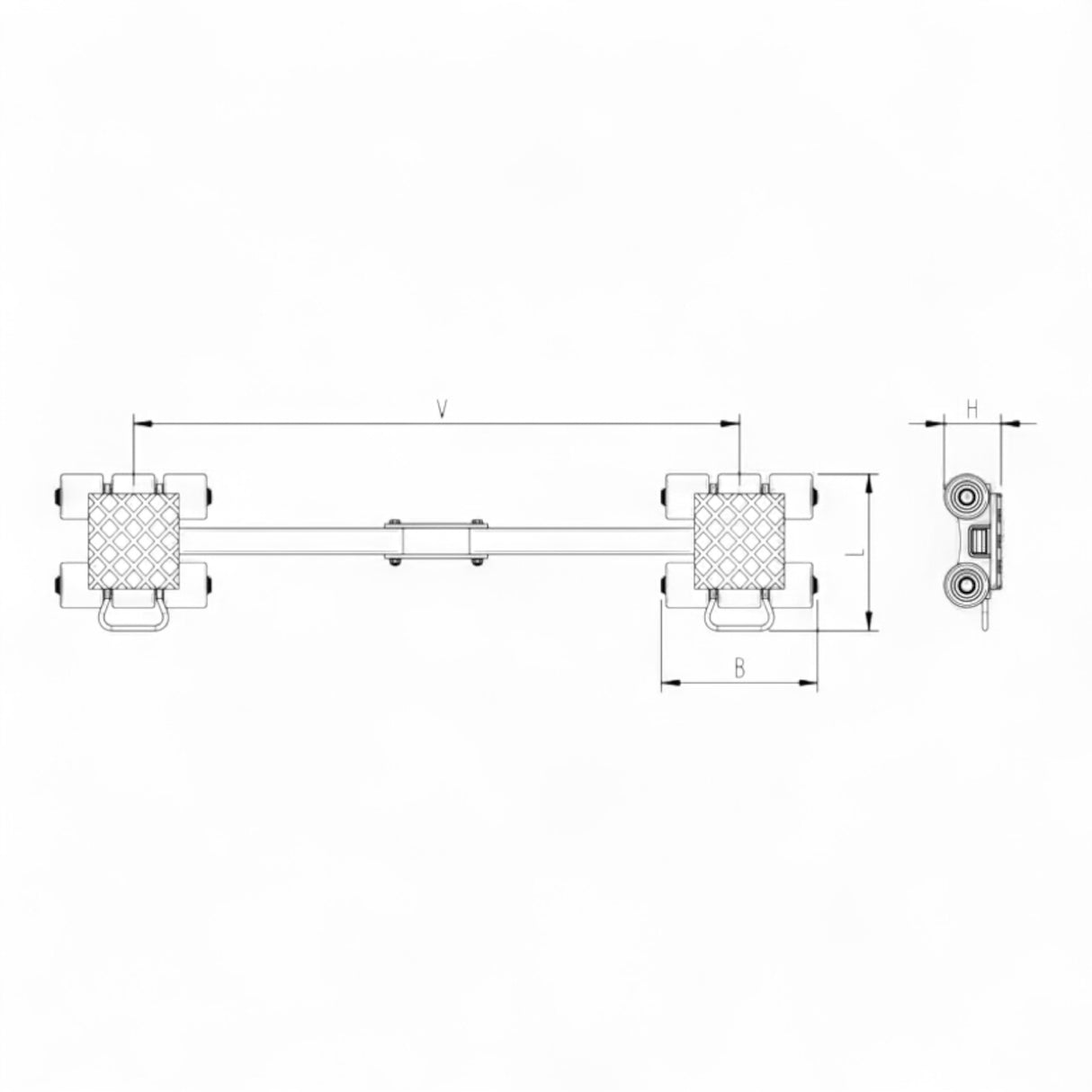

Technical data i90S (fixed):

Part number: 10.090.00.20

Load capacity: 2 x 4,500 kg

Number of rollers: 2 x 6

Roller size: Ø 85 x 87 mm / Ø 25 mm

Load surface per skate: 180 x 170 mm

Connecting bar adjustment range: 460 – 1145 mm

Dimensions (L x W x H): 295 x 295 x 110 mm

Weight: 36 kg

Roller material: polyurethane (PU) / steel core (ST), 93 Shore A

Roller type: 11.085.00.14

Roller load rating: 750 daN

Surface pressure: 8.4 MPa

Maximum speed: 2 km/h

Starting pull force*: 270 daN

Pull force at 2 km/h*: 450 daN

1 x ECO-Skate i90L (PU), steerable, with drawbar

1 x ECO-Skate i90S (PU), fixed, with folding connecting bar

Supplied as shown

Technical documentation available for download after purchase

German quality manufacturing

Non-slip waffle rubber pad

Wear-resistant, cut-resistant and non-marking rollers

Replacement part service and repairs directly from the manufacturer or through our in-house shop

Combines easily with ROTO, DUO or S skates

Ideal for machine moves and professional heavy-load logistics

All data are based on manufacturer specifications and may vary slightly depending on operating conditions. Always follow the operating instructions and safety information.
