Siemens Transformer 4AV3295-7AA00 T50/B – 24 V DC 20 A – with 10,000 µF Capacitor – used

Name: Siemens Transformer 4AV3295-7AA00 T50/B – 24 V DC 20 A – with 10,000 µF Capacitor – used
Brand: SIEMENS
Price: 297.00 EUR
Availability: InStock

€297,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Siemens Transformer Used

Siemens Transformer 4AV3295-7AA00 T50/B with 10,000 µF 10 V Capacitor

Three-phase Siemens industrial transformer with 24 V DC / 20 A output and mounted F&T capacitor, built to DIN VDE 0660 – for machine controls and Siemens control cabinets.

4AV3295-7AA00

Part number

24 V DC / 20 A

Output

3~ 214–426 V AC

Input

50/60 Hz

Frequency

Before you order: compare the type label (Siemens 4AV3295-7AA00 T50/B) and your input voltage configuration with your existing unit. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	Siemens
Type	4AV3295-7AA00 T50/B
Standard	DIN VDE 0660
Frequency	50/60 Hz
Input (PRI)	3~ AC 214 V – 426 V (selectable per type label)
Output (SEC)	DC 24 V / 20 A
Capacitor	F&T 10,000 µF / 10 V, type LF, −40 to +105 °C
Connection	Screw terminals, numbered leads
Weight	approx. 4.5 kg
Condition	Used · 2 – Good

Product description

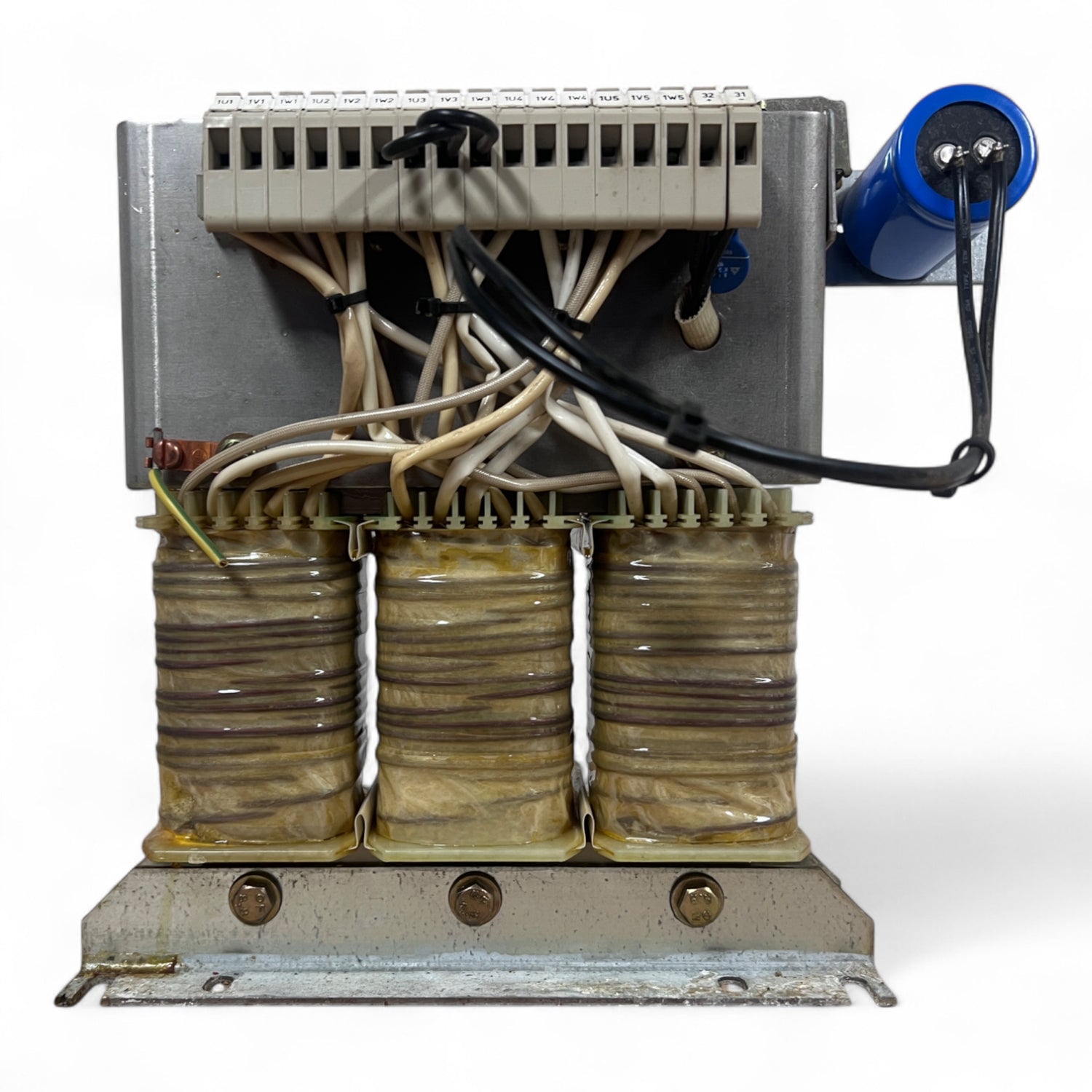

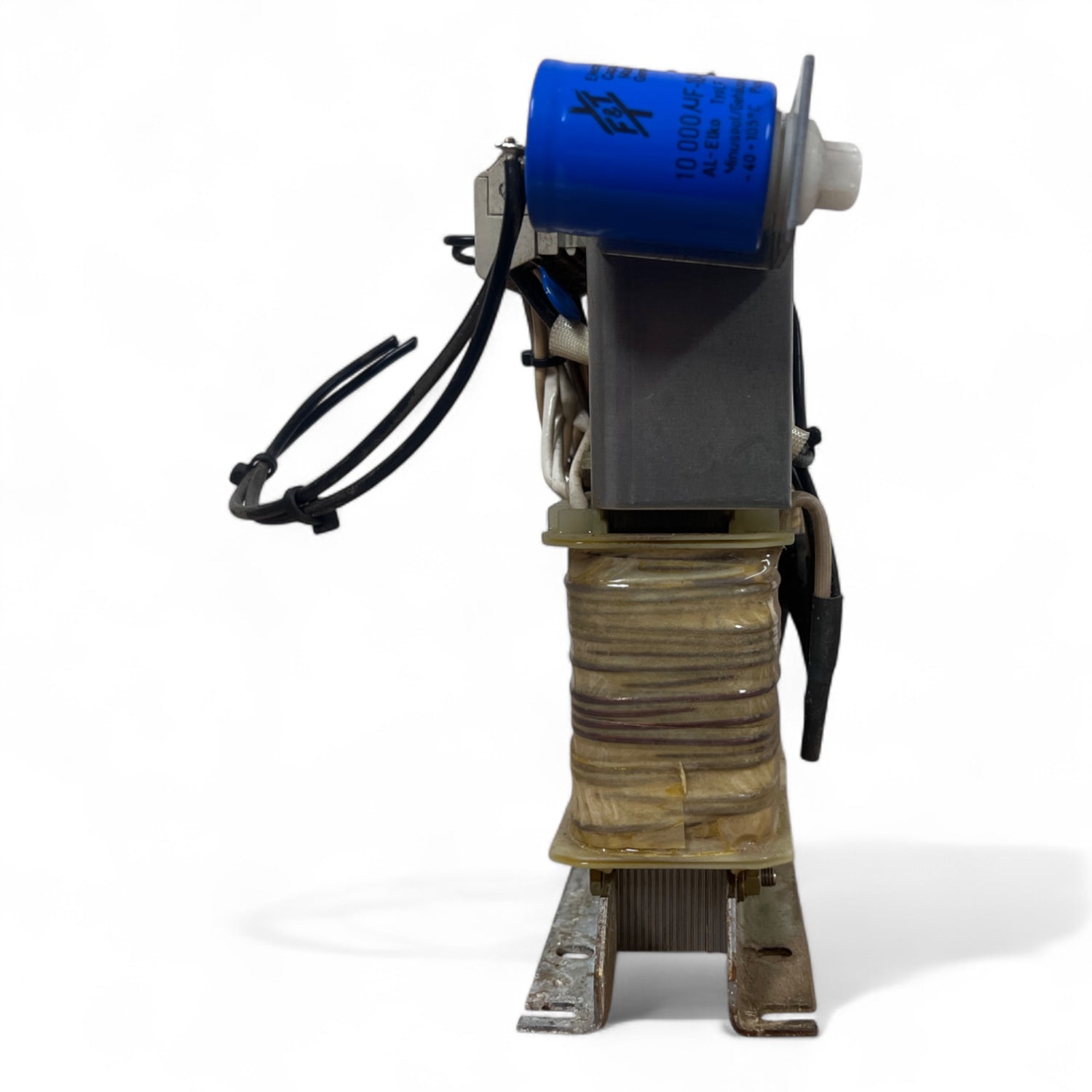

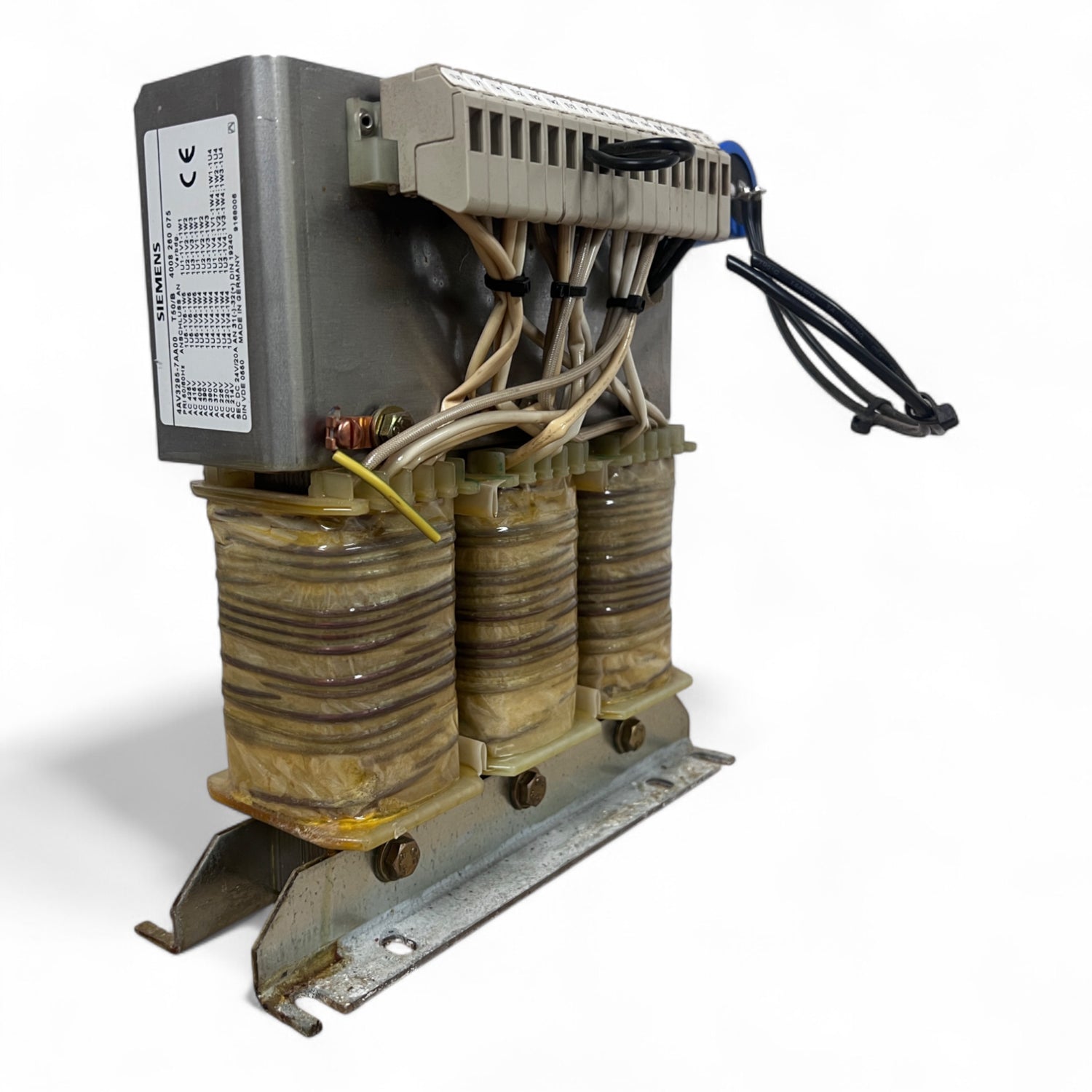

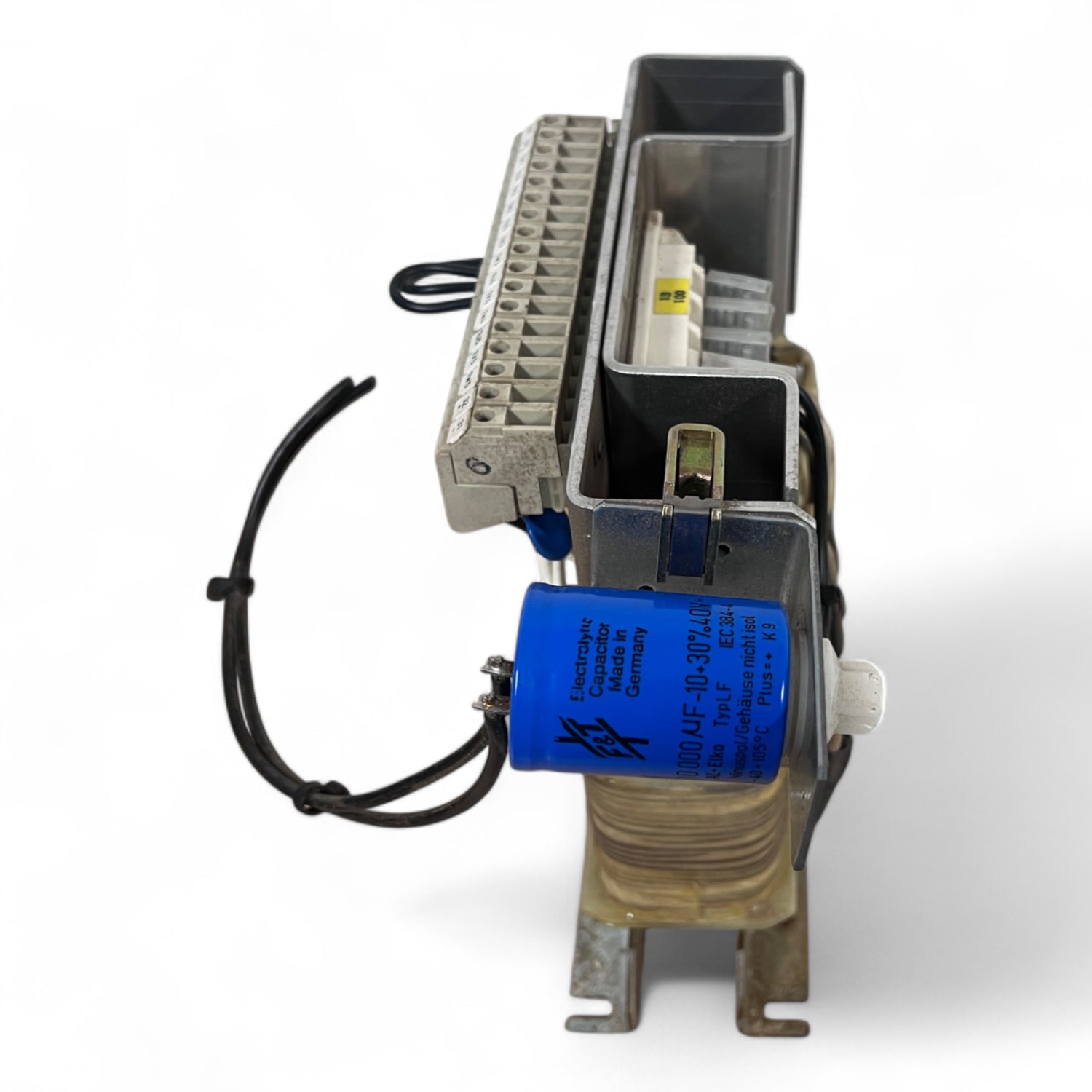

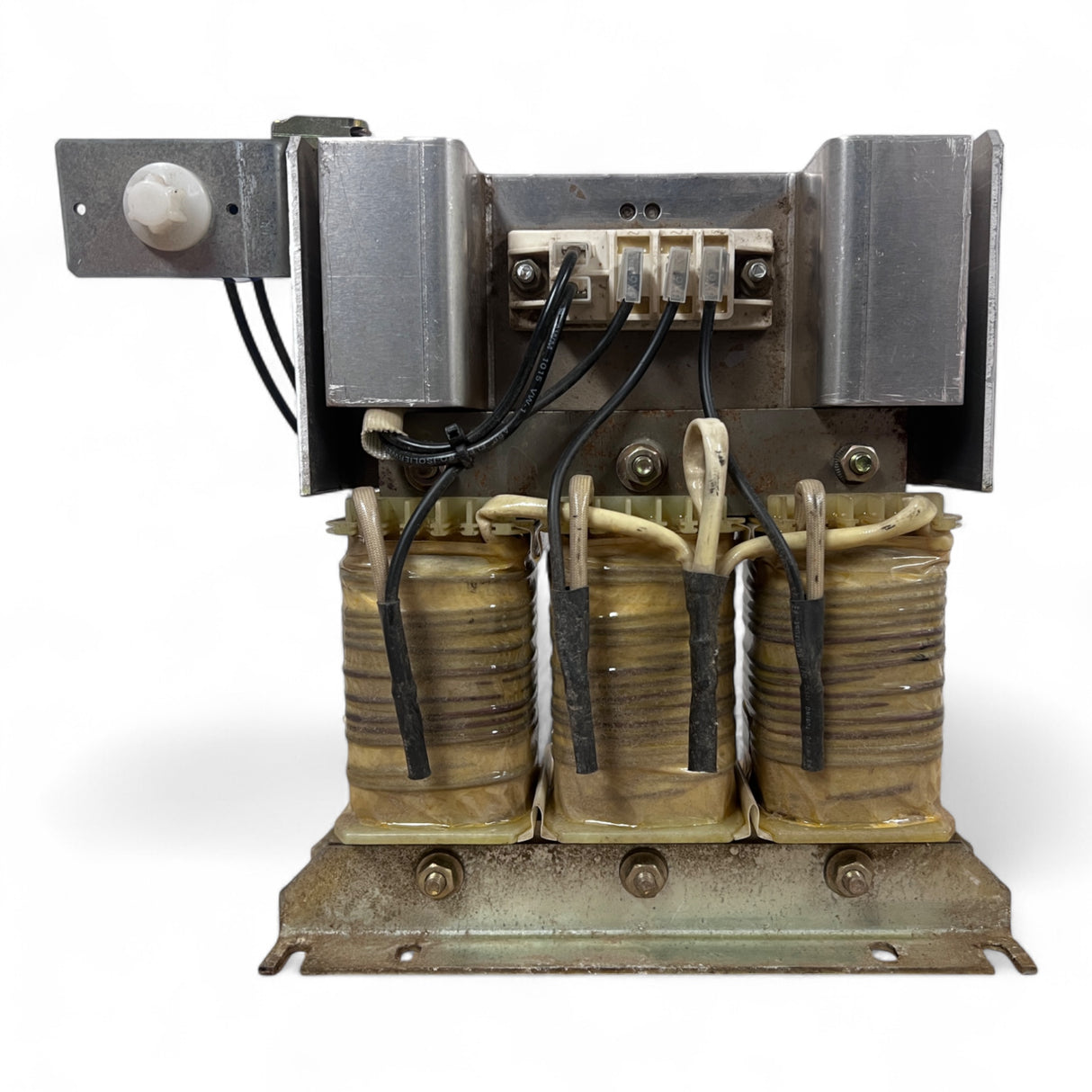

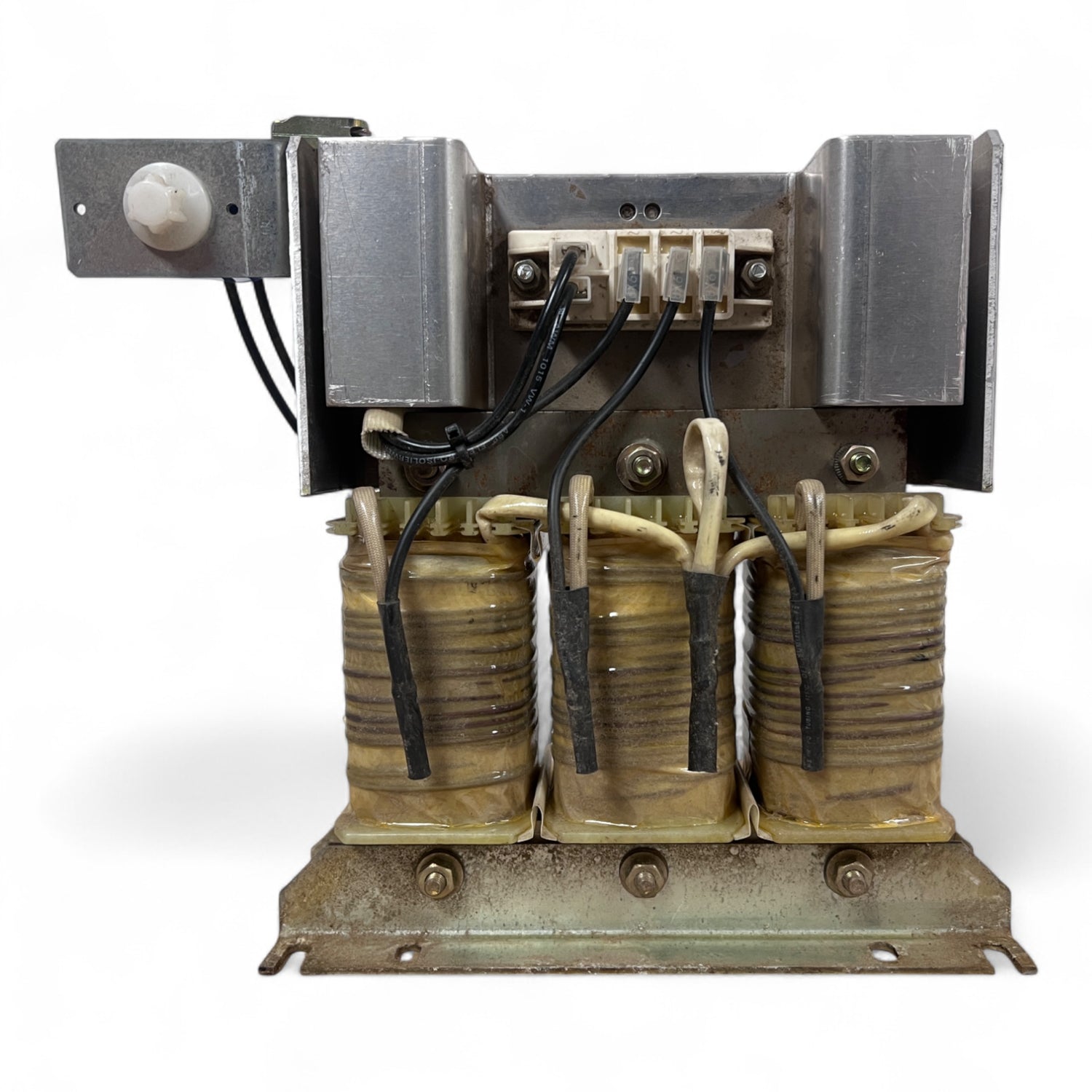

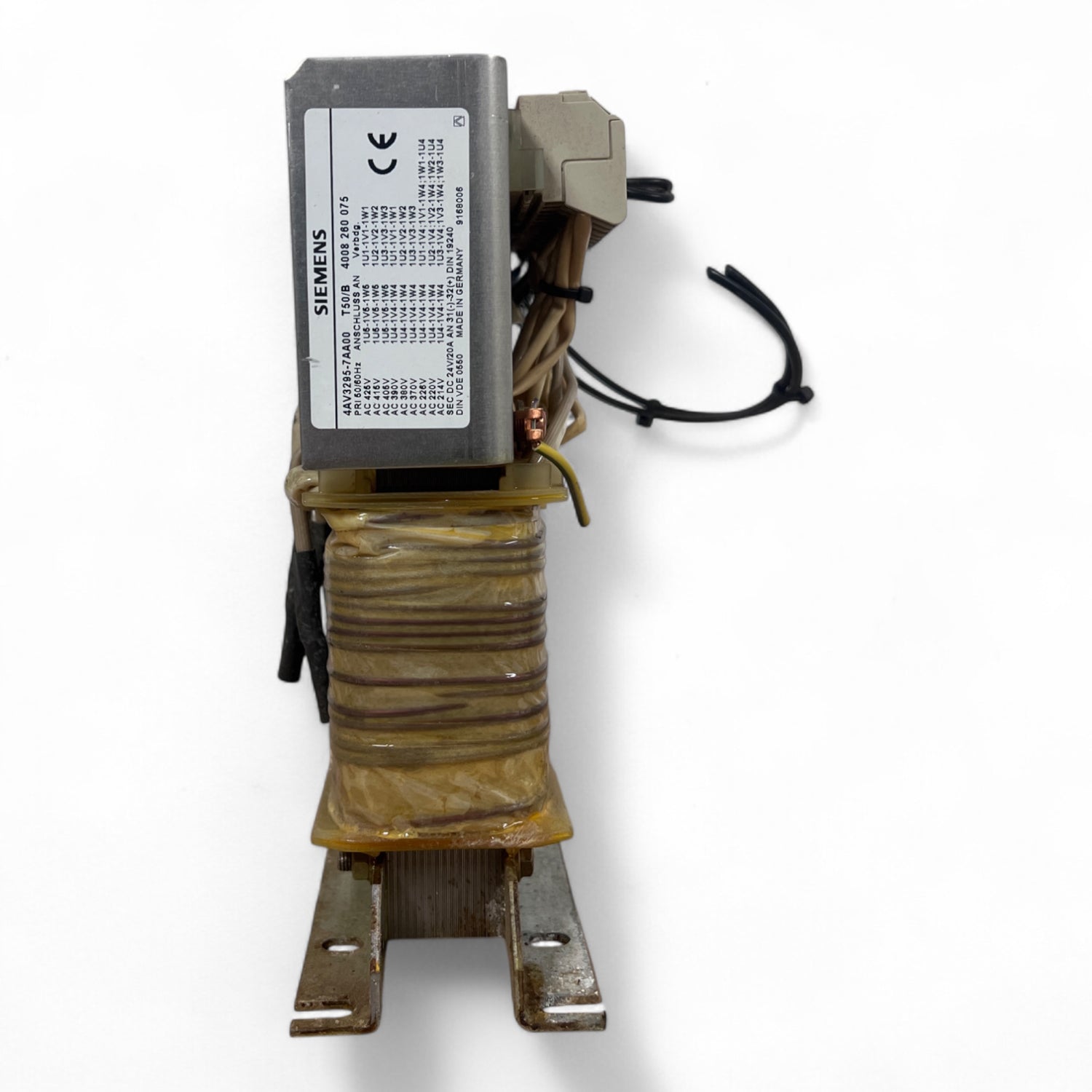

Three-phase Siemens industrial transformer, type 4AV3295-7AA00, manufactured to DIN VDE 0660. It is fitted with a large blue F&T Electronics aluminum electrolytic capacitor (10,000 µF, 10 V, type LF, −40 to +105 °C) for smoothing and stabilizing the DC output.

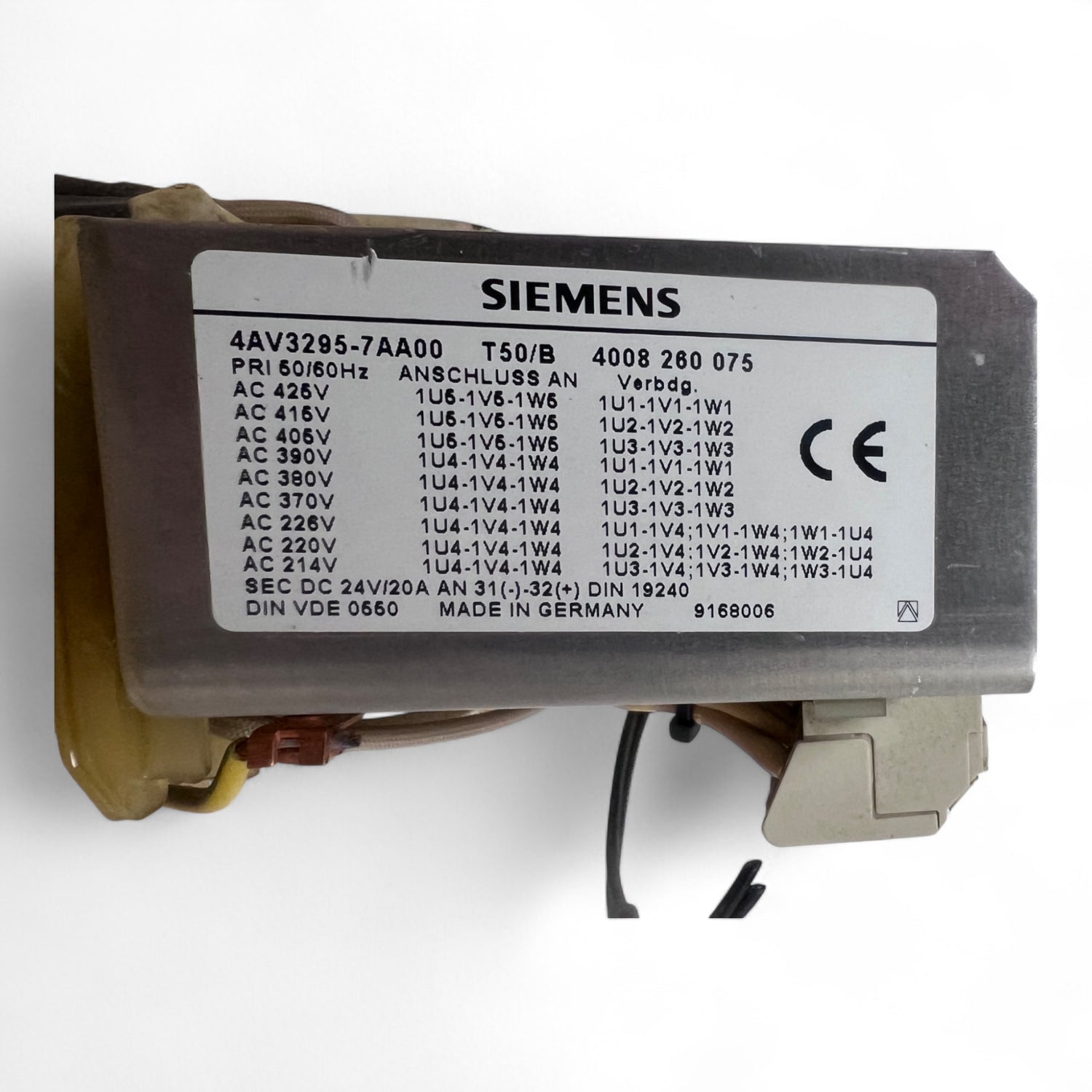

The assembly is pre-mounted on a sturdy base plate and contains three generously insulated windings with leads routed to a labeled terminal strip. All leads are numbered; the voltage terminal assignment is documented precisely on the side type label.

Used part removed from a running industrial installation and functional until removal – visible signs of use, no damage.

Compatibility & applications

Siemens control cabinetsMachine controls24 V DC supplySiemens 4AV series

Scope of delivery

Siemens 3-phase transformer 4AV3295-7AA00, labeled terminal strip, F&T capacitor 10,000 µF, mounting plate with screw holes and connecting leads as shown.
