Siemens SIMODRIVE 611 Line Filter Module 36/47 kW, Version A – 6SN1...
Siemens SIMODRIVE 611 Line Filter Module 36/47 kW, Version A – 6SN1111-0AA01-0CA2

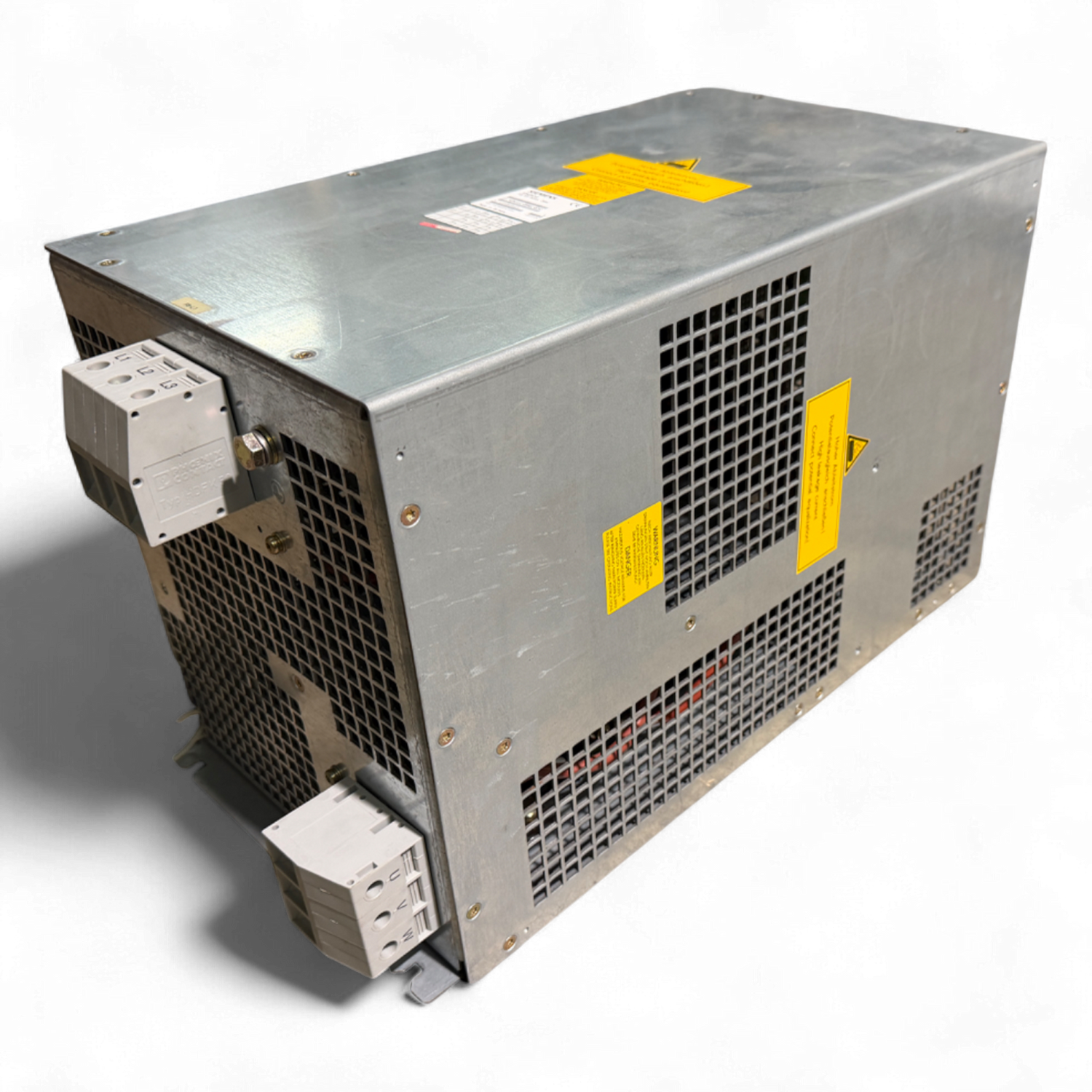

Line filter for the infeed/regenerative feedback unit · three-phase · cabinet-mounted module with carrying handle. Removed from an IMA BIMA 810.
| Order number | 6SN1111-0AA01-0CA2 |
| Version | Version A · GWE-462008963602 |
| Type | SIMODRIVE 611 filter module (line filter) |
| Power rating | 36/47 kW |

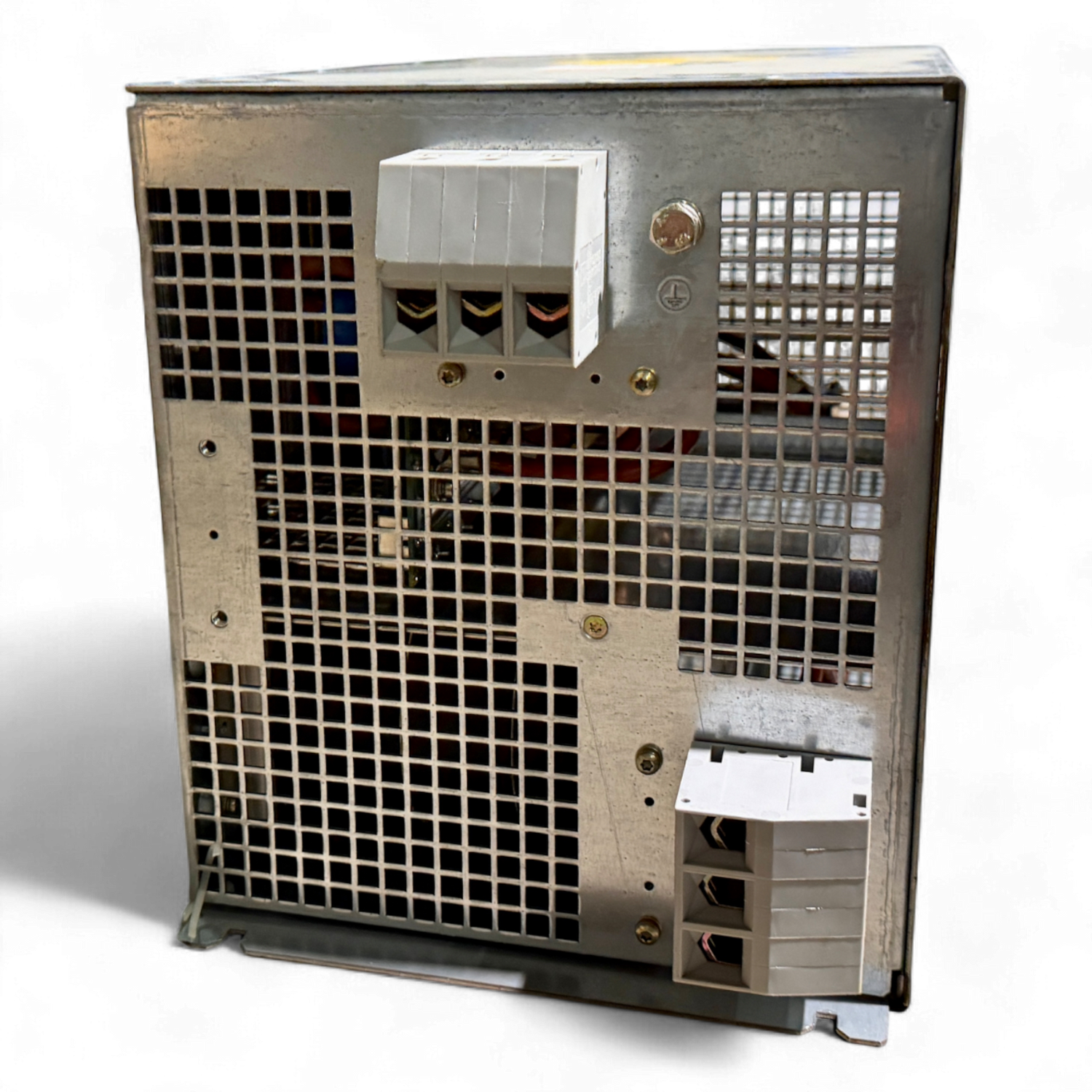

| Input | 3-phase, terminals L1 / L2 / L3 plus protective earth |
| Connection | Screw / clamp terminals |

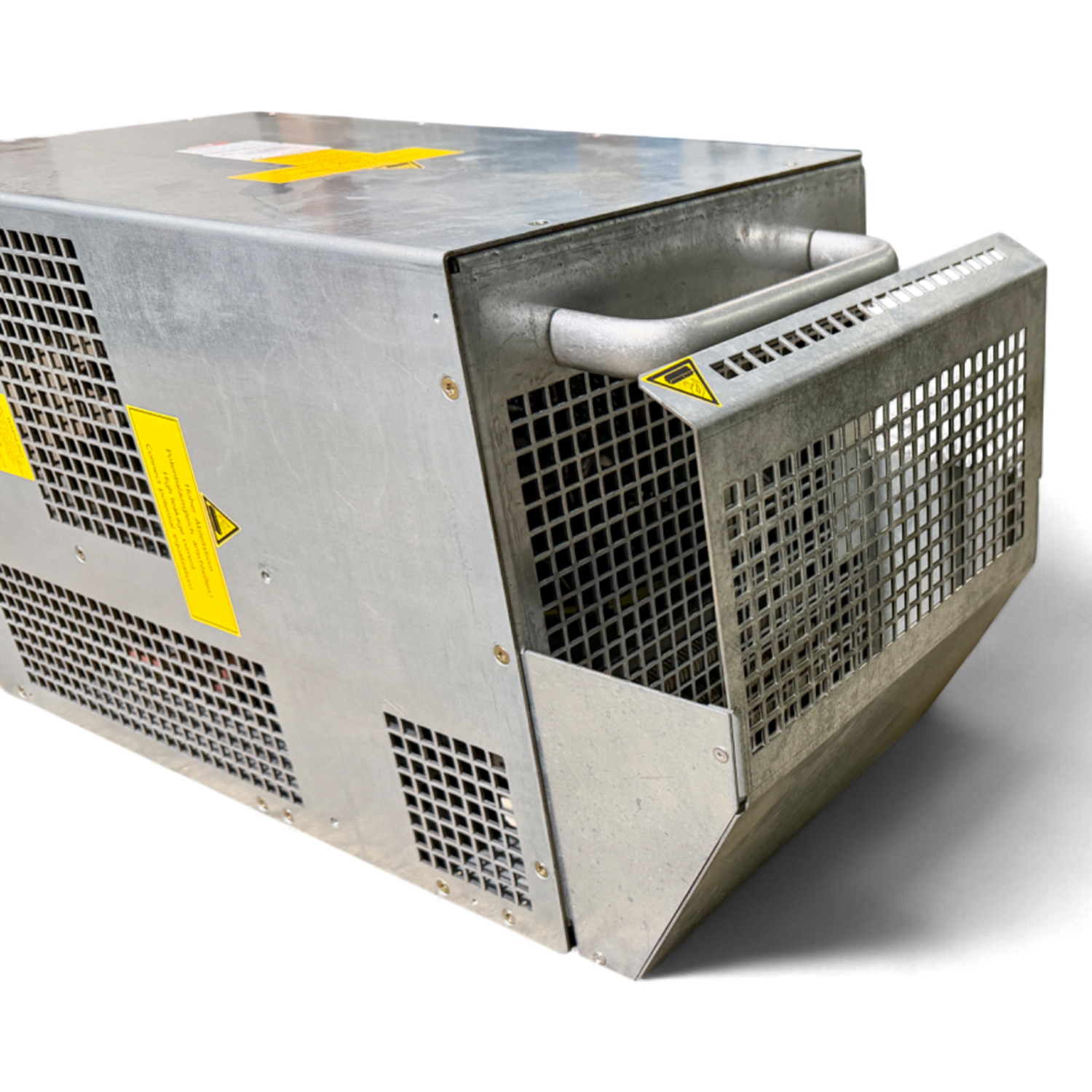

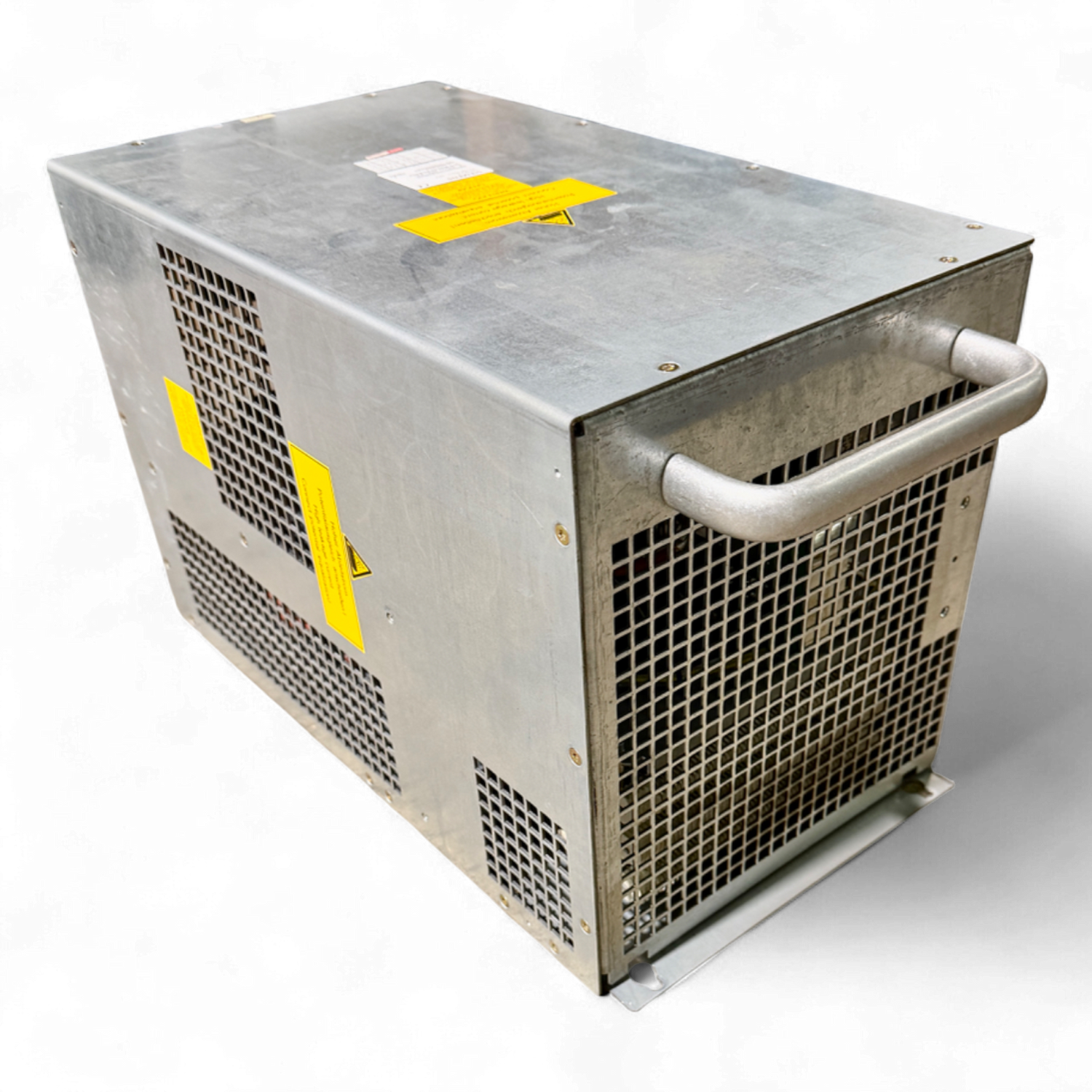

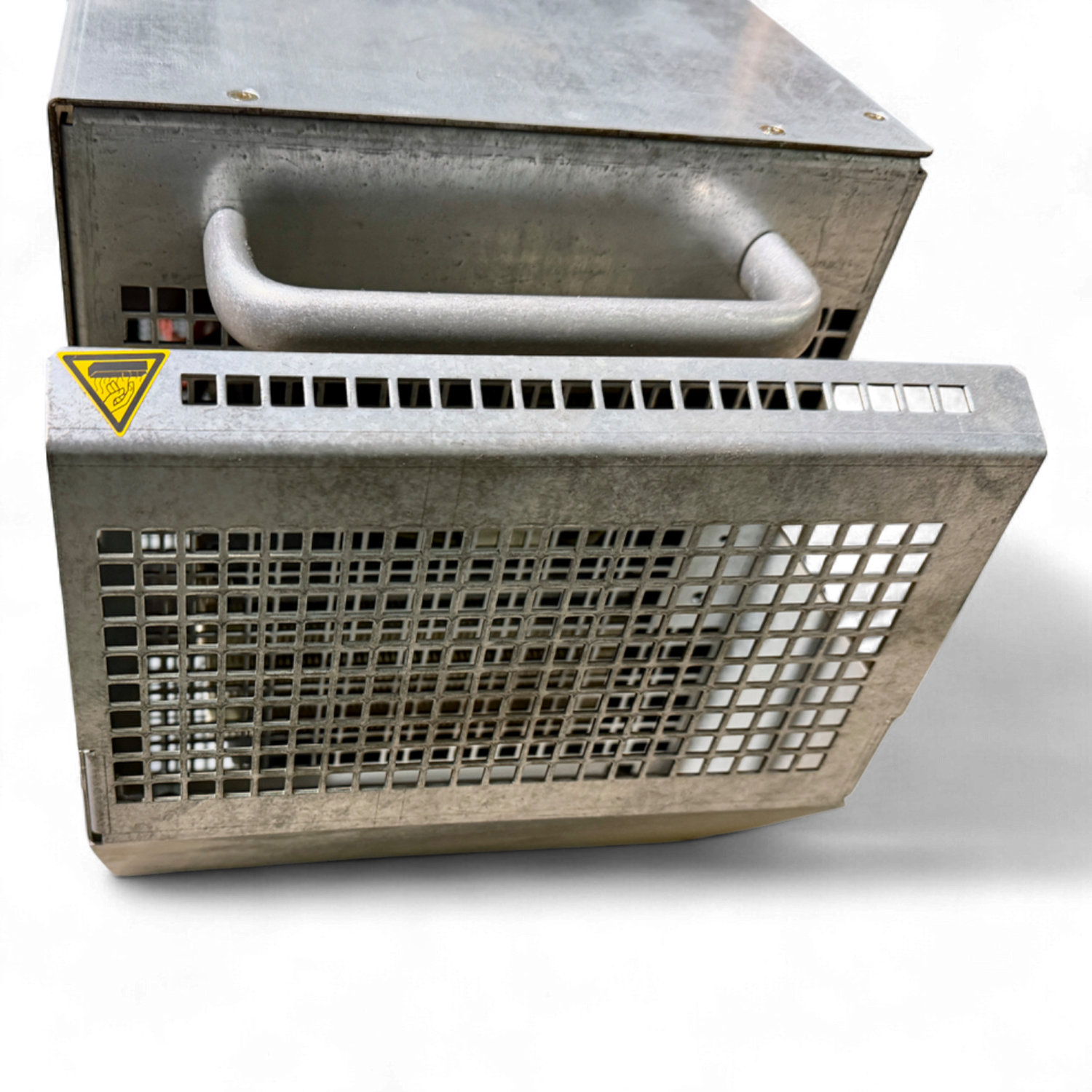

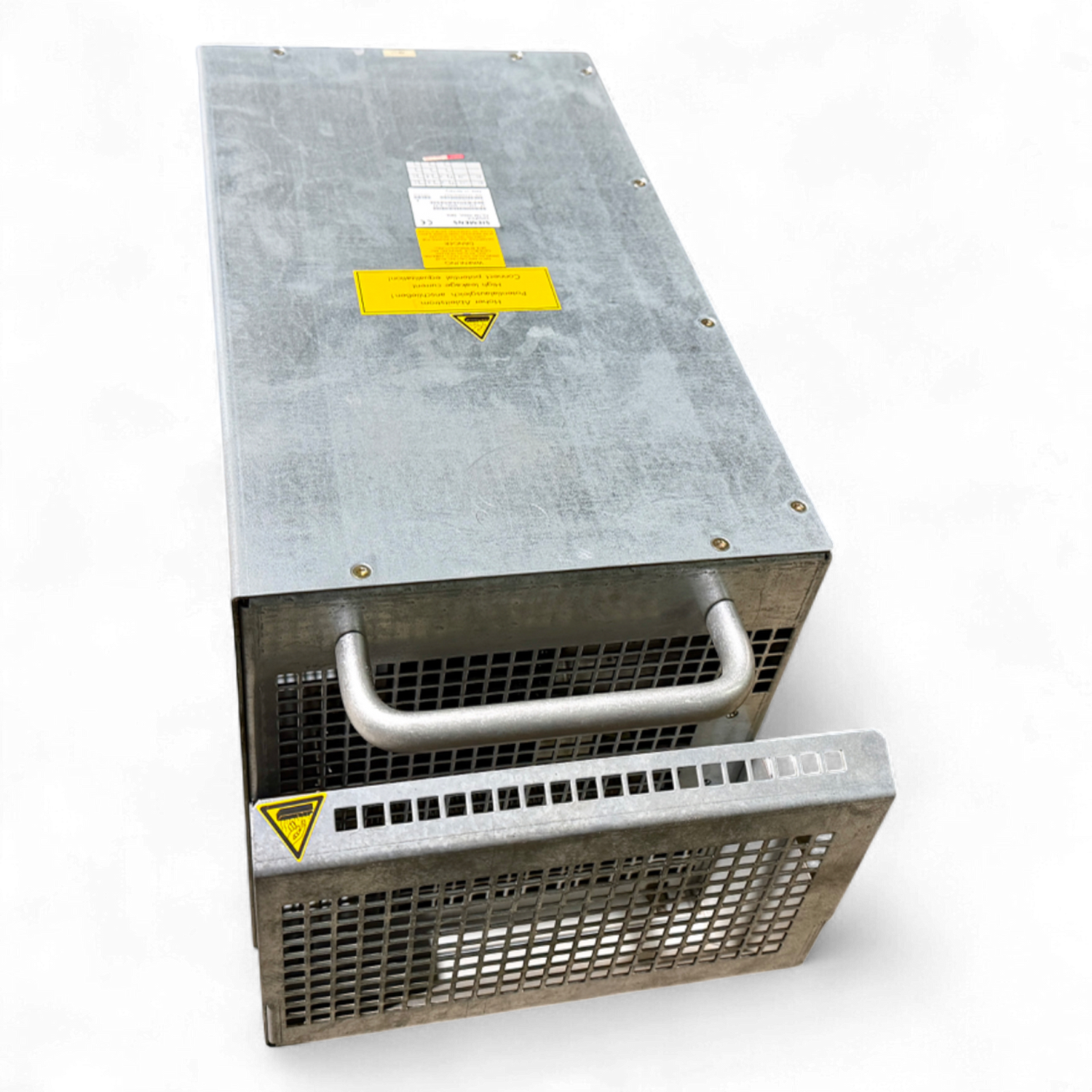

| Design | Cabinet-mounted module, shielded sheet-metal housing with carrying handle and protective grille |
| Dimensions | approx. 600 × 300 × 250 mm (L×W×H, measured) |
| Weight | approx. 41.7 kg |

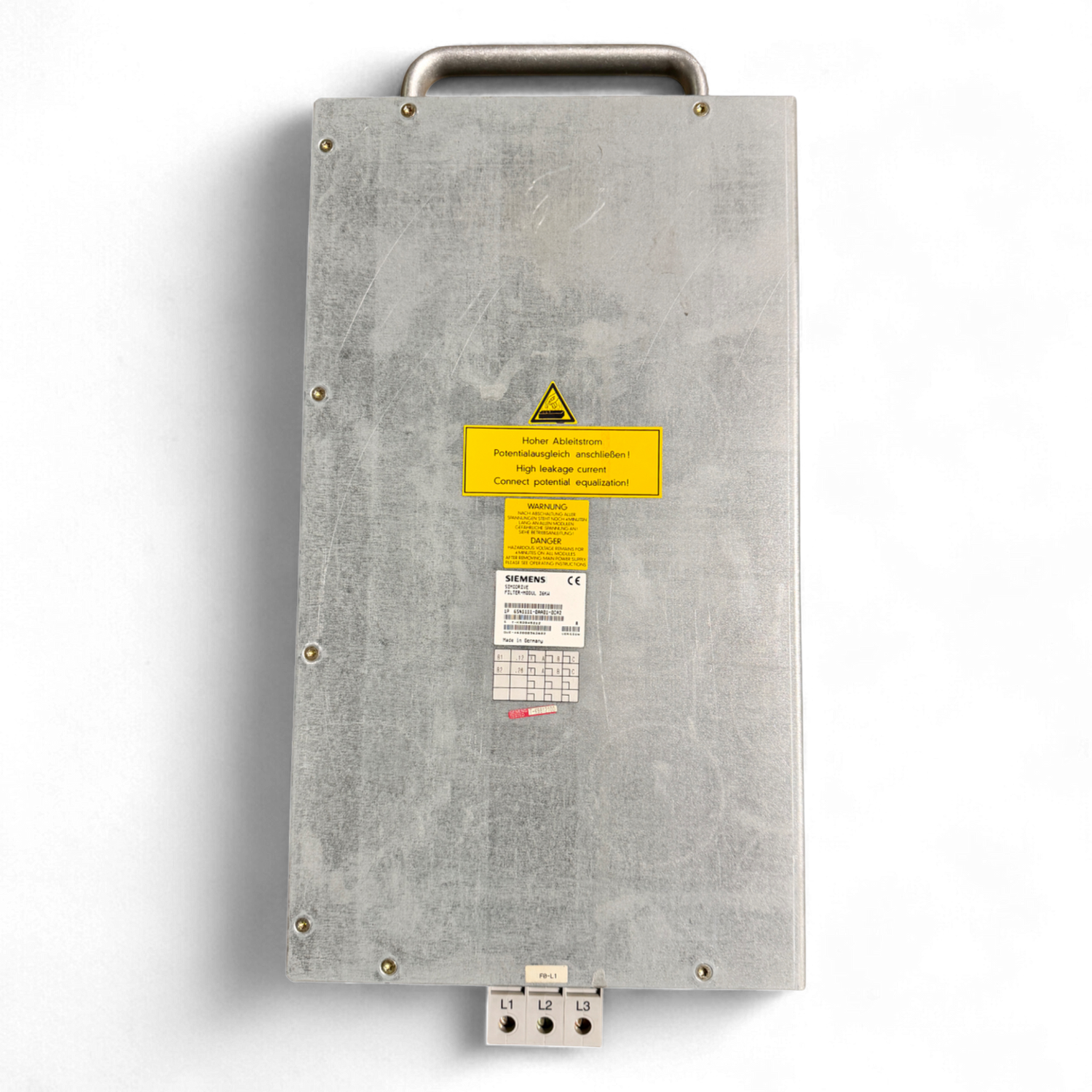

| Special feature | High leakage current – equipotential bonding required |
| Origin | Made in Germany · removed from IMA BIMA 810 |
| Condition | Used · Tested |
Product description
The filter module sits on the line side ahead of the infeed/regenerative feedback unit and limits the high-frequency emissions that the switching converter sends back into the mains. This keeps the drive cabinet within the required EMC limits, so neither its own control nor neighboring machines are disturbed.
It is a purely passive component made of chokes and capacitors. Since nothing inside switches or regulates, it ages slowly – modules like this are usually removed because a machine is rebuilt or decommissioned.
Condition: used, tested. Housing shows storage and handling marks; warning and type labels are fully legible. Terminal covers and carrying handle are present. Stickers from the previous owner may be present and can be removed without residue.

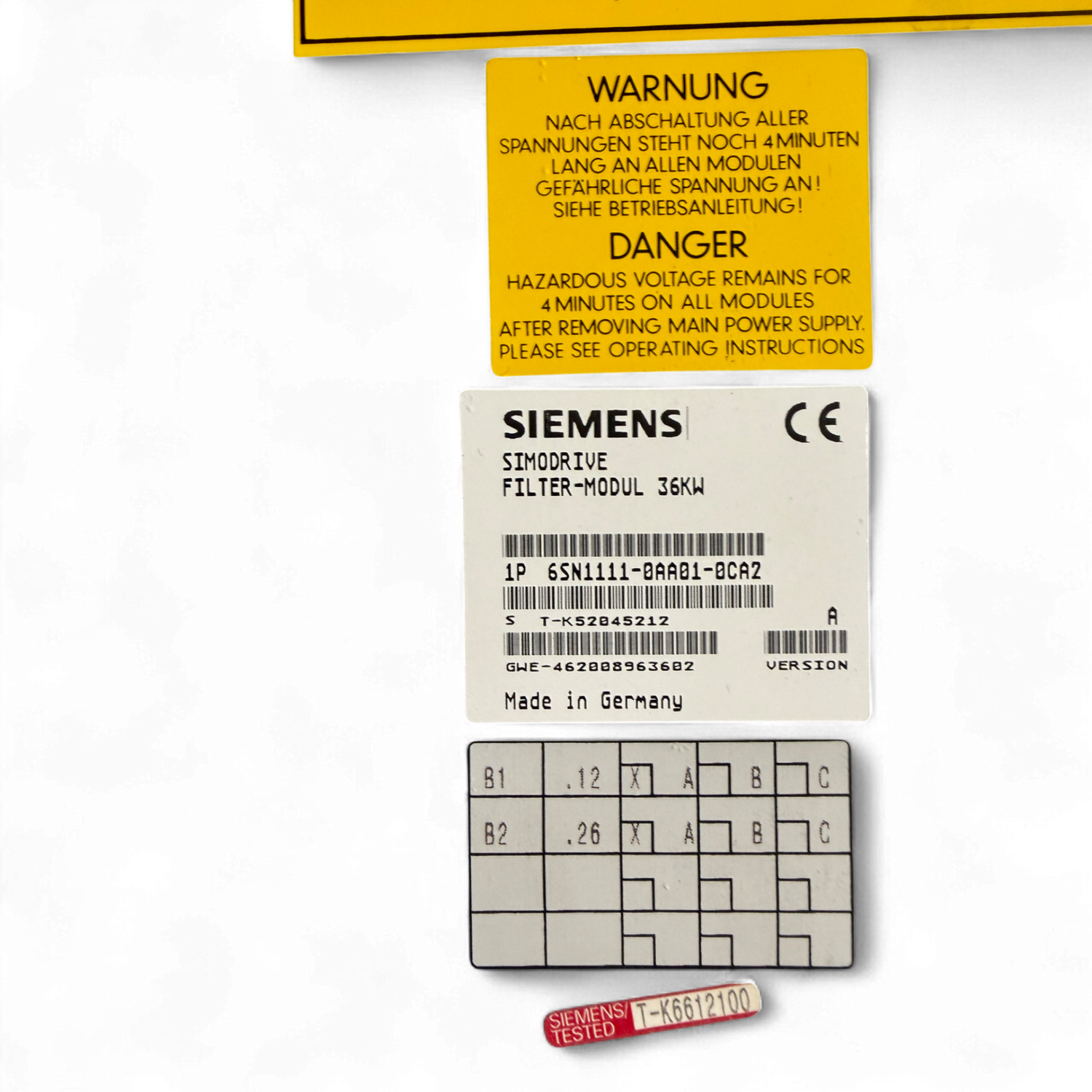

Safety note: high leakage current – connect equipotential bonding. After isolating, observe the discharge time of 4 minutes stated on the unit; the DC link capacitors of the connected modules remain charged during this time. Installation and removal by a qualified electrician only.
Compatibility & applications
Machines: IMA BIMA 210 · 310 · 410 · 480 · 610 · 810 · 980. This module was removed from a BIMA 810 and fits a BIMA 610 as well. It also fits any SIMODRIVE 611 drive cabinet with an infeed/regenerative feedback unit of the 36/47 kW rating – on other machine brands, too, as it is a standard Siemens catalog part, not an IMA special version.
Scope of delivery
The module shown. The photos show the exact unit you receive.
Shipping to the USA & worldwide
At approx. 41.7 kg this module ships as freight: we pack it on a pallet and agree the freight costs with you before dispatch.
In stock in Germany and shipped via FedEx or UPS, usually on the day of your order. Transit to the US typically takes 2–5 business days with full tracking. Import duties and fees follow the US regulations in force on the import date and are settled by the importer. More background on availability and pricing of legacy CNC electronics: read our guide for US customers.
Shipping, duties and warranty at a glance: Shipping to the USA.
-
