SIEMENS | SKU: 4AV9854-0AA00

Siemens Choke Assembly 4AV9854-0AA00 with 10,000 µF Capacitor – used

Name: Siemens Choke Assembly 4AV9854-0AA00 with 10,000 µF Capacitor – used
Brand: SIEMENS
SKU: 4AV9854-0AA00
Price: 322.00 EUR
Availability: InStock

€322,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Siemens Choke assembly Used

Siemens Choke Assembly 4AV9854-0AA00 with 10,000 µF Electrolytic Capacitor

Three-coil Siemens winding assembly (choke/transformer unit) on a solid base plate, with terminal strip and mounted F&T capacitor – a replacement part for Siemens systems and industrial controls.

4AV9854-0AA00

Part number

T56/B

Type label

10,000 µF / 10 V

Capacitor

approx. 4.5 kg

Weight

Before you order: compare the type label (SIEMENS 4AV9854-0AA00 T56/B) and terminal assignment with your existing unit. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	Siemens
Part number	4AV9854-0AA00
Type label	SIEMENS 4AV9854-0AA00 T56/B
Design	Upright three-coil choke/winding assembly
Additional component	Electrolytic capacitor 10,000 µF / 10 V, F&T Electronics, type LF
Capacitor temperature range	−40 °C to +105 °C
Connection	Terminal block with complete terminal marking
Mounting	Base plate with screw holes
Weight	approx. 4.5 kg (estimated)
Condition	Used · 2 – Good

Product description

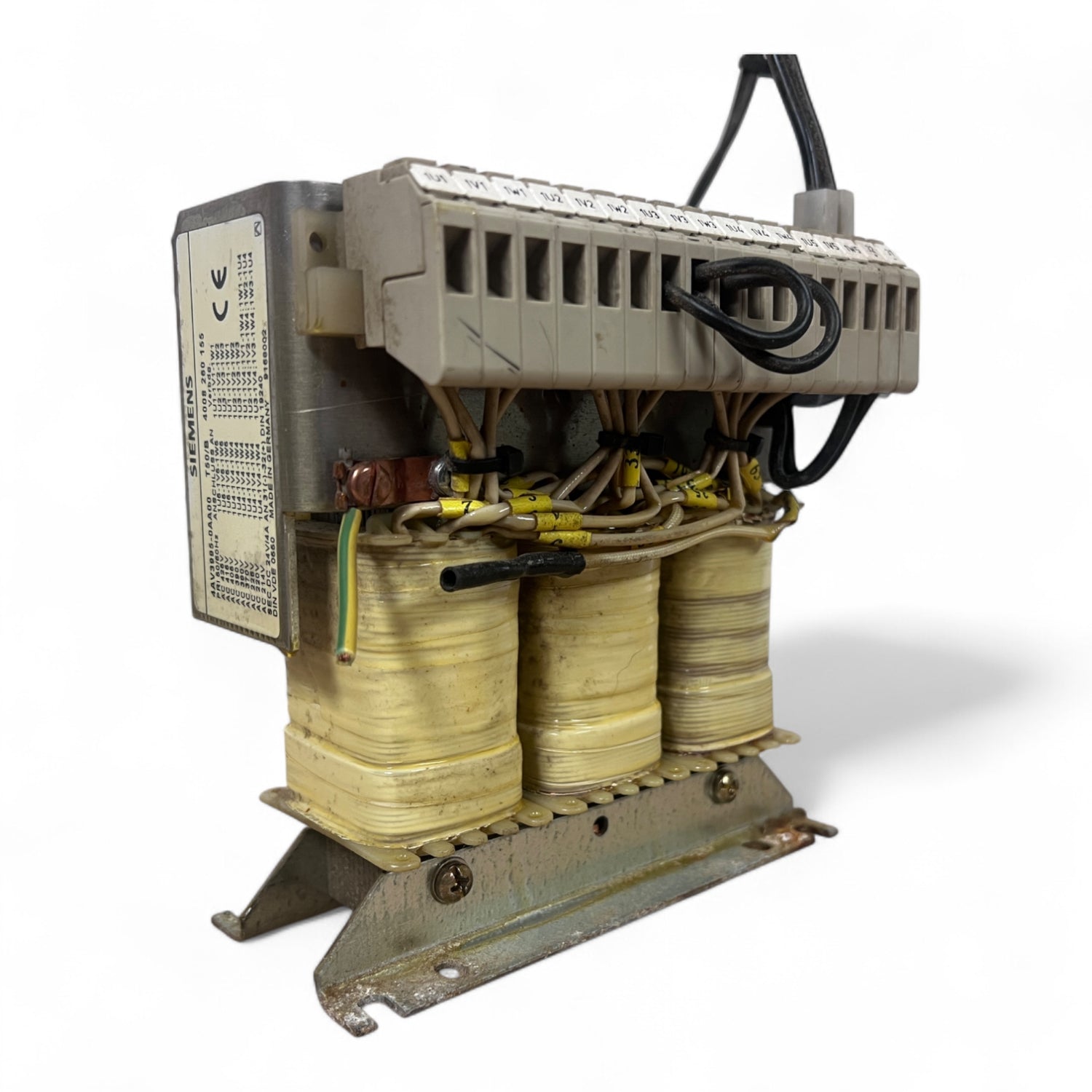

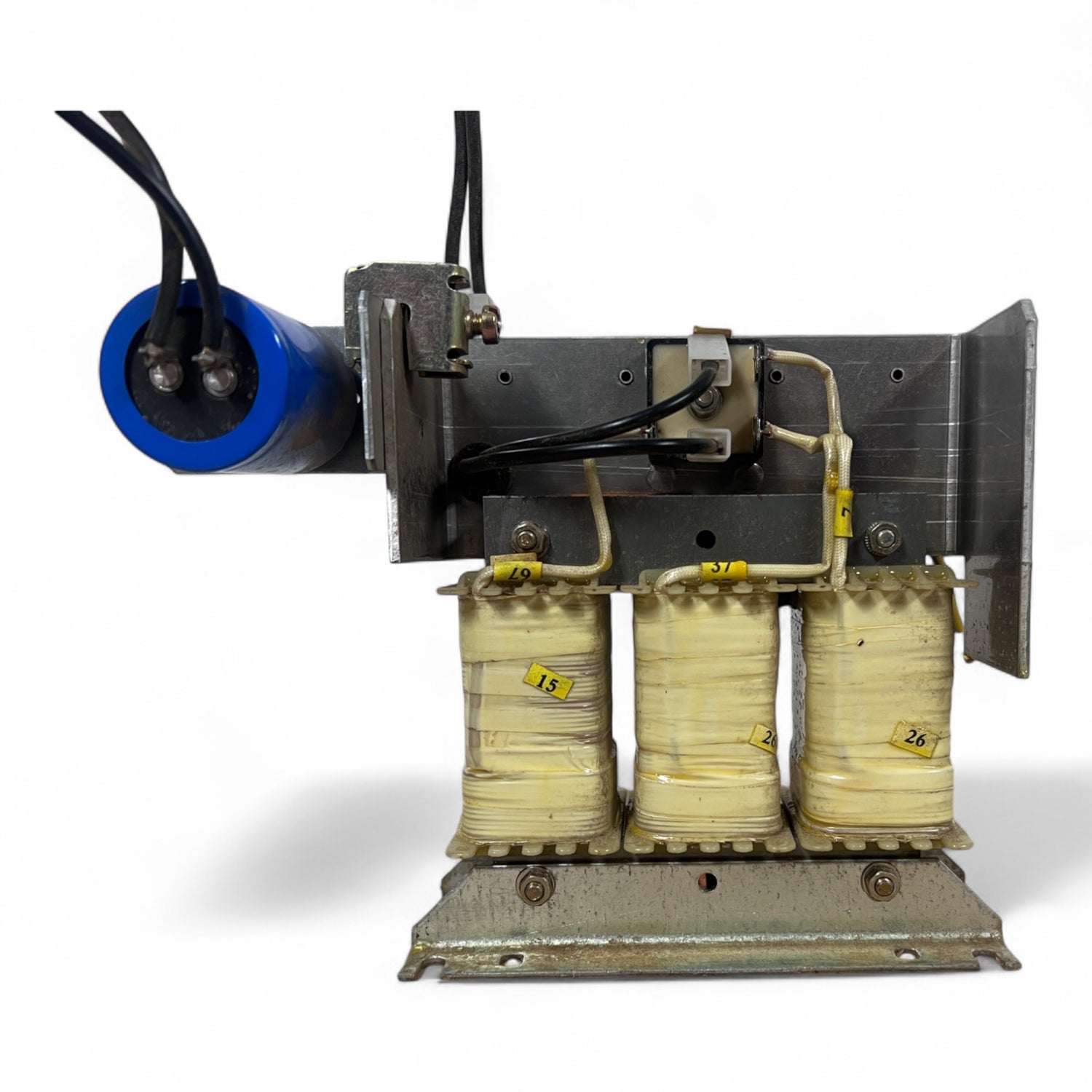

This Siemens component consists of a three-phase winding arrangement (choke or transformer assembly) on a solid base plate for floor mounting. The three coils are insulated with plastic banding, and the individual leads are numbered (e.g. 15, 26, 37). The connections are accessible via a terminal strip mounted on top of the assembly.

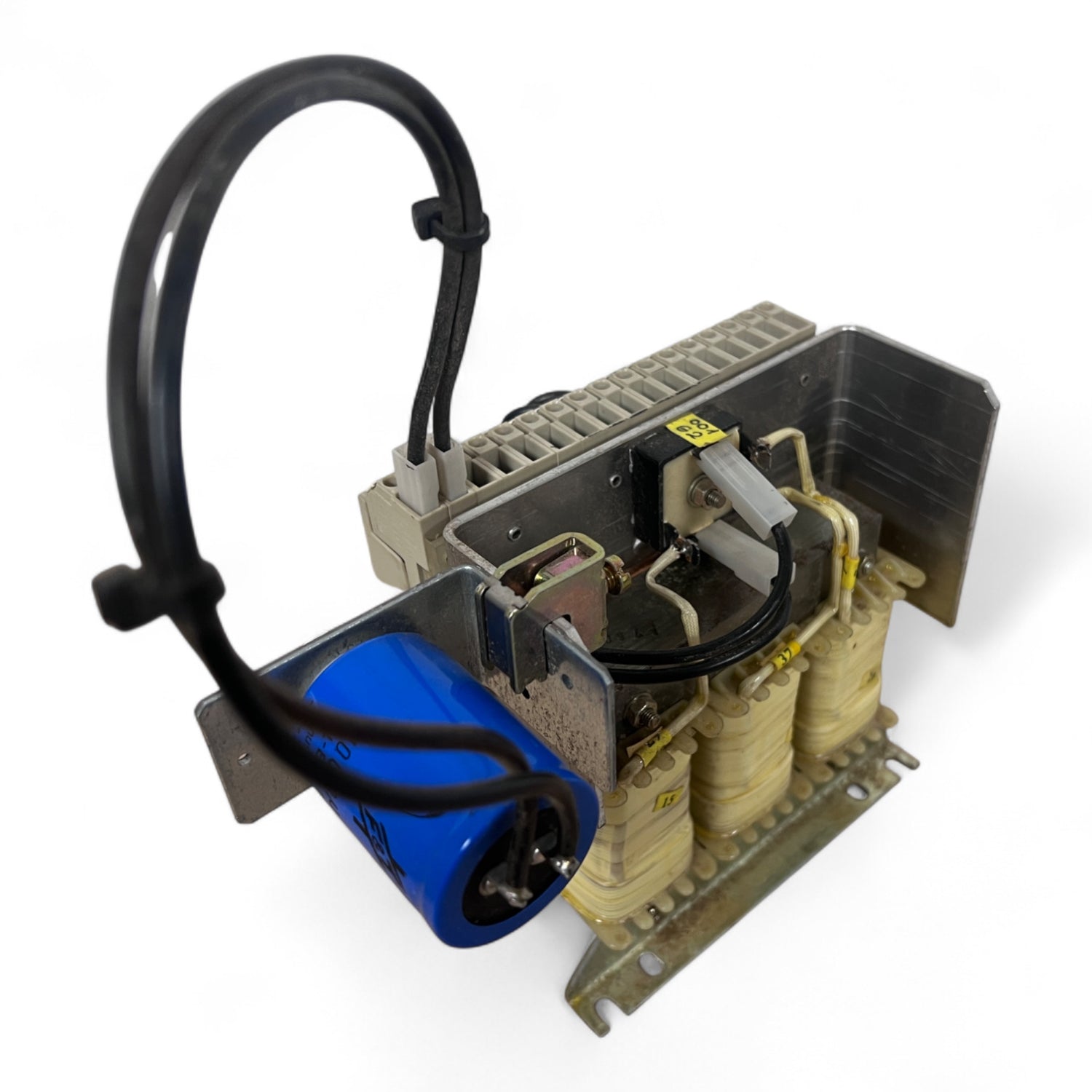

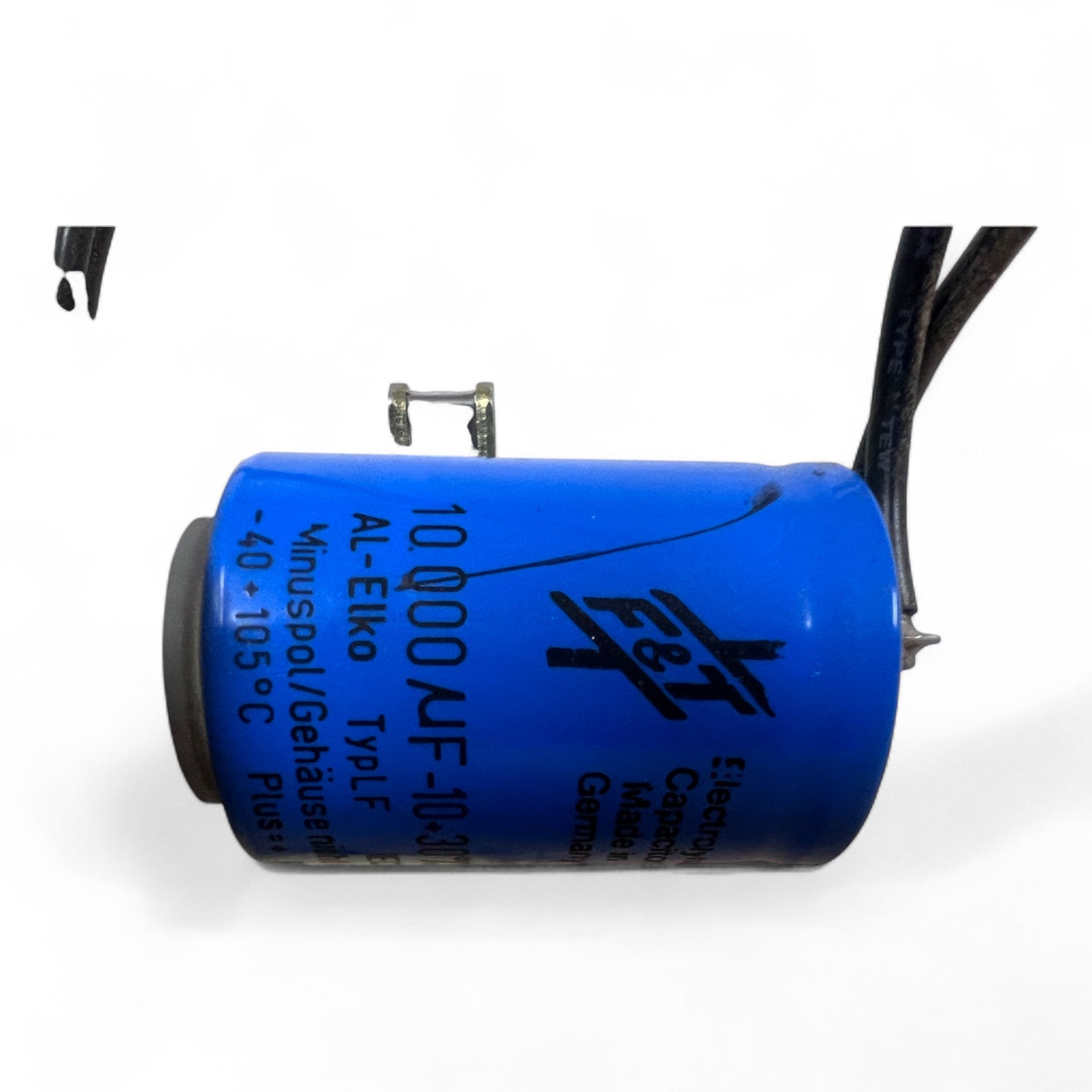

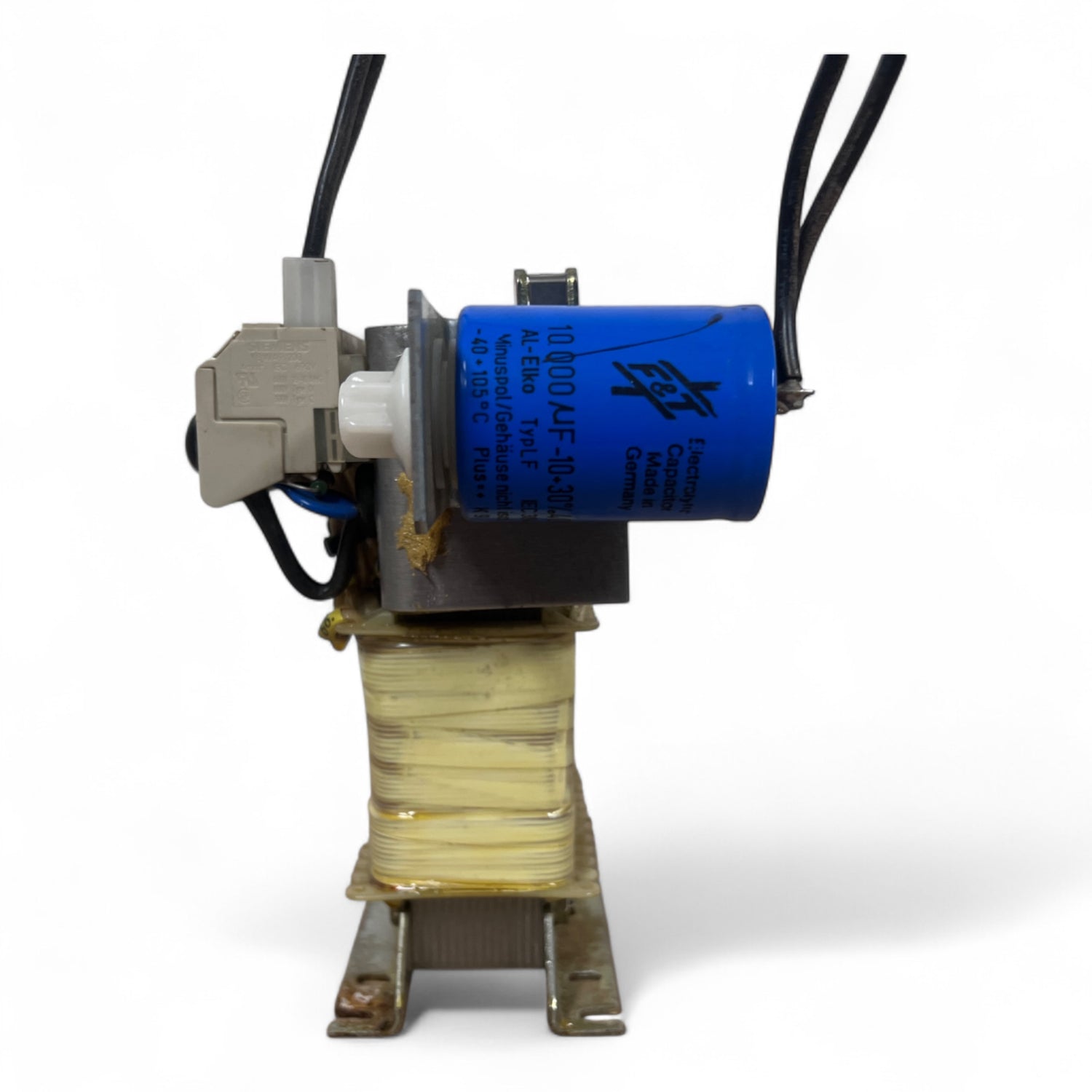

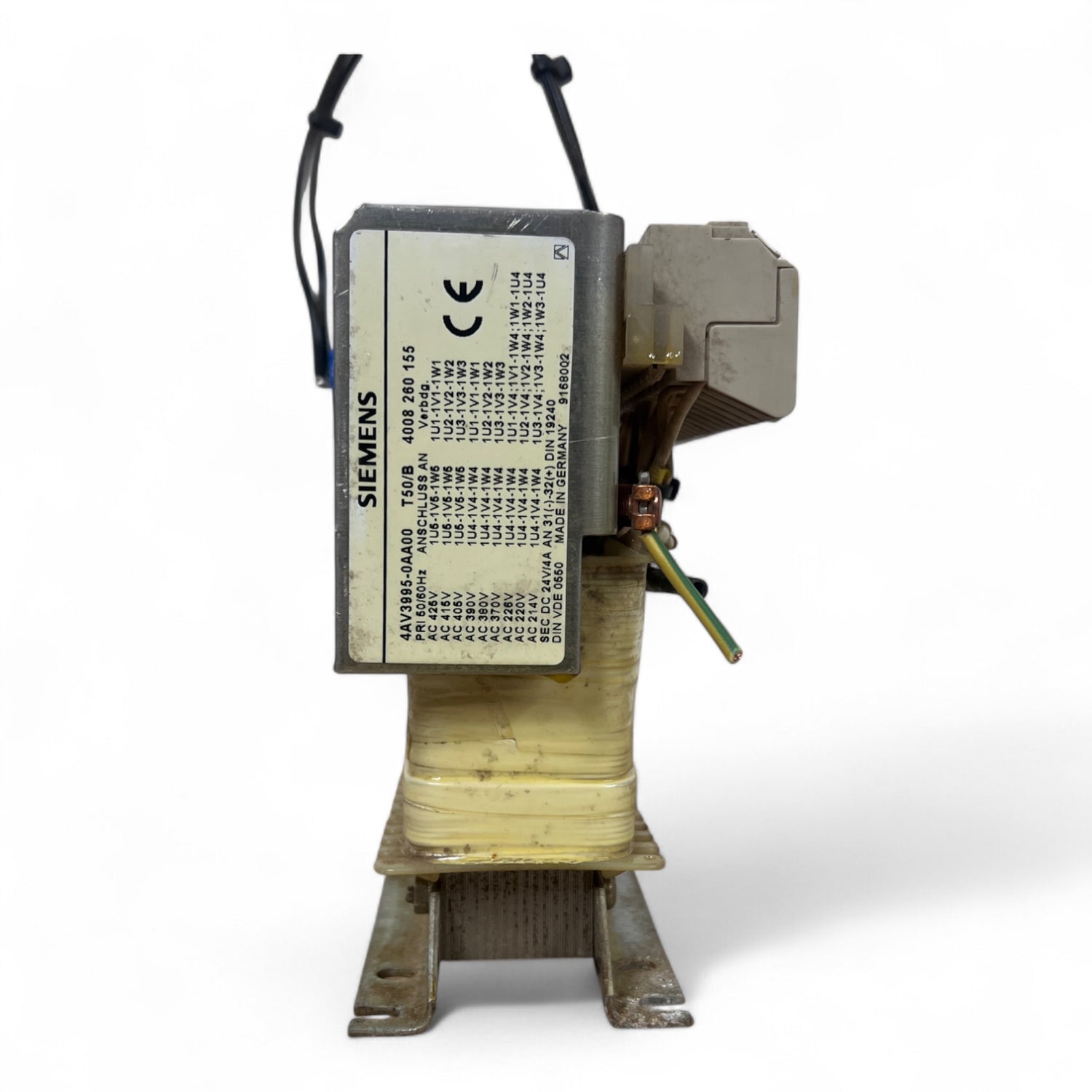

An original Siemens type label with the detailed terminal assignment is fitted on the side. The assembly is completed by a large F&T Electronics aluminum electrolytic capacitor (10,000 µF, 10 V, type LF, −40 to +105 °C, Made in Germany) on a steel bracket, firmly connected to the winding unit as part of a smoothing/damping module.

Used part from a running industrial installation, well maintained visually and technically, and operating until removal.

Compatibility & applications

Siemens 4AV seriesControl engineeringSmoothing / filteringReplacement part

Scope of delivery

Complete module as shown: three-coil winding block (Siemens 4AV9854-0AA00), terminal strip, F&T capacitor 10,000 µF, metal bracket and mounting plate.
