SIEMENS | SKU: 300-4AV3400-2AB

SIEMENS 4AV3400-2AB SIDAC TRANSFORMER 9210036

Name: SIEMENS 4AV3400-2AB SIDAC TRANSFORMER 9210036
Brand: SIEMENS
SKU: 300-4AV3400-2AB
Price: 98.00 EUR
Availability: InStock

€98,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Siemens Transformer / Power Supply Used

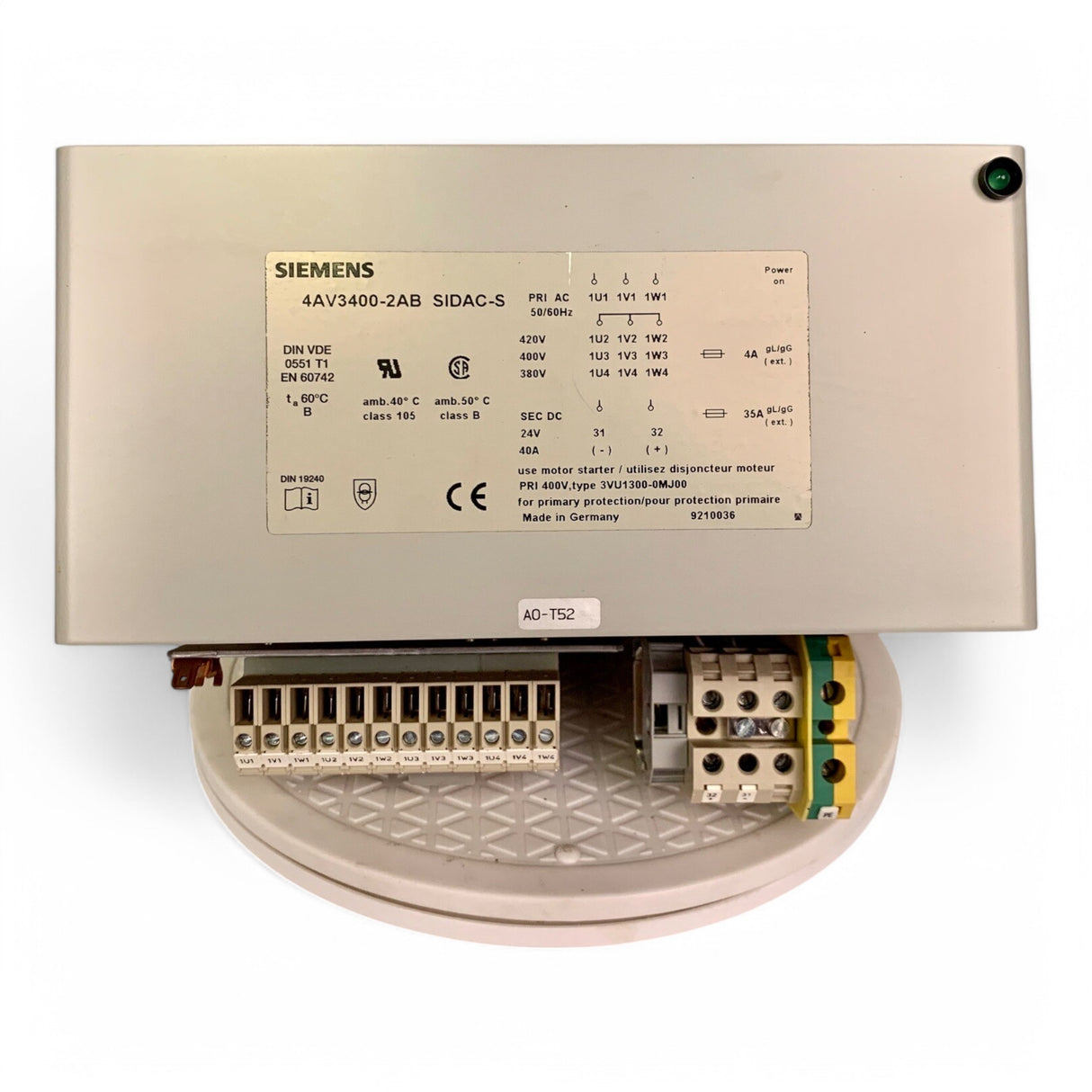

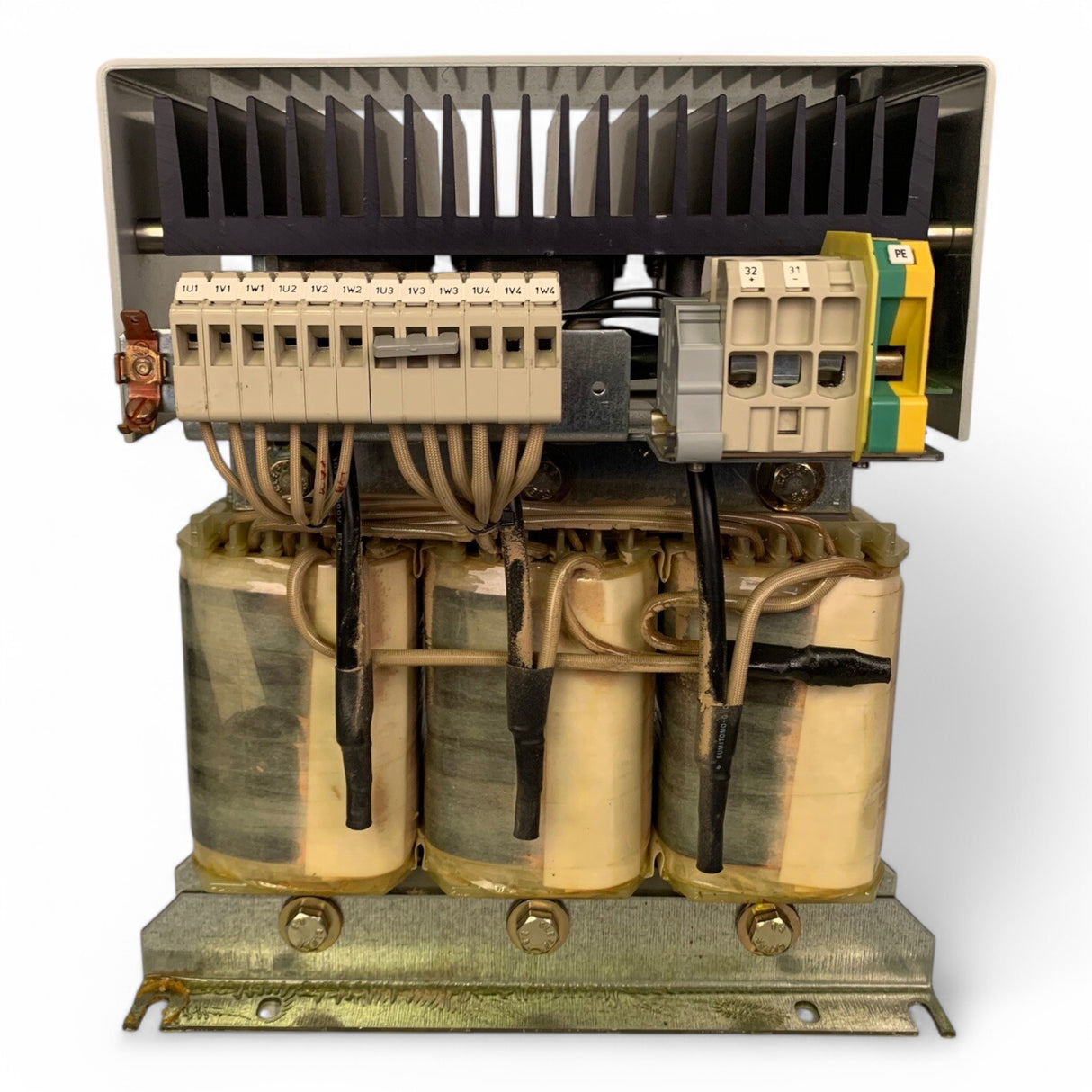

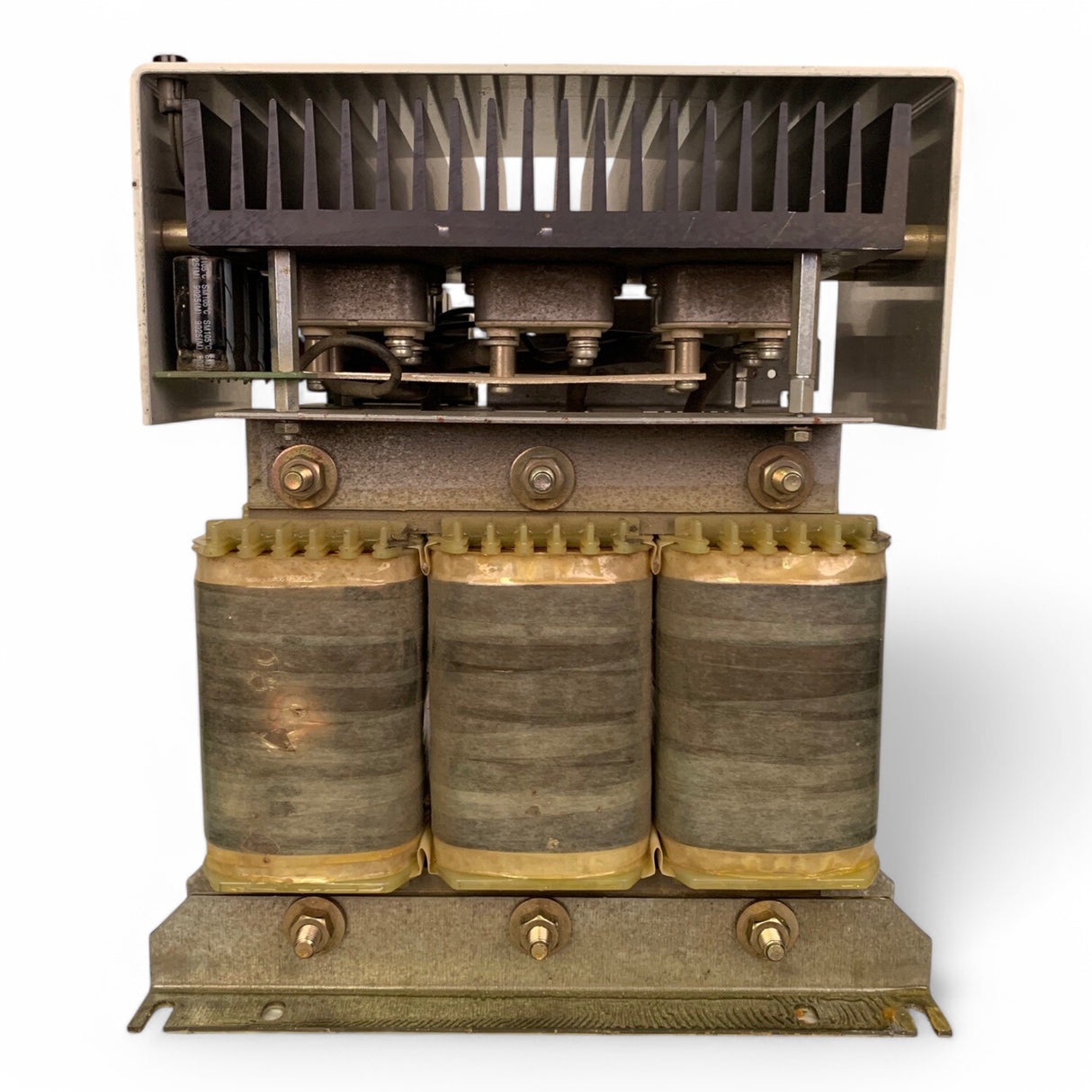

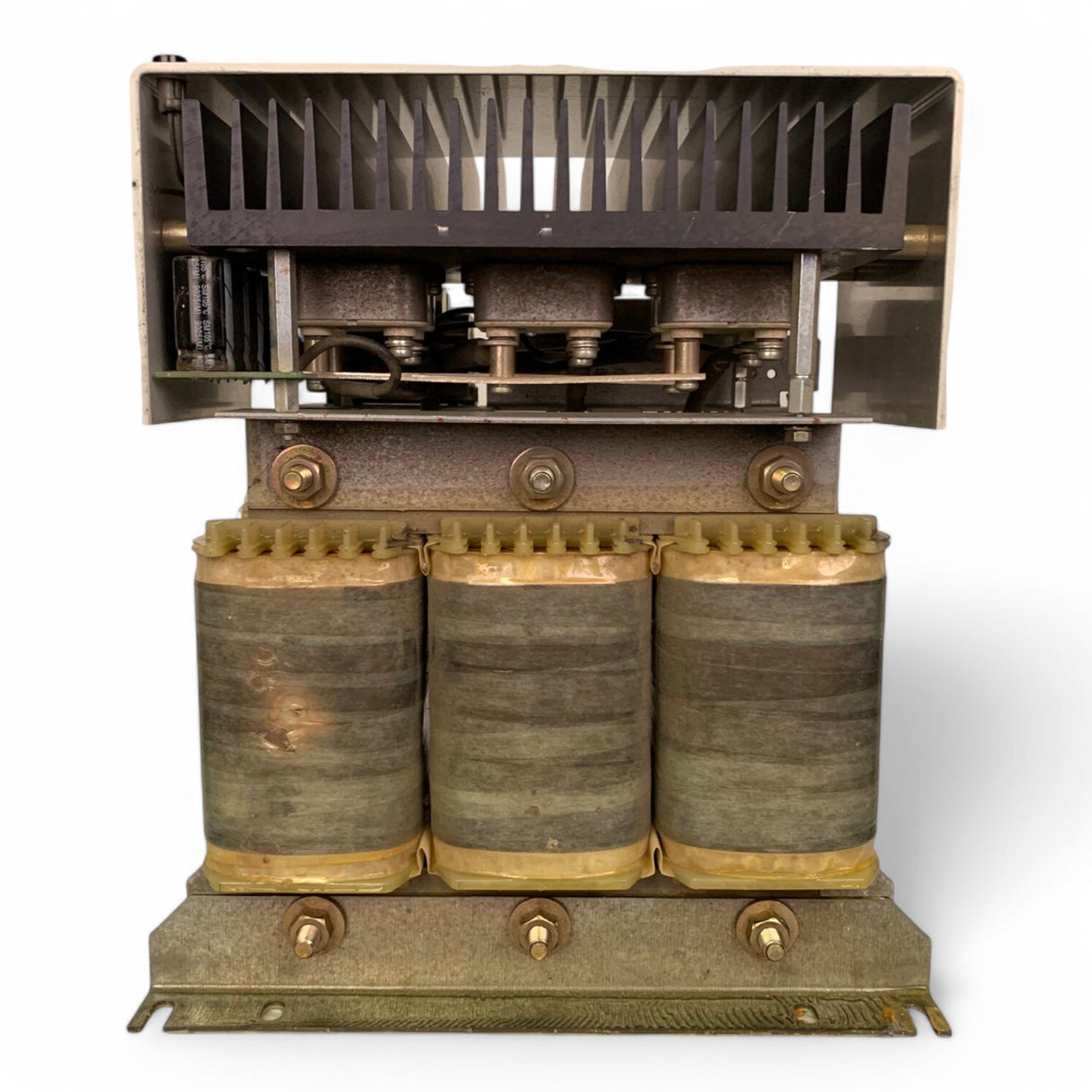

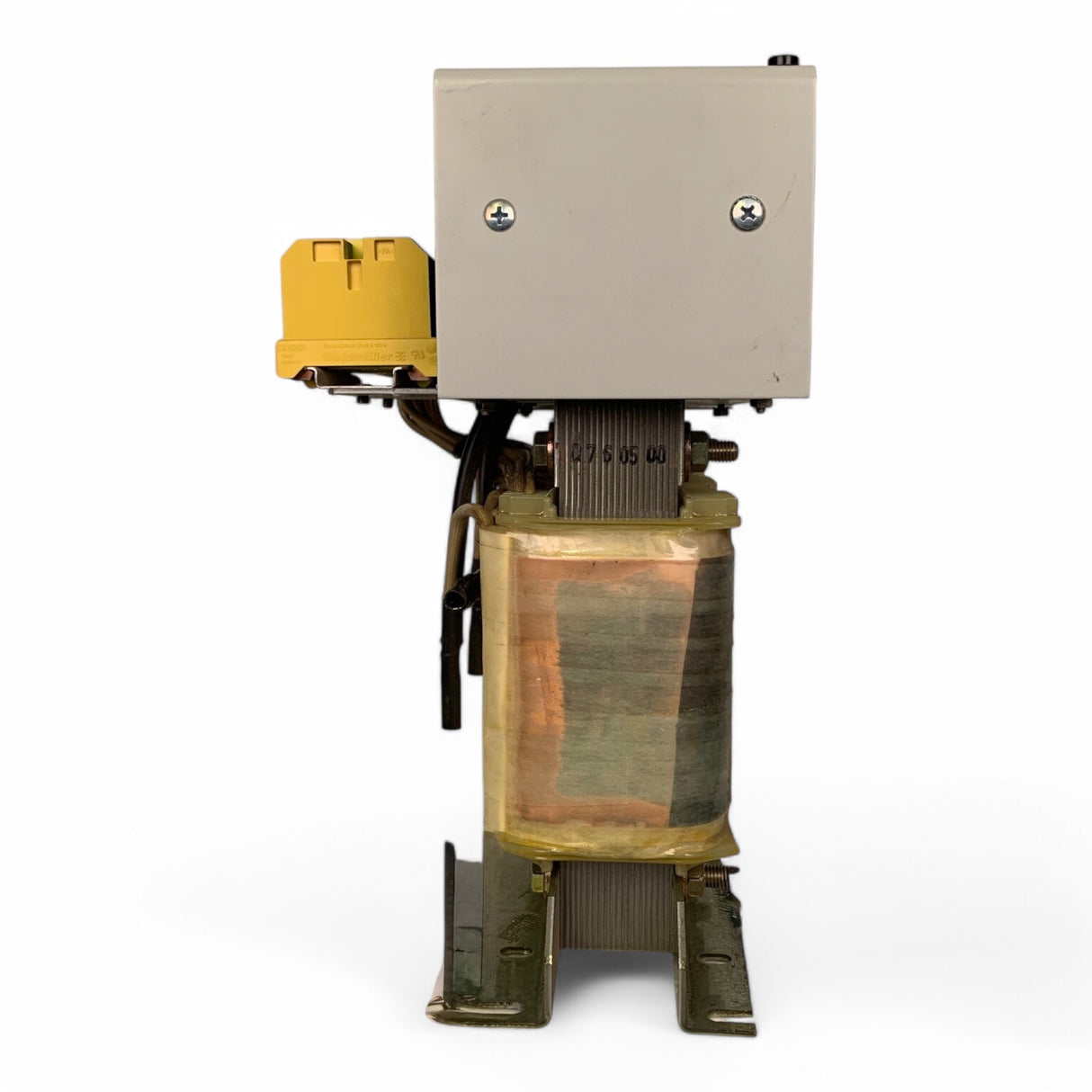

Siemens SIDAC-S Transformer 4AV3400-2AB – 24 V DC / 40 A Power Supply (9210036)

Used Siemens SIDAC-S 4AV3400-2AB transformer power supply unit with 24 V DC / 40 A output, removed from a running system and fully functional – a dependable 24 V supply for controls and machine components.

24 V DC

Output voltage

40 A

Output current

380–420 V

Primary AC

50/60 Hz

Frequency

CE · UL · CSA

Certifications

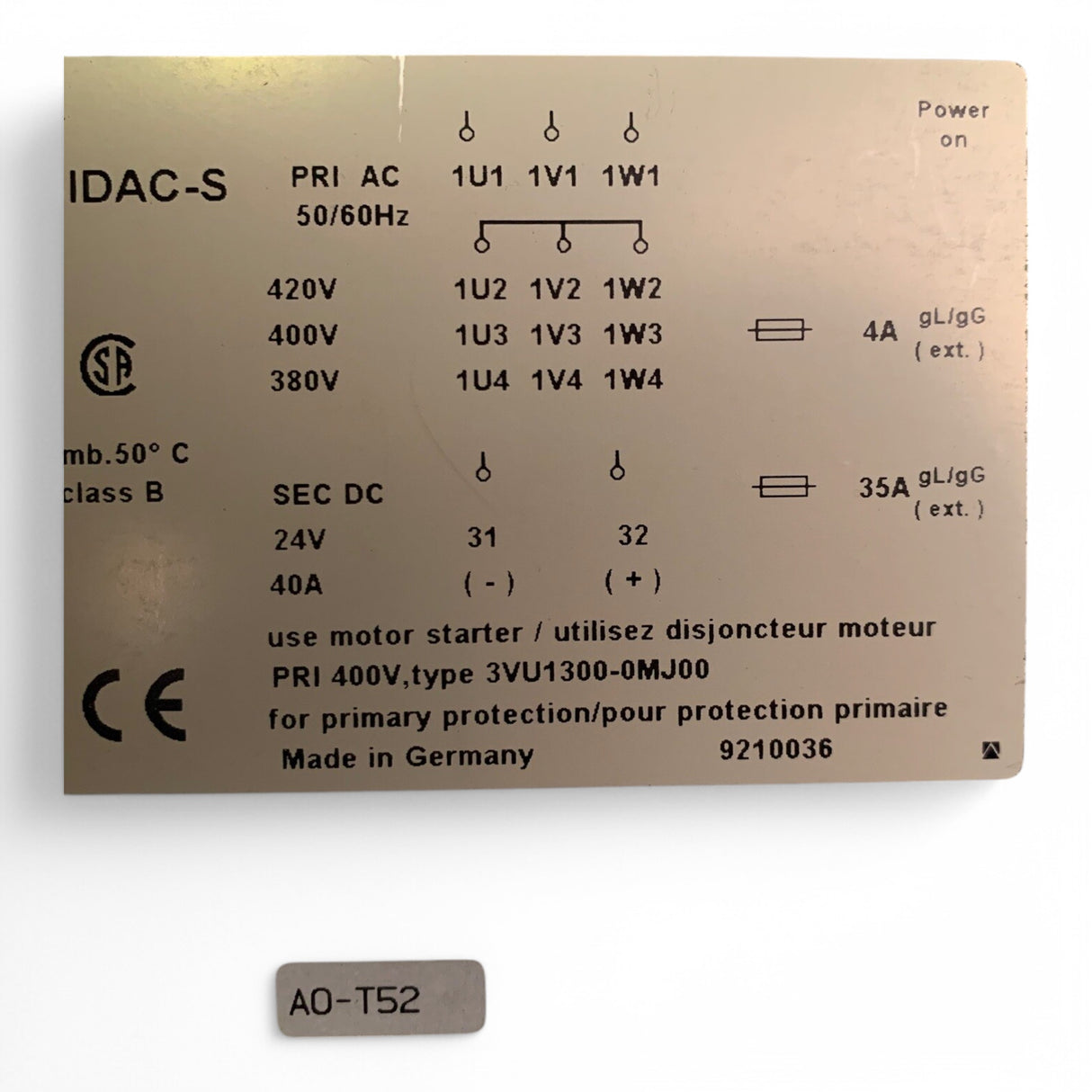

Before you order: compare the order number 4AV3400-2AB and the manufacturer number 9210036 on your unit's nameplate and check which primary tap (380 / 400 / 420 V) you need. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	Siemens
Type	SIDAC-S transformer / power supply unit
Order number	4AV3400-2AB
Manufacturer number	9210036

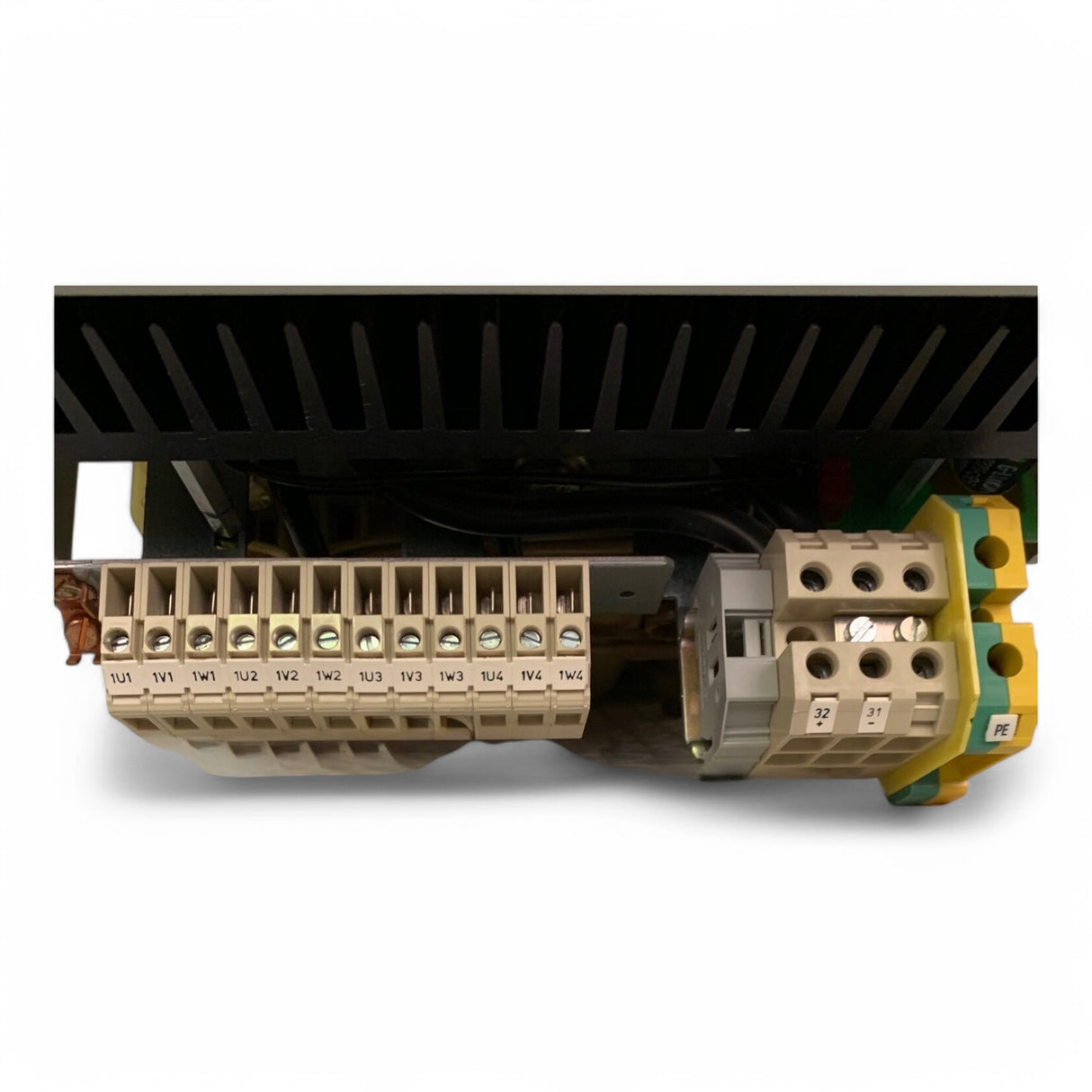

Primary (AC, 50/60 Hz)	420 V → 1U2 / 1V2 / 1W2 400 V → 1U3 / 1V3 / 1W3 380 V → 1U4 / 1V4 / 1W4
Secondary (DC)	24 V DC, 40 A – terminals 31 (–) / 32 (+)
External fuse, primary	4 A (gL/gG)
External fuse, secondary	35 A (gL/gG)
Recommended motor protection	3VU1300-0MJ00
Protection class	B
Ambient temperature	max. 50 °C (122 °F)
Certifications	CE, UL, CSA
Origin	Made in Germany
Condition	Used · 2 – Good

Product description

The Siemens SIDAC-S 4AV3400-2AB is a powerful transformer power supply unit for reliable 24 V DC supply in industrial automation. It accepts a three-phase primary of 380, 400 or 420 V AC (50/60 Hz) via separate terminal taps and delivers 24 V DC at up to 40 A on terminals 31/32.

This unit was removed from a running system and is in used, technically sound condition. Thanks to the robust Siemens design, it is well suited for demanding environments. Operation together with the motor protection switch 3VU1300-0MJ00 is recommended.

Compatibility & applications

Control power supplyMachine components24 V DC control circuitsIndustrial automationReplacement for 4AV3400-2AB

Scope of delivery

1 × Siemens SIDAC-S transformer 4AV3400-2AB (9210036), as shown in the photos and described.
