Battenfeld Schleicher | SKU: 300-3120030-G

Schleicher UNG 230 A No. R4.312.0030.F Power Supply

Name: Schleicher UNG 230 A No. R4.312.0030.F Power Supply
Brand: Battenfeld Schleicher
SKU: 300-3120030-G
Price: 189.00 EUR
Availability: InStock

€189,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Schleicher Power Supply Used

Schleicher UNG 230 A Promodul-U Power Supply – No. R4.312.0030.F

Promodul-U power supply module: 230 V AC input, 5 V DC and 24 V DC outputs, max. 50 W, status LEDs and backup battery slot – function-tested and ready for use.

UNG230A

Type

R4.312.0030.F

Part no.

230 V AC

Input

5 V / 24 V DC

Outputs

50 W

Max. output

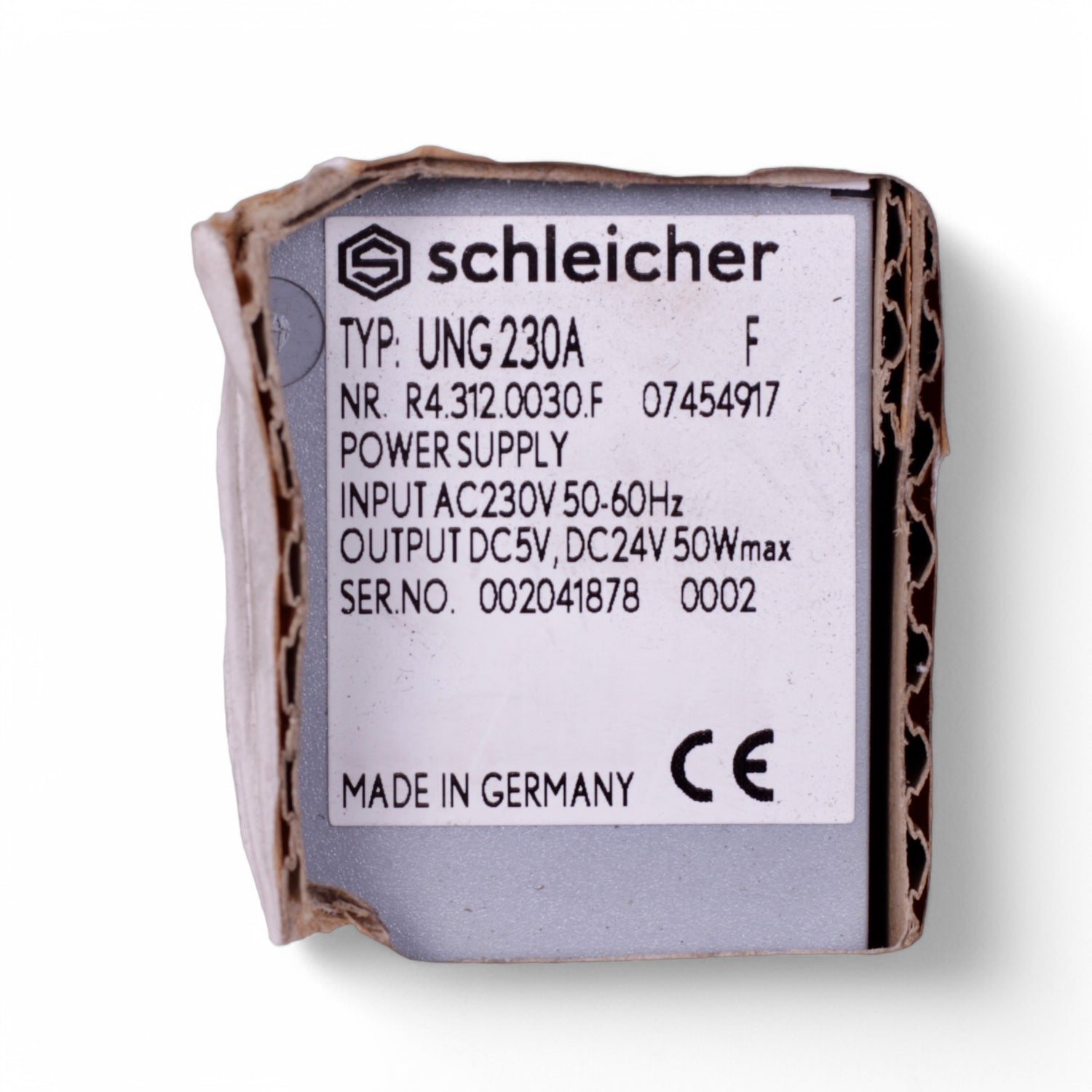

Before you order: compare type UNG230A and part number R4.312.0030.F with the label on your power supply. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	Schleicher
Type	UNG230A (Promodul-U series)
Part number	R4.312.0030.F
Input voltage	230 V AC (50–60 Hz)
Output voltages	5 V DC, 24 V DC
Output power	max. 50 W
LED indicators	5 V+, 24 V+, Run, Battery Low
Status monitoring	Yes
Battery slot	Yes
Dimensions	Standard Promodul-U format
Serial number	002041878
Origin	Made in Germany
Weight	1 kg
Condition	Used · 2 – Good

Product description

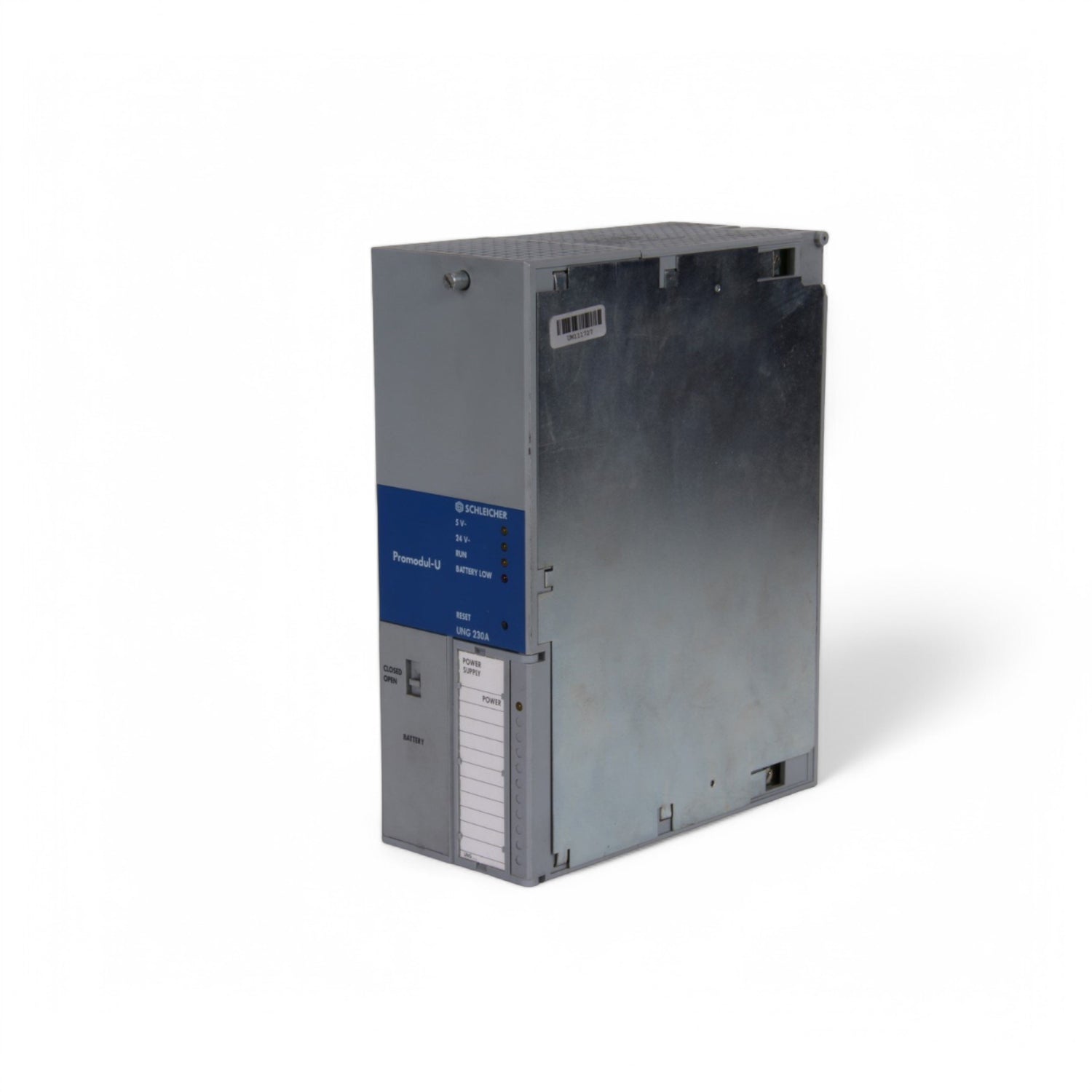

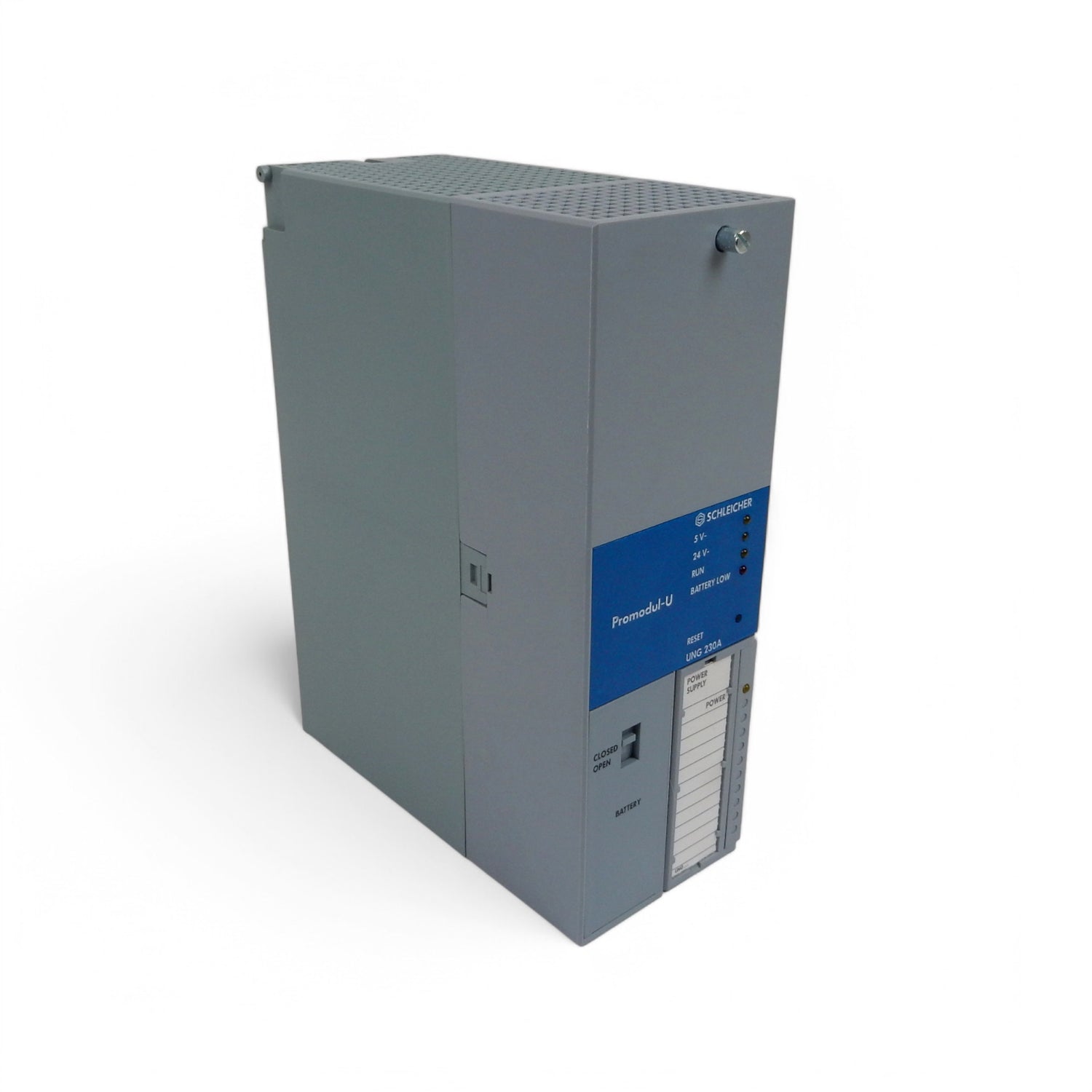

The Schleicher UNG230A is a powerful power supply module from the Promodul-U series for reliable voltage supply of industrial control systems. It converts 230 V AC into two DC levels (5 V and 24 V) and is designed for automation and control installations.

Front LEDs for 5 V+, 24 V+, RUN and BATTERY LOW allow continuous status monitoring and fault diagnosis. A slot for a backup battery supports a reliable supply in the event of a power failure. Compact design for control cabinet mounting, two regulated output voltages, easy maintenance thanks to status LEDs and battery access.

The module is in very good used condition with minor signs of use. It was removed from a running system and is function-tested.

Compatibility & applications

Schleicher Promodul-UIndustrial control systemsControl cabinets

Scope of delivery

1 × Schleicher UNG230A power supply module with LED front panel, in original packaging with Schleicher quality seal, as shown in the photos and described.
