Phoenix Contact | SKU: 300-2744416

Phoenix Contact PSM-ME-RS232/RS485-P Interface Converter RS-232 to RS-485/RS-422 – 2744416 – used

Name: Phoenix Contact PSM-ME-RS232/RS485-P Interface Converter RS-232 to RS-485/RS-422 – 2744416 – used
Brand: Phoenix Contact
SKU: 300-2744416
Price: 151.00 EUR
Availability: InStock

€151,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Phoenix Contact Interface Converter Used

Phoenix Contact PSM-ME-RS232/RS485-P Interface Converter – Order No. 2744416

Versatile DIN-rail interface converter from RS-232 to RS-485 and RS-422 with 3-way isolation – for reliable, stable data communication in industrial applications.

24 V AC/DC

Nominal supply

RS-232 → RS-485/422

Interfaces

1.2–115.2 kbps

Data rate

1200 m

Max. cable RS-485

IP20

Protection

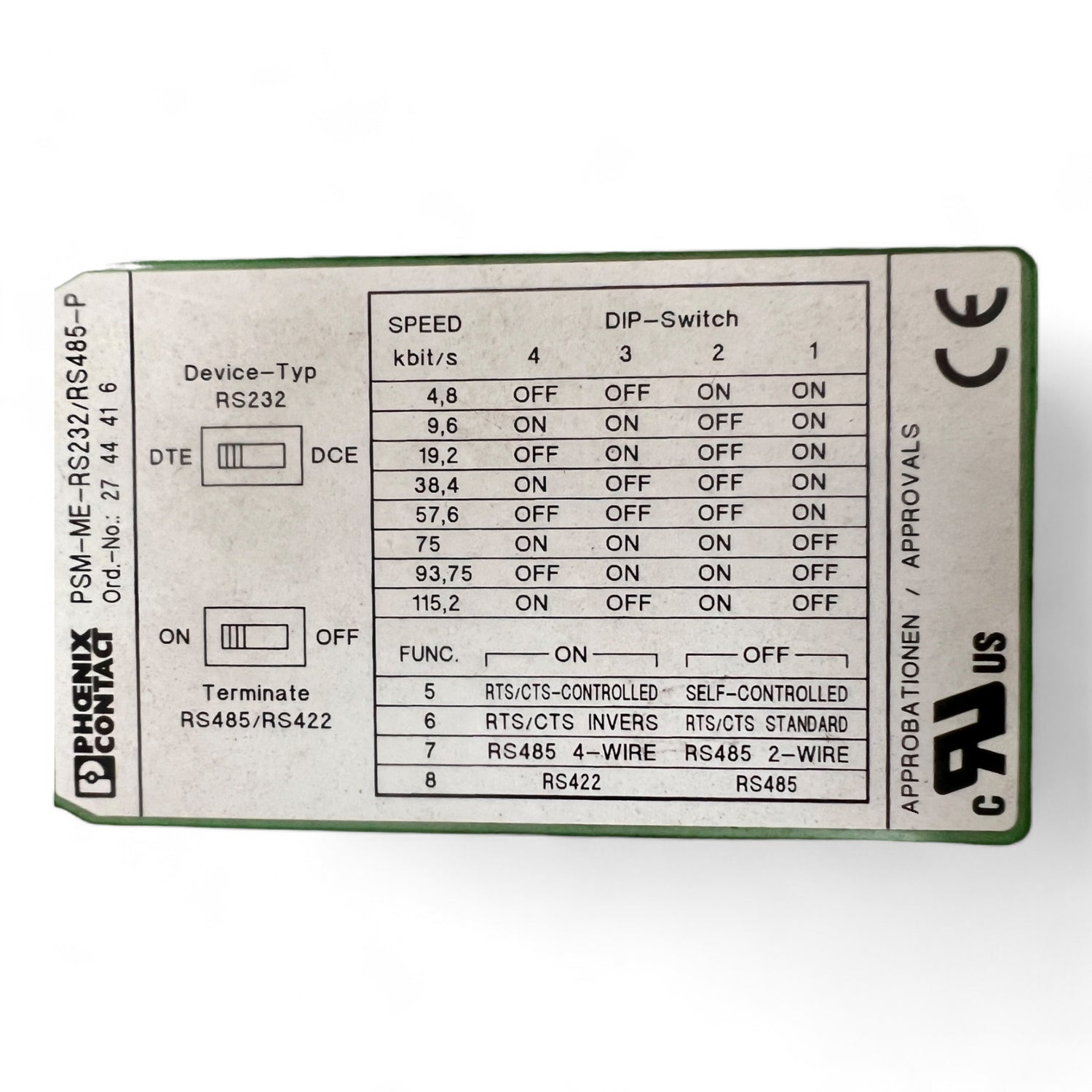

Before you order: compare the type PSM-ME-RS232/RS485-P and the order number 2744416 on the label of your existing converter. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	Phoenix Contact
Type	PSM-ME-RS232/RS485-P
Order number	2744416
Supply voltage	18 V AC/DC to 30 V AC/DC, nominal 24 V AC/DC
Interfaces	RS-232, RS-485, RS-422
Transmission speed	1.2 kbps to 115.2 kbps
Max. cable length	15 m (RS-232); up to 1200 m (RS-485/RS-422, shielded twisted pair)
Isolation	3-way isolation between supply, RS-232 and RS-485/RS-422
Data direction	Automatic switching or controlled via RTS/CTS
Mounting	DIN rail
Protection	IP20
Operating temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Housing	Flame-retardant polyamide PA 6.6-FR, green (RAL 6021)
Condition	Used · 2 – Good

Product description

The Phoenix Contact PSM-ME-RS232/RS485-P is a versatile interface converter that translates RS-232 signals to RS-485 and RS-422. It is especially suited to industrial applications that require reliable and stable data communication.

3-way isolation between supply voltage, RS-232 and RS-485/RS-422 interfaces, automatic data direction switching (or control via RTS/CTS), high noise immunity and a robust design make it a preferred choice for many industrial installations.

Compatibility & applications

RS-232 to RS-485RS-232 to RS-422Industrial data communicationDIN-rail control cabinets

Scope of delivery

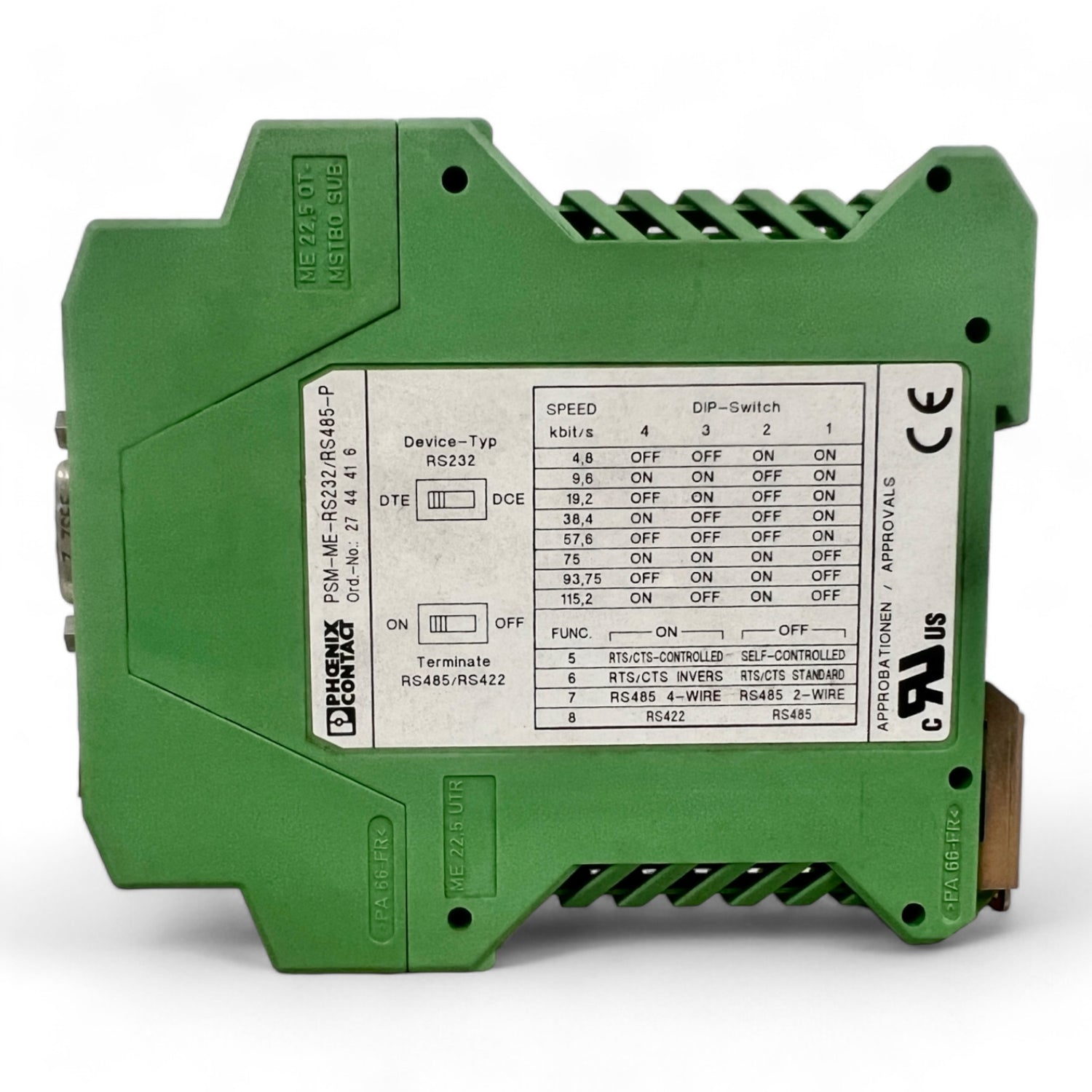

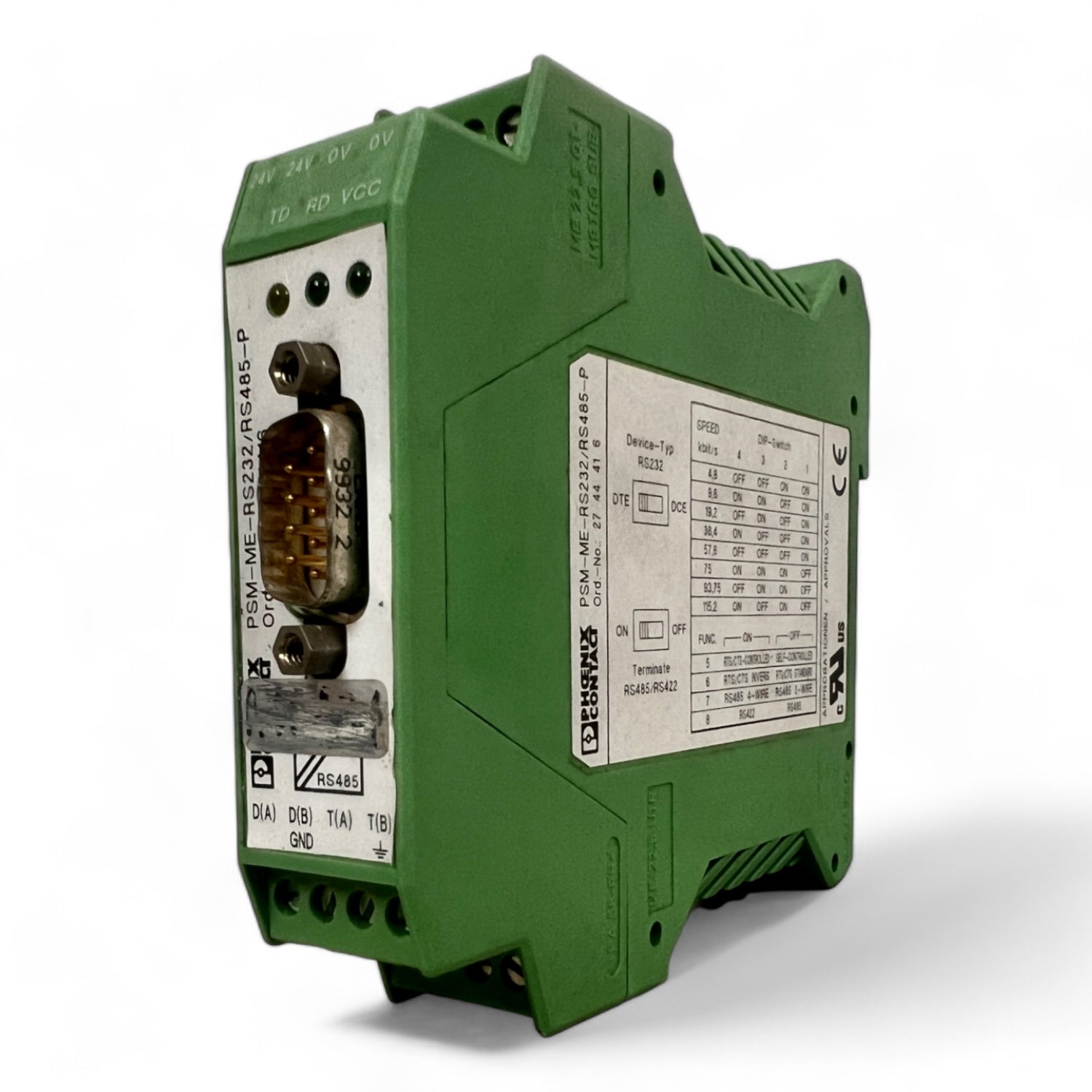

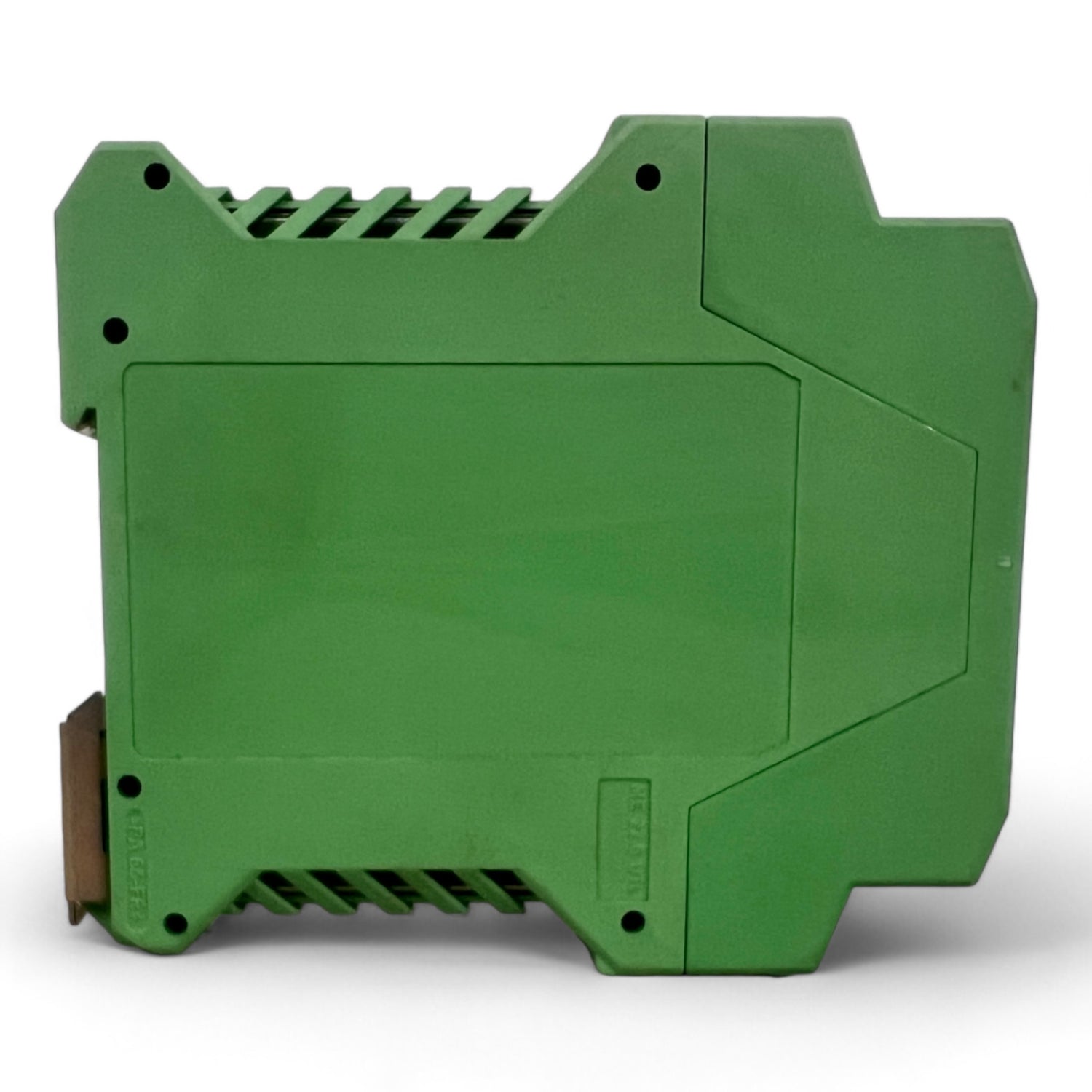

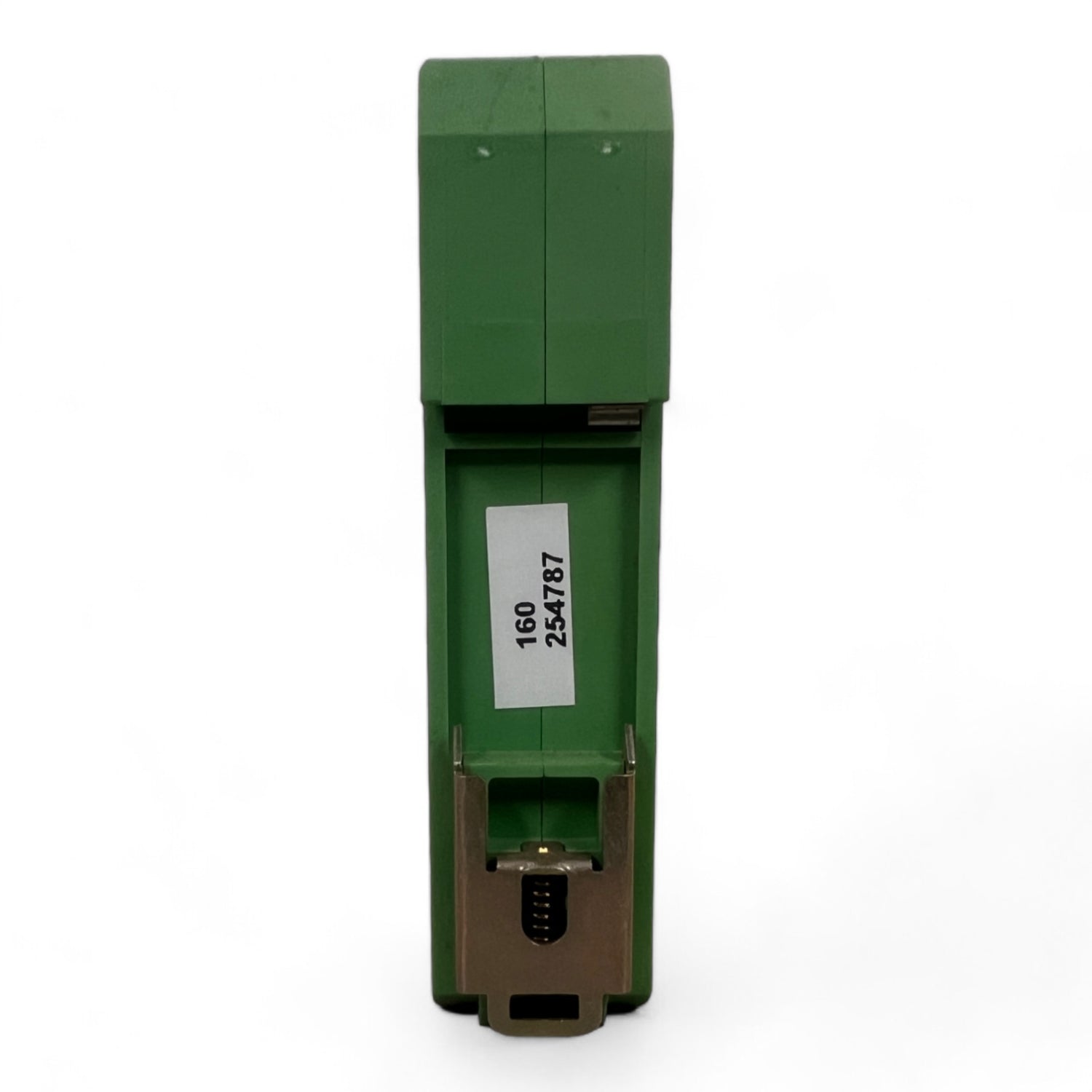

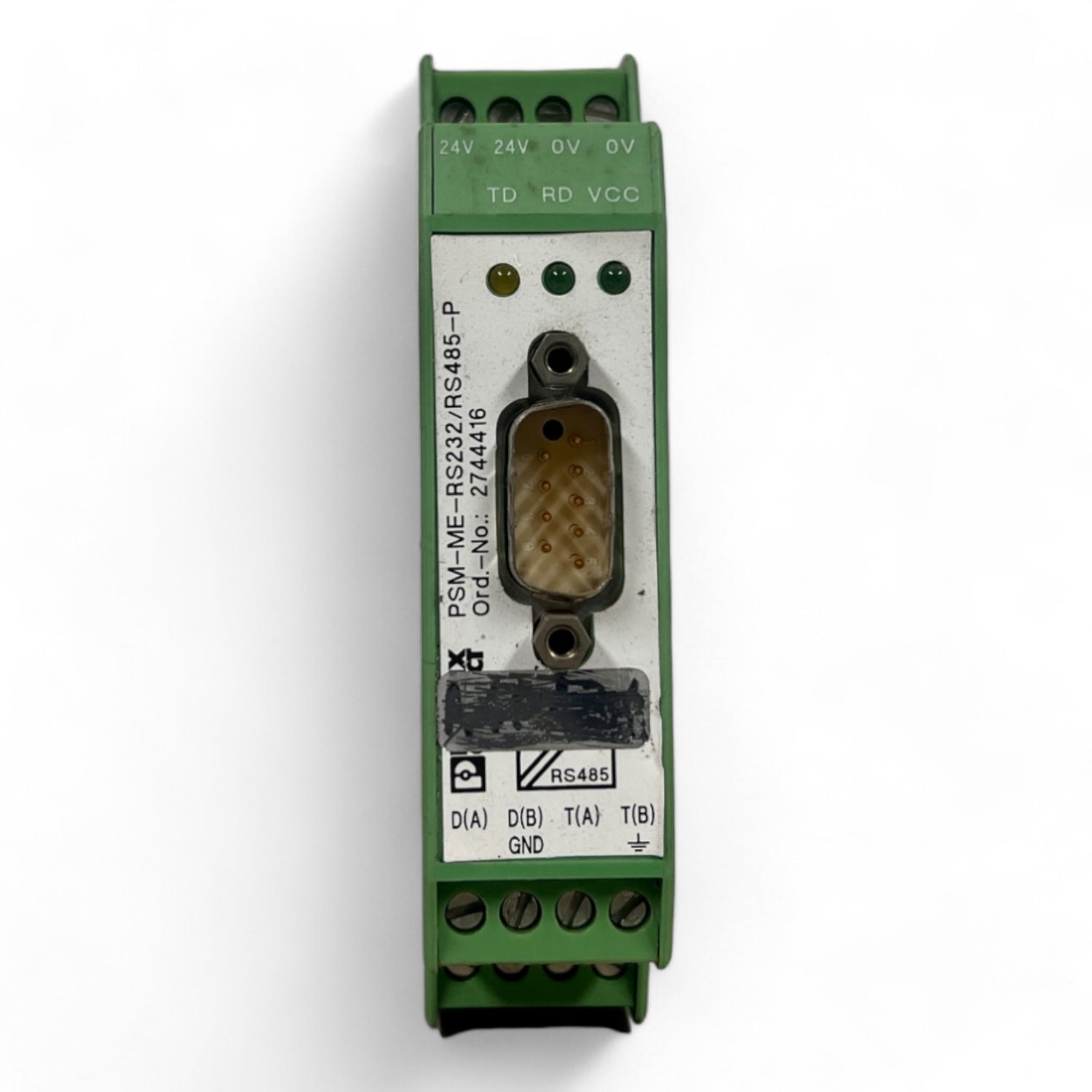

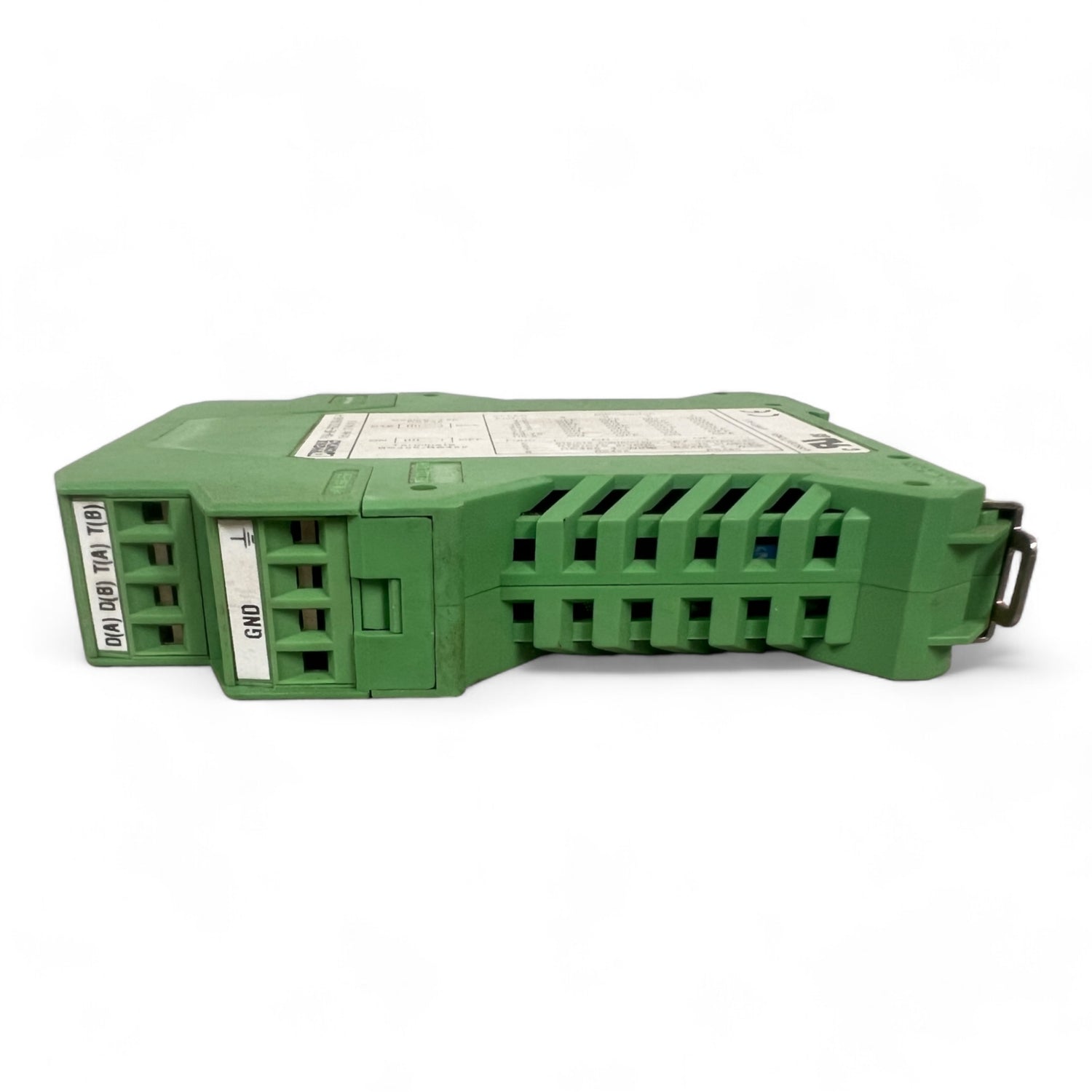

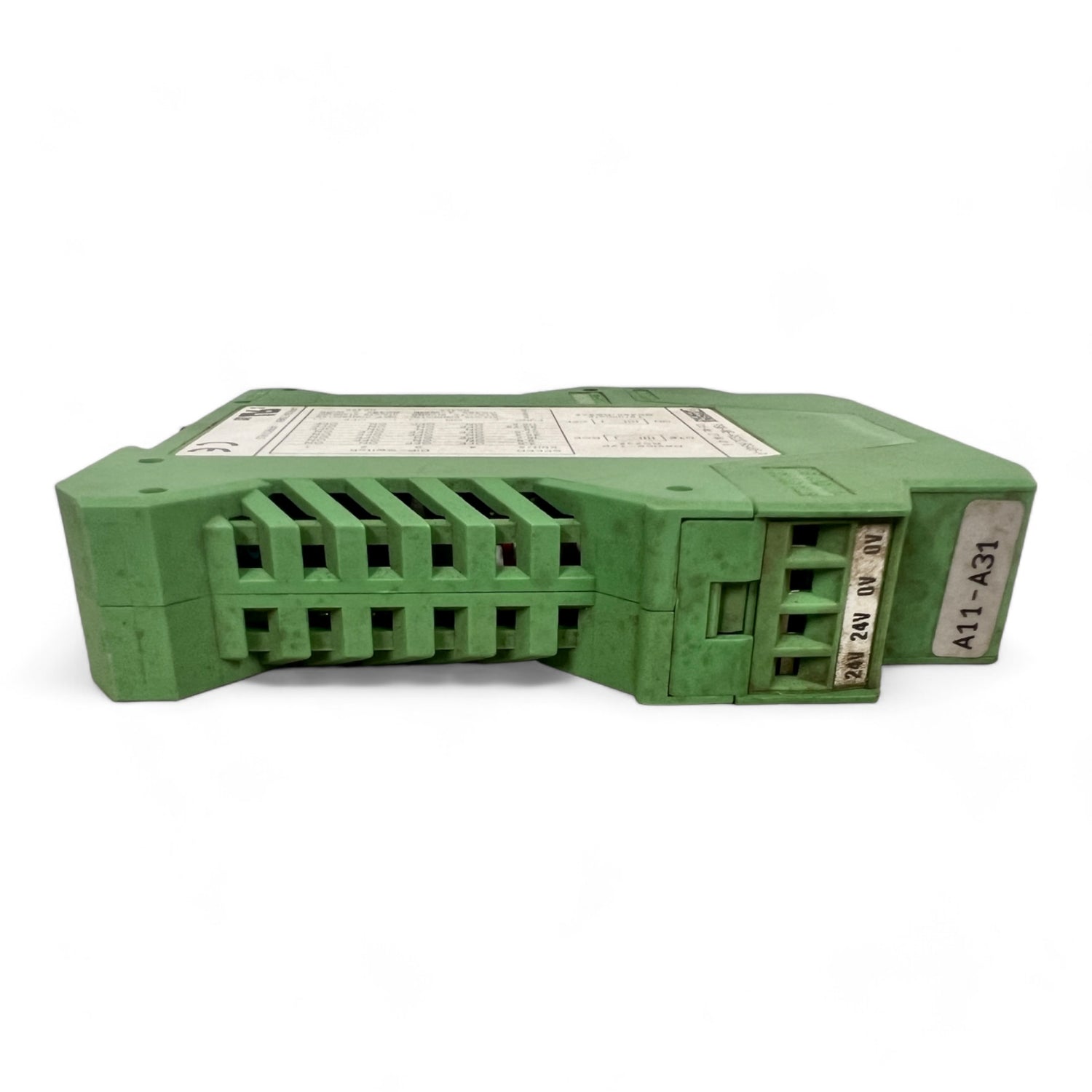

1 × Phoenix Contact PSM-ME-RS232/RS485-P interface converter, as shown in the photos.
