NUM | SKU: 20520303

NUM 1062 W CNC Card Rack / Base Frame for HOMAG / WEEKE – 20520303

Name: NUM 1062 W CNC Card Rack / Base Frame for HOMAG / WEEKE – 20520303
Brand: NUM
SKU: 20520303
Price: 389.00 EUR
Availability: InStock

€389,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

NUM CNC Card Rack Used HOMAG · WEEKE

NUM 1062 W CNC Card Rack / Base Frame with Backplane – Item No. 20520303

Original NUM SA card rack (base frame) of the NUM 1062 W control from a HOMAG / WEEKE CNC machine. Used, tested and functional.

20520303

Item number

NUM 1062 W

Control

220 V AC

Input voltage

50/60 Hz

Frequency

1996

Year of manufacture

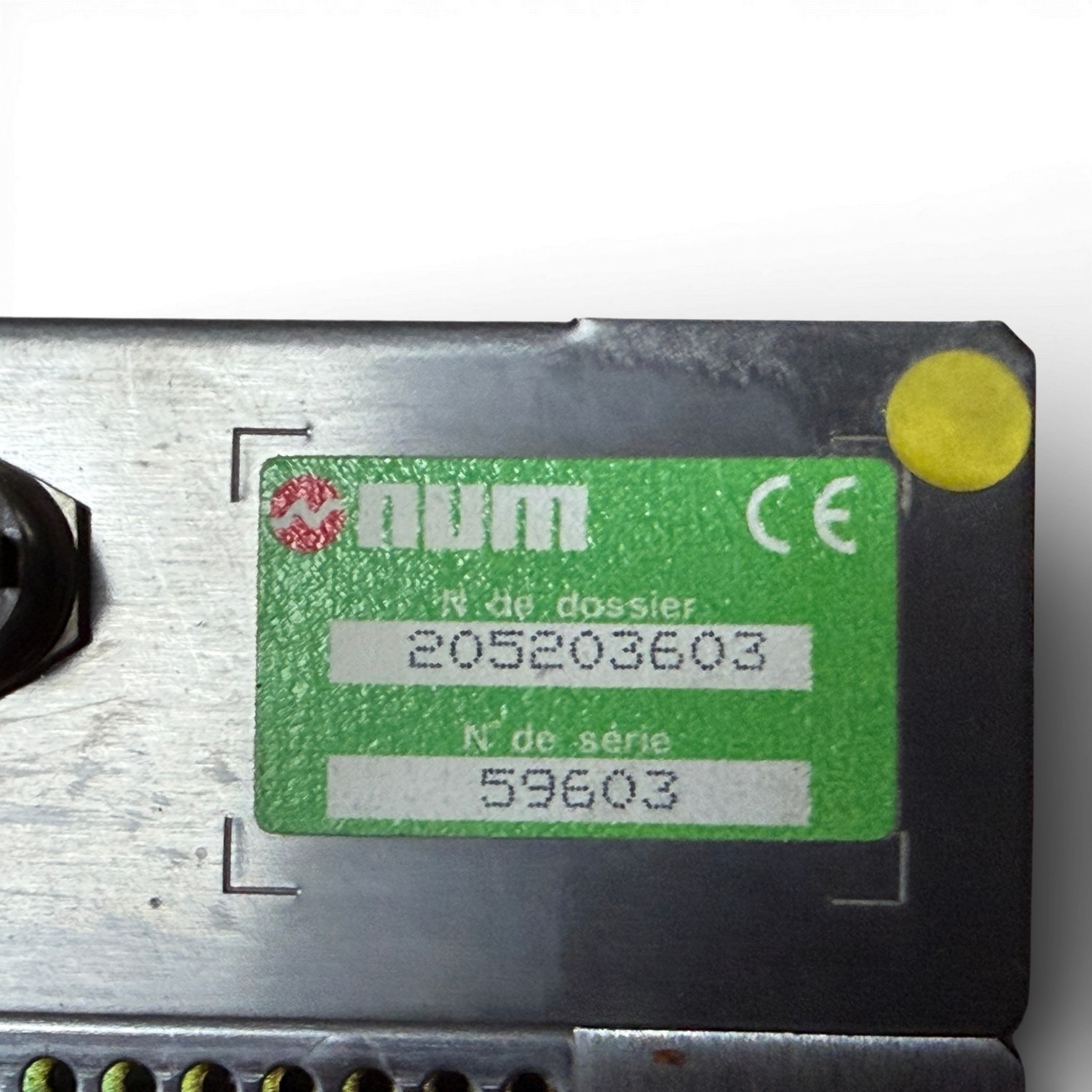

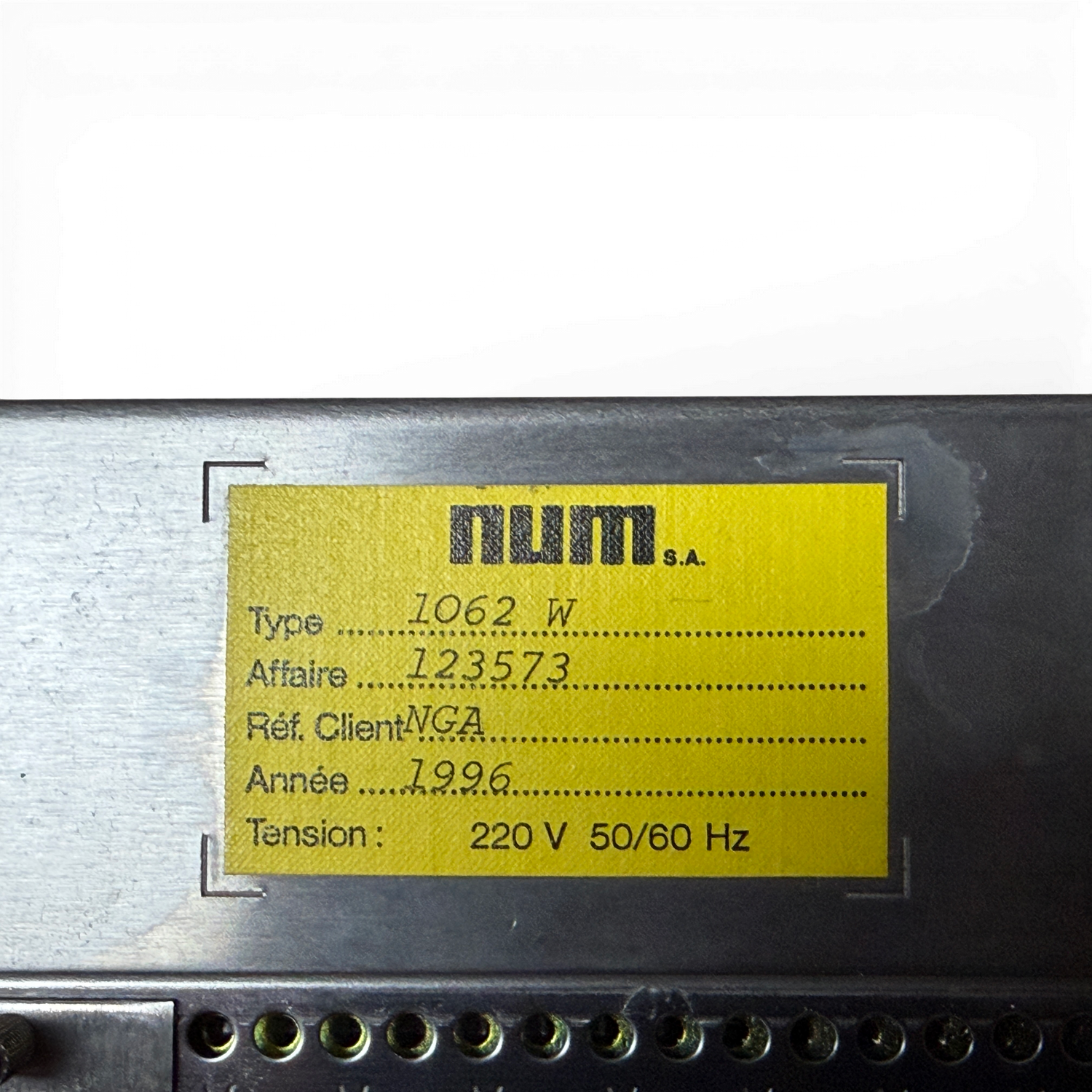

Before you order: compare the type 1062 W and the numbers on the type label (Affaire, Ref Client) with your rack. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Item number	20520303
Manufacturer	NUM SA
Further ident numbers	Affaire 123573, Ref Client NGA
Serial number	59603
Year of manufacture	1996
Control system	NUM CNC 1062 W
Assembly	CNC card rack with backplane
Input voltage	220 V AC
Frequency	50/60 Hz
Design	Aluminum base frame with integrated backplane
Standards	CE marked
Dimensions	approx. 31 × 32 × 22 cm
Condition	Used · 2 – Good

Product description

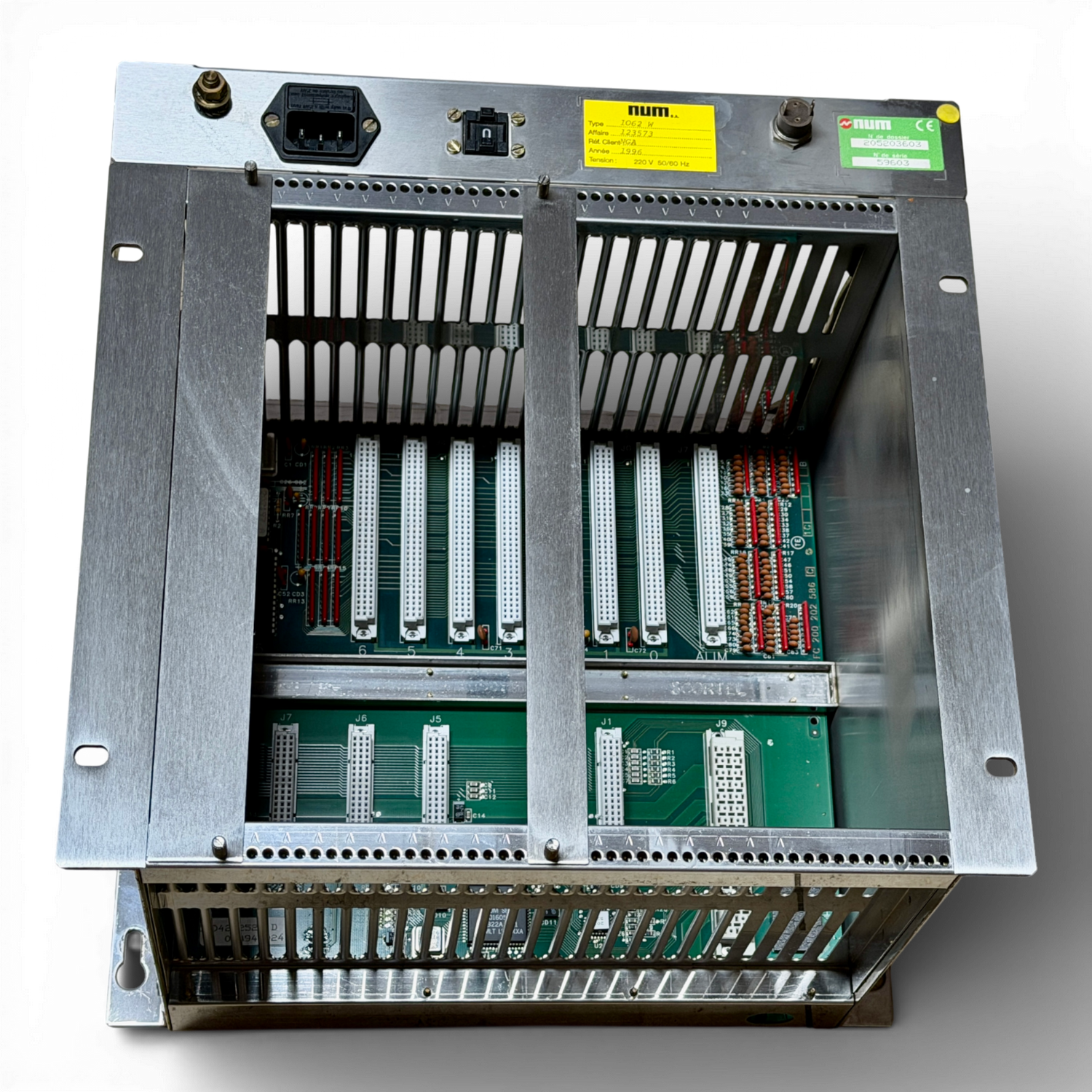

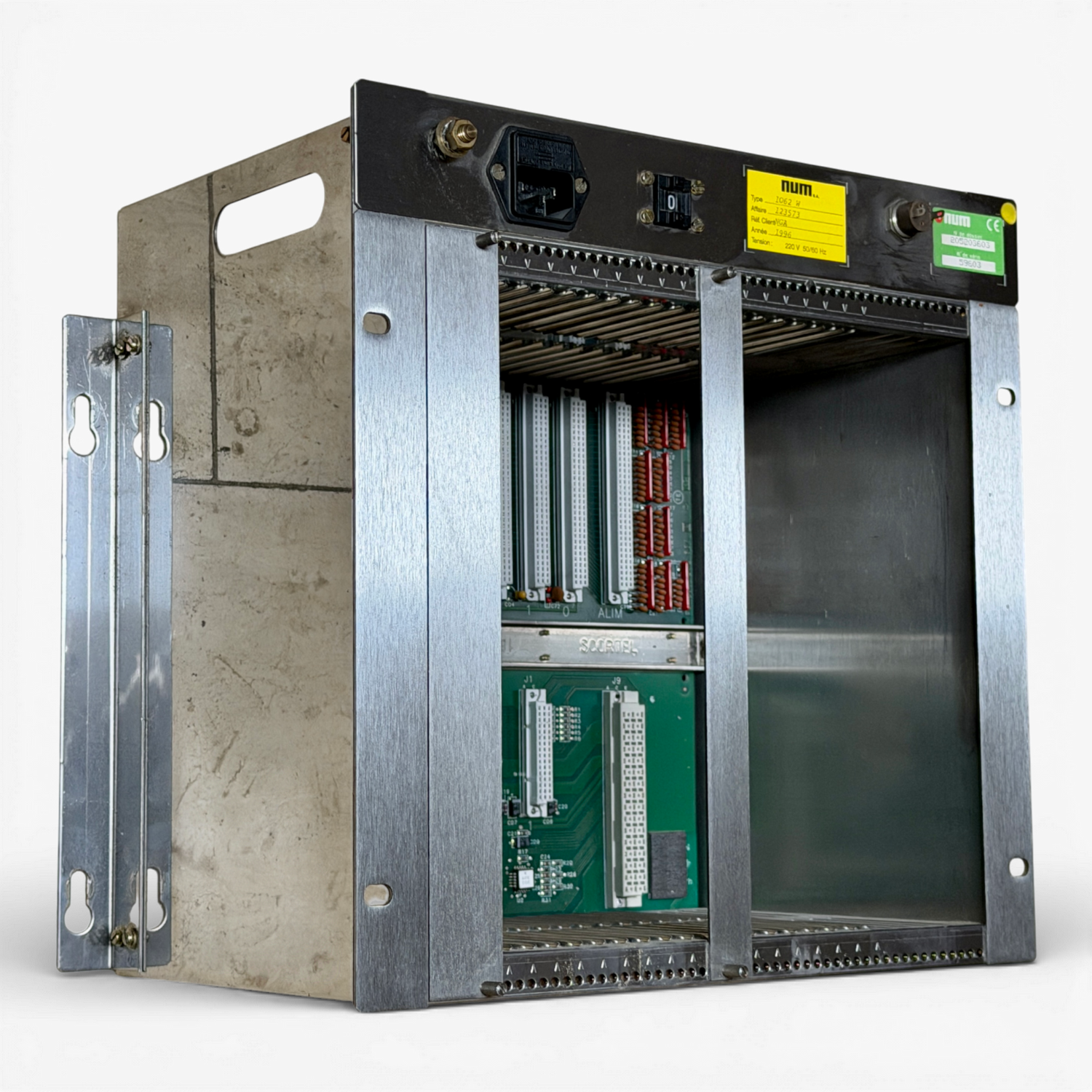

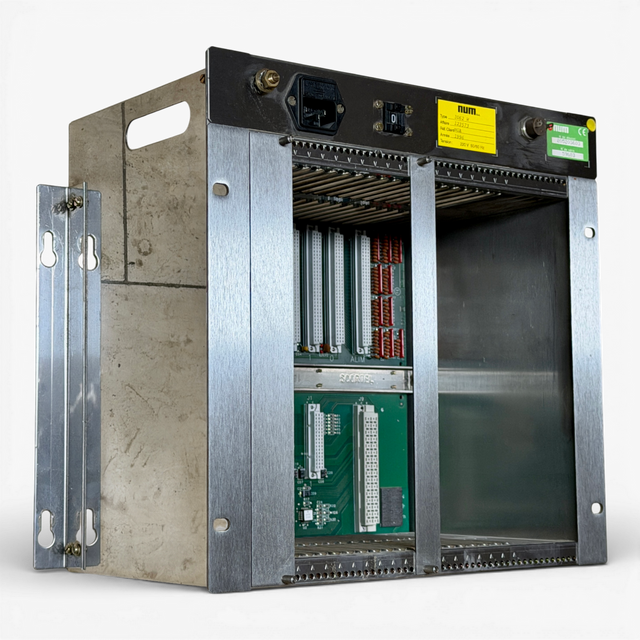

This original NUM SA CNC card rack (base frame) type 1062 W comes from a HOMAG / WEEKE CNC machine. It is the central mounting system of the NUM 1062 W control, holding the control and power cards mechanically and connecting them electrically.

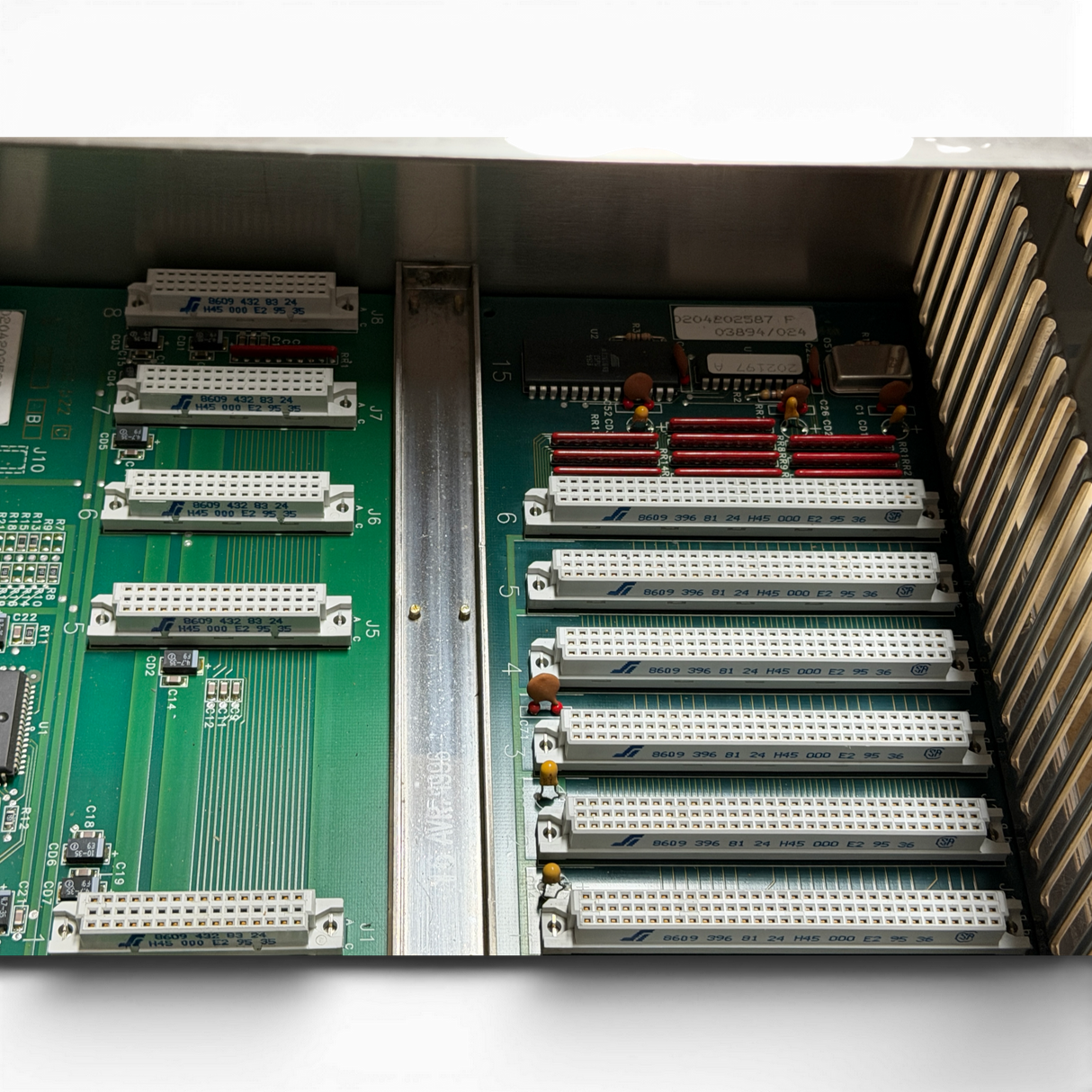

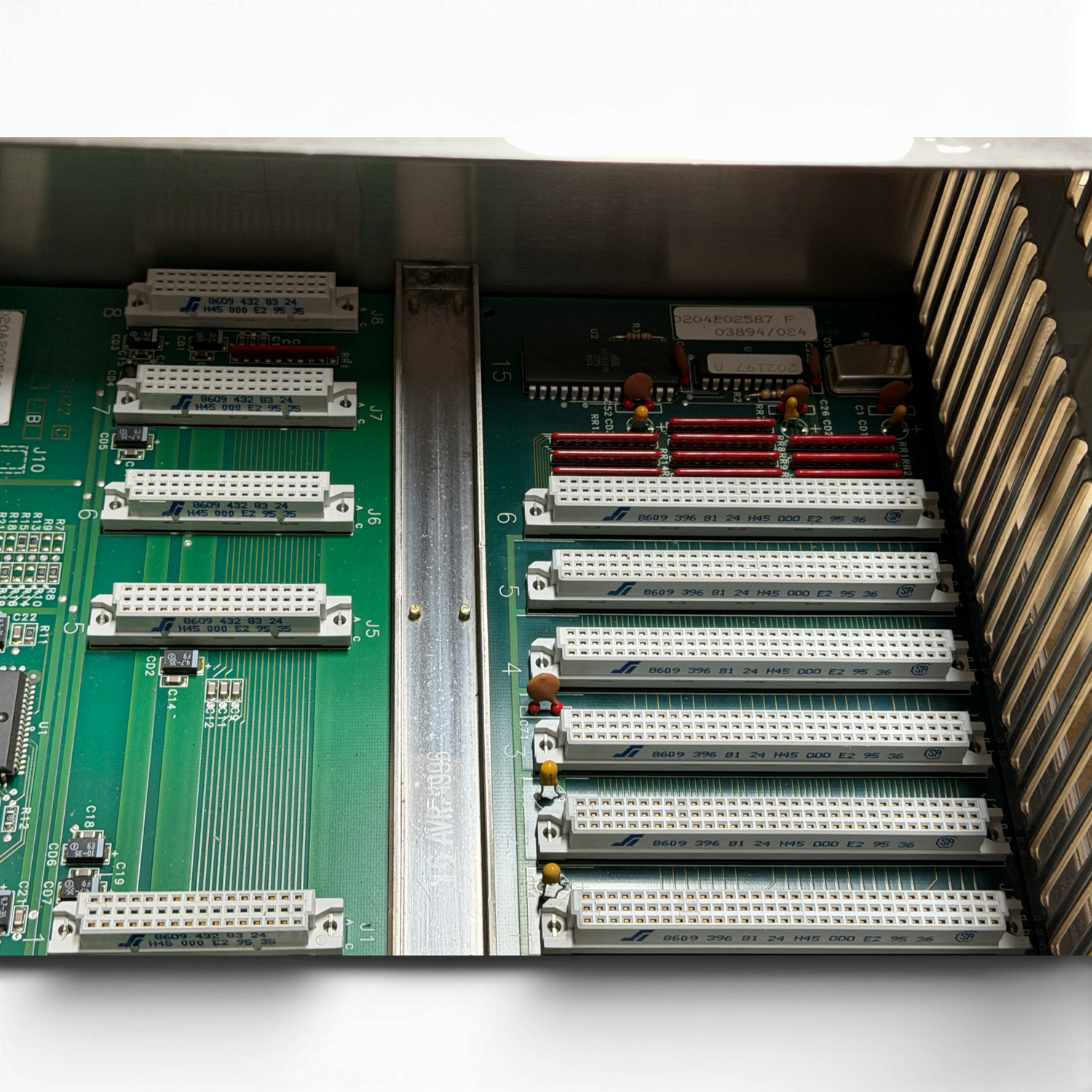

The rack consists of a sturdy aluminum housing with an integrated backplane PCB that distributes the supply voltages and internal signals between the power supply board, CPU boards and expansion cards. Multiple slots accept different NUM function cards, and guide rails ensure secure, accurately positioned contact.

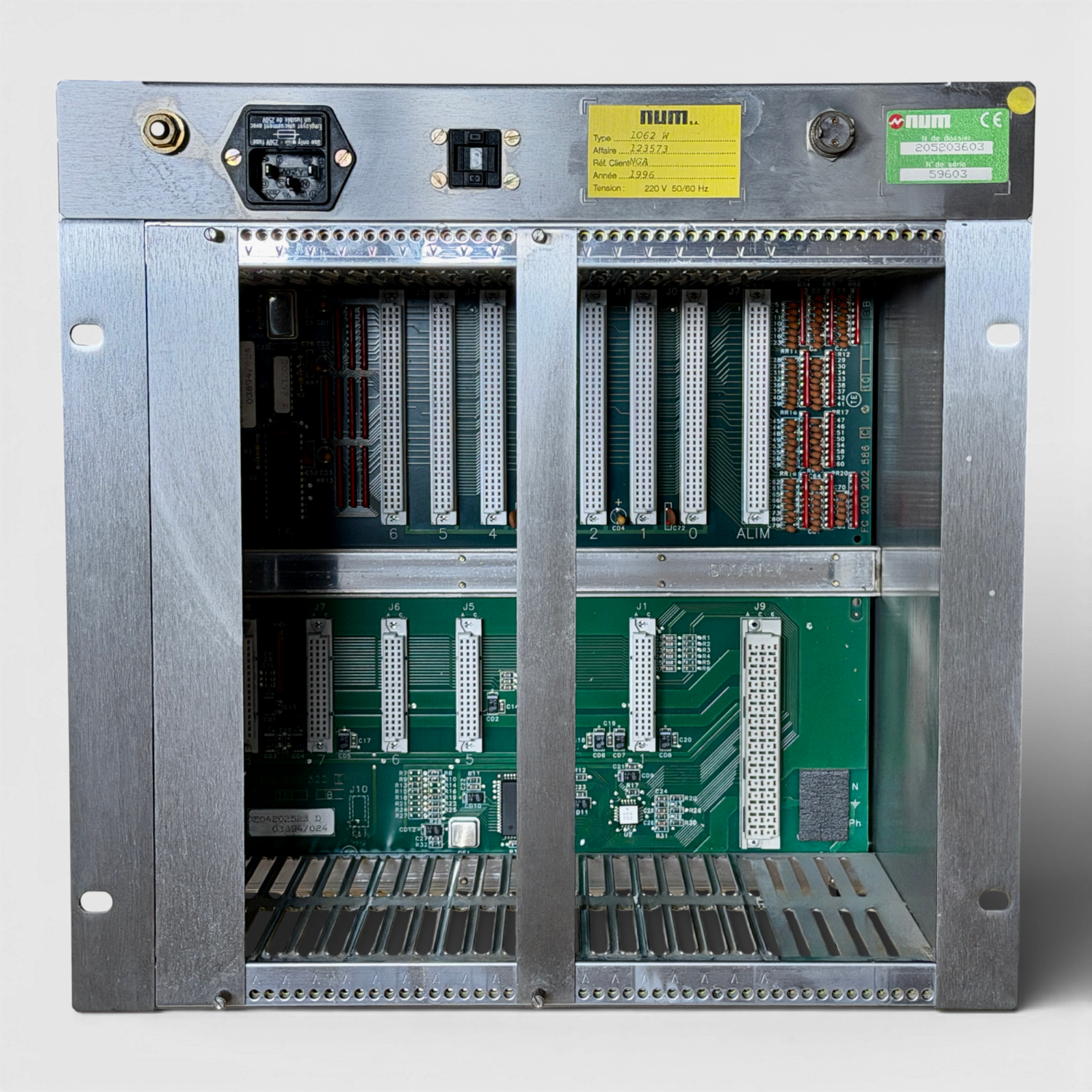

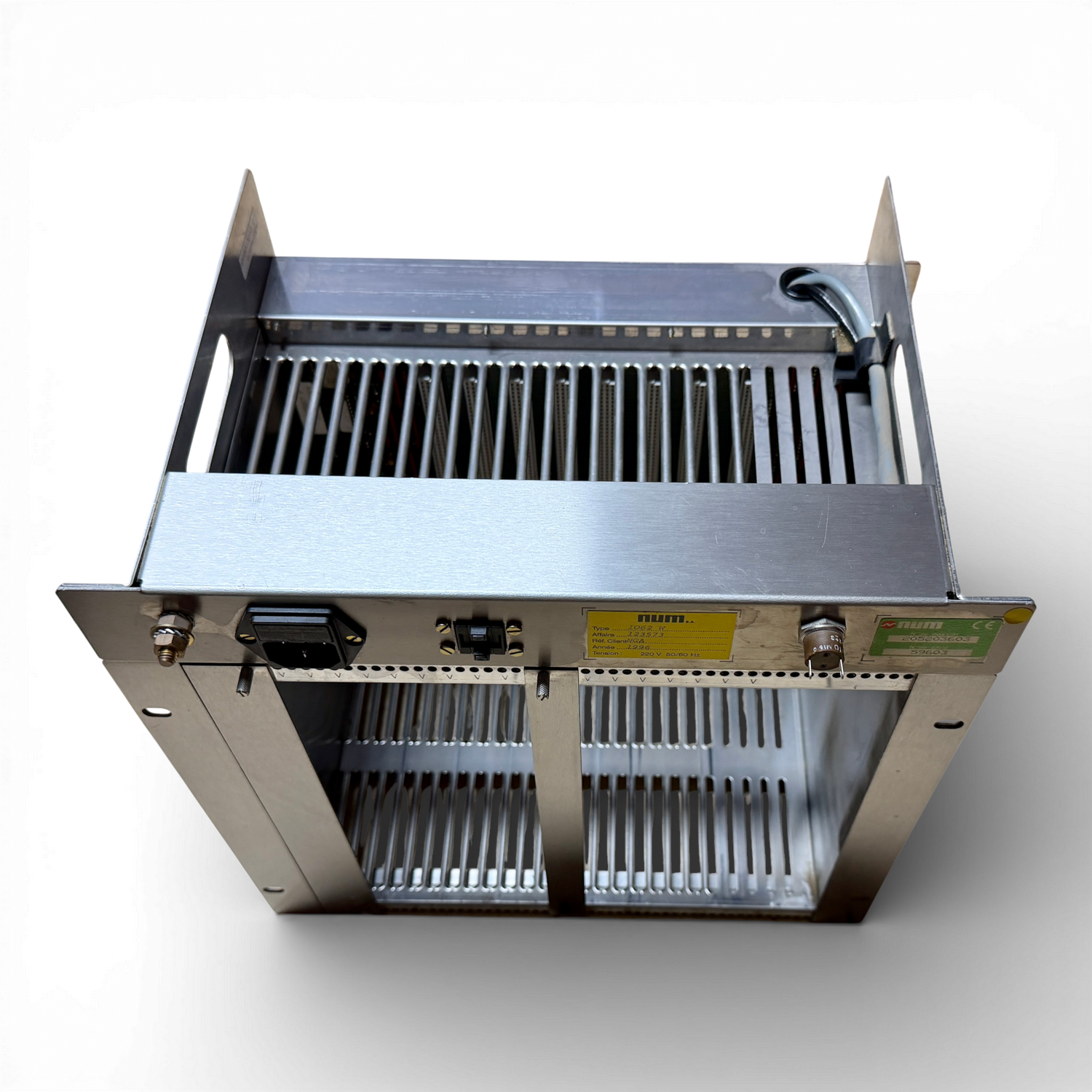

The front carries the external power supply connections and mounting points for cabinet installation. The open, ventilated design supports heat dissipation from the installed cards and is built for continuous industrial duty. Used, tested and functional; age-related signs of use and storage as shown in the photos are possible.

Compatibility & applications

HOMAGWEEKENUM 1062 WCNC machining centersCard cage / backplane

Scope of delivery

1 × NUM CNC card rack / base frame type 1062 W as shown.
