NUM 1060 SIlc CNC Module C088 – Compact Control for Woodworking

Name: NUM 1060 SIlc CNC Module C088 – Compact Control for Woodworking
Brand: NUM
SKU: 1470862 C088
Price: 280.00 EUR
Availability: InStock

€280,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

NUM CNC module Used Woodworking

NUM 1060 SIlc CNC Module C088 – Compact Control for Woodworking

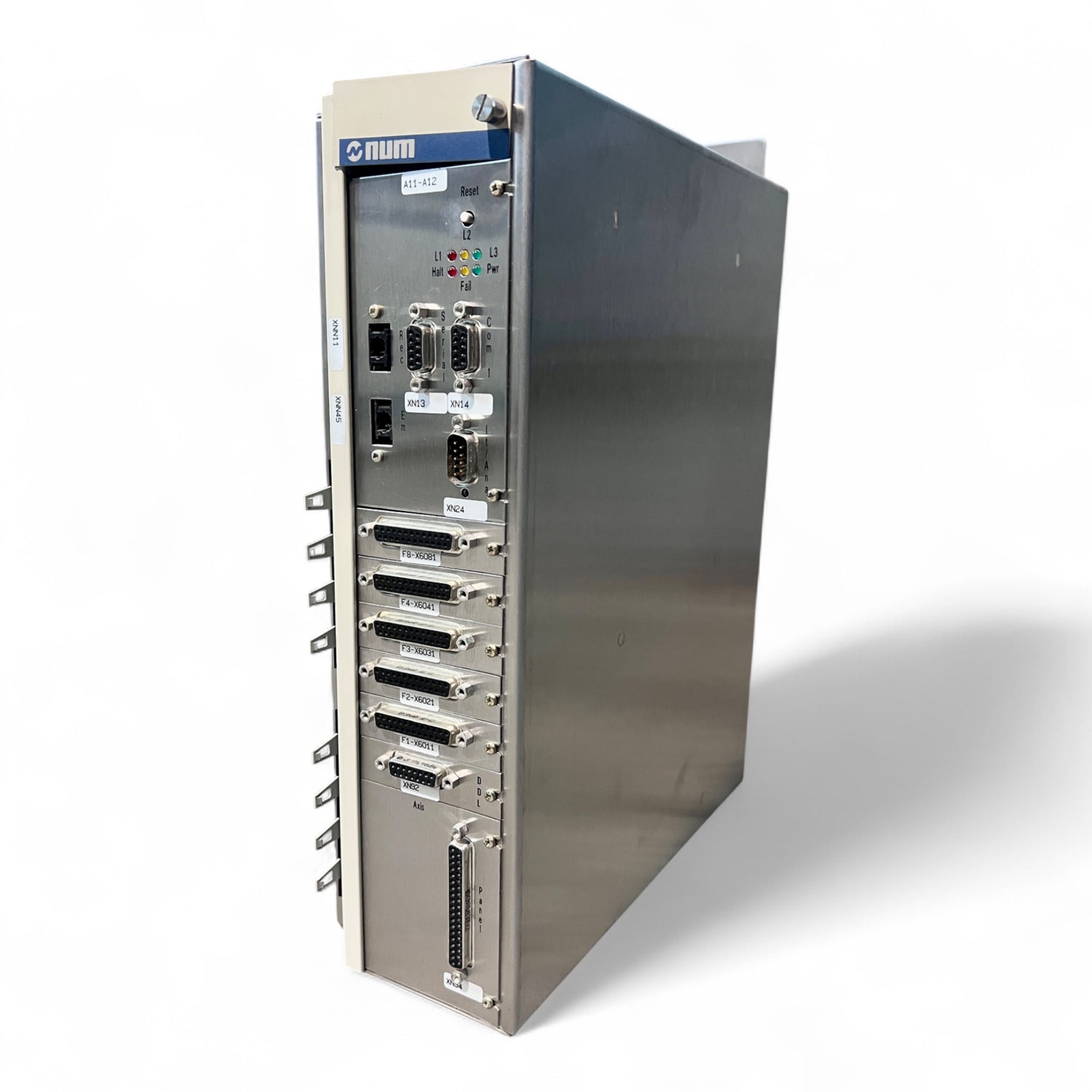

Compact NUM 1000 series CNC control unit designed for woodworking, with TOSLINK fiber-optic ports, serial COM ports, axis, I/O and panel interfaces – 24 V DC supply, from a running machine.

C088

Item number

NUM 1060 SIlc

Model

24 V DC

Supply voltage

147086

Affaire no.

Before you order: compare the item number C088, the model NUM 1060 SIlc and the Affaire no. 147086 on your unit. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	NUM (Groupe Schneider, France)
Item number	C088
Designation	NUM 1060 SIlc – Compact CNC – wood-working / CN compacte – usinage du bois
Application	Woodworking CNC (MODAX1 / Affaire 147086)
Supply voltage	24 V DC via separate NUM power supply module

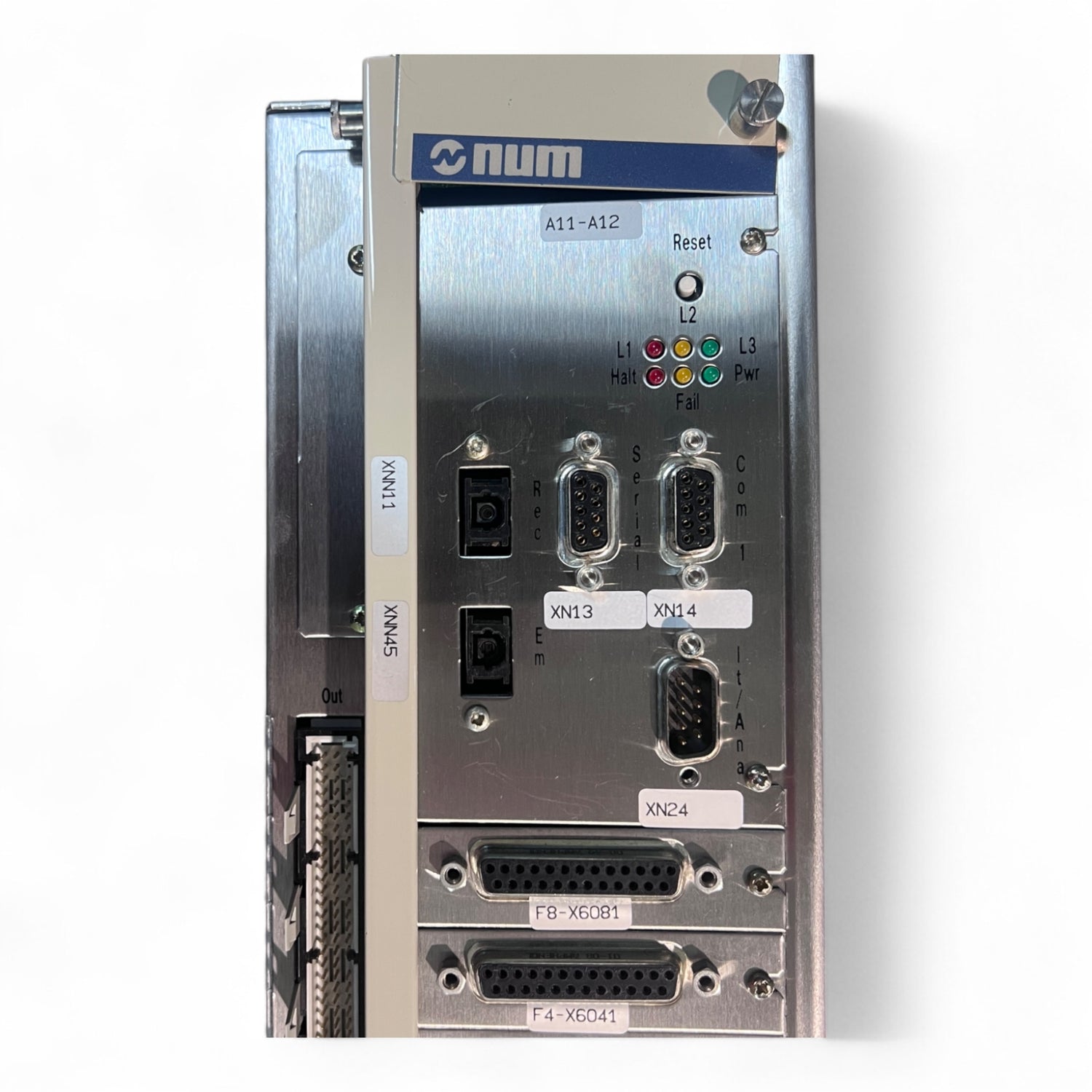

Optical interfaces	XNN11, XNN45 (TOSLINK fiber optic)
Serial ports	XN13, XN14 (COM, 9-pin Sub-D)
Analog interface	XN24 “Int/Analog”

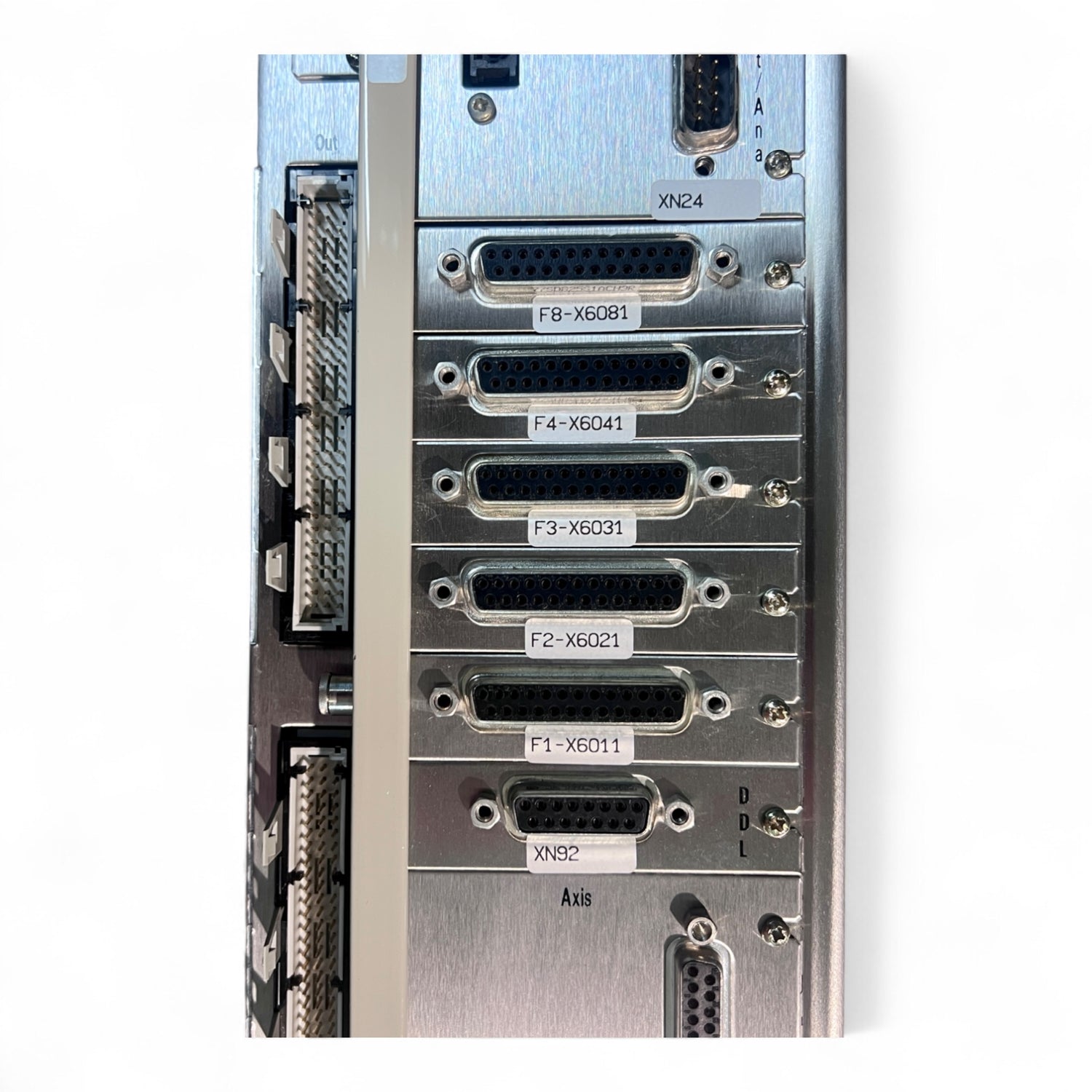

Axis / I/O modules	F1–F4 (X6011–X6041), F8 (X6081)

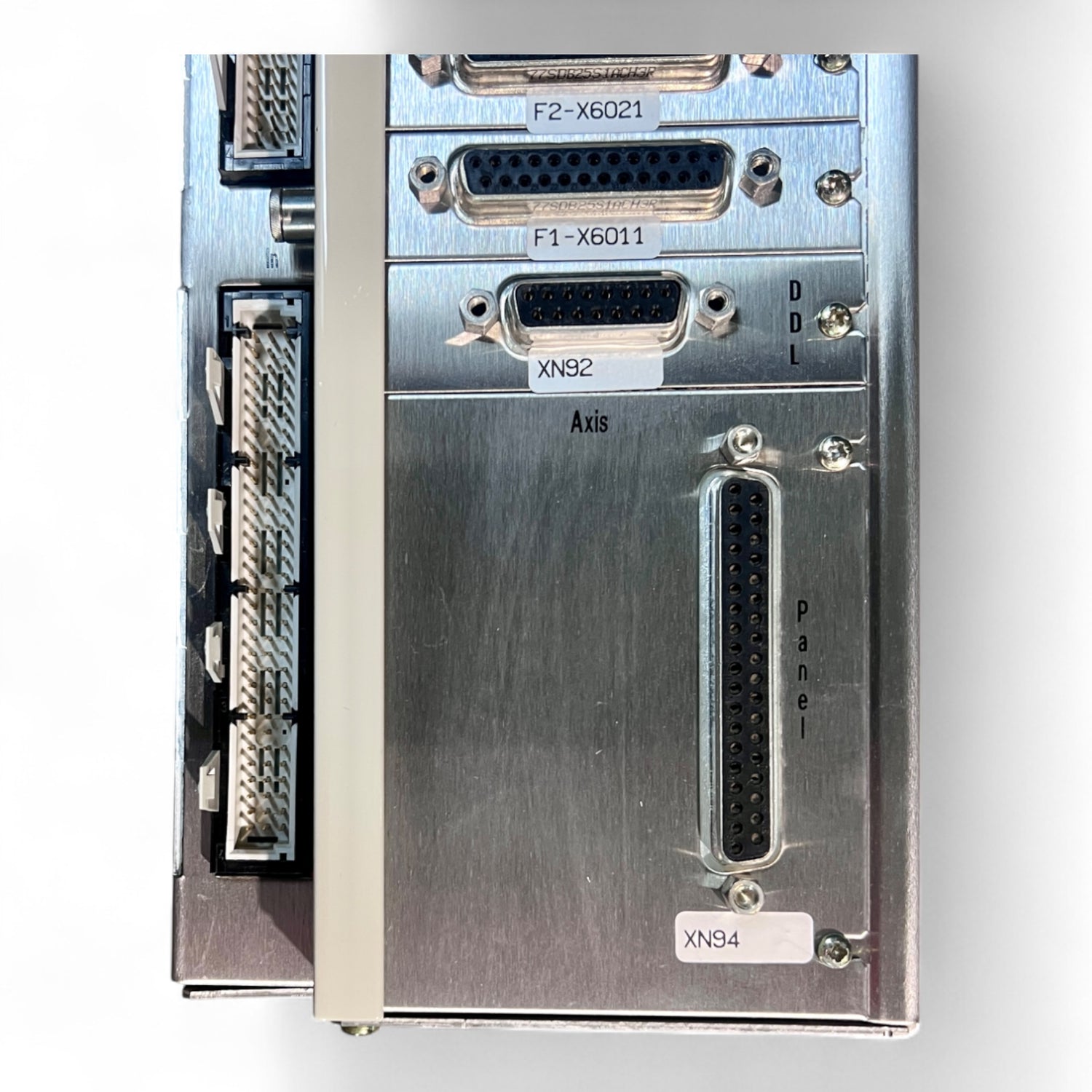

Axis connection	XN92 DDL (Direct Drive Link), Sub-D
Panel port	XN94 (36-pin)
Indicators	Halt (red), Fail (orange), Power (green), Termination (yellow)
Controls	Reset button, mode switches Rec / Em, rotary switch 0–F for group assignment
Housing	Brushed aluminum, ventilation grille, fan insert on the back
Origin	France
Condition	Used · 2 – Good

Product description

This NUM 1060 SIlc CNC module, item number C088, was designed specifically for woodworking and is part of the proven NUM 1000 series. It is a compact control unit from NUM (Groupe Schneider, France) for industrial applications with high reliability and modular expandability.

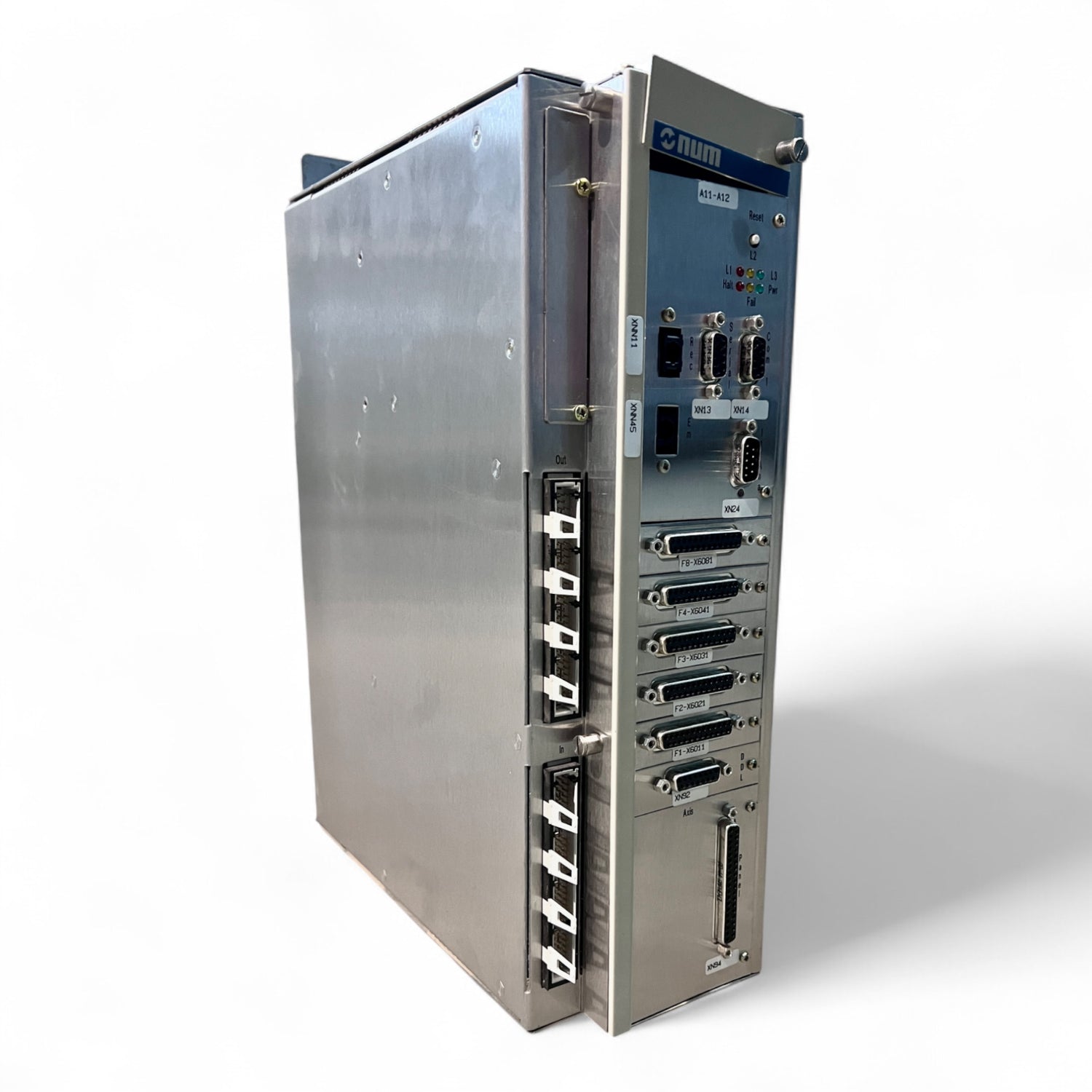

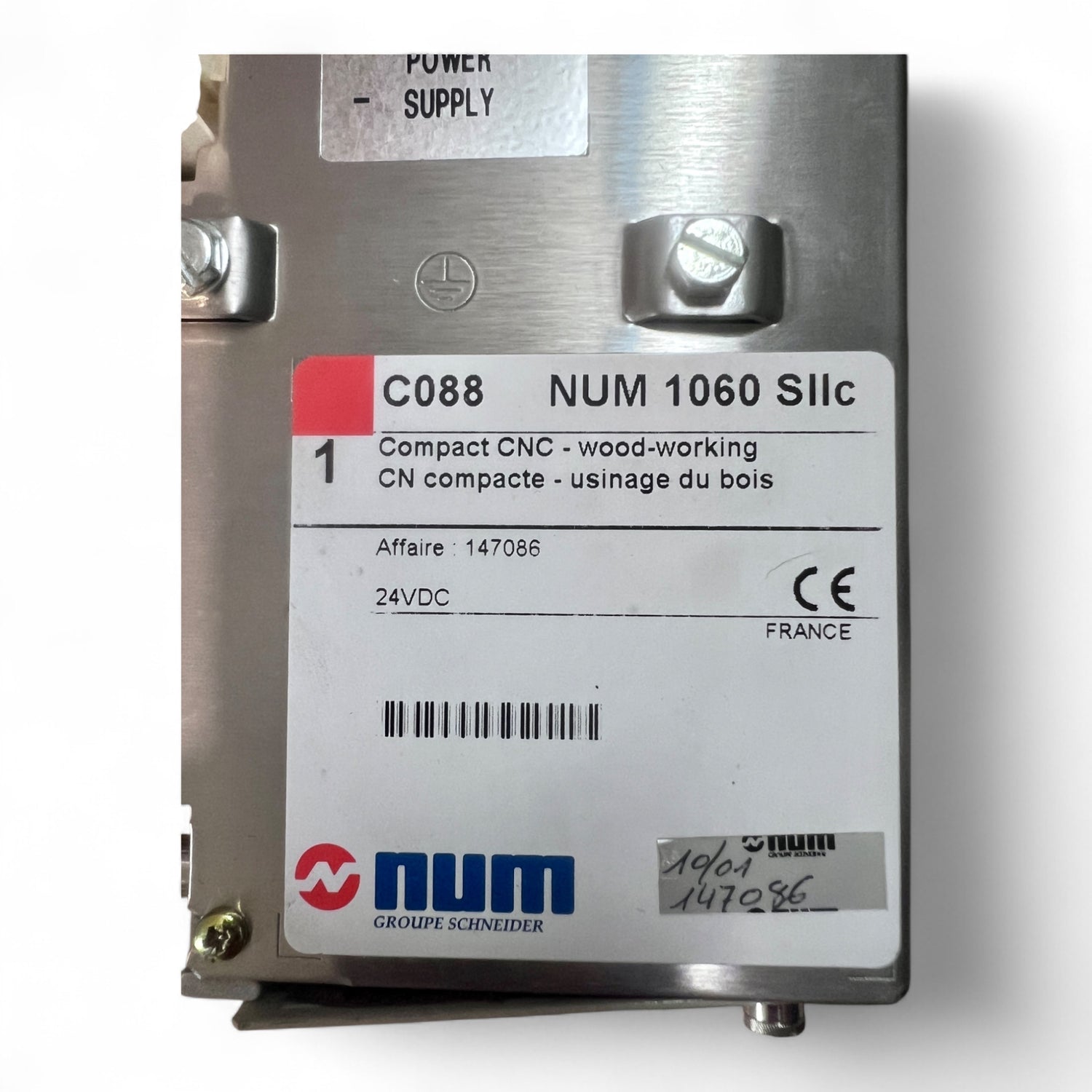

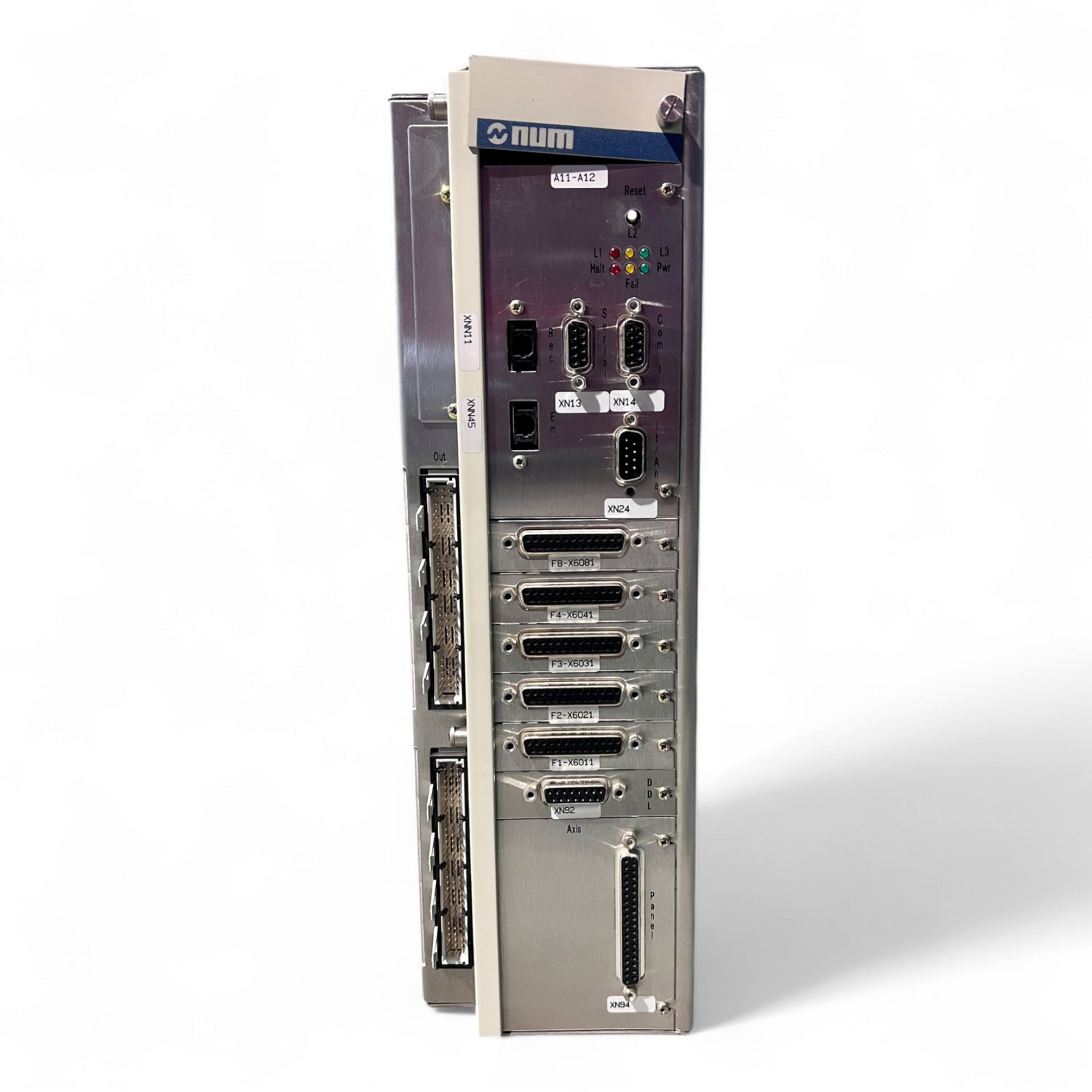

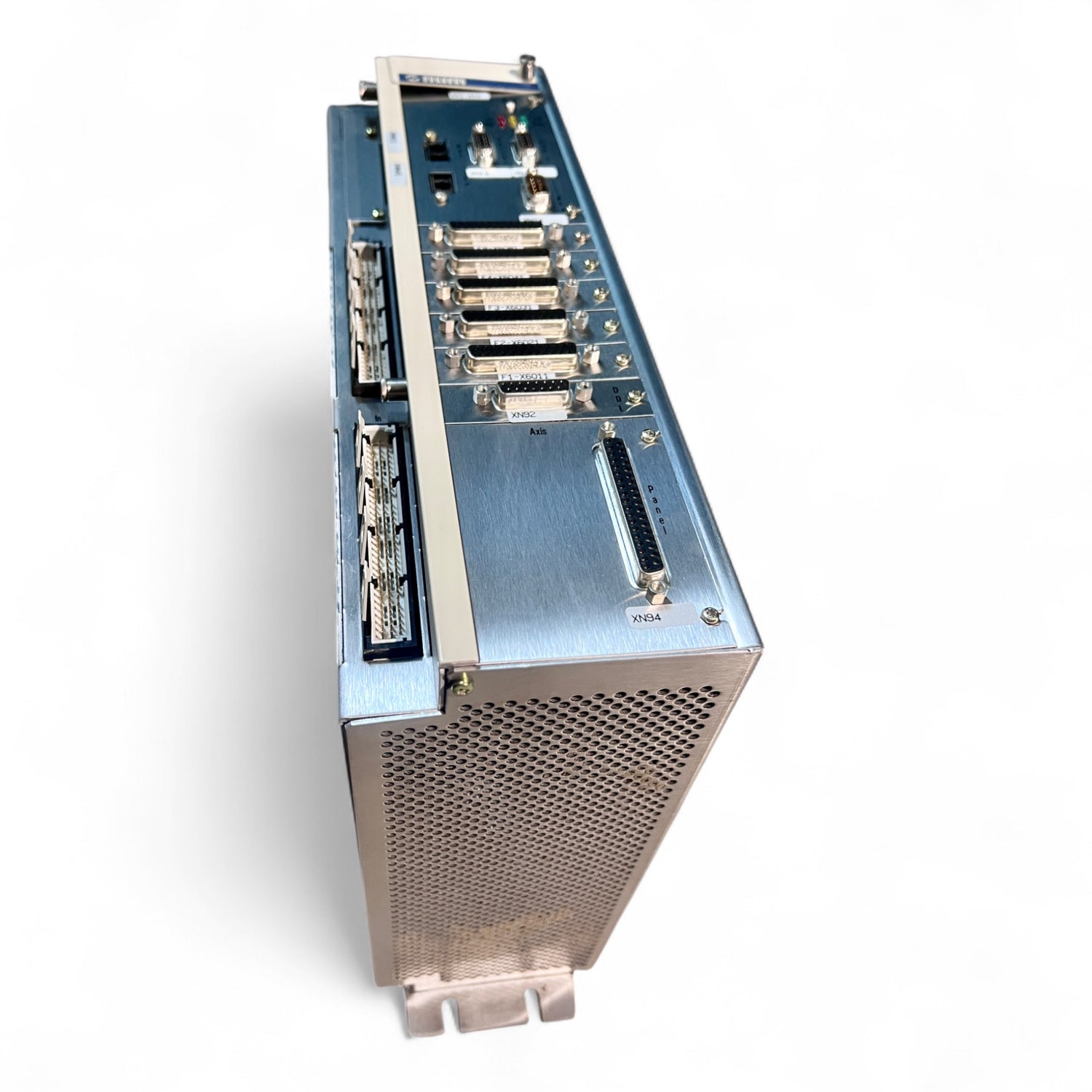

The system is based on a compact housing with a front connection panel for easy integration into control cabinets or machine enclosures. The front offers numerous interface connectors and status indicators for real-time monitoring. The type label on the power supply reads “NUM 1060 SIlc” with the specification “Compact CNC – wood-working – CN compacte – usinage du bois”.

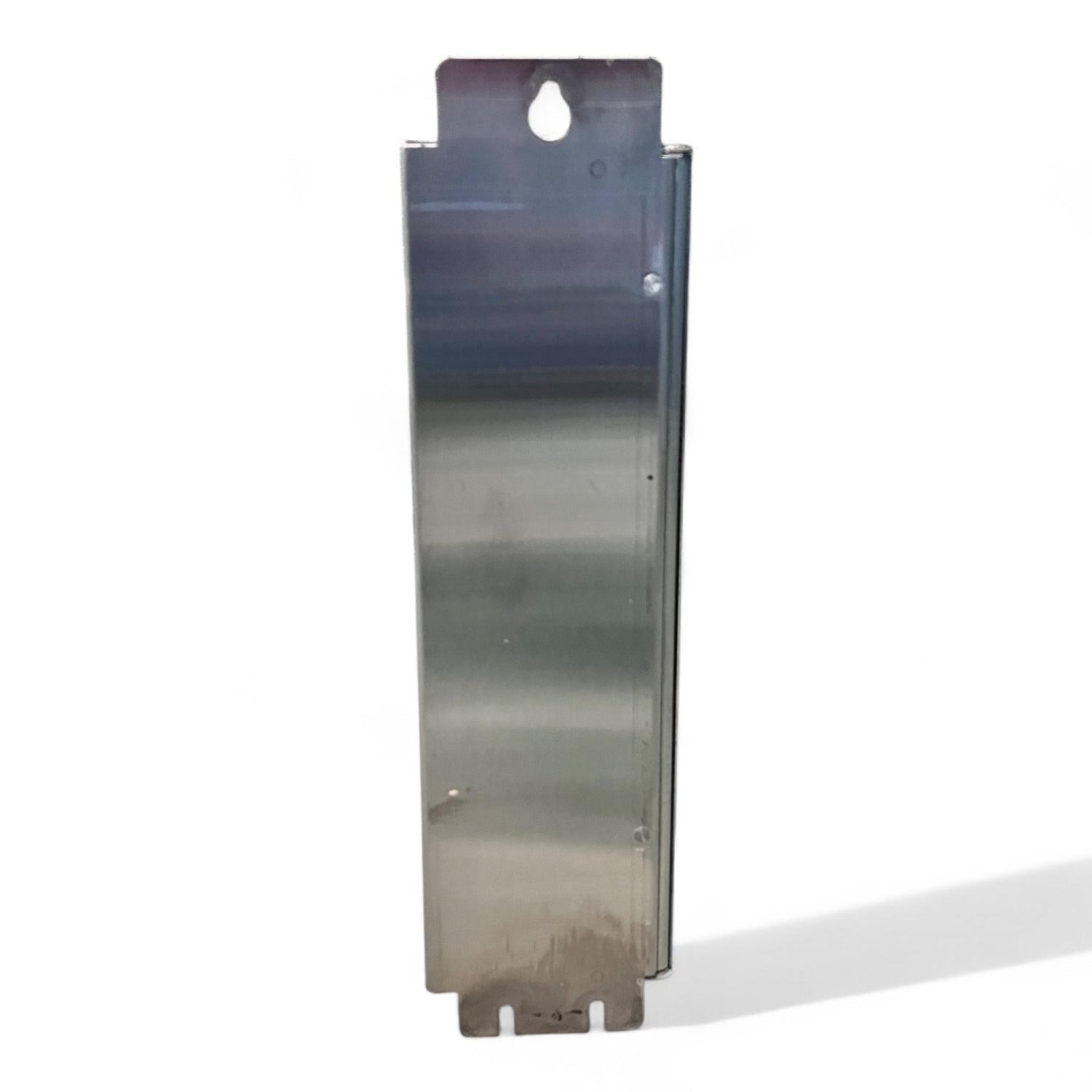

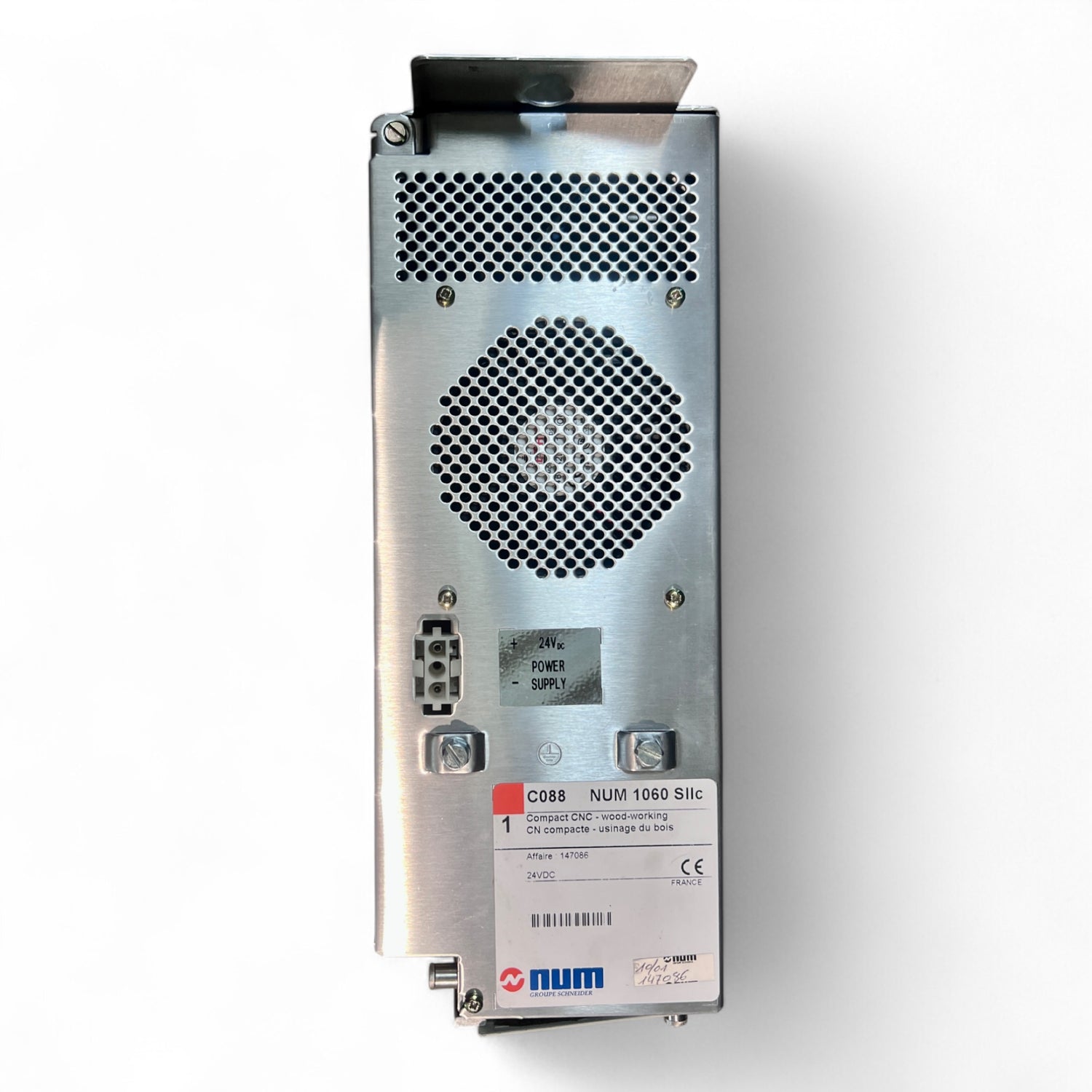

The housing is made of robust brushed aluminum for good EMC protection, with passive cooling through a large ventilation grille and a strong fan insert on the back for active heat dissipation. Mounting is via pre-installed rail brackets and slotted holes for screw fastening.

Used and technically in perfect condition, checked before dismantling. The module comes from a running machine and shows only minor storage marks. Original packaging is no longer available.

Compatibility & applications

NUM 1060 woodworking CNCMODAX1Affaire 147086Woodworking machines

Scope of delivery

1 × NUM 1060 SIlc CNC module C088 as shown in the photos.
