Moog D122-034-A001 c S/N T2621 valve control card Battenfeld Servo Valve

MOOG Control Card P/N D122-034-A001C S/N T2621

Part Number: D122-034-A001C

Description: Electronic control card for servo valves

Manufacturer: MOOG Inc., Böblingen

Condition: Used, tested and removed from a running system

Description:

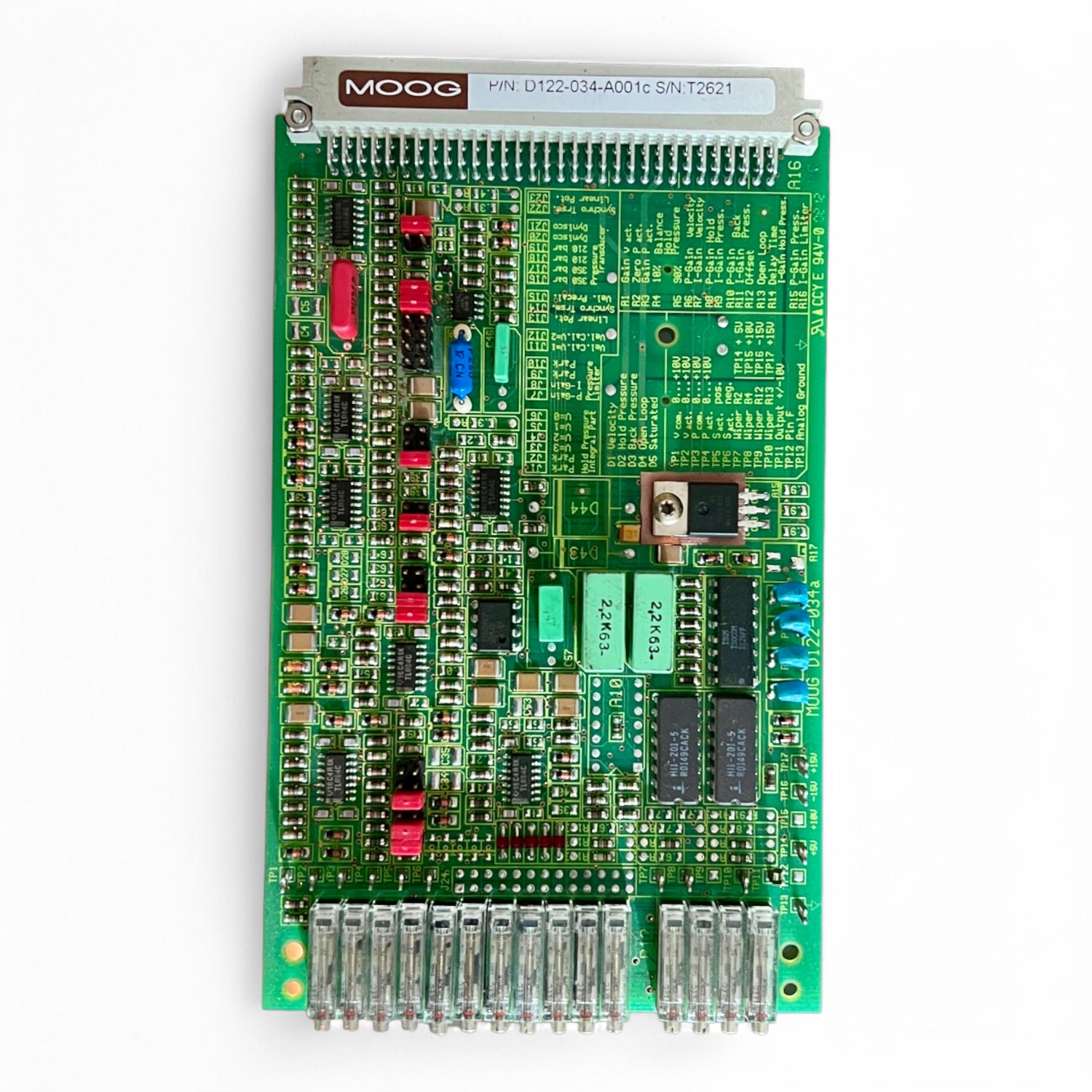

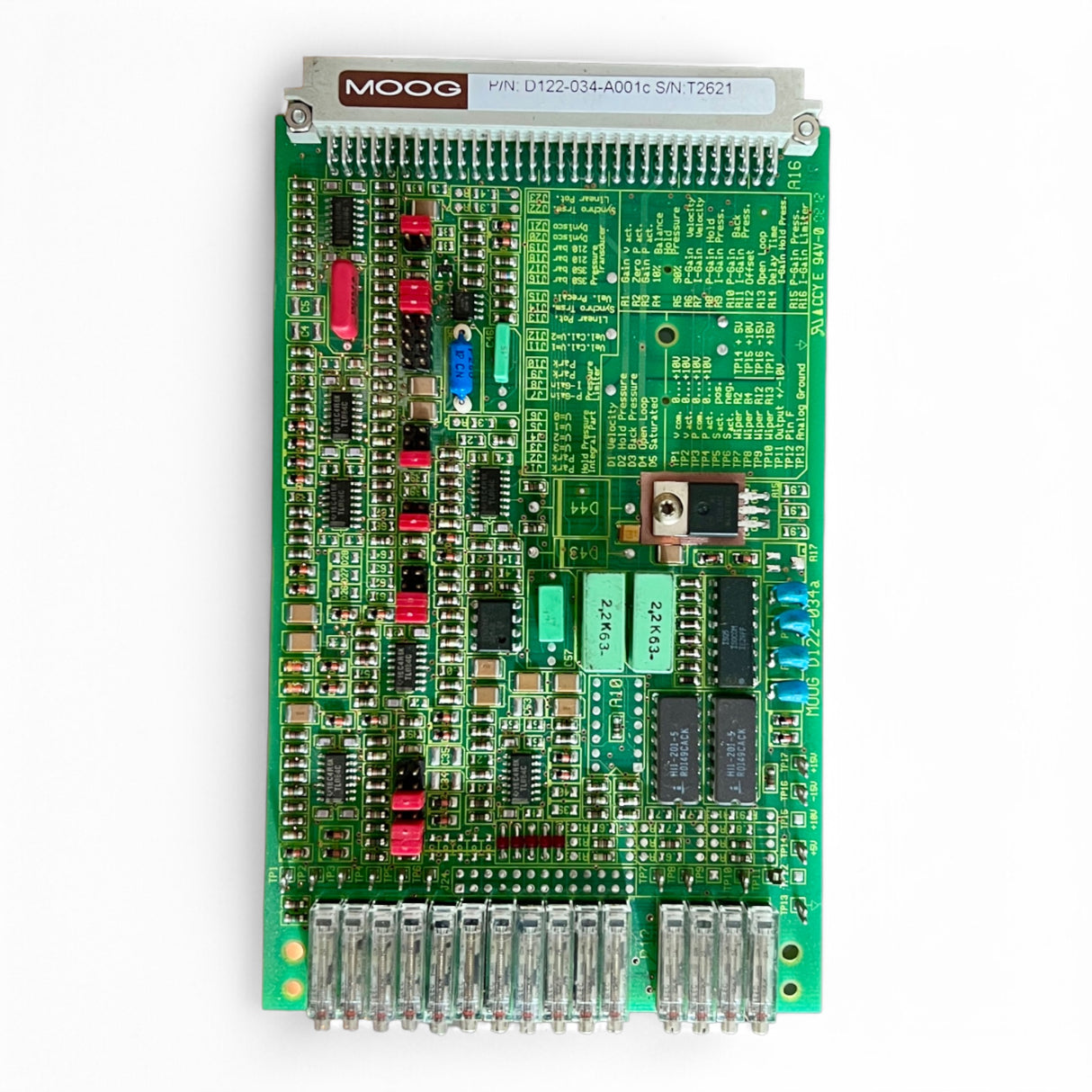

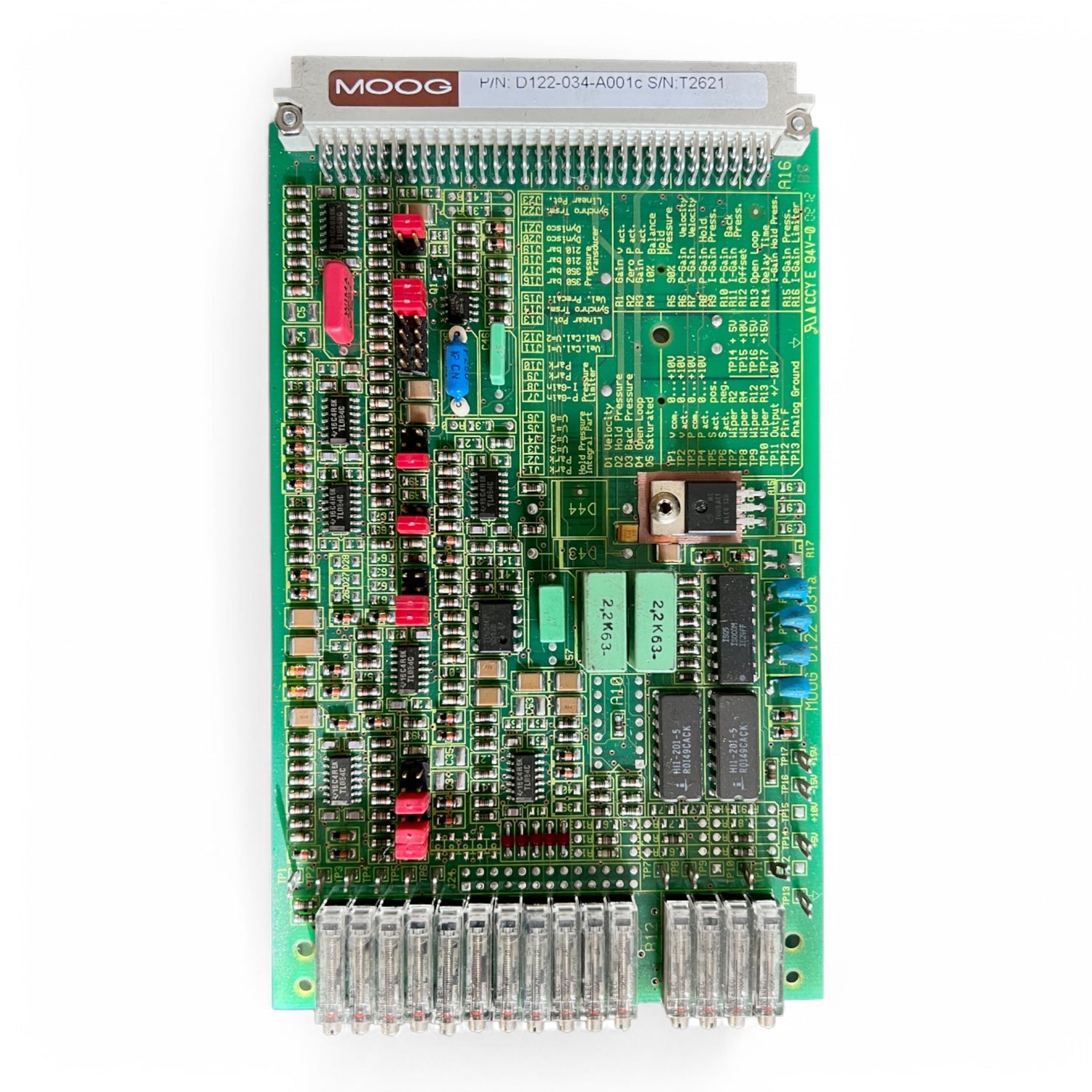

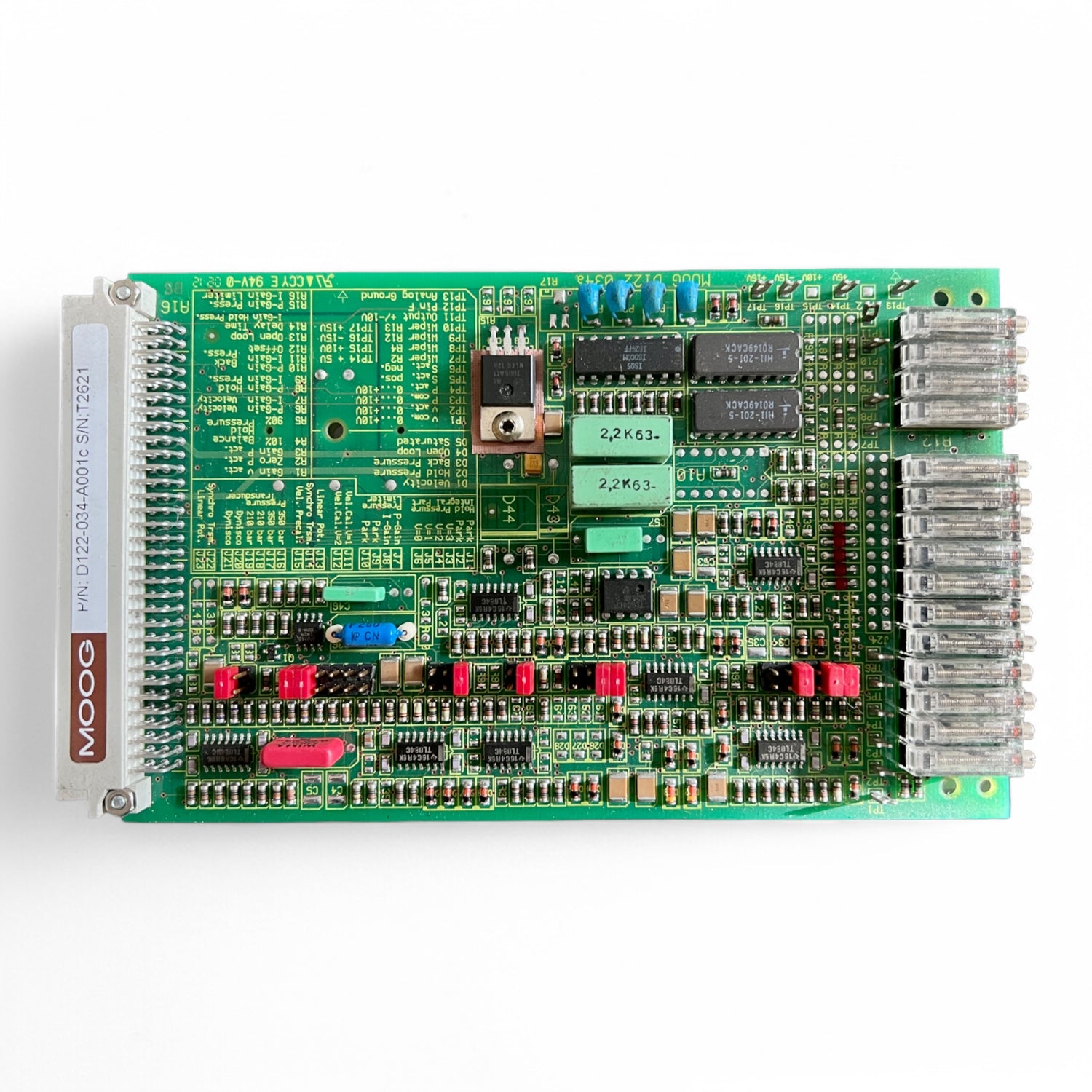

This high-quality MOOG control card is specifically designed for precise control of servo valves in industrial applications. The model D122-034-A001C belongs to MOOG's proven D122 series and is equipped with a 64-pin connector. The card was specially developed for analog control signals and supports ±10V signal ranges. The components are clearly arranged, with numerous test points, adjustment trimmers, and test labels on the board. The integrated interface allows for easy integration into control systems.

Technical Details:

• Type: MOOG D122-034-A001C

• Serial Number: T2621

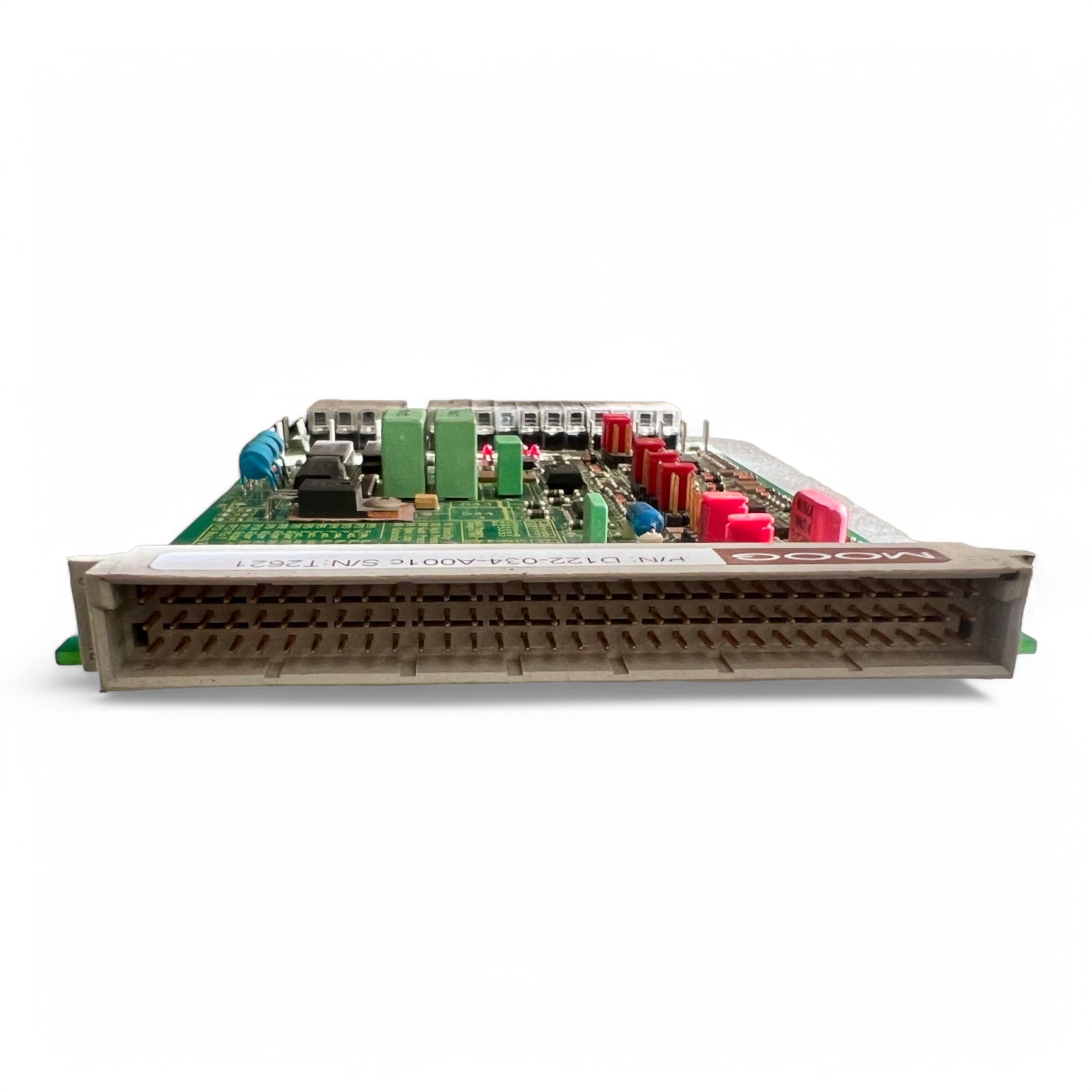

• Connection: 64-pin card slot connector

• Signal Processing: Analog signal ±10 V

• Application: Servo valve control

• Special Features:

  • High-quality component assembly

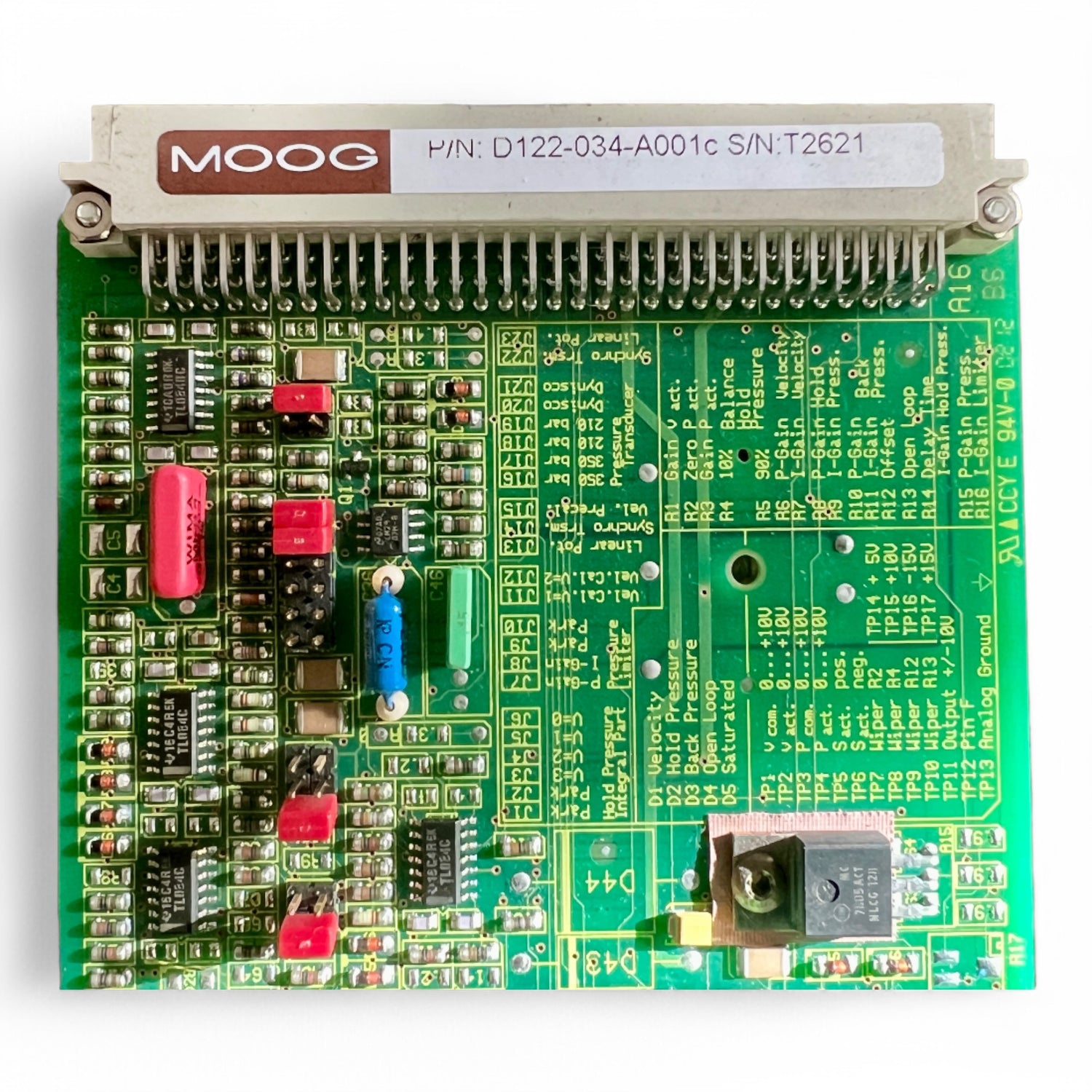

  • Test points labeled for service purposes

  • Precision resistors 2.2 kΩ

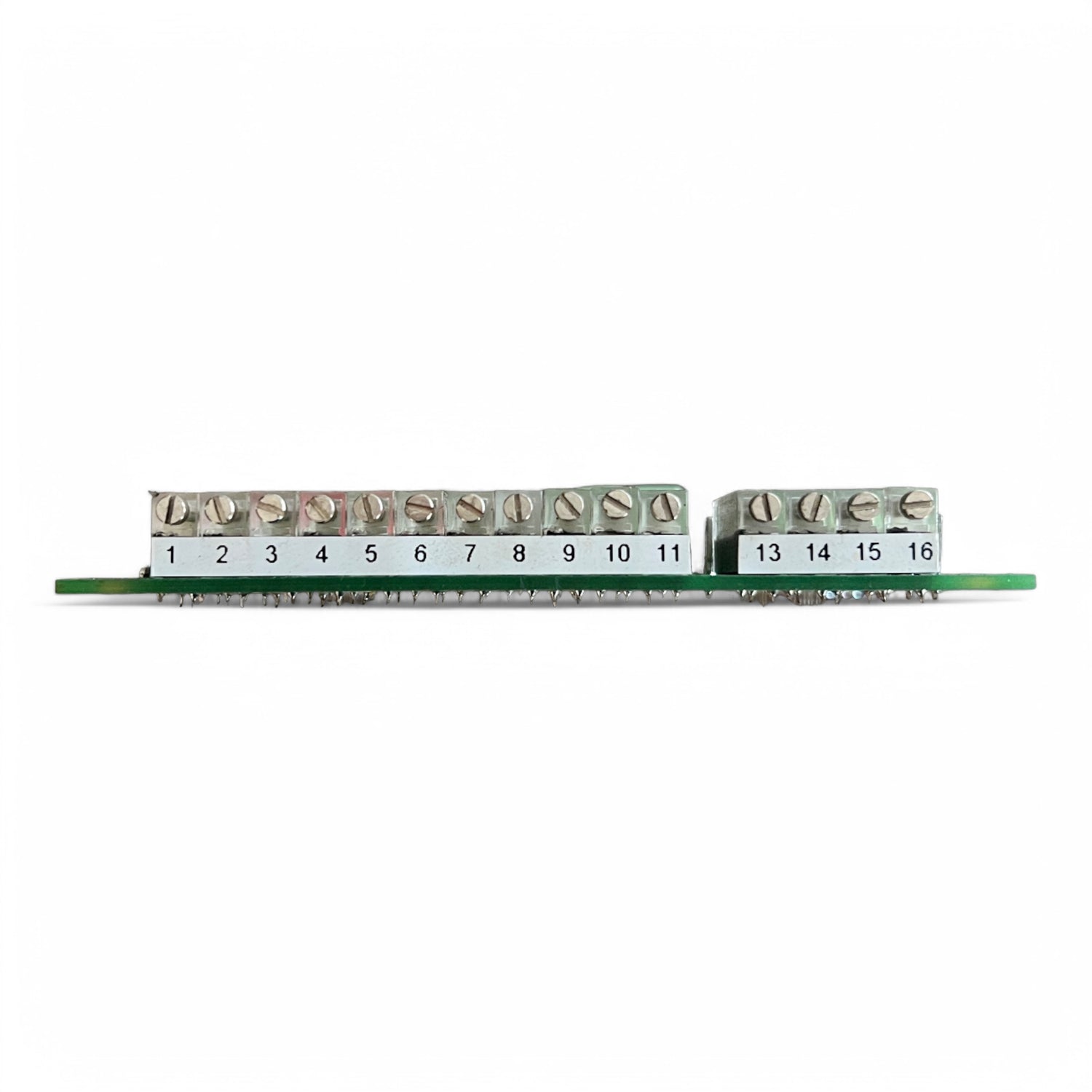

  • Screw terminal block (16-pin)

  • Power supply +24 V DC



Scope of Delivery:

• 1x Control Card MOOG P/N D122-034-A001C S/N T2621

• Delivery as shown and described in the photos

Note:

This is a used electronic module from a functional system. The item has been visually inspected. No further functional tests have been performed.

Customs Tariff Number: 85371091

Weight: approx. 350 g

Highlights:

• MOOG original electronics for servo applications

• Mature, reliable industrial electronics

• Full 16-pin screw terminal row available
