Moog ARBURG valve D65Z130 type U70XQEACNXA0ND691Z4702G

ARBURG Moog Servo Valve D651Z130 Type U70XQEACNXA0N

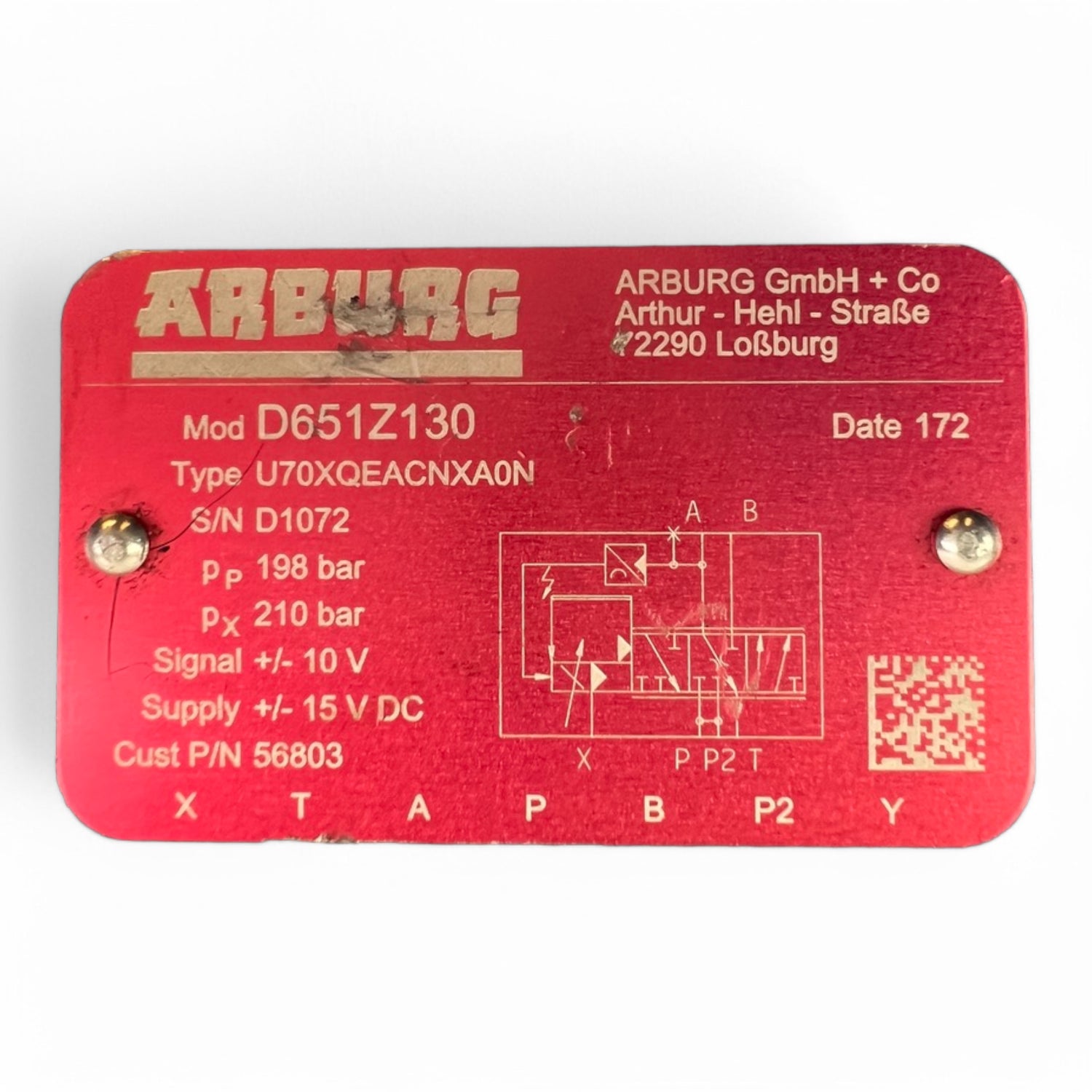

Part Number: D651Z130

Manufacturer: ARBURG GmbH + Co, in cooperation with Moog Inc.

Type: U70XQEACNXA0N

Model Number: D651Z130

Serial Number: D1072

Description:

This item is a high-quality Moog servo valve from the D651 series, manufactured for ARBURG injection molding machines. The electro-hydraulic proportional valve is designed for precise control tasks in industrial hydraulics. It features a robust design specifically engineered for the high demands of plastics processing.

The valve is equipped with a signal control of ±10 V and a supply voltage of ±15 V DC. The permissible operating pressure is up to 210 bar, with a nominal pressure of 198 bar. The integrated electronics are fully housed within the casing. The hydraulic and electrical interfaces are designed for industrial compatibility.

Technical Data:

• Supply Voltage: ±15 V DC

• Control Signal: ±10 V

• Nominal Pressure (Pp): 198 bar

• Max. Operating Pressure (Px): 210 bar

• Hydraulic Connections: X, T, A, B, P, P2, Y

• Manufacturer Connection Number: 56803

Condition: Used, removed from a running system, visually in good condition with minor signs of wear.

Scope of Delivery:

1x ARBURG Moog Servo Valve D651Z130 as pictured. No other accessories are included.

Note:

Technical functional test not performed when uninstalled. The item comes from a functional system and is therefore sold as used but functional.
