MARQUART Pointing/Chamfering Machine for Square Profiles

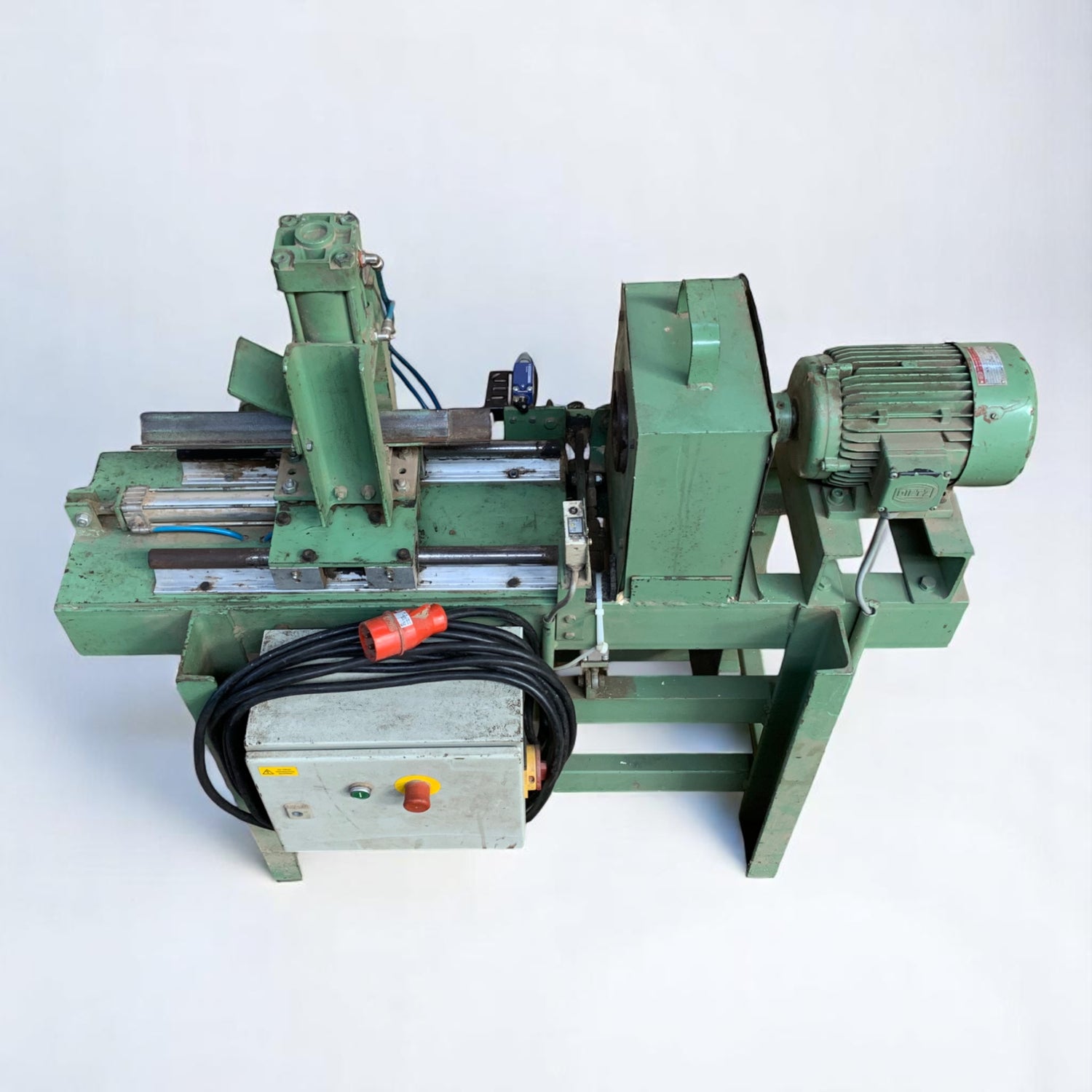

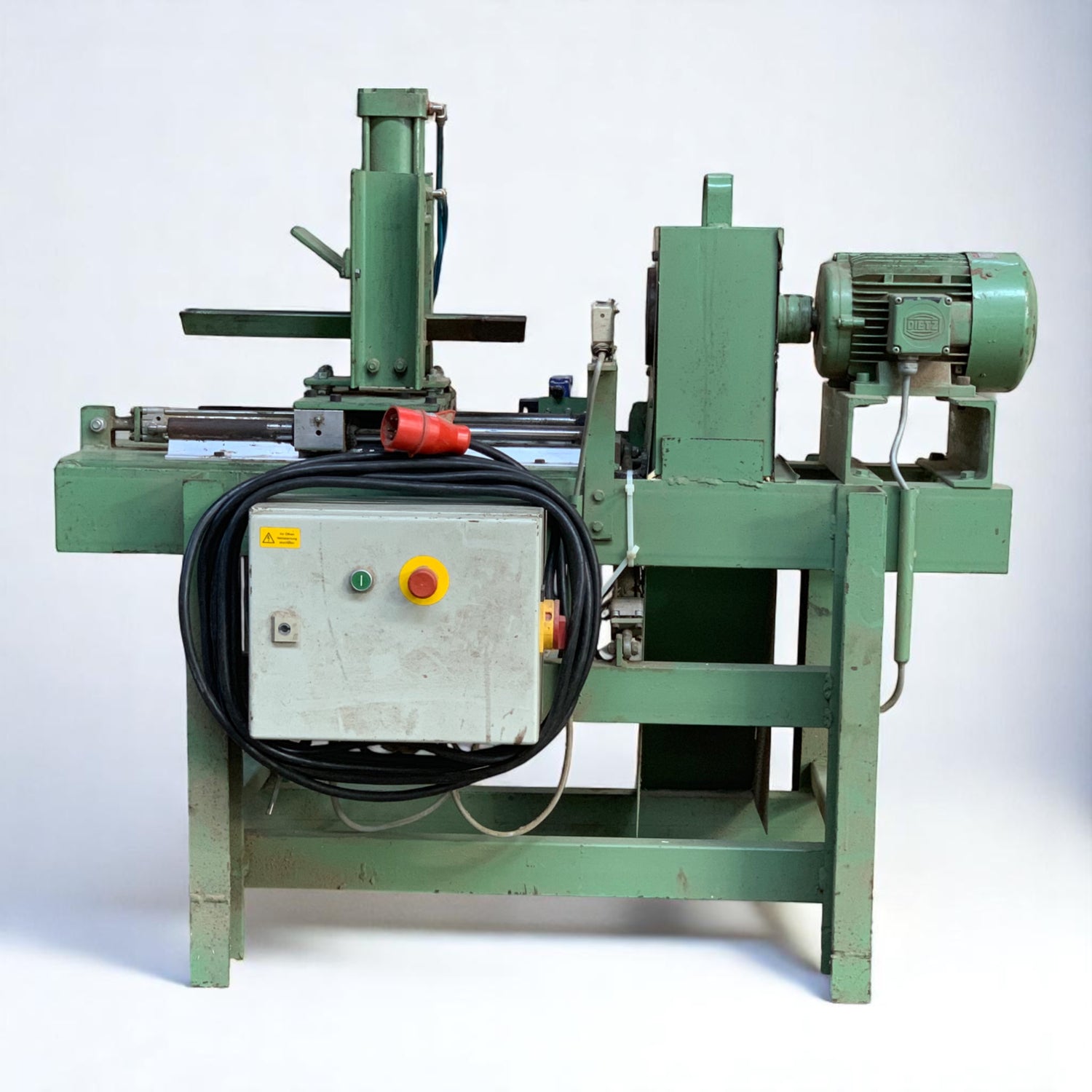

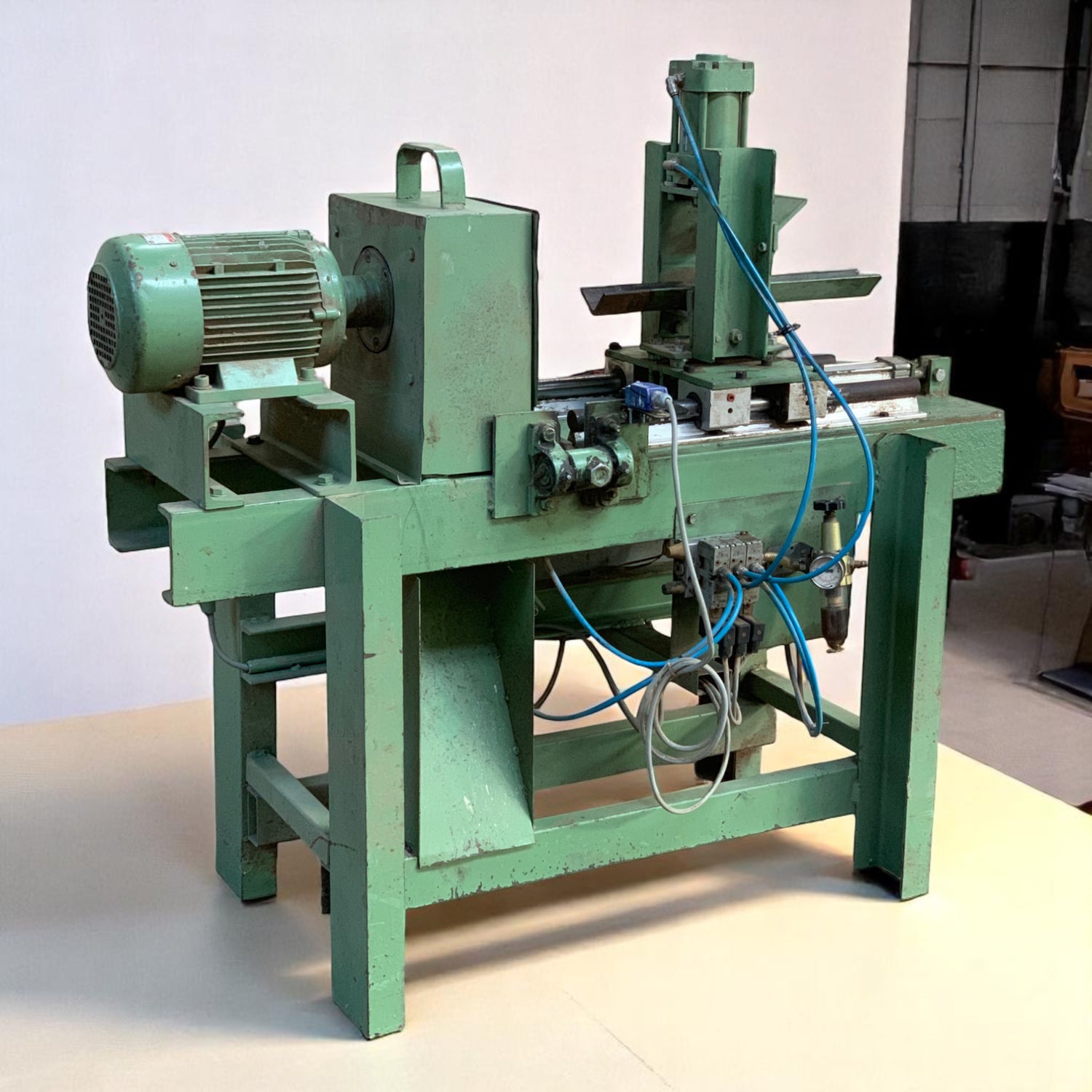

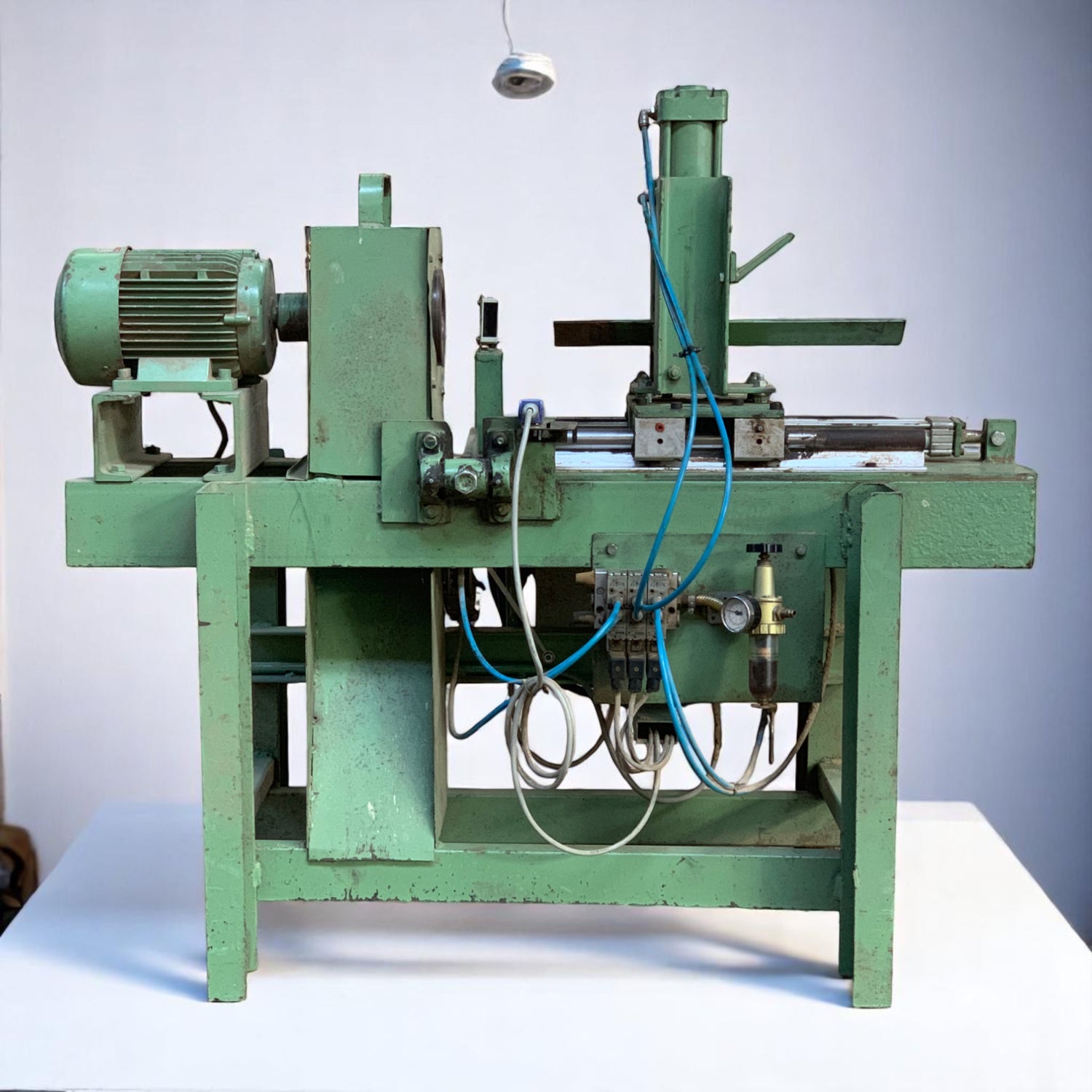

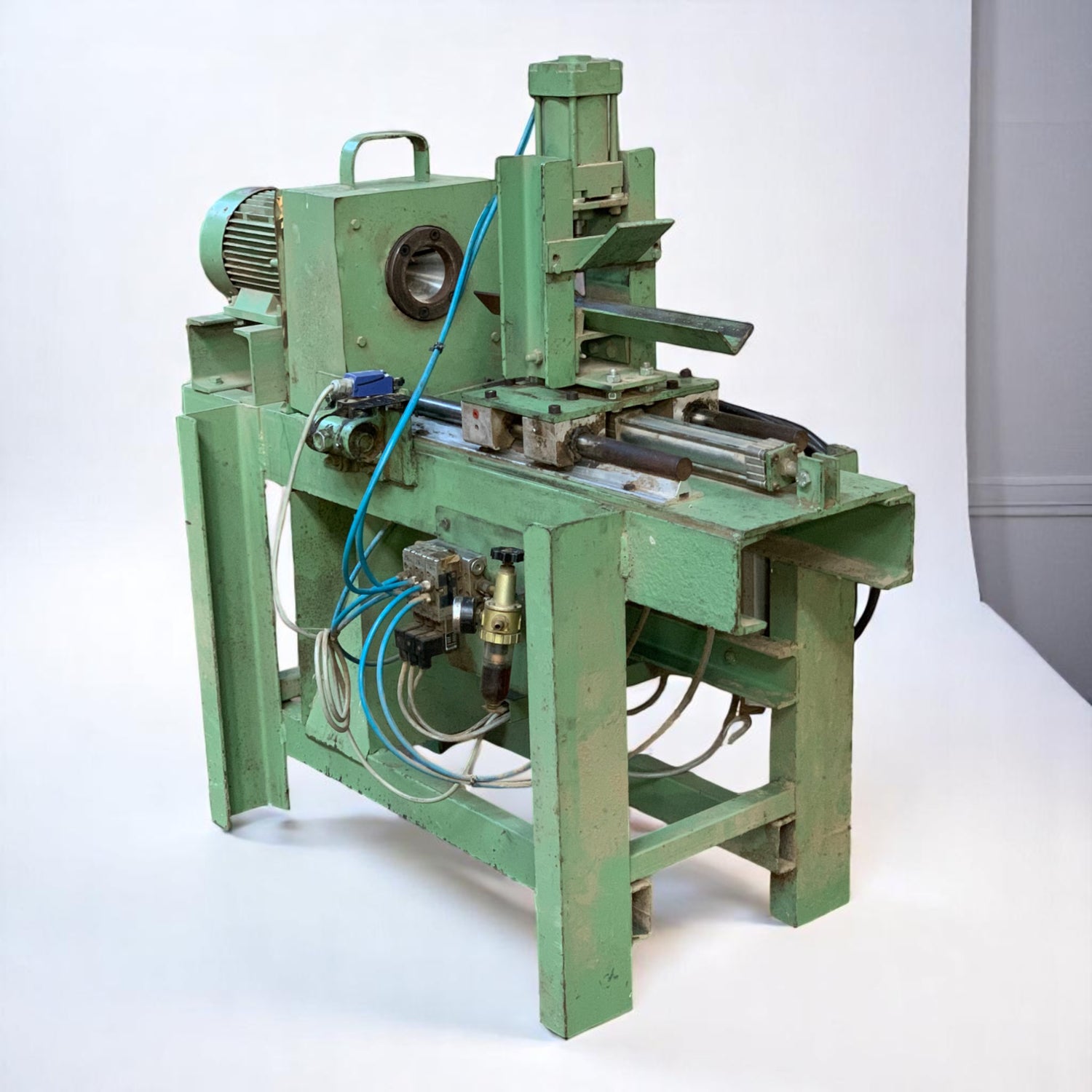

The MARQUART pointing and chamfering machine is a robust industrial system for processing square materials, especially for pointing or chamfering wooden posts or similar materials. The machine was manufactured by Marquart Elektrotechnik, Kehl/Goldscheuer, and is in used condition with visible but purely superficial signs of corrosion.

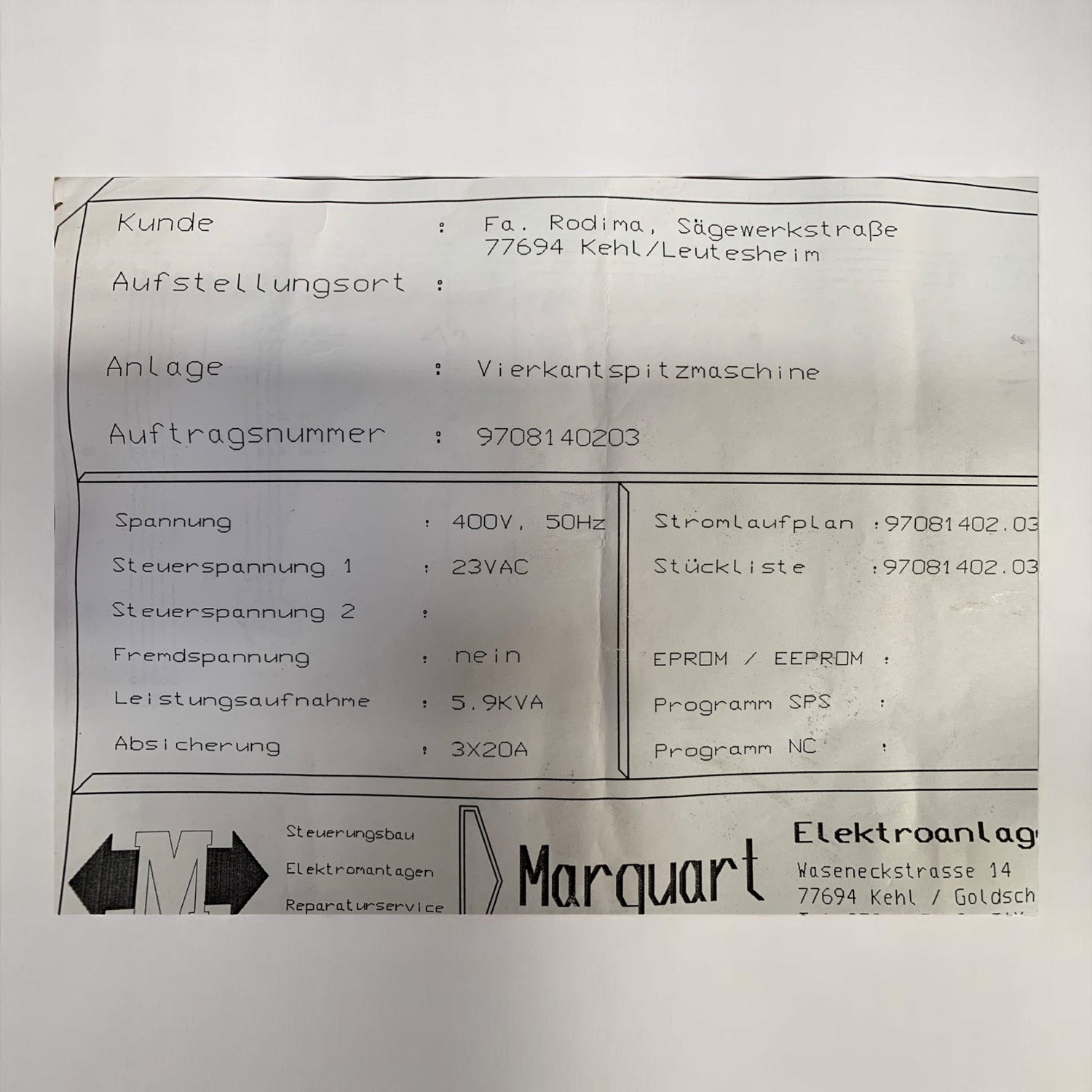

Technical Data:

• Machine Type: Pointing/Chamfering Machine

• Manufacturer: Marquart Elektronanlagen

• Order Number: 9708140203

• Power: 5.9 kVA

• Motor Power: 4.0 kW

• Operating Voltage: 400 V, 50 Hz

• Control Voltage: 1x 23 V AC

• Fusing: 3x 20 A

• • Pneumatic clamping

  • Pneumatic feed



    Pneumatic Components:

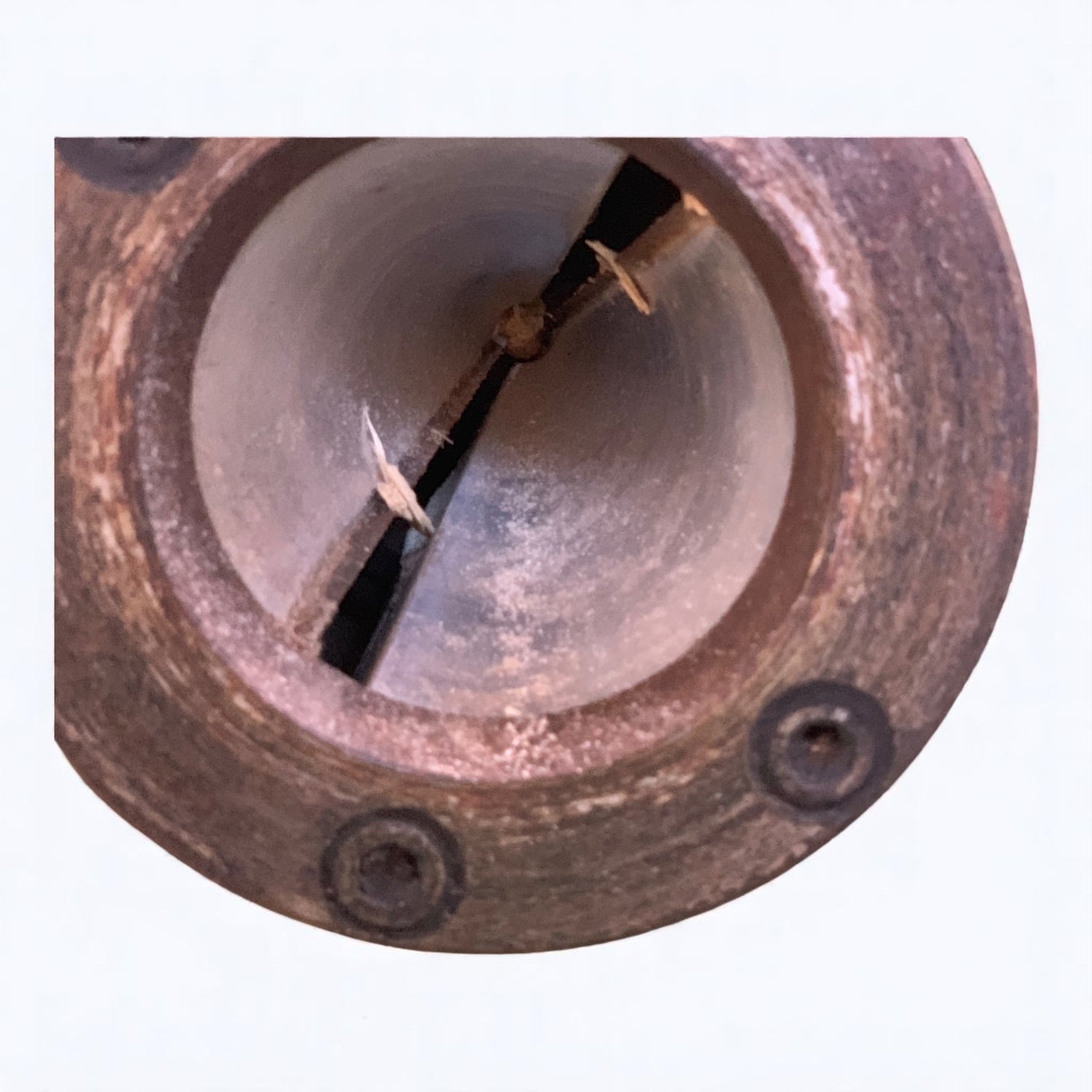

• Tool Holder: approx. Ø 70 mm

• Construction: Stable welded frame

• Control: Control cabinet with emergency stop and main switch

• Dimensions: Compact design, ideal for single-station applications

Condition:

The machine is used and shows age-related signs of wear, particularly rust spots on unprotected metal surfaces. The mechanical and pneumatic components appear complete; a functional test has not been carried out.

Scope of Delivery:

The complete unit as shown is supplied, including the control box, pneumatic components, and drive motor. The system is sold as seen and described in the photos.

Note:

Used industrial product, dismantled from a functioning line. Technical inspection before commissioning is recommended.
