LEUCO solid carbide roughing cutter, positive spiral, D 25 mm, L 55 mm – part 6230250096-B

LEUCO Roughing End Mill VHW Spiral Positive Ø25 x 94 x 155 mm – used, like new

Item number: 6230250096-B

Manufacturer: LEUCO

Type: VHW Spiral Roughing End Mill

Model: D25 SL94 L155 MEC

Condition: Used (like new from stock)

Application: Wood, furniture and plastics

Description:

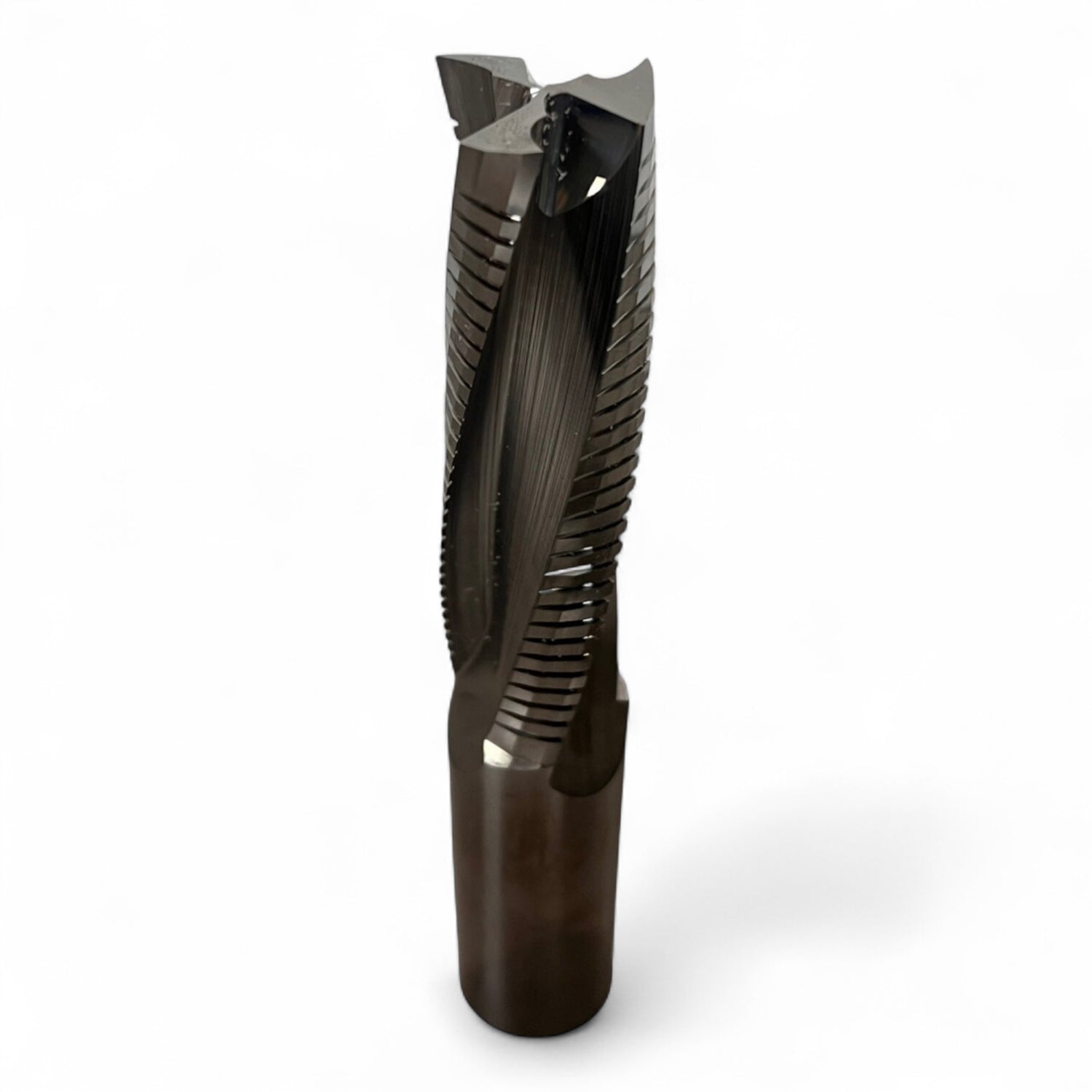

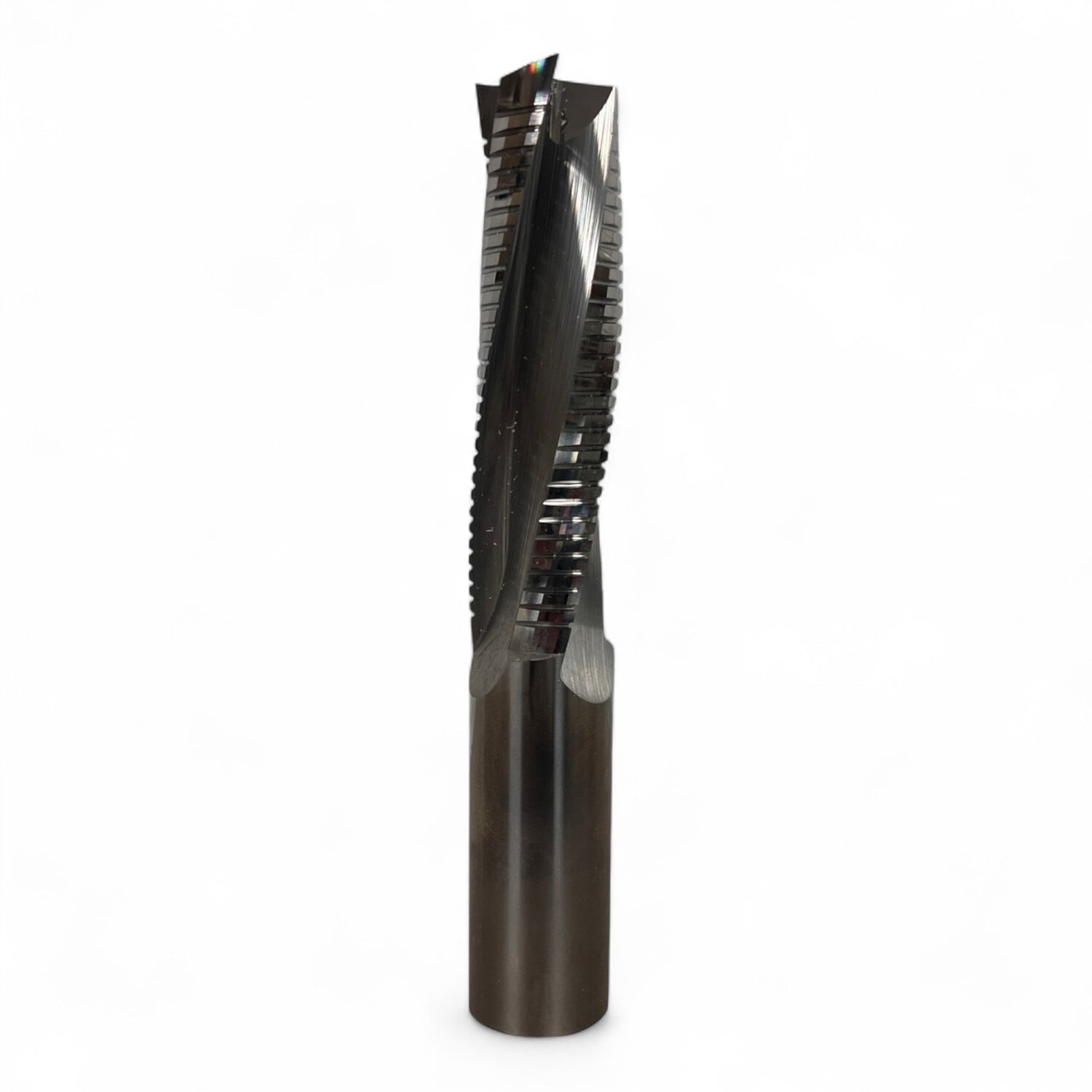

This high-quality LEUCO roughing end mill made of VHW (solid carbide) with positive spiral geometry offers aggressive yet controlled chip removal with the highest cutting quality. The end mill is equipped with a 25 mm cutting diameter and a 94 mm cutting length, making it ideal for the professional processing of wood and other non-metallic materials.

Despite being "used," this item is in like-new condition (from stock). Its quality and function correspond to an unused tool.

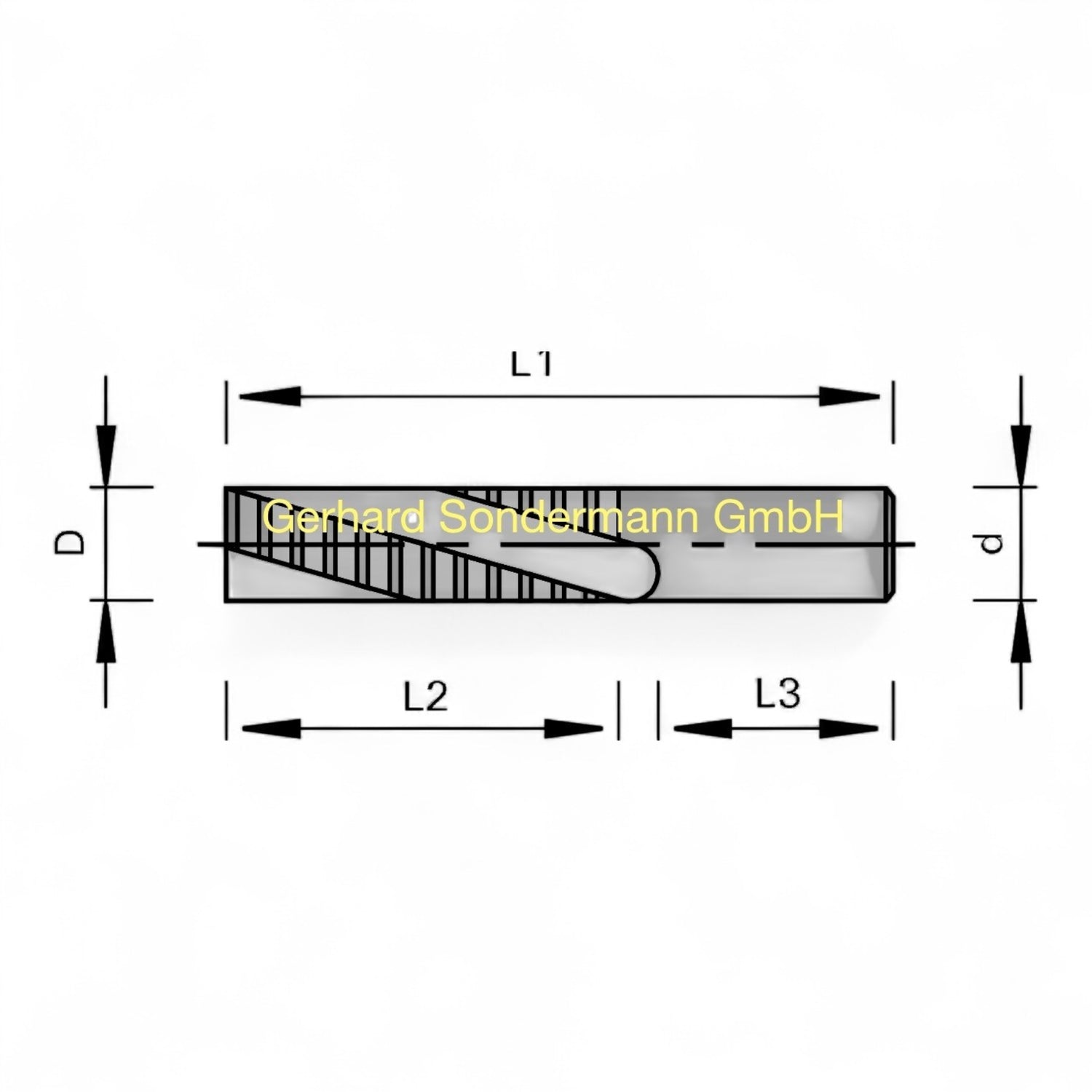

Technical Data:

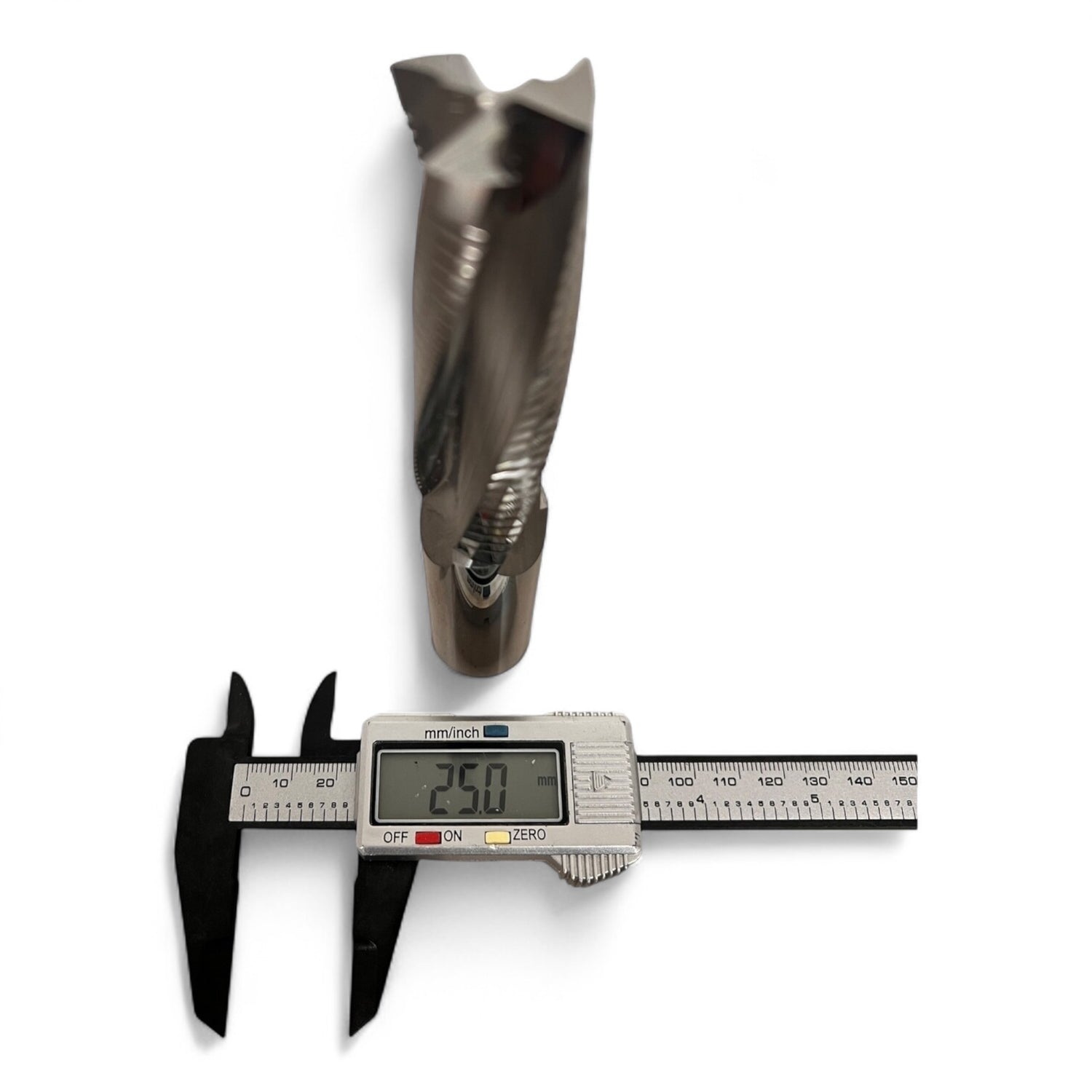

• Ø D (Cutting diameter): 25 mm

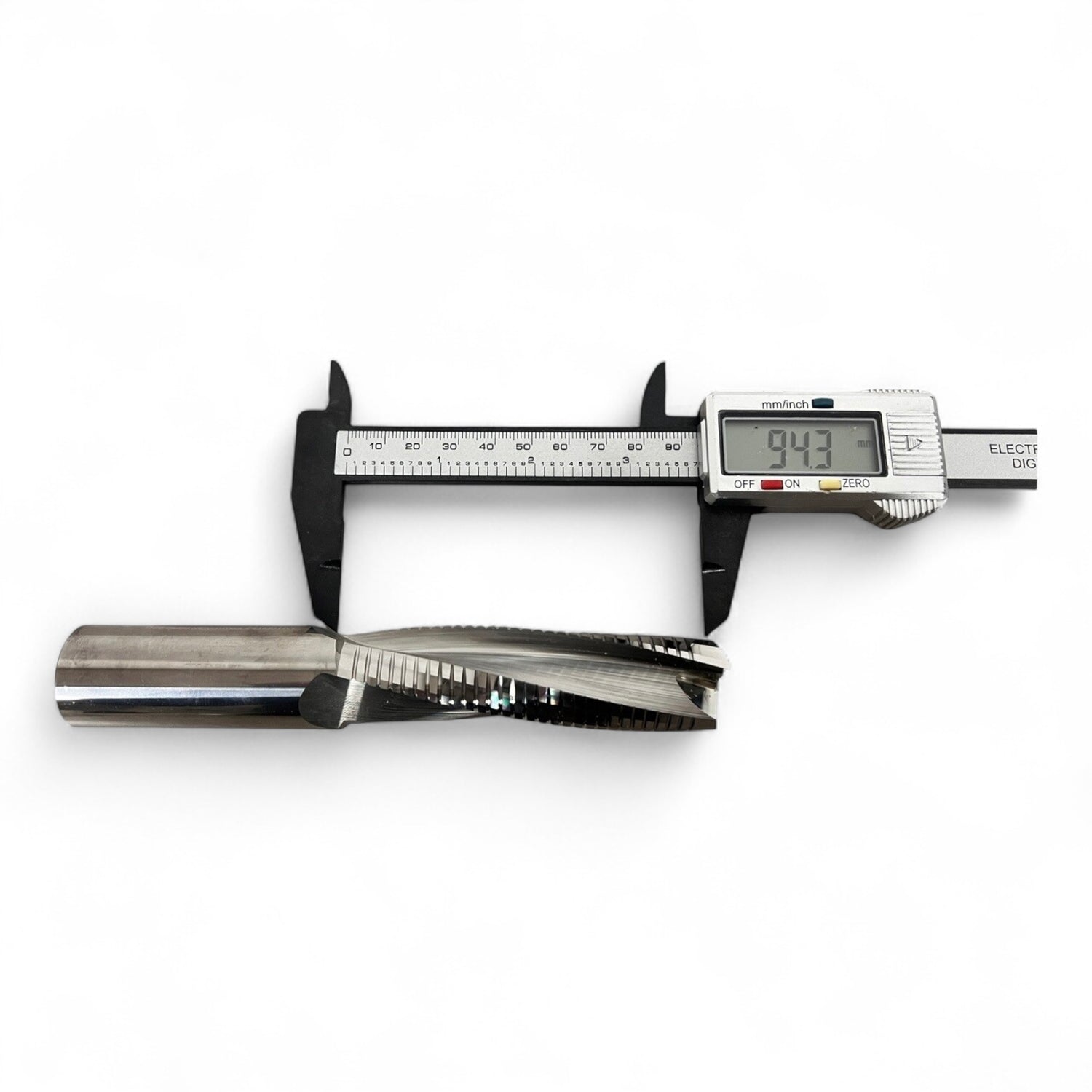

• L2 (Cutting length): 94 mm

• Ø d (Shank diameter): 25 mm

• L3 (Shank length): approx. 61 mm

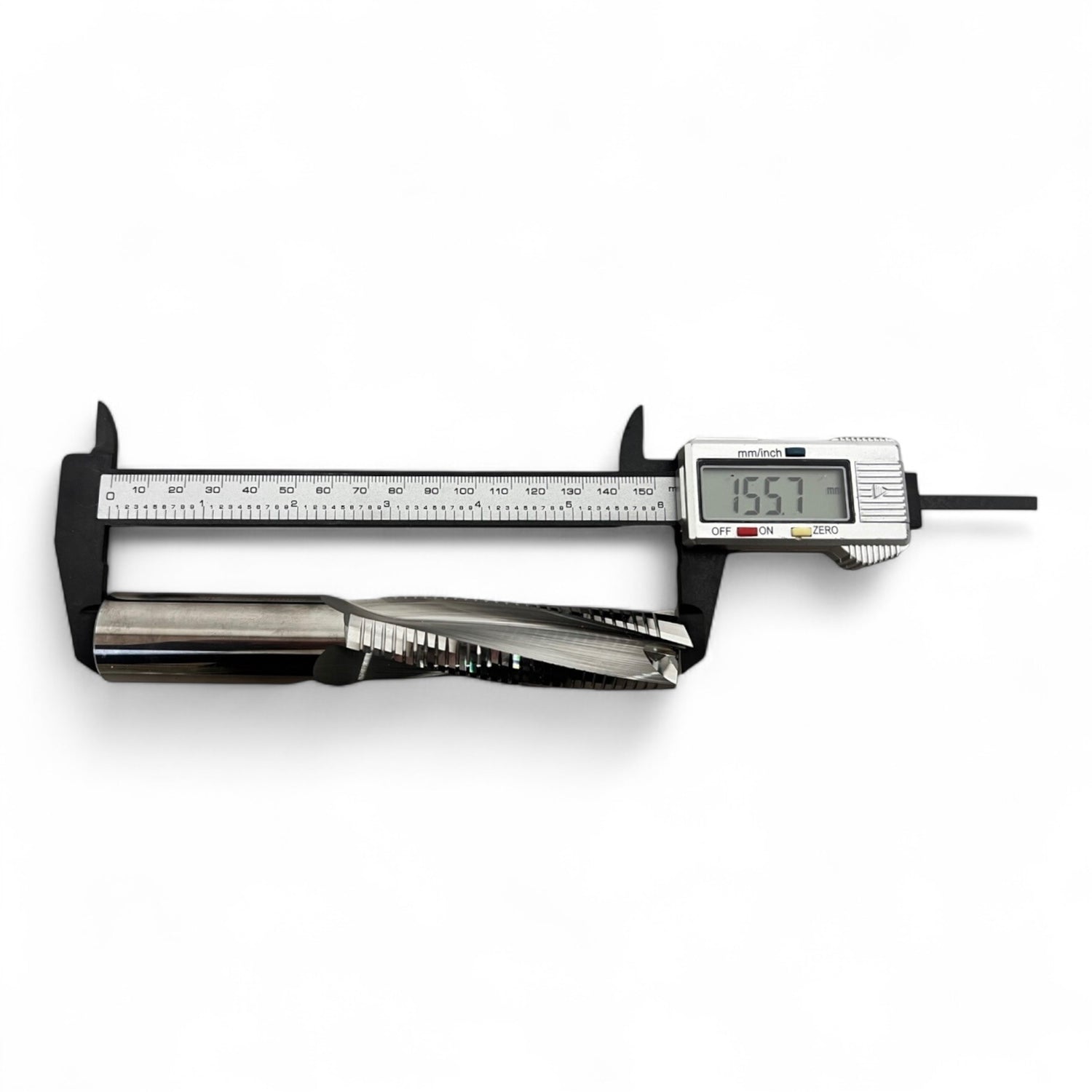

• L1 (Overall length): 155 mm

• Number of teeth: 3

• Helix direction: Positive

• Max. speed: 24,000 min⁻¹

• Cutting direction: Clockwise

• Material: VHW – Solid Carbide

• Type designation on packaging: MEC D25 SL94 6230250096-B

Special Features:

• Spiral fluting for low-vibration, powerful roughing

• Very good chip evacuation due to positive helix direction

• High tool life thanks to solid VHW body

• CNC-optimized for high speeds up to 24,000 min⁻¹

Scope of Delivery:

• 1 x LEUCO VHW Spiral Roughing End Mill Ø25 x 94 mm x 155 mm

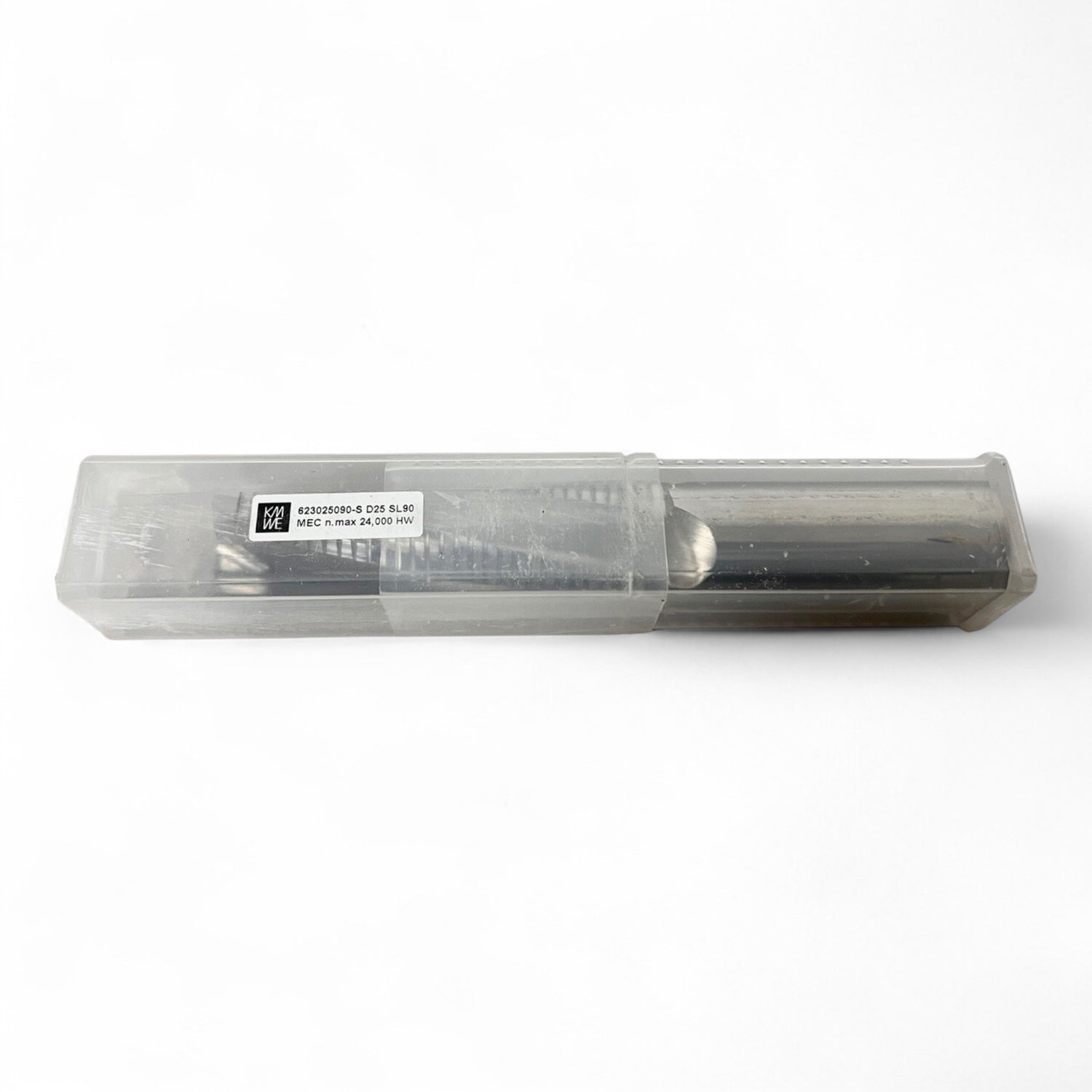

• Delivery as pictured, including transparent protective packaging

Note:

Manual measurements, tolerance deviations possible. Dimensions are based on manufacturer data or were determined with calipers. Manufacturer specifications on the tool are always decisive.
