Krauss Maffei Bachmann Battenfeld Electronic processor card KOP /B 6786/00

Krauss Maffei Battenfeld Bachmann Processor Card KOP /B 6786/00

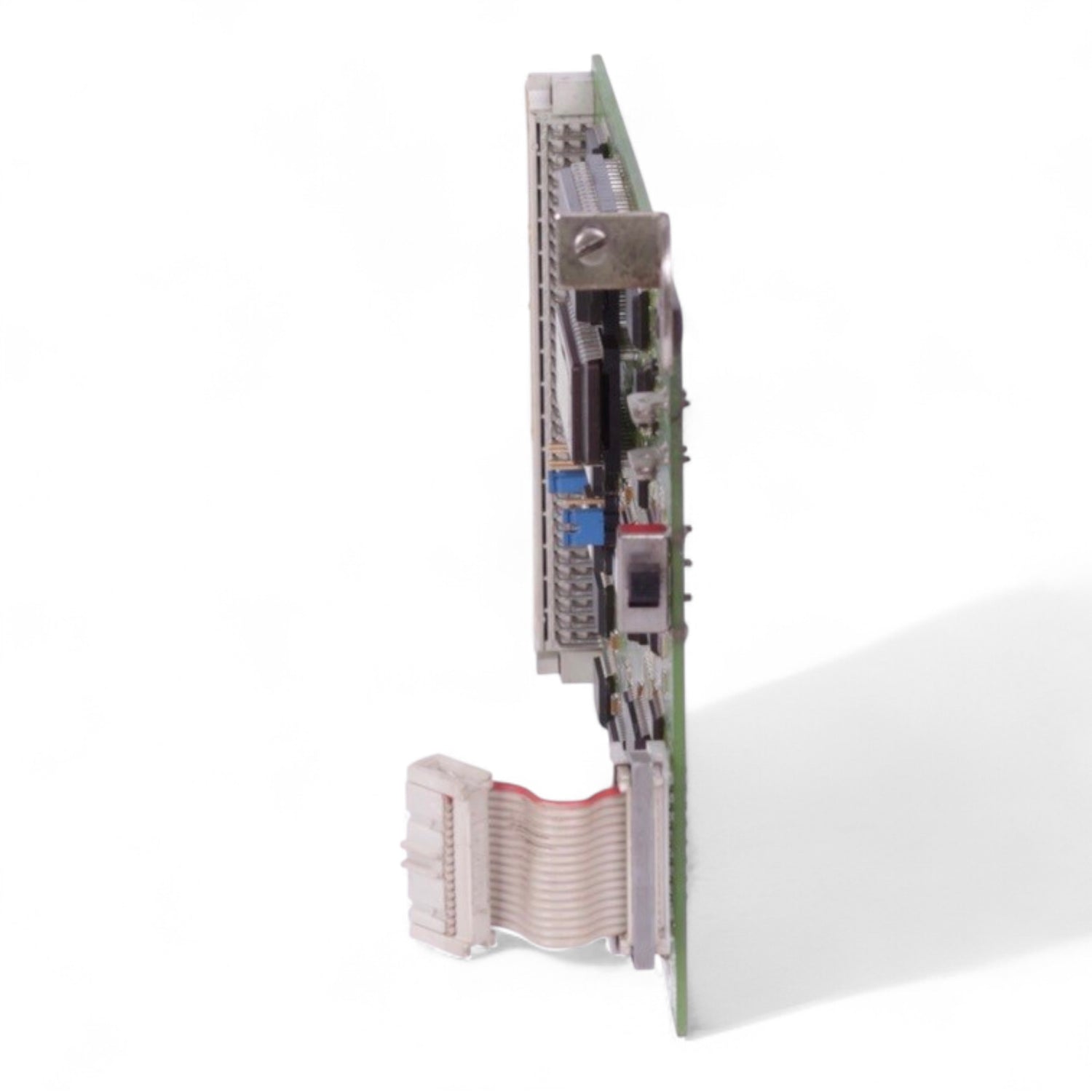

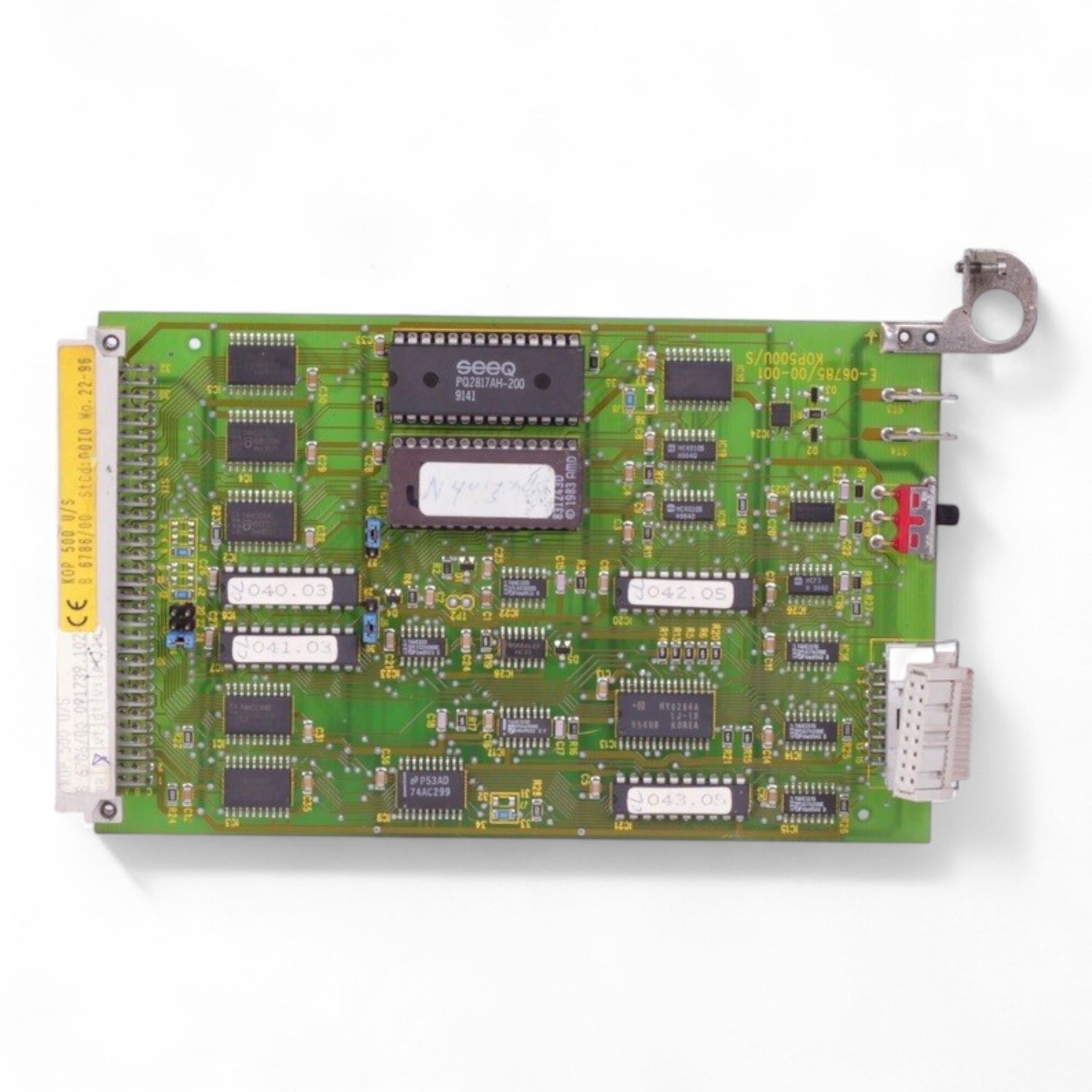

This high-quality electronic processor card of type KOP /B 6786/00 is an original module from the field of control technology for Krauss Maffei Battenfeld machines. The card clearly bears the serial number 6786/00 and is equipped with numerous ICs, memory chips, resistors, and SMD components. On the front, there is a main processor of type SEEQ PQ82C146-Z00, as well as several EPROMs (e.g., labeled "040.03", "041.03", "042.05", "043.05"). The card has various interface strips, a DB15 connector, a ribbon cable with a connector plug, and a solid carrier system with a locking mechanism.

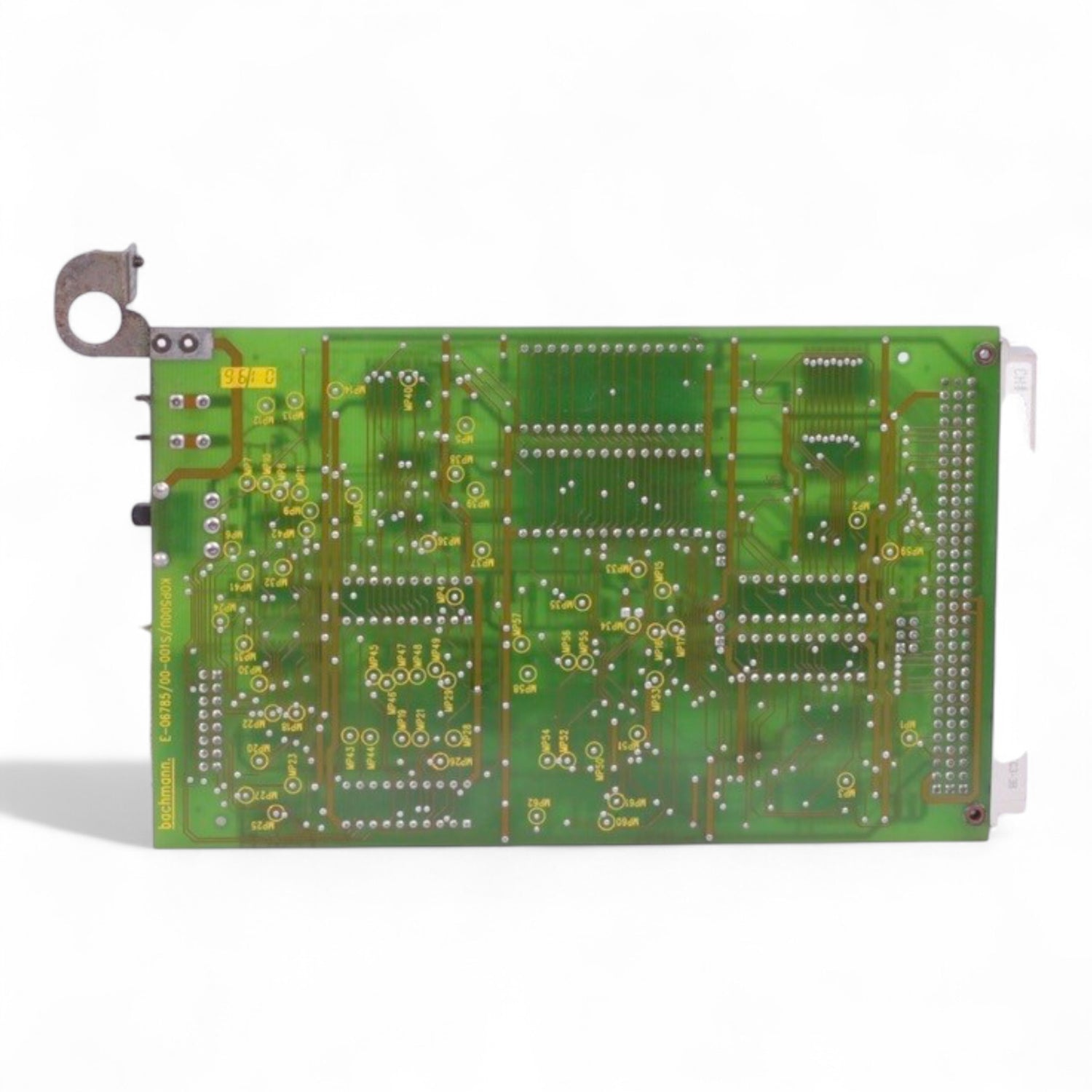

The reverse side shows a clean solder side with through-hole components, uniform trace routing, and good craftsmanship.

Scope of delivery:

• Krauss Maffei Battenfeld Bachmann Processor Card KOP /B 6786/00

• With firmly mounted front panel and ribbon cable connection (as shown in the photos)

Note:

The processor card has been tested and is fully functional. It was either removed from a working system or stored as a spare part. The sale is expressly stated as "used", even if the optical condition sometimes appears unused, as storage marks may be present. Delivery without original packaging.

Technical Data:

Article number            6786/00

Description              KOP /B

Shipping weight         approx. 0.45 kg

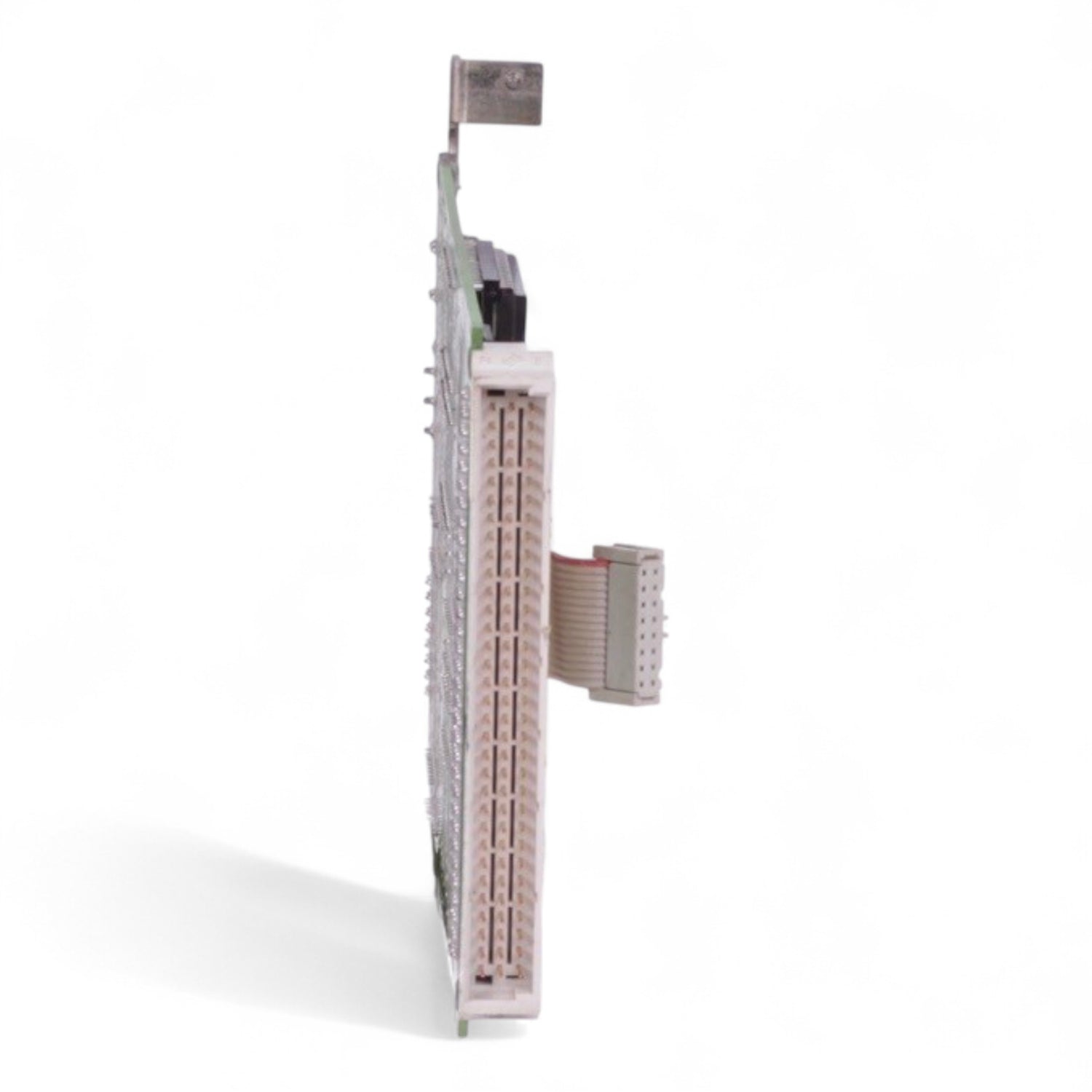

Connections                64-pin connector, ribbon cable connection, DB15

Main IC                   SEEQ PQ82C146-Z00

Memory chips     several EPROMs, partially labeled

Carrier system            with bracket and locking mechanism

Condition                    used, tested, functional
