KEB Combivert F4 15 F4 C1H-4A0 variable frequency drive 15 kW 23 kV...
KEB Combivert F4 variable frequency drive 15 kW / 23 kVA – 16F4C1H-4A01, HOMAG 4-008-39-0620 V13
Used KEB Combivert F4 frequency inverter for three-phase motors, removed from a running HOMAG system – for example from HOMAG BAZ or BOF machining centers.

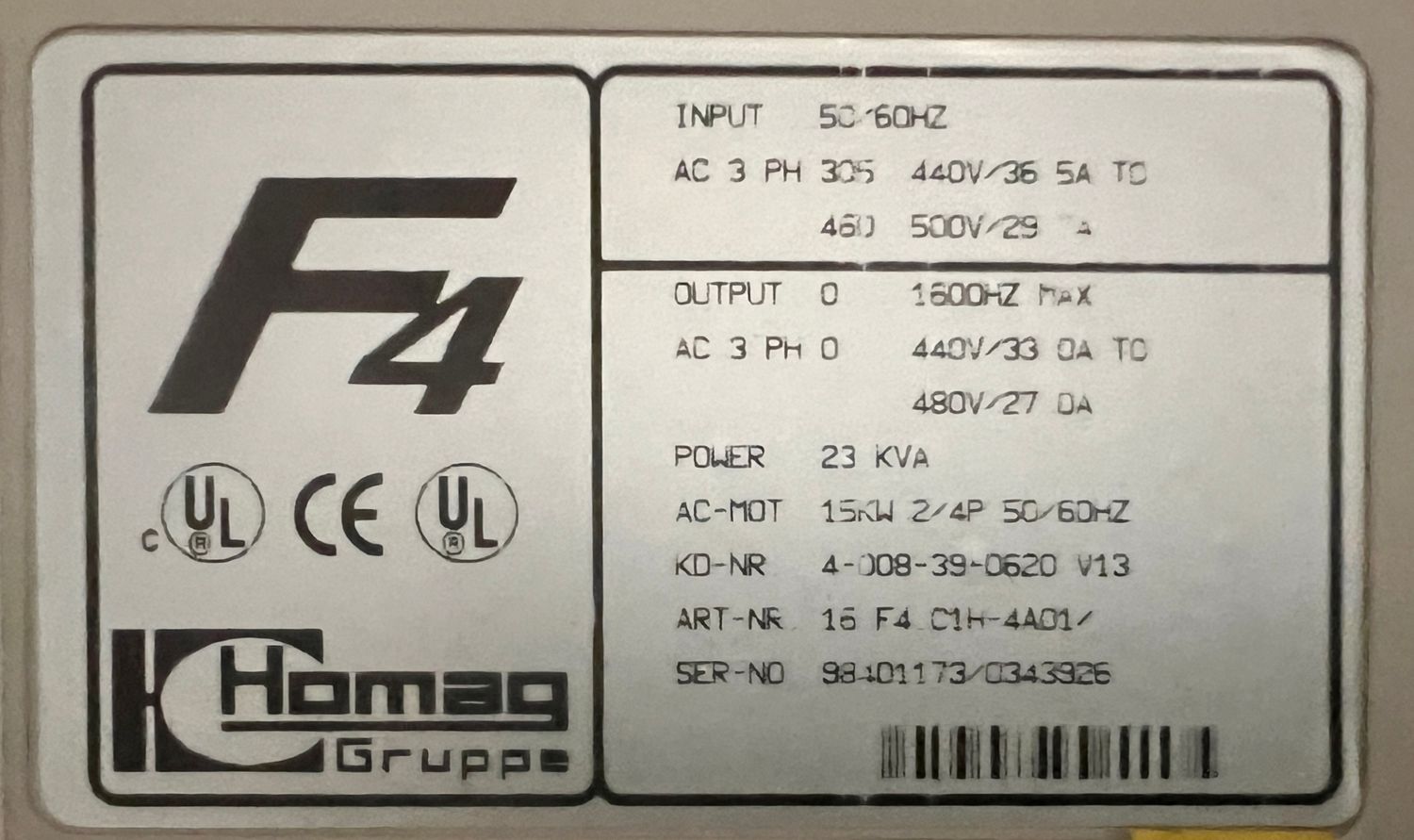

| Manufacturer | KEB (IMA-KEB) |
| Series | Combivert F4 |
| KEB part number | 16F4C1H-4A01 |
| HOMAG customer no. | 4-008-39-0620 V13 |
| Serial number | 98011730343326 |
| Input voltage | 305–440 V AC, 3-phase (36.5 A) / 460–500 V AC, 3-phase (29 A) |
| Input frequency | 50/60 Hz |
| Output voltage | 0–440 V AC (33.0 A) / 0–480 V AC (27.0 A) |
| Max. output frequency | 1600 Hz |
| Rated output | 23 kVA |
| Motor power | 15 kW (2/4-pole, 50/60 Hz) |
| Condition | Used · 2 – Good |
Product description
The KEB Combivert F4 16F4C1H-4A01 is a used frequency inverter removed from a running system. It controls three-phase motors in industrial applications and provides precise adjustment of motor speed and torque.
Its robust industrial design is built for continuous duty in demanding production environments.
Compatibility & applications
Suited for production lines, machine controls and other automated systems that need reliable motor control – for example in HOMAG BAZ or BOF machines.
Scope of delivery

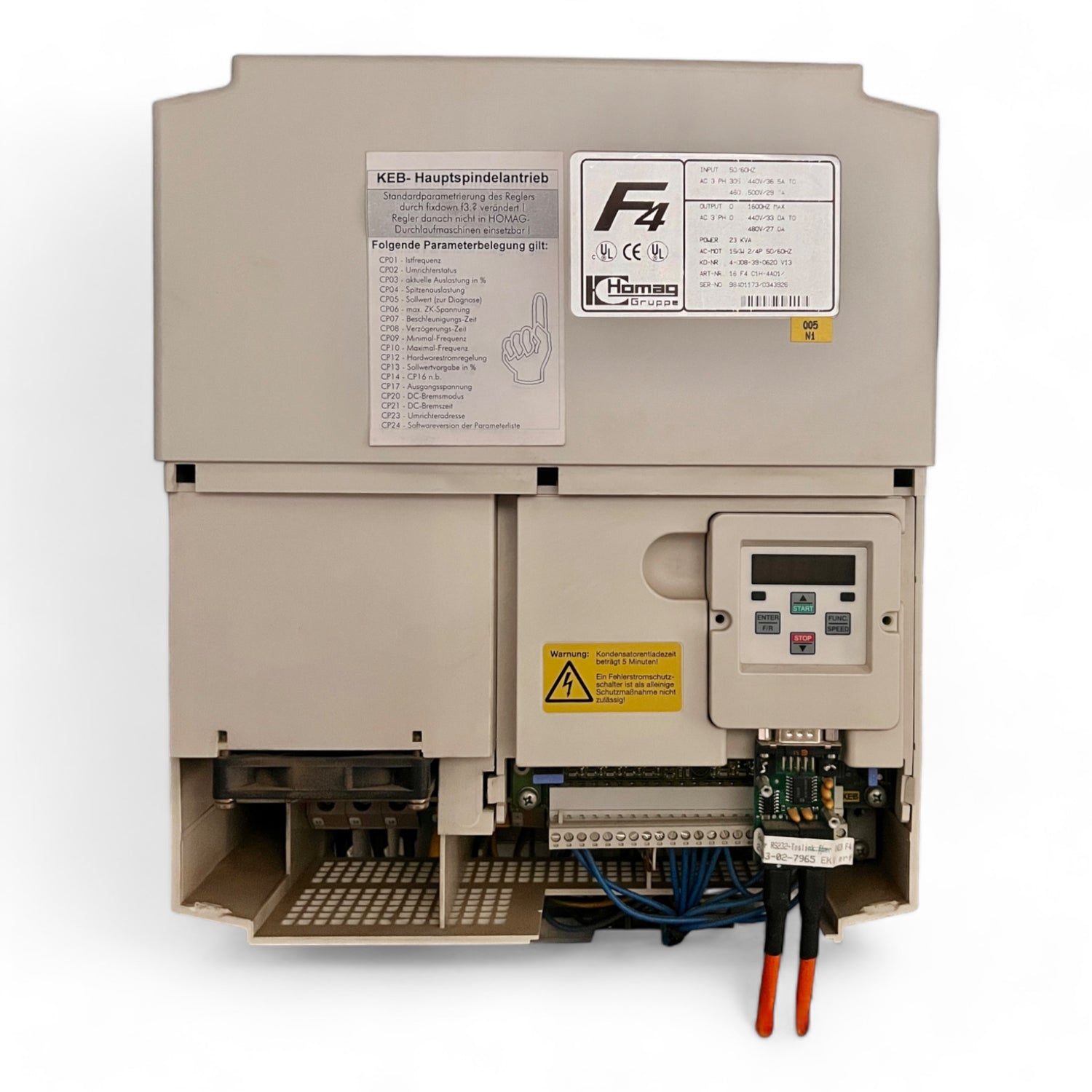

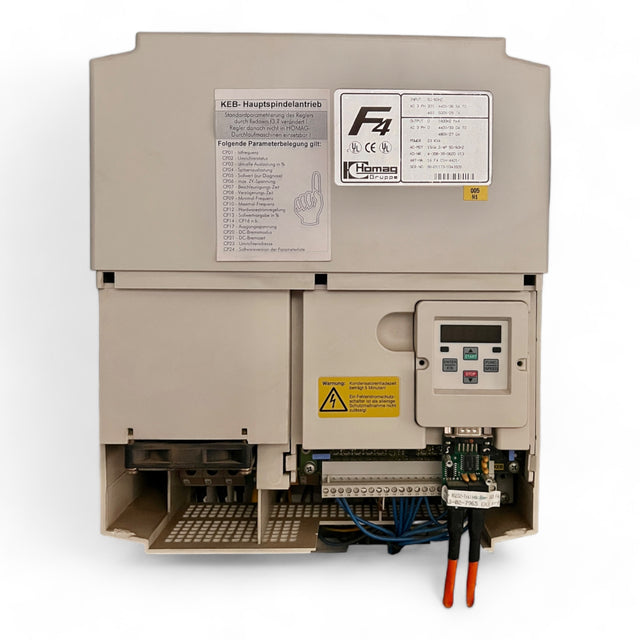

1 × KEB Combivert F4 frequency inverter 16F4C1H-4A01 as pictured.
Shipping to the USA & worldwide
In stock in Germany and shipped via FedEx or UPS, usually on the day of your order. Transit to the US typically takes 2–5 business days with full tracking. Import duties and fees follow the US regulations in force on the import date and are settled by the importer. More background on availability and pricing of legacy CNC electronics: read our guide for US customers.
Shipping, duties and warranty at a glance: Shipping to the USA.
-
