KBK DIA milling cutter 18 x 45 Z5 25 x 55 (n-Max 24000)

KBK DIA Cutter Ø18x45 Z5 Shank 25x55 – DP MEC n.max 24000

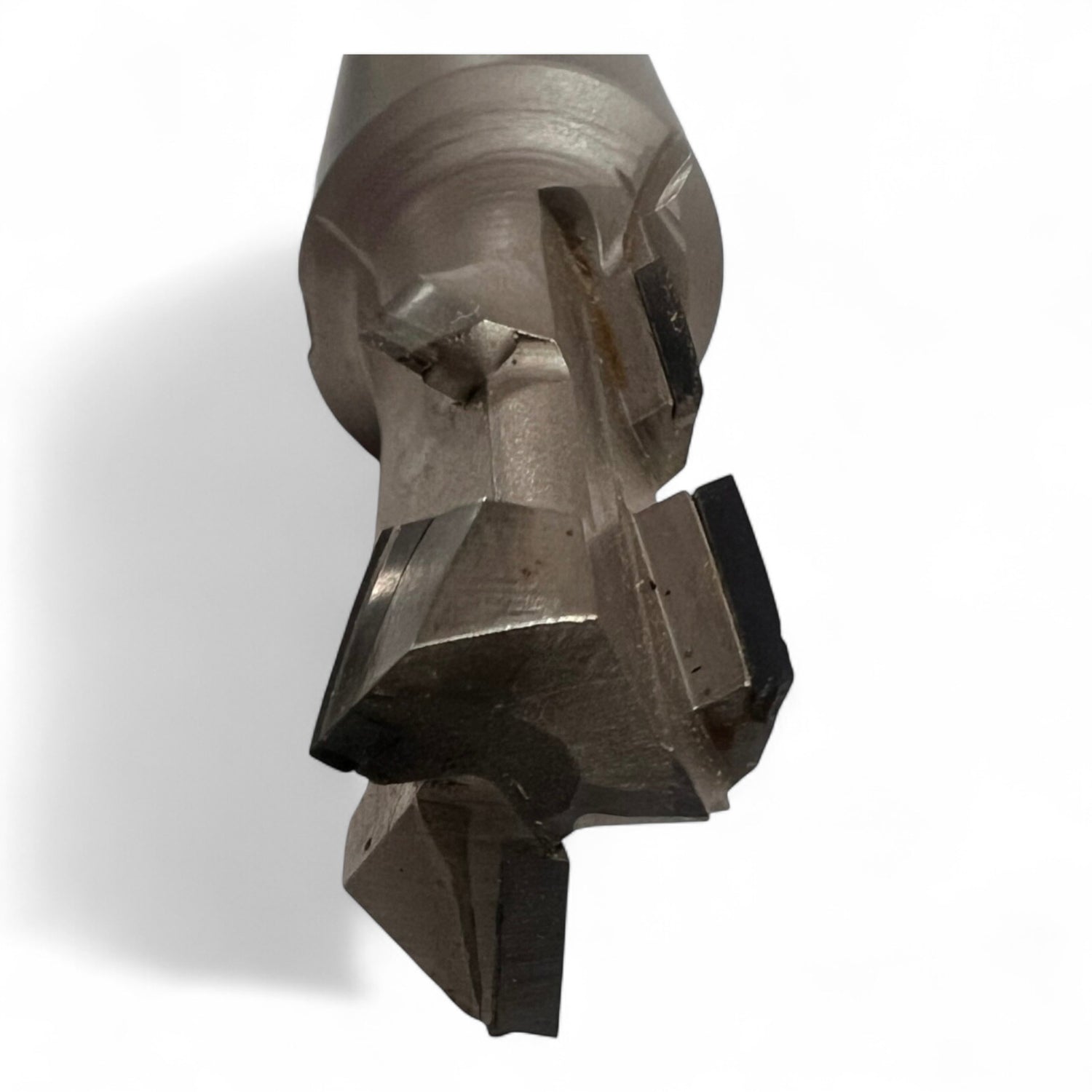

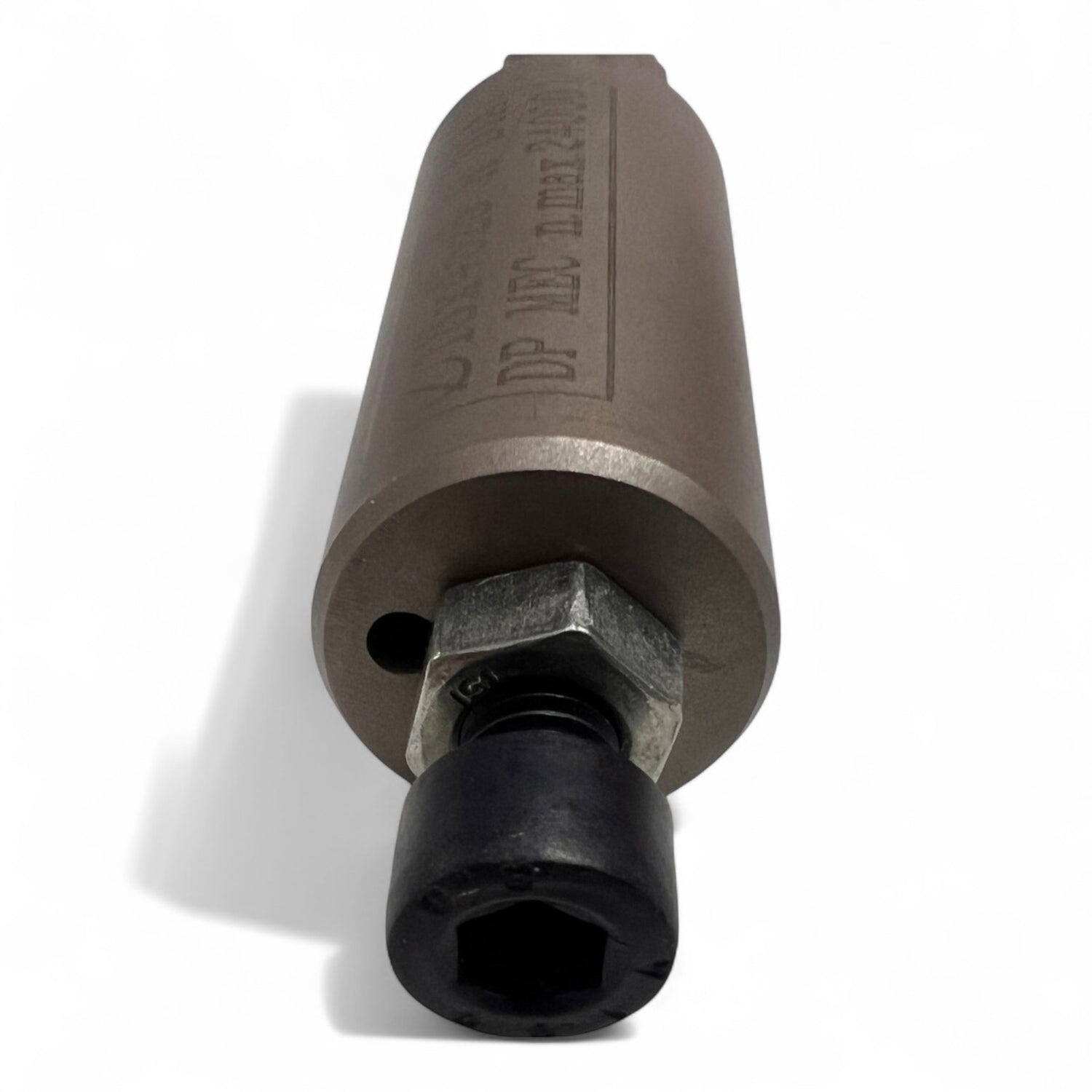

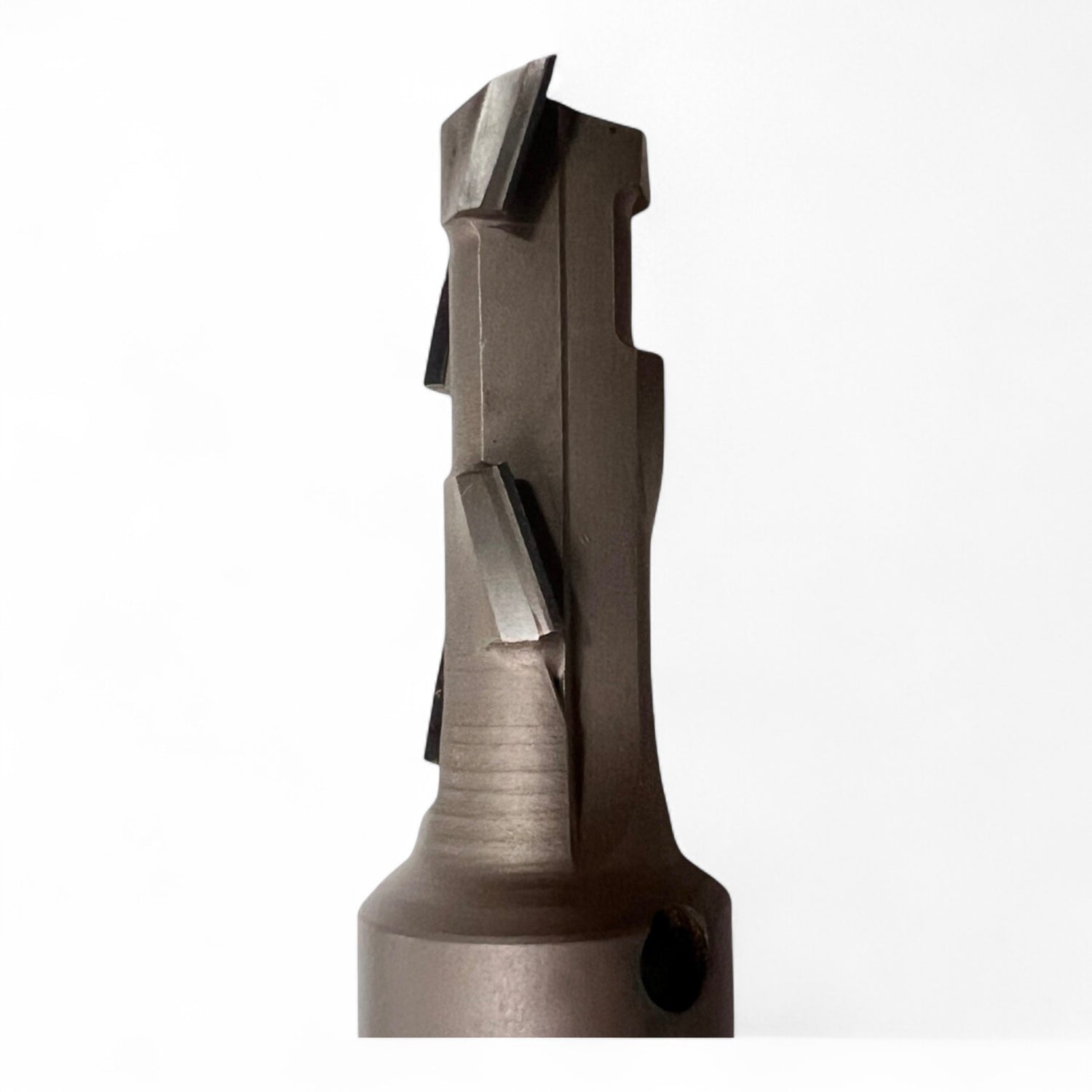

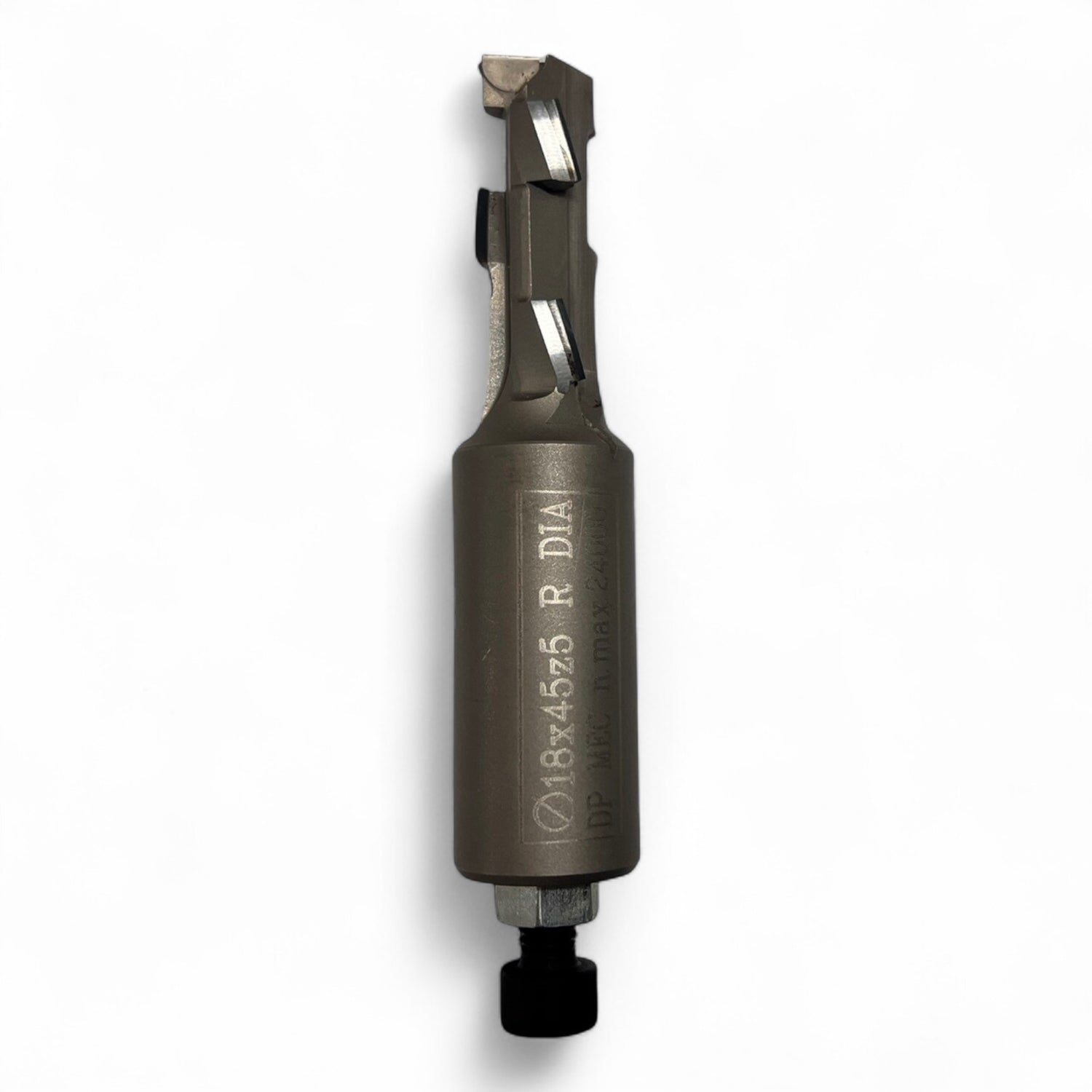

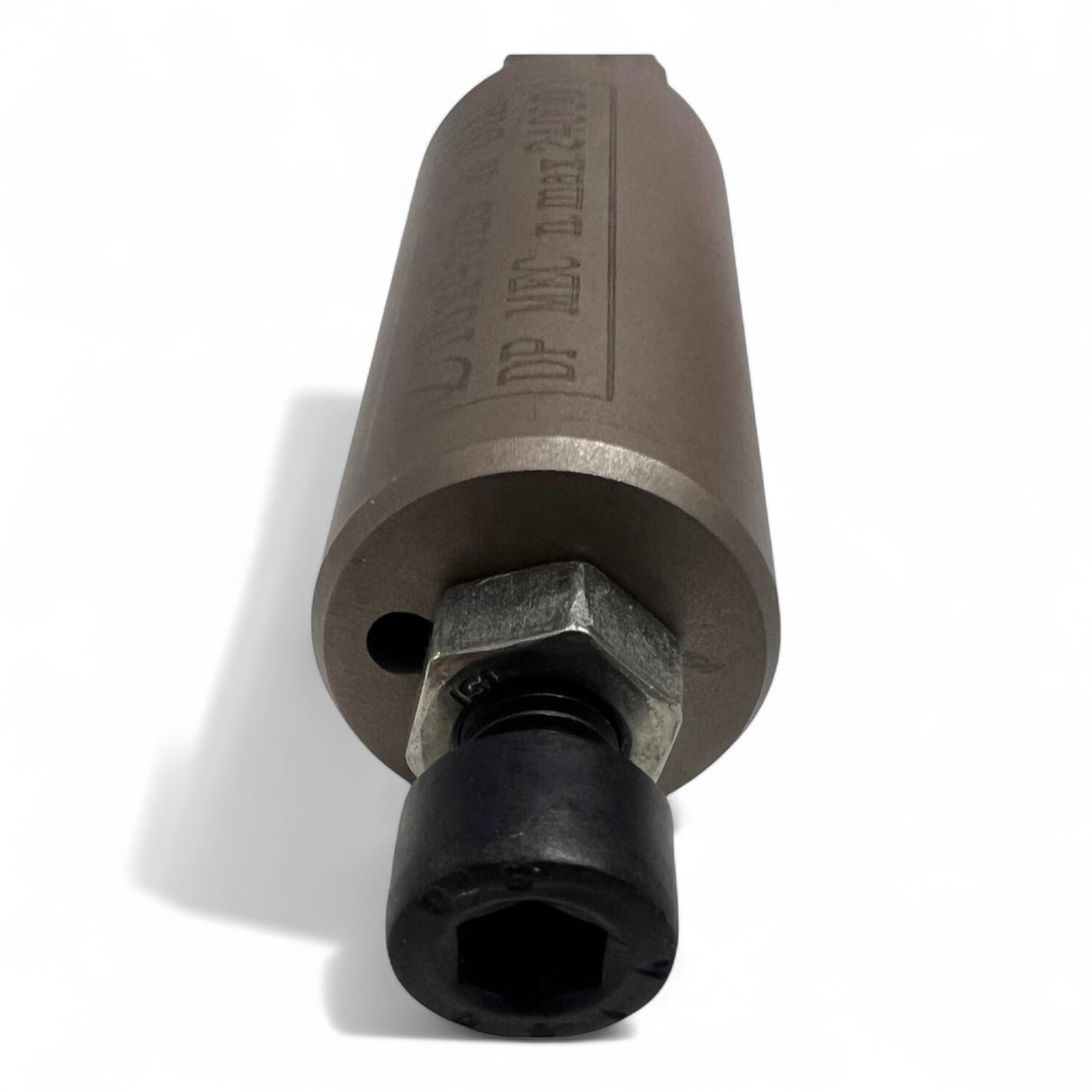

The high-quality DIA cutter from KBK, model Ø18x45 Z5 with a 25x55 shank, was developed for professional use in CNC machining. The diamond-tipped cutting edges (DP) ensure an extremely long service life and precise cutting quality at high speeds.

This high-performance cutter is particularly suitable for machining hard and abrasive materials such as MDF, HPL, particle board, plastics, and composites.

Technical Description

• Diameter (D): 18 mm

• Cutting length (L1): 45 mm

• Number of teeth (Z): 5 teeth (Z5)

• Shank diameter: 25 mm

• Shank length (L2): 55 mm

• Design: Right-hand rotation (R)

• Max. speed: 24000 rpm

• Cutting material: PCD (polycrystalline diamond)

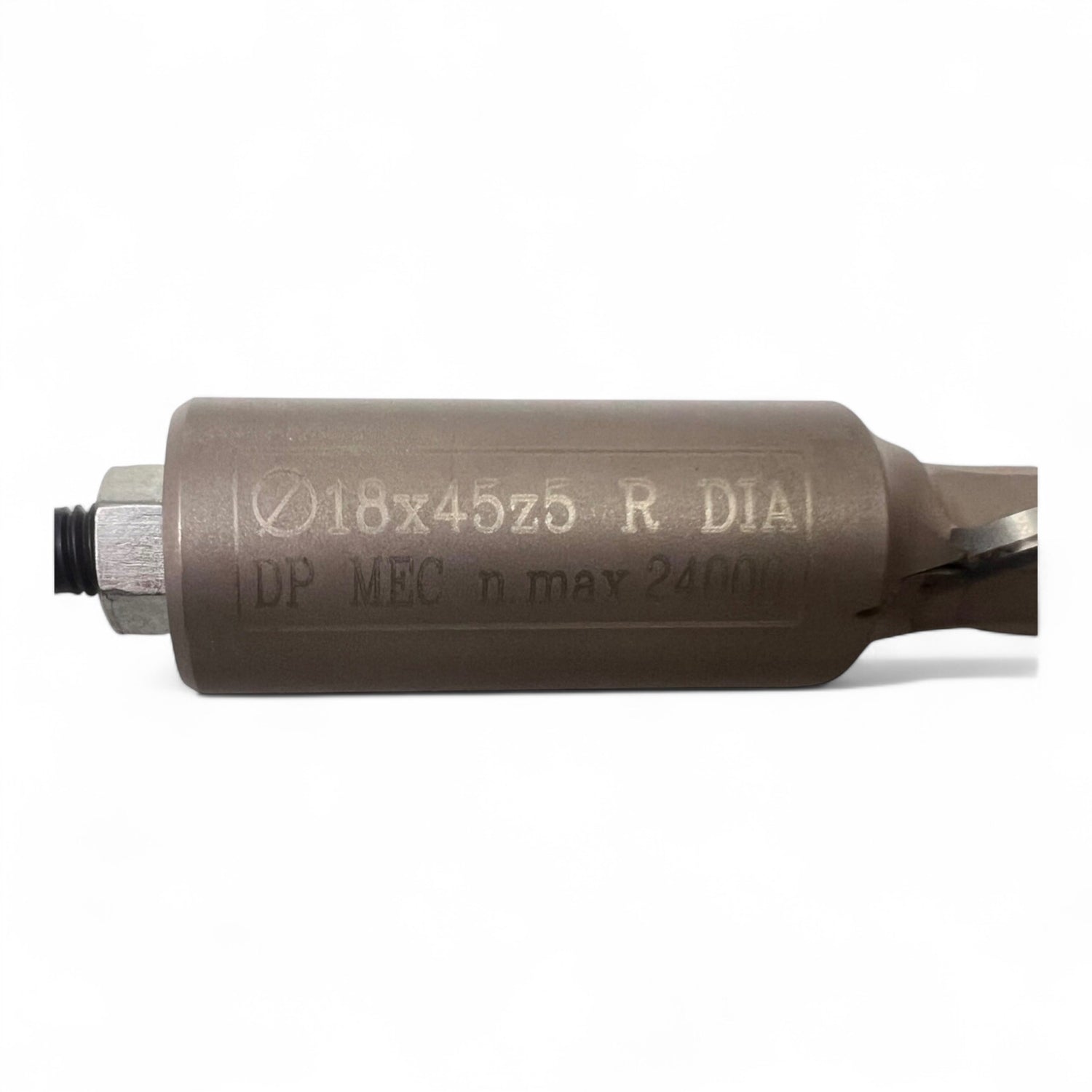

• Manufacturer's imprint: DP MEC n.max 24000

The cutting edge geometry is optimized for high cutting quality, which is particularly beneficial for visible edges and fine milling contours.

Scope of Delivery

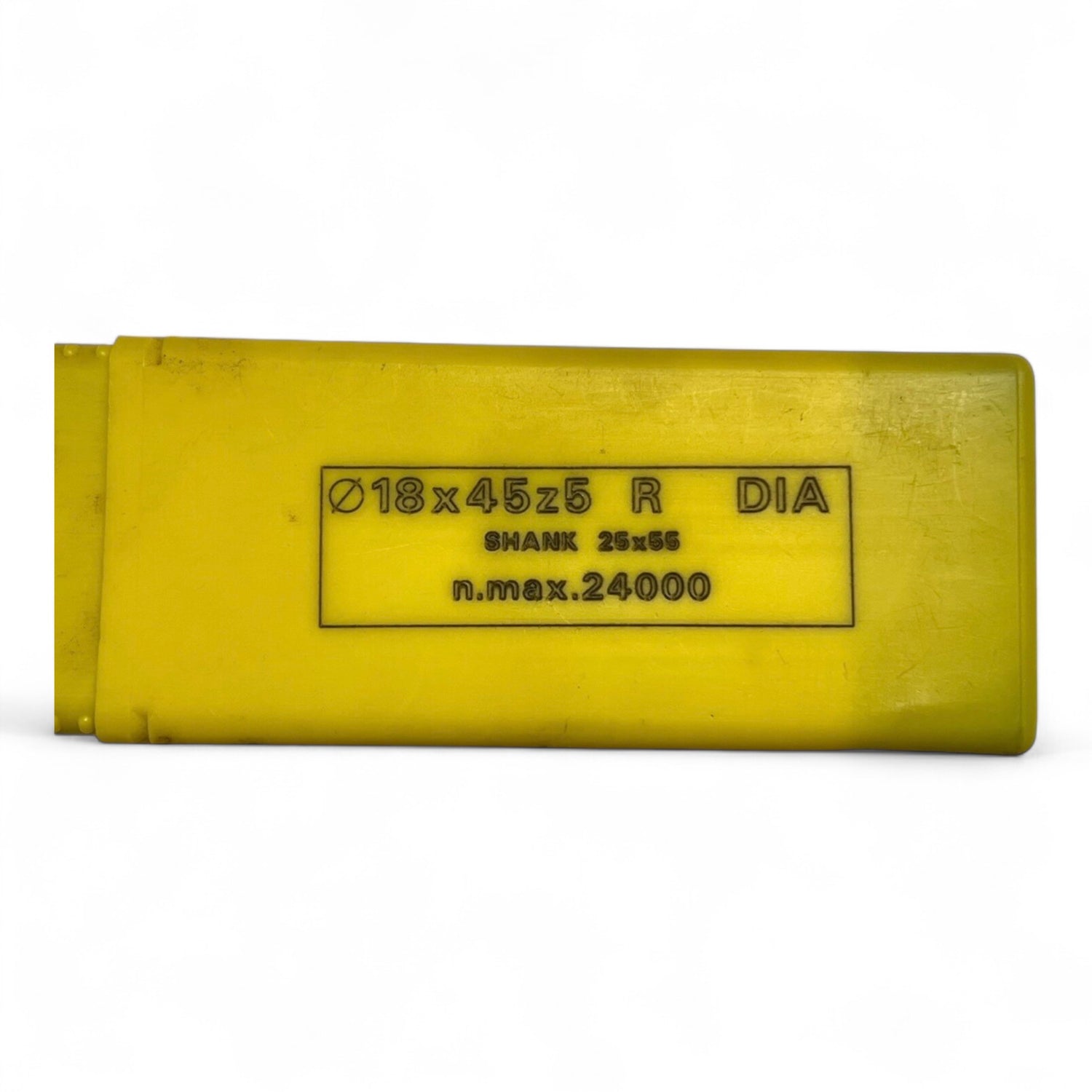

• 1x KBK DIA Cutter Ø18x45 Z5 – with protective packaging (plastic box, yellow)

• Condition: presumably unused, but sold as used

• Packaging: without original invoice, no manufacturer documentation included

Note

This tool originates from a warehouse clearance or spare parts stocking. No signs of use are visible. Nevertheless, the item is sold as "used." Functionality and quality are not affected.

Technical Data

    Item number: –

    Commodity code: 82077031

    Shipping weight: approx. 0.35 kg

Highlights

• Diamond-tipped cutting edges for extremely long service life

• 5-flute design for high material removal rates

• Maximum speed: 24000 rpm for high-speed machining
