JUMO Busse MICROSTAT-M Controller Bürkle Ott Joos Press TVP. 8501-21 - 80/19/28/48/60

JUMO MICROSTAT M Temperature Controller TVP 8501-21 80/19/28/48/60 suitable for Busse Bürkle Ott Joos Veneer Presses

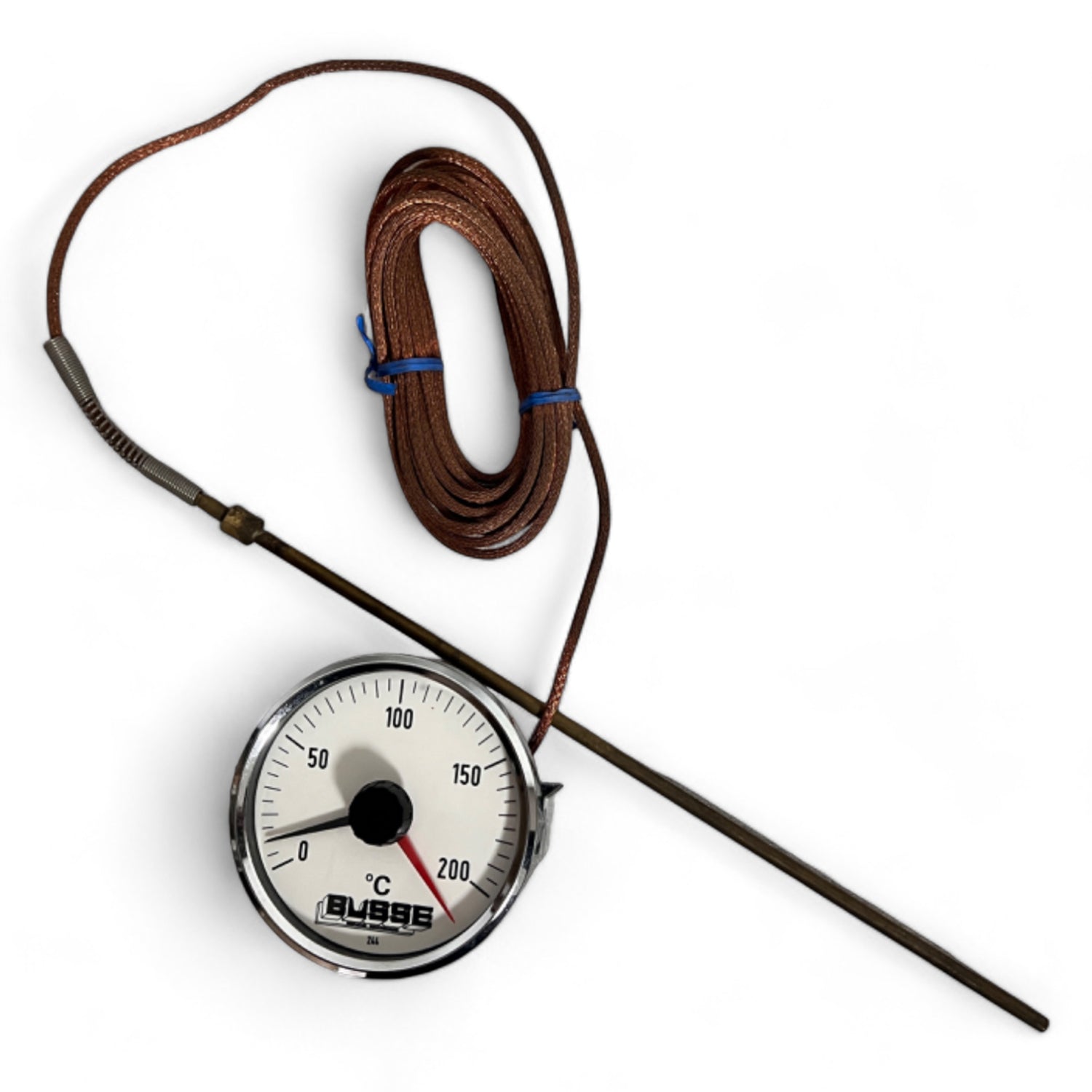

This electromechanical temperature controller, JUMO MICROSTAT M type TVP 8501-21 80/19/28/48/60, is suitable for universal temperature control applications, including in heating plates of Busse, Bürkle, Ott, and Joos veneer presses. The device is housed in a sturdy plastic casing with a display for the actual value and is ready for immediate use. Although the device is unused, it is offered as "used" due to its storage duration.

Technical Description

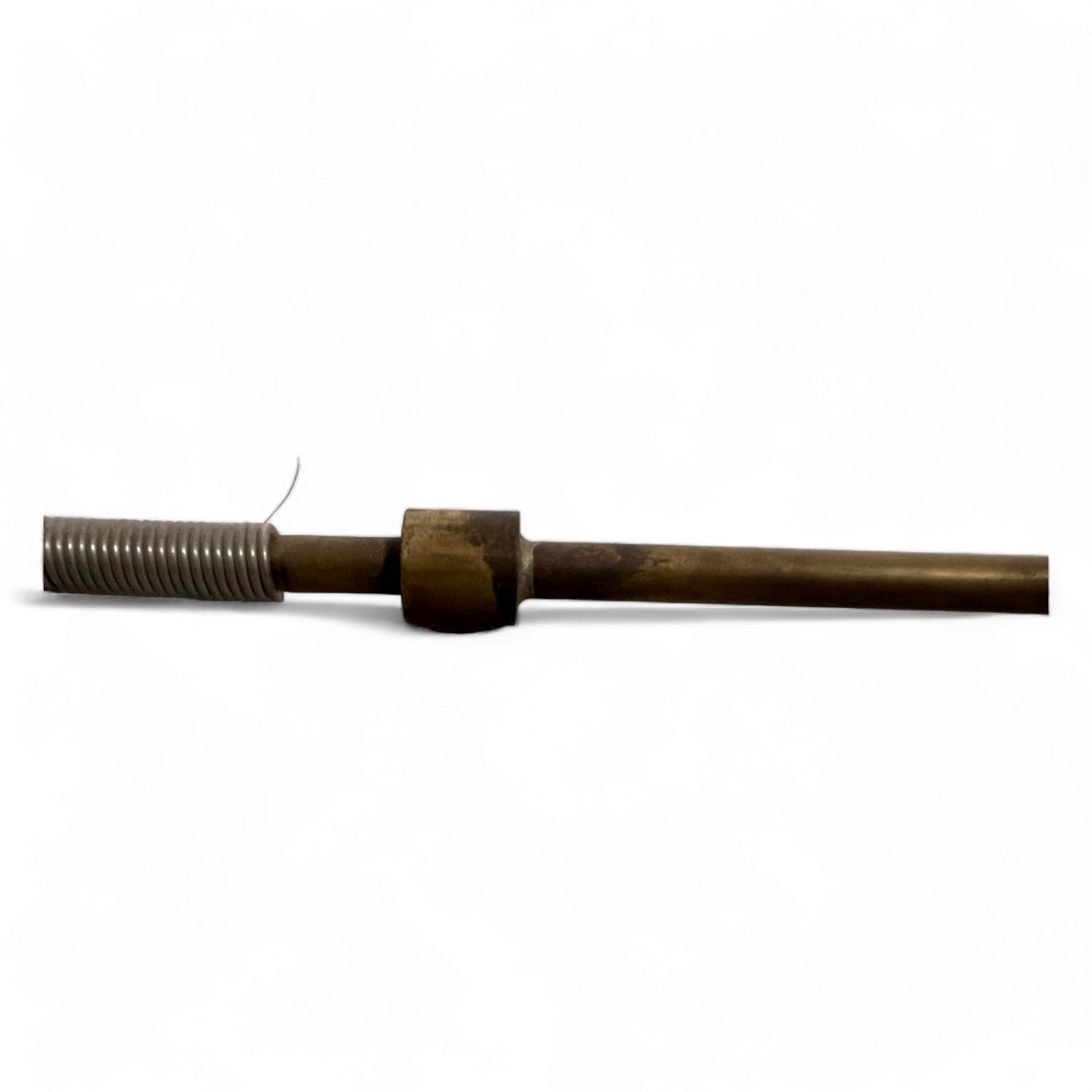

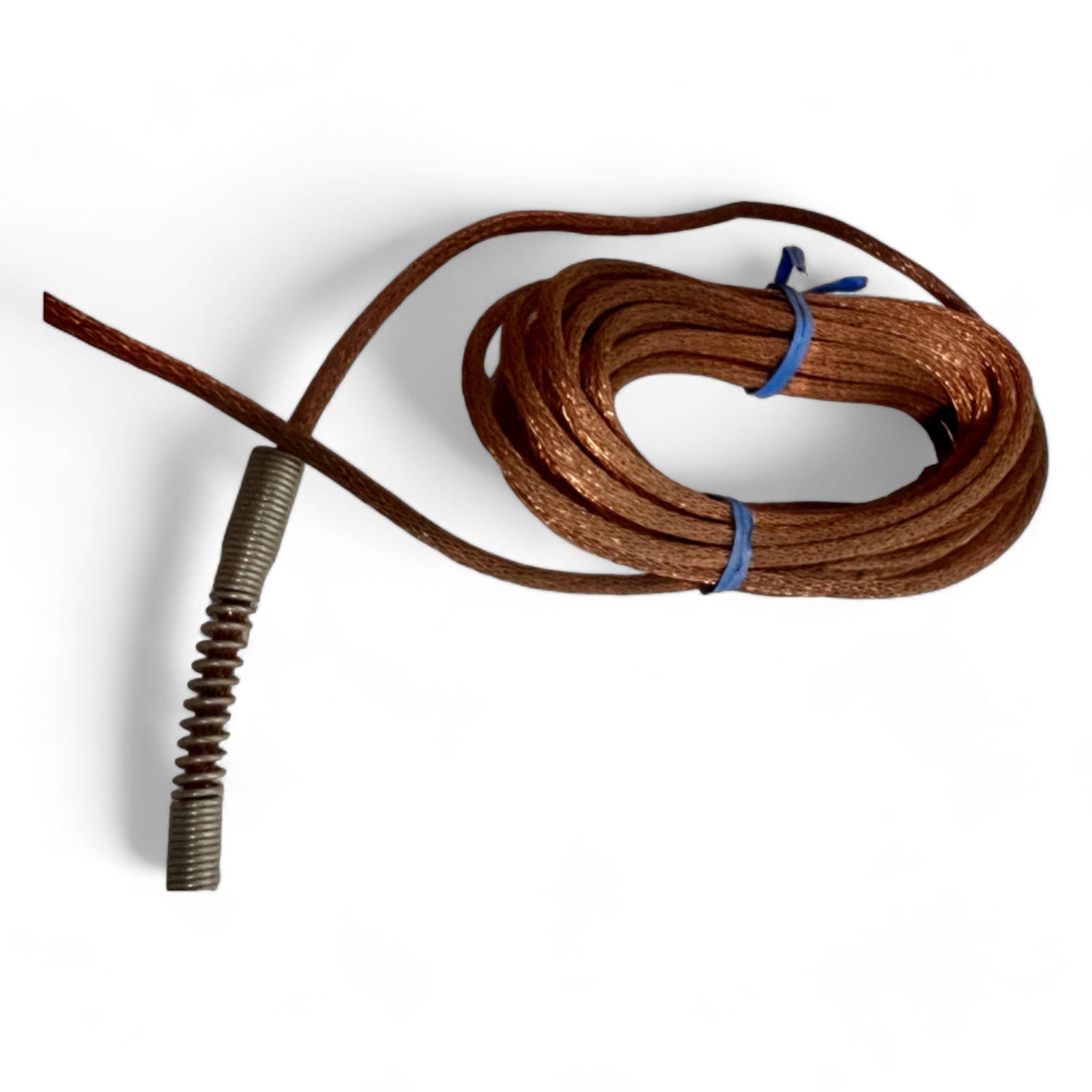

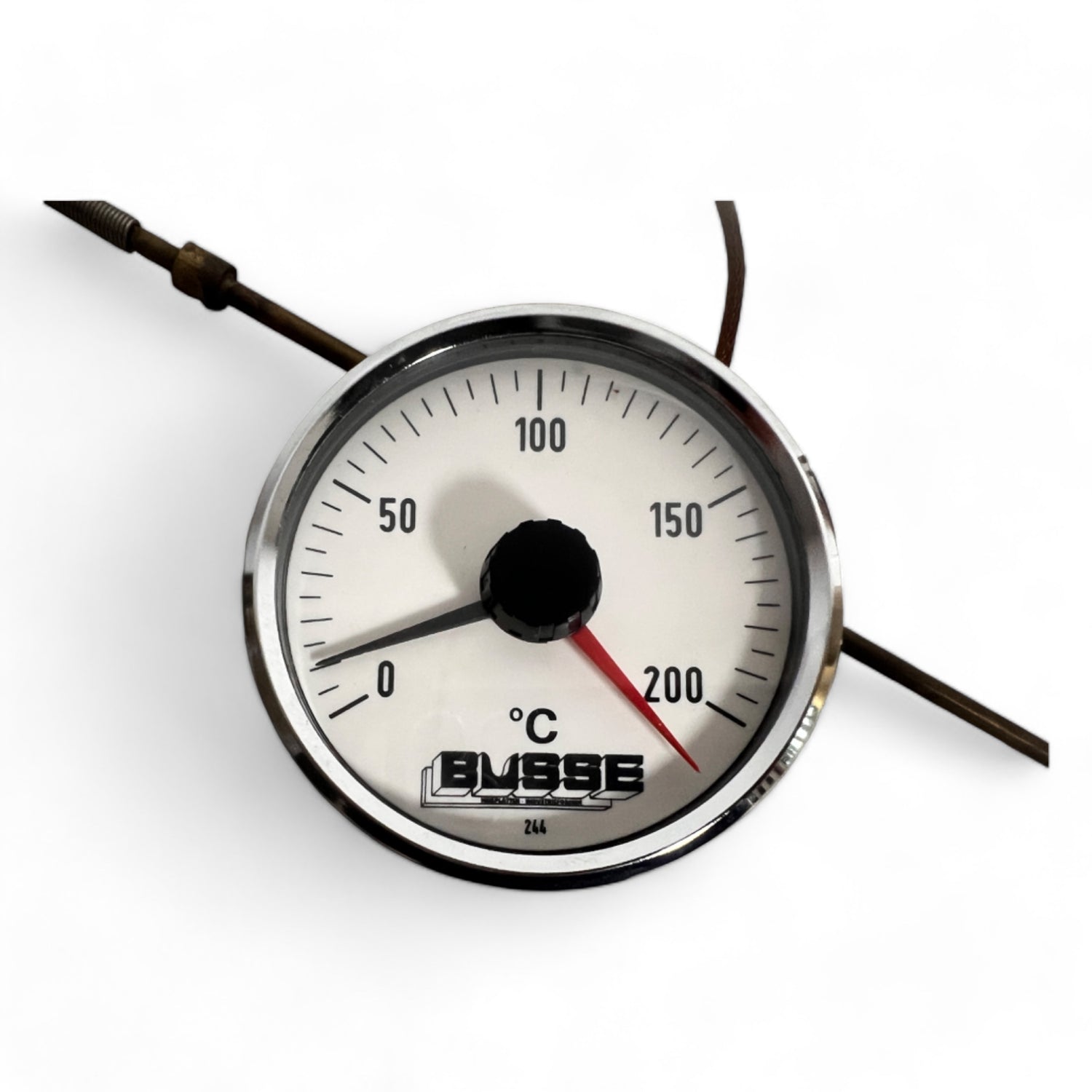

The controller is equipped with a clear, readable scale and is designed for panel mounting. It features an external temperature sensor (capillary sensor) with a cable length of 2800 mm. The sensor itself is 300 mm long and has a diameter of 5 mm. The design corresponds to a MICROSTAT-M with protection class IP53 (front area) and high-quality components for industrial use. The order number on the device is 333214.

Technical Data

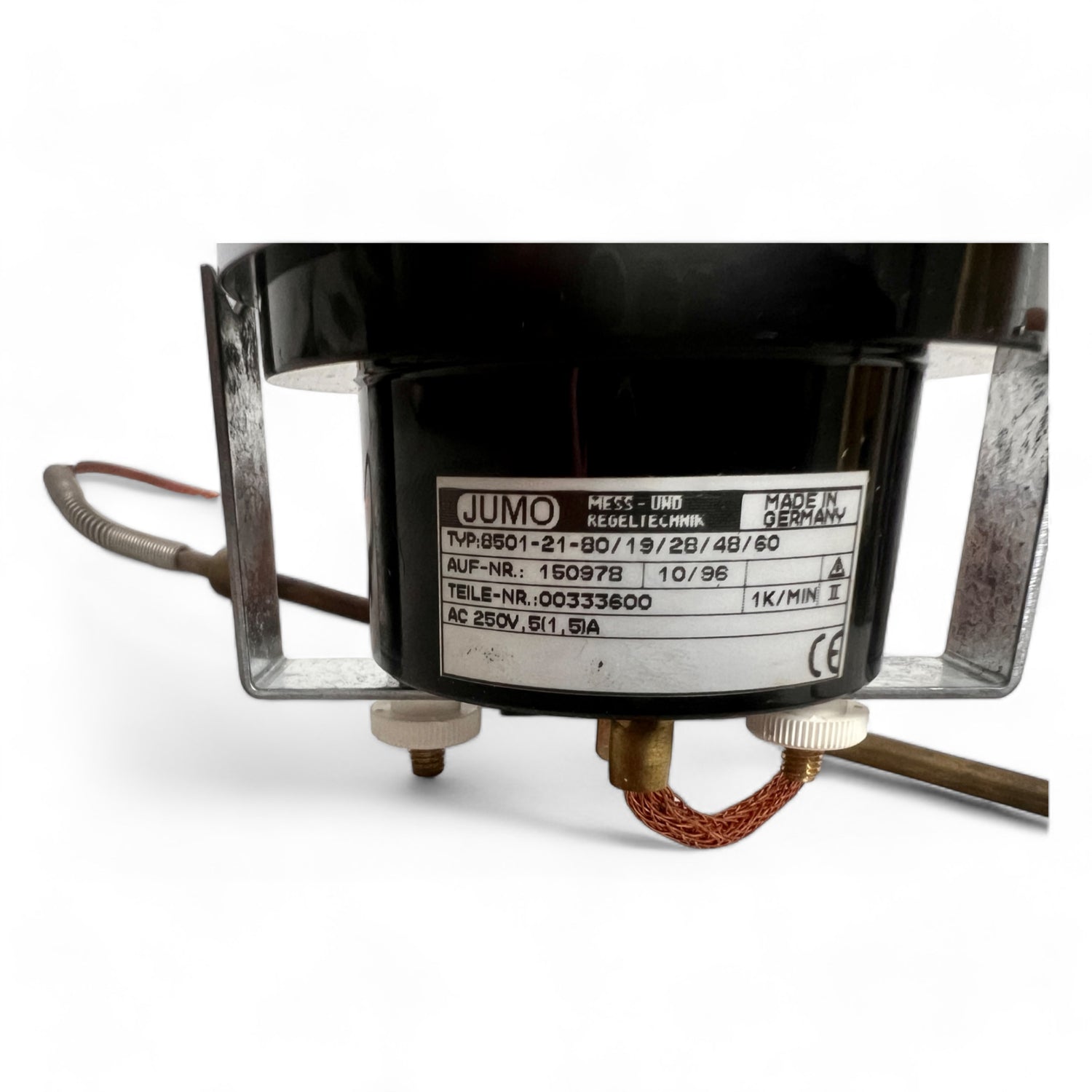

Type designation: TVP 8501-21 80/19/28/48/60

Manufacturer: JUMO

Order number: 333214

Supply voltage: AC 250 V

Contact load: 511.5JA

Sensor cable length: 2800 mm

Sensor diameter: 5 mm

Sensor length: 300 mm

Outer housing diameter: approx. 88 mm

Inner housing diameter: approx. 65 mm

Mounting cut-out: approx. 90 × 15 mm

Front diameter: approx. 55 mm

Front protection class: IP53

Scope of Delivery

• MICROSTAT M temperature controller

• permanently connected capillary sensor

• condition as shown in photos

Note

This is an unused spare part from stock. Due to storage, the item is sold as used. The temperature sensor is no longer manufactured by the producer.
