Übertragen Sie den Typ vollständig, Zeichen für Zeichen. Motoren, die sich nur in den letzten Stellen unterscheiden, sehen von außen gleich aus, haben aber einen anderen Geber – und laufen an Ihrem Regler nicht.
Notieren Sie auch die Achse. Geber und Bremse unterscheiden sich je nach Einbauort; der Motor der Z-Achse hat in der Regel eine Haltebremse.

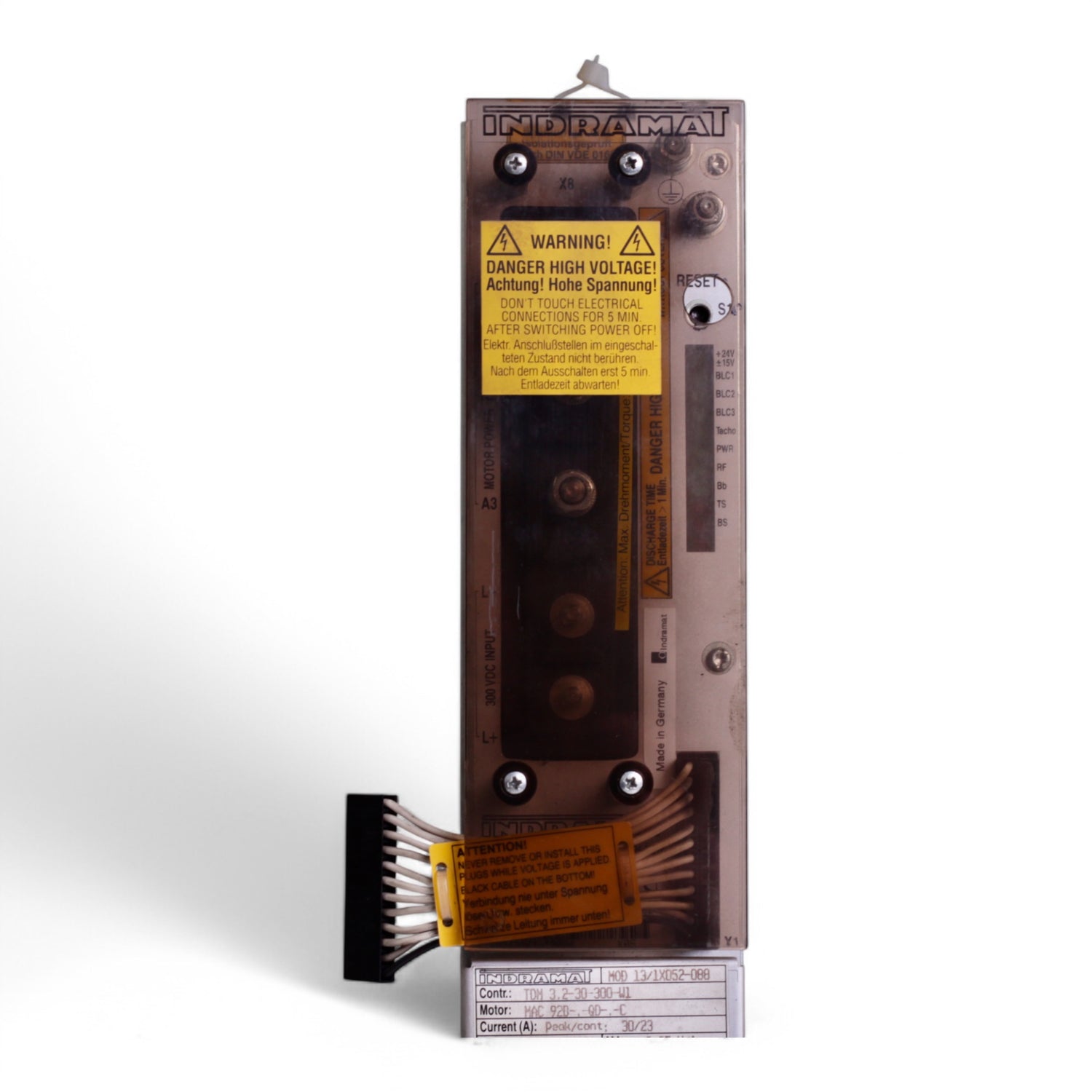

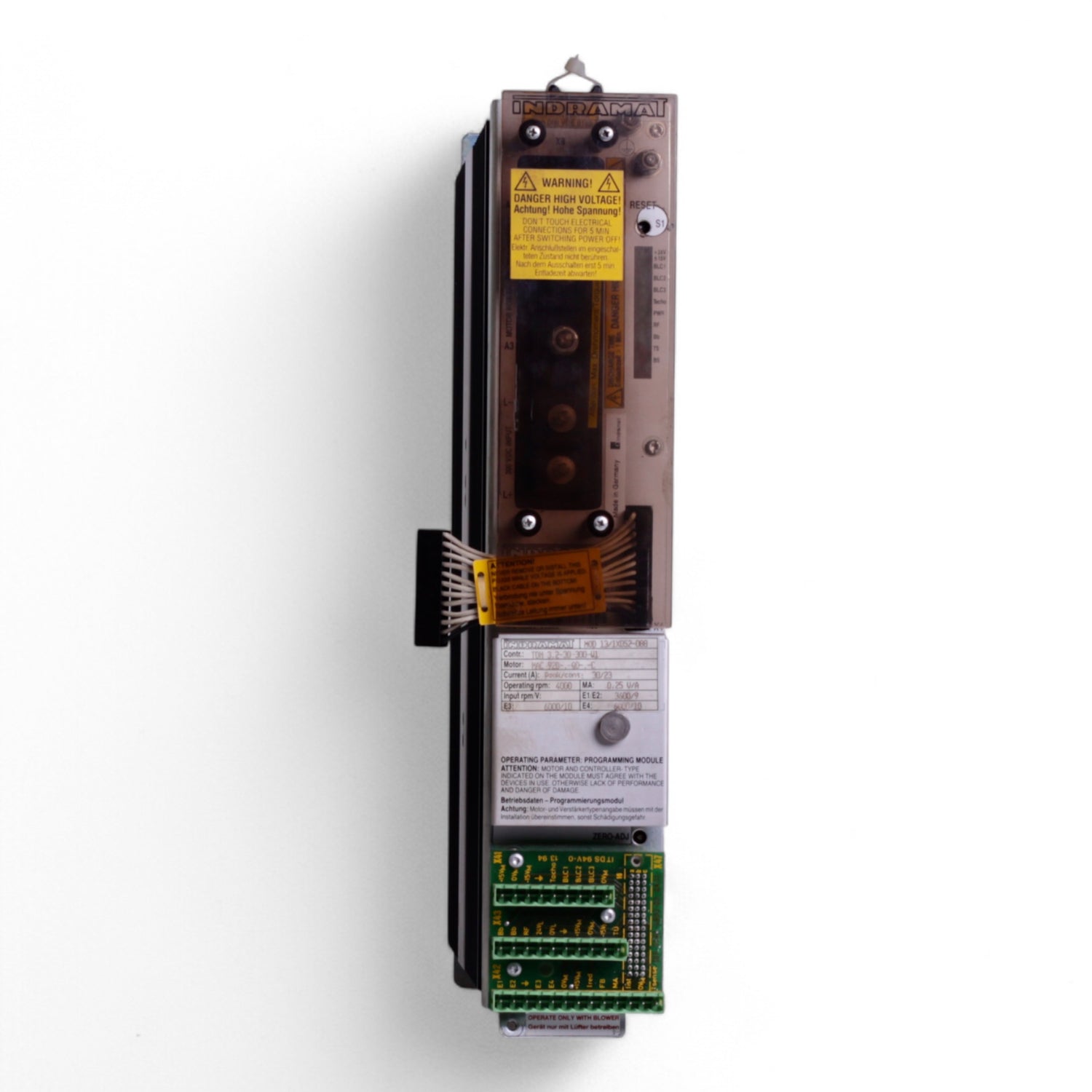

Indramat TDM 3.2-30-300-W1 MOD 13/1X052-088 Servo Controller
Indramat TDM 3.2-30-300-W1 Servo Controller for MAC 92D-0D-C
Part Number: TDM 3.2-30-300-W1
Manufacturer: Indramat / Bosch Rexroth
Condition: Used, removed from a working system
Product Features:

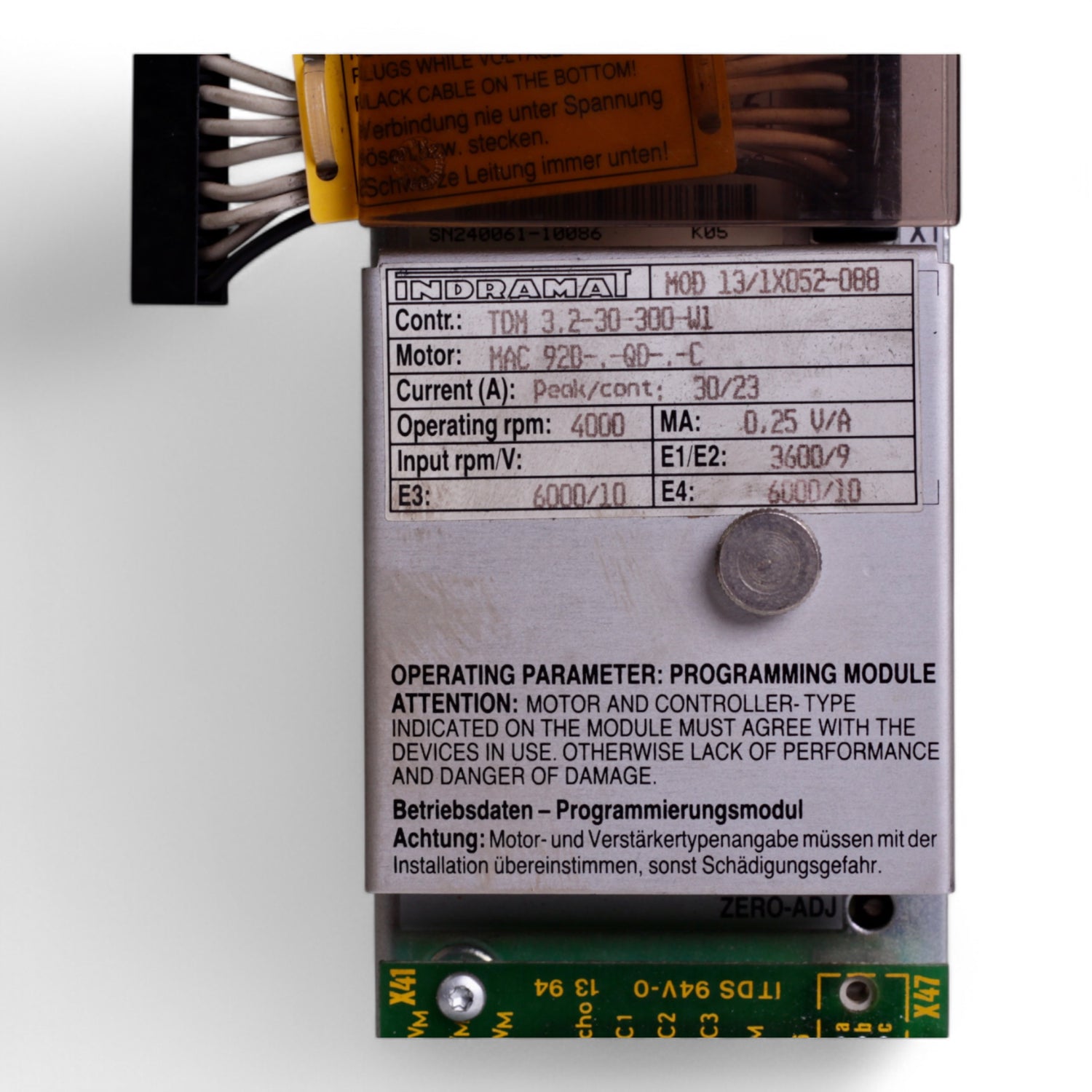

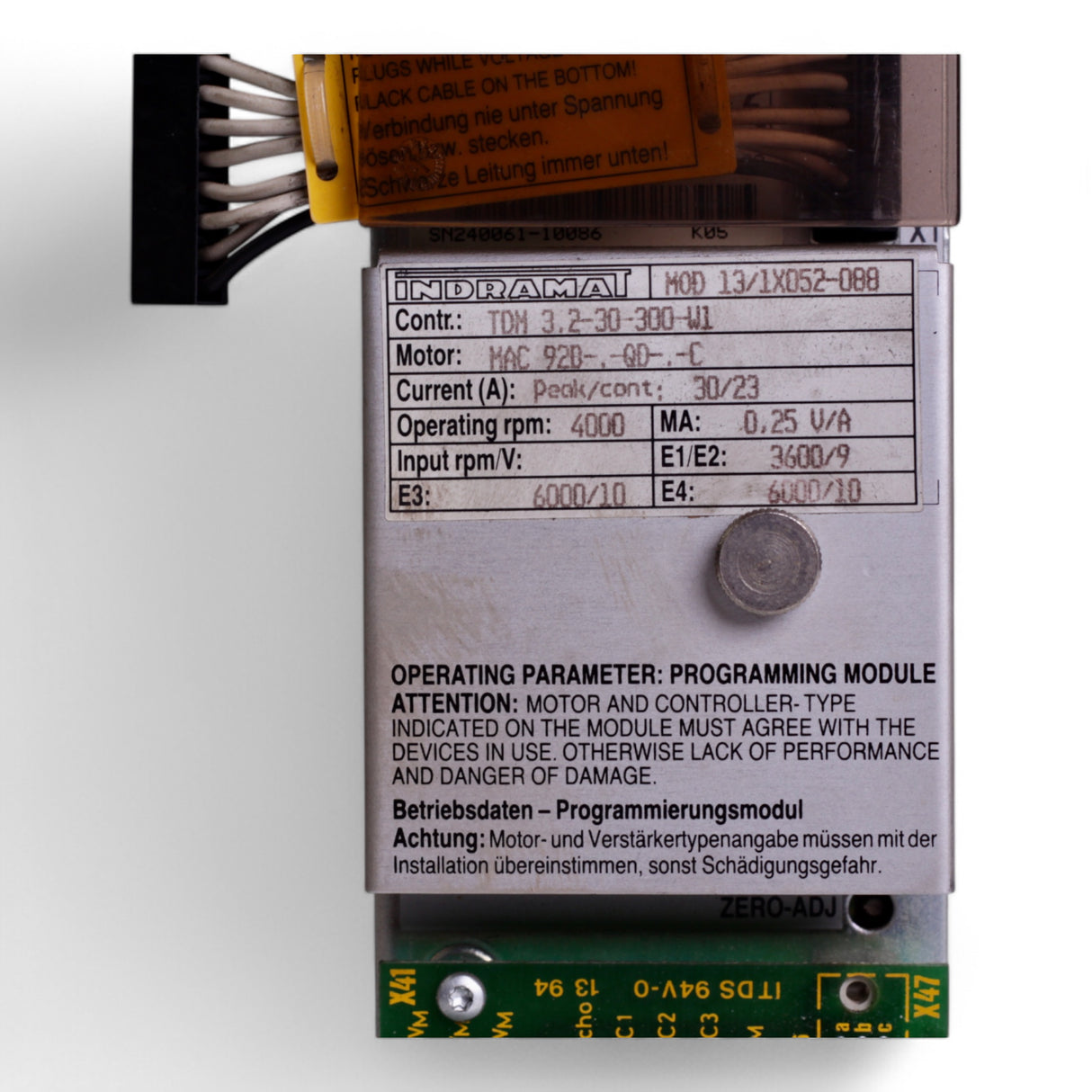

• Model: Indramat TDM 3.2-30-300-W1
• Motor Compatibility: MAC 92D-0D-C
• Voltage Input: 300 V DC
• Maximum Operating Current: 30 A (Peak) / 23 A (Continuous)
• Operating Speed: 4000 rpm
• Input Speeds: E1/E2 = 3600/9, E3 = 6000/10, E4 = 6000/10

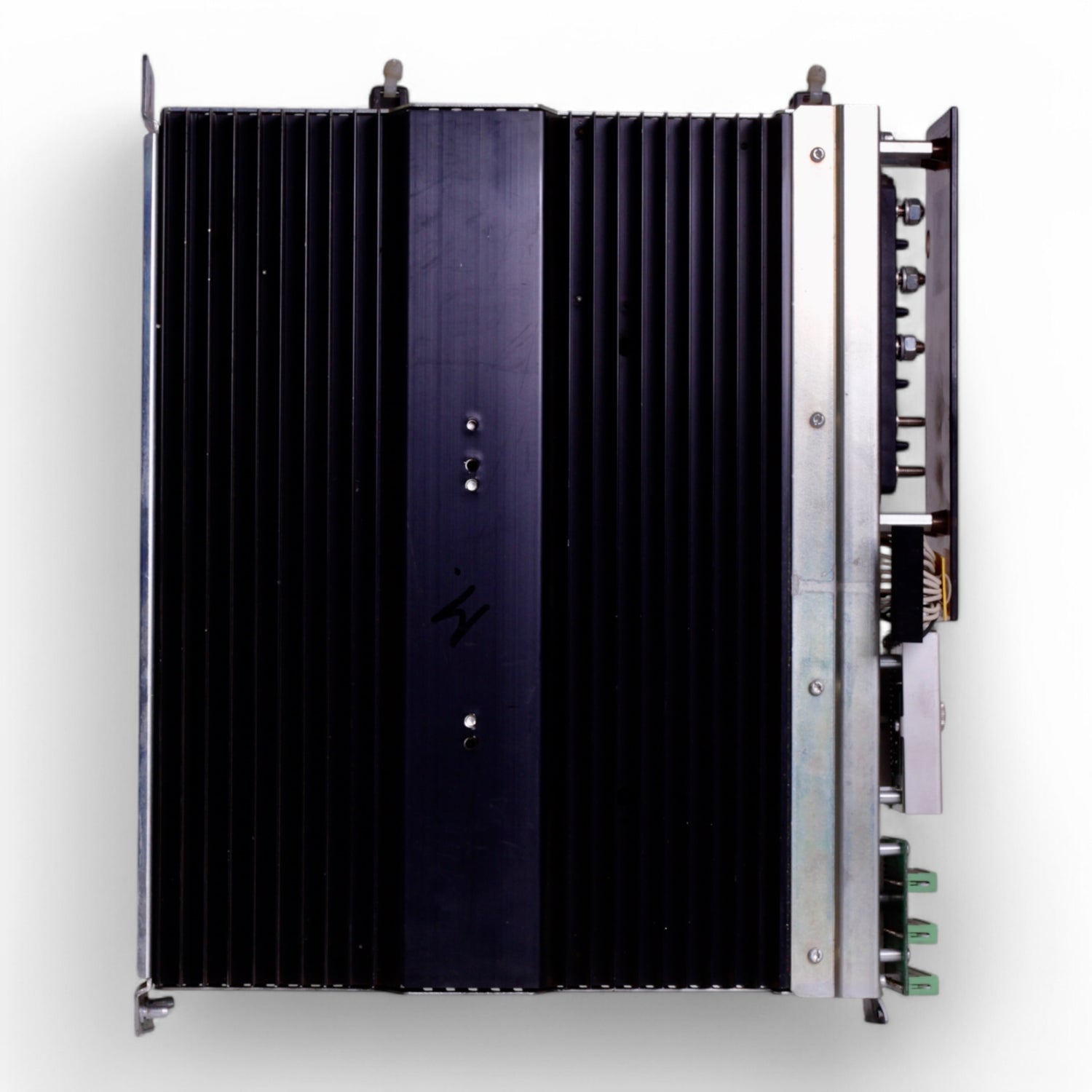

• Dimensions: Standard Indramat housing with cooling fins
• Connection: Multiple connectors for control and power supply

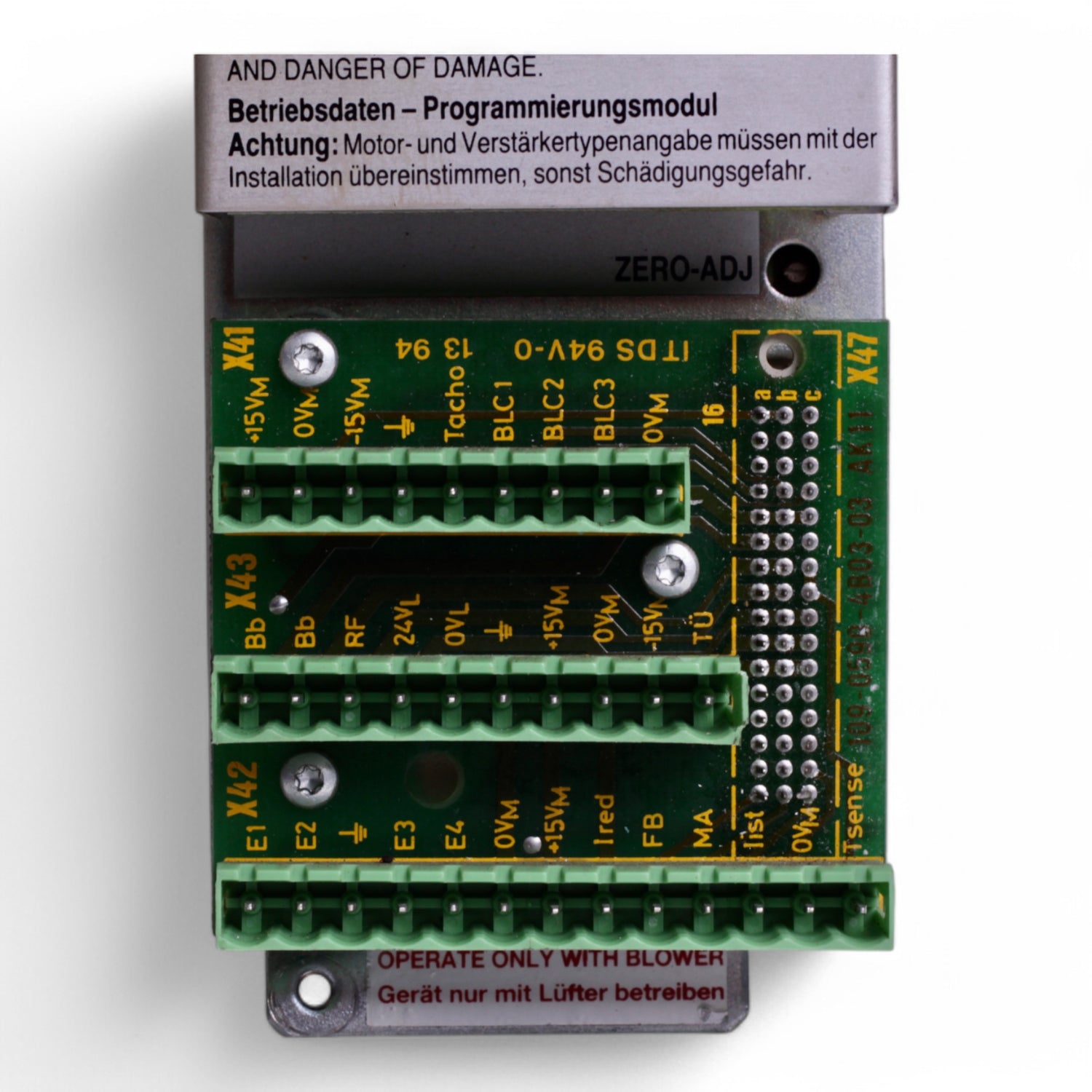

• Fan Operation Required: Note "Operate only with blower"
Scope of Delivery:
• 1x Indramat TDM 3.2-30-300-W1 Servo Controller
• As shown in the photos and described
Notes:
• The device shows minor signs of wear, but is technically perfect.
• The item was removed from a running system.
• All relevant connections and labels are clearly visible in the pictures.
-
