Indramat NAM 1.2-08 A.C. Servo Line Former – Mat. No. 246505
Line former (power supply connection module) with internal choke for Indramat AC servo drives, 3×AC 380–460 V. Genuine Bosch Rexroth/Indramat, removed from a running machine, in stock – two units available.
| Manufacturer | Indramat (Bosch Rexroth) |
| Designation | A.C. Servo Line Former |
| Type | NAM 1.2-08 |
| Material number | 246505 (R911246505) |
| Input U1/V1/W1 | 3×AC 380–460 V ±10 %, 50–60 Hz |
| Output U2/V2/W2 | 3×AC 380–460 V ±10 %, 50–60 Hz |
| Choke | internal, connection 1L+ / 2L+ |
| Connections | X1 control connector, 16-pin; terminals P / N |
| Discharge time | > 1 min (nameplate) |

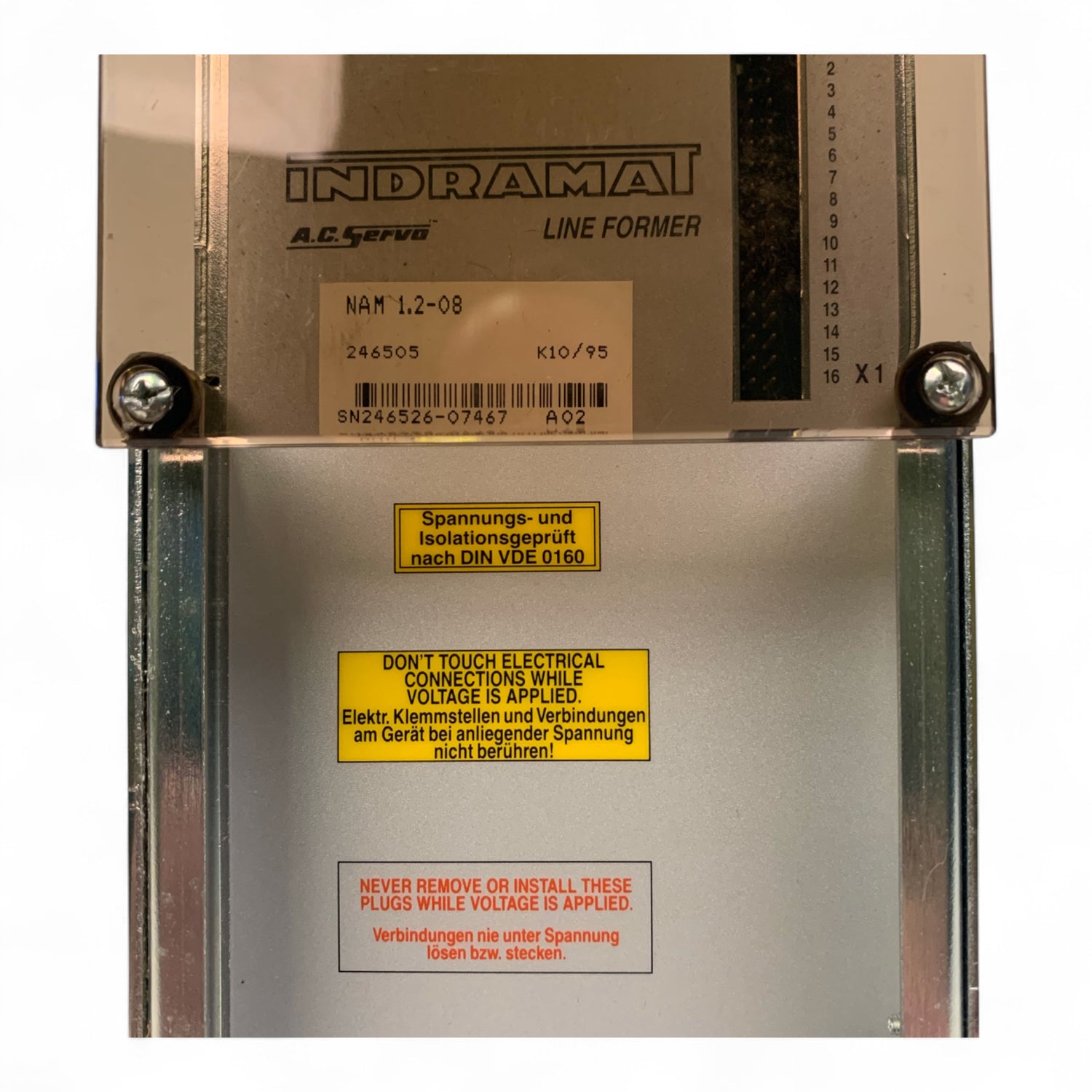

| Factory test | voltage and insulation tested to DIN VDE 0160 |
| Dimensions (W × D × H) | approx. 107 × 325 × 390 mm |
| Weight | approx. 7 kg |
| HS tariff code (EU) | 8504 40 88 |
| Condition | Used · 2 – Good |
Available units
| SN 246526-07467 | Used, removed from a running machine |
| SN 246526-11894 | Used, from a WEEKE BP 155, index A02, code K10/96, transparent Indramat front cover, clean condition |
Product description
The NAM 1.2-08 line former is the power supply connection of an Indramat AC servo drive system: it takes the three-phase line voltage and feeds it to the drive group through its internal choke. The module belongs to the proven Indramat drive technology that was installed for many years in CNC machining centers, machine tools and special-purpose machines.
A used genuine module gets a down machine back up and running quickly – without rewiring the control cabinet and without switching to a new drive generation.
Tested: Removed from a running machine and checked in-house (visual inspection, completeness, verification against the nameplate data). Used part in clean condition with at most light, purely cosmetic marks. You receive exactly the item shown.
Compatibility & applications
Origin & machines: Unit SN 246526-11894 comes from a WEEKE BP 155 CNC machining center. The same Indramat drive technology is usually also found in the HOMAG BAZ 32 and BOF 32 and their predecessor models. Please compare the type designation on the nameplate of your unit – we are happy to check the fit with your machine before shipping.
For Indramat/Bosch Rexroth AC servo drive systems with NAM power supply connection, e.g. combined with DDS digital servo drives (DIAX02). Typically used in CNC machining centers for woodworking and metalworking.
Scope of delivery

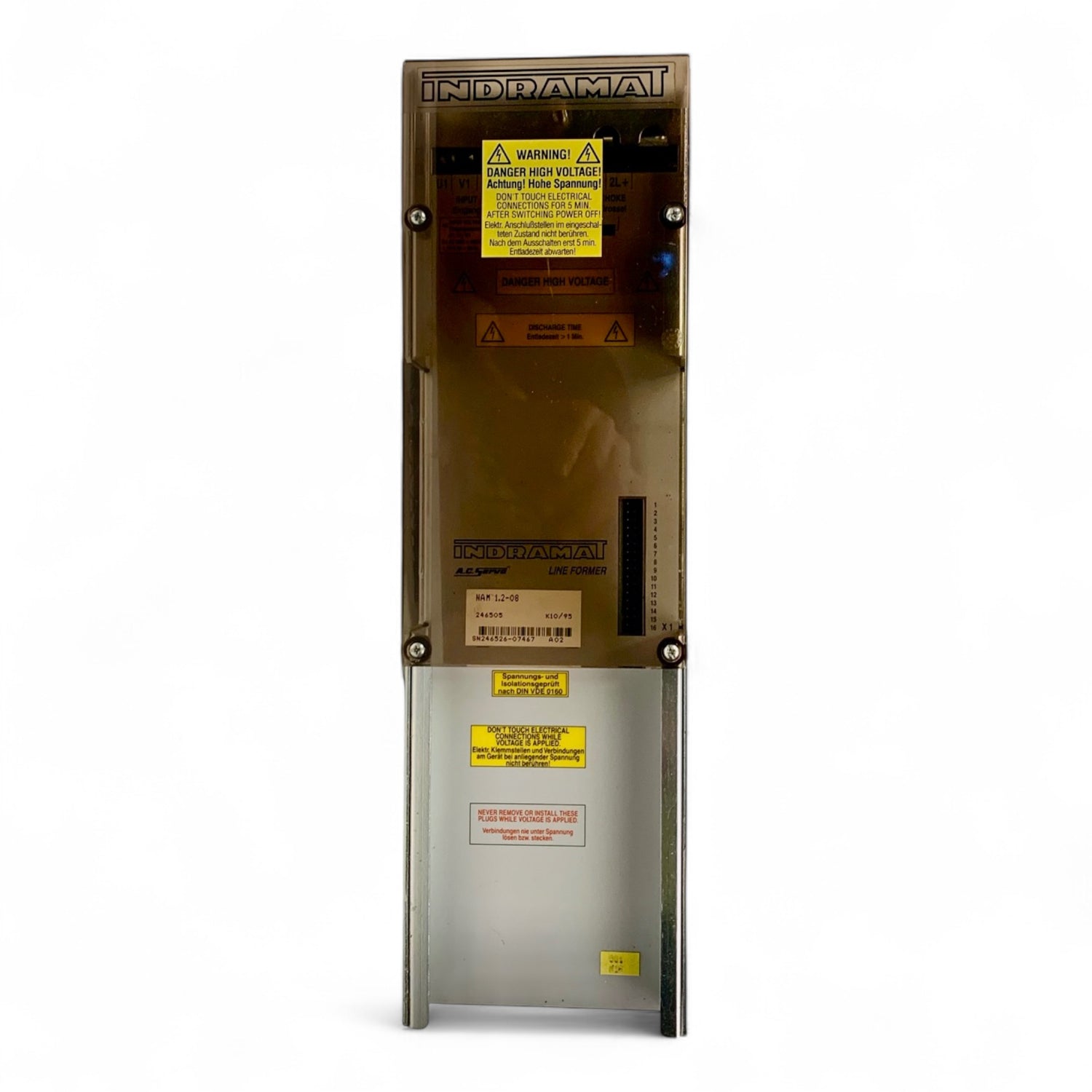

1 × Indramat NAM 1.2-08 (selected unit) with front cover as shown. Mating connectors for the machine wiring are not included.
Shipping to the USA & worldwide
In stock in Germany and shipped via FedEx or UPS, usually on the day of your order. Transit to the US typically takes 2–5 business days with full tracking. US import duties are not included in the price and are collected by FedEx/UPS on delivery. On request, we check before shipping from a photo of your nameplate whether the unit fits your machine.
