Description

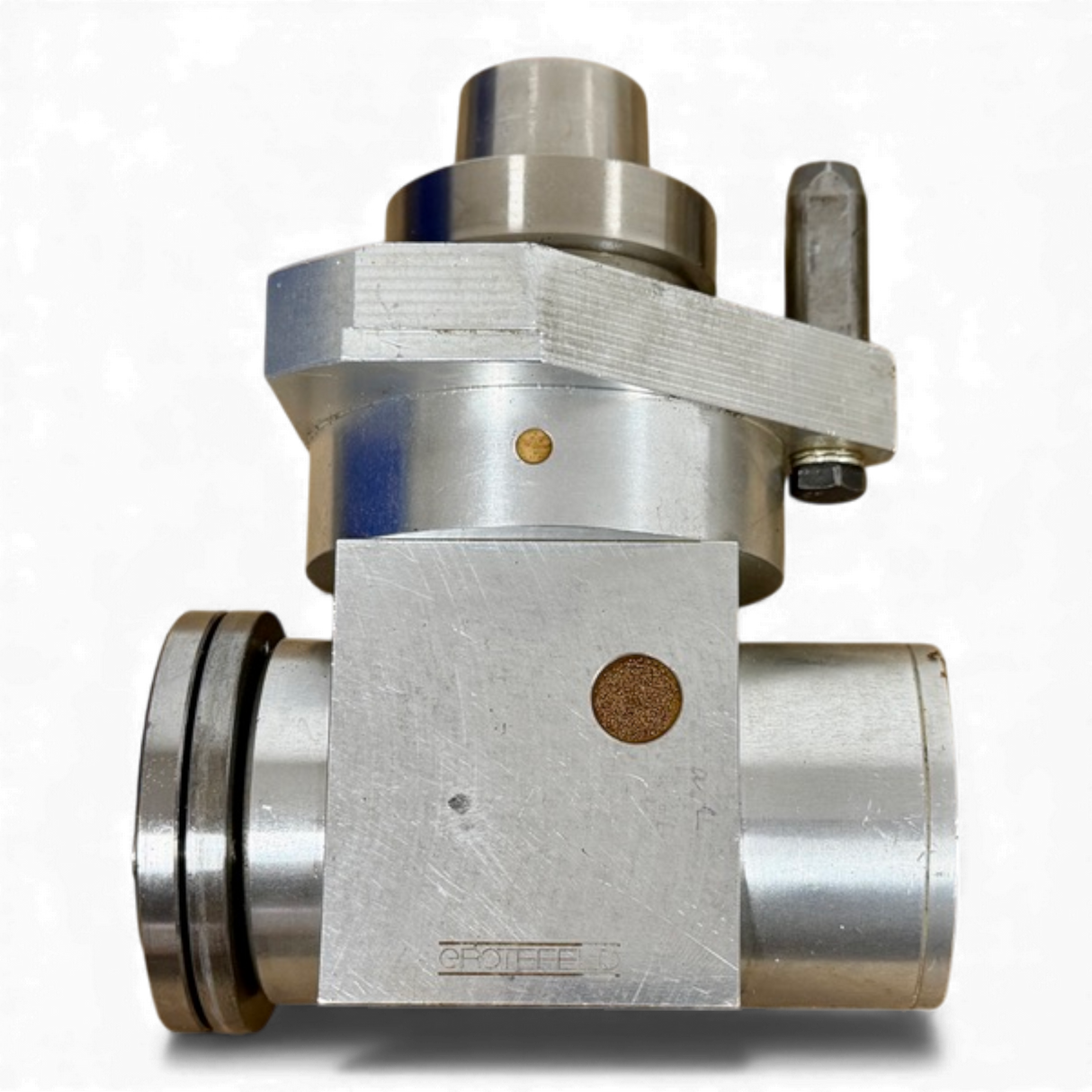

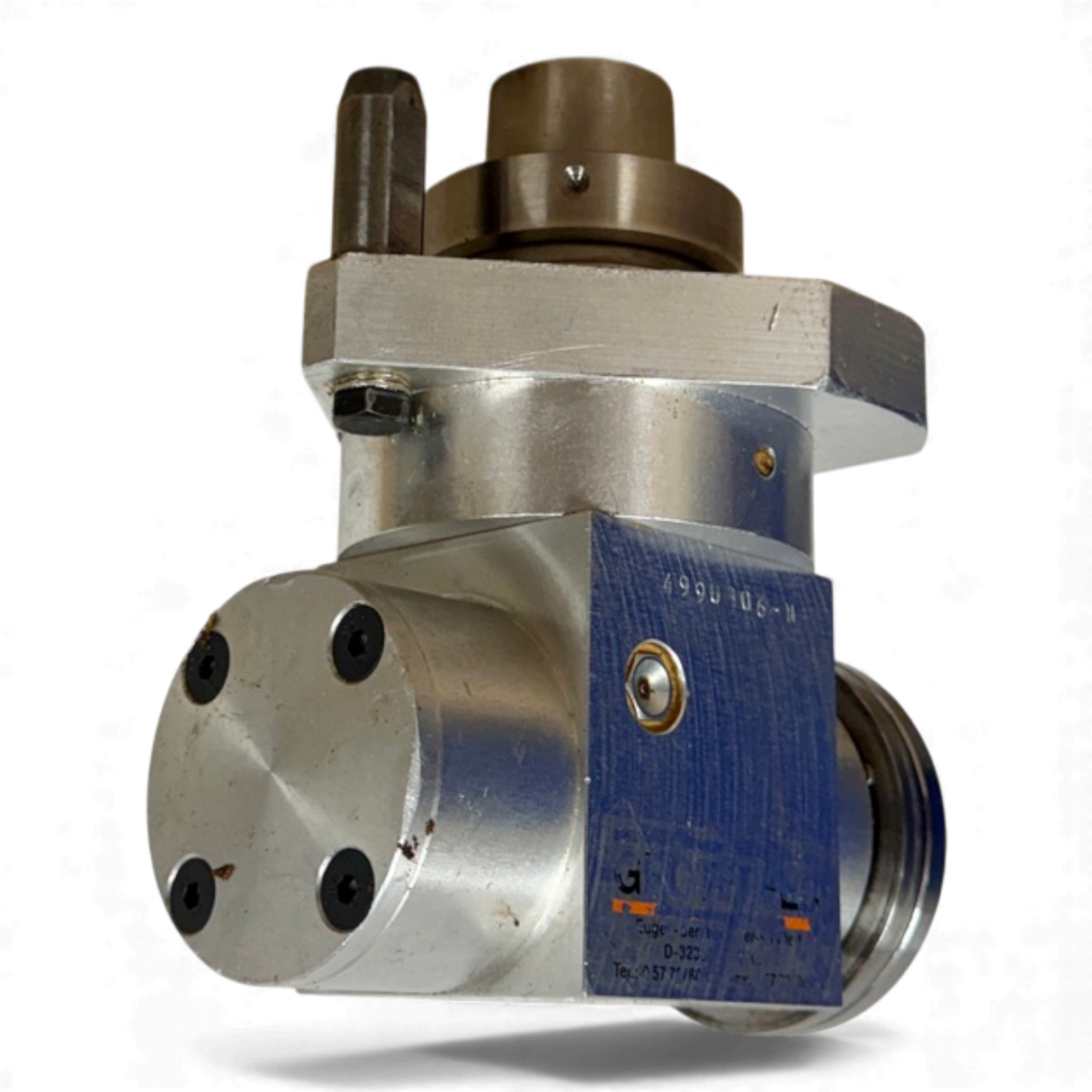

IMA Grotefeld Adapter Unit Saw Cutter | Part No. 4990.306 N
IMA Grotefeld Adapter Unit Saw Cutter | Part No. 4990.306 N

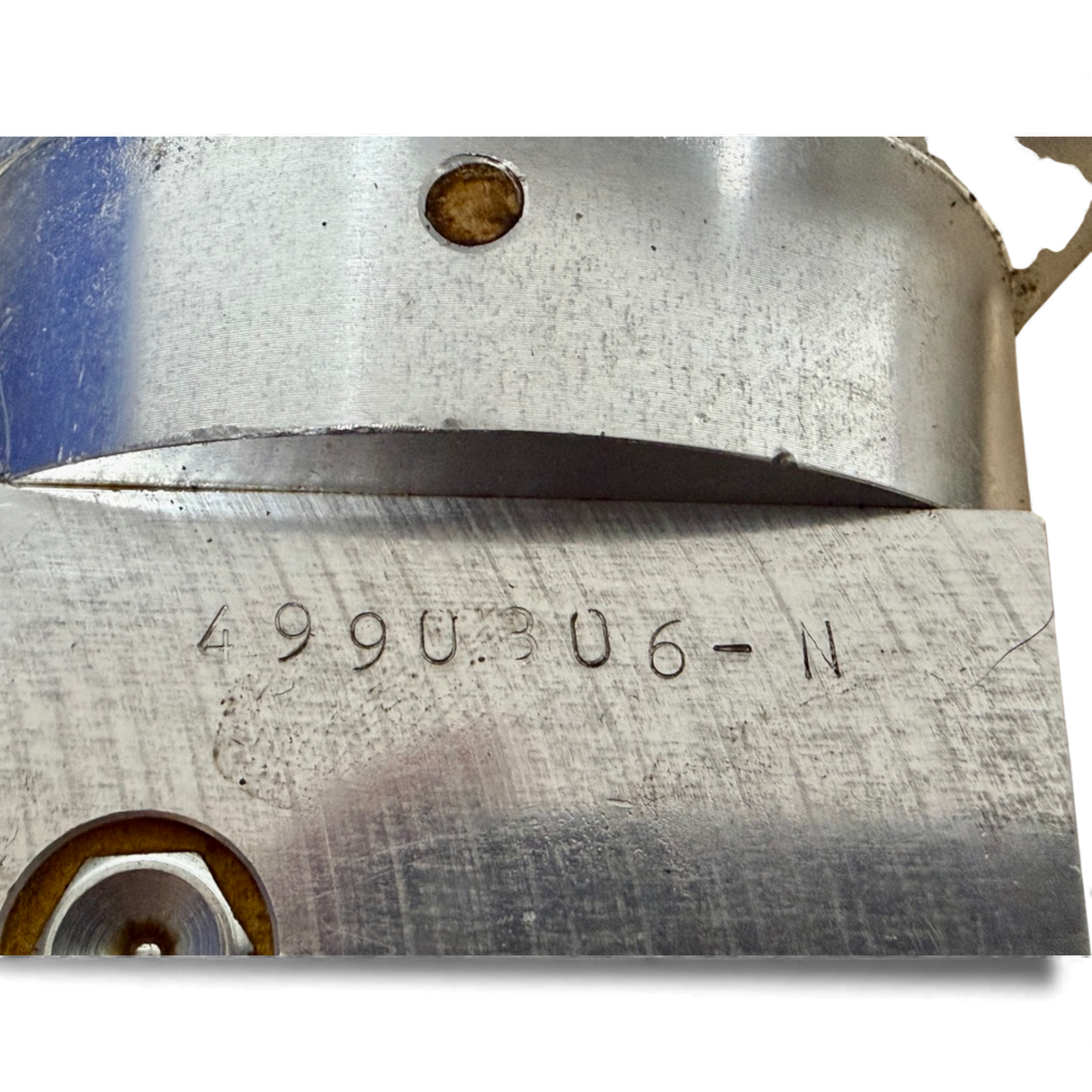

Part No. 4990.306 N
Manufacturer IMA Grotefeld

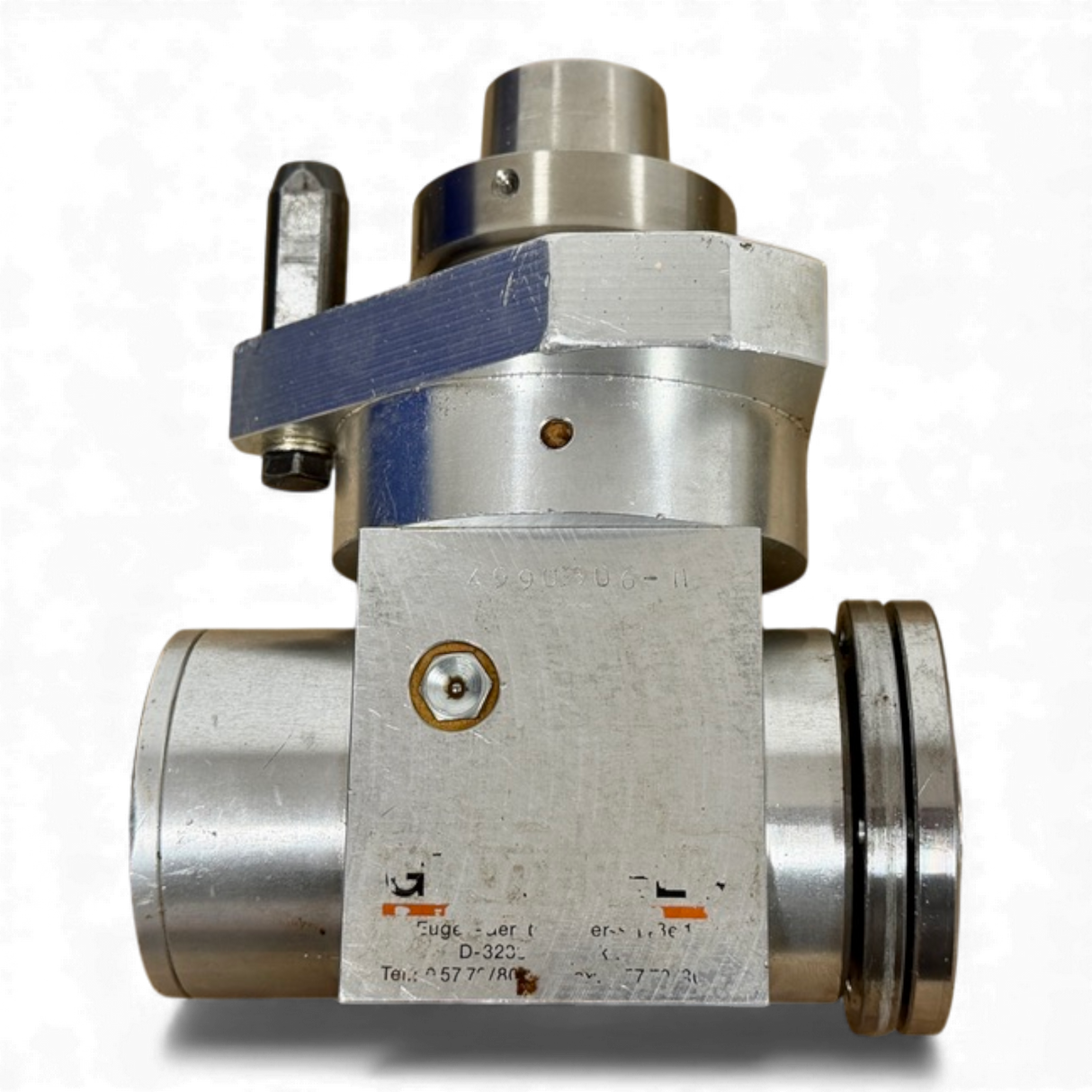

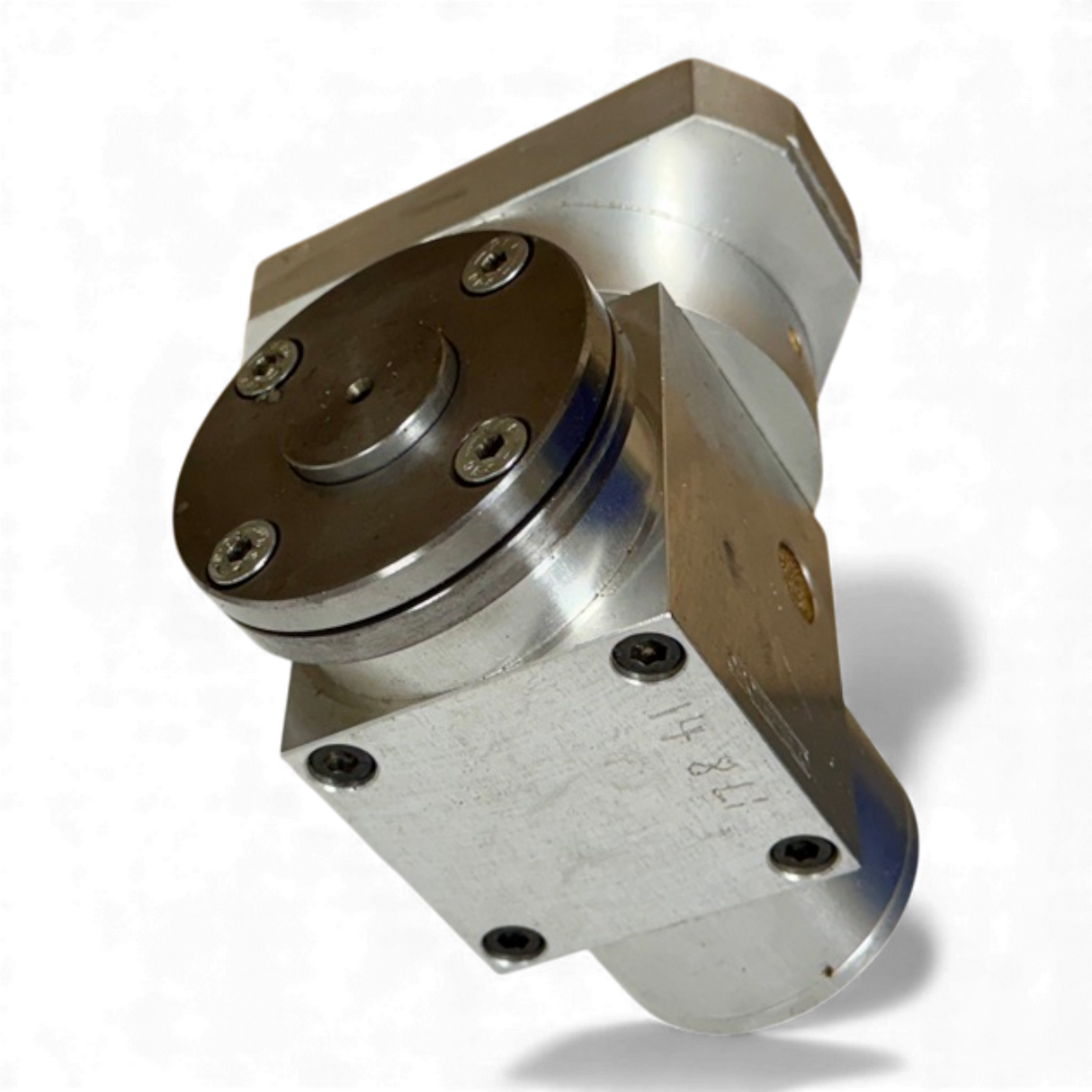

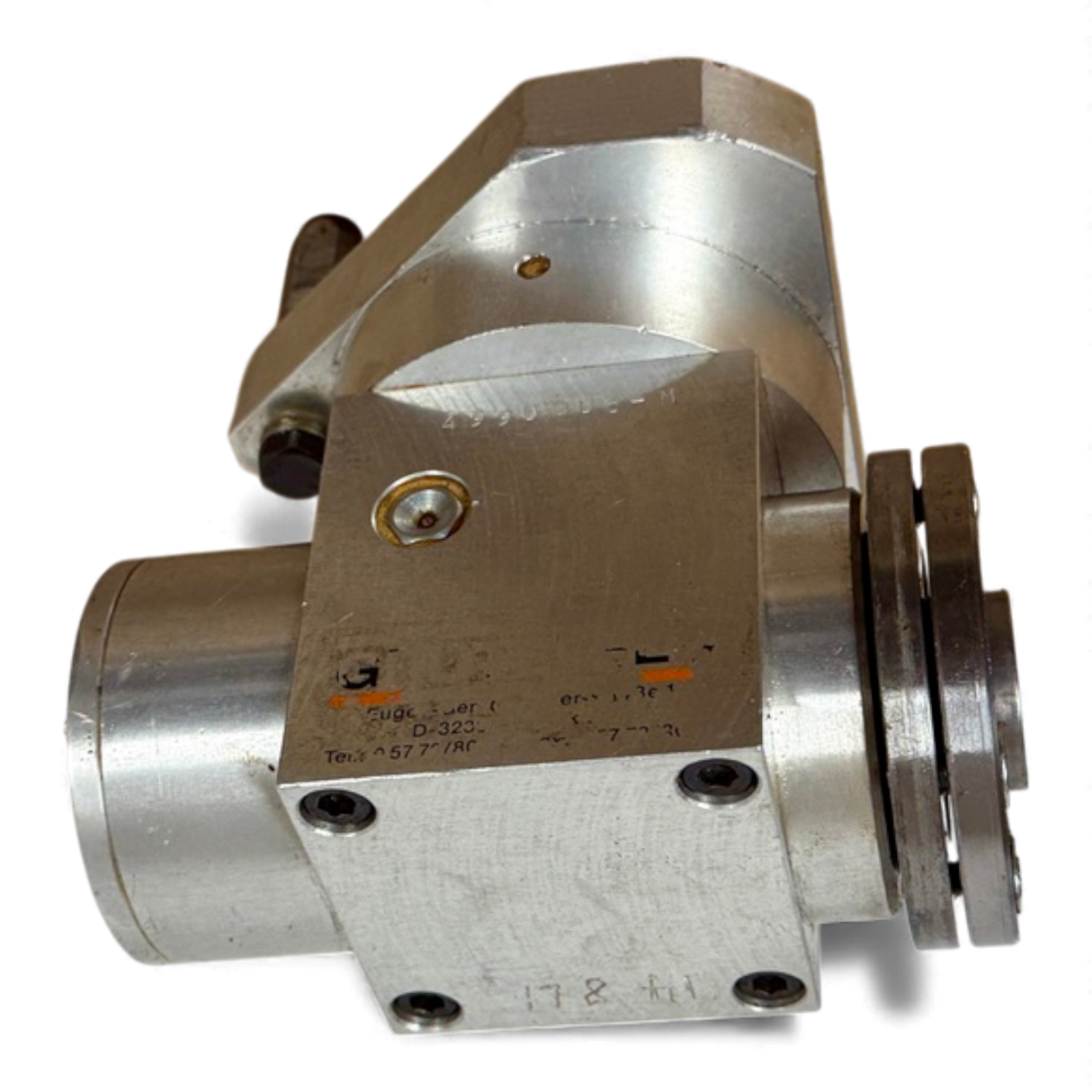

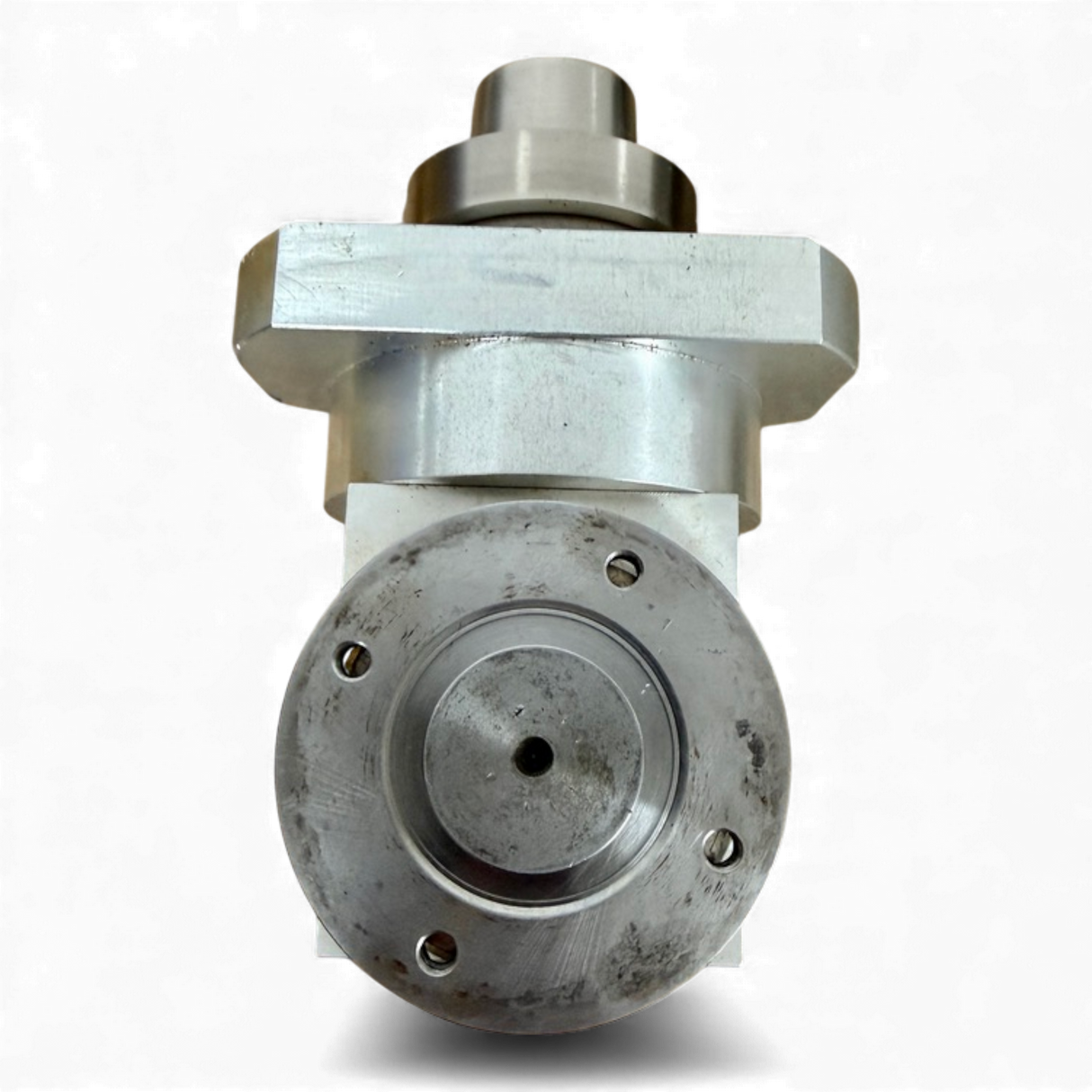

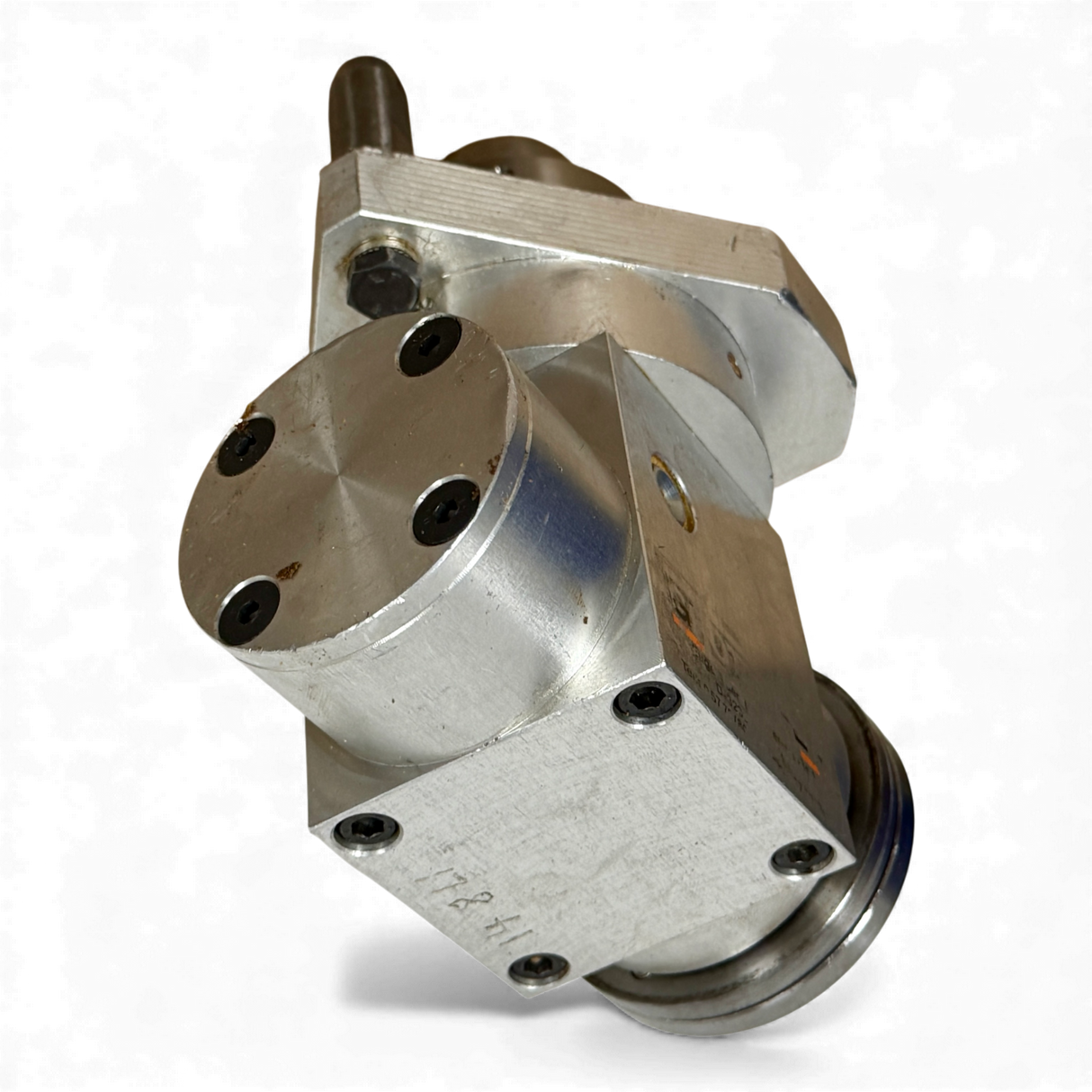

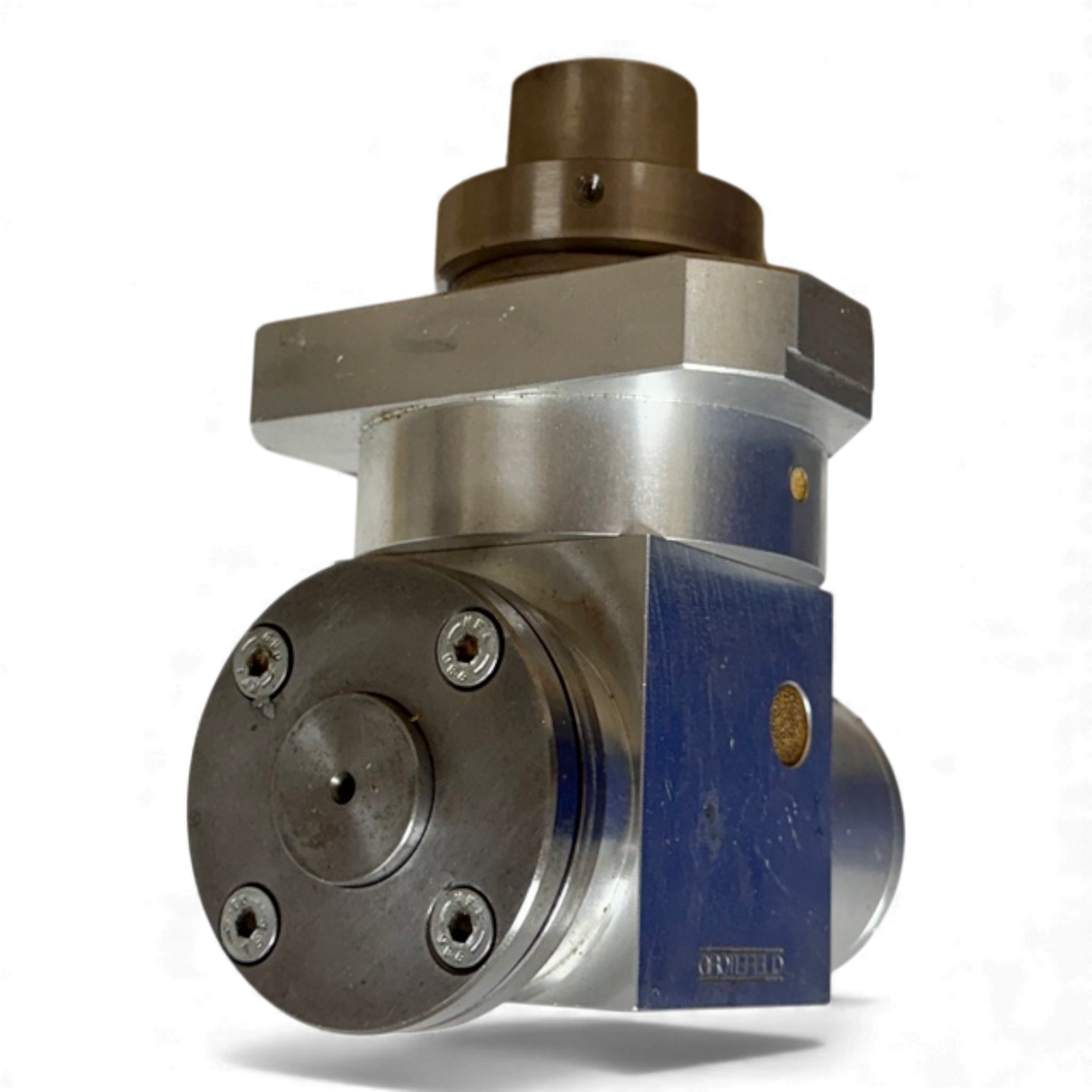

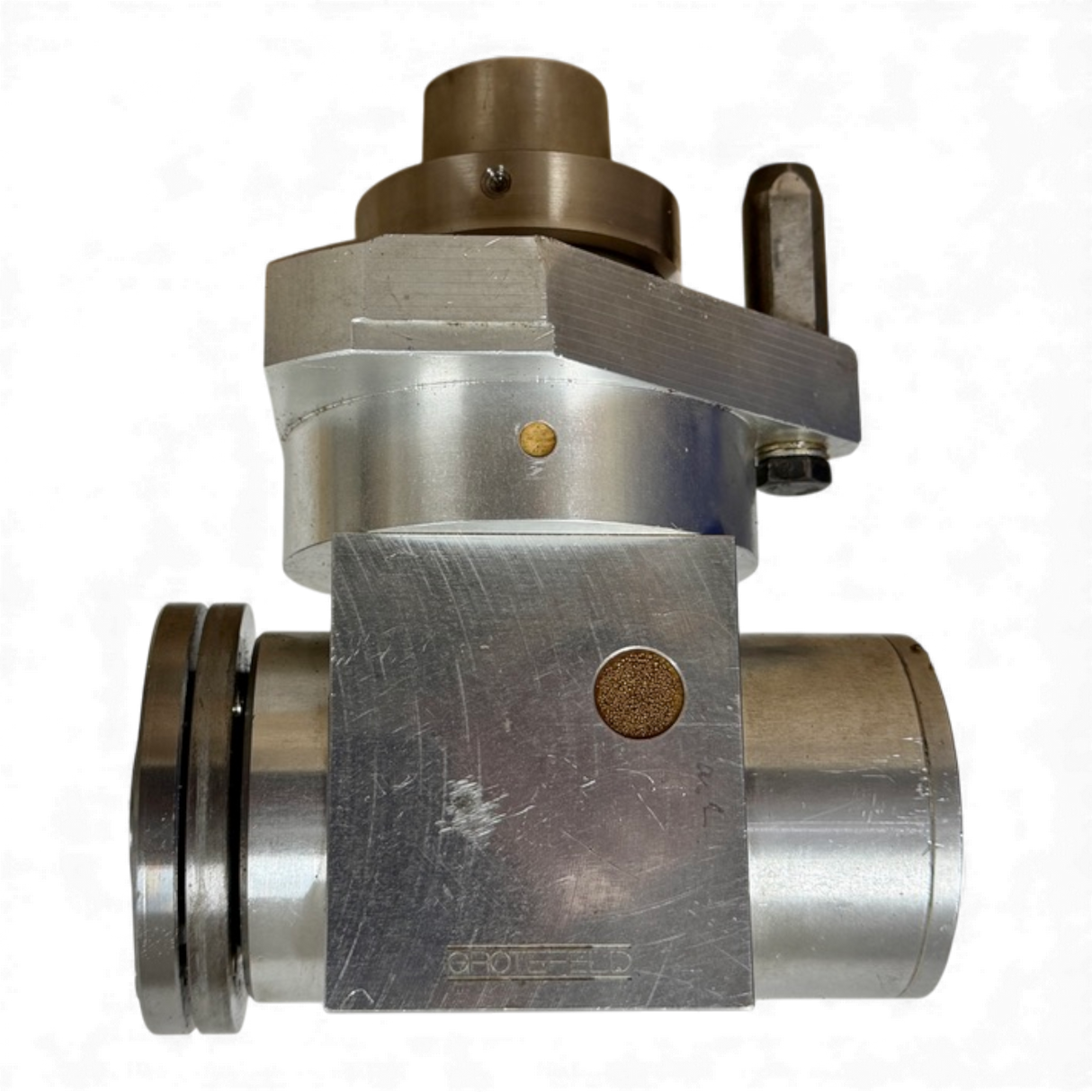

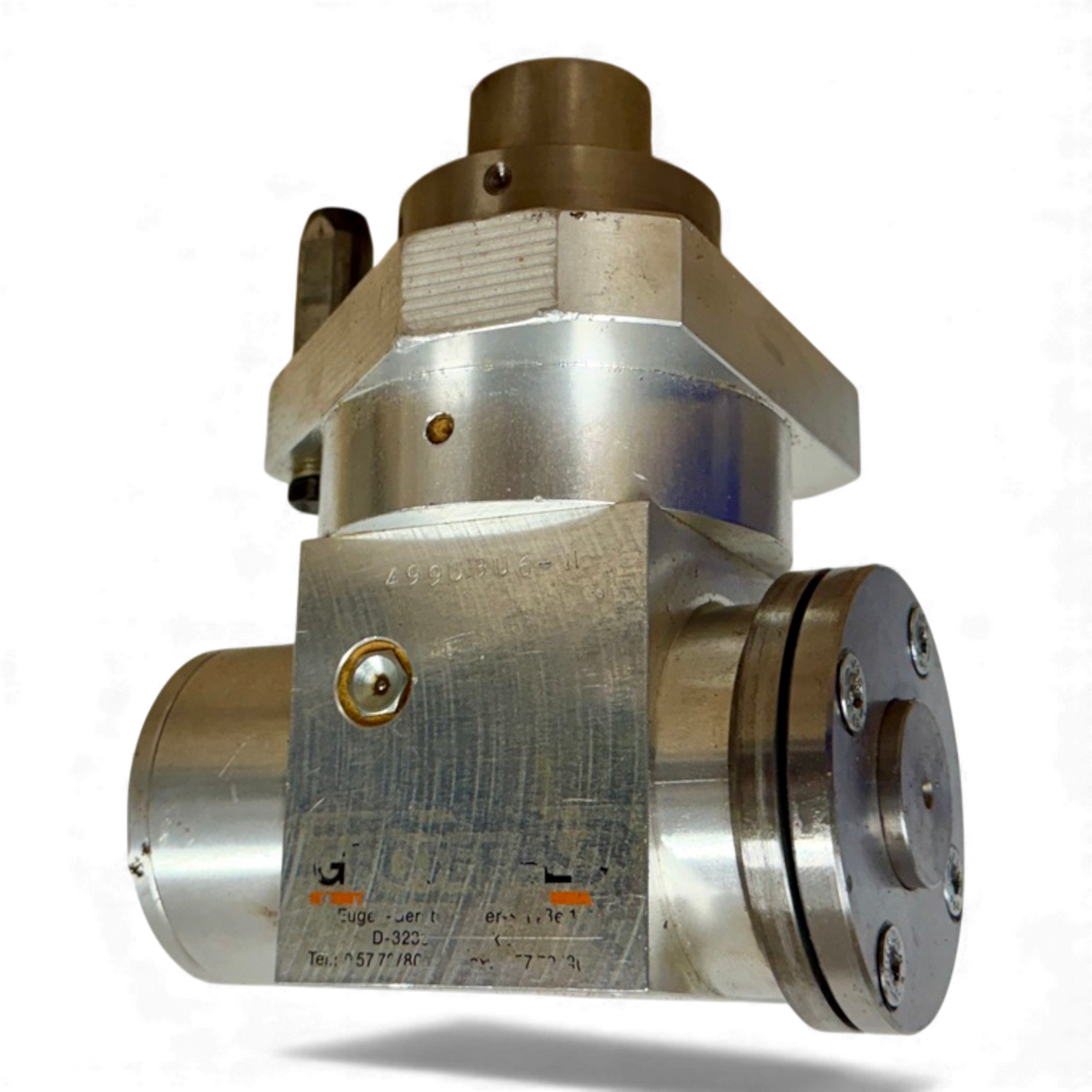

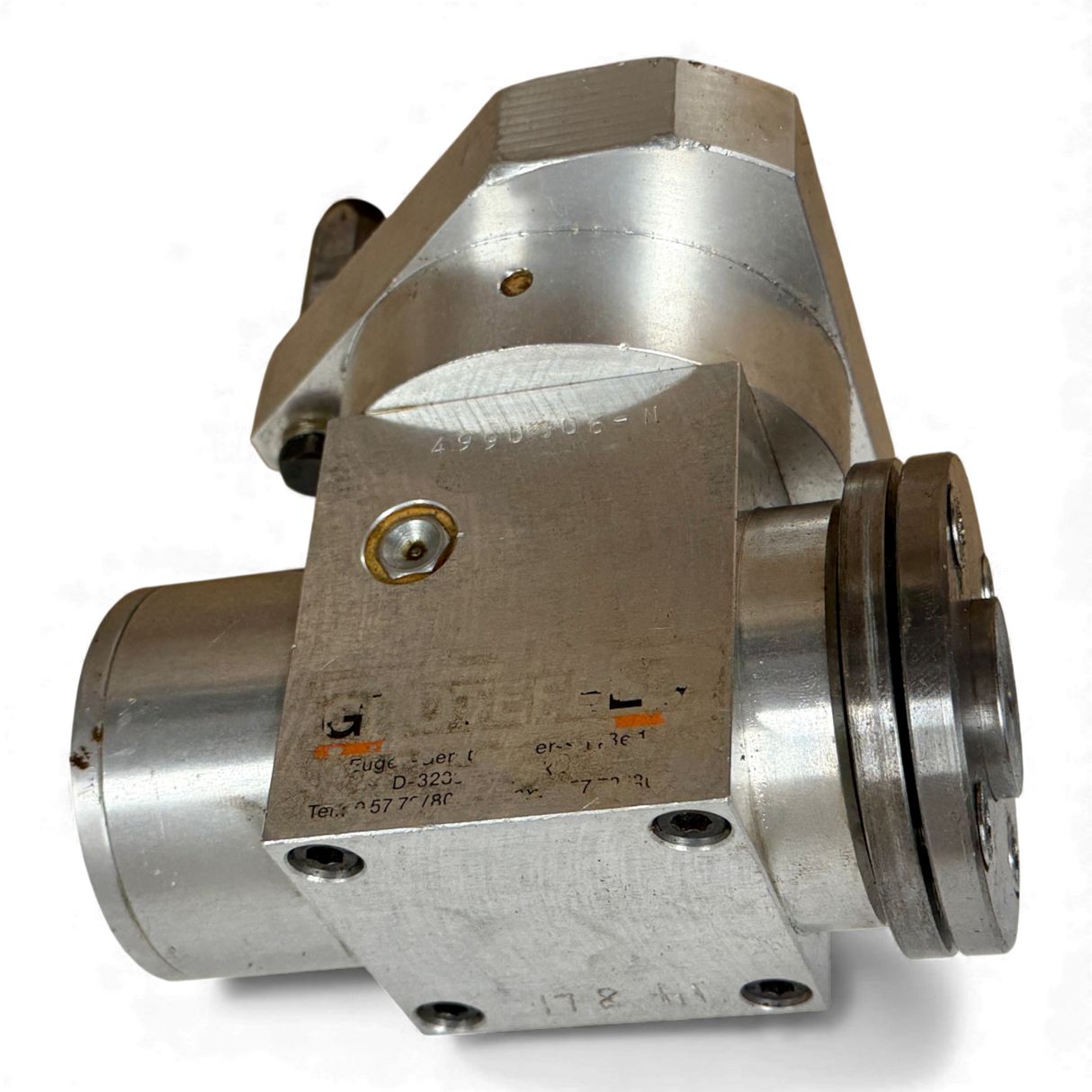

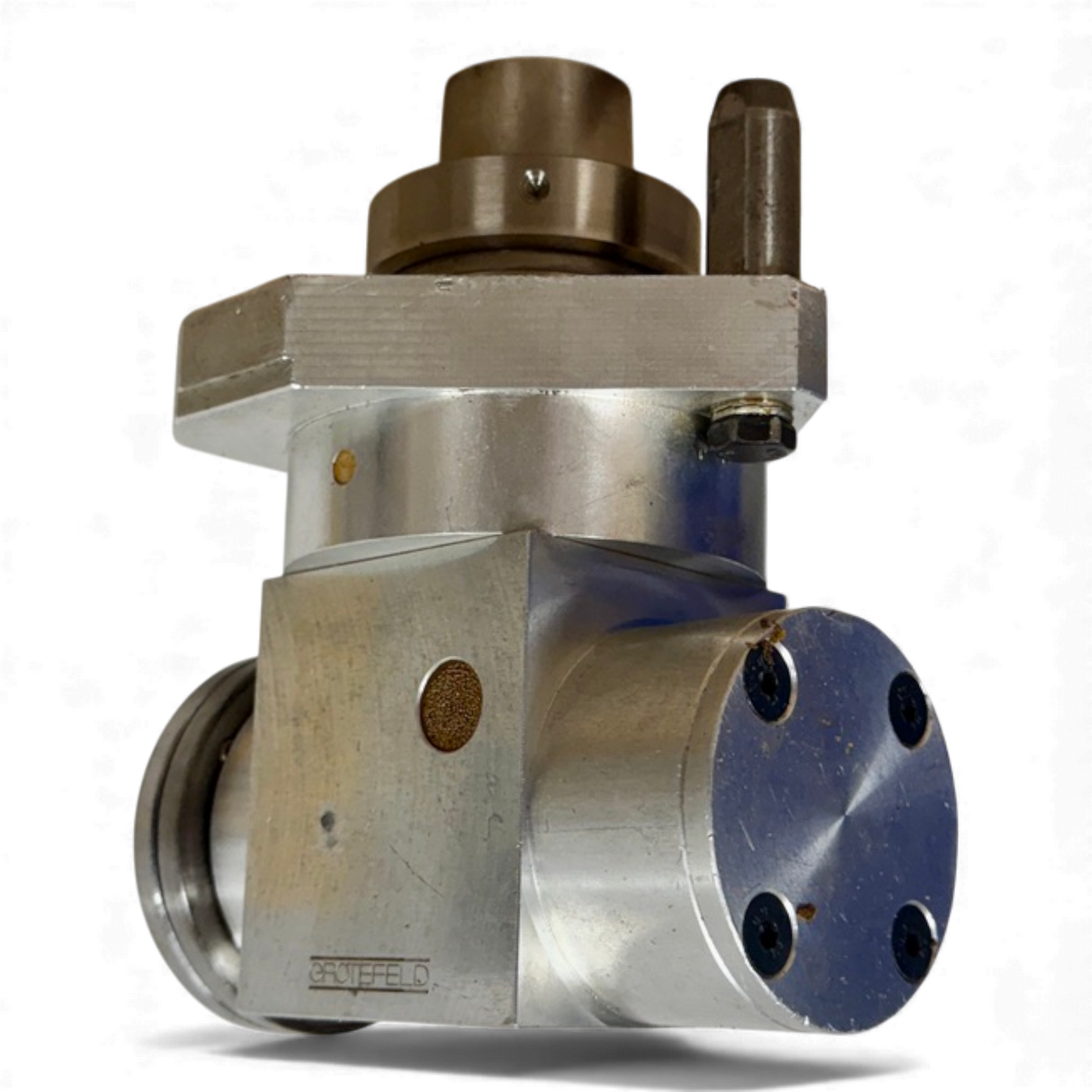

This adapter unit was manufactured by IMA Grotefeld and is intended for use on IMA CNC woodworking machines. It is a combined sawing and milling unit that allows both sawing cuts and milling and chamfering operations to be carried out within a single unit.

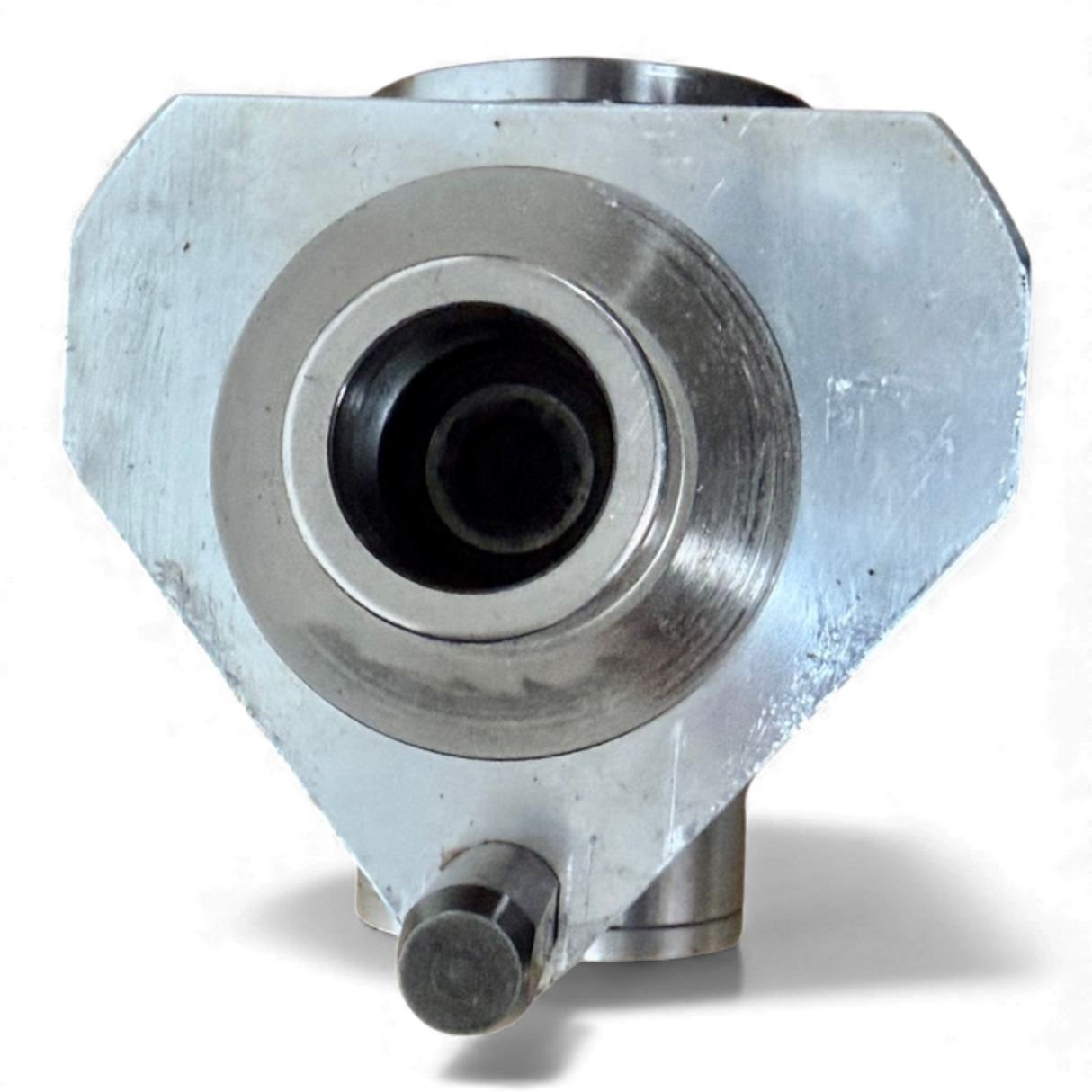

The locating pin is designed to fit IMA machines and allows direct use on corresponding IMA machining centers. The unit is designed for industrial applications and is particularly suitable for manufacturing processes where multiple machining steps are required without changing the unit.

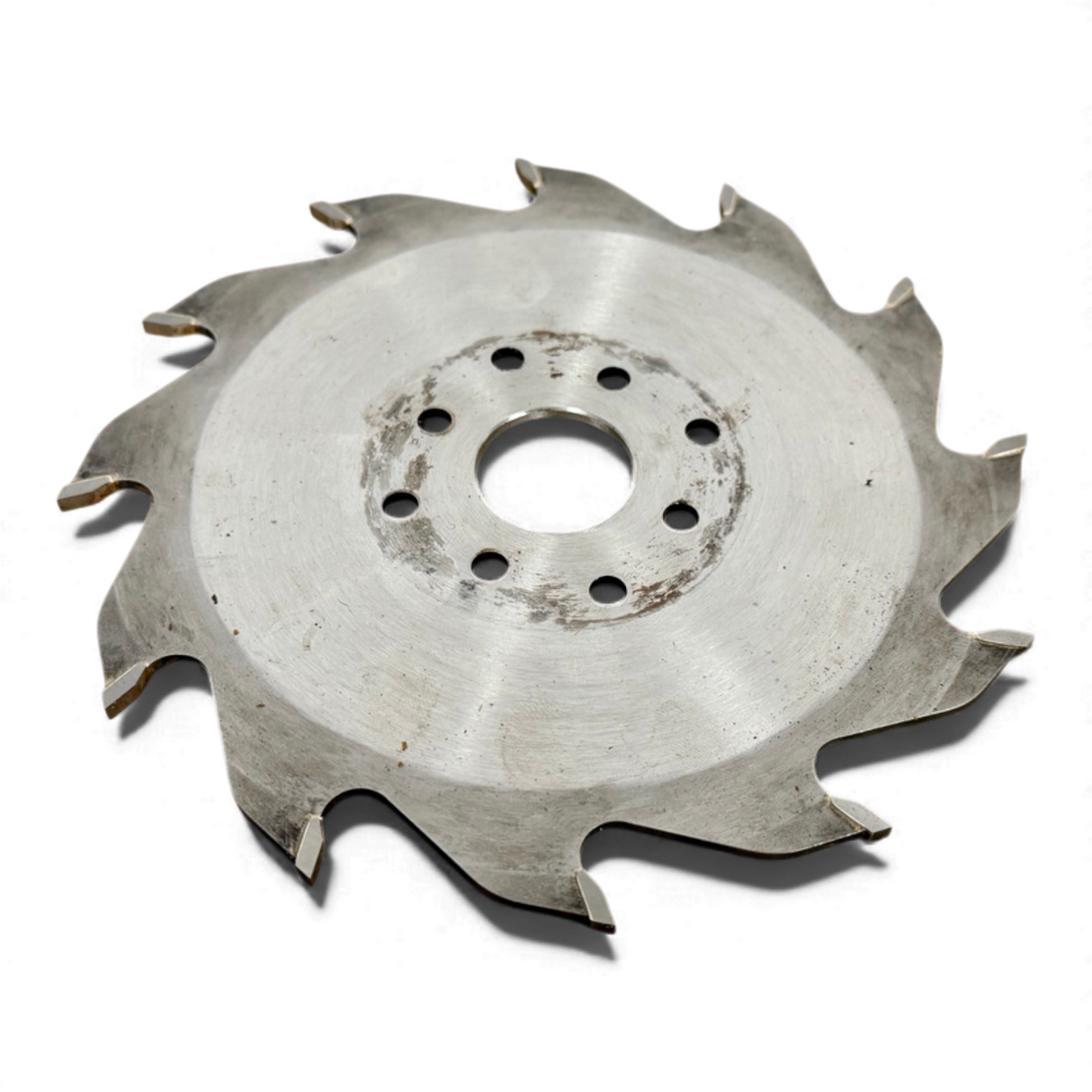

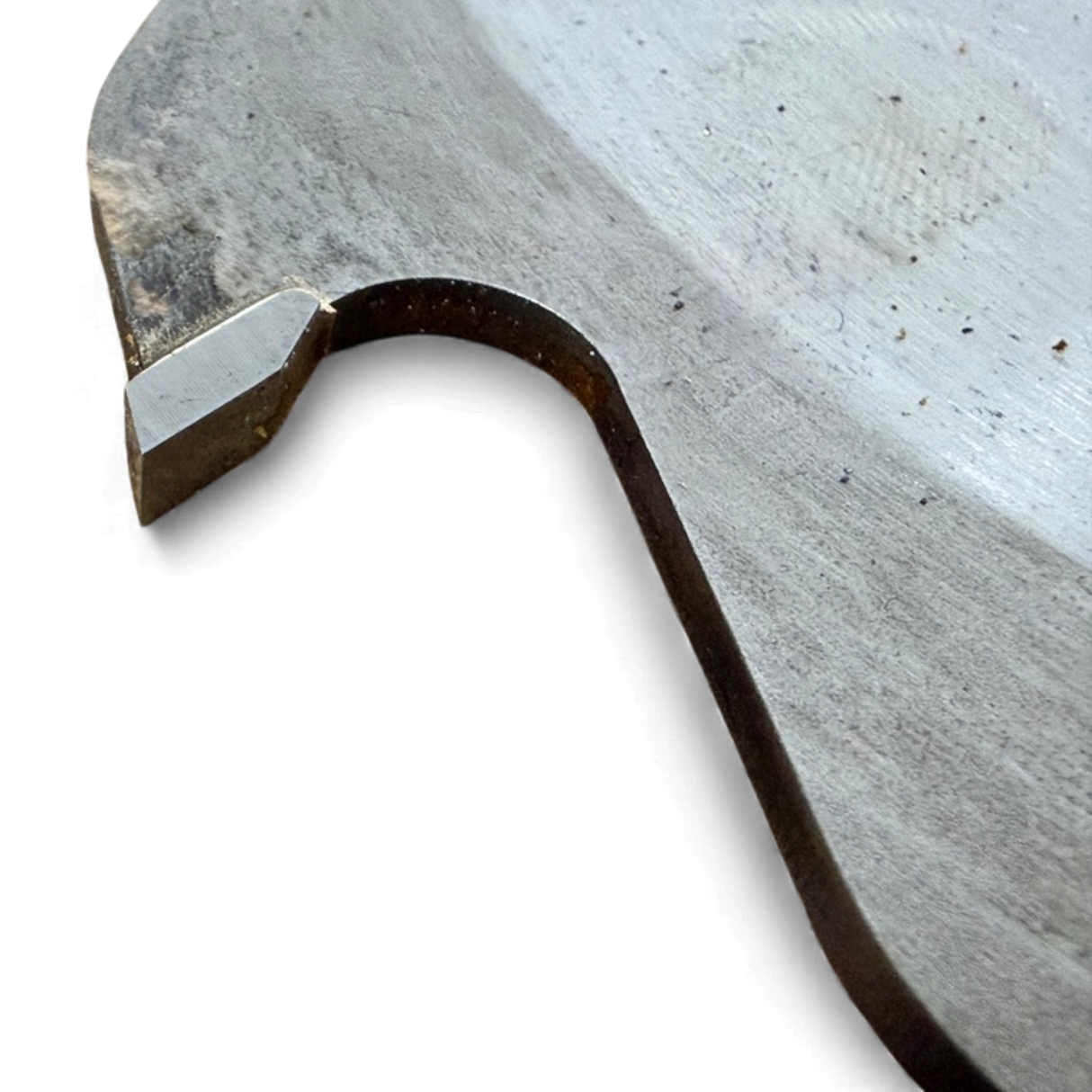

A mounted saw blade and an HW chamfering cutter are shown in the pictures. The compact design allows for use even in confined spaces in the machine. The robust construction by IMA Grotefeld is designed for continuous use in a production environment.
Technical Data
- Unit type Adapter unit for saw and cutter
- Manufacturer IMA Grotefeld
- Machine assignment IMA
- Locating pin suitable for IMA
- Tooling
- Integrated saw blade holder
- HW chamfering cutter mounted
- Milling tool identification

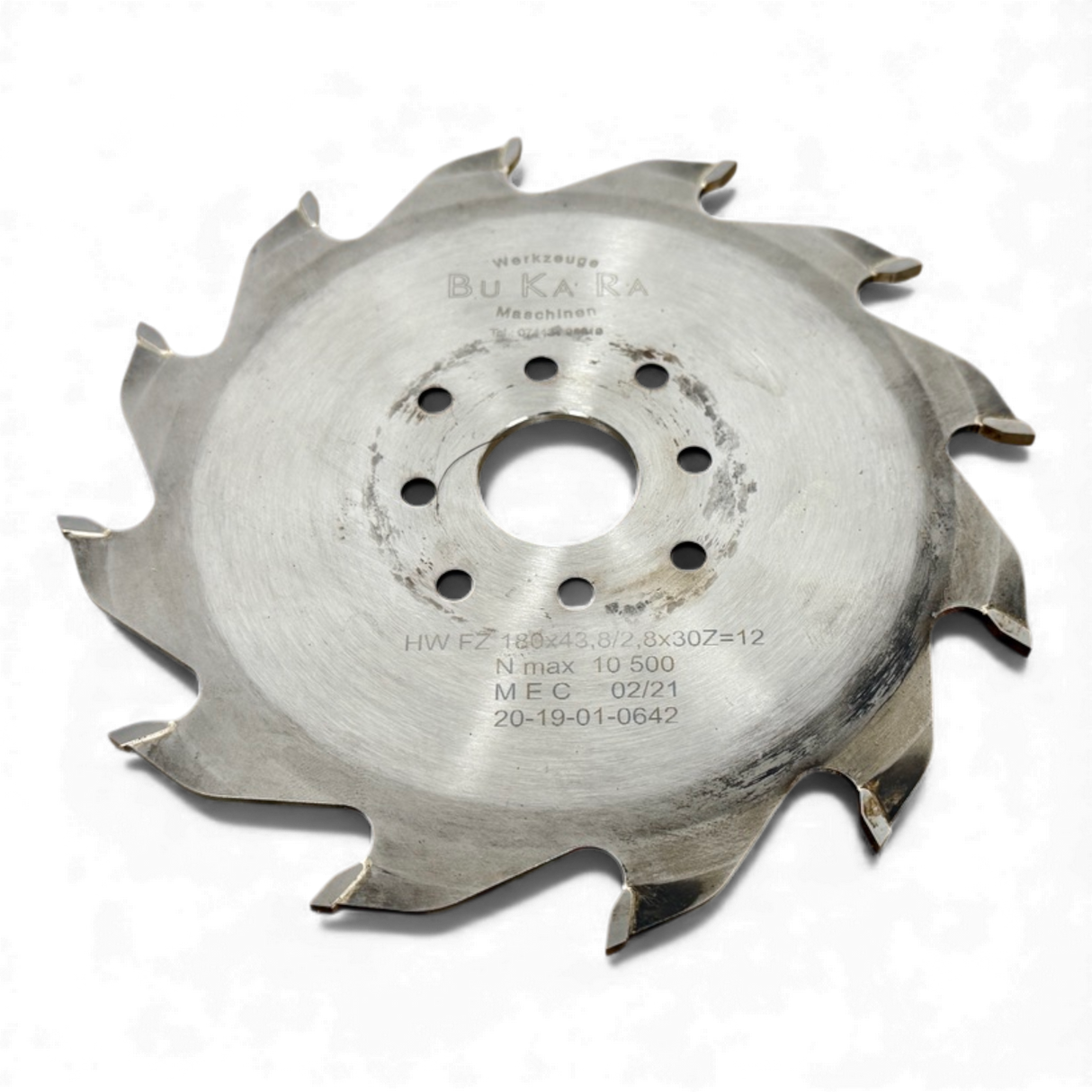

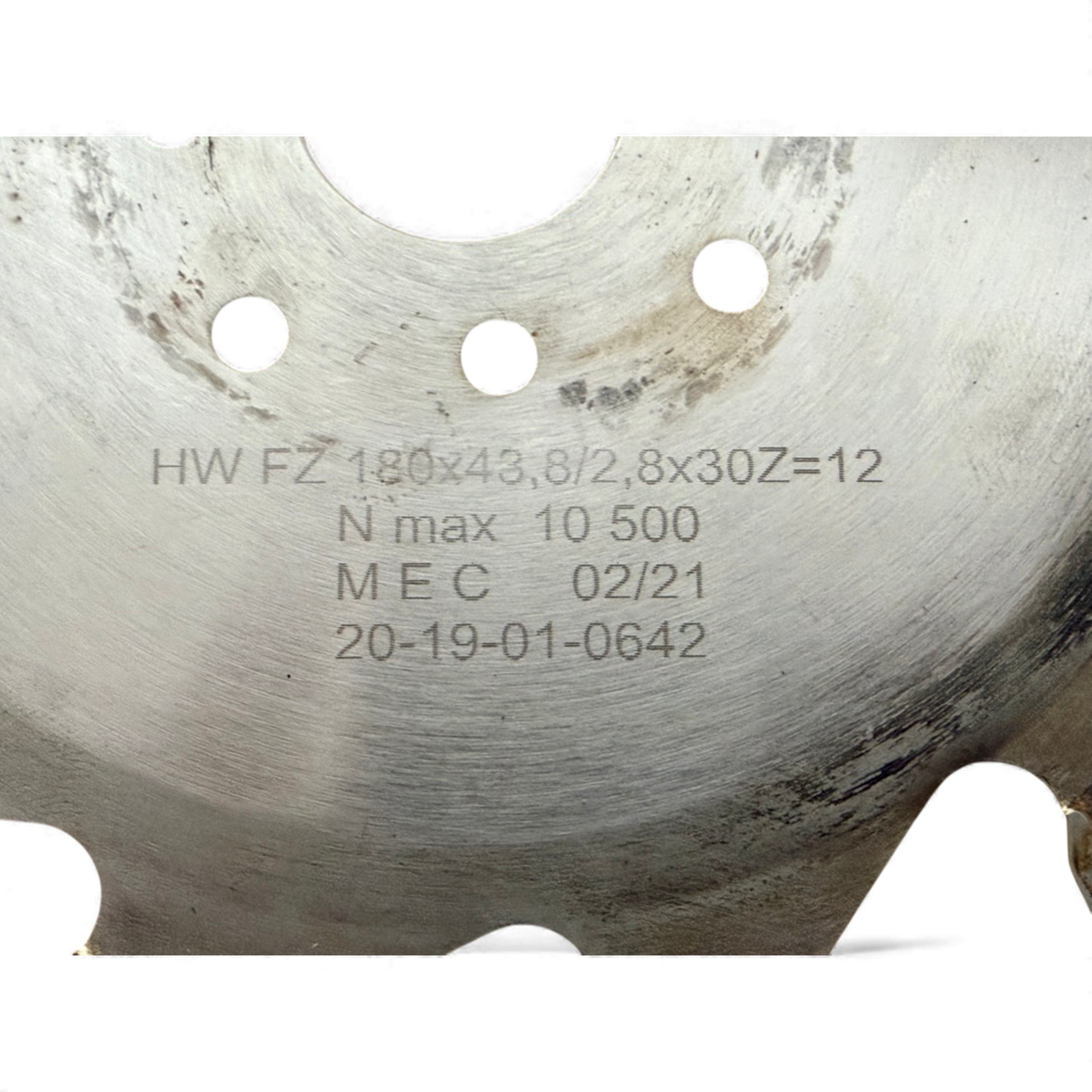

- HW FZ 180 x 43.8 2.8 x 30 Z 12
- Cutter diameter 180 mm
- Cutter cutting width 43.8 mm
- Cutter cutting edge width 2.8 mm
- Cutter bore 30 mm
- Number of teeth 12
- Maximum speed milling tool 10,500 min⁻¹
- Unit dimensions
- Height to upper edge HSK holder approx. 147 mm
- Unit height approx. 121 mm
- Unit width approx. 140 mm
- Saw blade holder
- Mounting height approx. 11 mm
Area of Application
For combined sawing and milling operations on IMA CNC woodworking centers. Suitable for processing wood and wood-based materials with changing processing steps within one work cycle.
Condition
Used part from a running system
Technically checked and functional
Signs of wear due to age and use
Tooling as shown in the pictures
Scope of Delivery
IMA Grotefeld Adapter Unit Saw Cutter
Mounted saw blade and HW chamfering cutter
Further accessories only if explicitly stated
