IMA flat scraper scraper device self-triggering 08.50 653922

IMA flat scraper scraper device self-triggering 08.50

Article number: 653922

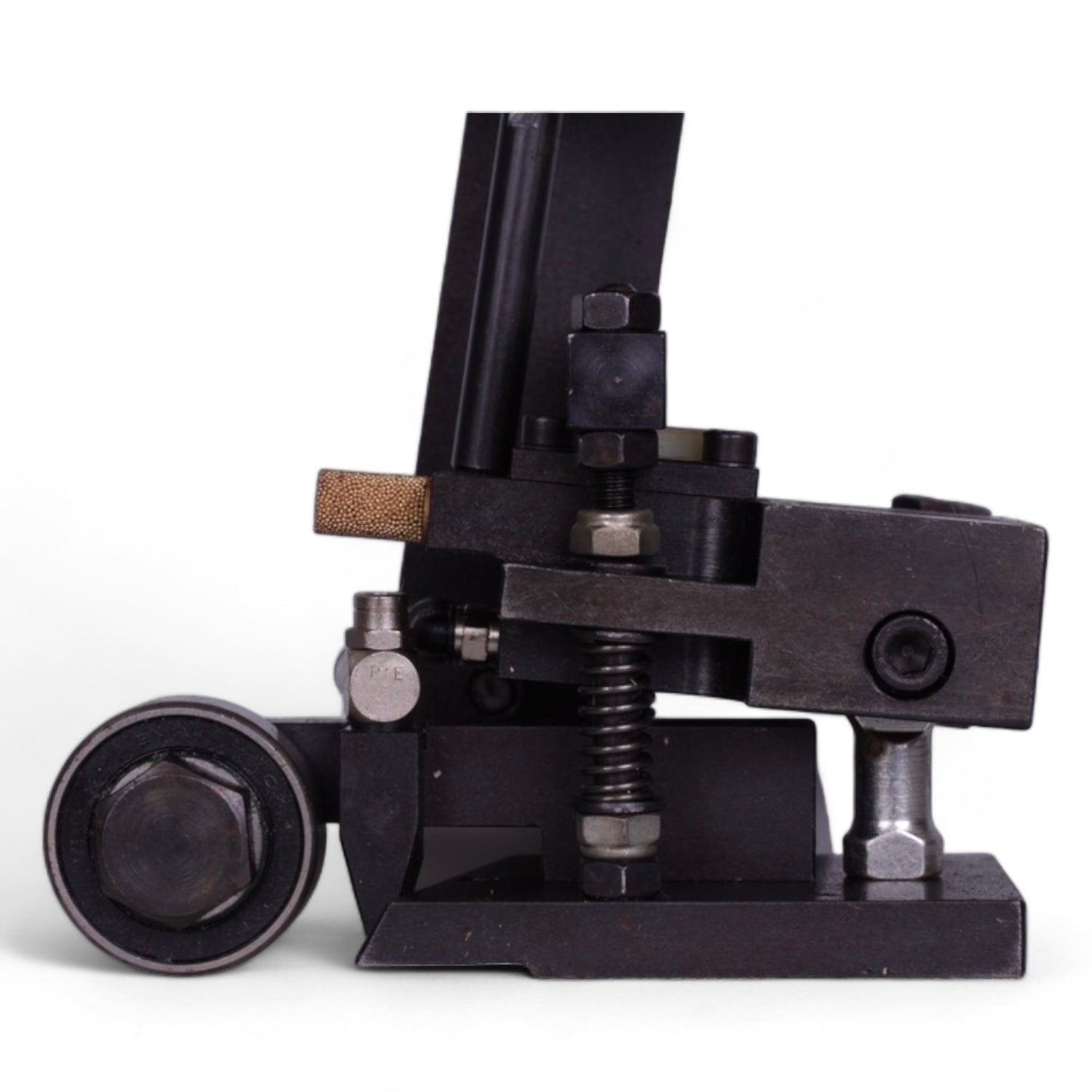

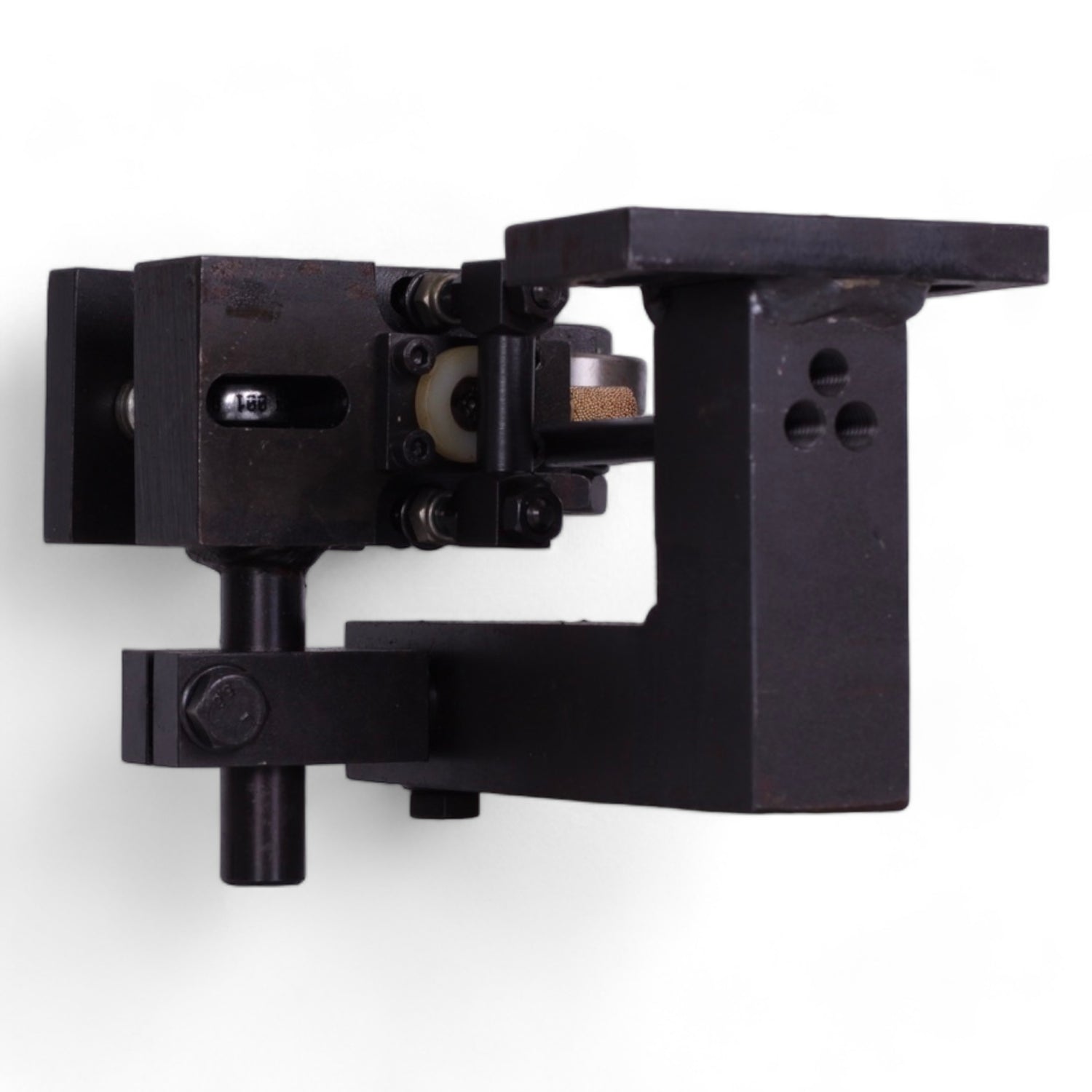

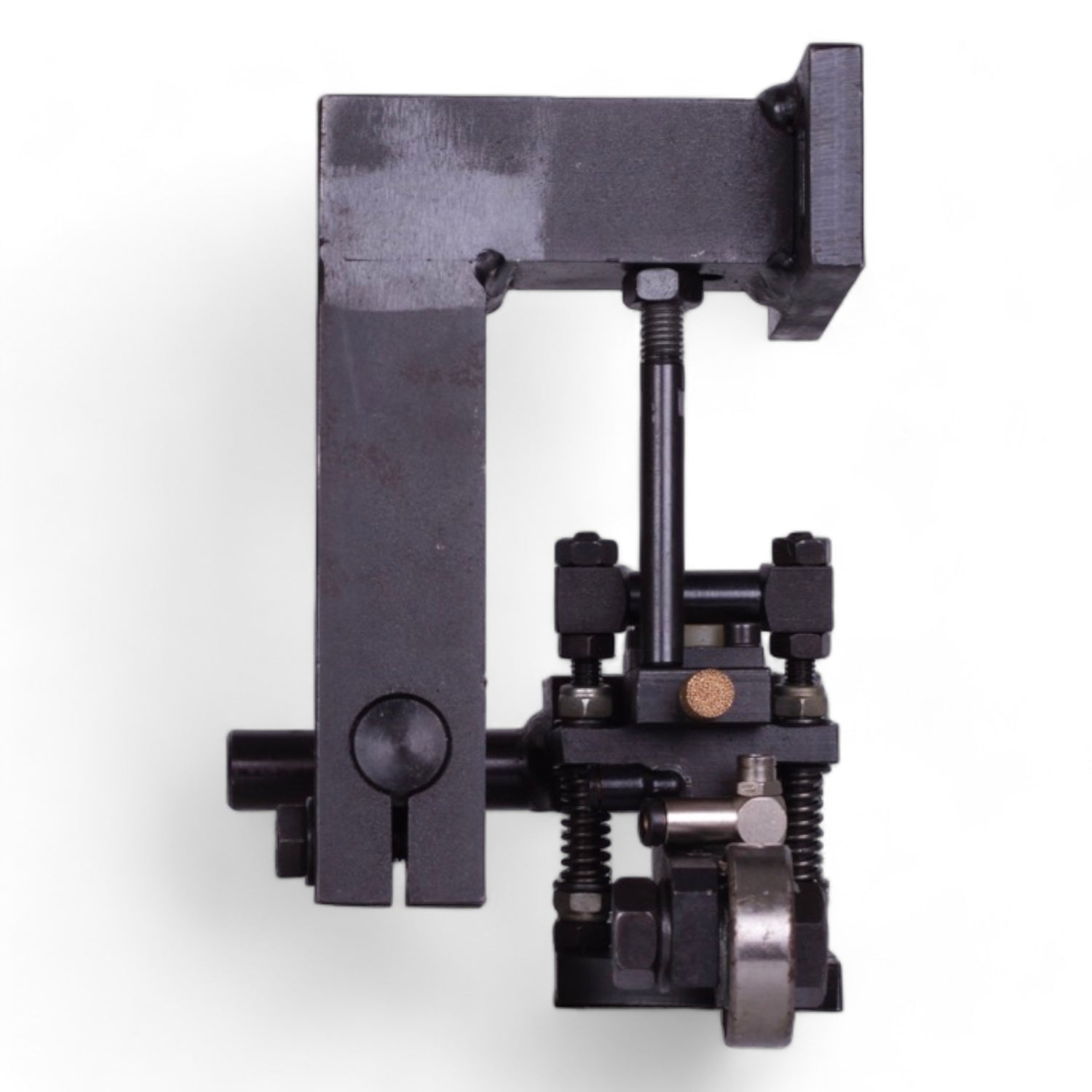

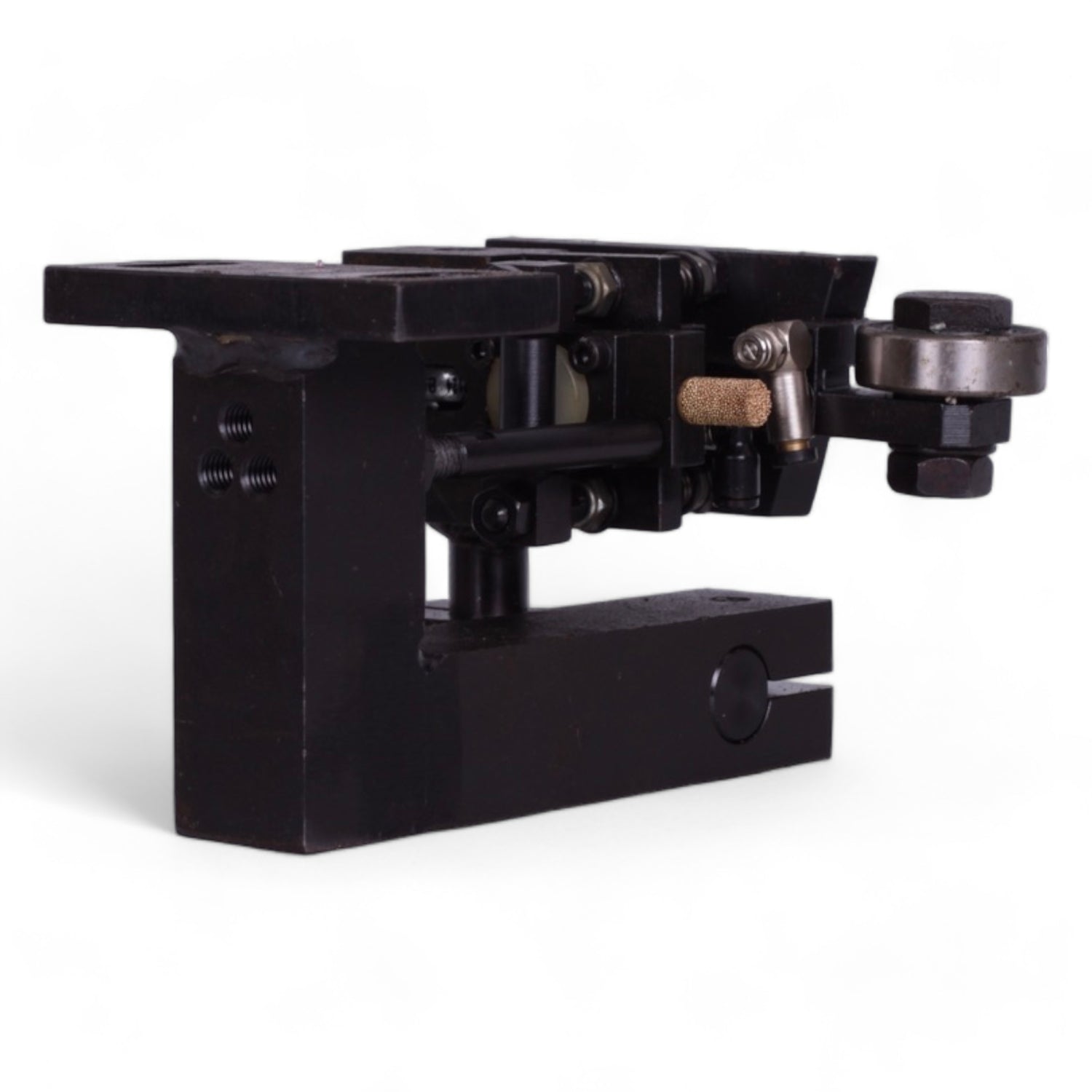

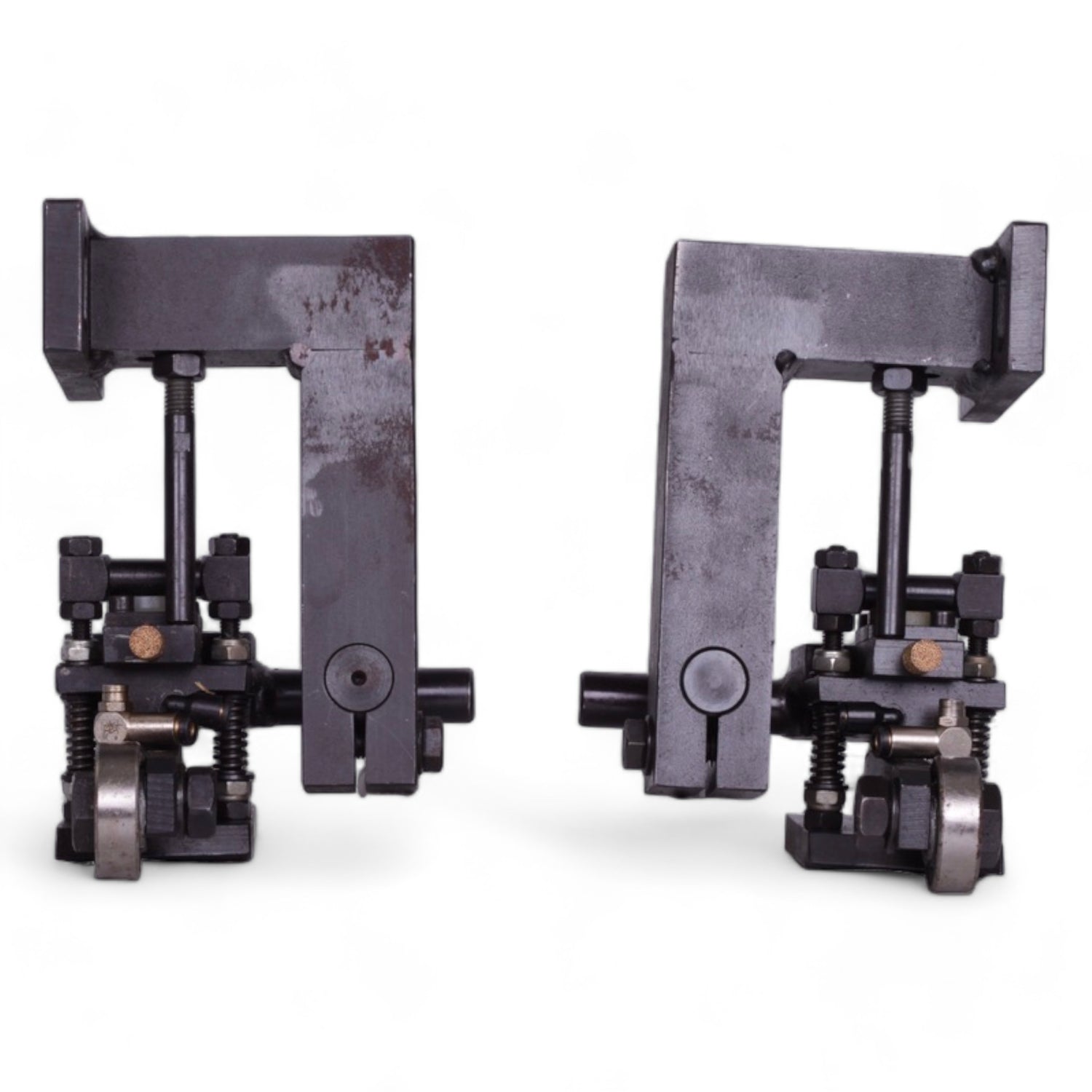

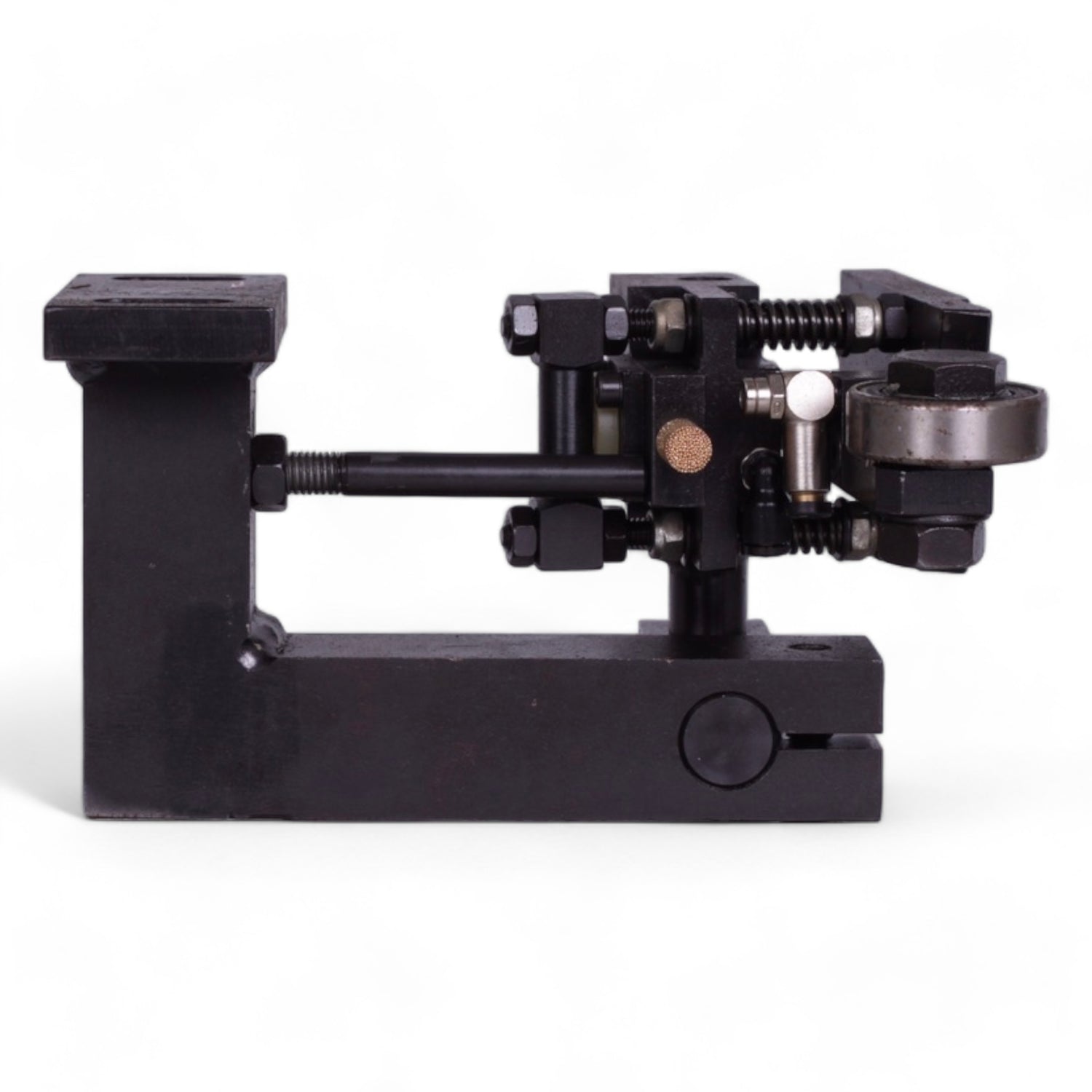

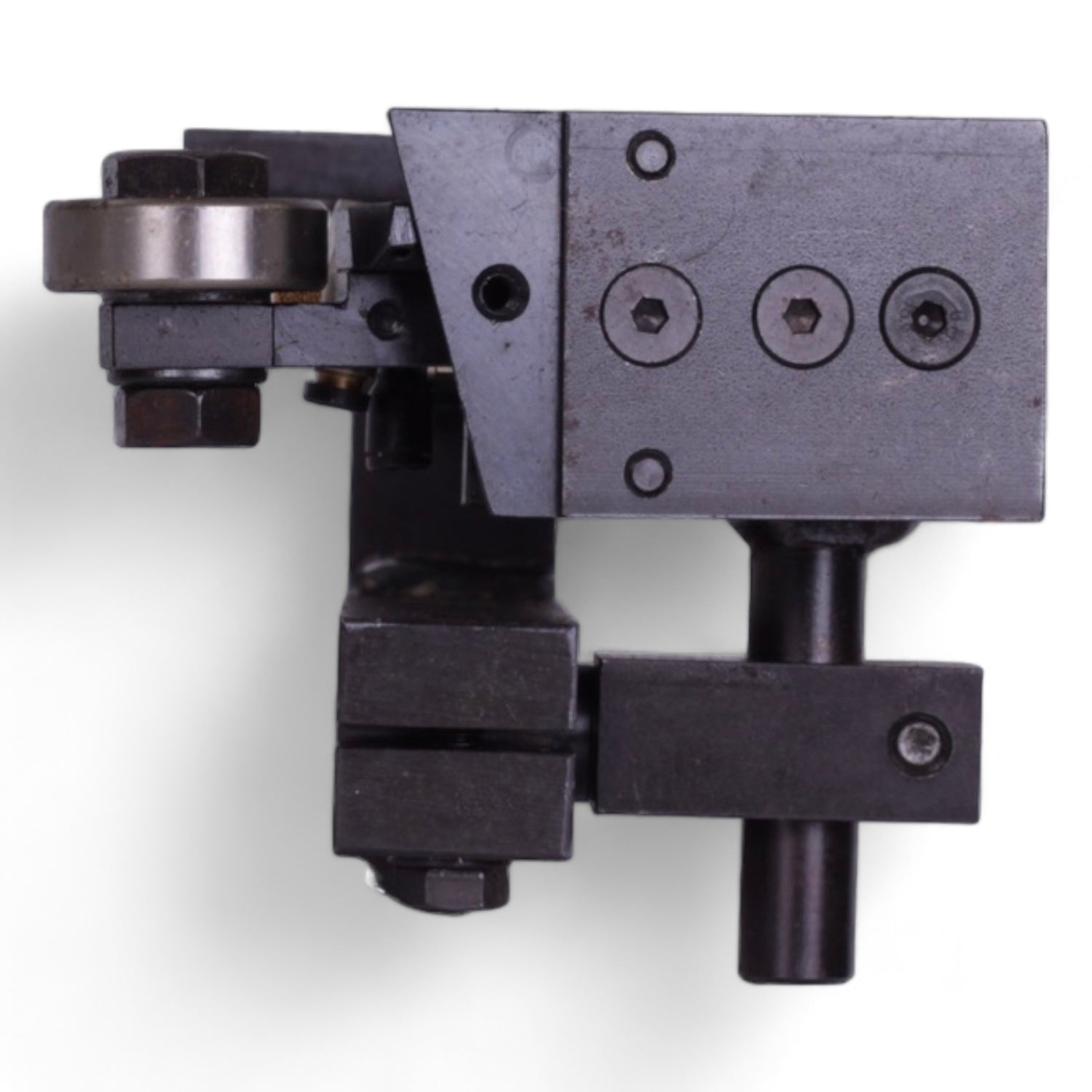

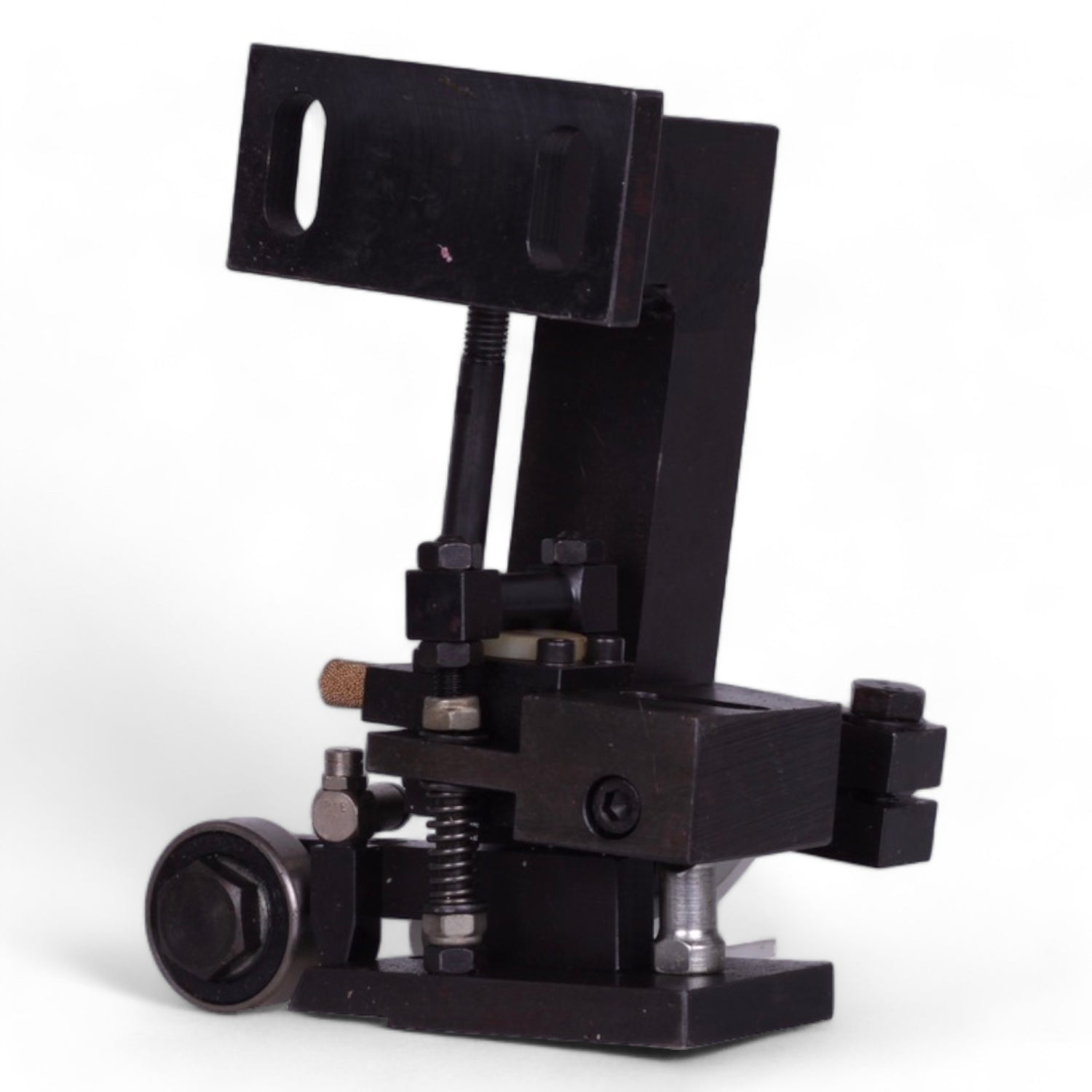

Scope of delivery: as per photos

Characteristics:

• Self-tapping scraper for removing glue residue
• Complete with discharge rollers (without scrapers)
• Consists of lower and upper scraper holder
• NEW from old stock
• May show slight signs of storage, without original packaging

Intended use: Flat scraper for removing hot melt adhesive residues from the edge area of ​​the top and bottom of the workpiece.

Description: The IMA flat scraper, self-probing scraper device 08.50 is a high-quality tool for reliably removing glue residues from the upper and lower workpiece surfaces. Equipped with a lower and upper scraper holder, this self-probing scraper device offers maximum efficiency and precision. Supplied complete with run-out rollers but without scrapers, it is ready for immediate use. Despite the new condition from old stock, slight storage marks may occur. Without original packaging, but still of high quality and functionality. Ideal for various applications in industry.

Additional description:

• Upper and lower edge units on the common unit stand for space-saving, compact design
• Height adjustment of the upper edge unit together with the top pressure adjustment
• Upper and lower edge unit self-scanning for adaptation to workpiece tolerances
• With height sensing and manual horizontal positioning for the pulling units
• Electro-pneumatic vertical release top and bottom
• With air nozzles above and below

Technical data:

• Installation height: 202 mm
• Min. workpiece projection: 30 mm + edge thickness
