IMA | SKU: 300-90001

IMA Drill Aggregate, 5 Spindles, 9000 RPM, Clockwise

Name: IMA Drill Aggregate, 5 Spindles, 9000 RPM, Clockwise
Brand: IMA
SKU: 300-90001
Price: 1450.00 EUR
Availability: InStock

€1.450,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Unterlagen und Einbauhinweise

Bohrköpfe werden über Spindelzahl, Raster und Anbau bestimmt. Das 32-mm-Raster beschreibt den Abstand der Bohrspindeln, nicht den Bohrerdurchmesser.

Prüfen Sie neben der Spindelzahl auch die Anbaulage und die Drehrichtung der Einzelspindeln.

Bohrgetriebe & Bohrköpfe – Spindelzahl, Raster und Anbau→

Used · 2 – GoodPart no. 300-90001

IMA Drill Aggregate, 5 Spindles, 9000 RPM, Clockwise

IMA

Manufacturer

IMA drill aggregate, 5 spindles, 9000 RPM, clockwise

Description

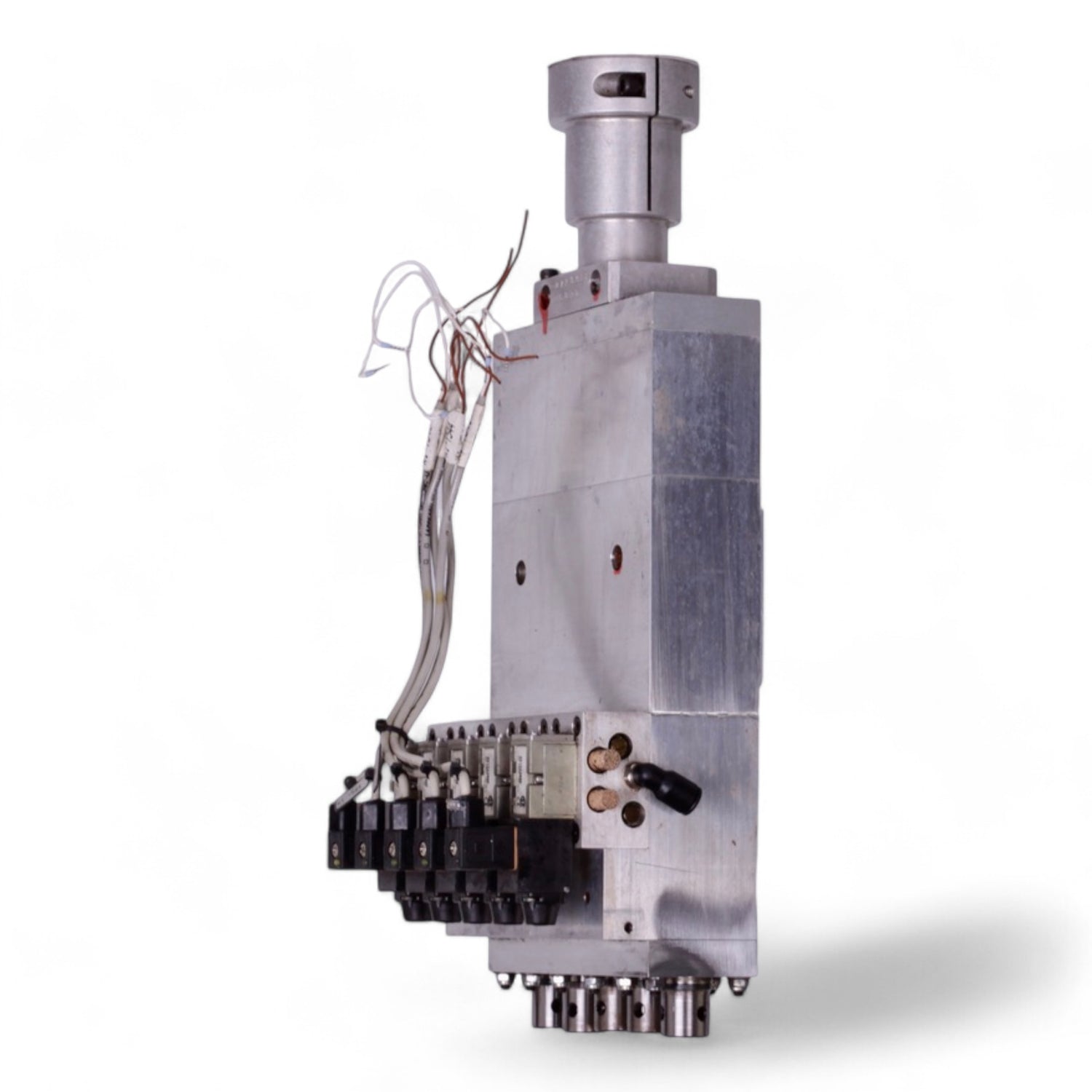

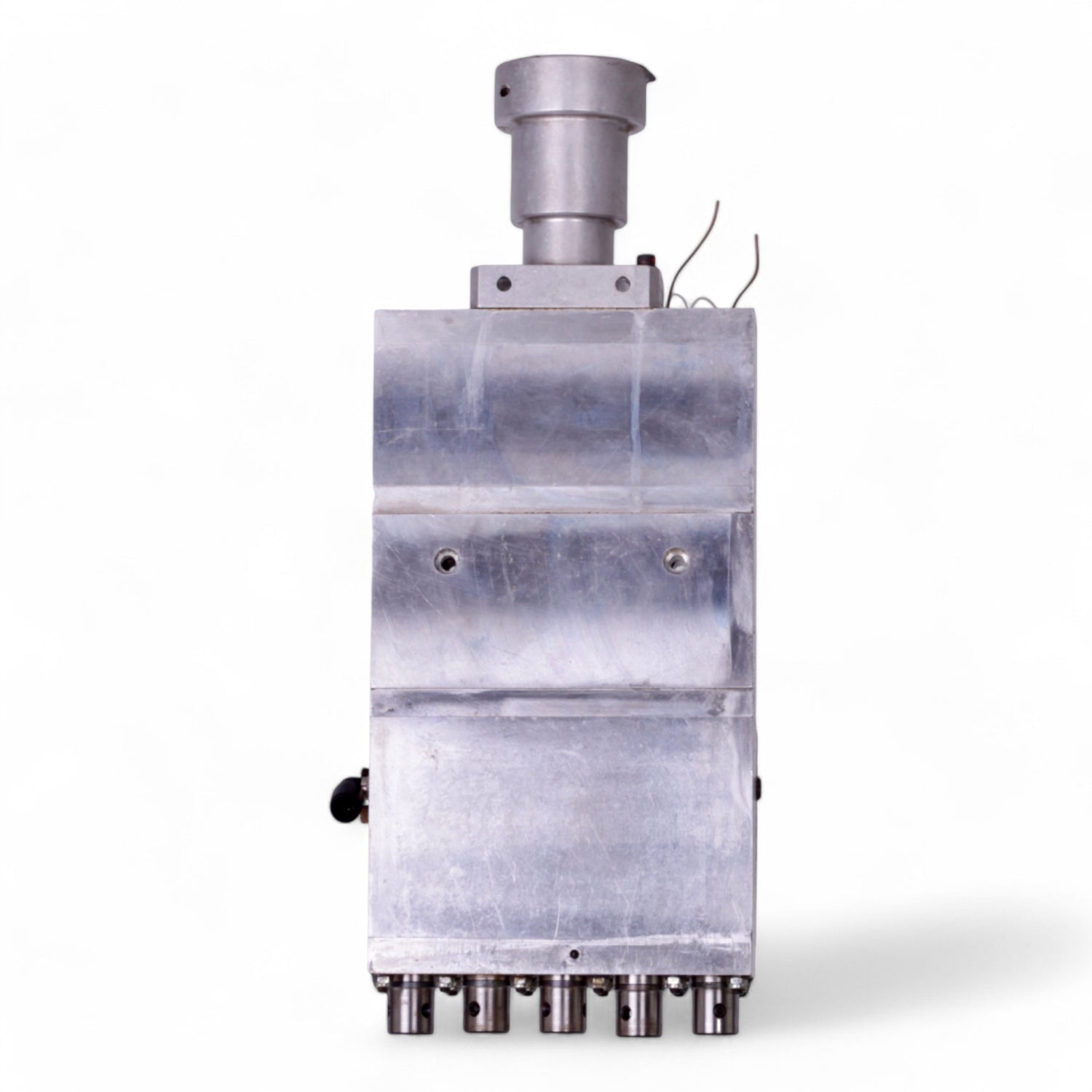

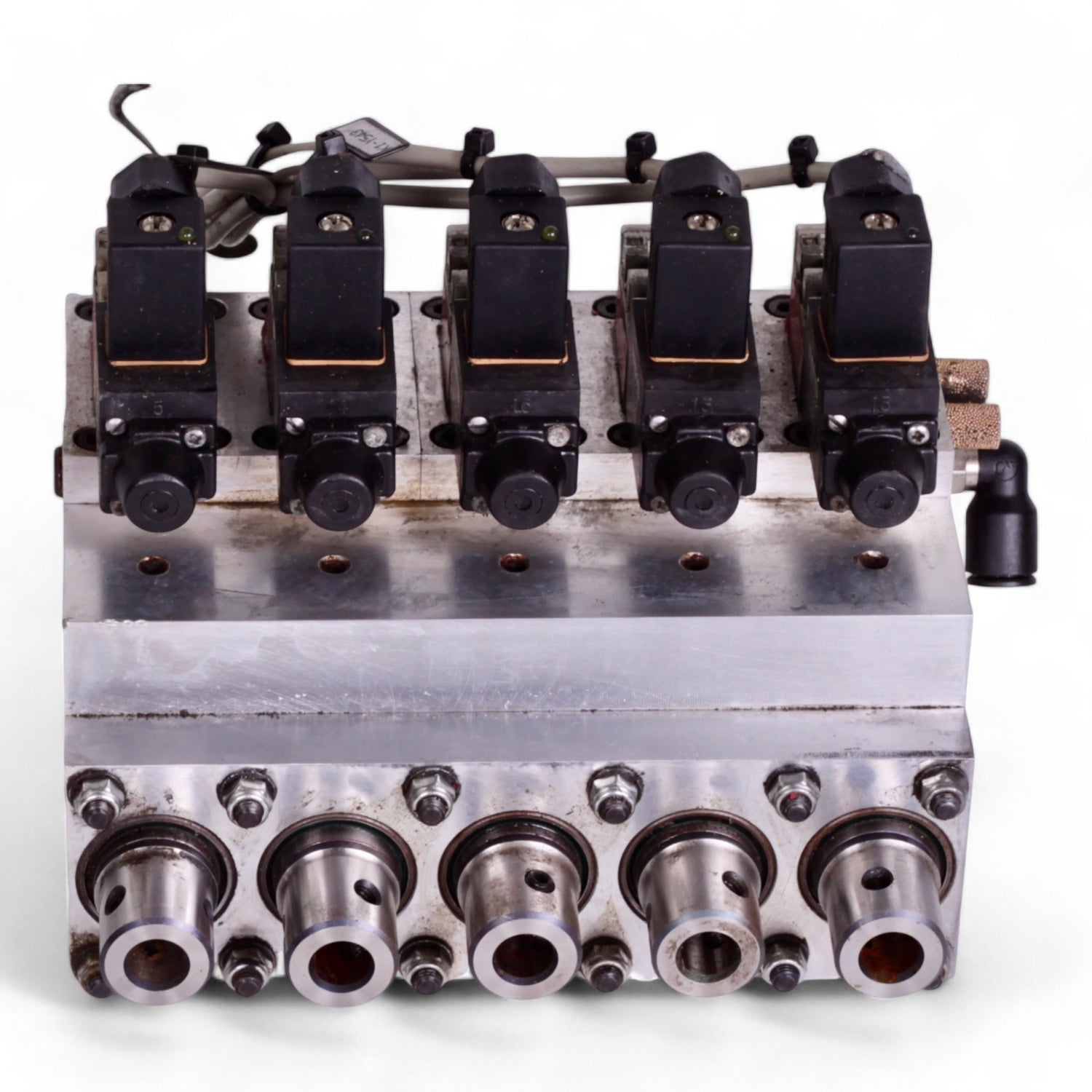

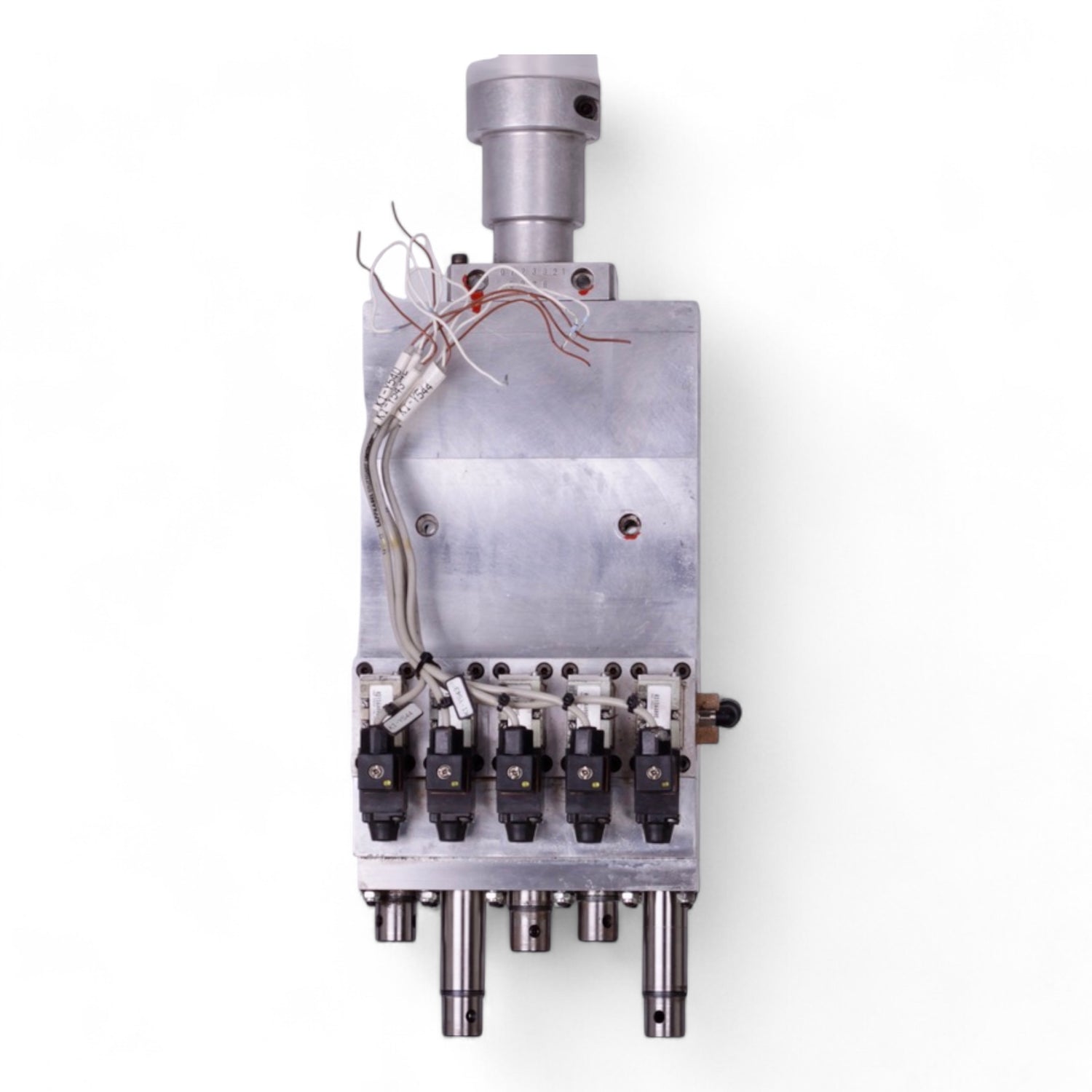

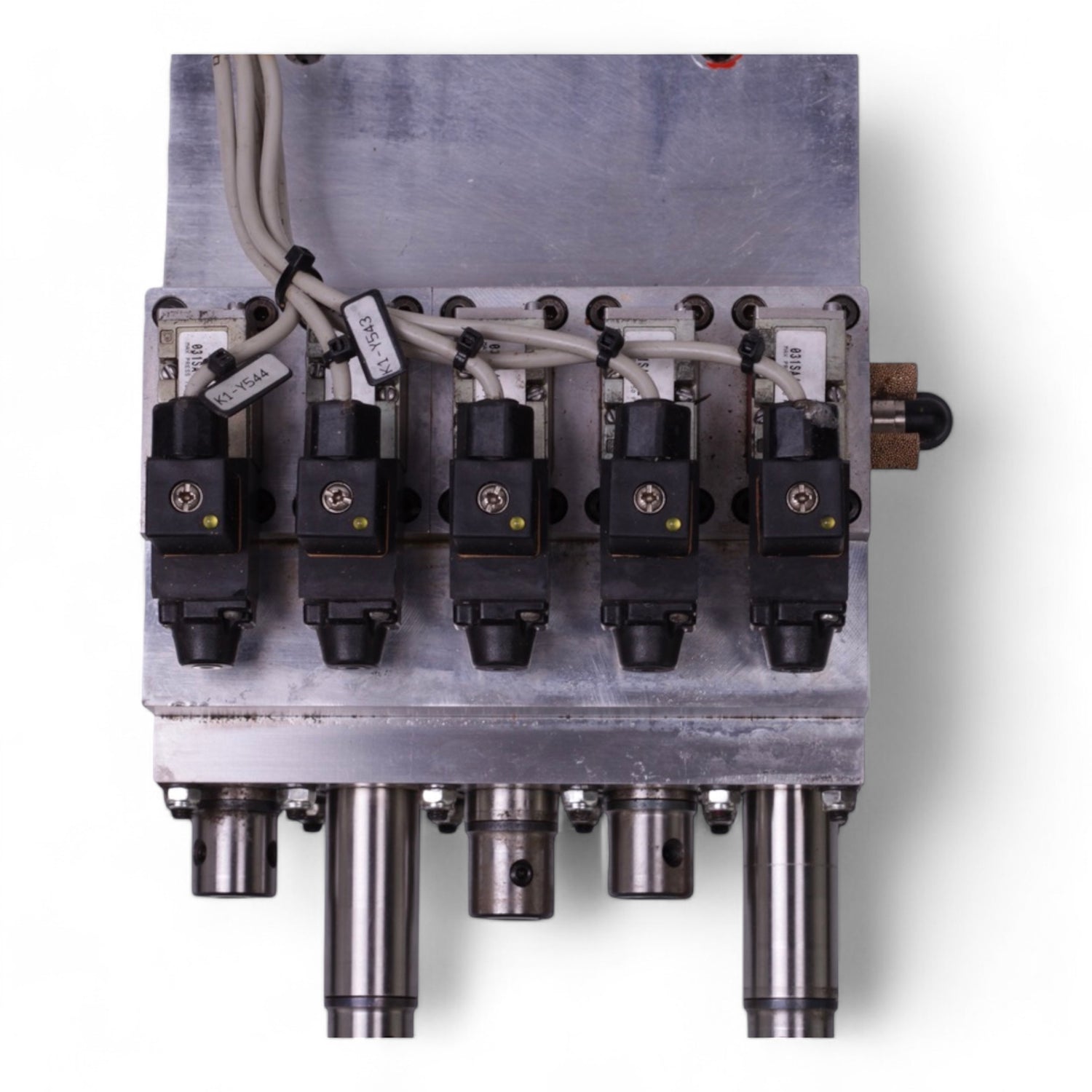

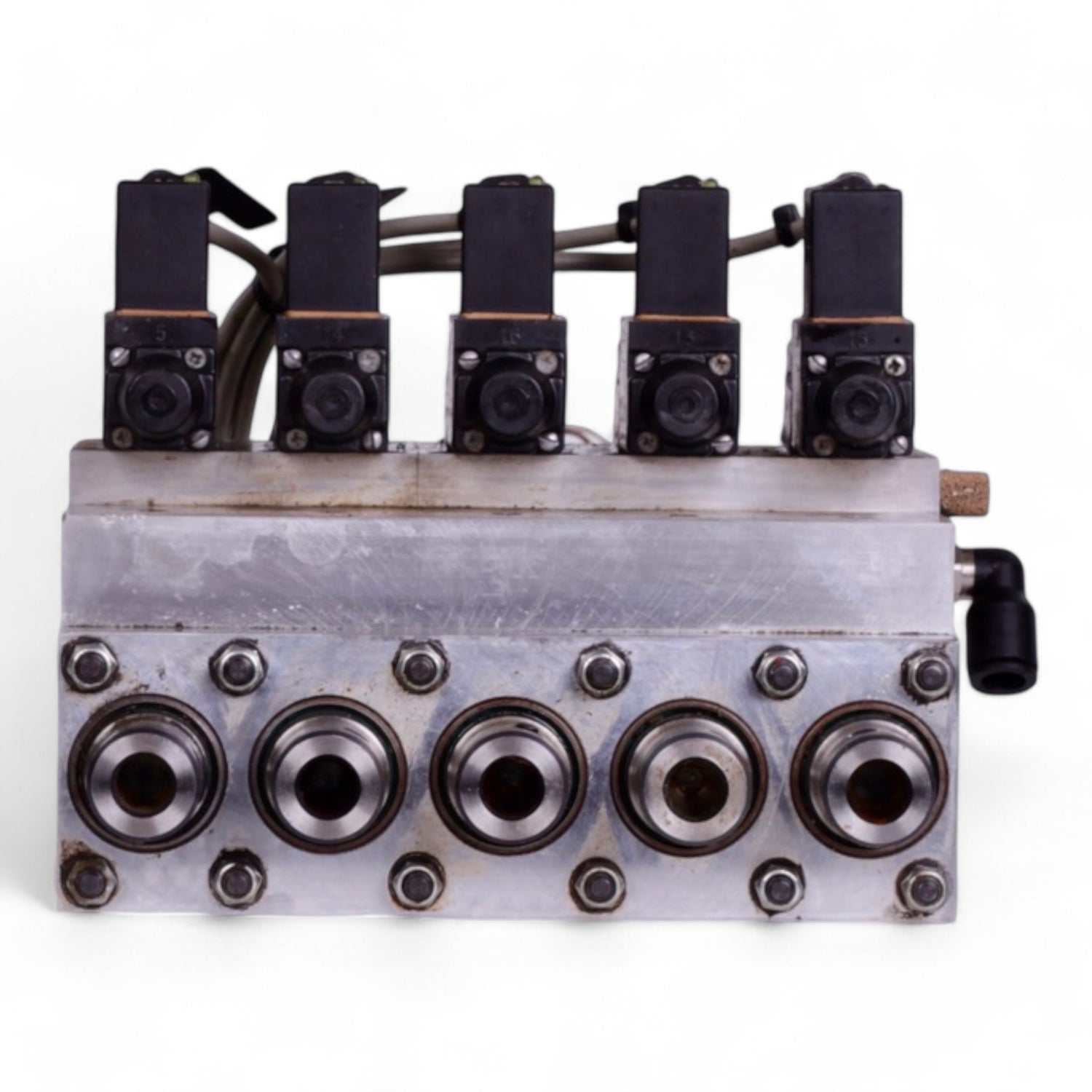

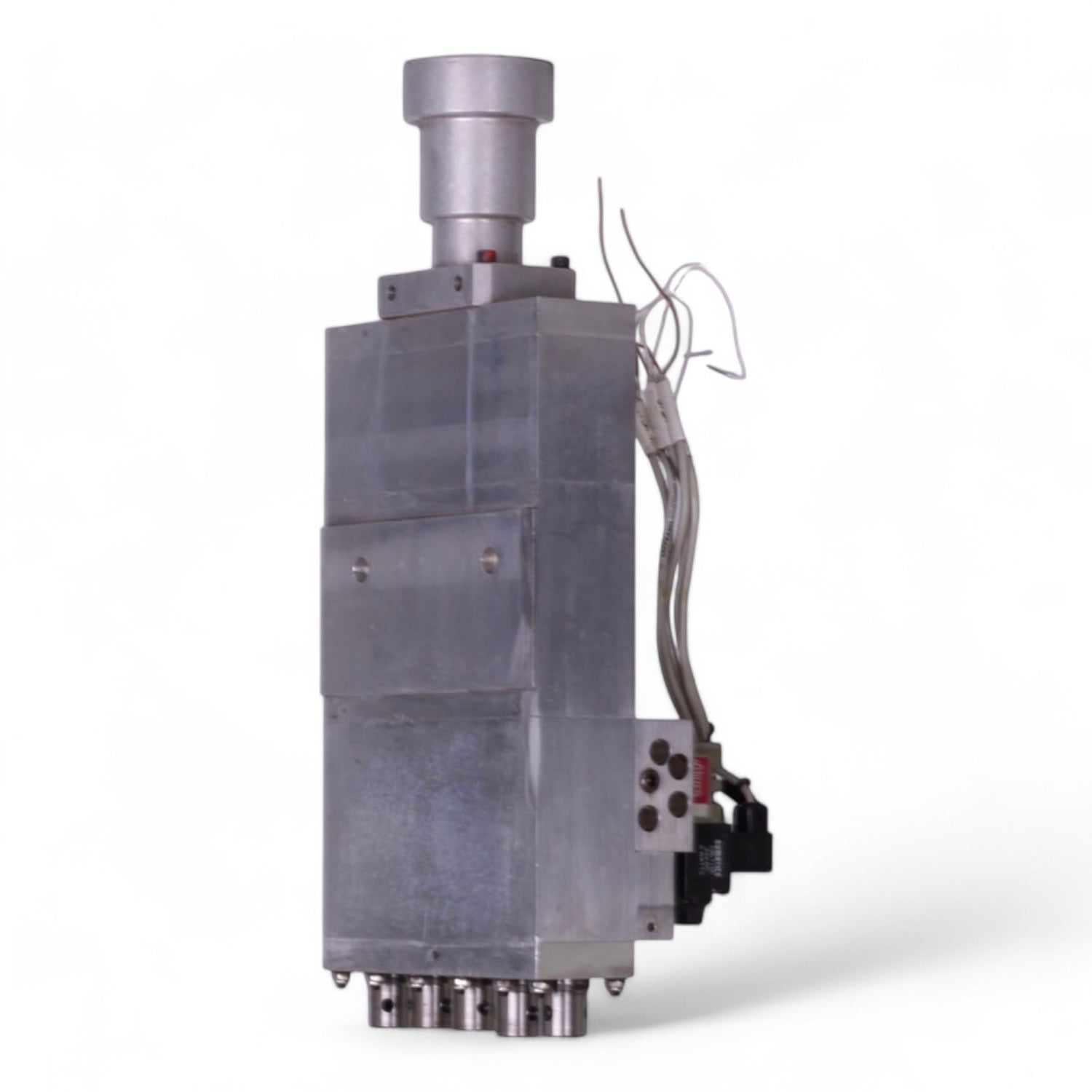

The IMA drill aggregate is a versatile drilling unit designed for precision applications in woodworking. With 5 spindles arranged in the X direction, the aggregate allows efficient and flexible machining of workpieces. It rotates clockwise and reaches a speed of 6000 to 9000 RPM, providing ideal conditions for demanding drilling work. The drill heads are spaced 32 mm apart and accept a maximum drill length of 77 mm and a maximum drill diameter of 20 mm. The aggregate is pneumatically adjustable in the Z direction with a stroke of 300 mm, and the spindles can be controlled individually. One-time lubrication at the factory makes additional greasing unnecessary.

Product features

• Spindles: 5 spindles in X direction

• Spindle spacing: 32 mm

• Advance stroke: 45 mm

• Speed: 6000 - 9000 RPM, clockwise

• Drill chuck: 10 H7

• Drill length: max. 77 mm

• Drill diameter: max. 20 mm

• Drive direction: right (clockwise)

• Pneumatics in Z direction: 300 mm stroke

• Lubrication: one-time factory lubrication, no additional greasing required

Product benefits

• High flexibility thanks to individually controllable spindles

• Ideal for converting IMA or Benz drill blocks

• Rugged design for industrial use

• Optimally matched to IMA 310/410 series drill blocks with clockwise and counterclockwise rotation

Scope of delivery

• As shown in the photos and described
