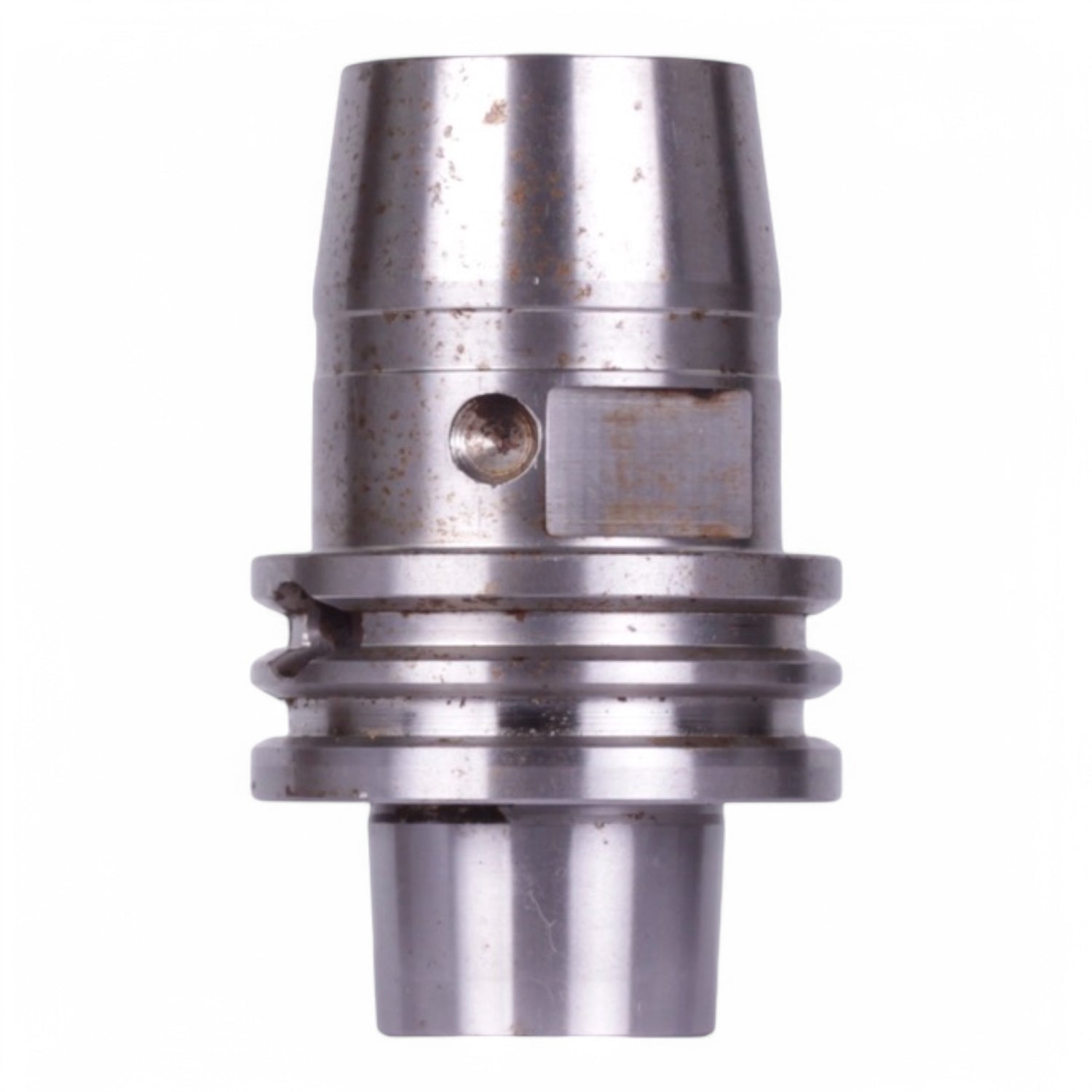

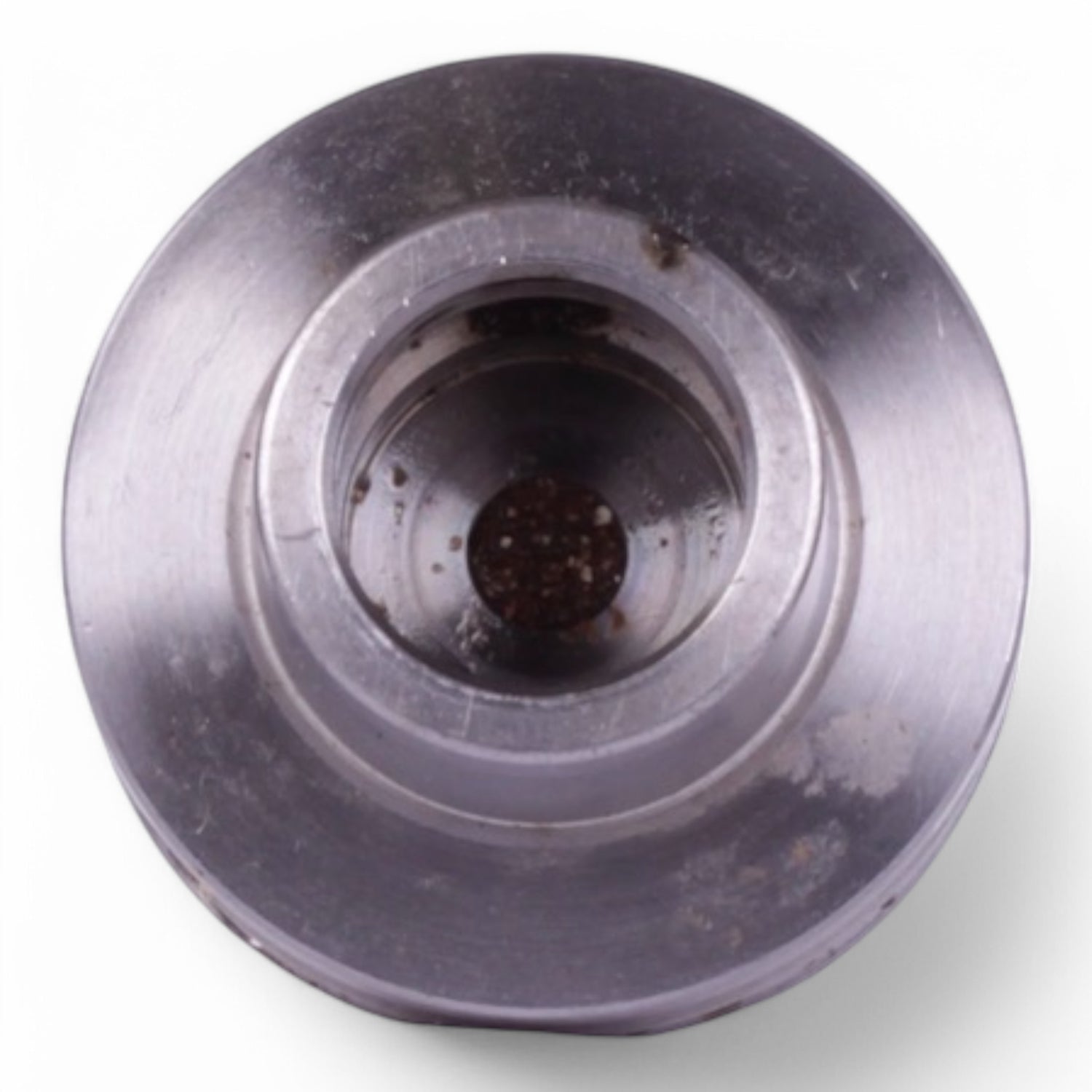

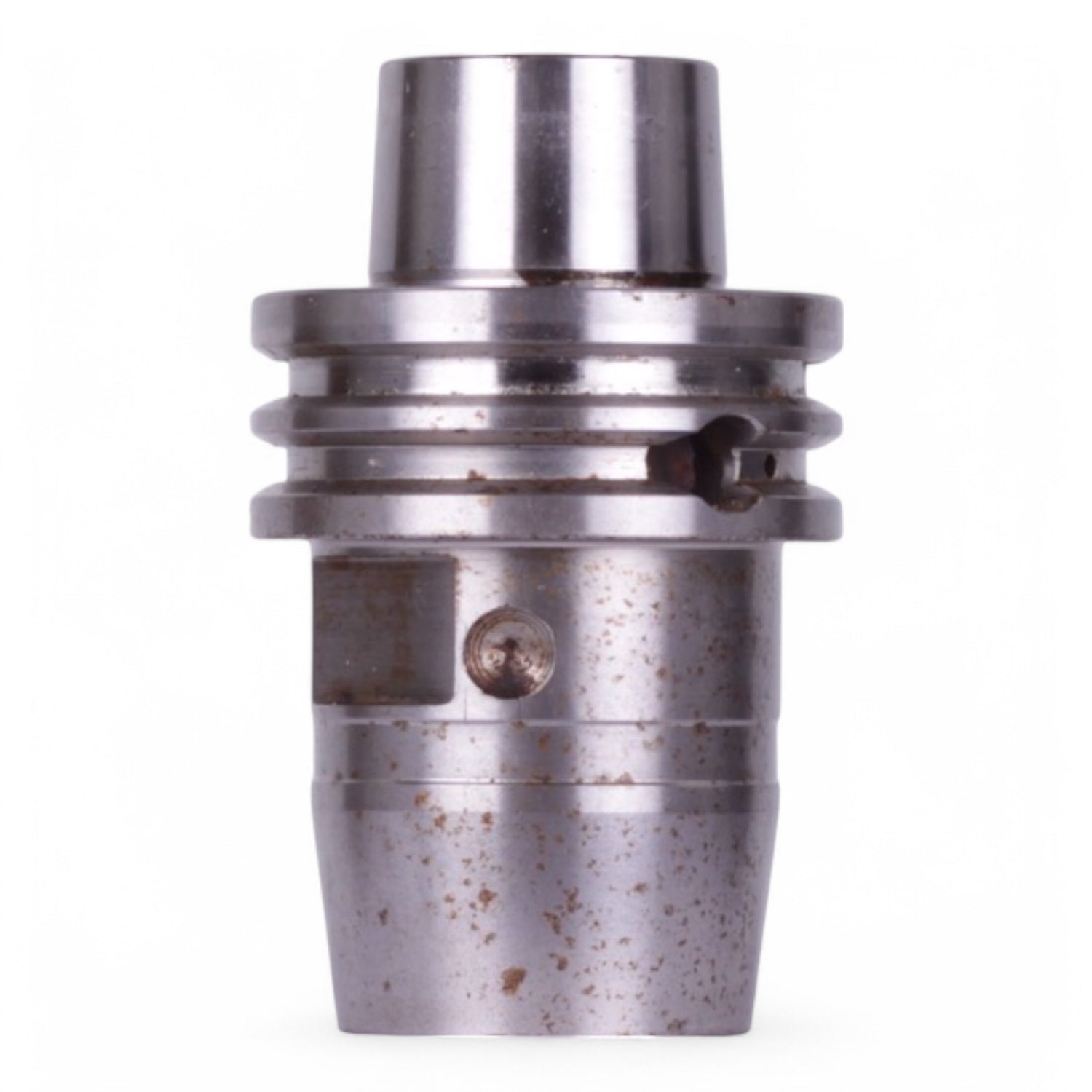

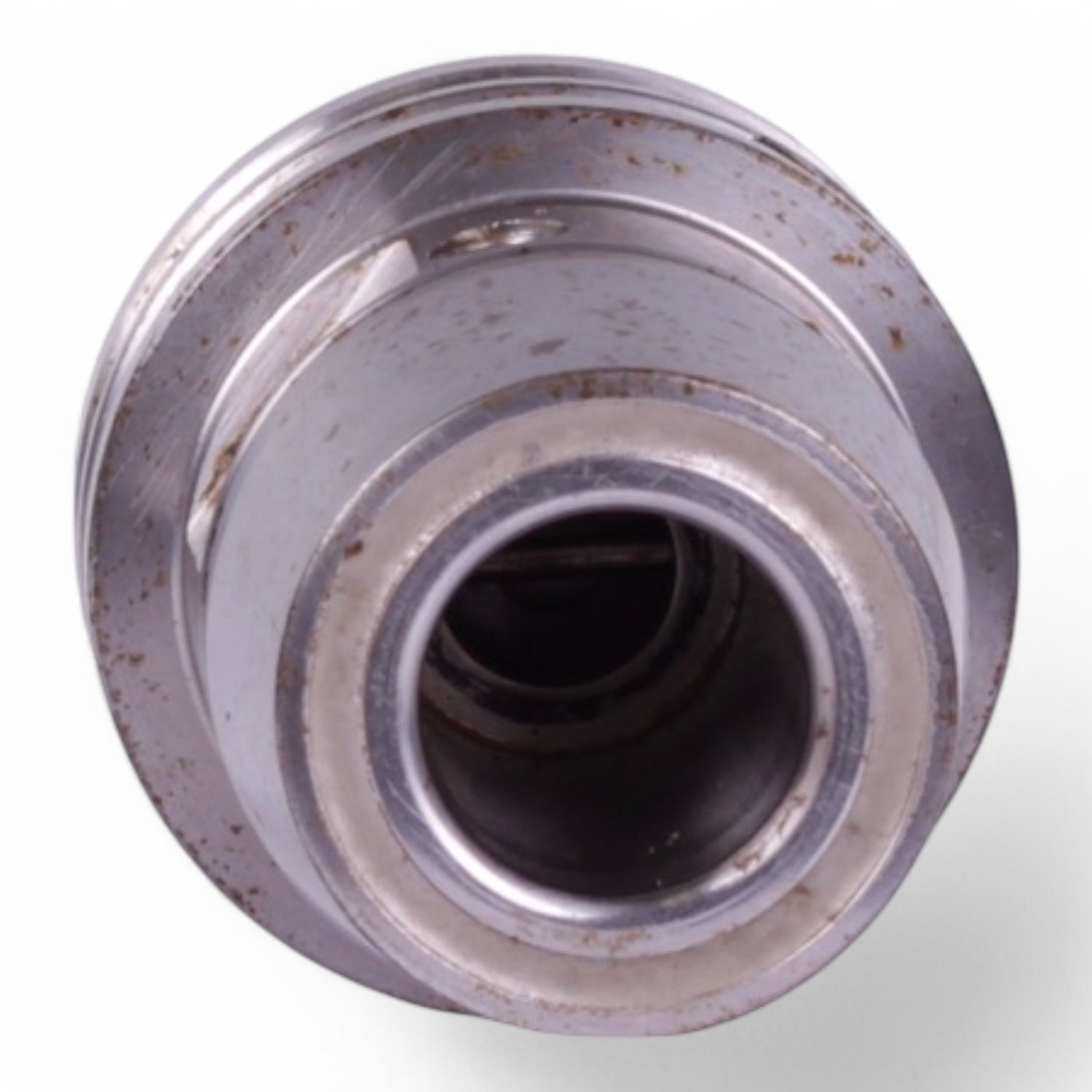

HSK 63 Type 38 B collet chuck for tool 25 mm shaft

HSK 63 Type 38 B collet chuck for tool 25 mm shaft

needed

Technical data

Finely balanced and suitable for speeds up to 24,000 rpm
Made from high quality steel
For clockwise and anti-clockwise rotation

Dimensions:

Type: HSK 63 38 B

A

Diameter (mm): 60
D1 (mm): 63
D2 (mm): 38

I (mm): 8 ,7 approx.

I 2 (mm): 17 approx.

Max. speed (r/min): 24000

may show signs of storage which does not affect the function

Please Please note that the dimensions differ from the standard F lining We do not recommend using different foods on a machine because the spindle and tool changer are damaged Due to their flatter design, these were mostly used in older machines, such as IMA Quadroflex or Homag etc.

Used tool holders and tools may show signs of wear, discoloration, engravings or slight signs of corrosion, which do not affect their function. All tools and tool holders are treated with anti-corrosive agents for protection, which can be seen in some cases in the photos in a brownish color. If they are damaged or only partially usable, this is explicitly mentioned. Tools are used and often not resharpened. The state of wear and resharpening is the responsibility of the buyer. They are delivered in the condition as shown in the photos. We recommend removing the anti-corrosive agent before use.
