HSK 63 F collet chuck DIA end mill 30 x 9 mm

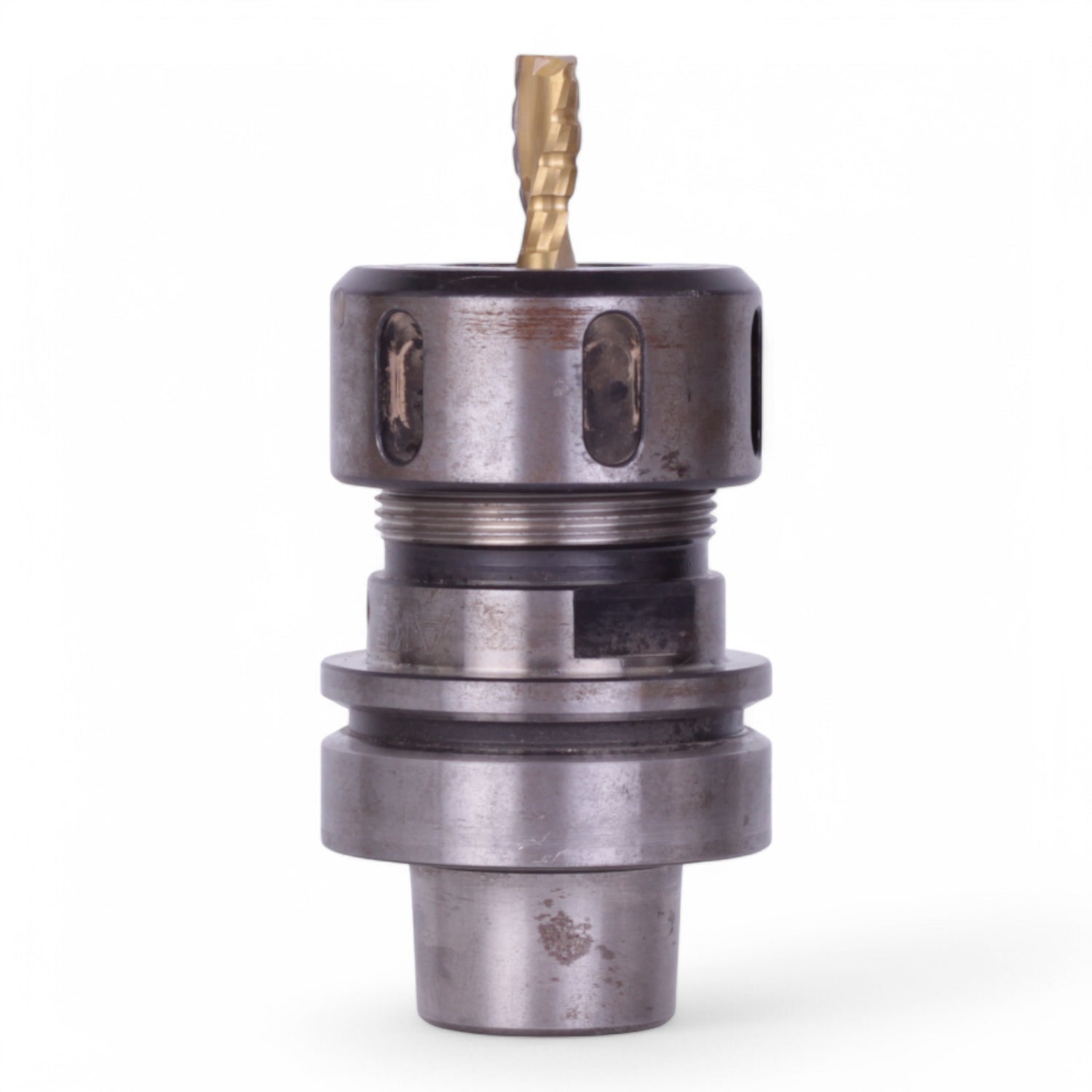

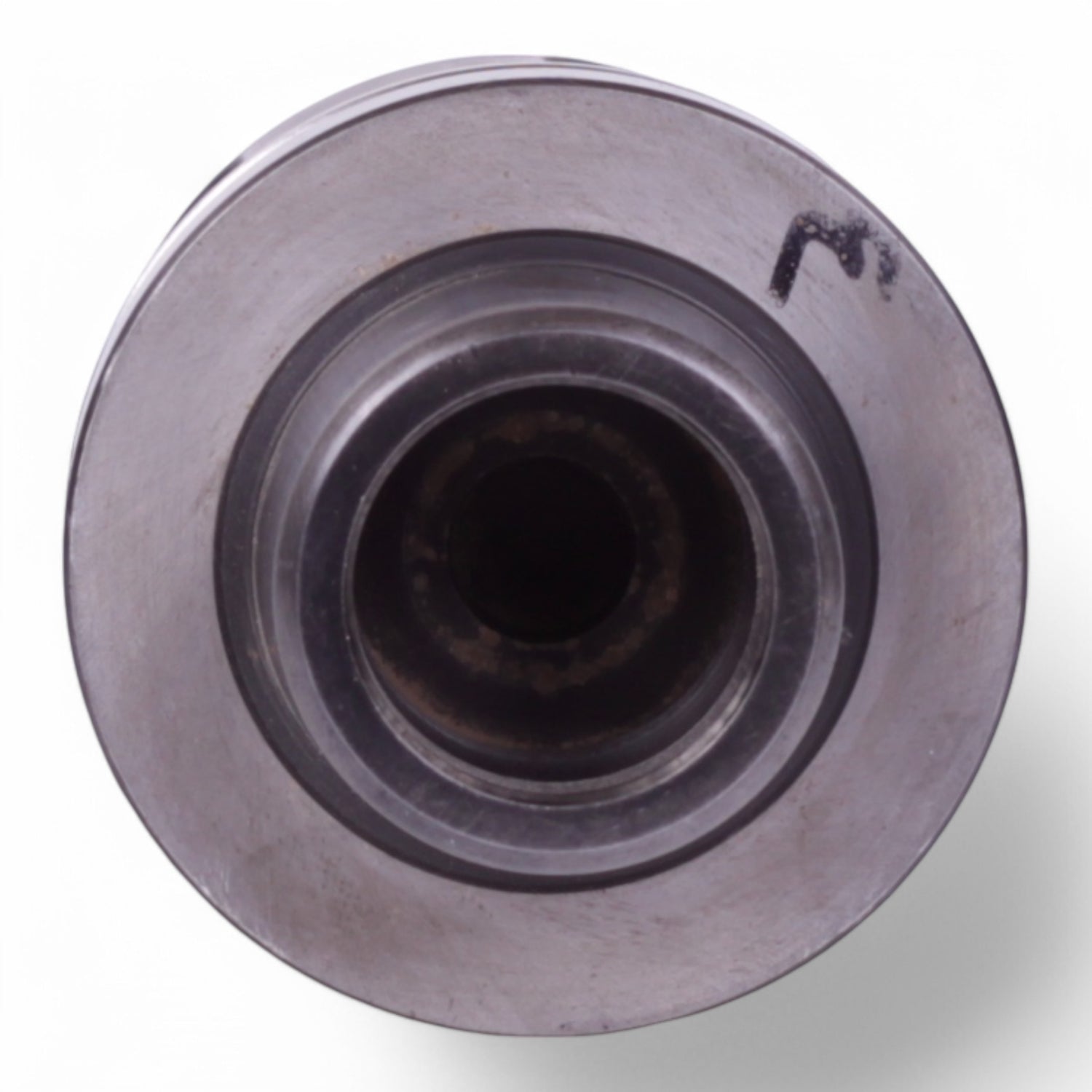

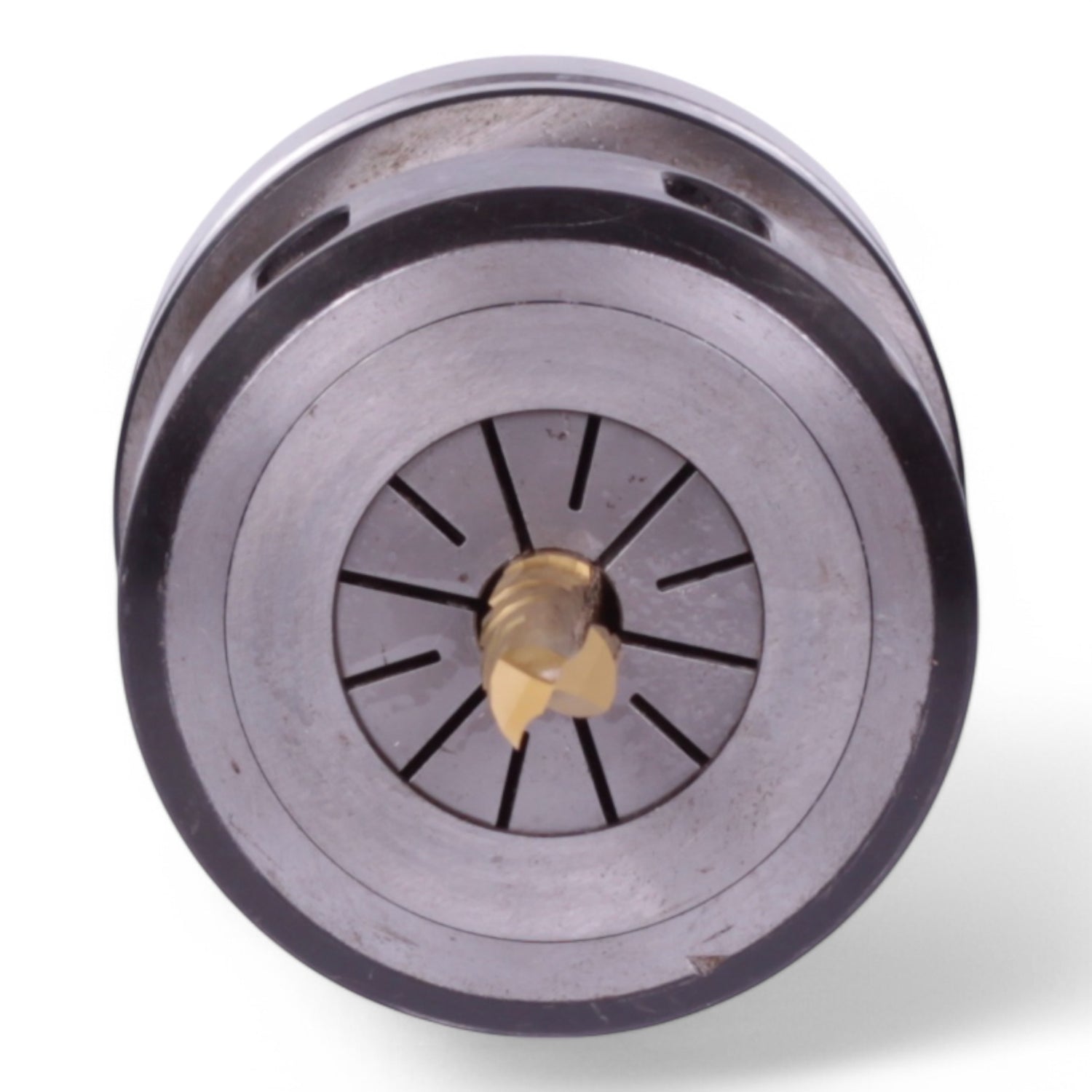

HSK 63 F Collet Chuck with DIA End Mill 30 x 9 mm

Product Description: The HSK 63 F Collet Chuck with DIA End Mill 30 x 9 mm is designed for high-precision machining and is ideal for industrial applications with high speeds up to 24,000 rpm. Thanks to its fine-balanced design and high-quality steel construction, it offers high durability and precision.

Please note: This collet chuck is new, but may show signs of storage that do not affect its function.

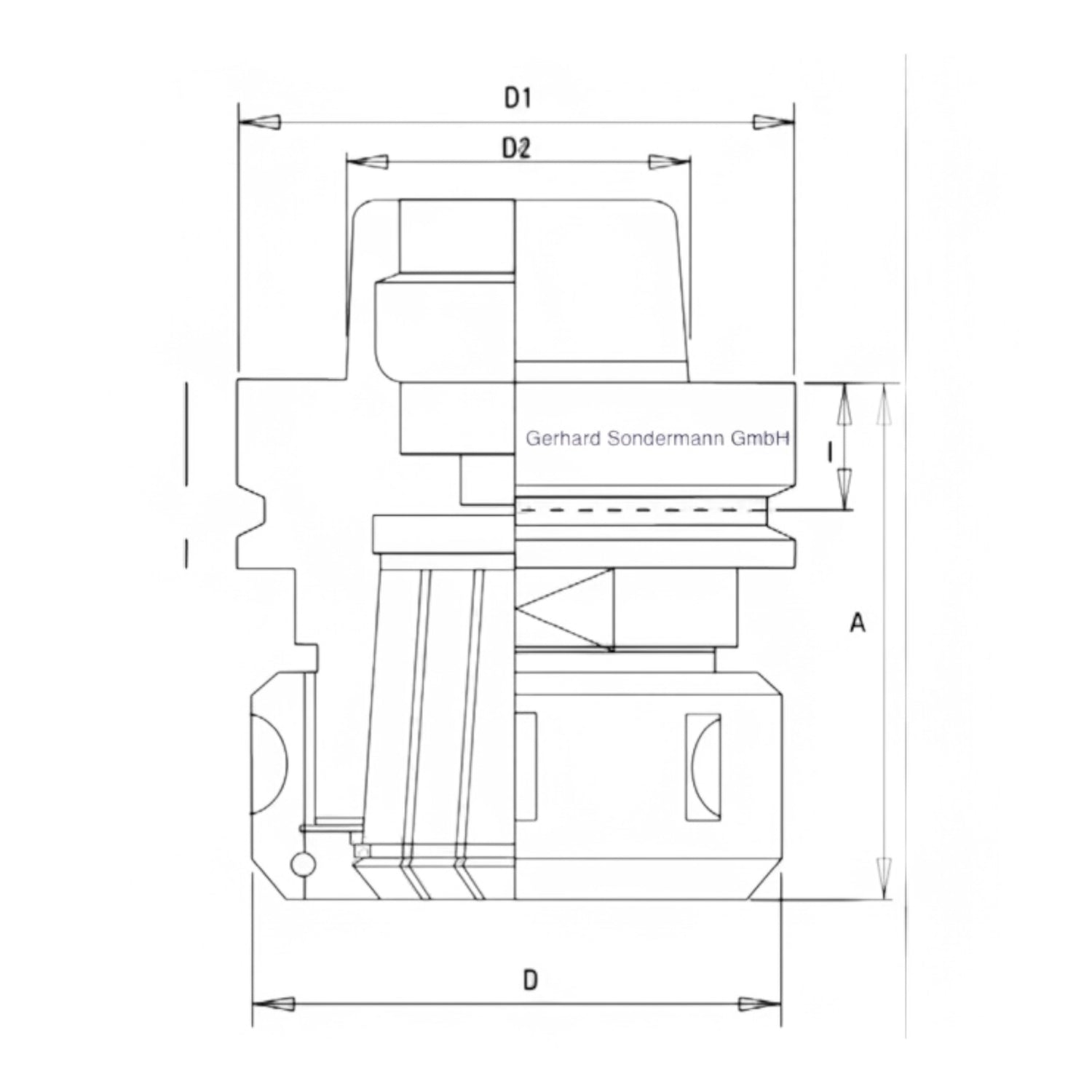

Technical Data:

• Type: HSK 63 F

• A (mm): 76

• D (mm): 60

• D1 (mm): 63

• D2 (mm): 38

• I (mm): 18

• Maximum Speed: 24,000 rpm

• Clamping Range (mm): 2 - 25

• Suitable for: HSK 63 F - fixed / HSK 63 F - swivel

• Material: High-quality steel

• Usage: For tools with DIA End Mill 30 x 9 mm

• Application Area: HSK 63 Type 38 B Collet Chuck for 25 mm Shank Tools

• Commodity Code: 8466 10 20 00

Features:

• High-quality steel construction for maximum stability

• Fine-balanced for speeds up to 24,000 rpm

• Ideal for precise machining with DIA end mills

• Suitable for right and left-hand rotation

• Flexible to use with clamping range of 2 - 25 mm

Scope of Delivery:

• HSK 63 F Collet Chuck with DIA End Mill 30 x 9 mm

Note on Tool Holders:

• Tool holders may show signs of storage that do not affect their function.

• If tools or holders are damaged or only partially usable, this will be expressly mentioned.

• All tools are treated with a corrosion protection agent, which may be visible in some photos as a brownish color.

• It is recommended to remove the corrosion protection agent before use.

If you require further information or have any questions, please do not hesitate to contact us!
