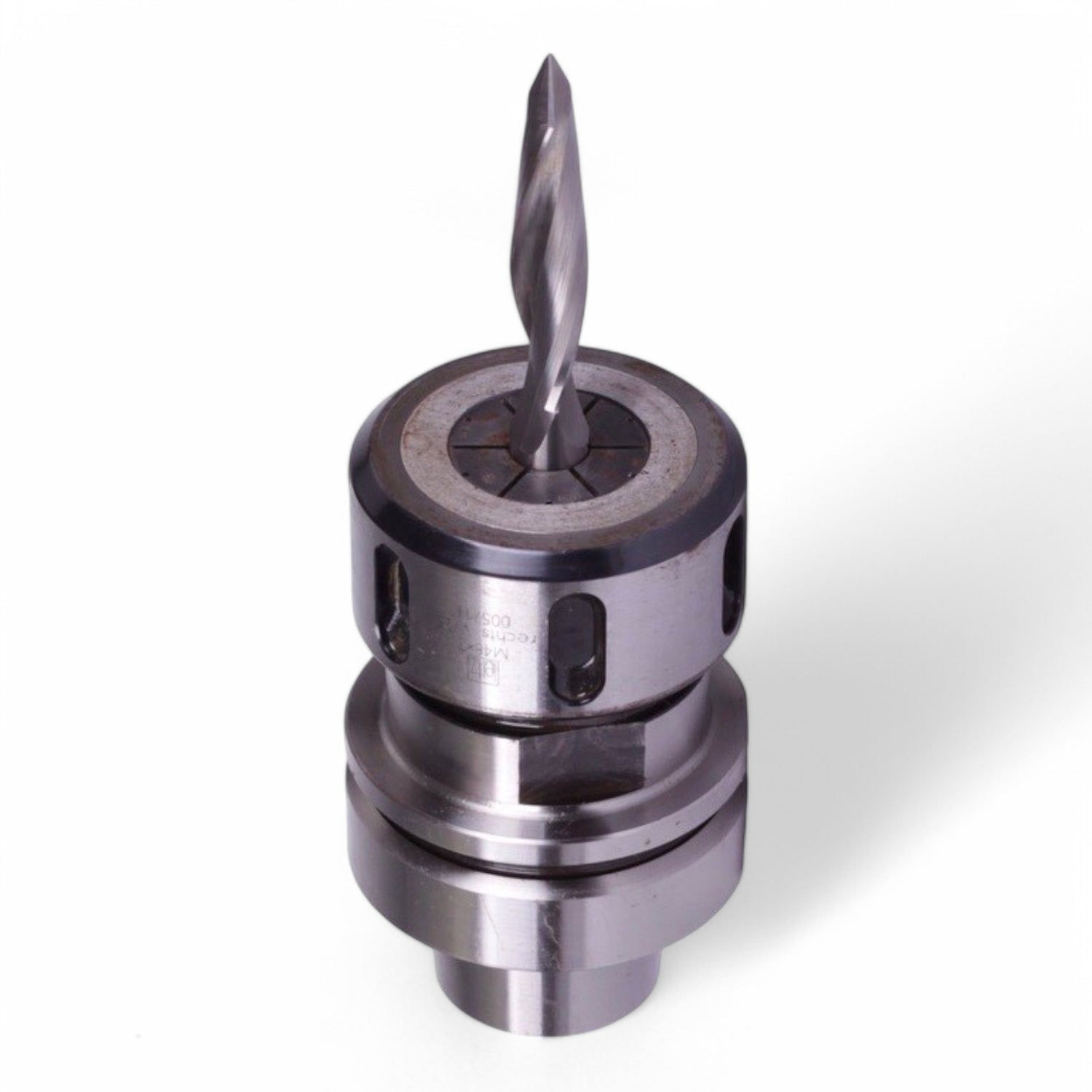

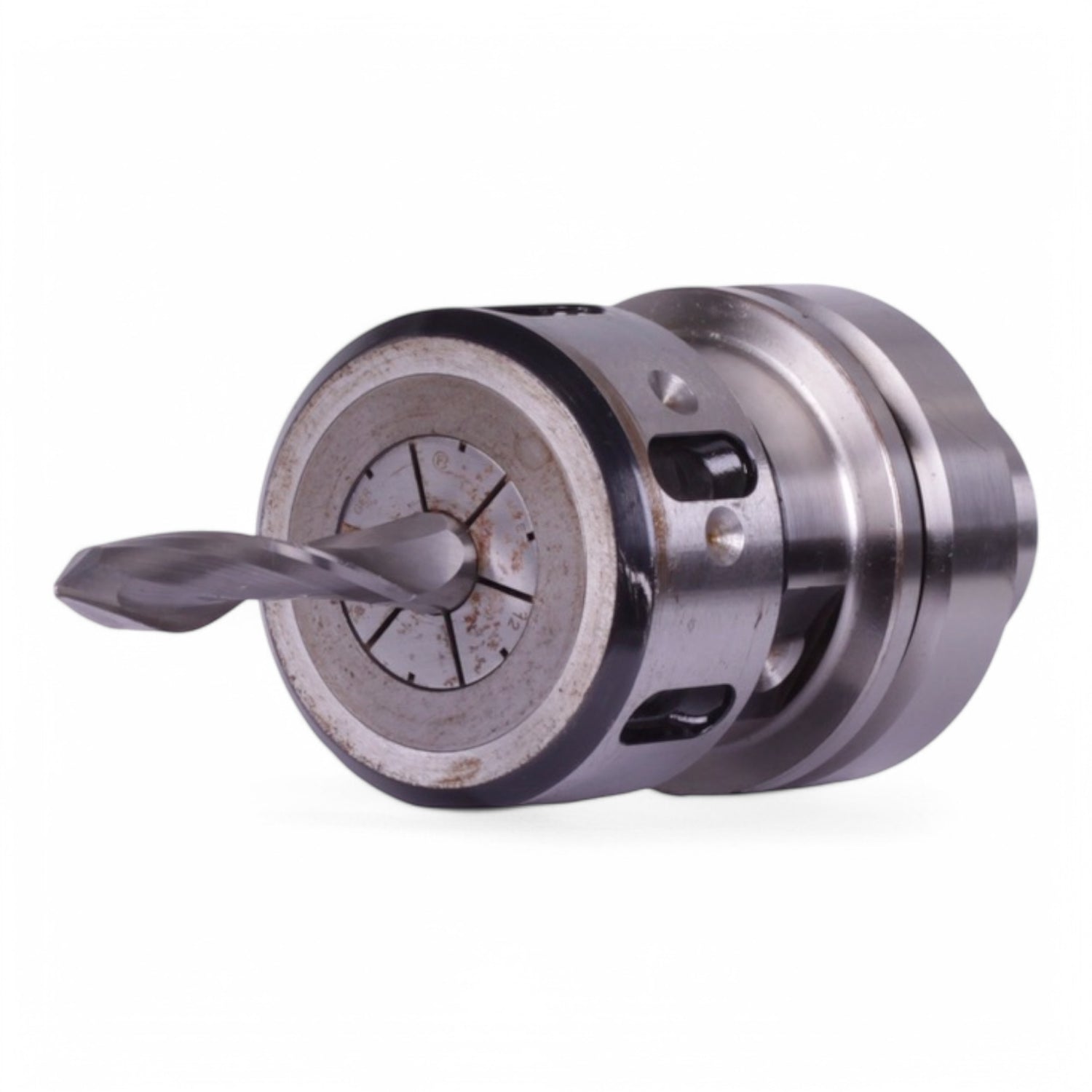

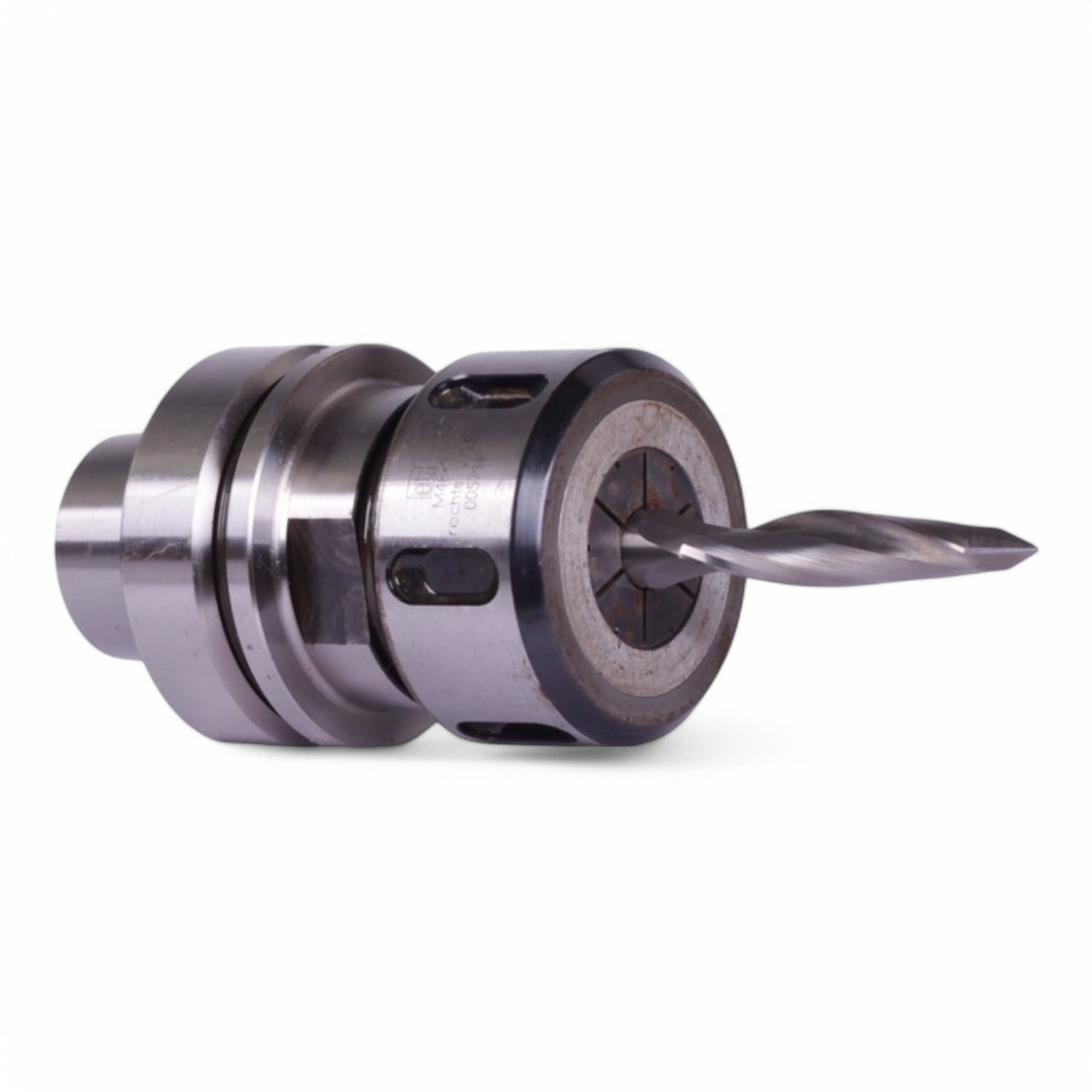

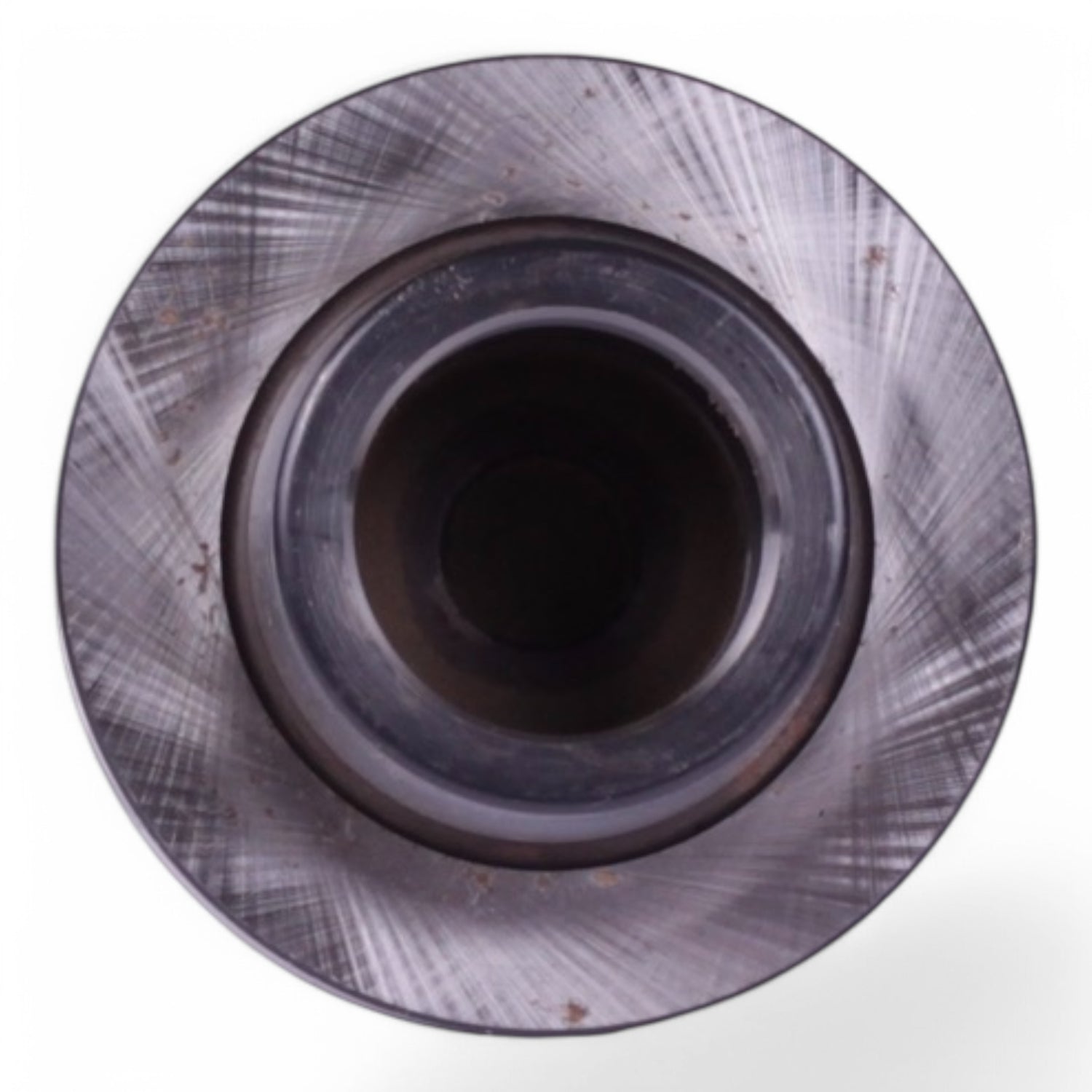

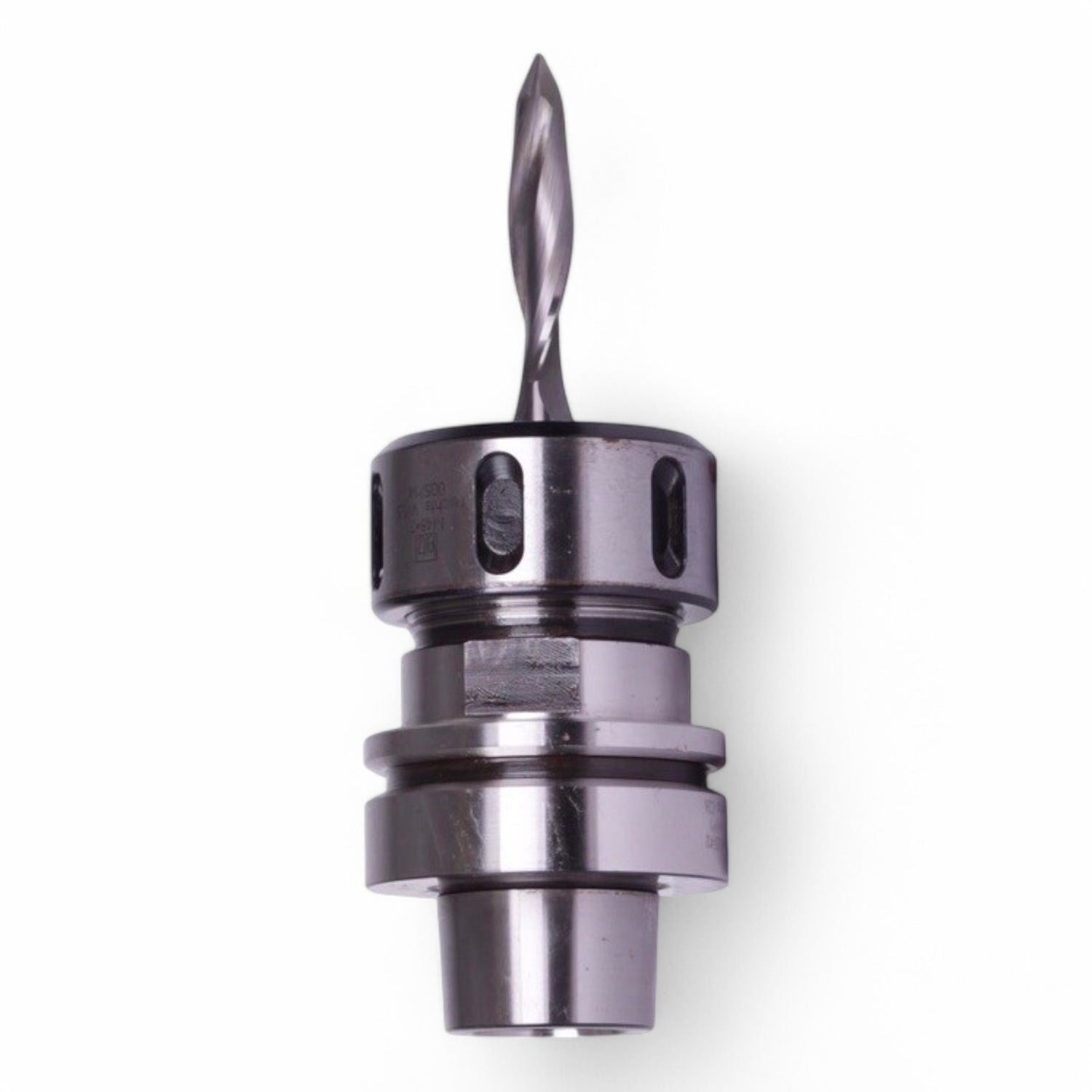

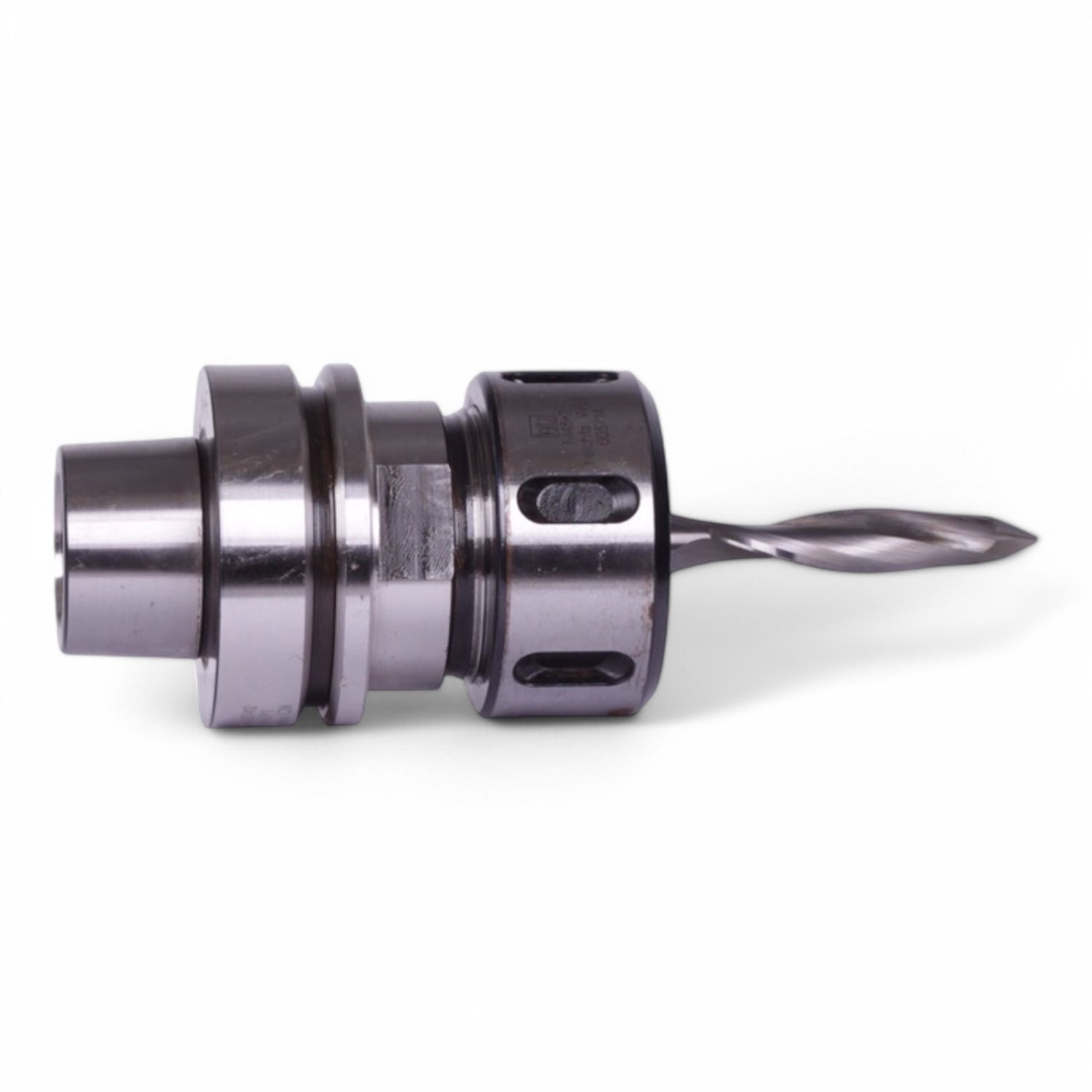

HSK 63 F collet chuck with solid carbide end mill 69 x 11

HSK 63 F Collet Chuck with Solid Carbide End Mill 69 x 11

Product Description: The HSK 63 F Collet Chuck with Solid Carbide End Mill 69 x 11 is a precise clamping system manufactured according to DIN 69893 and designed for demanding machining tasks. It is ideal for high-precision milling work in CNC machines.

Please note: This collet chuck is used and may show signs of storage, which, however, do not affect its function.

Technical Data:

• Type: HSK 63 F

• A (mm): 76

• D (mm): 60

• D1 (mm): 63

• D2 (mm): 38

• I (mm): 18

• Maximum speed: 24,000 rpm

• Clamping range (mm): 2 - 25

• Material: High-quality steel

• Usage: For tools with 12 mm collet

• Application range: Suitable for right and left rotation

With End Mill:

• Usable length: approx. 69 mm

• Diameter: approx. 11 mm

• Material: Solid carbide (VHM)

Special Features:

• Fine-balanced for high speeds up to 24,000 rpm

• Stable tool holder for secure fixation

• Optimal for industrial applications with high precision requirements

• Flexible clamping range from 2 - 25 mm

• Dimensional tolerances possible

Scope of Delivery:

• HSK 63 F Collet Chuck with Solid Carbide End Mill 69 x 11

Note on Used Tool Holders:

• Tool holders may show signs of wear, discoloration, engravings, or minor corrosion. However, these do not affect the function.

• All tools are treated with corrosion protection agent, which may appear as a brownish color in the photos.

• If tools or holders are damaged or only partially usable, this will be expressly mentioned.

• Tools are used and often not resharpened. Resharpening is the responsibility of the buyer.

• It is recommended to remove the corrosion protection agent before use.

If you need further information or have any questions, please do not hesitate to contact us!
