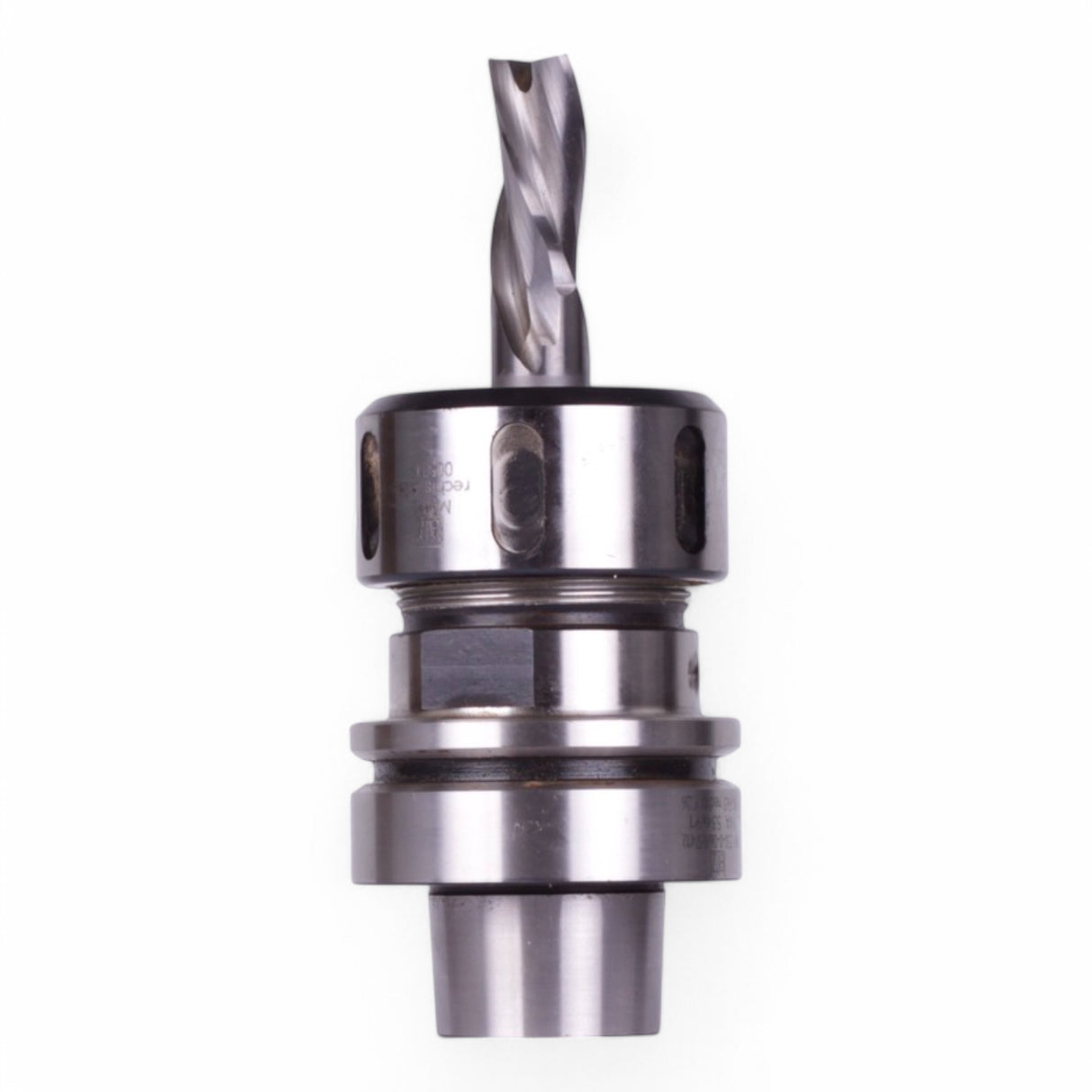

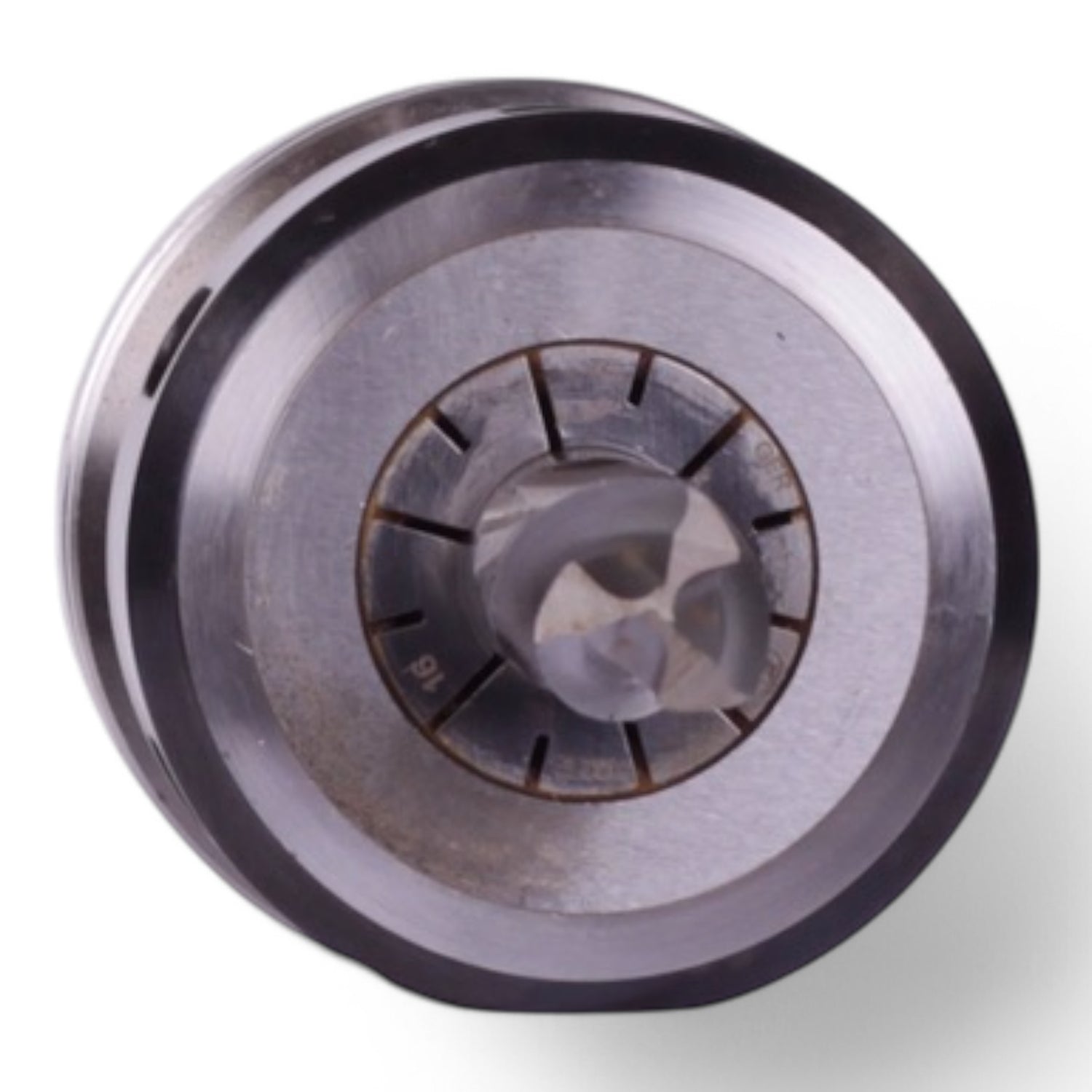

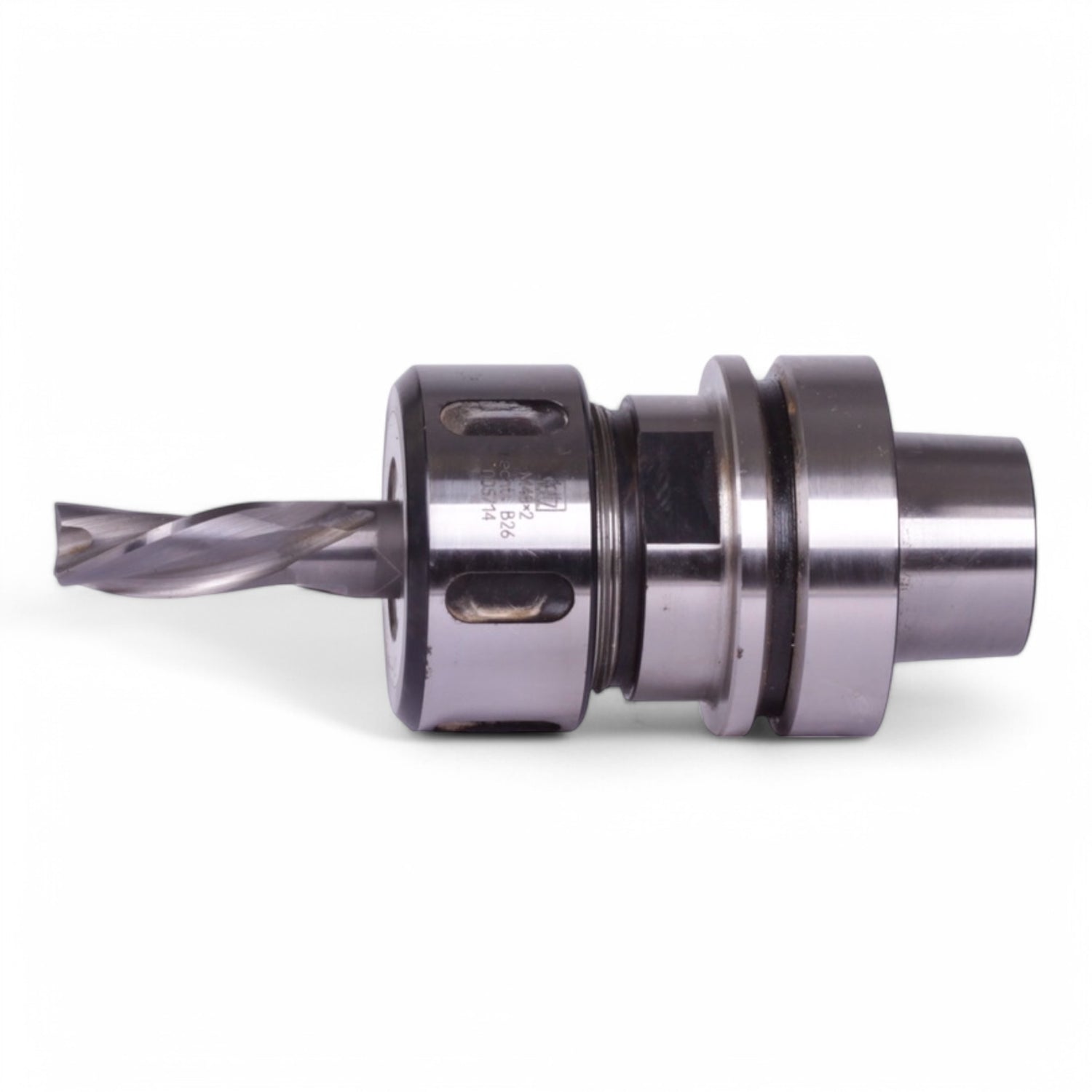

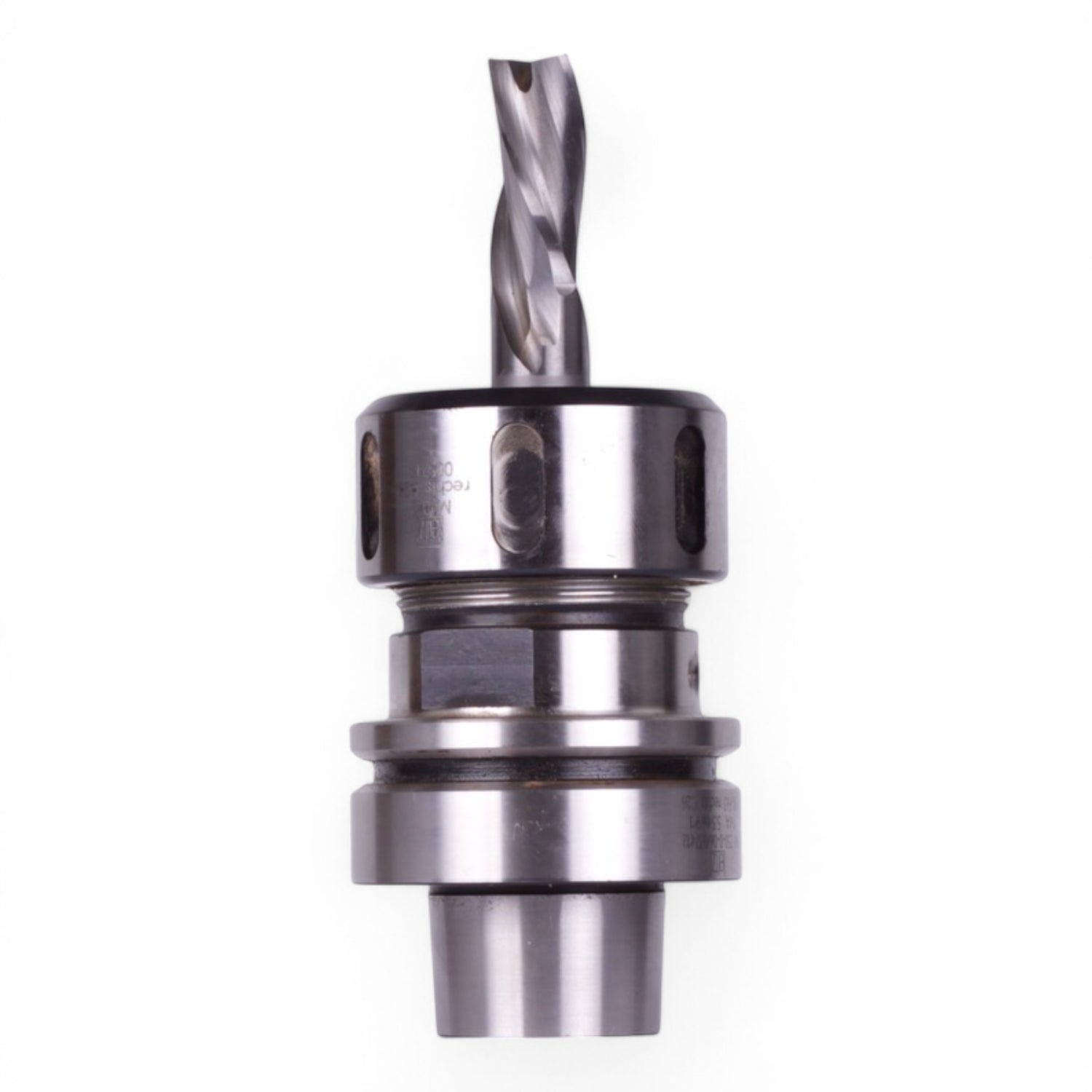

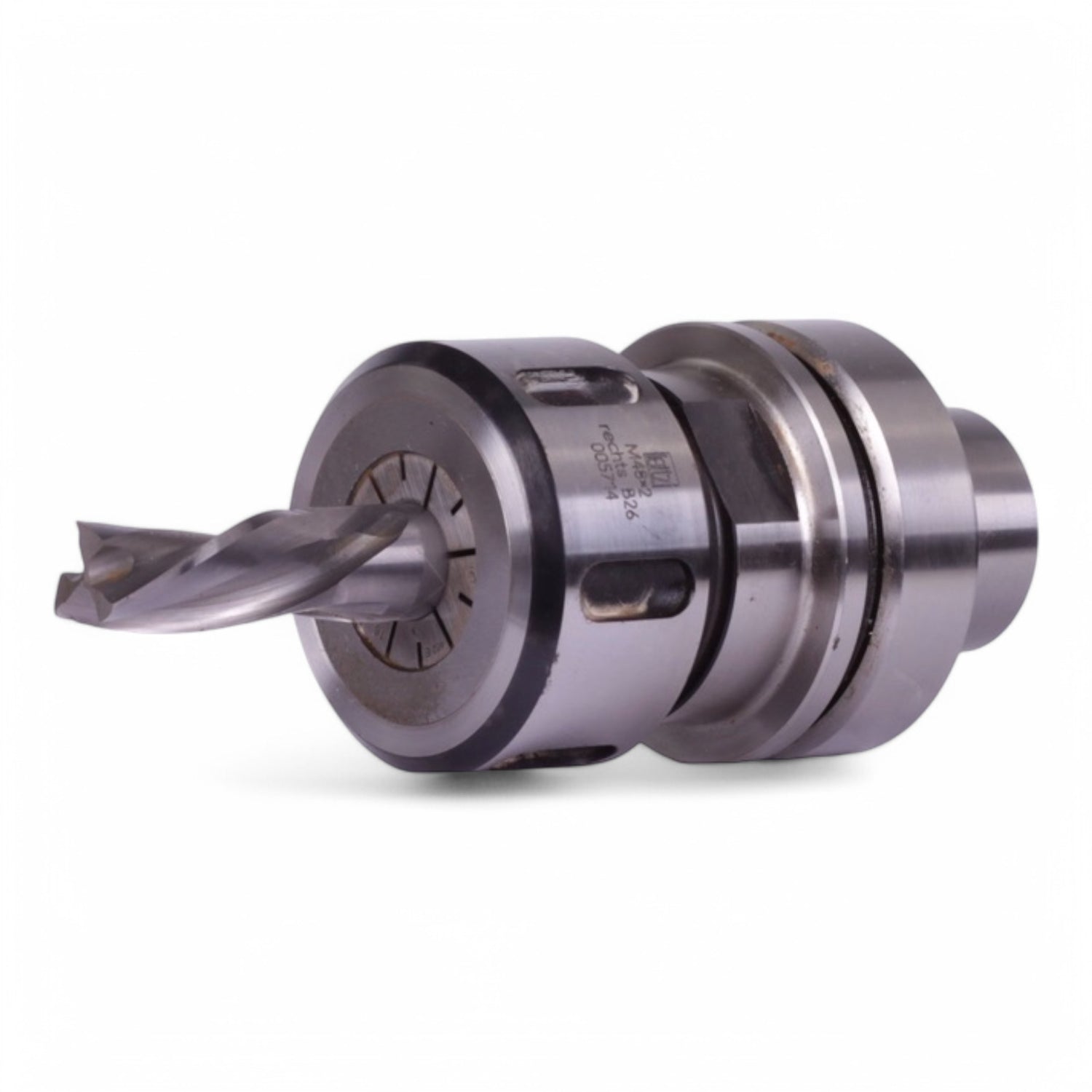

HSK 63 F collet chuck with solid carbide end mill 55 x 14

Product description: The HSK 63 F collet chuck with solid carbide end mill 55 x 14 is a precise clamping system, manufactured according to DIN 69893, designed for high-precision machining operations. This system is ideal for CNC machines and milling work with the highest precision.

Please note: This collet chuck is used and may show signs of storage, which do not affect its function.

Technical data:

• Type: HSK 63 F

• A (mm): 76

• D (mm): 60

• D1 (mm): 63

• D2 (mm): 38

• I (mm): 18

• Maximum speed: 24,000 rpm

• Clamping range (mm): 2 - 25

• Material: High-quality steel

• Usage: For tools with 14 mm collet

• Application range: Suitable for clockwise and counter-clockwise rotation

With end mill:

• Usable length: approx. 55 mm

• Diameter: approx. 14 mm

• Material: Solid carbide (VHM)

• Number of flutes: Z=3

Special features:

• Finely balanced for speeds up to 24,000 rpm

• High-quality steel construction for long-lasting use

• Optimal fixation through precise tool reception

• Flexible clamping range from 2 - 25 mm

• Ideal for high-precision milling work in CNC machines

• Dimensional tolerances possible

Scope of delivery:

• HSK 63 F collet chuck with solid carbide end mill 55 x 14

Note on used tool holders:

• Tool holders may show signs of use, discolorations, engravings, or slight traces of corrosion. However, these do not affect the function.

• All tools are treated with anti-corrosion agent, which may be visible in some photos as a brownish color.

• If tools or holders are damaged or only partially usable, this will be explicitly mentioned.

• Tools are used and often not re-sharpened. Re-sharpening is the responsibility of the buyer.

• It is recommended to remove the anti-corrosion agent before use.

If you need further information or have any questions, please do not hesitate to contact us!
