HSK 63 F collet chuck HM end mill 49 x 19 mm

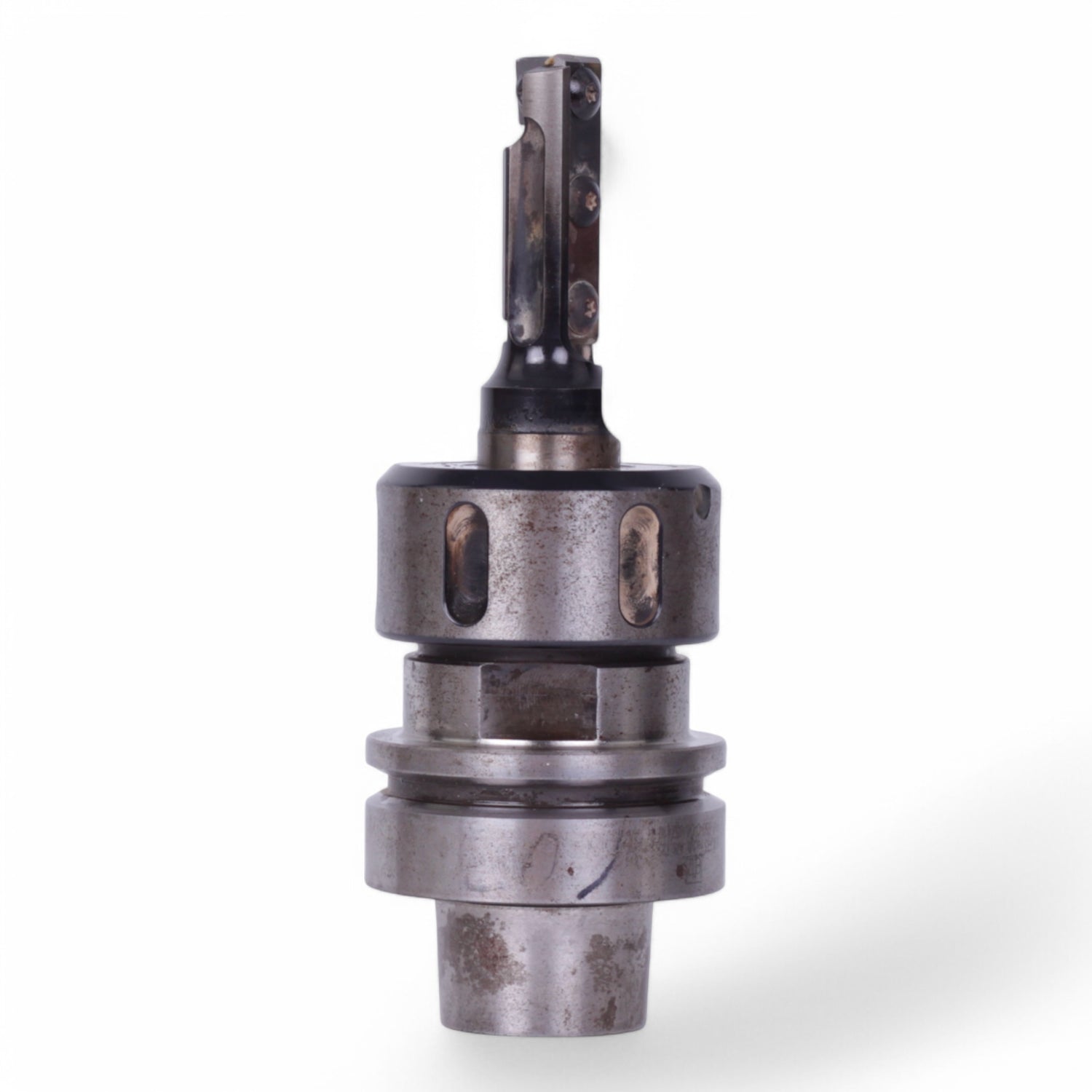

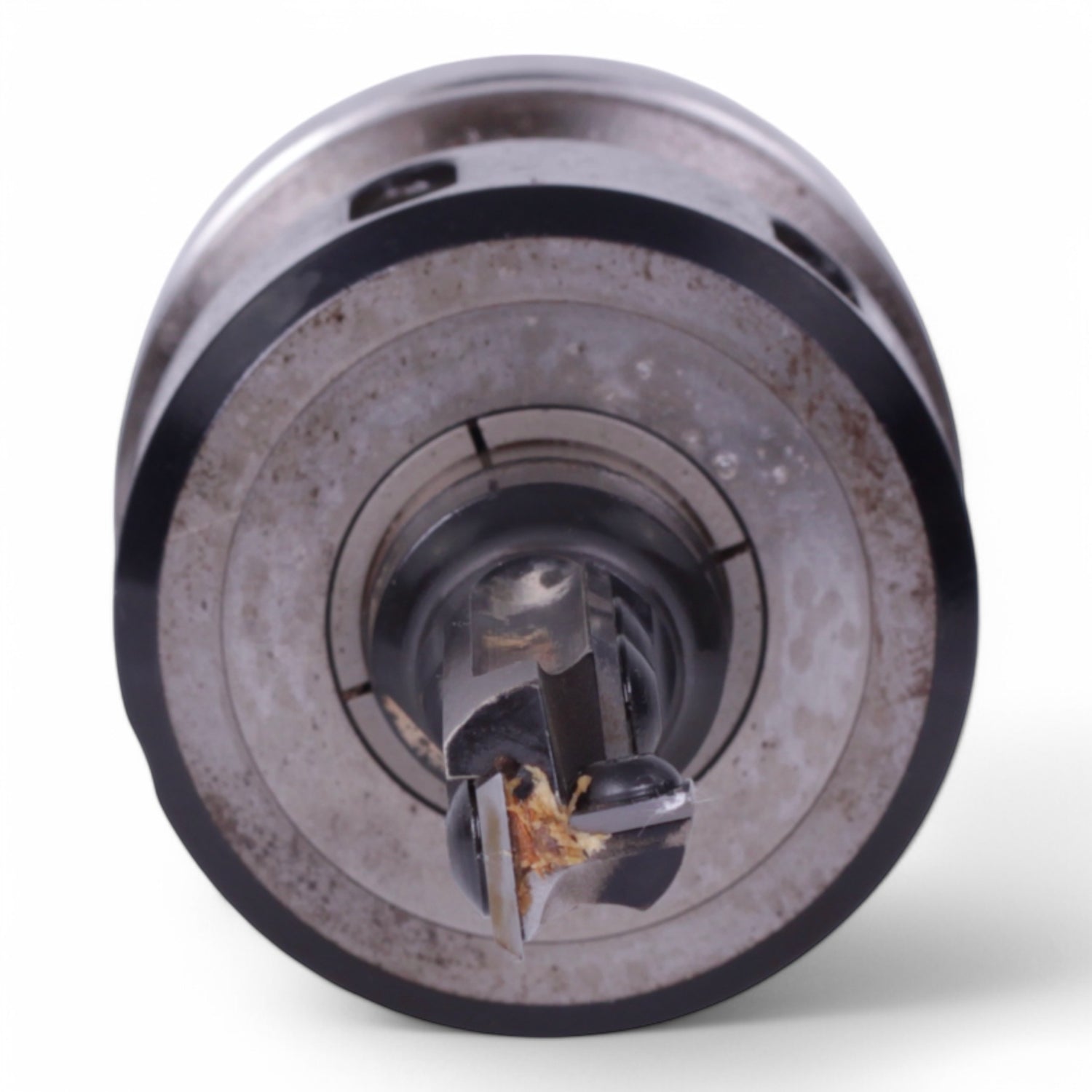

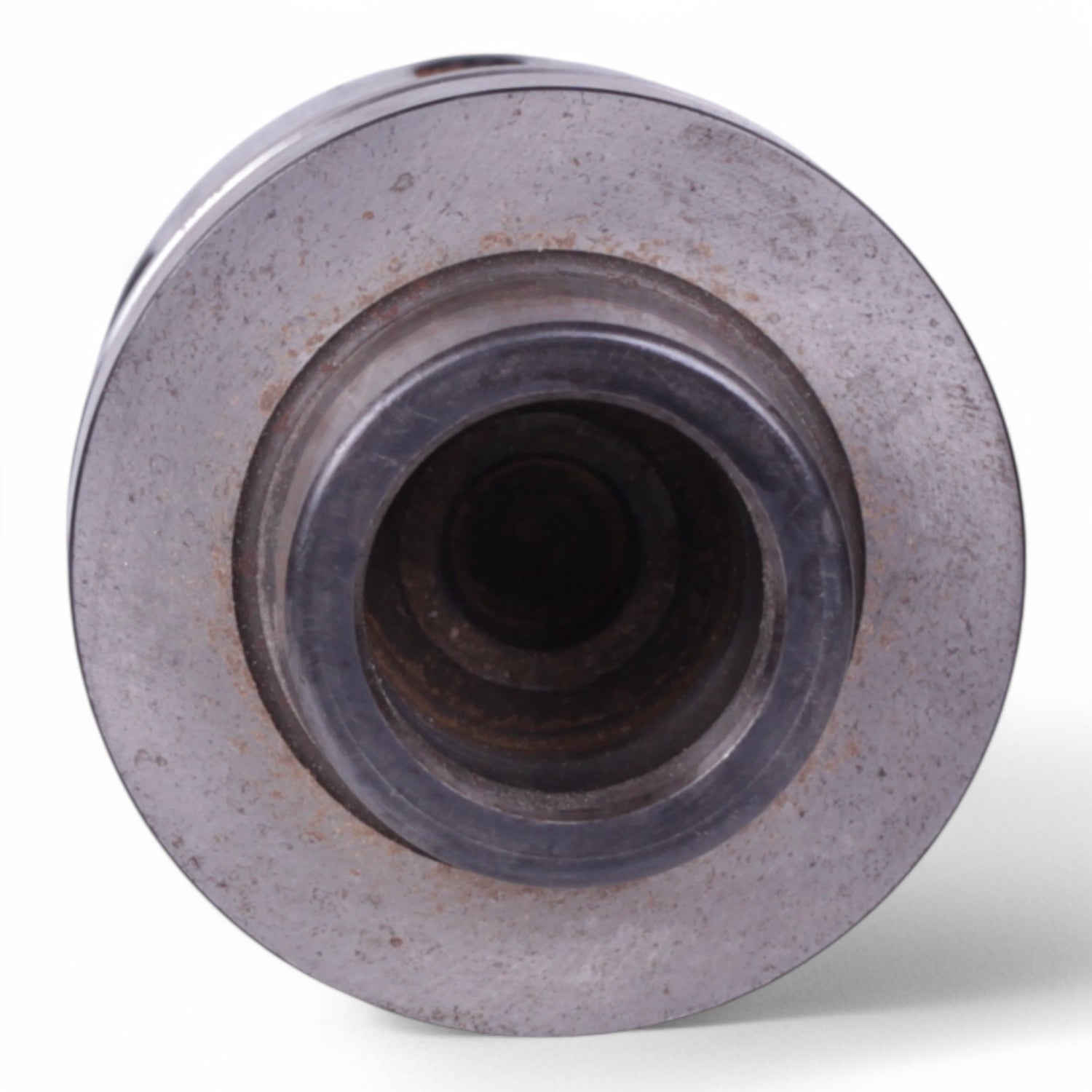

HSK 63 F Collet Chuck with Carbide End Mill 49 x 19

Product Description: The HSK 63 F Collet Chuck with Carbide End Mill 49 x 19 was manufactured according to DIN 69893 and is suitable for high-precision milling operations in CNC routers and machining centers (BAZ). It allows clamping of shank tools with a cylindrical shank and is compatible with collets of type 462 E / OZ 25 up to 25 mm.

Please note: This collet chuck is used and may show signs of storage, which do not affect its function.

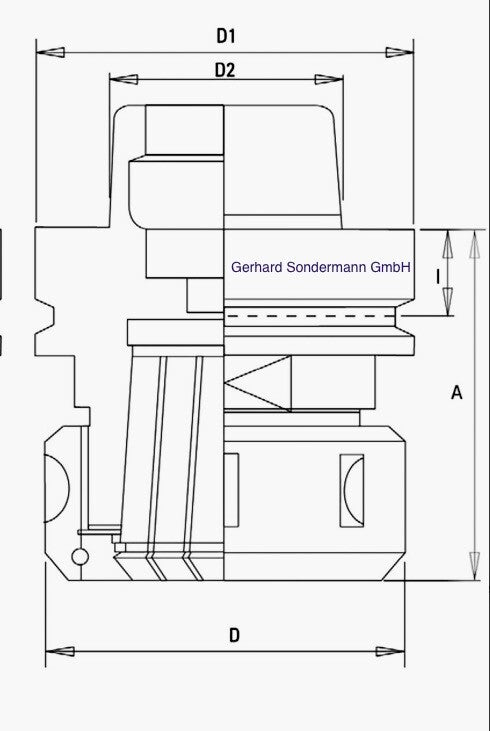

Technical Data:

• Type: HSK 63 F

• A (mm): 76

• D (mm): 60

• D1 (mm): 63

• D2 (mm): 38

• I (mm): 18

• Maximum Speed: 24,000 rpm

• Clamping Range (mm): 2 - 25

• Suitable for: HSK 63 F - fixed / HSK 63 F - swiveling

• Material: High-quality steel

• Usage: CNC routers, machining centers (BAZ)

• Application Area: Suitable for clockwise and counter-clockwise rotation

With End Mill:

• Usable Length: approx. 49 mm

• Diameter: approx. 19 mm

• Carbide Inserts: Replaceable

Special Features:

• Fine balanced for speeds up to 24,000 rpm

• High-quality steel construction for maximum stability

• Optimal hold for shank tools with cylindrical shank

• Flexible clamping range from 2 - 25 mm

• Compatible with HSK 63 F - fixed and swiveling

• Dimensional tolerances possible

Scope of Delivery:

• HSK 63 F Collet Chuck with Carbide End Mill 49 x 19

Note on Used Tool Holders:

• Tool holders may show signs of wear, discoloration, engravings, or slight traces of corrosion. However, these do not affect the function.

• All tools are treated with anti-corrosion agent, which may be visible in the photos in brownish color.

• If tools or holders are damaged or only partially usable, this will be explicitly mentioned.

• Tools are used and often not resharpened. Resharpening is the responsibility of the buyer.

• It is recommended to remove the anti-corrosion agent before use.

If you need further information or have any questions, please do not hesitate to contact us!
