HSK 63 F collet chuck HM end mill 37 x 13

HSK 63 F Collet Chuck with Carbide End Mill 37 x 13

Product Description: The HSK 63 F collet chuck with carbide end mill 37 x 13 was manufactured according to DIN 69893 and is specially designed for high-precision milling operations in CNC routers and machining centers (BAZ). It allows for clamping of shank tools with cylindrical shanks and is compatible with collets of type 462 E / OZ 25 up to 25 mm.

Please note: This collet chuck is used and may show signs of wear, which, however, do not affect its function.

Technical Data:

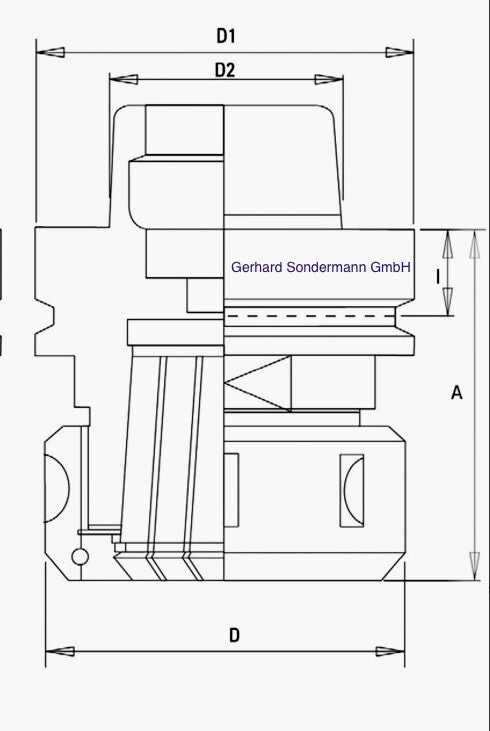

• Type: HSK 63 F
• A (mm): 76
• D (mm): 60
• D1 (mm): 63
• D2 (mm): 38
• I (mm): 18
• Maximum Speed: 24,000 rpm
• Clamping Range (mm): 2 - 25
• Suitable for: HSK 63 F - fixed / HSK 63 F - swivel
• Material: High-quality steel
• Usage: CNC routers, machining centers (BAZ)
• Application Area: Suitable for clockwise and counter-clockwise rotation

With End Mill:

• Usable Length: approx. 37 mm
• Diameter: approx. 13 mm
• Carbide tipped
• Collet included

Special Features:

• Fine-balanced for speeds up to 24,000 rpm
• Precise collet chuck for optimal grip
• High-quality steel construction for maximum stability
• Ideal for high-precision milling operations in CNC machines
• Flexible clamping range of 2 - 25 mm
• Dimensional tolerances possible

Scope of Delivery:

• HSK 63 F Collet Chuck with Carbide End Mill 37 x 13

Note on Used Tool Holders:

• Tool holders may show signs of wear, discoloration, engravings, or slight traces of corrosion. However, these do not affect the function.
• All tools are treated with anti-corrosion agent, which may be visible as brownish color in some photos.
• If tools or holders are damaged or only partially usable, this will be explicitly mentioned.
• Tools are used and often not resharpened. Resharpening is the responsibility of the buyer.
• It is recommended to remove the anti-corrosion agent before use.

If you require further information or have any questions, please do not hesitate to contact us!
