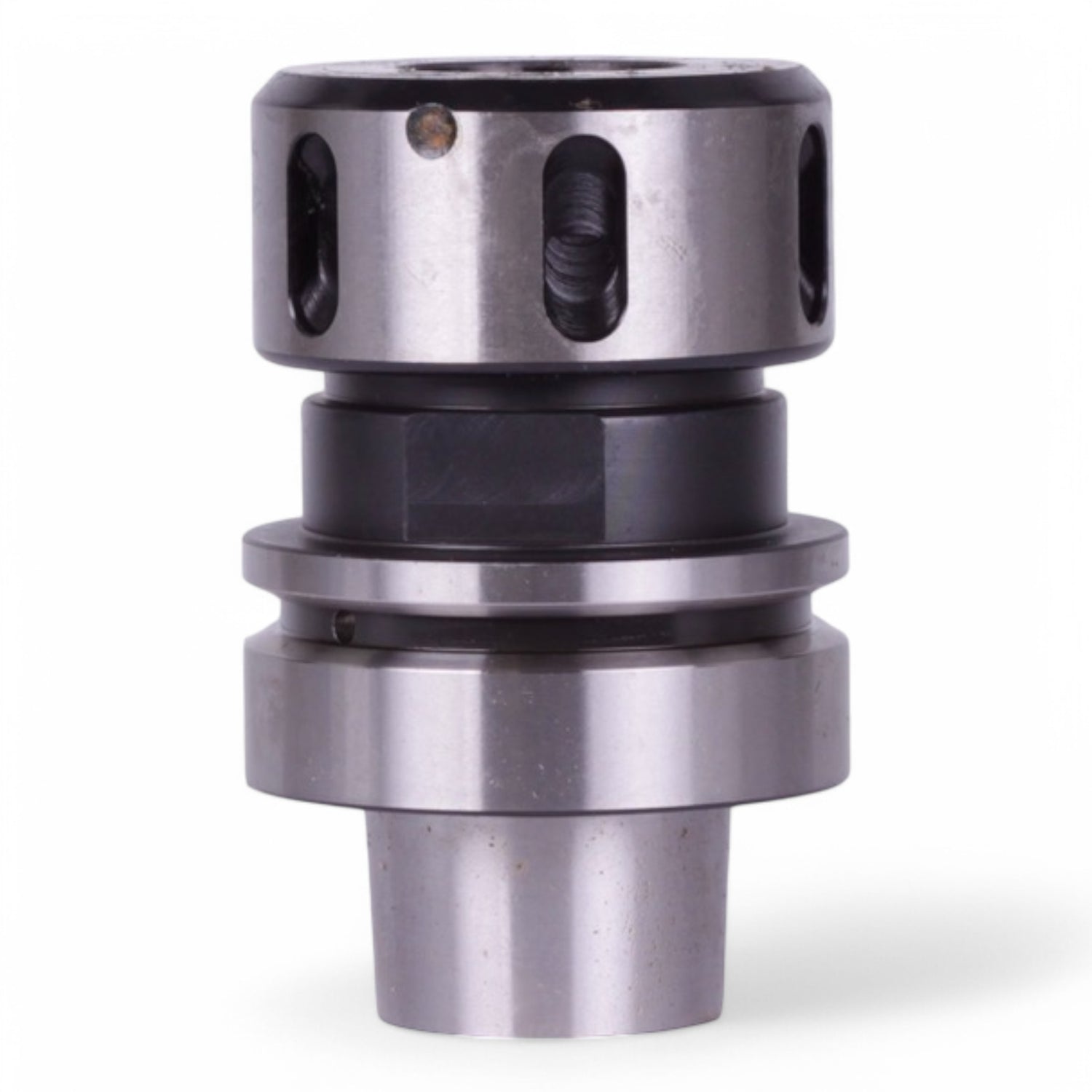

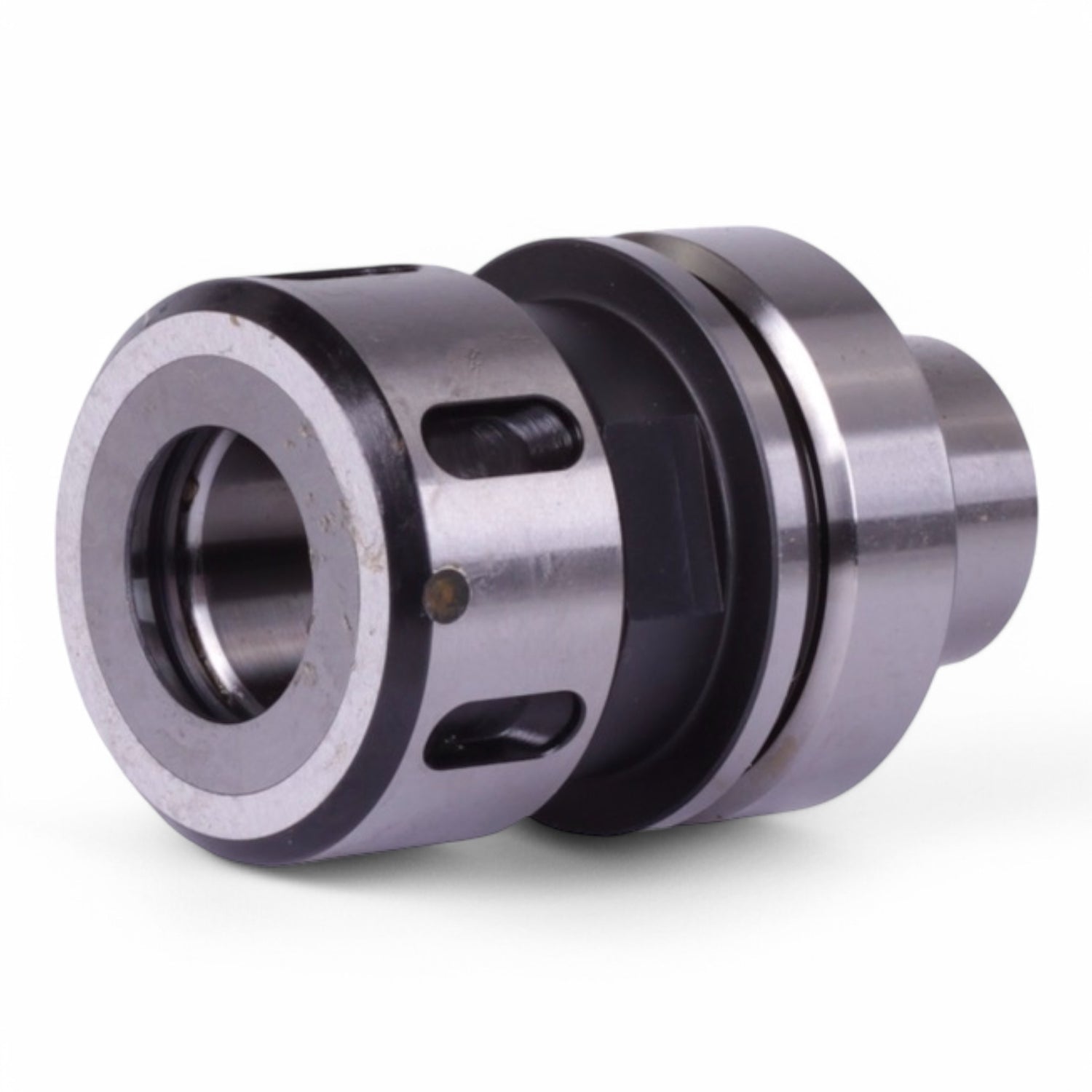

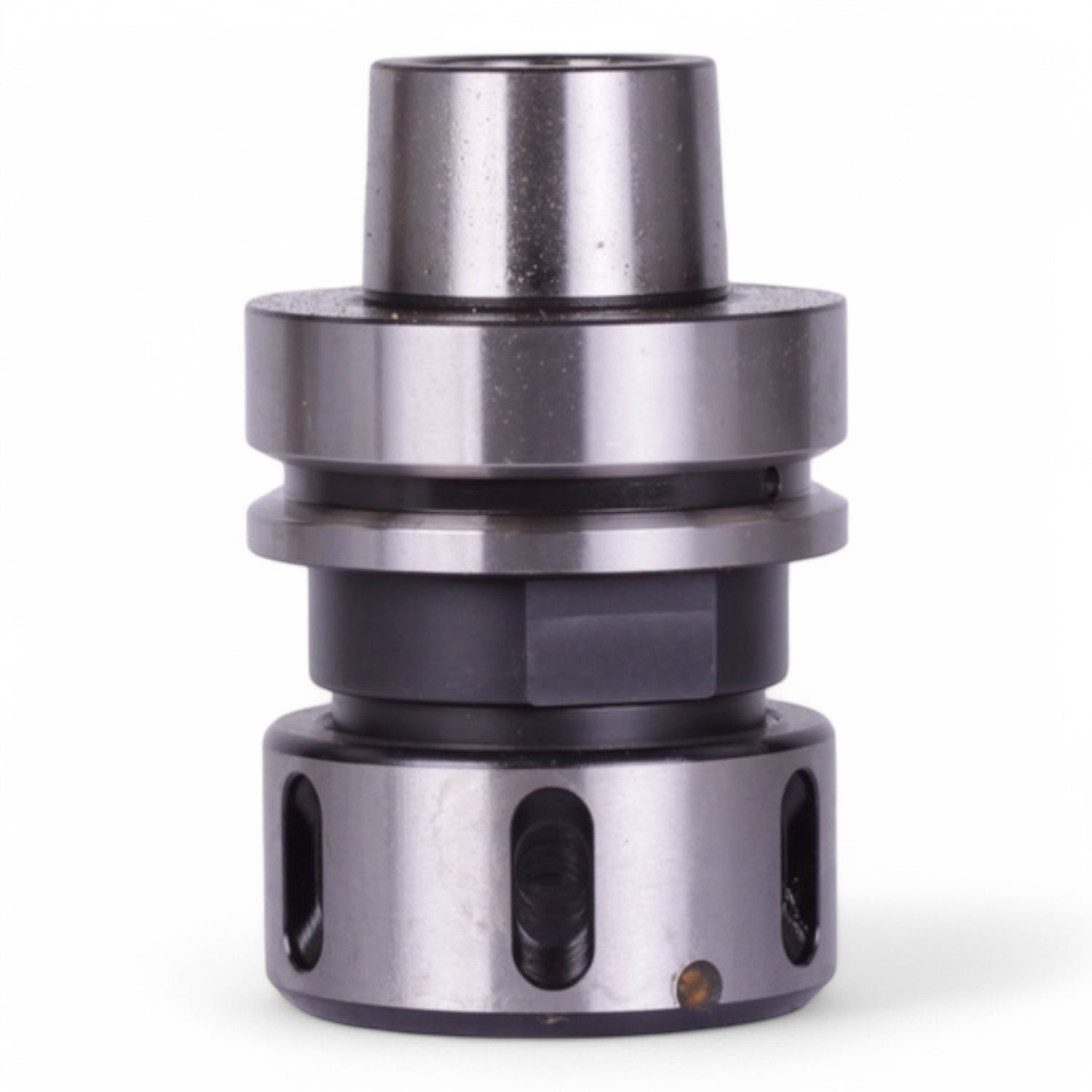

HSK 63 F collet chuck

HSK 63 F Collet Chuck

Product Description: The HSK 63 F collet chuck is a high-quality clamping system for precise milling and machining processes. Its fine-balanced construction and manufacturing from high-quality steel make it suitable for applications with high speeds up to 24,000 rpm. It can be used for both clockwise and counter-clockwise rotation and is compatible with fixed and swivel HSK 63 F holders.

Please note: The item is new, but may show storage marks that do not affect its function.

Technical data:

• Finely balanced: Yes

• Maximum speed: 24,000 rpm

• Material: High-quality steel

• Direction of rotation: Suitable for clockwise and counter-clockwise rotation

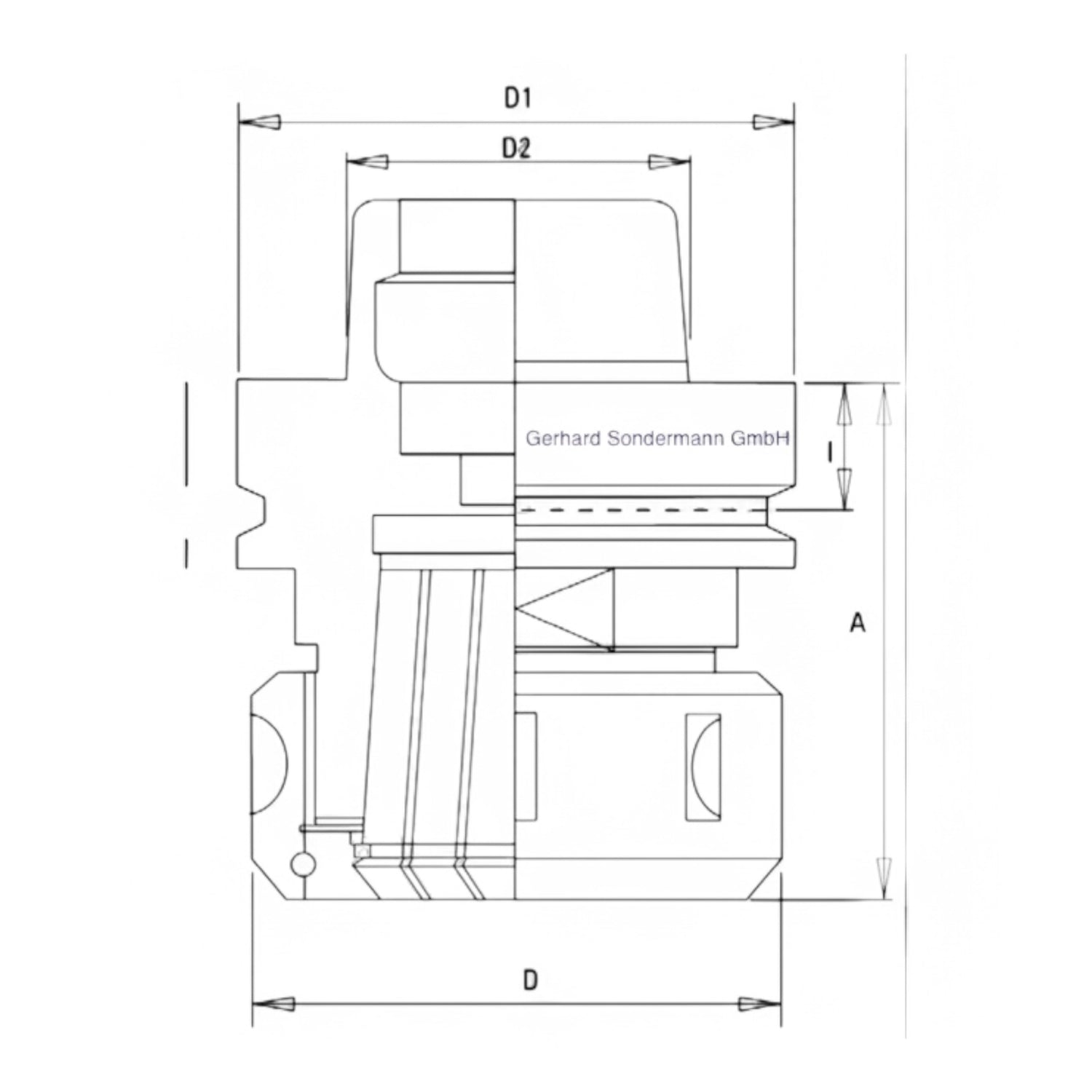

Dimensions:

• Type: HSK 63 F

• A (mm): 76

• D (mm): 60

• D1 (mm): 63

• D2 (mm): 38

• I (mm): 18

• Maximum speed (rpm): 24,000

• Clamping range (mm): 2 - 25

• Suitable for: HSK 63 F - fixed / HSK 63 F - swivel

Additional information:

• Including collet: No

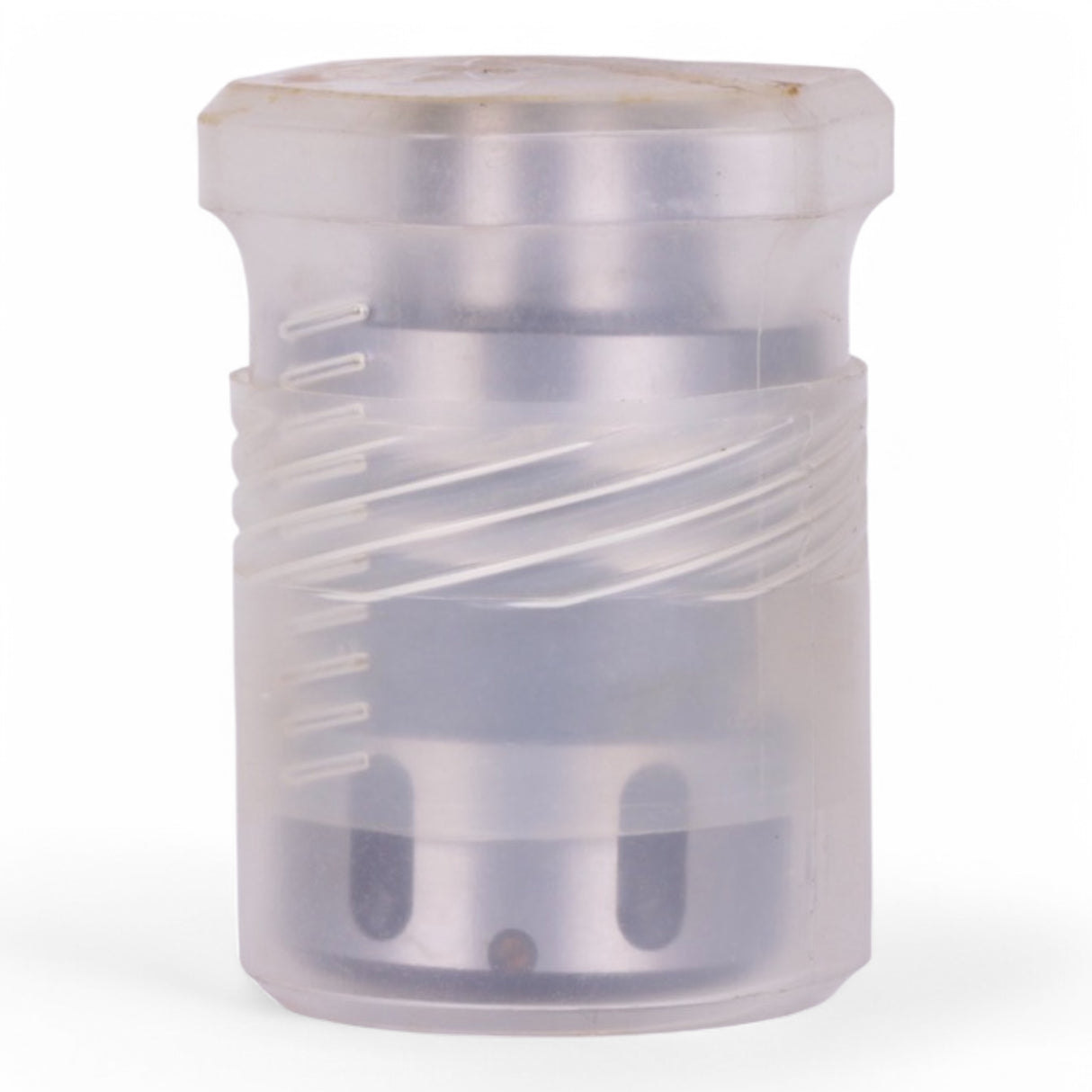

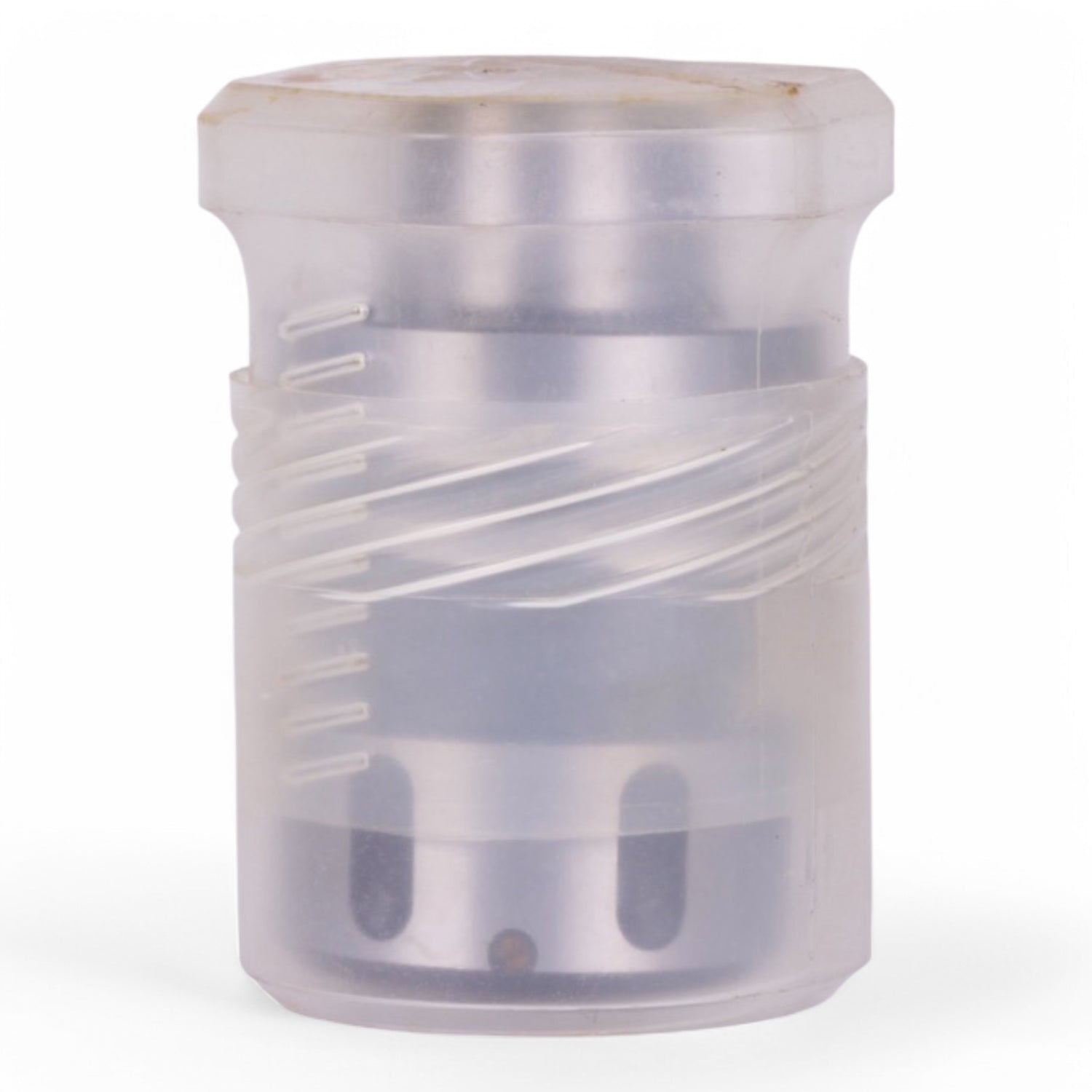

• Packaging: Transparent or black, partly without packaging

Special features:

• Finely balanced for high speeds up to 24,000 rpm

• Precise tool holder for optimal grip

• High-quality steel construction for maximum stability

• Flexible clamping range from 2 - 25 mm

• Compatible with fixed and swivel HSK 63 F holders

Scope of delivery:

• HSK 63 F Collet chuck (without collet)

If you need further information or have any questions, please do not hesitate to contact us!
