HSK 63 F ER 40 chuck LEUCO with DIA end mill 11 x 35 mm

LEUCO HSK 63 F ER40 Chuck with Collet and DIA End Mill 11 x 35 mm

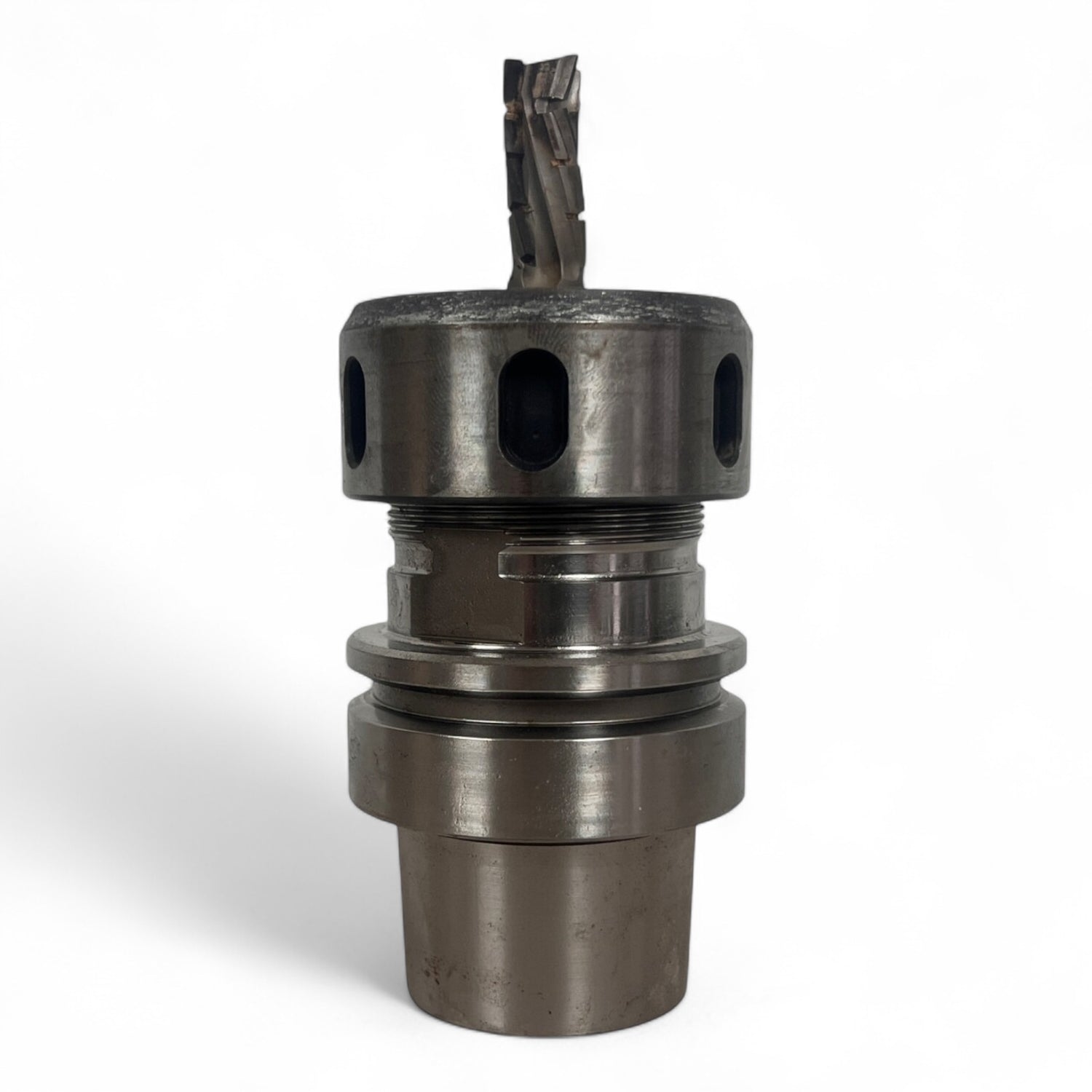

This used LEUCO chuck with HSK 63 F interface is equipped with an ER40 collet and a high-quality diamond end mill, suitable for precise applications in CNC-controlled woodworking centers.

The chuck is designed for a shank diameter of 11 mm and securely holds the mounted DIA milling cutter with a 35 mm cutting length. Thanks to the precise ER40 collet and solid steel construction, the clamping system is suitable for both clockwise and counter-clockwise rotation. The tool is fine-balanced and therefore ideal for use at high speeds up to 24,000 rpm.

The tool holder is made of high-quality tool steel and offers reliable stability as well as high concentricity for industrial use with the highest demands.

Scope of delivery

LEUCO HSK 63 F ER40 chuck with inserted collet and mounted DIA milling cutter as shown, without further accessories.

Note

Used condition with typical signs such as light scratches or color abrasion.

Function was given until removal; a technical inspection is recommended.

No returns possible.

Technical Data

Manufacturer LEUCO

Tool holder HSK 63 F

Clamping system ER40 with collet

Shank diameter 11 mm

Cutter diameter 11 mm

Cutting length 35 mm

Max speed 24,000 rpm

Material high-quality tool steel

Suitable for clockwise and counter-clockwise rotation

Item number 82077031

Shipping weight approx. 2 kg
