HSK 63 F holder drilling tool L= 70 mm D=20 mm short

HSK 63 F holder for boring tools, shank 20 x 70 mm with spacer 21 x 45 mm short

This used HSK 63 F tool holder is designed for boring tools with a shank diameter of 20 mm and has a compact design with an overall length of only 70 mm. The holder is ideal for precise machining in CNC machining centers with high concentricity requirements.

The included spacer has dimensions of 21 mm diameter and 45 mm length and allows flexible adaptation to different tool lengths. The stable design and solid construction made of tool steel guarantee a secure and repeatable clamping connection.

The holder was designed for rotating machining processes and is particularly suitable for applications where small installation dimensions and high clamping force are required.

Scope of delivery

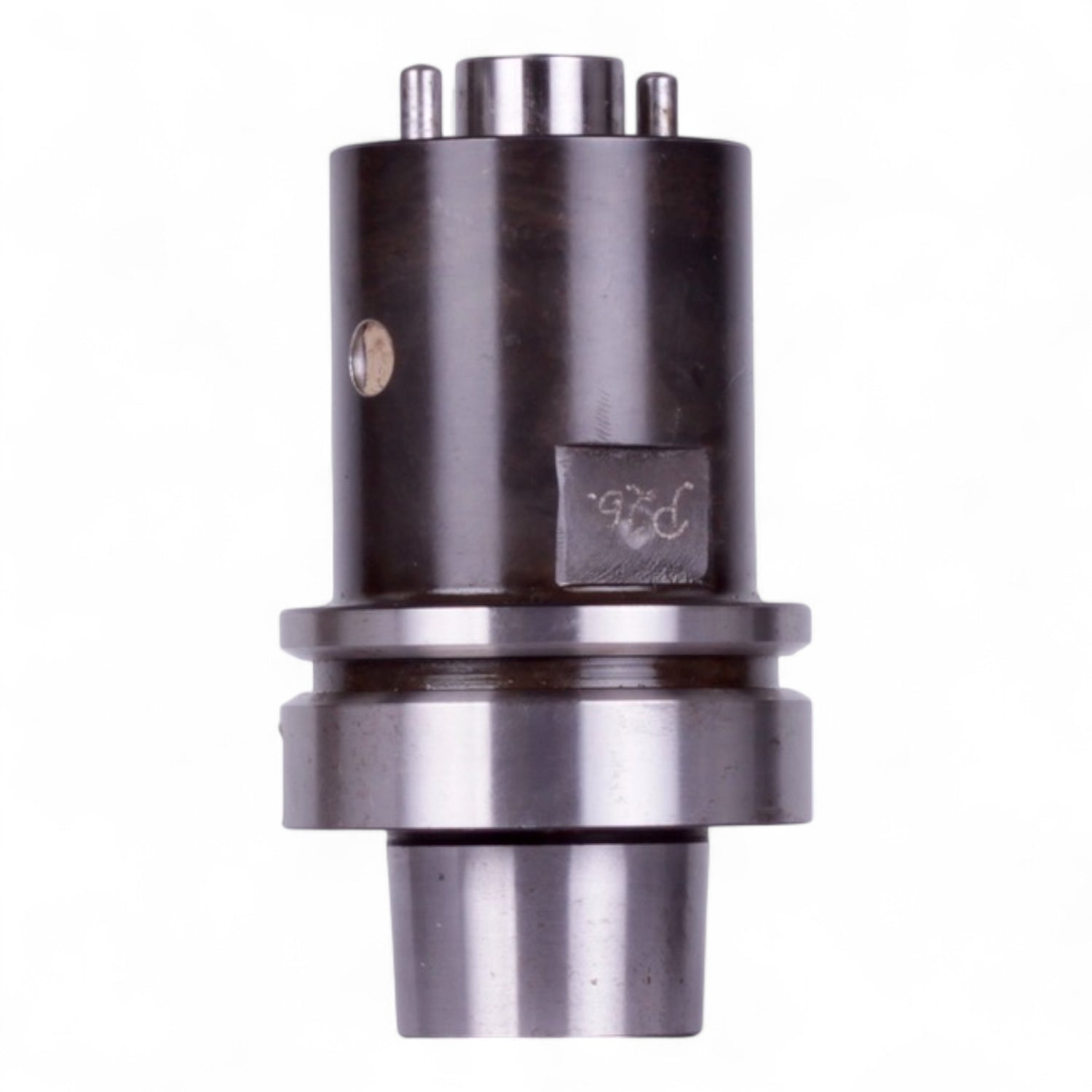

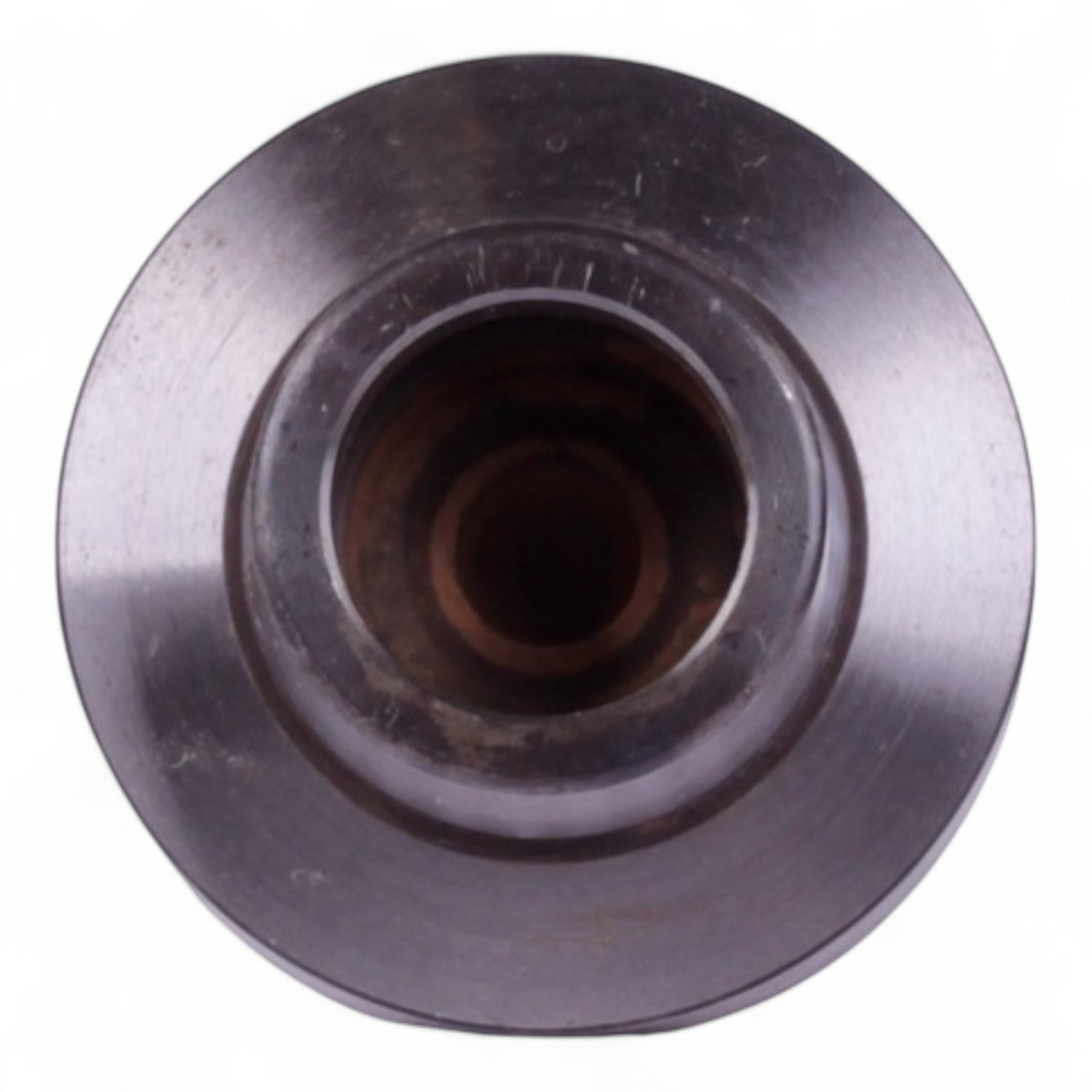

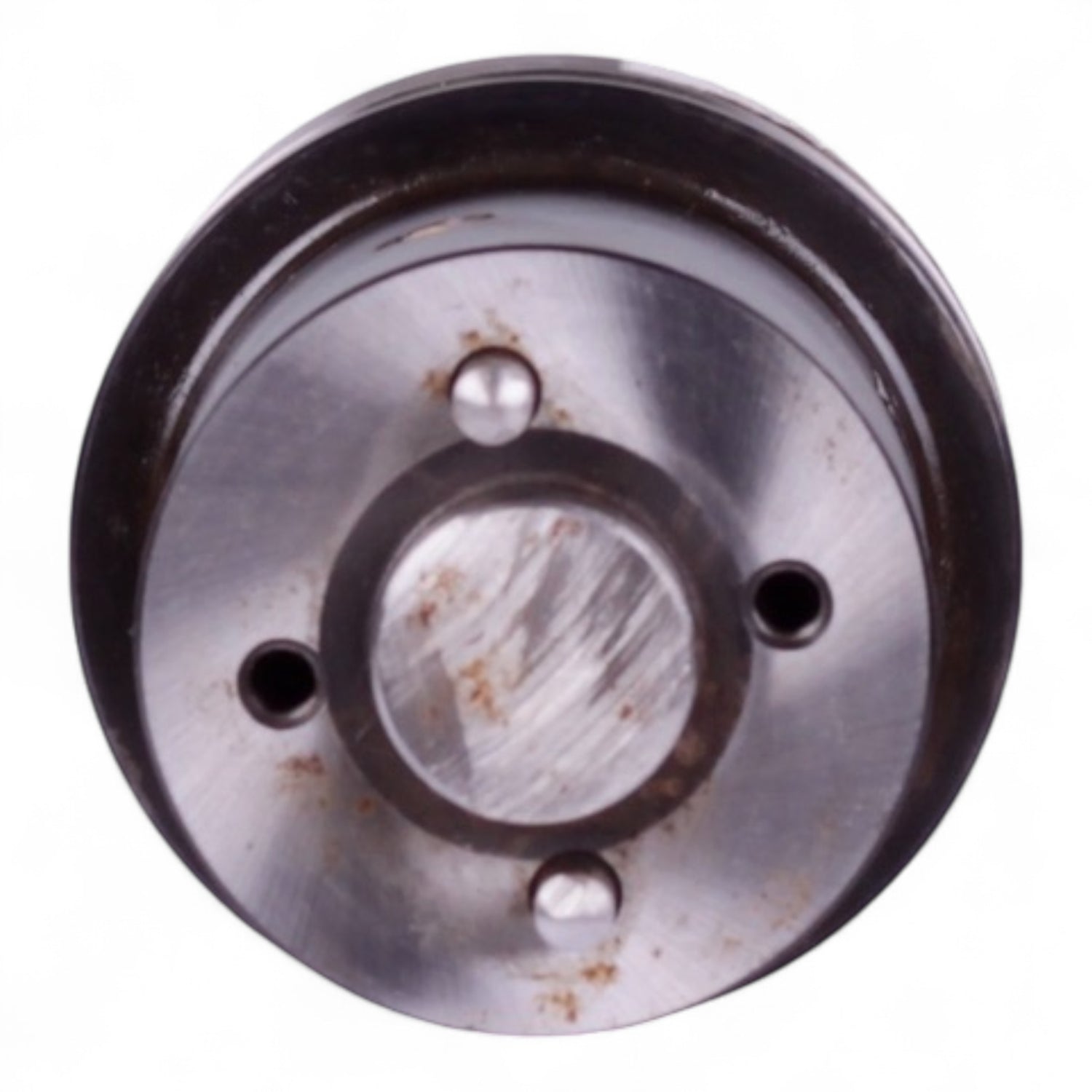

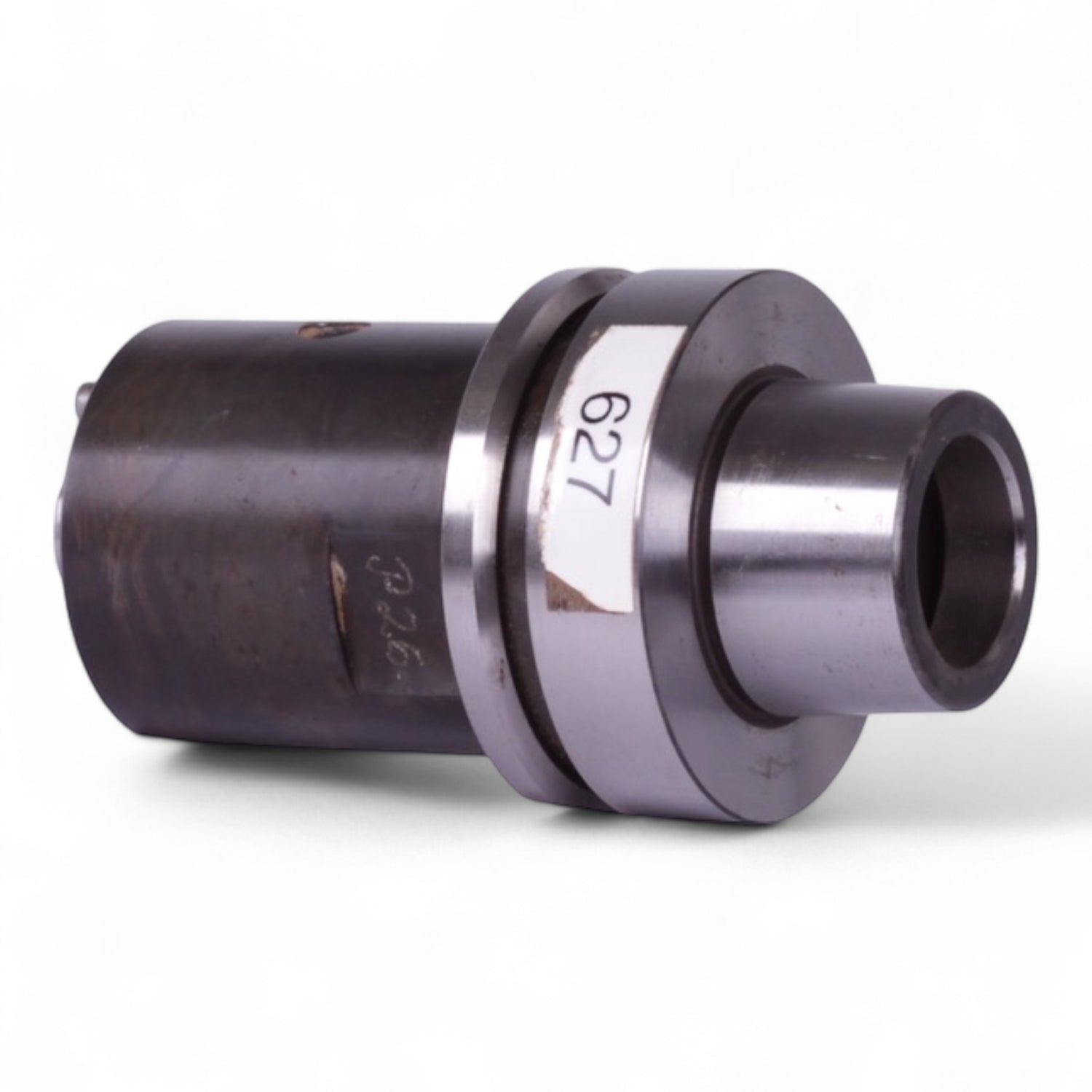

HSK 63 F holder with mounted spacer as shown without further accessories.

Note

The tool is used and shows typical signs such as scratches or slight discolorations.

Functionality is given; a technical inspection is recommended.

No returns possible.

Technical Data

Tool type HSK 63 F holder

Shank diameter 20 mm

Shank length 70 mm

Spacer 21 x 45 mm

Overall length holder approx. 70 mm

Material Tool steel

Commodity code 82077031

Shipping weight approx. 1.5 kg

Highlights

Compact HSK 63 F holder for short design

With suitable spacer for variable clamping lengths

Suitable for boring tools with 20 mm shank

Short description

HSK 63 F tool holder with spacer for boring tools, shank 20 x 70 mm, used, short and compact for CNC use.
