HSK 63 38 B collet chuck with collet 13.8 mm

HSK 63 Type 38 B Collet Chuck with Collet 13.8 mm

Product Description: The HSK 63 Type 38 B collet chuck with 13.8 mm collet is a precision tool holder designed for use in high-speed machines. It is ideally suited for industrial milling and is specifically tailored to the requirements of IMA Quadroflex, Homag and similar machines.

Please note: This collet chuck is used and may show signs of storage, which do not affect its function.

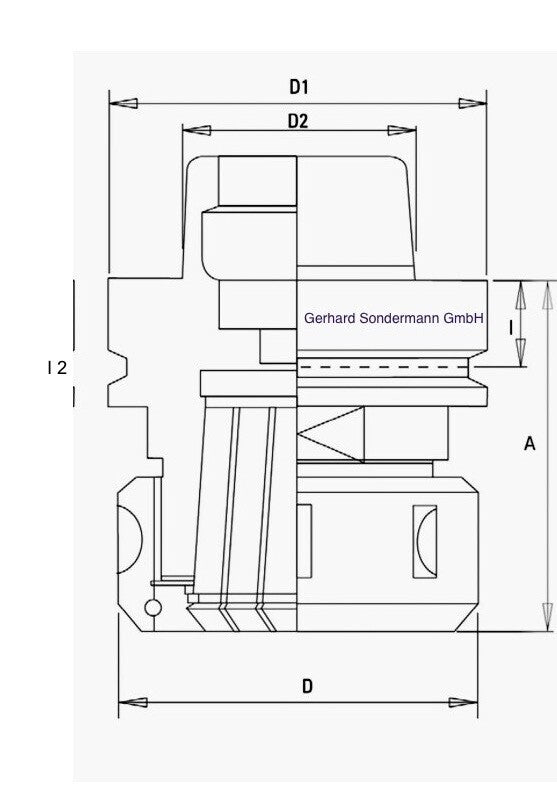

Technical Data:

• Type: HSK 63 38 B
• D (mm): 60
• D1 (mm): 63
• D2 (mm): 38
• I (mm): approx. 8.7
• I2 (mm): approx. 17
• Maximum speed: 24,000 rpm
• Material: High-quality steel
• Usage: For tools with 13.8 mm collet
• Application area: Suitable for clockwise and counter-clockwise rotation

Special Features:

• Fine-balanced for speeds up to 24,000 rpm
• Robust steel construction for maximum stability
• Optimal fixation for precise machining
• Compatible with older machines such as IMA Quadroflex or Homag

Note on design: This collet chuck differs in its dimensions from standard F-chucks. It is not recommended to combine different chuck systems on one machine, as this can lead to damage to the spindle and tool changer.

Scope of Delivery:

• HSK 63 Type 38 B Collet Chuck with Collet 13.8 mm

Note on used tool holders:

• Tool holders may show signs of wear, discoloration, engravings or light signs of corrosion. However, these do not affect the function.
• All tools are treated with corrosion protection agent, which may be visible in brownish color in some photos.
• If tools or holders are damaged or only partially usable, this will be expressly mentioned.
• Tools are used and often not resharpened. The resharpening is the responsibility of the buyer.
• It is recommended to remove the corrosion protection agent before use.

If you require further information or have any questions, please do not hesitate to contact us!
