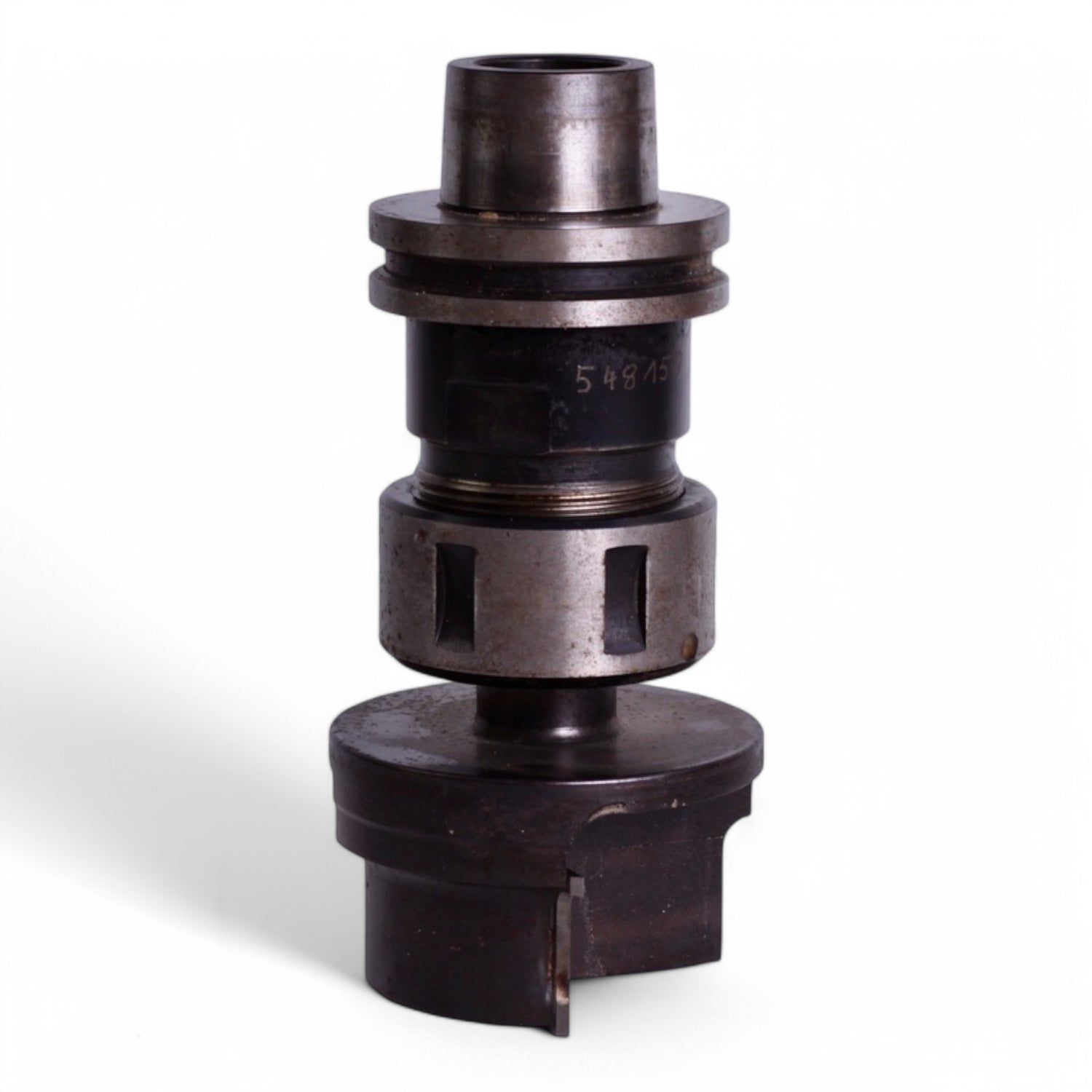

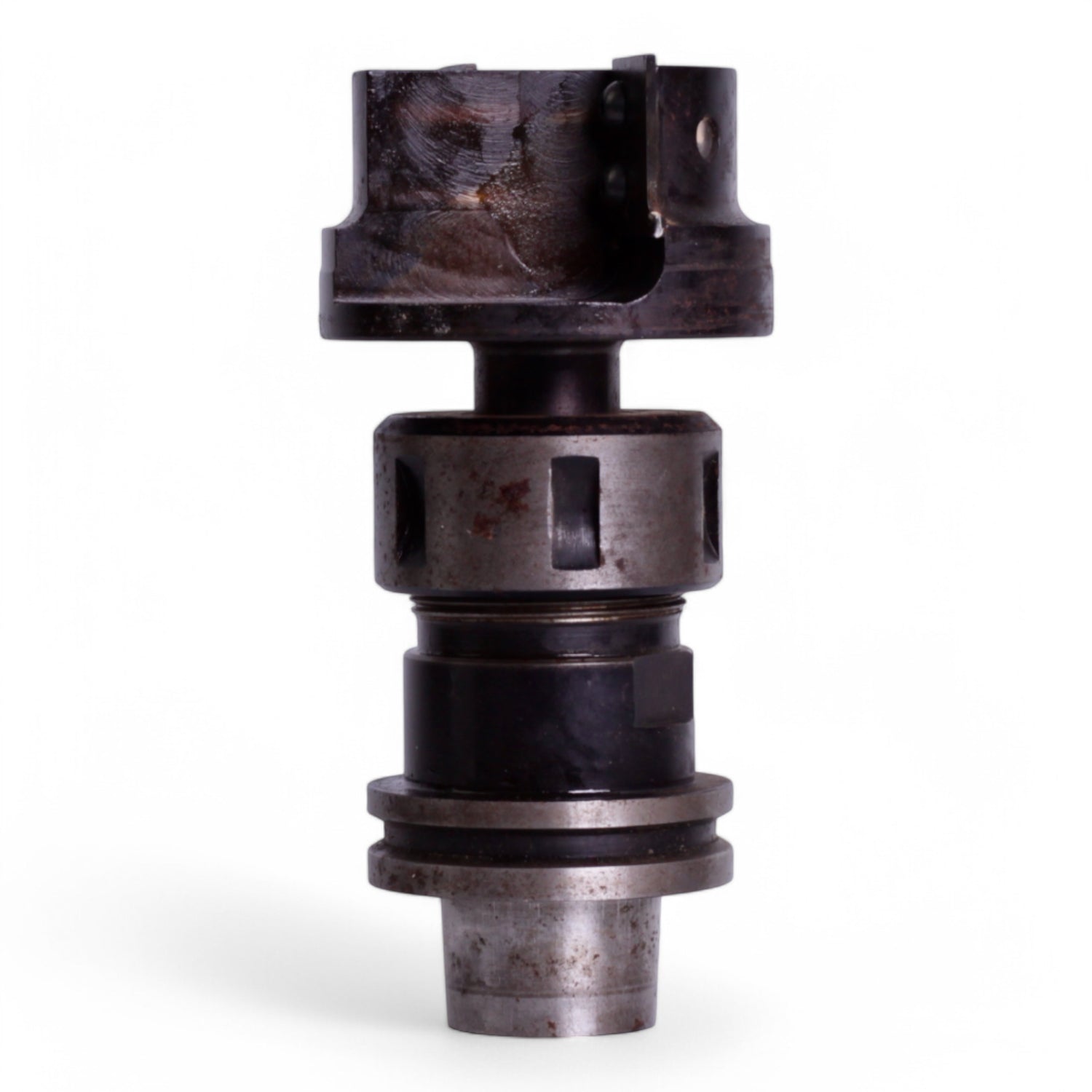

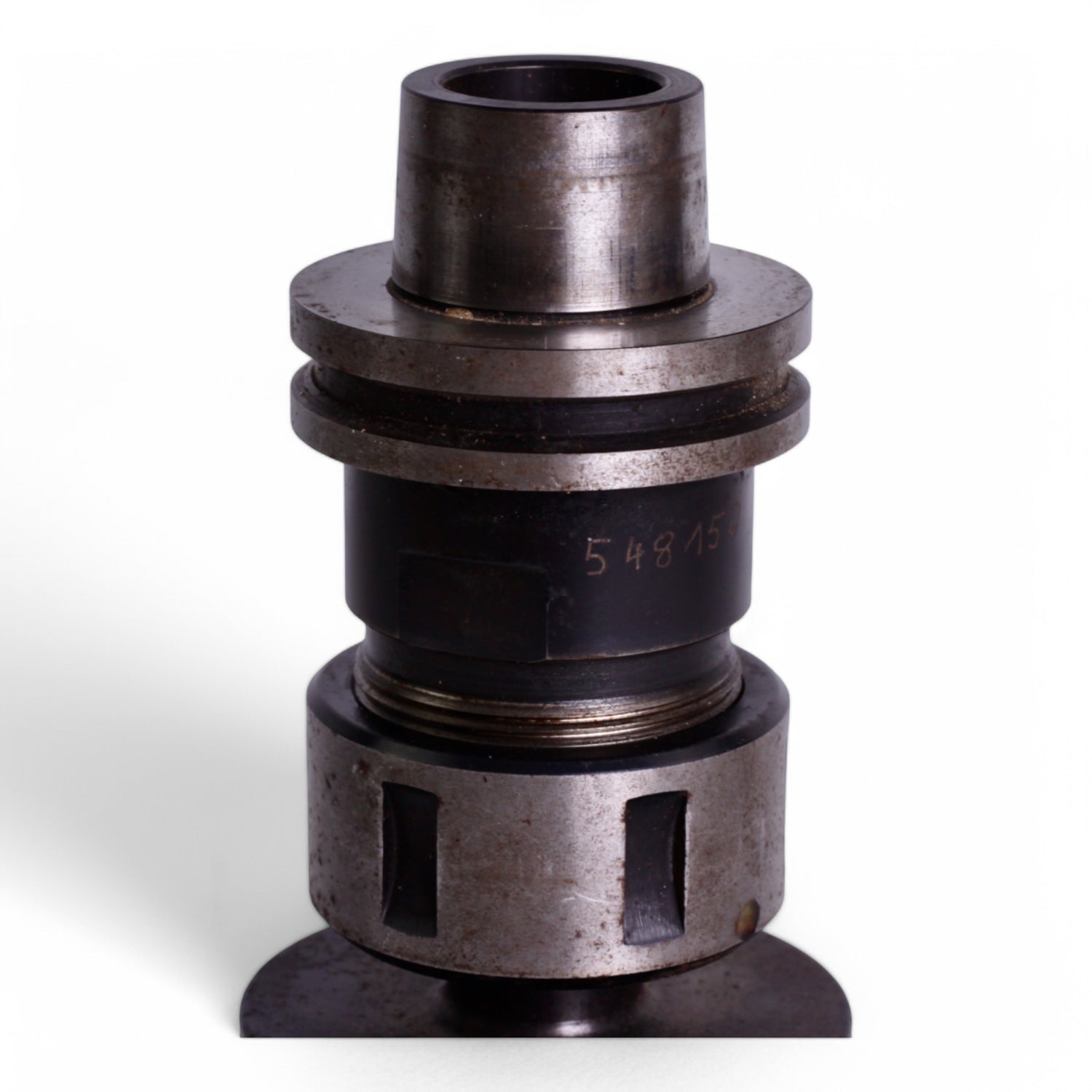

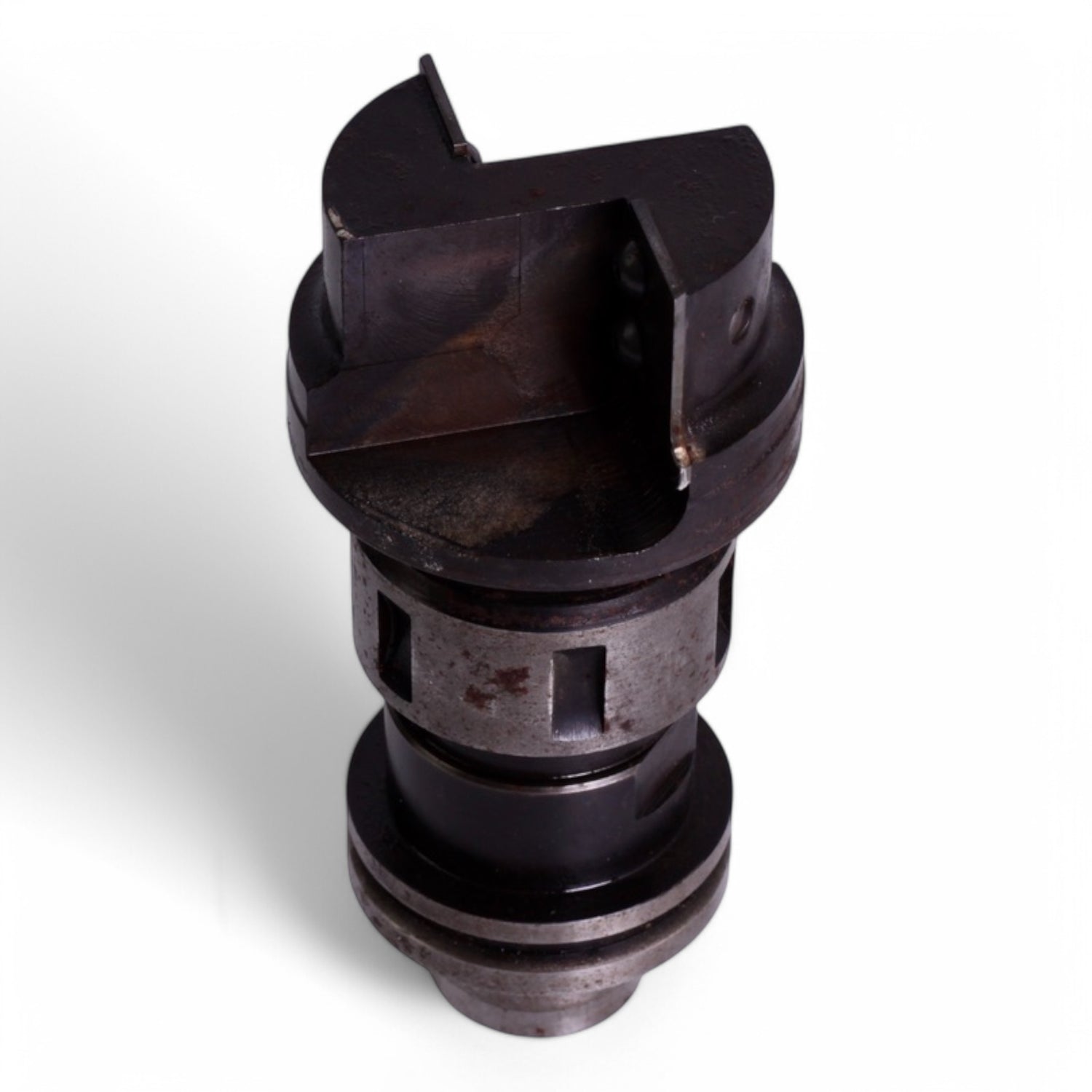

HSK 63 38 B collet chuck with radius cutter D=79.7 b=47.8 B=30.8

HSK 63 38 B Collet Chuck with Radius Cutter D=79.7 b=47.8 B=30.83

Product description: The HSK 63 38 B Collet Chuck with Radius Cutter is a precise tool holder for demanding milling operations. It was specially developed to ensure high-precision machining at high speeds of up to 24,000 rpm. The included radius cutter with 25 mm shank is ideal for applications with high demands on precision and tool life.

Attention: This holder does not conform to the usual DIN standard, but to the 38 B specification. The distance from the bottom edge of the holder to the top edge of the shank is 43 mm.

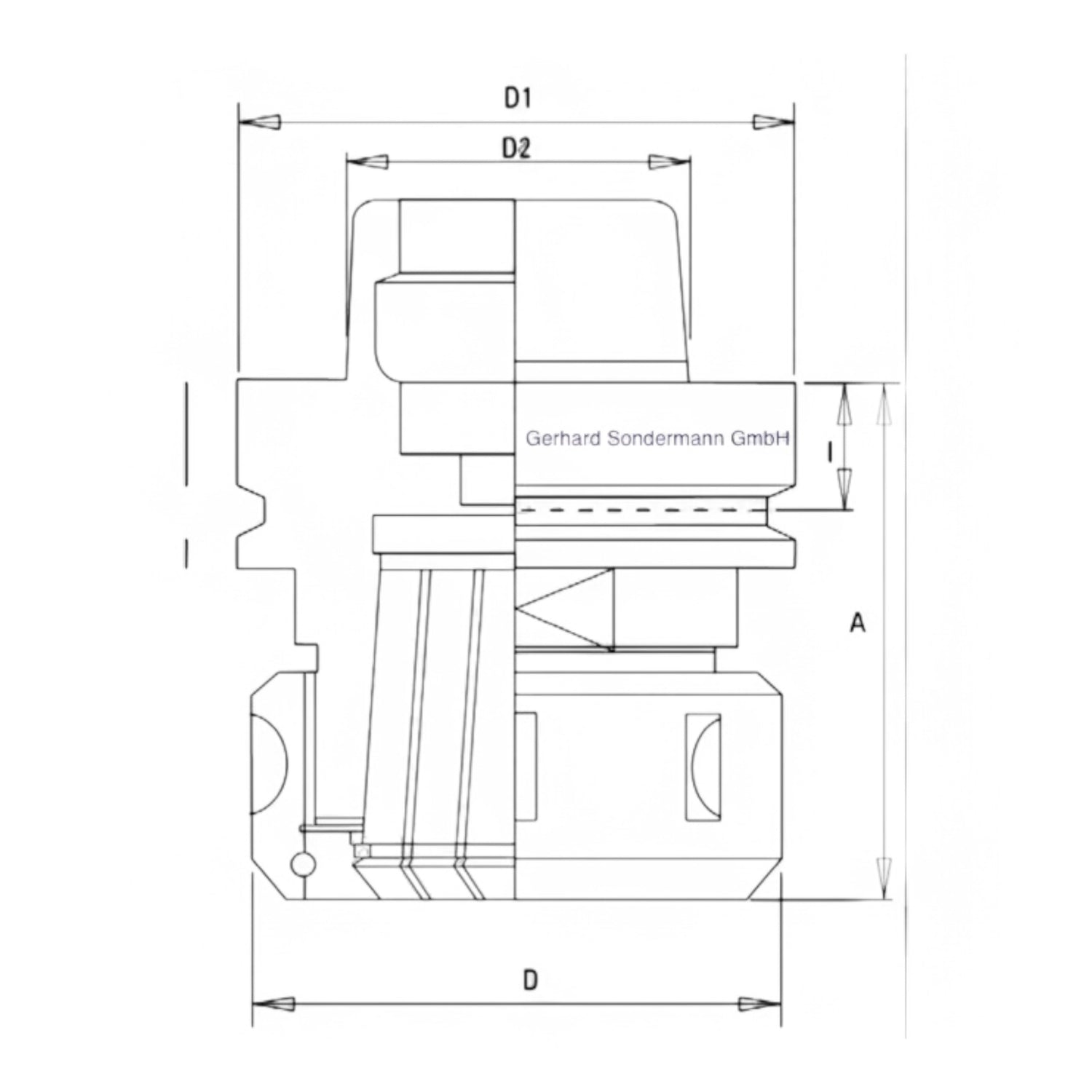

Technical data:

• Type: HSK 63 B
• A (mm): 76
• D (mm): 60
• D1 (mm): 63
• D2 (mm): 38
• I (mm): 9
• Maximum speed: 24,000 rpm
• Clamping range (mm): 2 - 25
• Material: High-quality steel

With end mill:

• Diameter: approx. 30 mm usable length
• Shank: 25 mm
• Diameter: approx. 9 mm
• Inserts: Diamond

Special features:

• Finely balanced for speeds up to 24,000 rpm
• Robust steel construction for maximum stability
• Special 38 B holder – not compatible with DIN standard holders

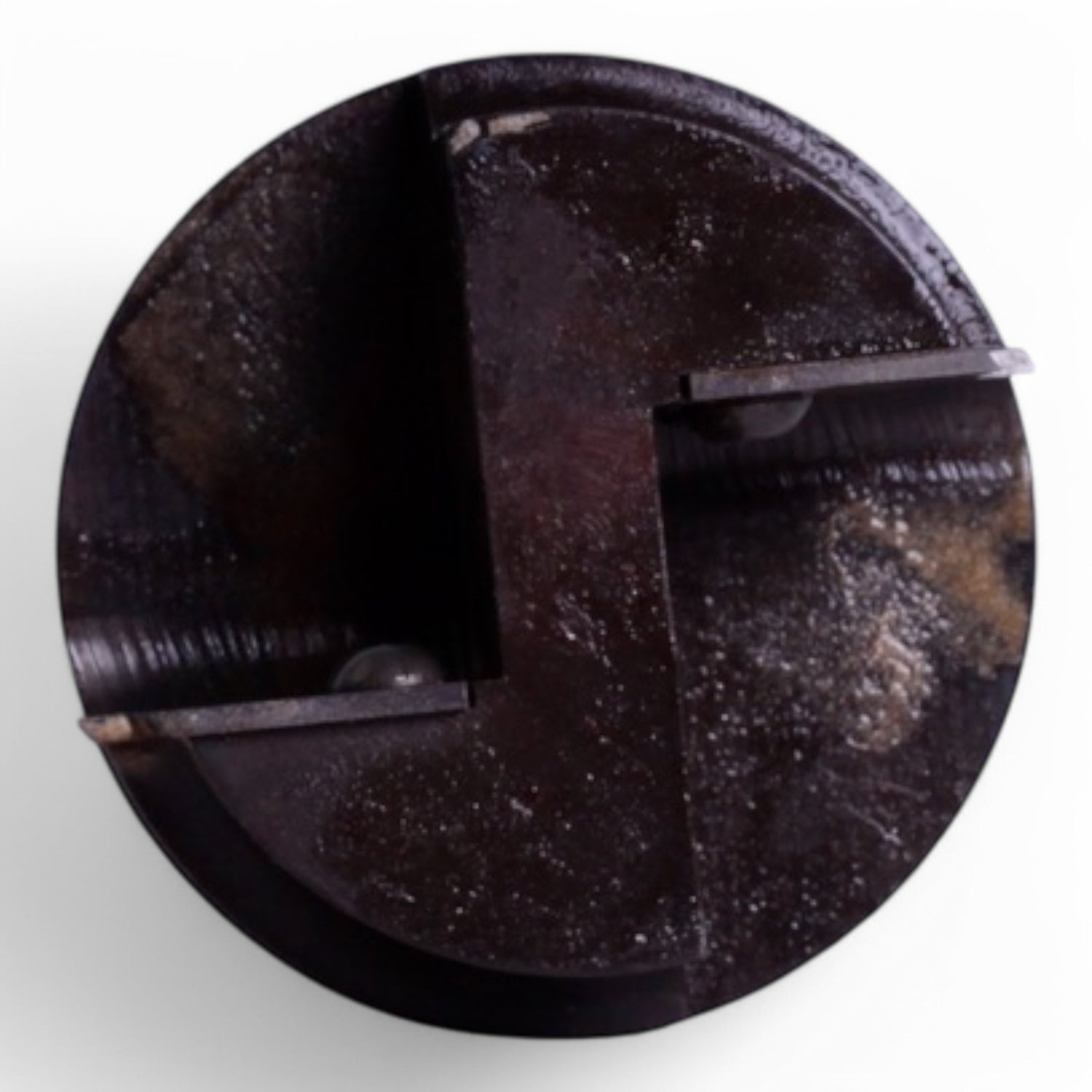

• High-precision radius cutter with diamond-tipped cutting edges
• Ideal for high-precision machining in CNC milling machines
• Dimensional tolerances possible

Scope of delivery:

• HSK 63 38 B Collet Chuck with Radius Cutter D=79.7 b=47.8 B=30.83

If you require further information or have any questions, please do not hesitate to contact us!
