HOMAG Servo Axis Card Used HOMAG BOF / BAZ

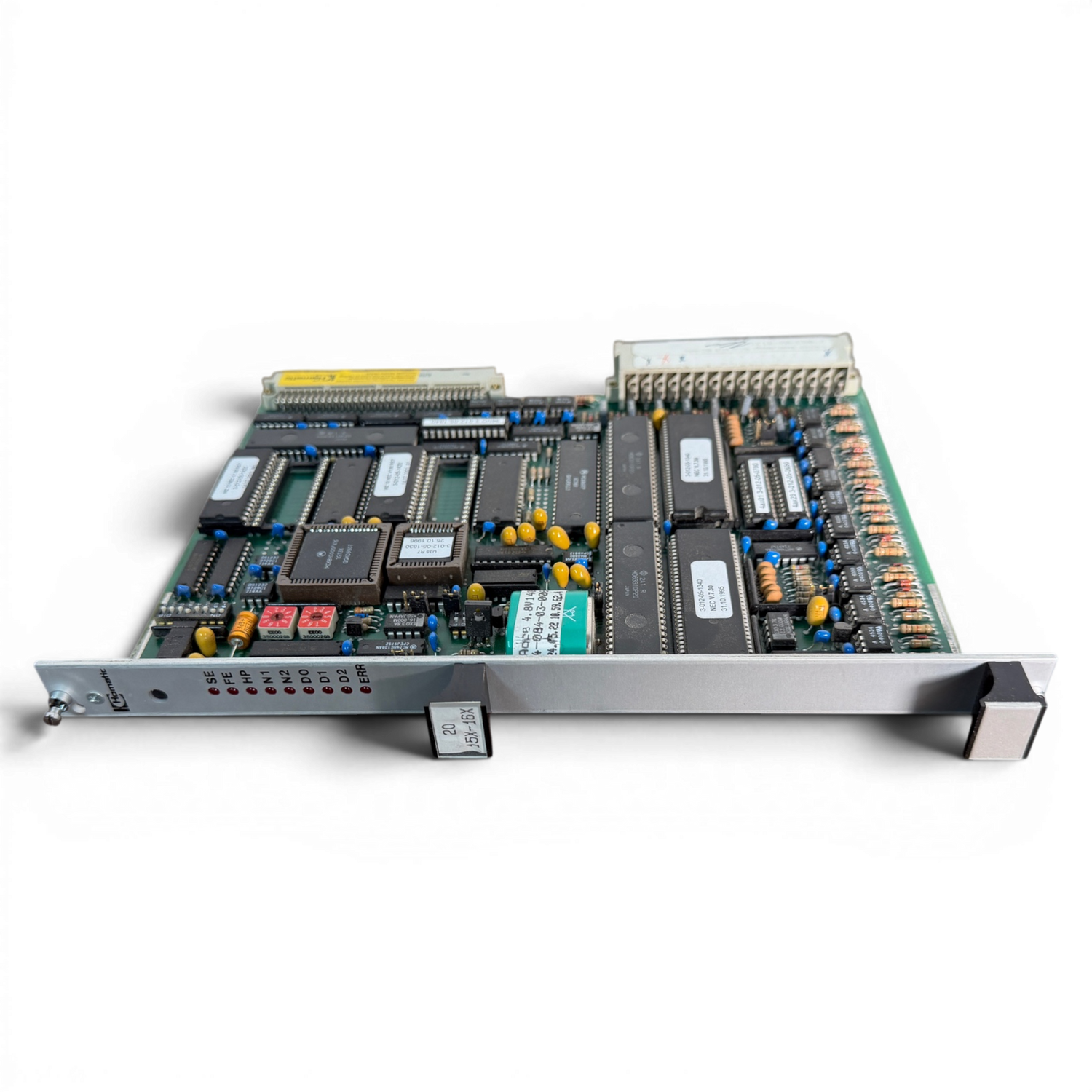

HOMAG Servo 4-Axis Card WZ10 NEC Rev.7 – 2-083-02-8131

Original HOMAG 4-axis servo control board on the NEC platform, updated revision with WZ10 NEC V1.80 R5/7 firmware – for HOMAG BOF / BAZ machining centers.

2-083-02-8131

Main item no.

4 axes

Servo control

WZ10 NEC

Platform

Rev.7

Hardware rev.

V1.80

Firmware

Before you order: compare the HOMAG number 2-083-02-8131, the revision and the firmware / EPROM versions on your card with this one, and check your machine parameters. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	HOMAG
Card type	Servo 4-axis card
HOMAG item number	2-083-02-8131 / 2083028131
Label	4-Achser Rev07.homag 96I/O WZ10 NEC
System	WZ10 NEC
Revision	Rev.7
Axes	4-axis servo control
Processor	Motorola MC68HC000FN16
Firmware	WZ10 NEC V1.80 R5/7 (14.07.2001 R0 / R1)
EPROM version	NEC V7.30 (31.10.1995)

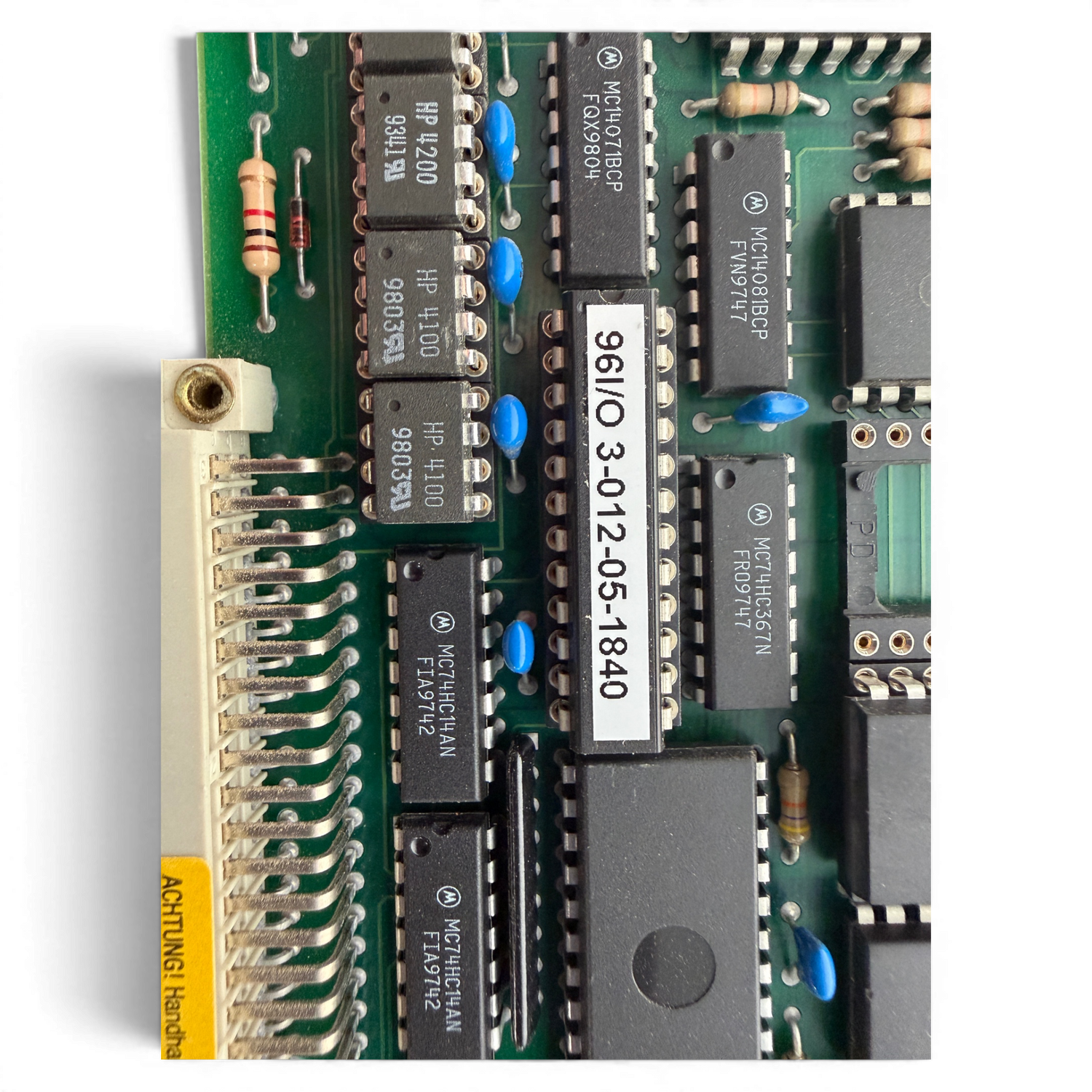

I/O module	96I/O 3-012-05-1840
Add-on modules	4ax01 3-012-05-0700 · 4ax23 3-012-05-0690
Further numbers	3-012-05-1420 · 3-012-05-1340 · 3-012-05-1840 · 3-012-05-1830
Backup battery	4.8 V battery module 4.8V140 · 1-084-03-0065
Configuration	DIP switches and jumpers
Connection	Industrial backplane connectors
Condition	Used · tested

Product description

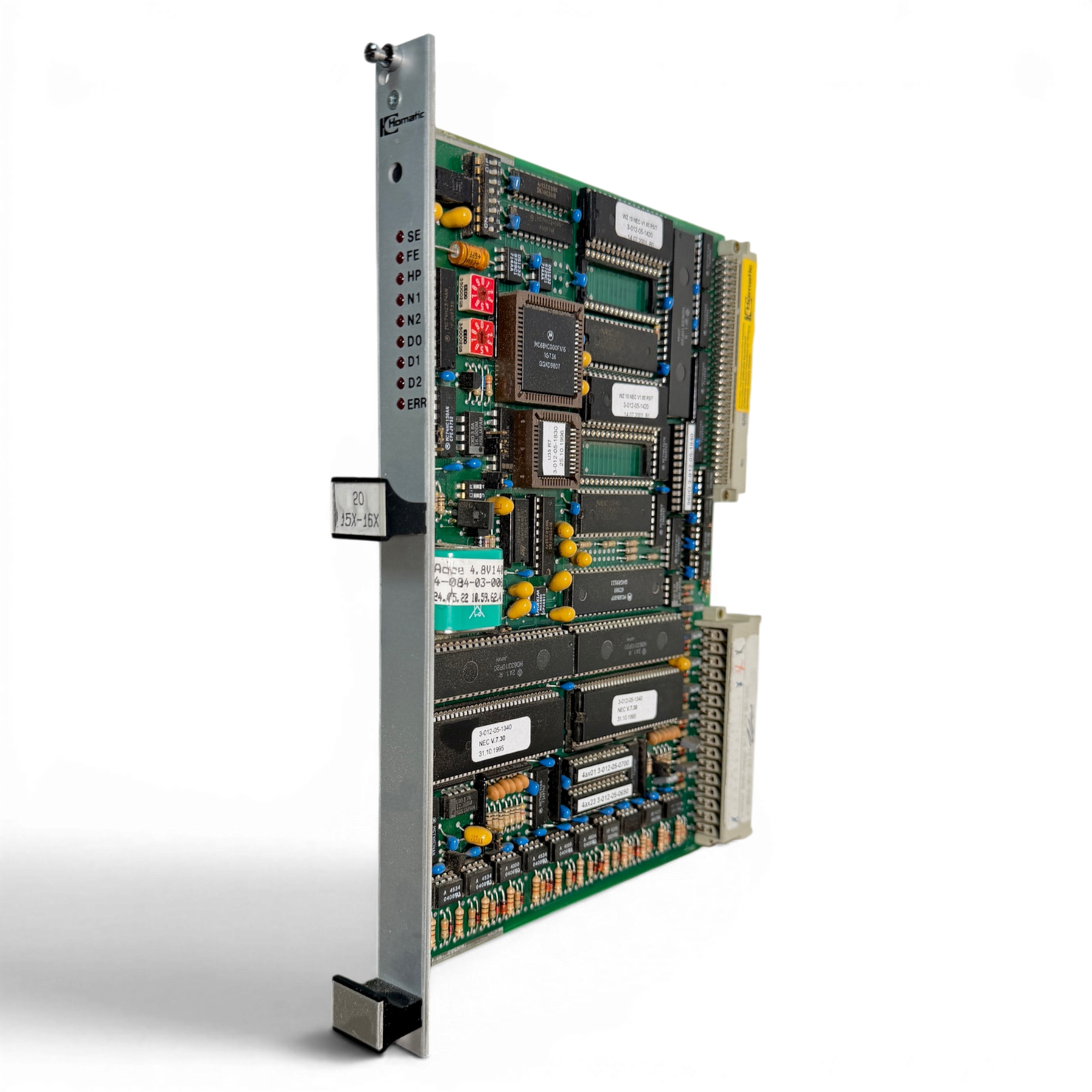

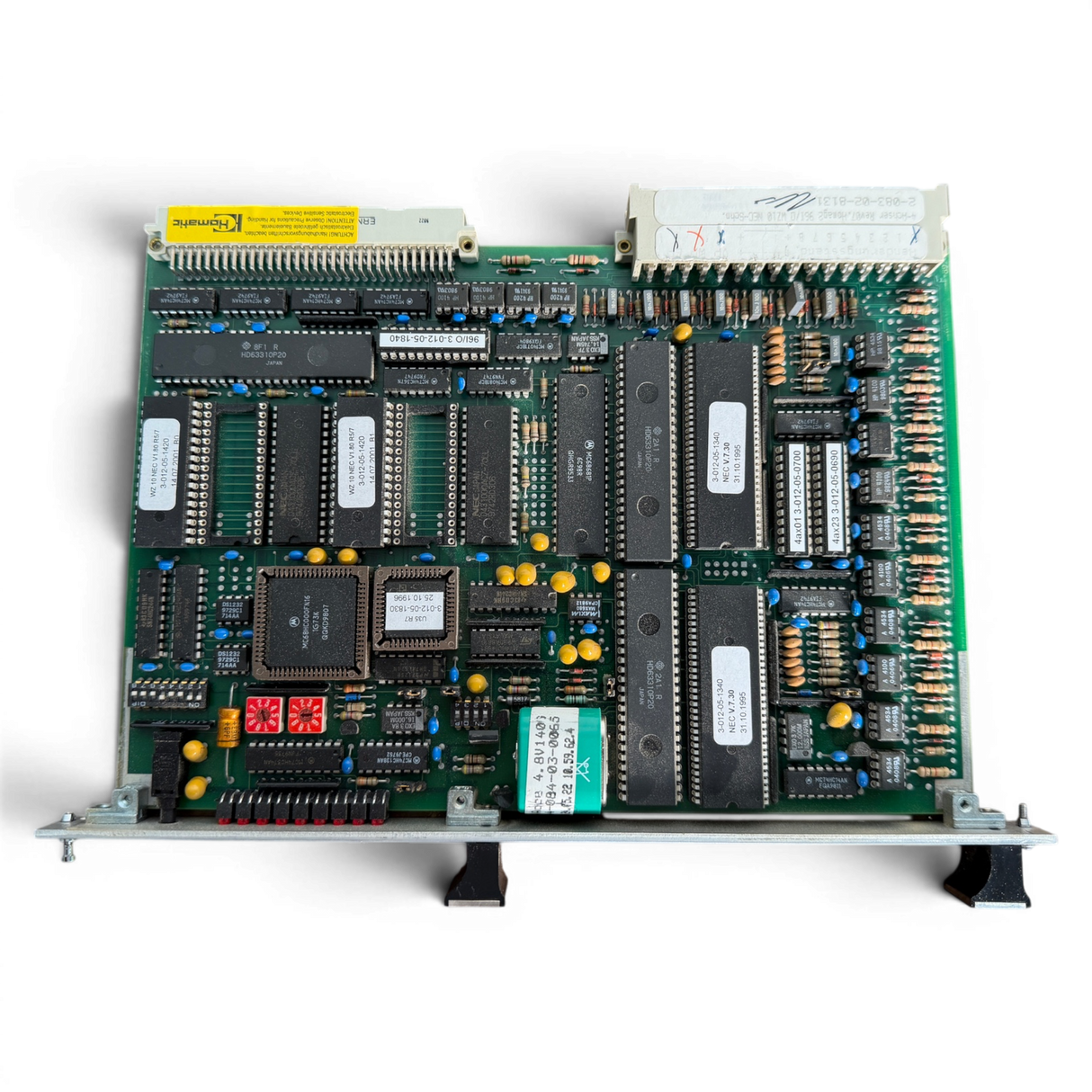

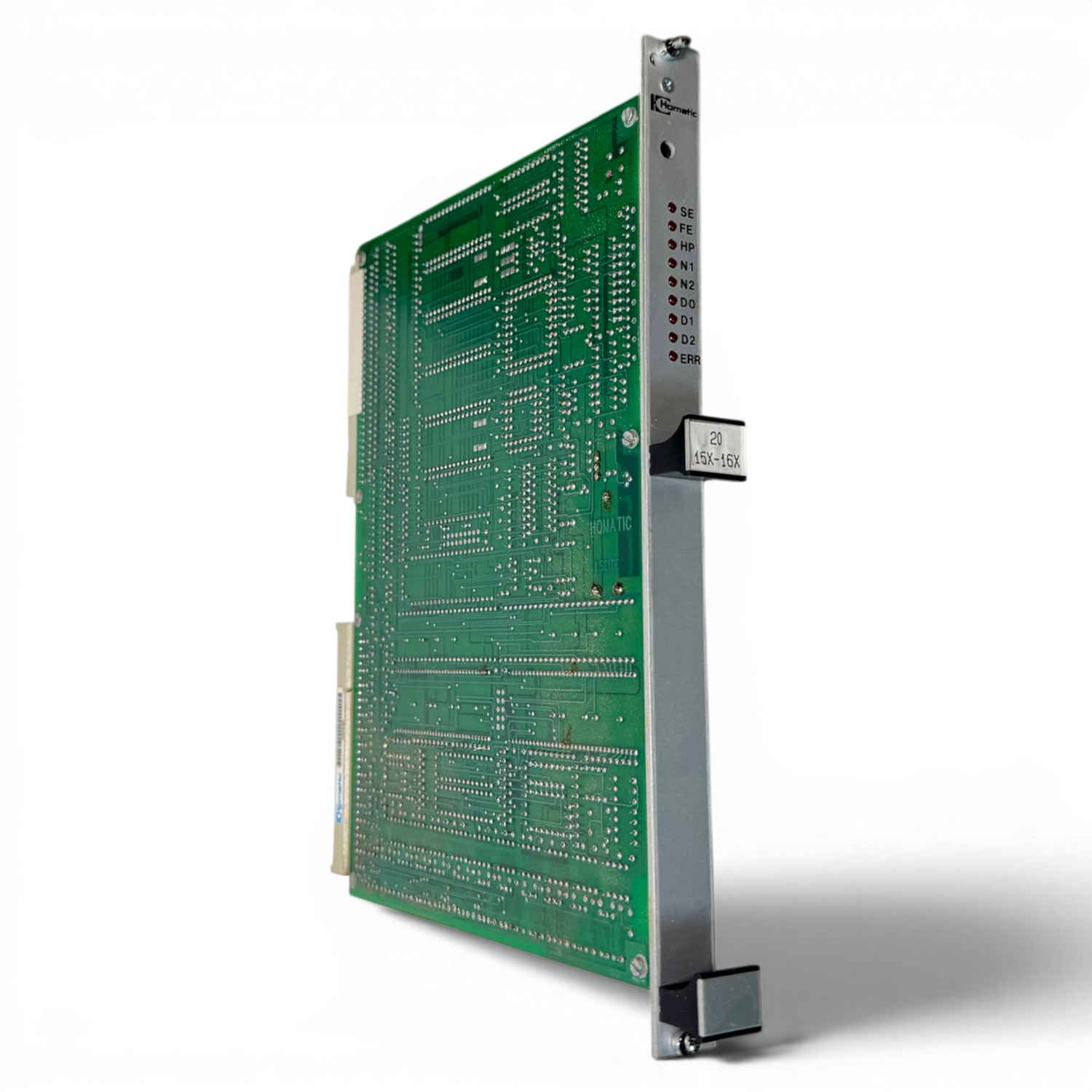

An original HOMAG servo 4-axis card WZ10 NEC Rev.7, HOMAG item number 2-083-02-8131. The board comes from HOMAG industrial CNC control technology and was typically used in HOMAG BOF and BAZ machining centers.

The card controls and processes axis movements in the machine control and is designed for 4-axis applications. It carries numerous industrial chips from NEC, Motorola, ST and HP plus logic, memory and interface components for precise signal processing and motion control, with a Motorola MC68HC000FN16 processor for real-time servo axis processing.

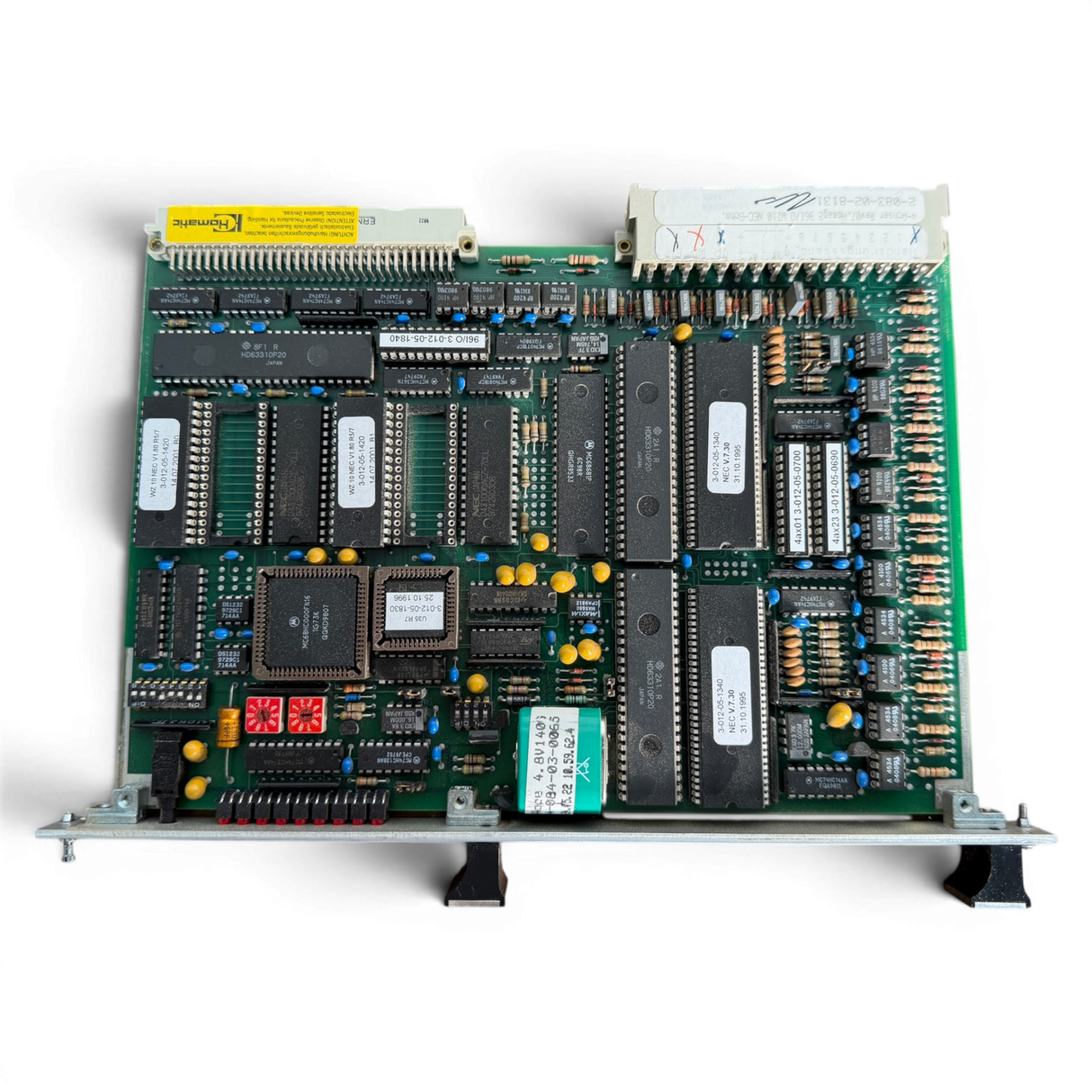

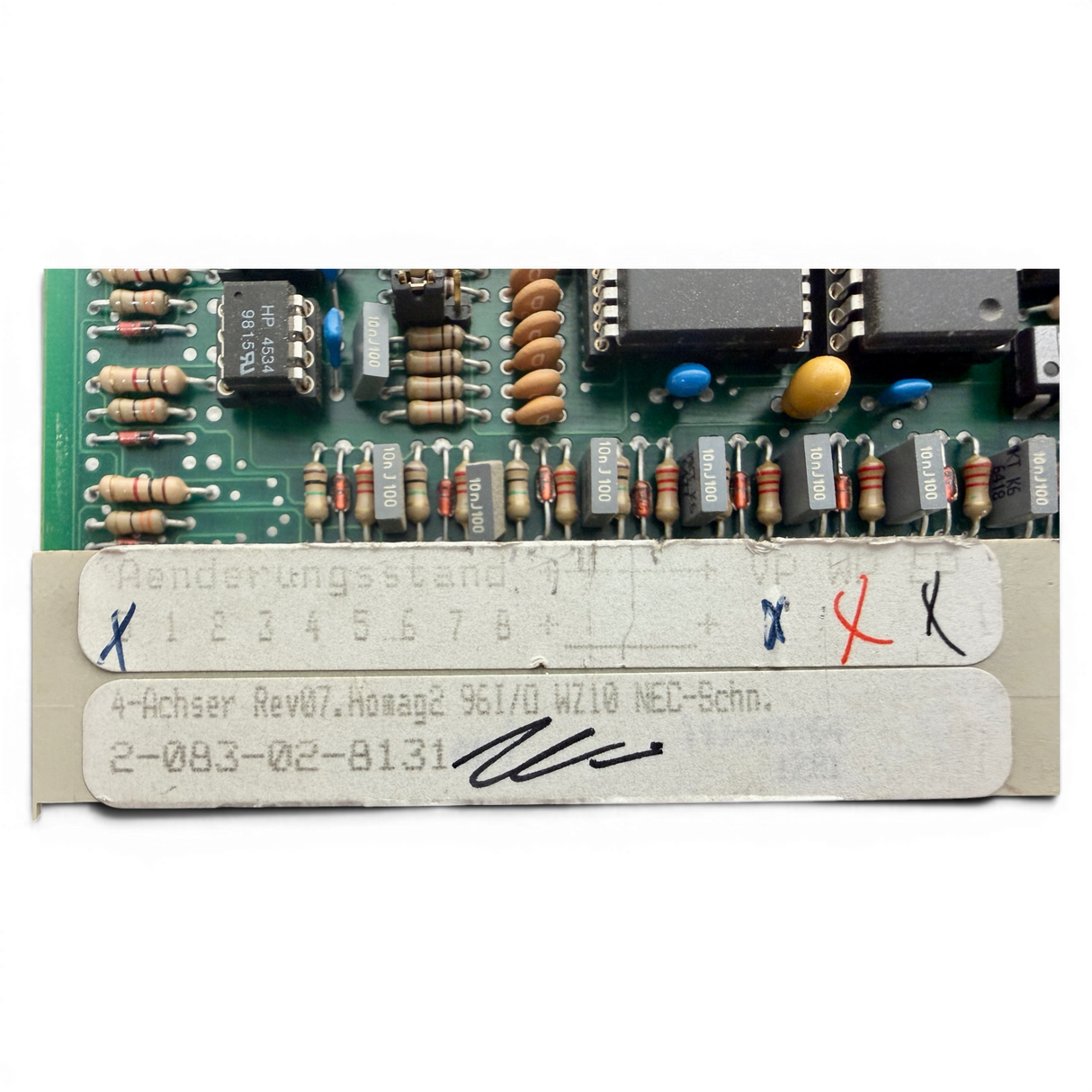

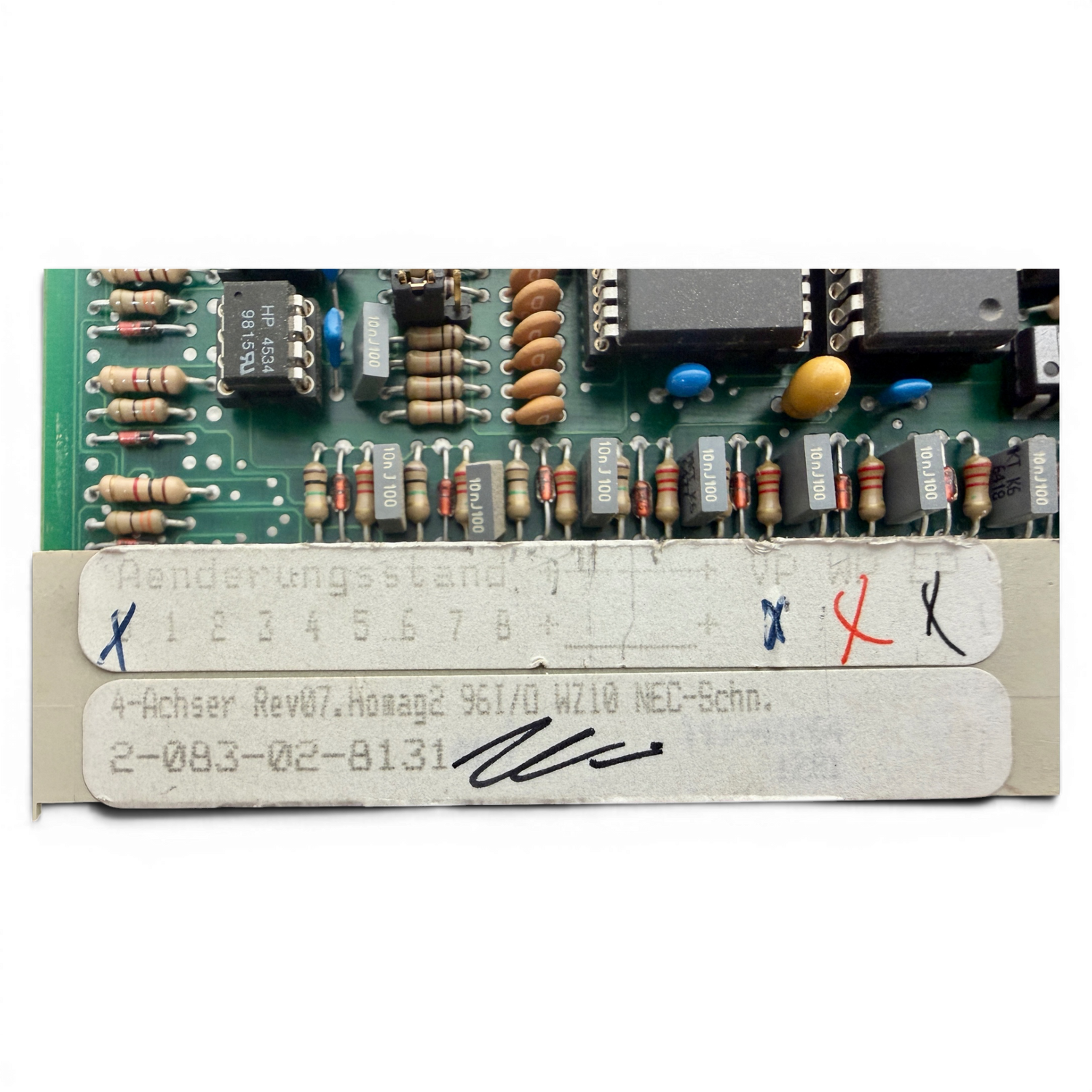

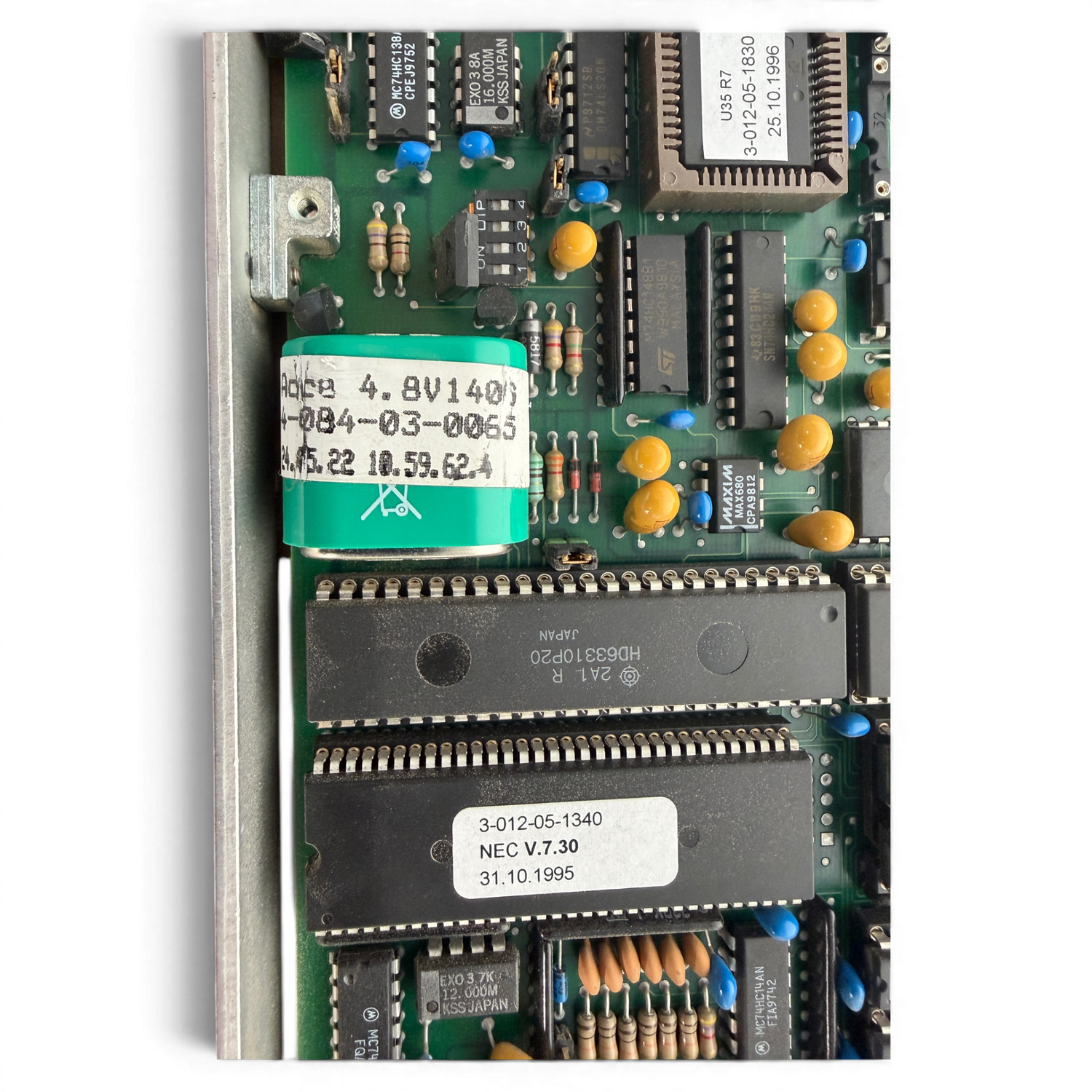

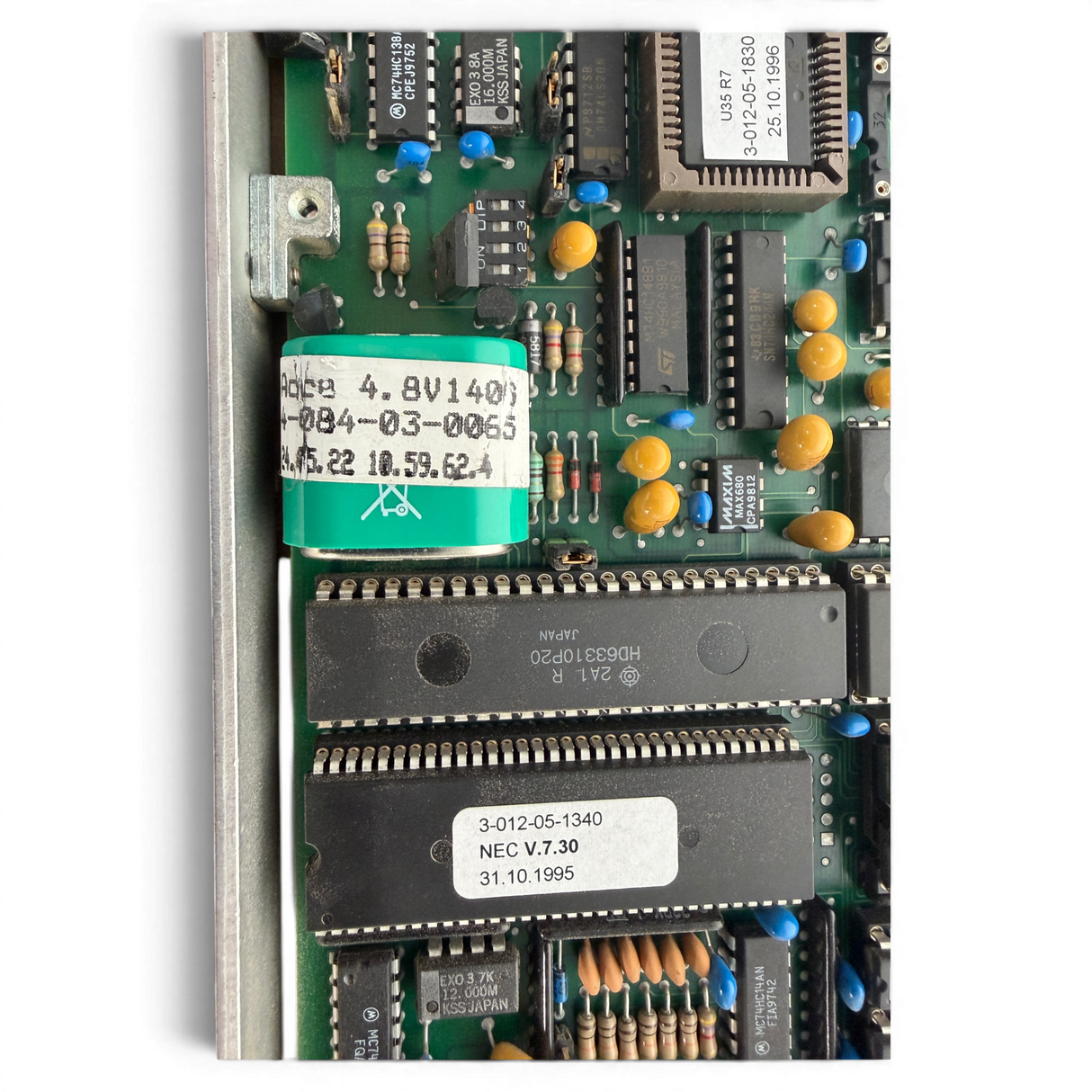

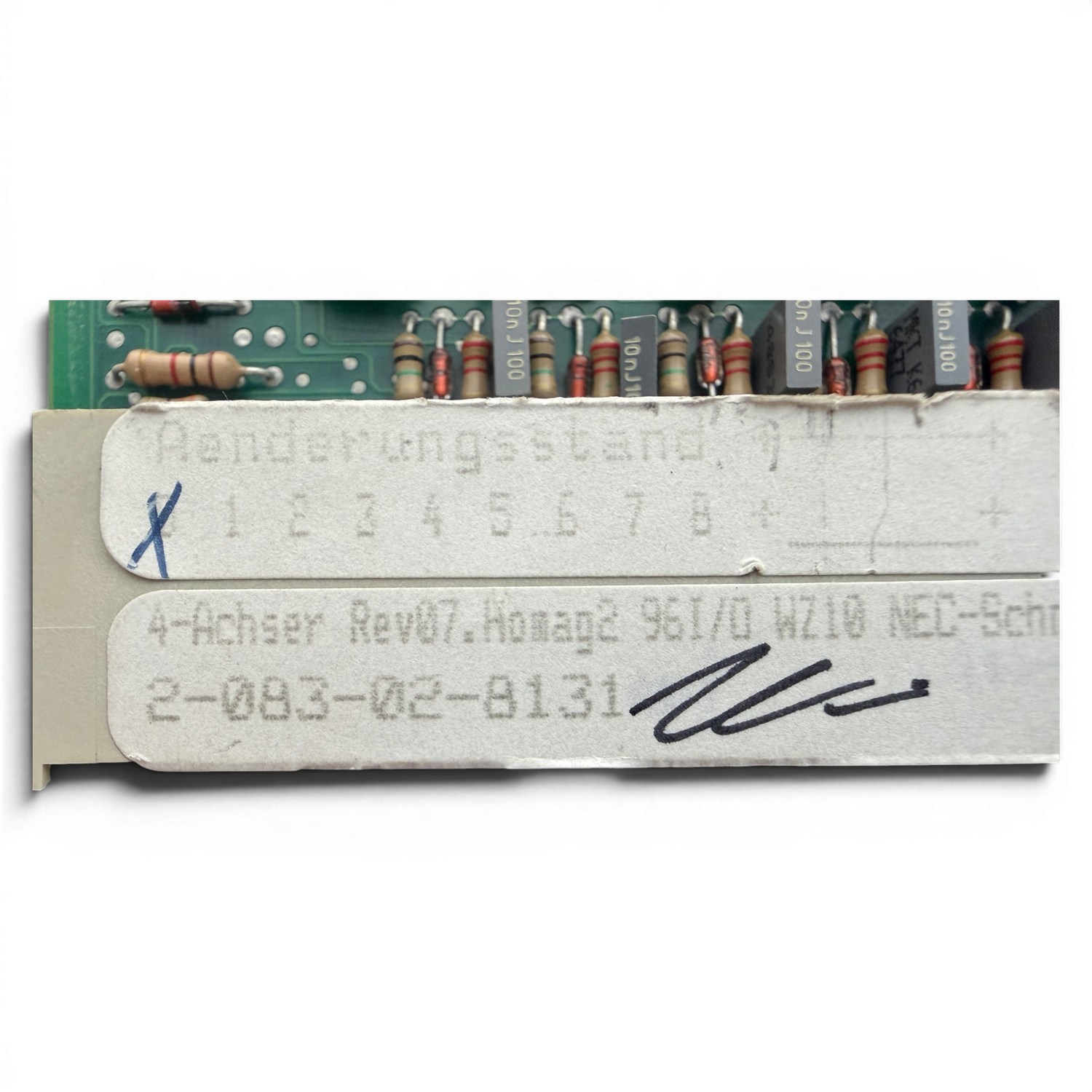

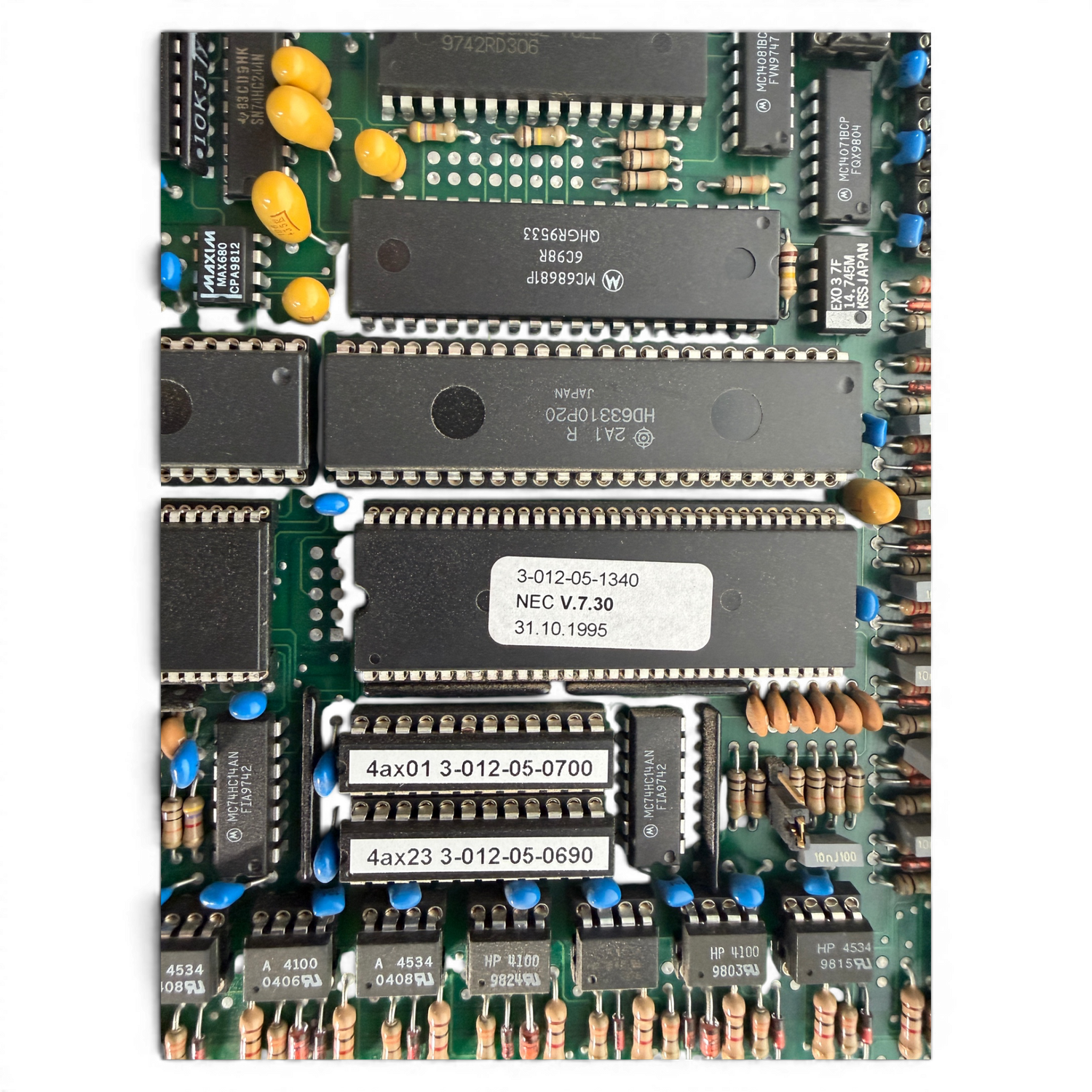

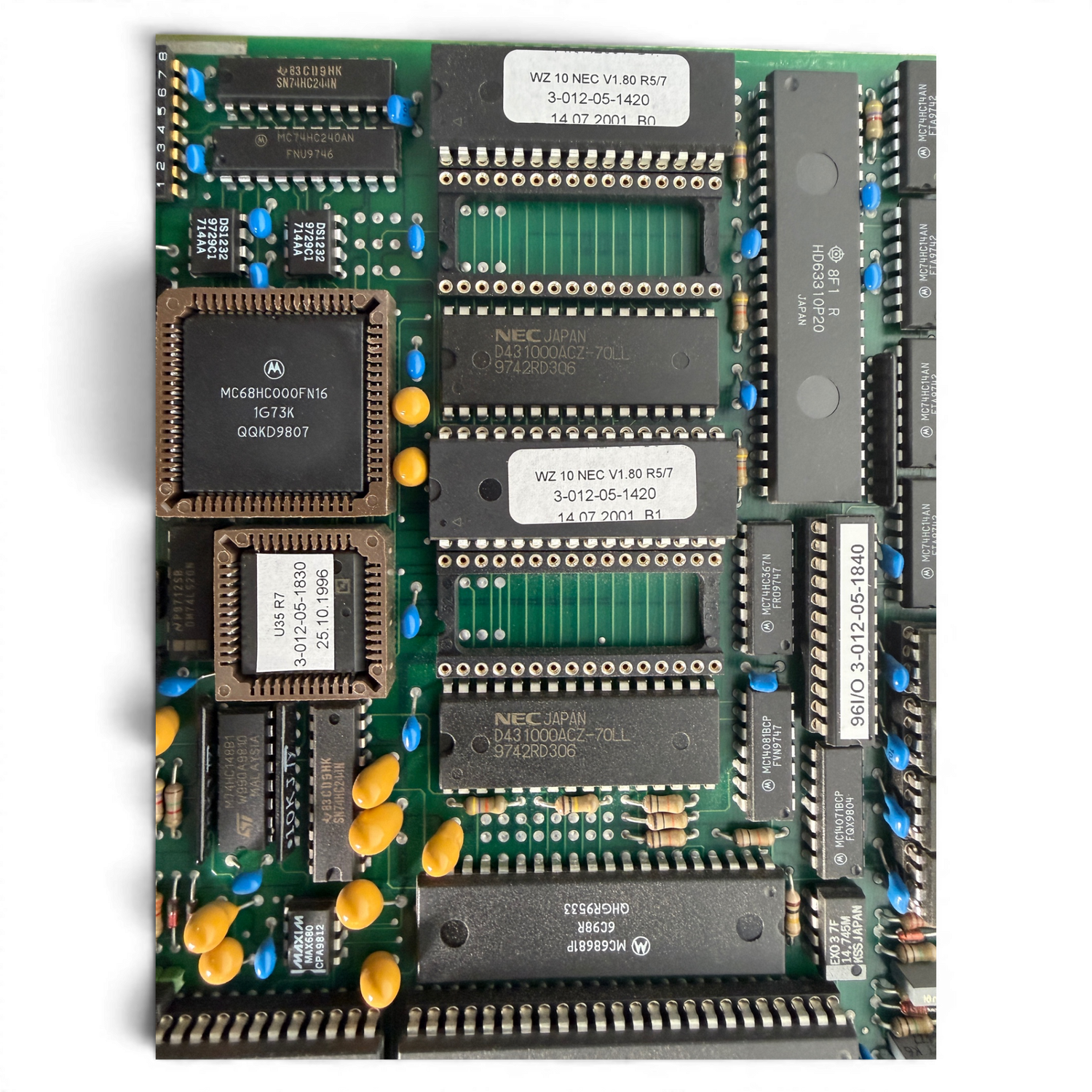

The board features updated firmware and EPROM versions: two WZ10 NEC V1.80 R5/7 firmware chips dated 14.07.2001 (R0 and R1), an updated revision compared with earlier NEC versions. Older NEC system EPROMs (NEC V7.30, 31.10.1995) and several HOMAG function and I/O chips are also fitted. The board label reads “4-Achser Rev07.homag 96I/O WZ10 NEC” with main number 2-083-02-8131.

High-quality construction with DIP switches, jumpers, EPROM sockets, filter and protection circuits. Removed from a running machine, in good visual condition with age-related storage and handling marks; labels, firmware versions, stickers and configuration as shown in the original photos. Ideal as a replacement part for existing HOMAG machines.

Compatibility & applications

HOMAG BOFHOMAG BAZHOMAG BAZ 32HOMAG BAZ 41WZ10 NEC96I/O4-axis servo control

On older HOMAG CNC controls, firmware versions, EPROM versions and machine parameters should be checked before replacement, as NEC revisions and WZ10 versions can differ.
