HOMAG motor filter 3 × 460 V 33 A – HOMAG 4-008-39-0375

HOMAG Motor Filter 4-008-39-0375 3 x 460 V 33 A

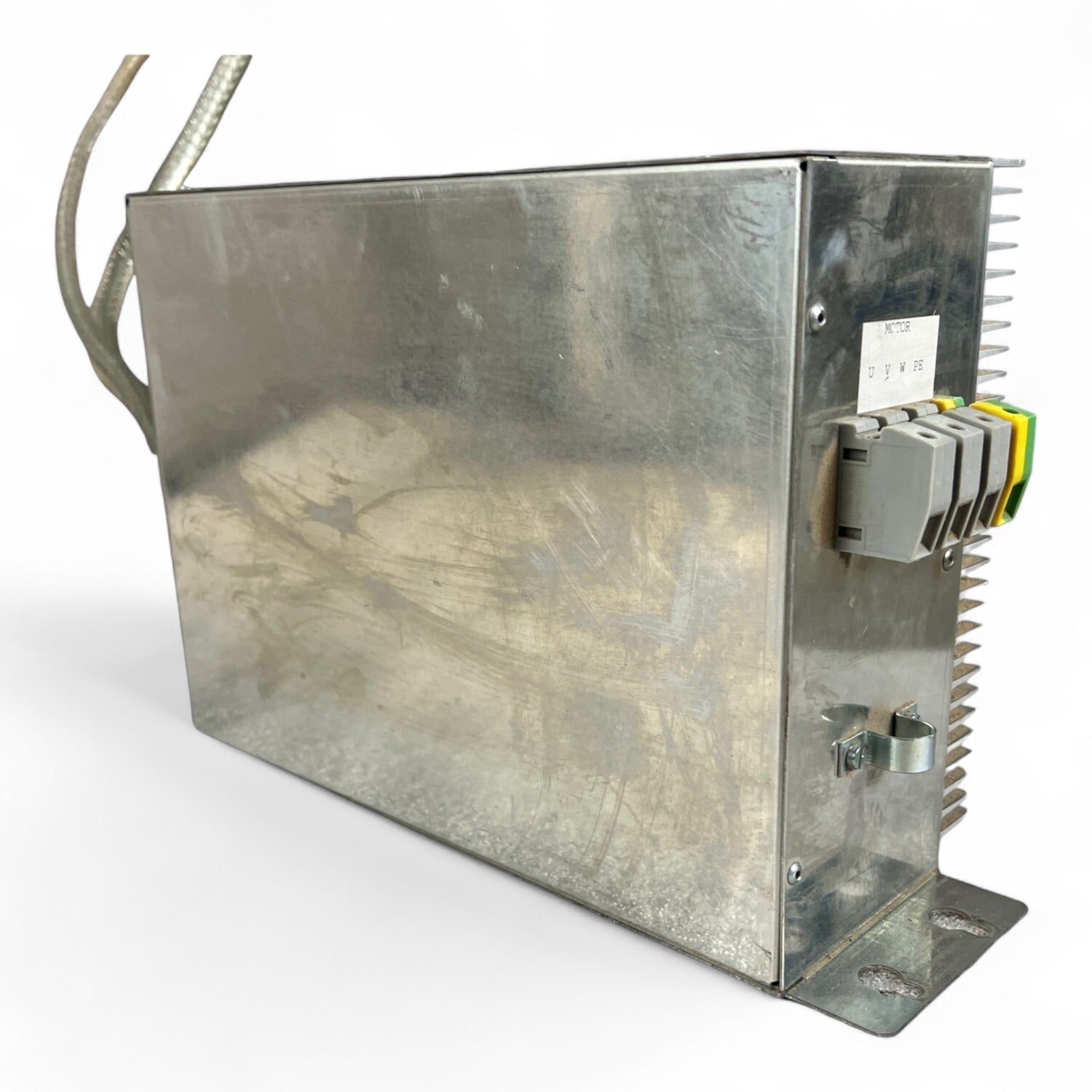

Powerful motor filter from HOMAG for reducing high-frequency voltage spikes in the drive system. The filter module is designed for industrial applications in machines with controlled motors and reliably protects against interfering frequencies. The robust aluminum housing with cooling fins and side mounting allows for easy integration into existing systems. The terminals are clearly labeled (U, V, W, PE), and the connecting cables are shielded.

Technical Features:

• Rated voltage: 3 x 460 V

• Current rating: 33 A

• Max. motor frequency: 800 Hz

• Switching frequency: 12–18 kHz

• Manufacturer: HOMAG

• Part number: 4-008-39-0375

• Housing material: Metal (shielded)

• Connection: Screw/spring terminals and shielded cables

• Mounting: With side mounting brackets

Scope of Delivery:

• 1x HOMAG Motor Filter 4-008-39-0375

• As shown in pictures, including connection cables and housing

Note:

Used item removed from a running system. The filter was removed in working condition; signs of use are possible. Sold without original packaging.

Technical Data:

Part number        4-008-39-0375

Commodity code          85044082

Shipping weight       approx. 14 kg
