HOMAG HOMATIC output card 16 x 24 V 1.0 A with FET, PNP, S/N H00035...
HOMAG Homatic Output Card 16 × 24 V 1.0 A 2 µs with FET PNP – Item No. 2083015408 – H00035765

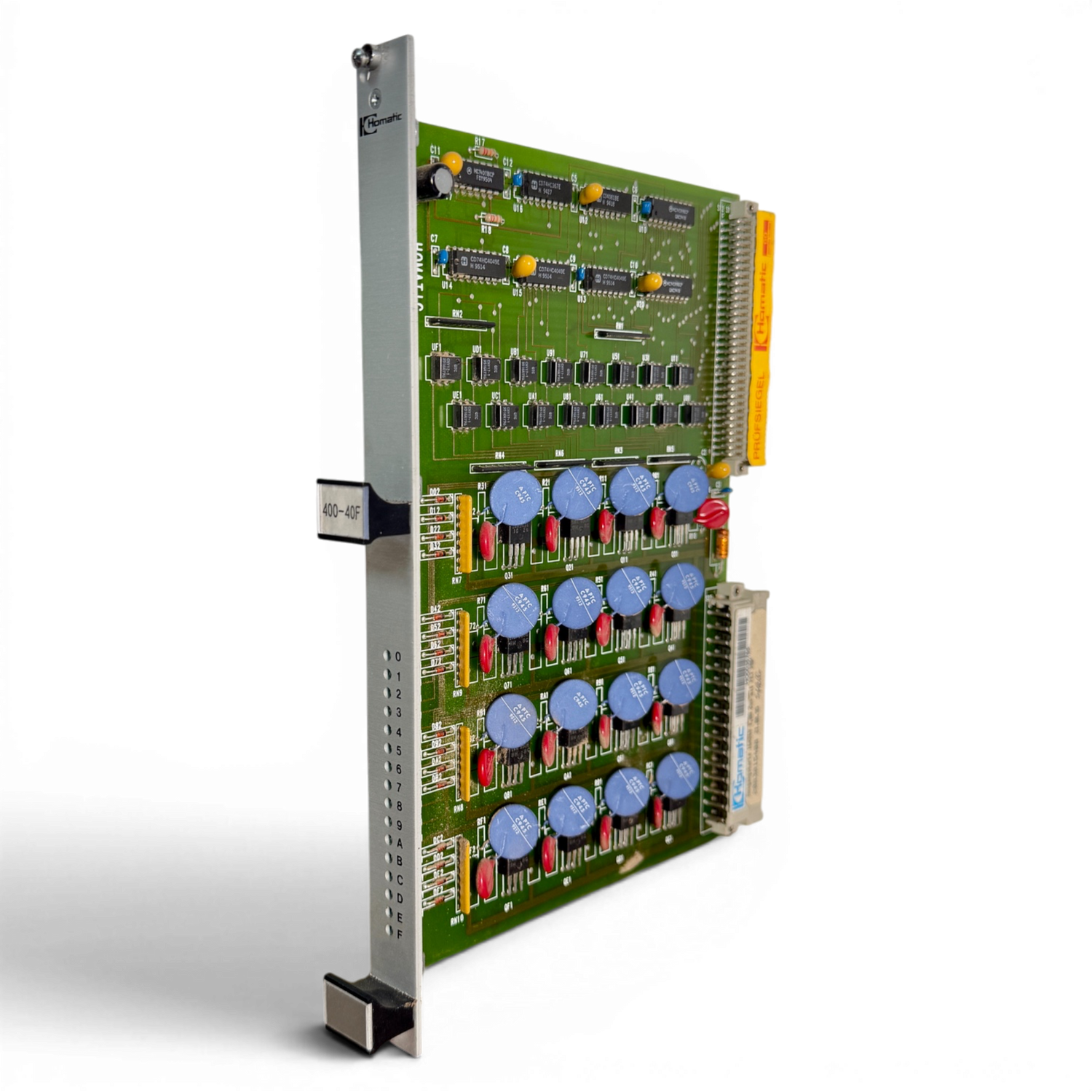

Original HOMAG / Homatic digital output card with 16 × 24 V FET PNP power outputs for HOMAG CNC controls – tested and working.
| Manufacturer | HOMAG / Homatic |
| Designation | Ausgangskarte 16x24V 1,0A 2us mit FET PNP |
| Item number | 2083015408 |
| Alternative notation | 20 830 154 08 / 2-083-01-5408 |
| Homatic ID | H00035765 |
| Card type | Digital output card |
| Outputs | 16 digital outputs |
| Operating voltage | 24 V DC |
| Output current | 1.0 A |
| Switching technology | FET PNP |
| Status display | Front channel LEDs 0 to F |
| Control system | Homatic CNC control |
| Revision | PC-Steuerung Ausgangskarte rev01 |
| Date marking | 21.08.95 |
| Condition | Used · tested, working |
Product description
Original HOMAG / Homatic output card for industrial machine controls and CNC automation systems. The card comes from a HOMAG control environment and switches digital 24 V loads within complex machine installations.

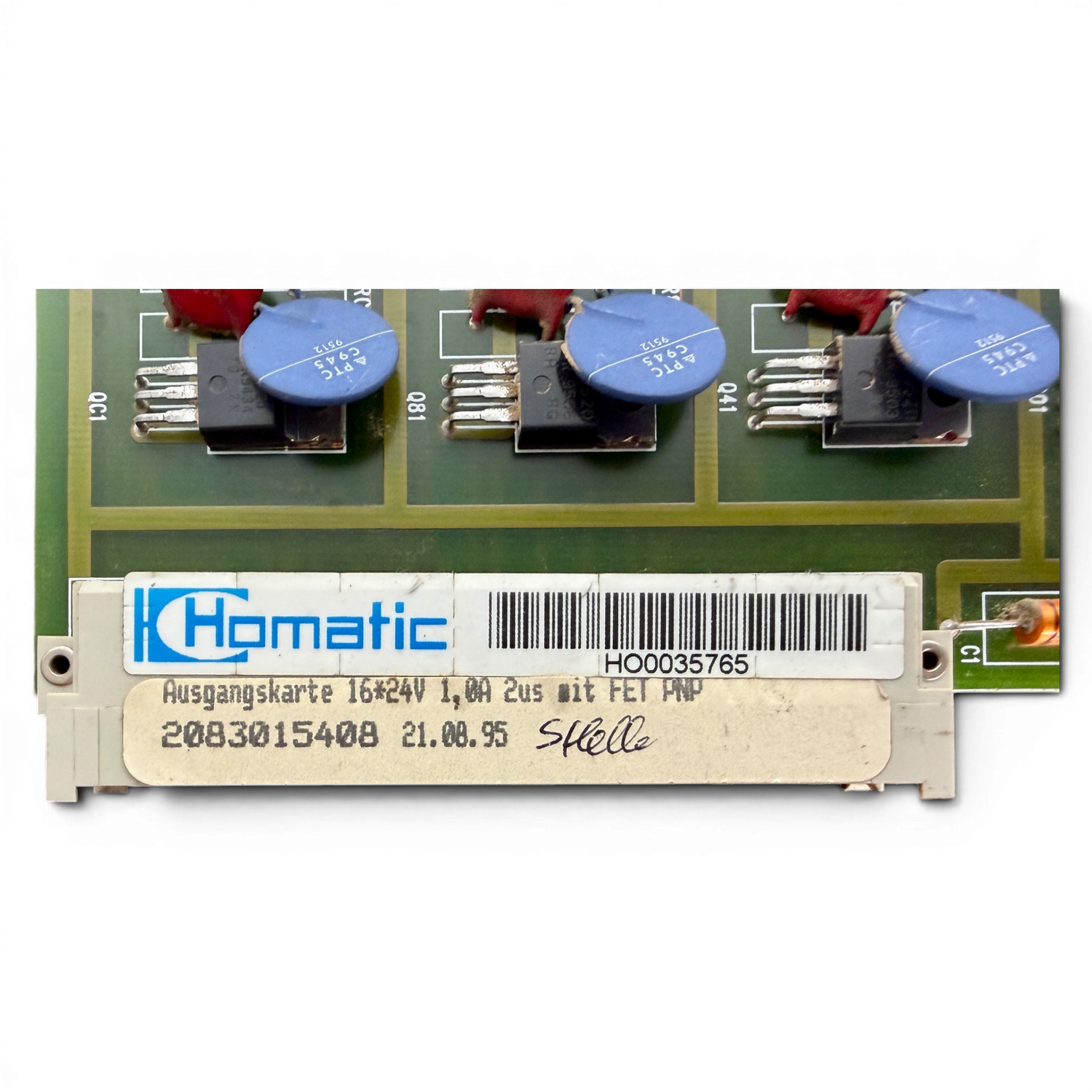

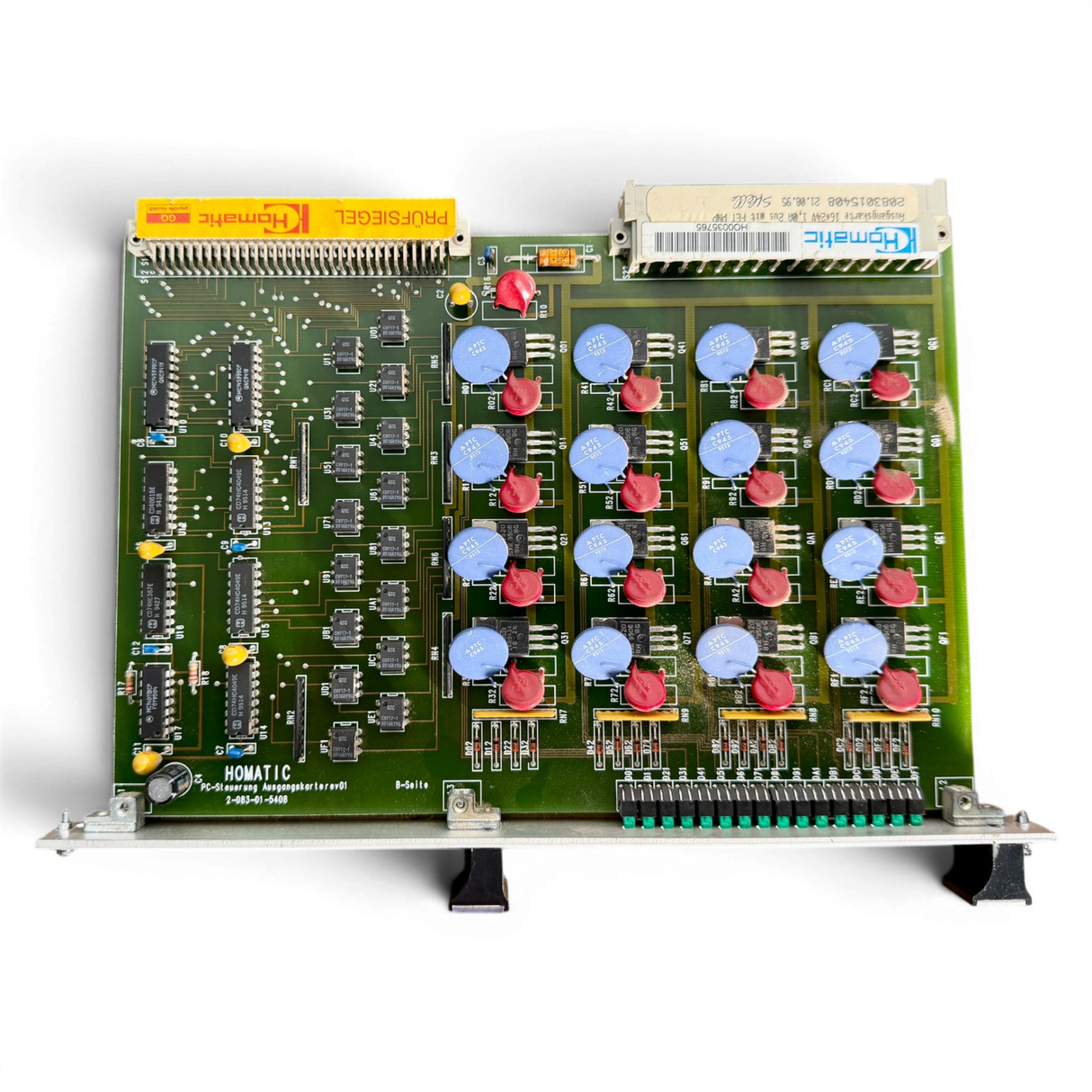

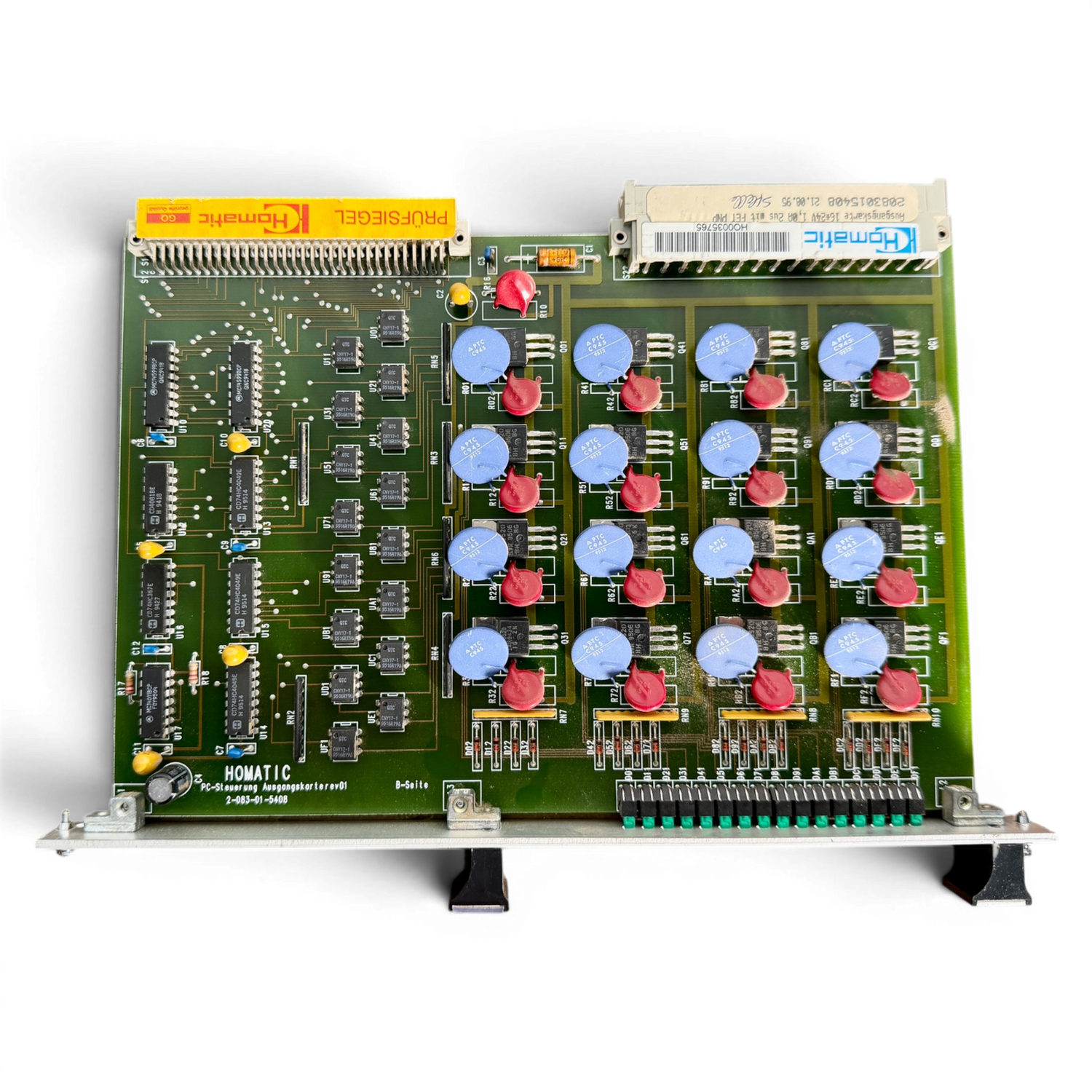

Card label: "Ausgangskarte 16x24V 1,0A 2us mit FET PNP", 2083015408, 21.08.95, H00035765. The PCB also carries the markings "PC-Steuerung Ausgangskarte rev01" and 2-083-01-5408.

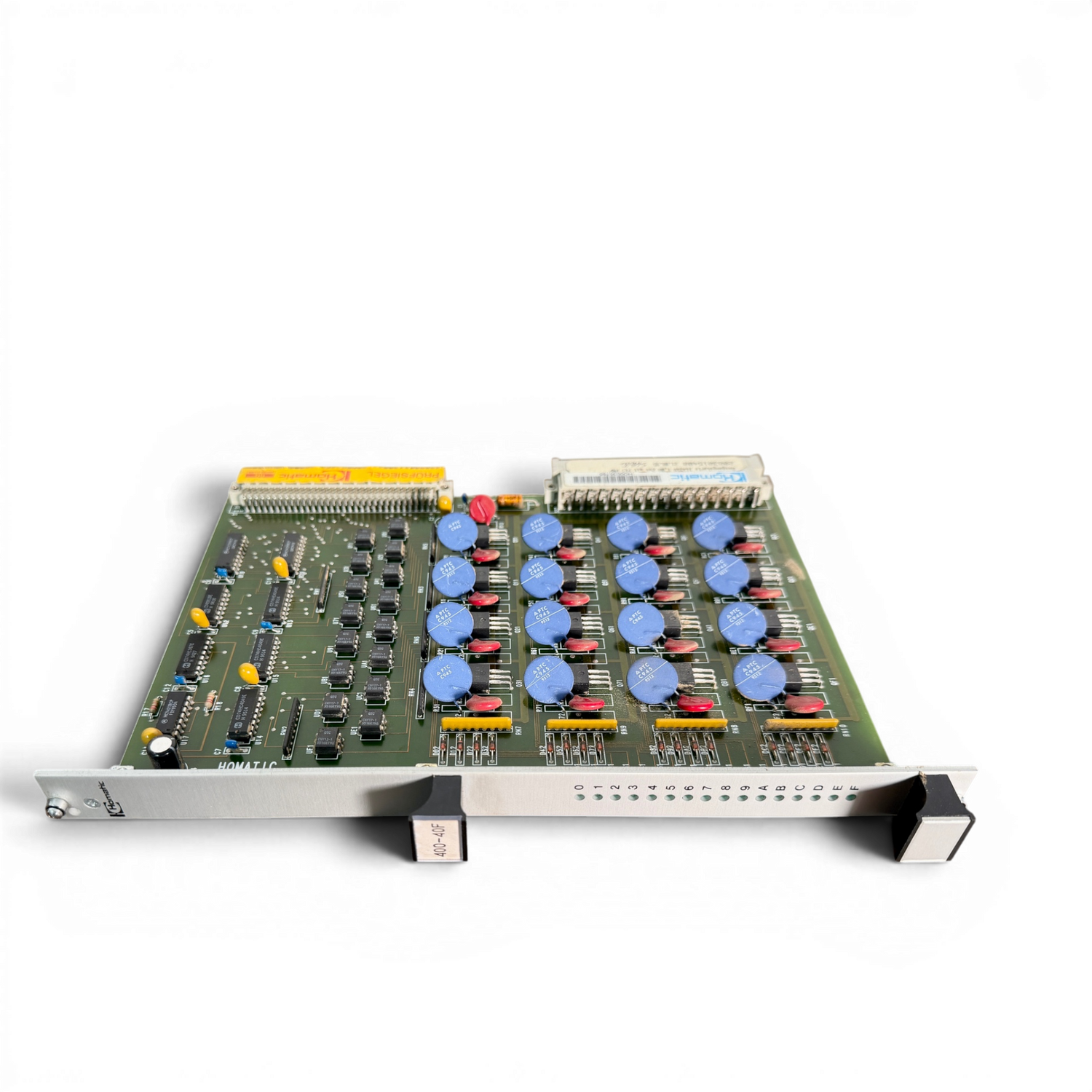

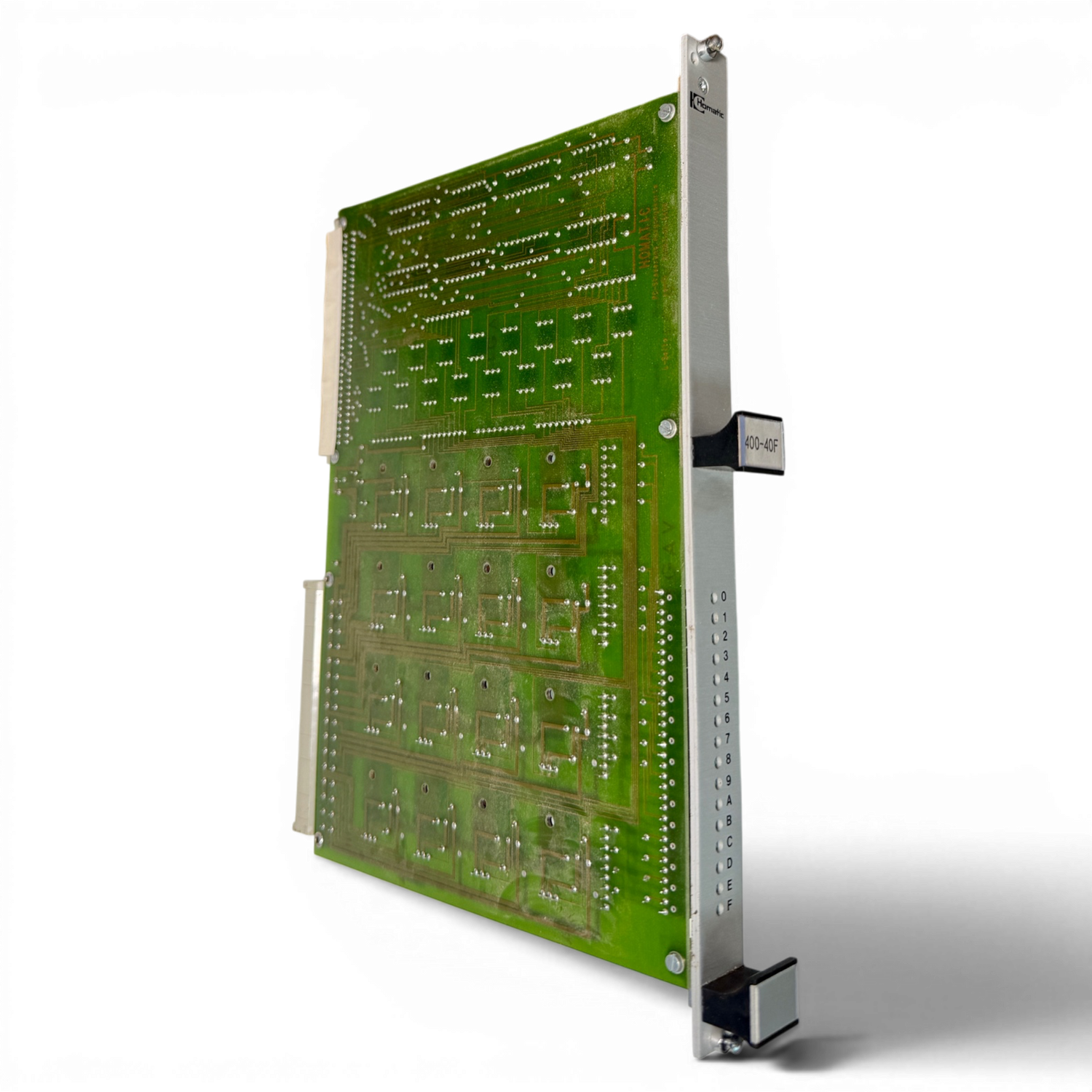

The 16 digital 24 V FET PNP output stages are designed for industrial loads such as solenoid valves, relays, contactors, indicators and other actuators. Front status LEDs labeled 0 to F allow quick diagnostics and simplify service and troubleshooting directly at the machine.

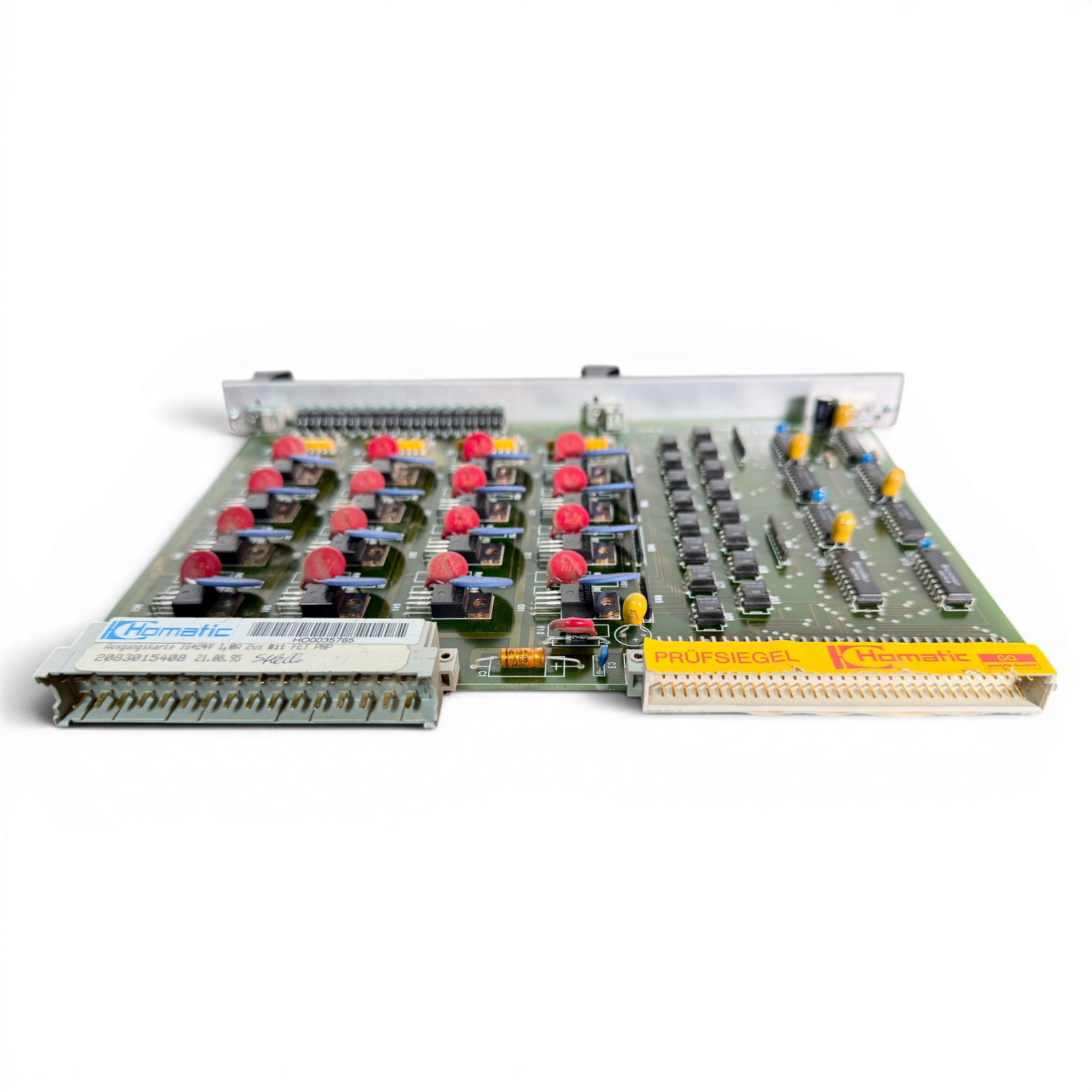

Solid aluminum front panel, quality connectors and robust power drivers, built for continuous duty in HOMAG machining centers. Used, tested and working, with normal signs of storage and use as shown in the photos. The original Homatic test seal is present.
Compatibility & applications
Replacement part for existing HOMAG Homatic controls – for repair of installed machines and retrofit projects on older machine controls.
Scope of delivery
1 × output card as shown.
