HOMAG HOMATIC output card 16 outputs 24 V PNP for HC020, BAZ / BOF ...
HOMAG Homatic output card 16A 24 V PNP HC020 – HOMAG 2-083-01-5408, S/N H00121614

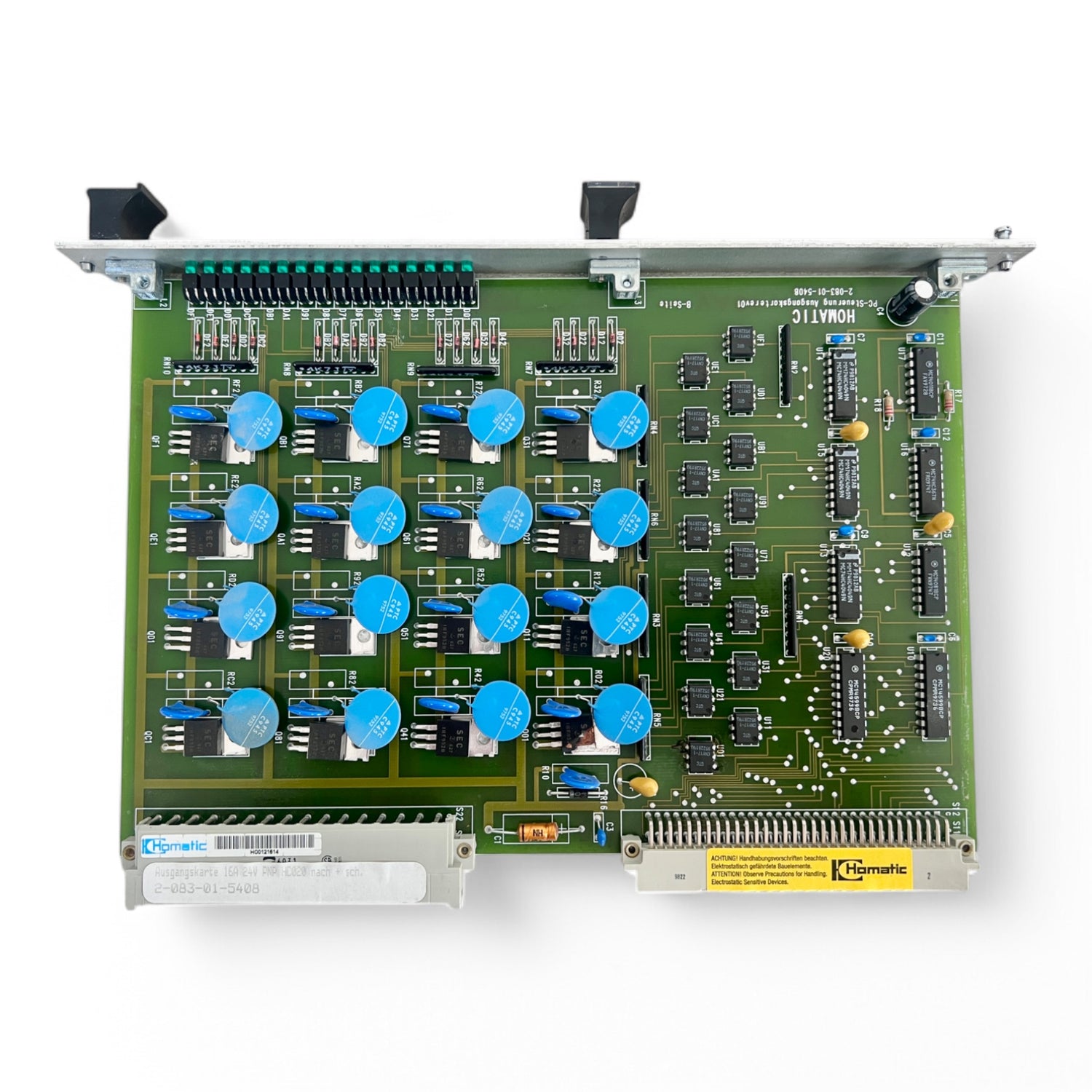

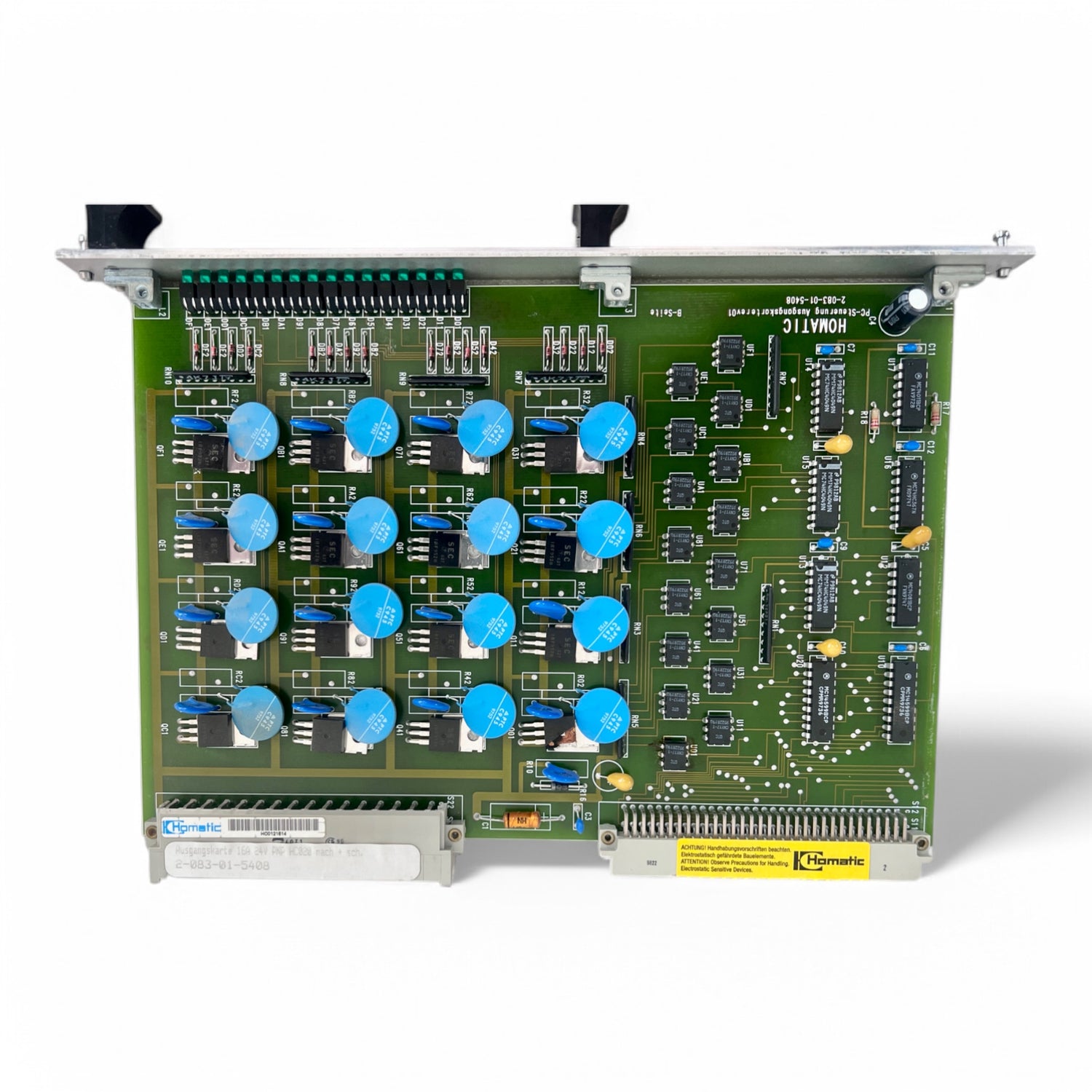

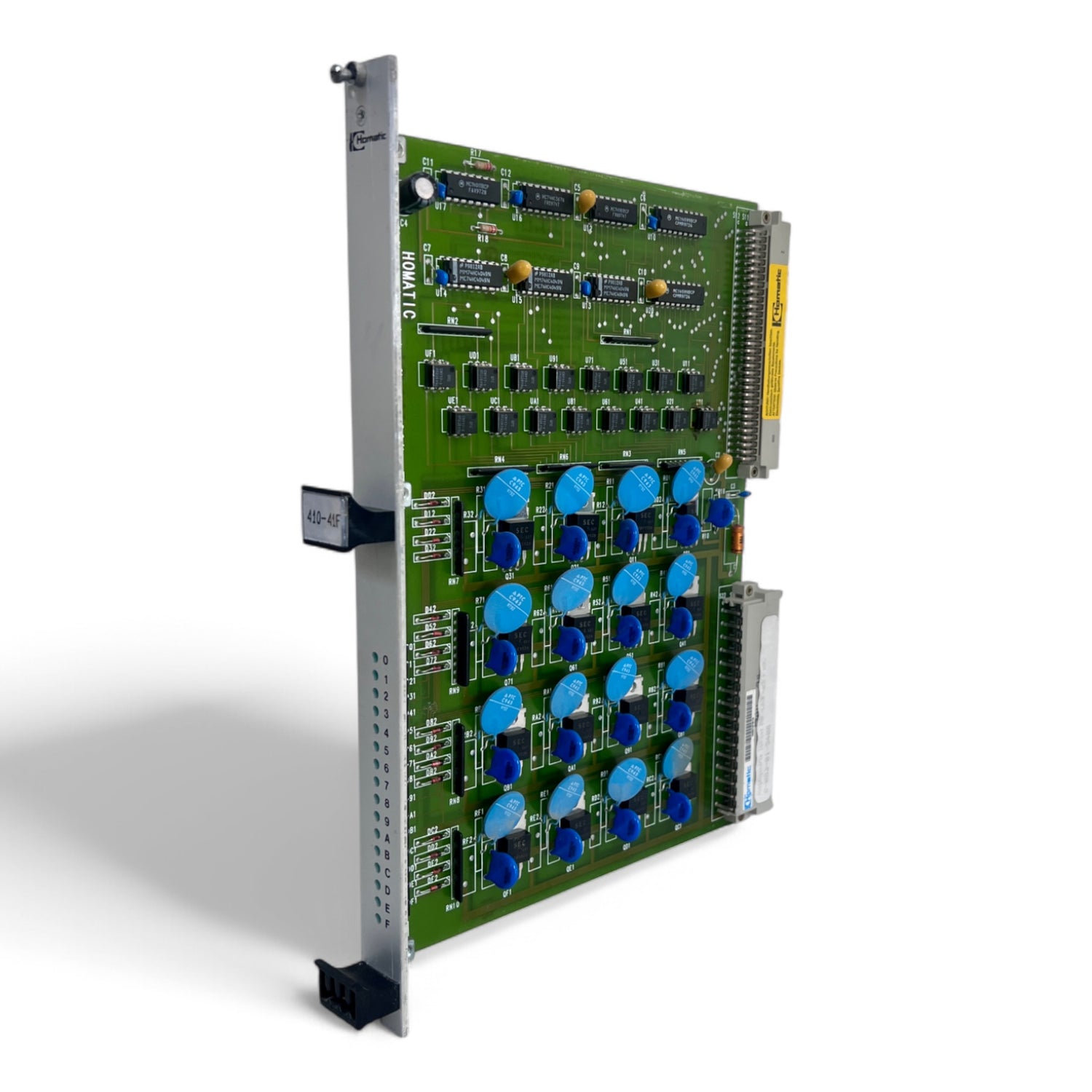

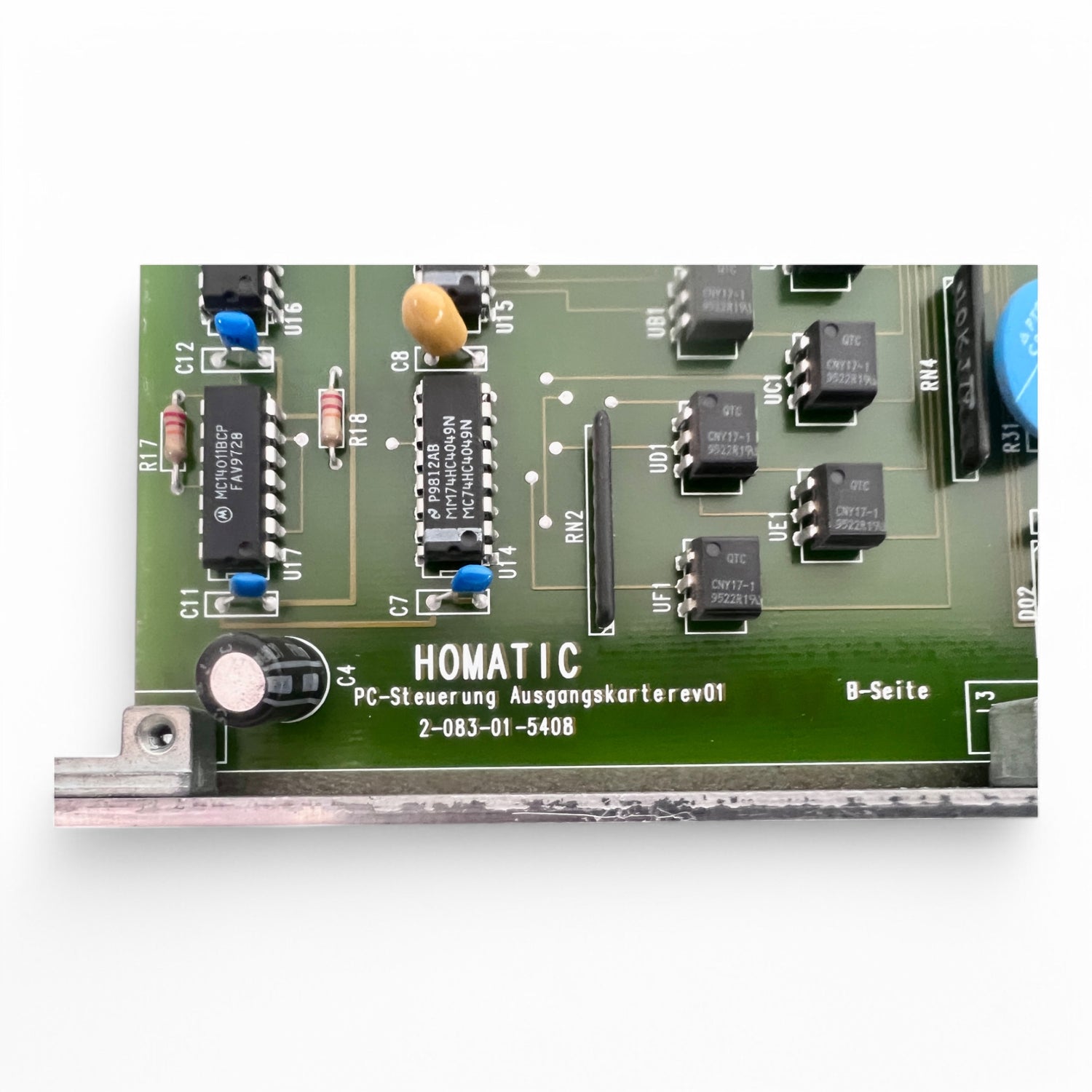

Original HOMAG Homatic HC020 output module with 16 PNP transistor outputs for HOMAG CNC controls – removed from a running machine, tested.
| Manufacturer | HOMAG / Homatic |
| Module type | Output card HC020 |
| Part number | 2-083-01-5408 / 2083015408 |
| Homatic serial number | H00121614 |
| Operating voltage | 24 V DC |
| Switching principle | PNP |
| Outputs | 16 transistor outputs |

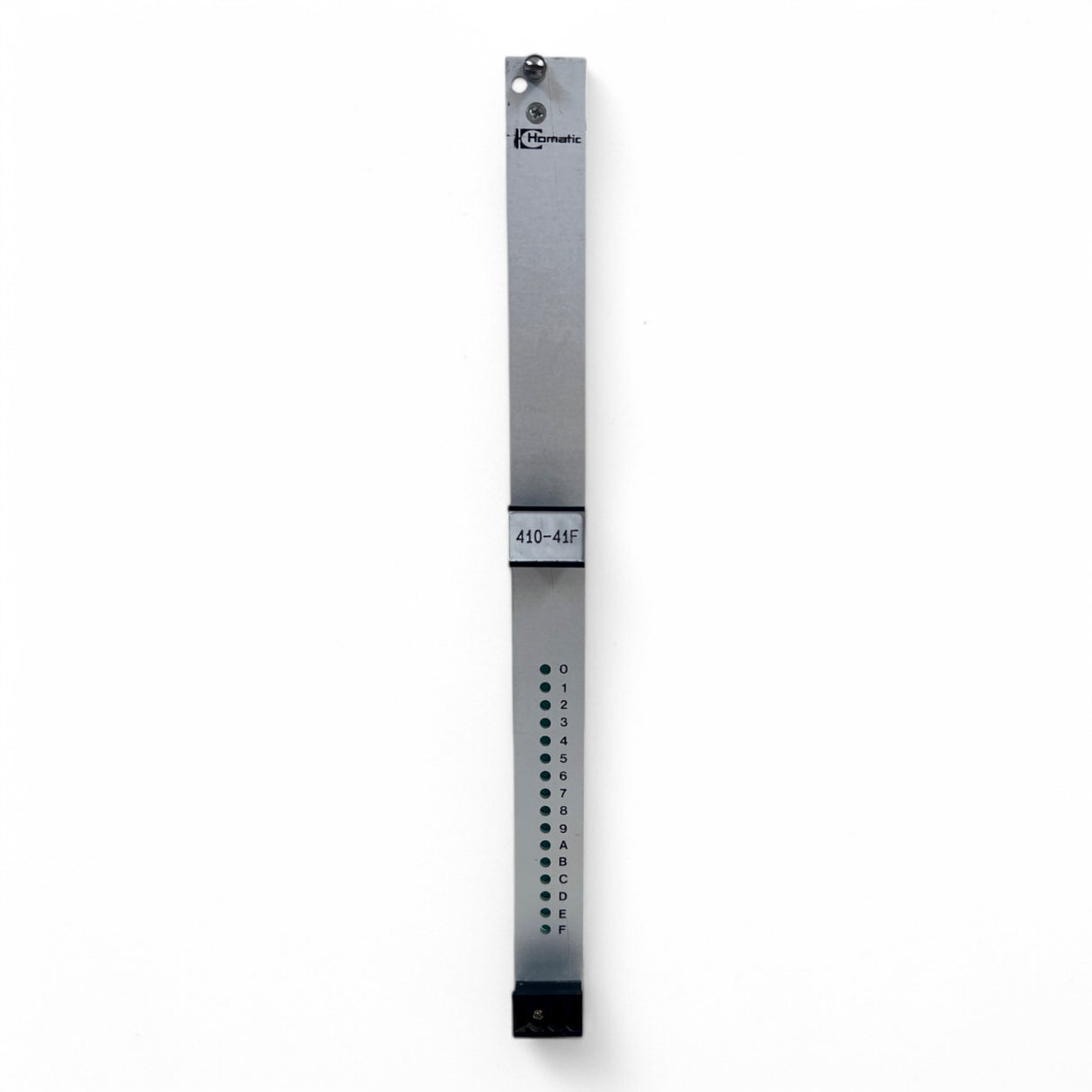

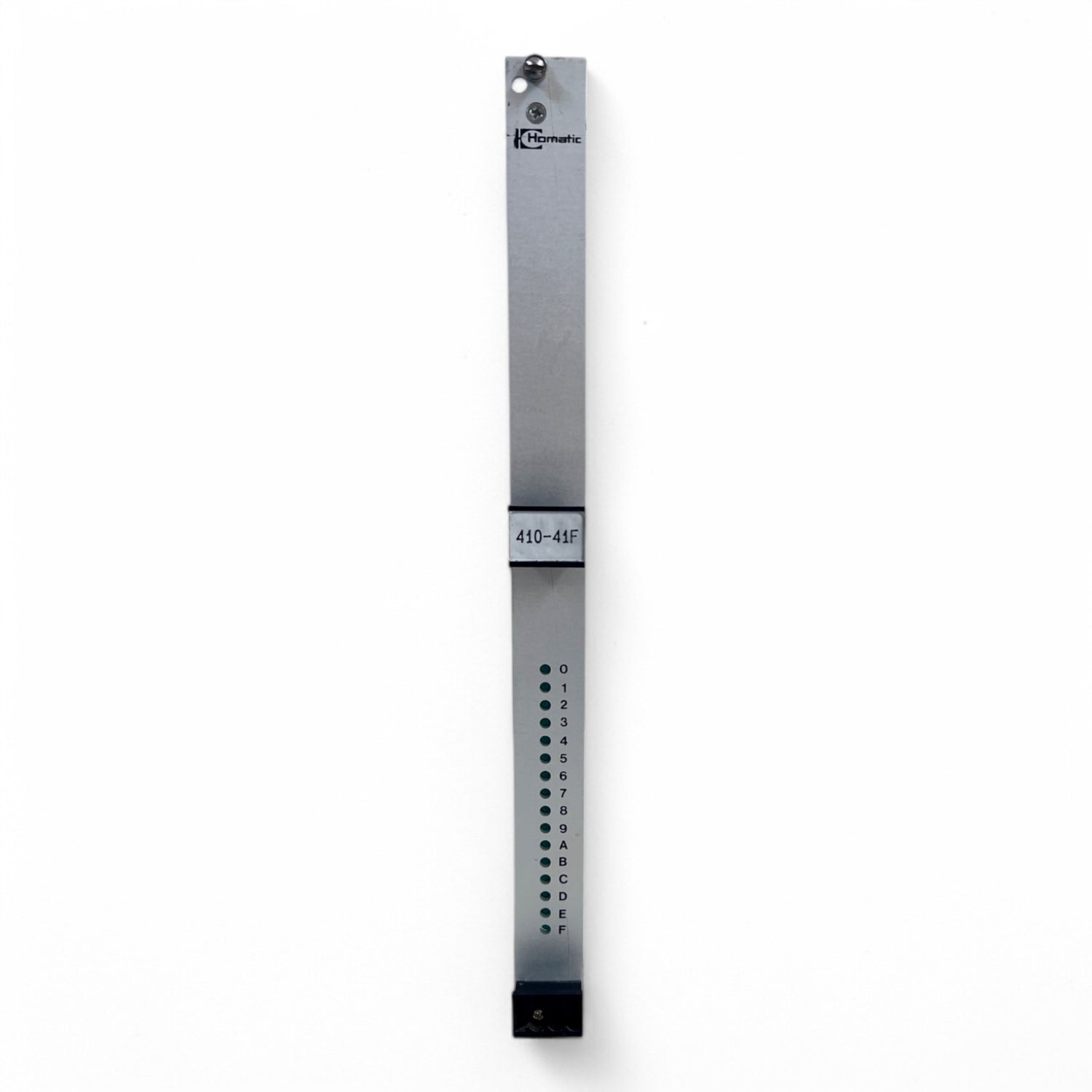

| Status display | 16 LEDs |

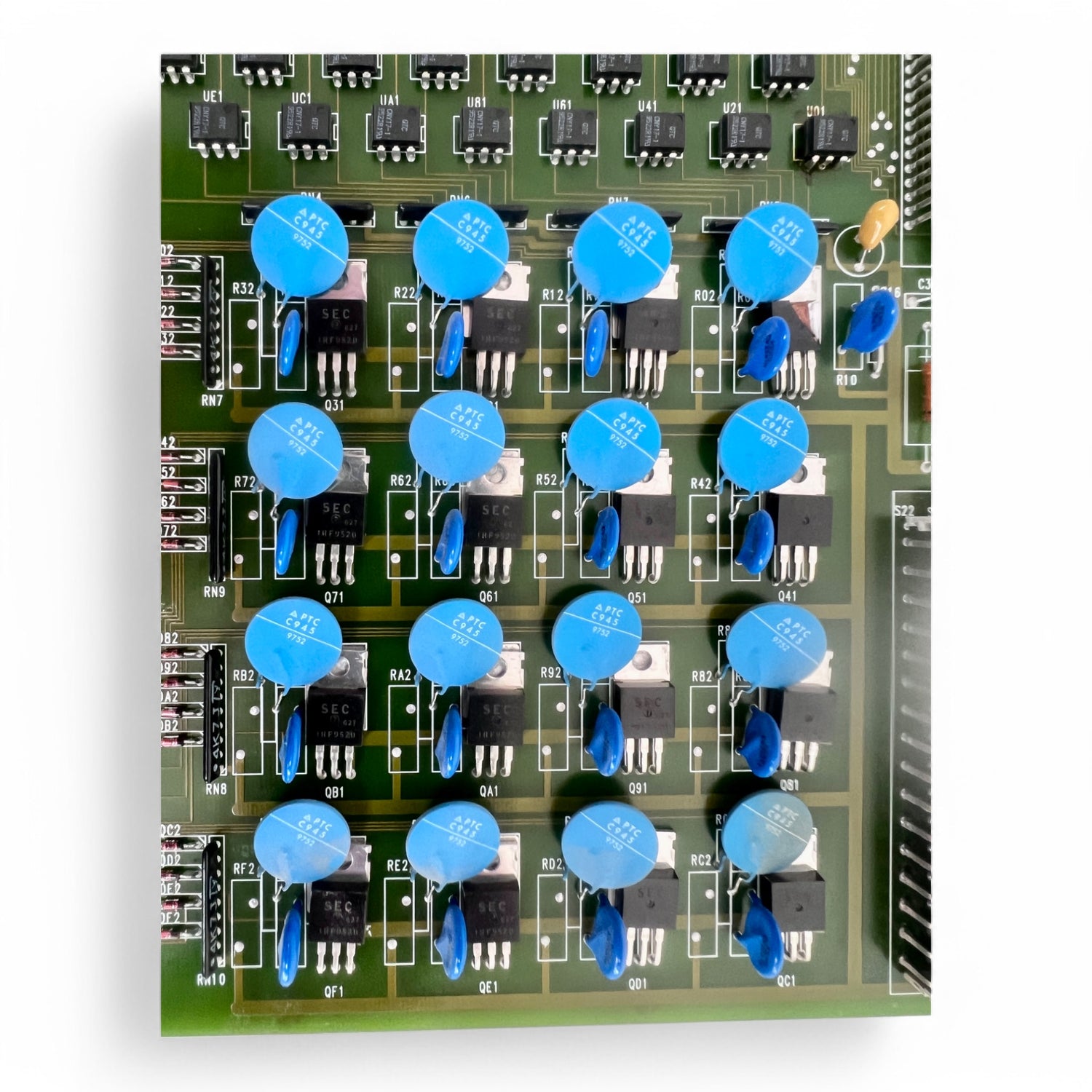

| Protection circuit | Optocouplers and protective capacitors |
| Capacitors | ATC C945 |

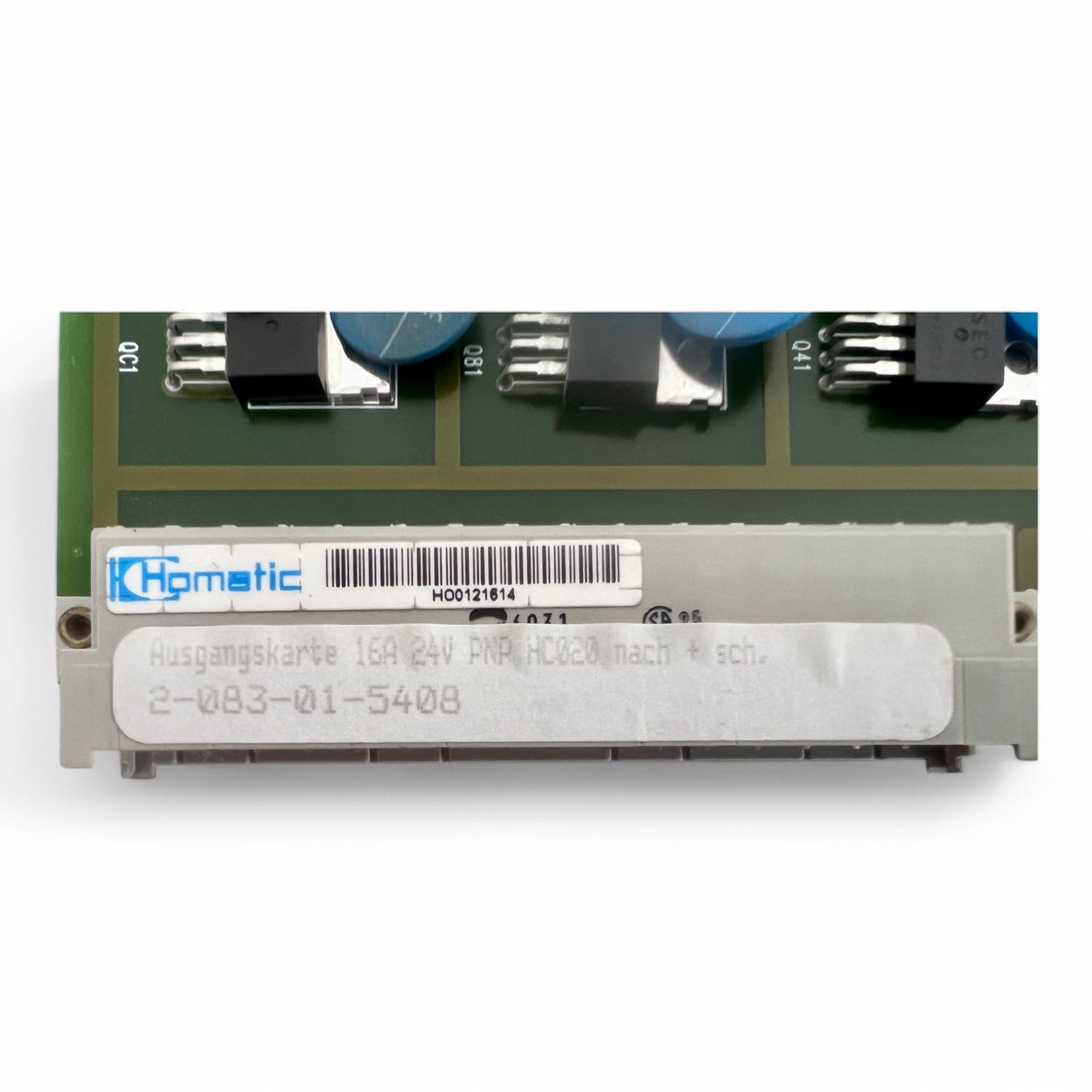

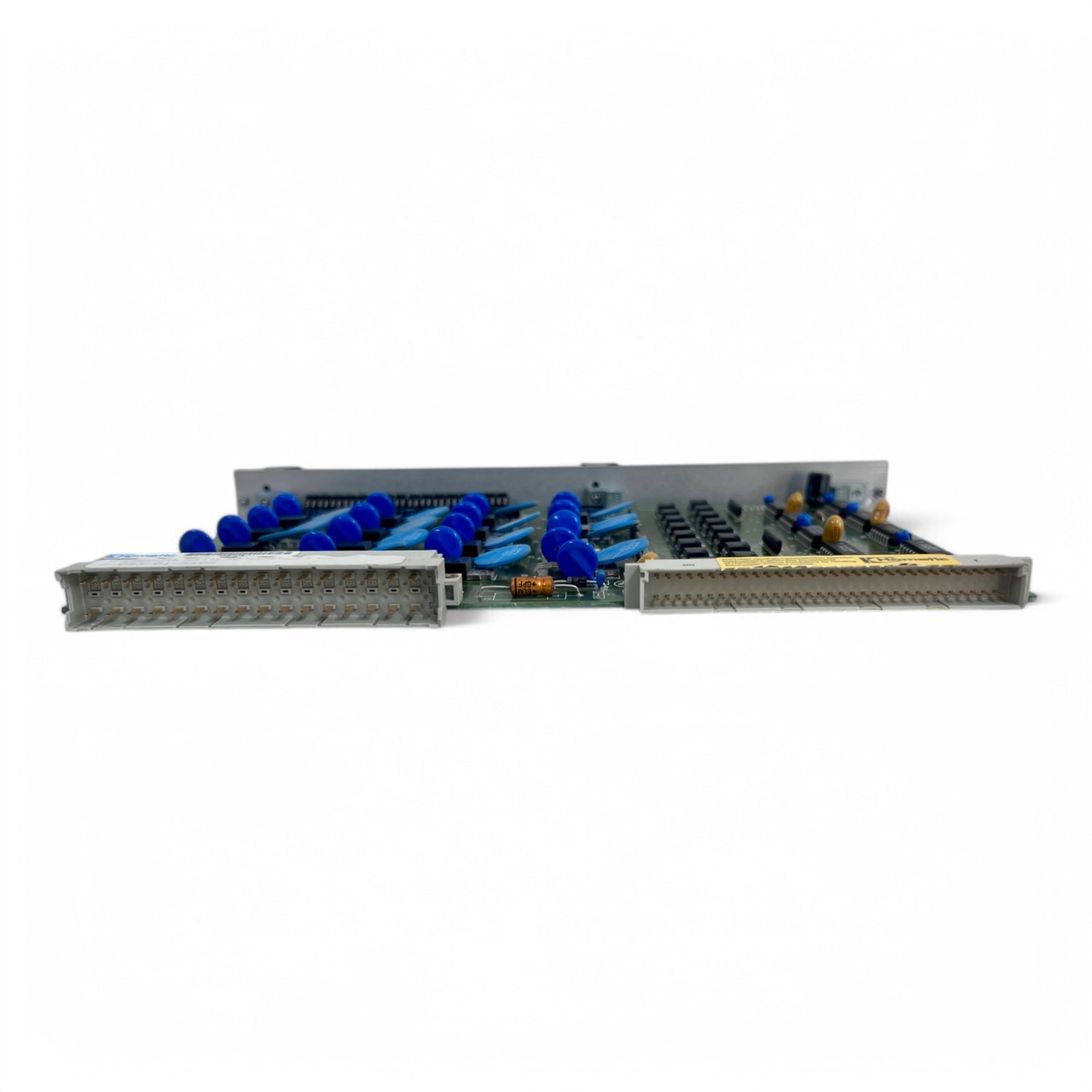

| Connection | Backplane connector |
| Condition | Used · Tested |
Product description
This is an original HOMAG Homatic HC020 output card with 16 PNP transistor outputs for industrial machine and CNC controls. It drives 24 V components such as valves, relays, solenoids and pneumatic components within HOMAG control systems.

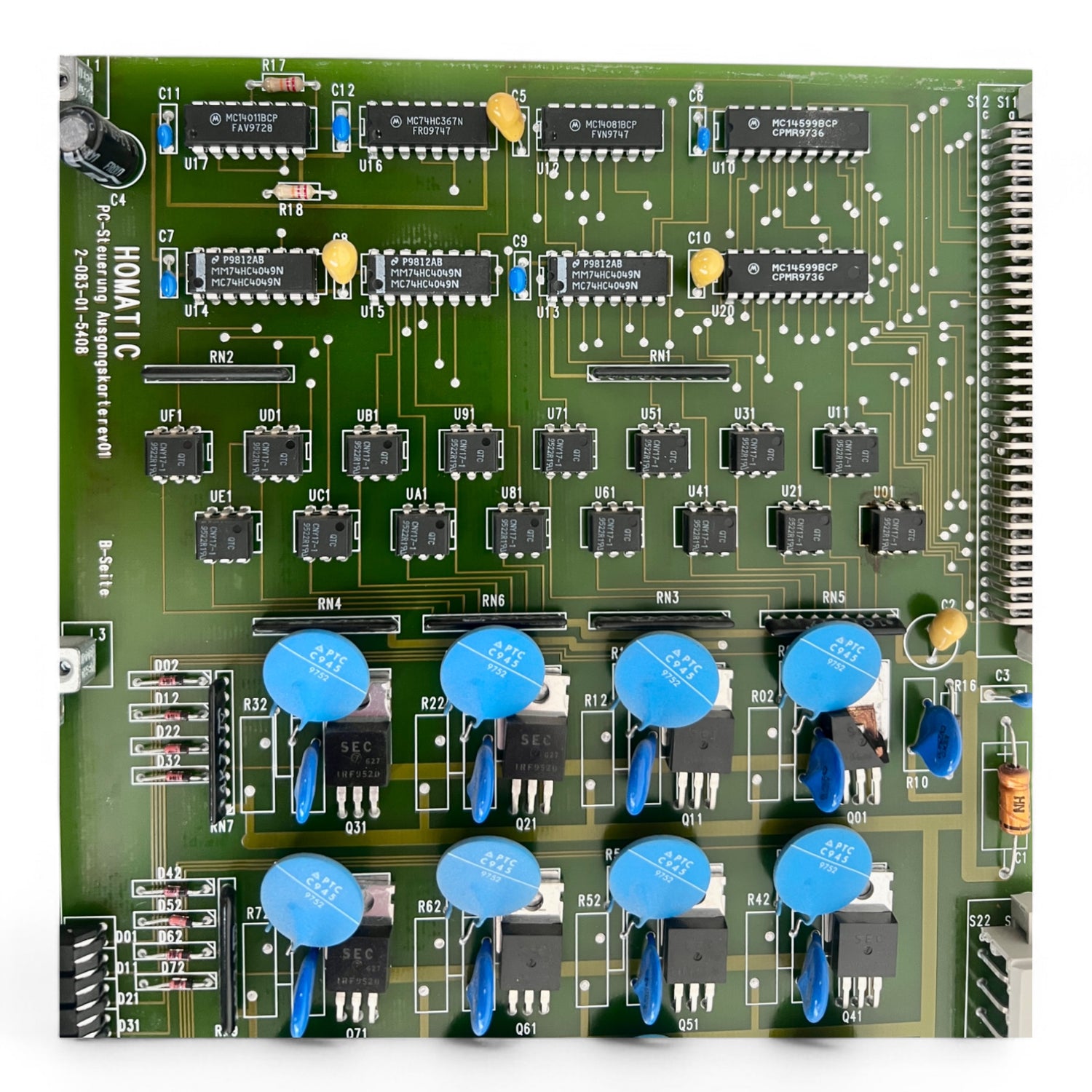

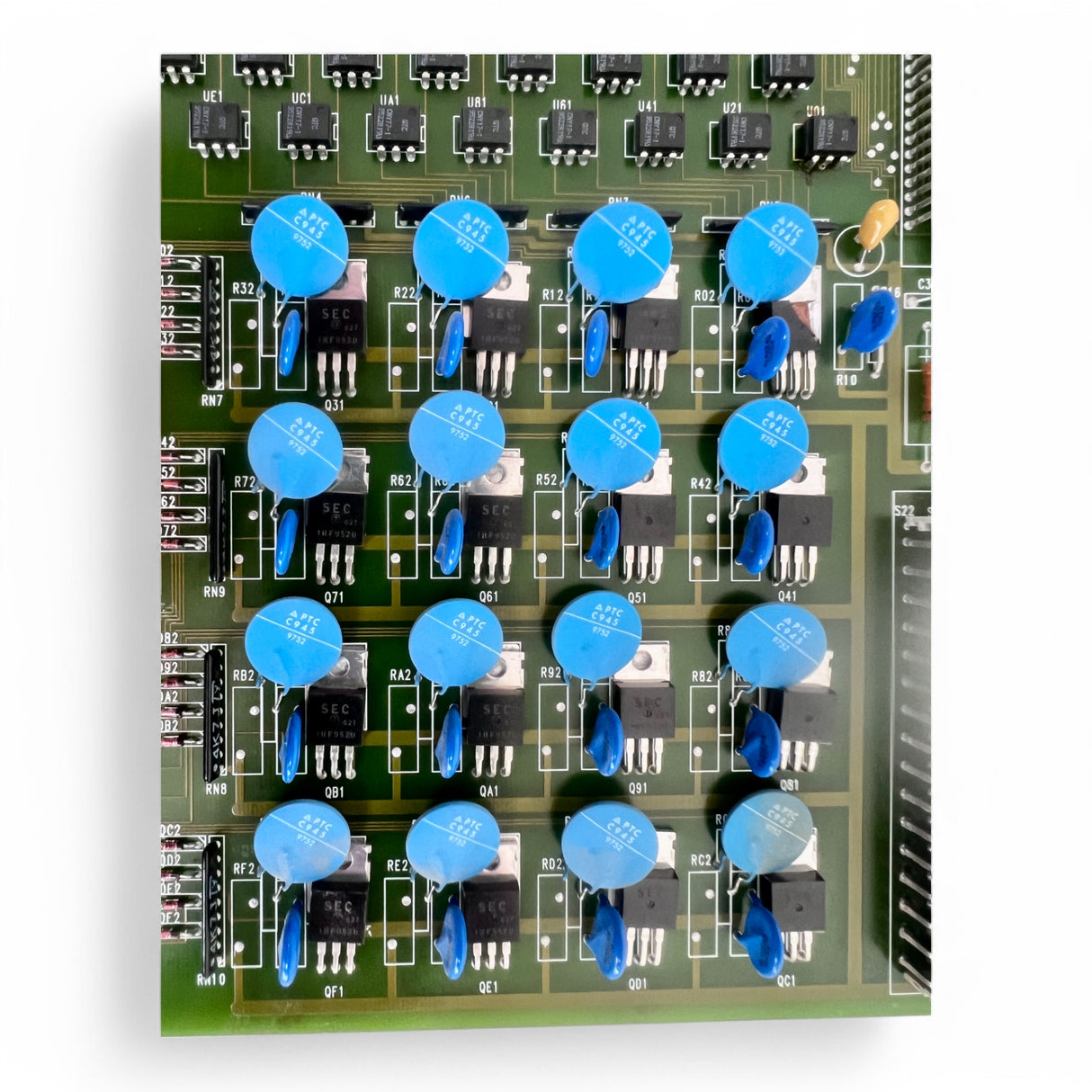

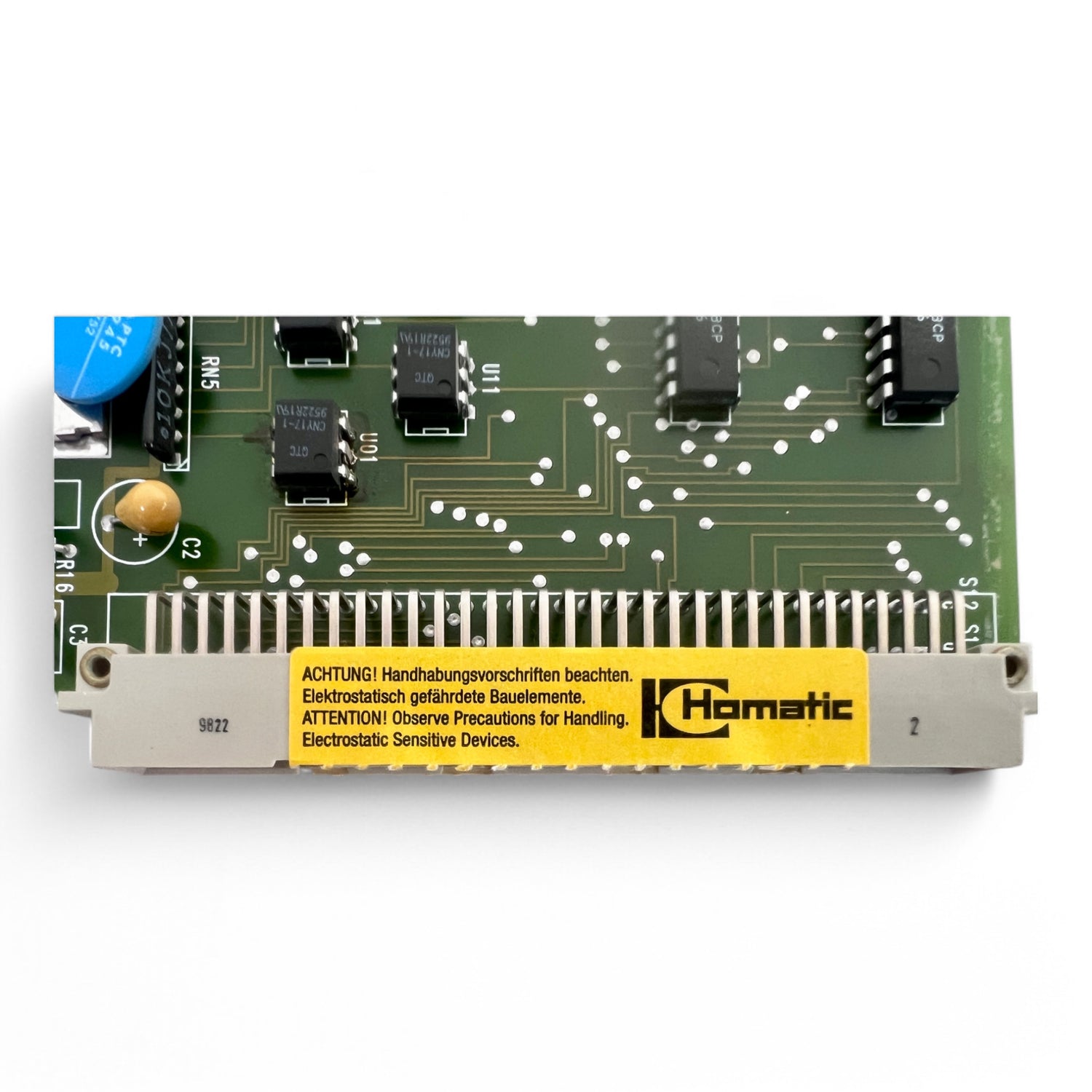

Sixteen LEDs allow fast diagnosis and status checks of the outputs. Optocouplers, ATC C945 protective capacitors and industrial power components ensure high operating reliability and protect the control electronics. The card plugs into the standard backplane; ESD warning labels are on the module.
Removed from a running machine – a good choice as a replacement part, exchange unit or for retrofit and repair projects on older HOMAG controls. Light storage and handling marks; appearance as shown in the original photos. Sold without further accessories or documentation.
Compatibility & applications
Scope of delivery
1 × HOMAG Homatic output card HC020, S/N H00121614, as pictured.
