HOMAG HOMATIC output card 16 outputs 24 V PNP HC020, S/N H00112736 ...

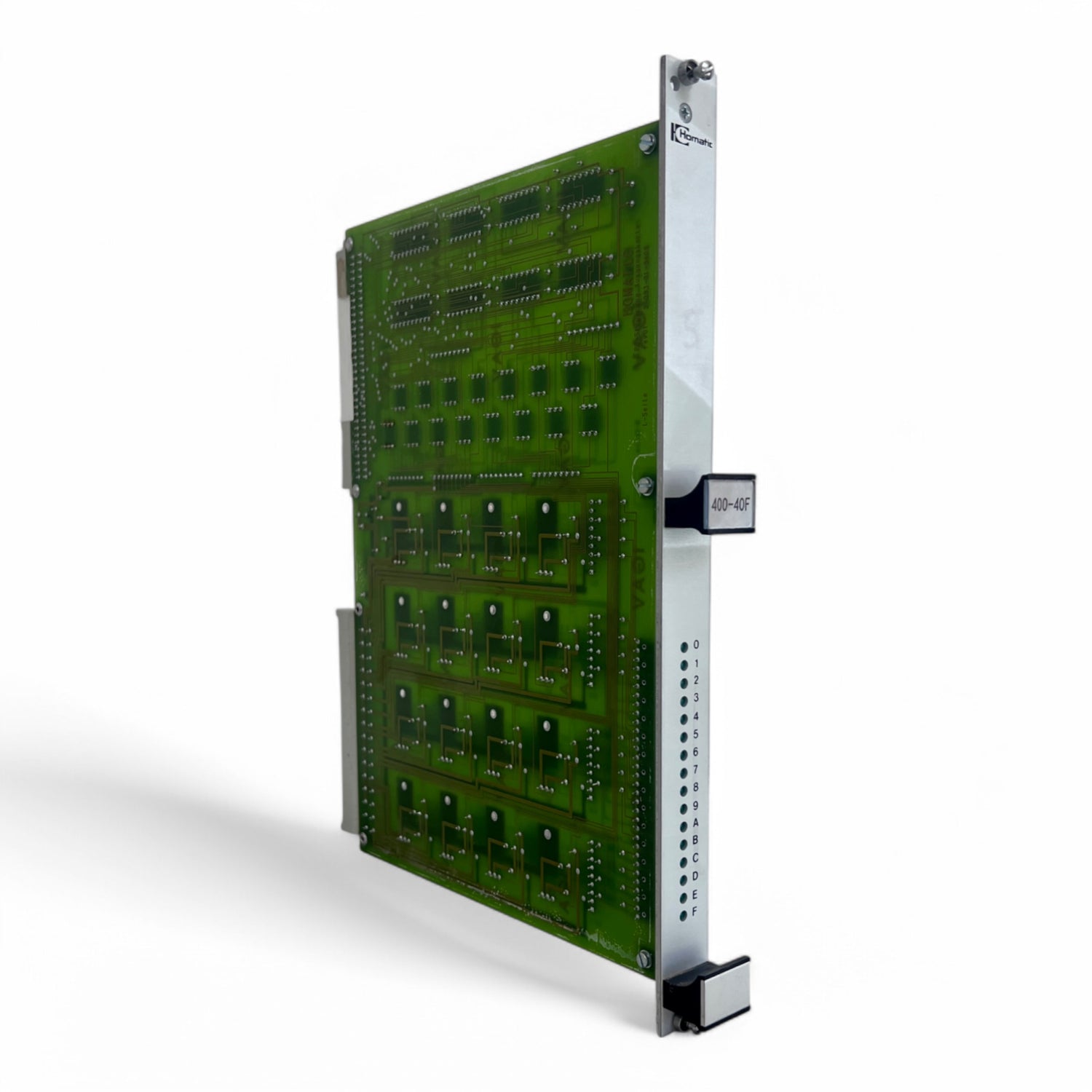

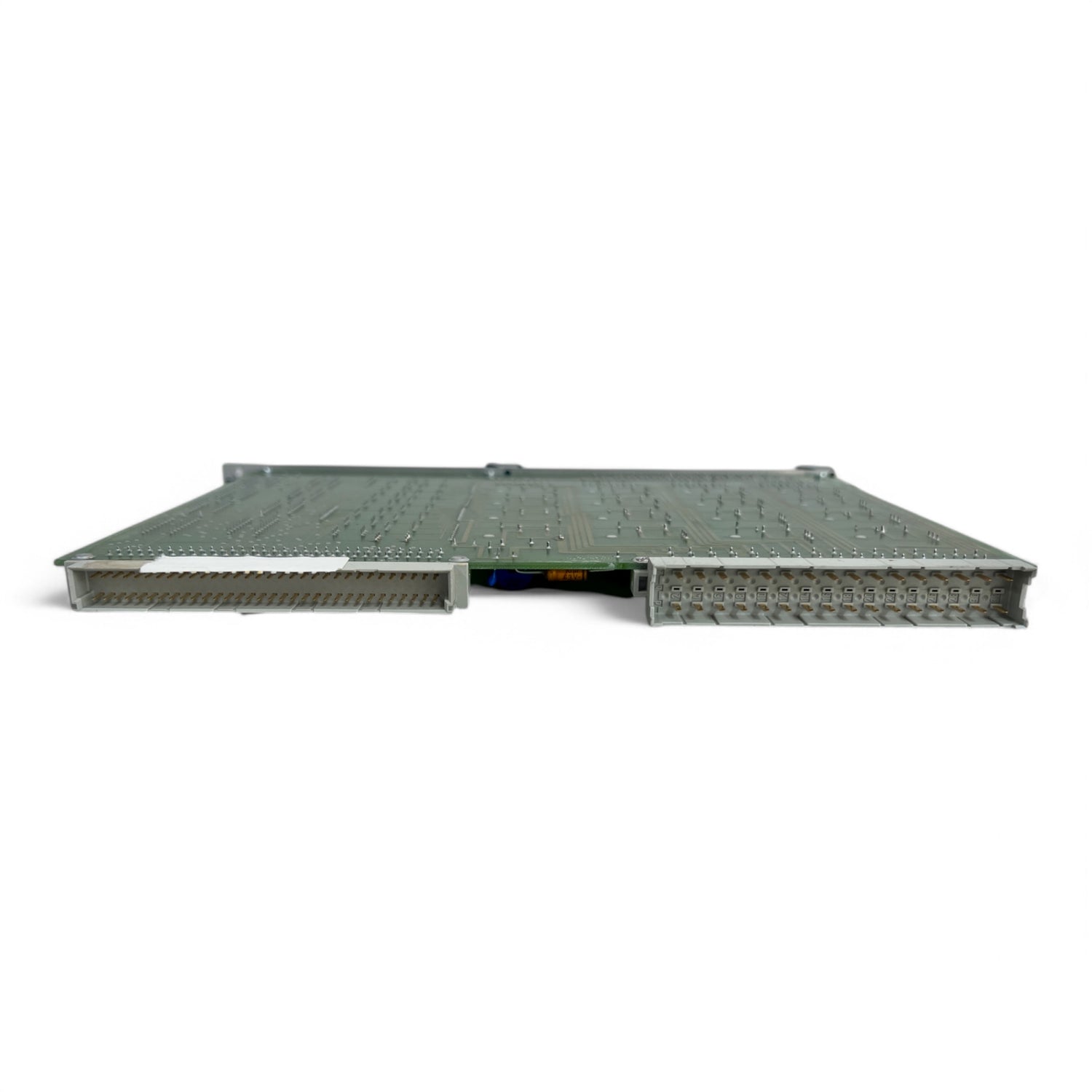

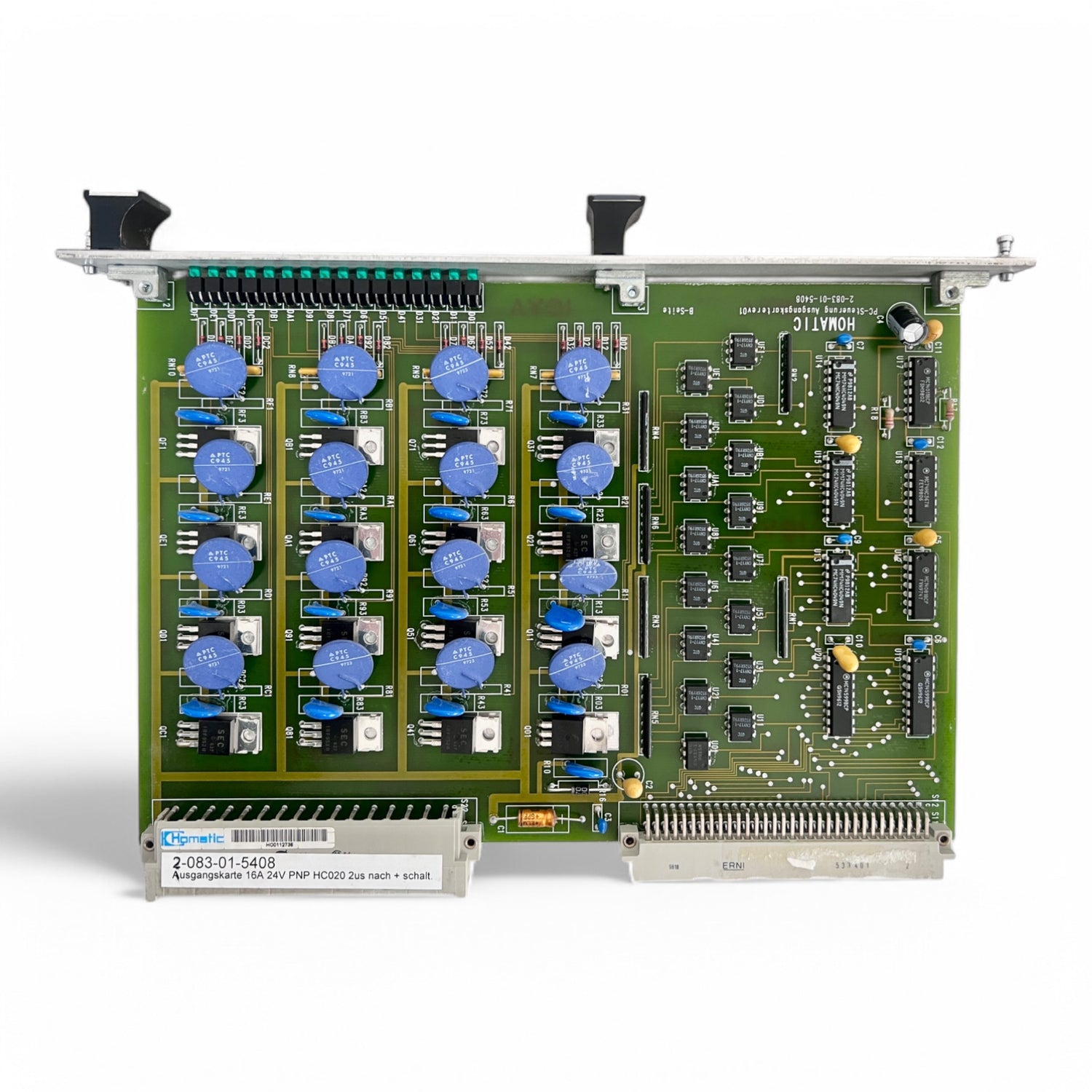

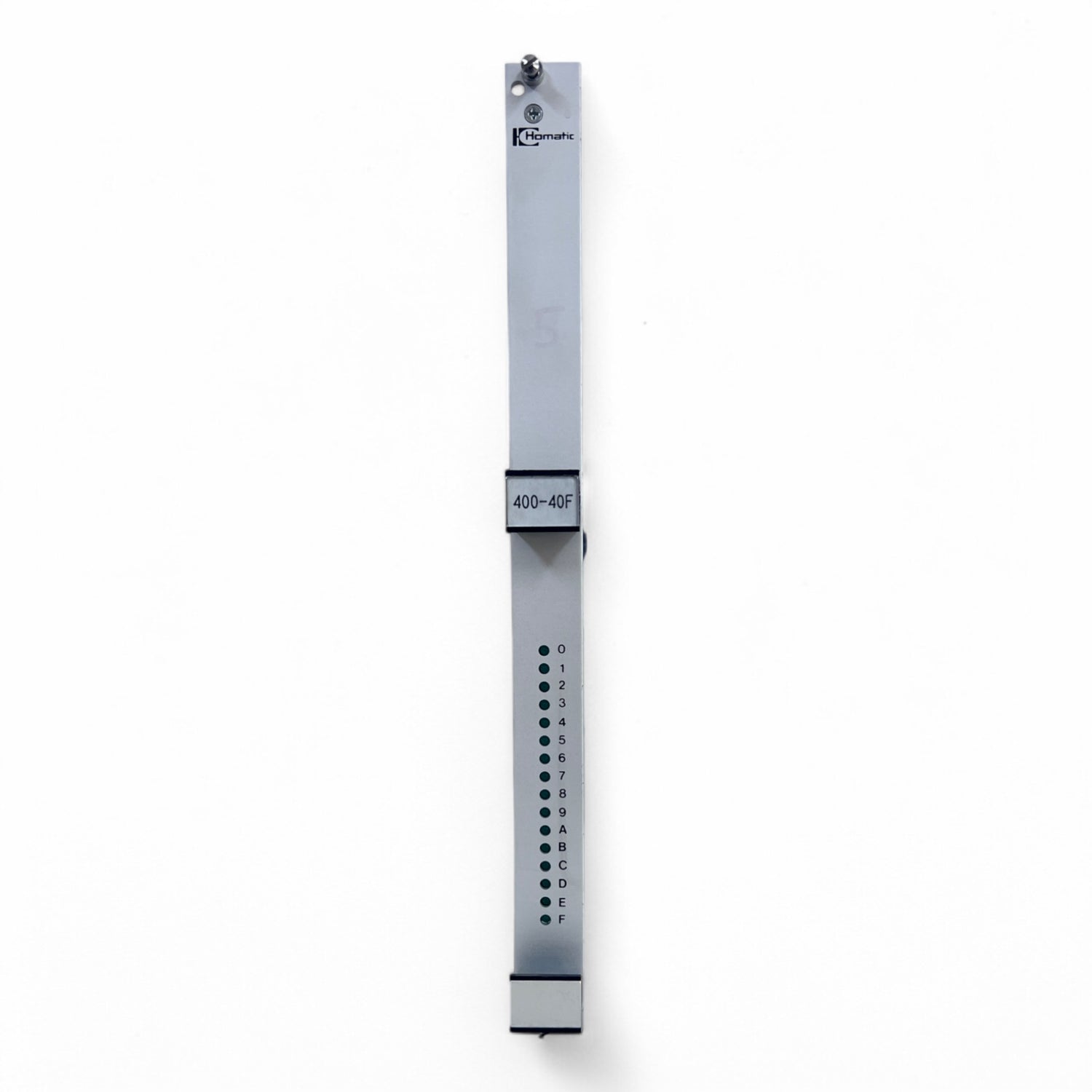

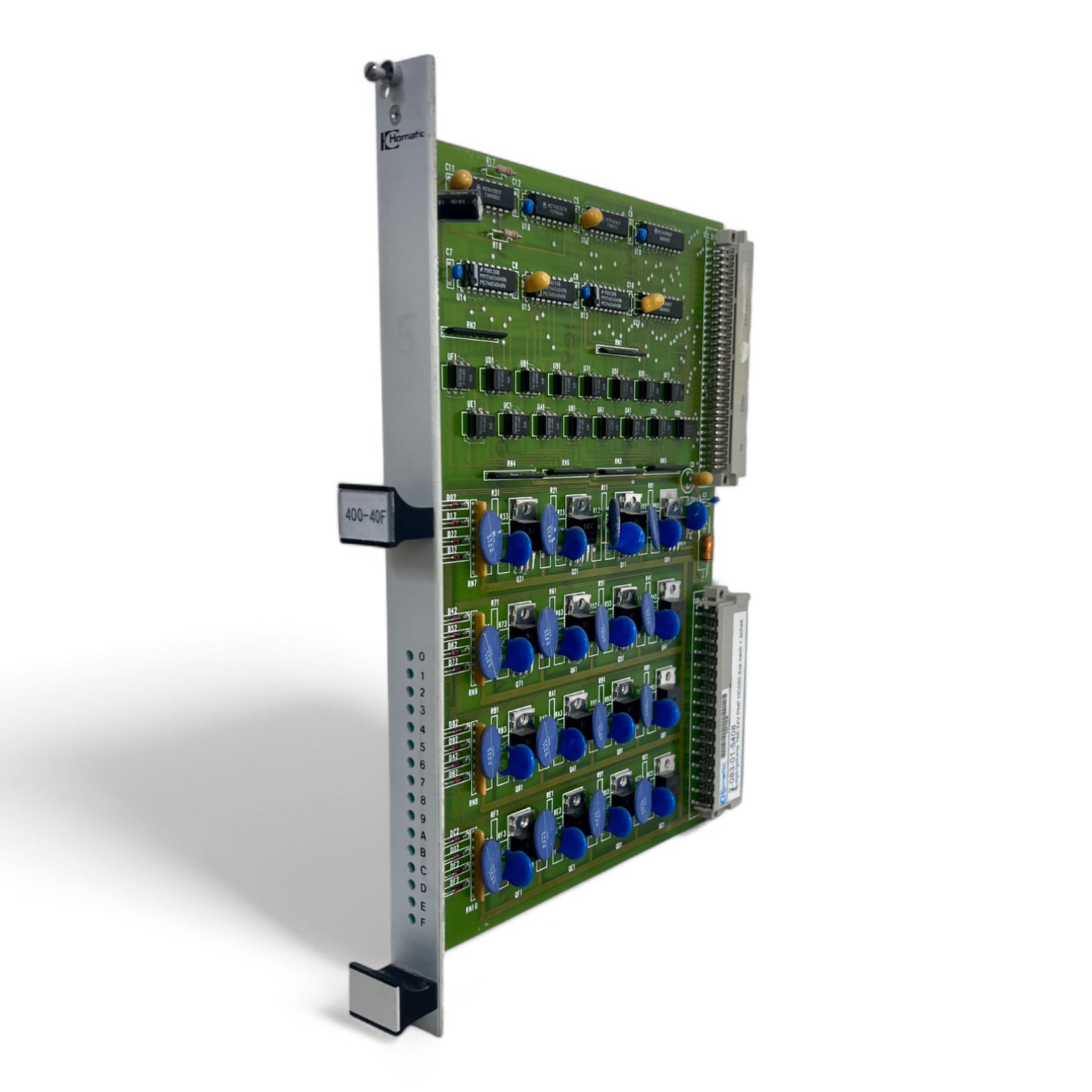

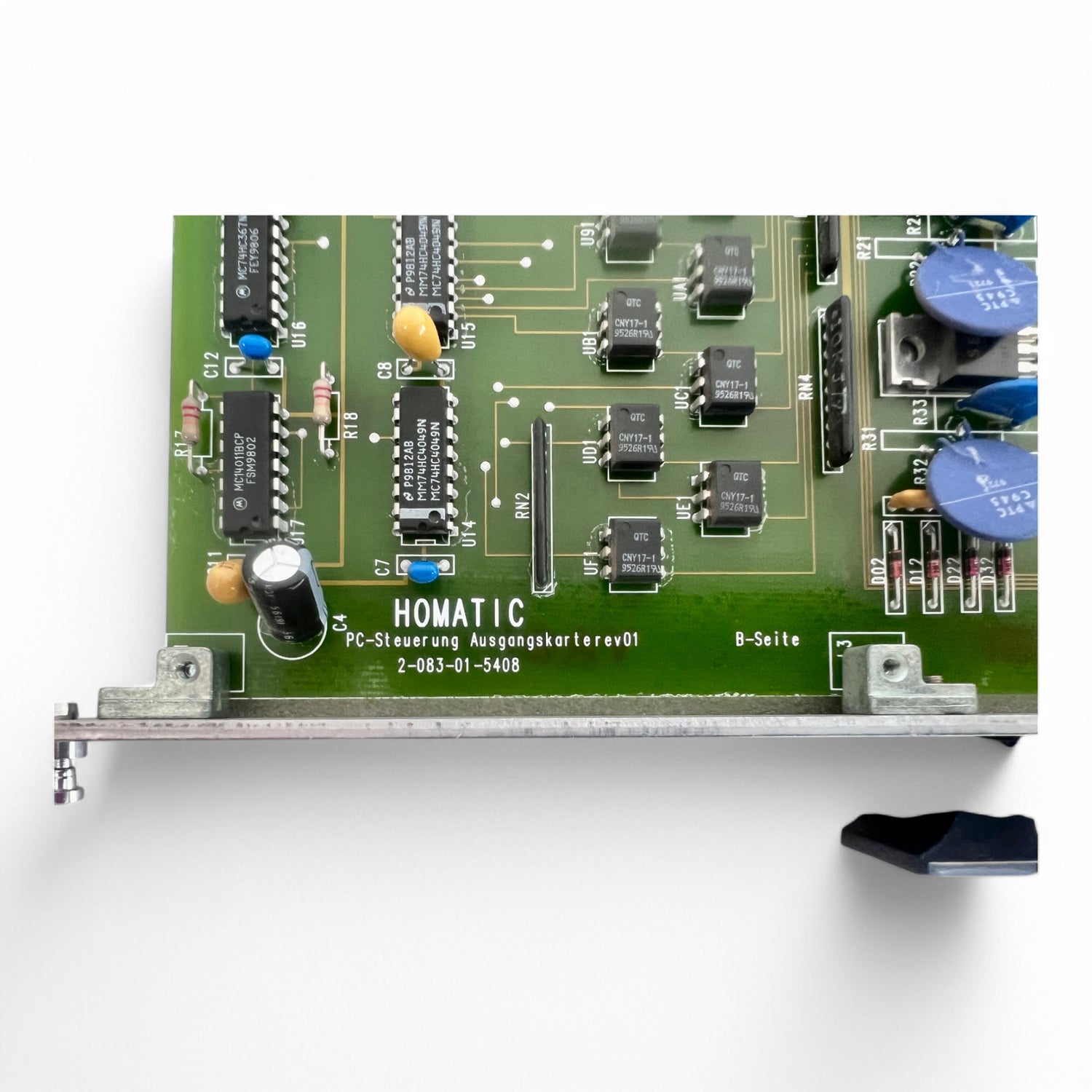

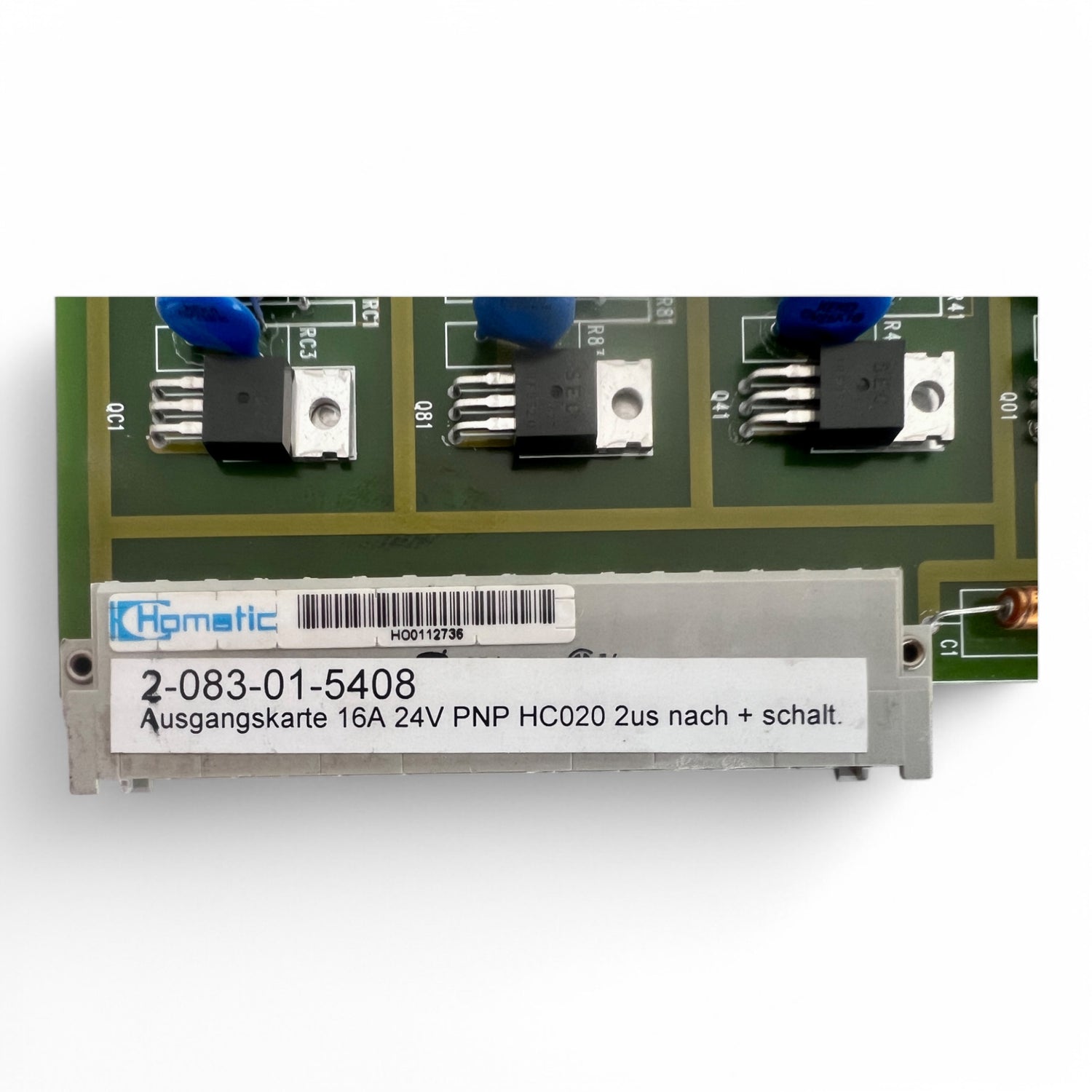

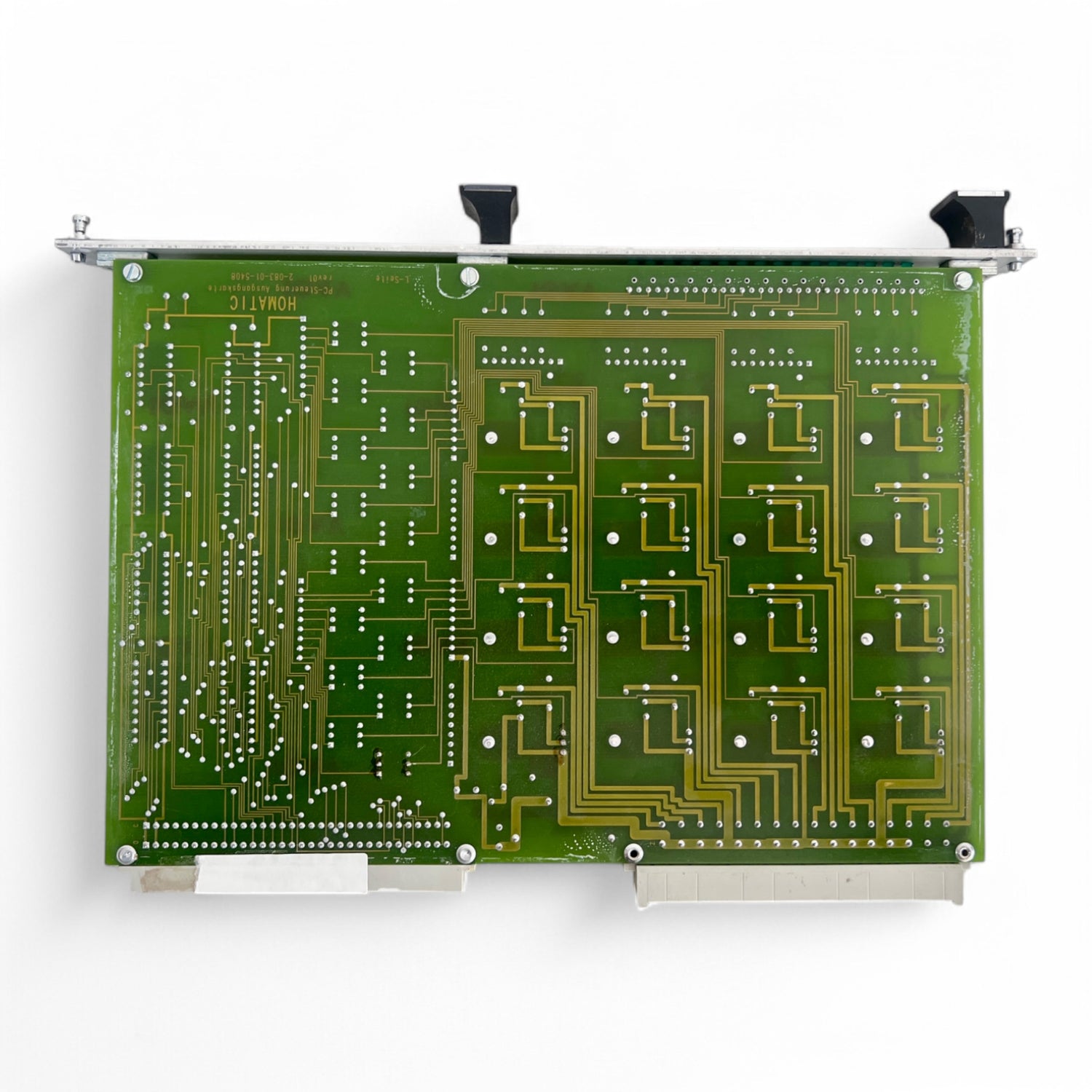

HOMAG HOMATIC output card 16A 24 V PNP HC020 – HOMAG 2-083-01-5408, S/N H00112736
Control output card for industrial automation in HOMAG / HOMATIC controls of BAZ and BOF machines – used, tested and fully functional.
| Manufacturer | HOMAG / HOMATIC |
| Type | Output card 16A 24V PNP HC020 |
| Part number | 2-083-01-5408 |
| Serial number | H00112736 |
| Voltage | 24 V DC |
| Current | 16A (designation) |
| Switching technology | PNP HC020 |
| Switching time | 2 µs |
| Connections | Multi-pin connector |
| LED displays | 16 status LEDs |
| Transistors | 16 power transistors |
| Optocouplers | 16 for galvanic signal isolation |
| Weight | 1.5 kg |
| Condition | Used · 2 – Good |
Product description
The HOMAG HOMATIC output card HC020 is a control output card for industrial automation. Sixteen power transistors provide reliable switching with a short switching time, while 16 optocouplers isolate the signals galvanically and 16 LEDs show the status of each output.
Robust design for use in harsh environments, compatible with HOMAG / HOMATIC control systems. Used, tested and fully functional.
Compatibility & applications
Scope of delivery
1 × HOMAG HOMATIC output card 16A 24V PNP HC020 – 2-083-01-5408 – S/N H00112736.
