HOMAG Automata multi I/O VME base card with SERCOS master module AS...
HOMAG Multi-I/O VME Base Card with Automata SERCOS Master ASIC V3.1 – 4-086-05-0368
Original HOMAG MULTI-E/A VME base card with Automata SERCOS master module, removed from a working HOMAG machine control.
| HOMAG item number | 4-086-05-0368 |

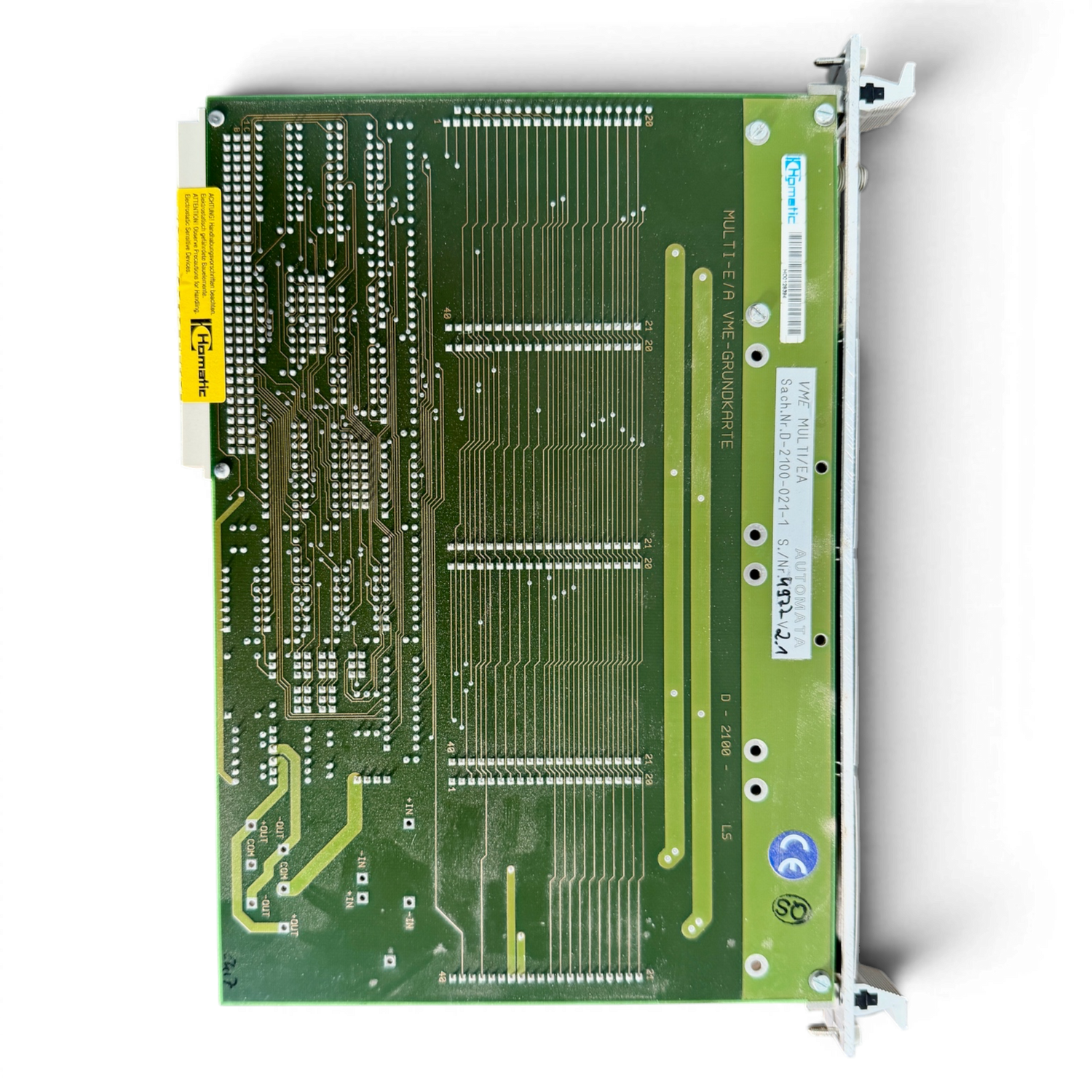

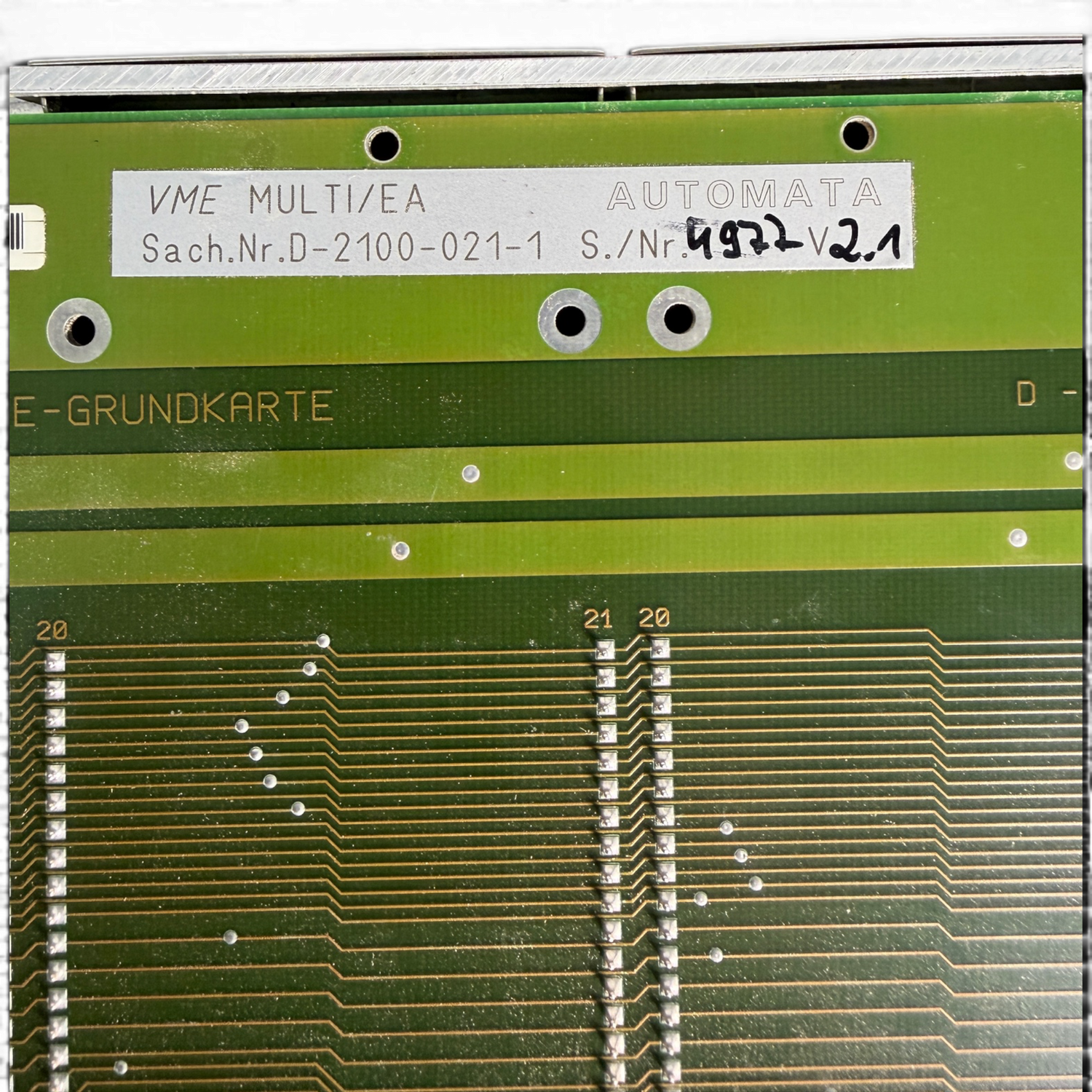

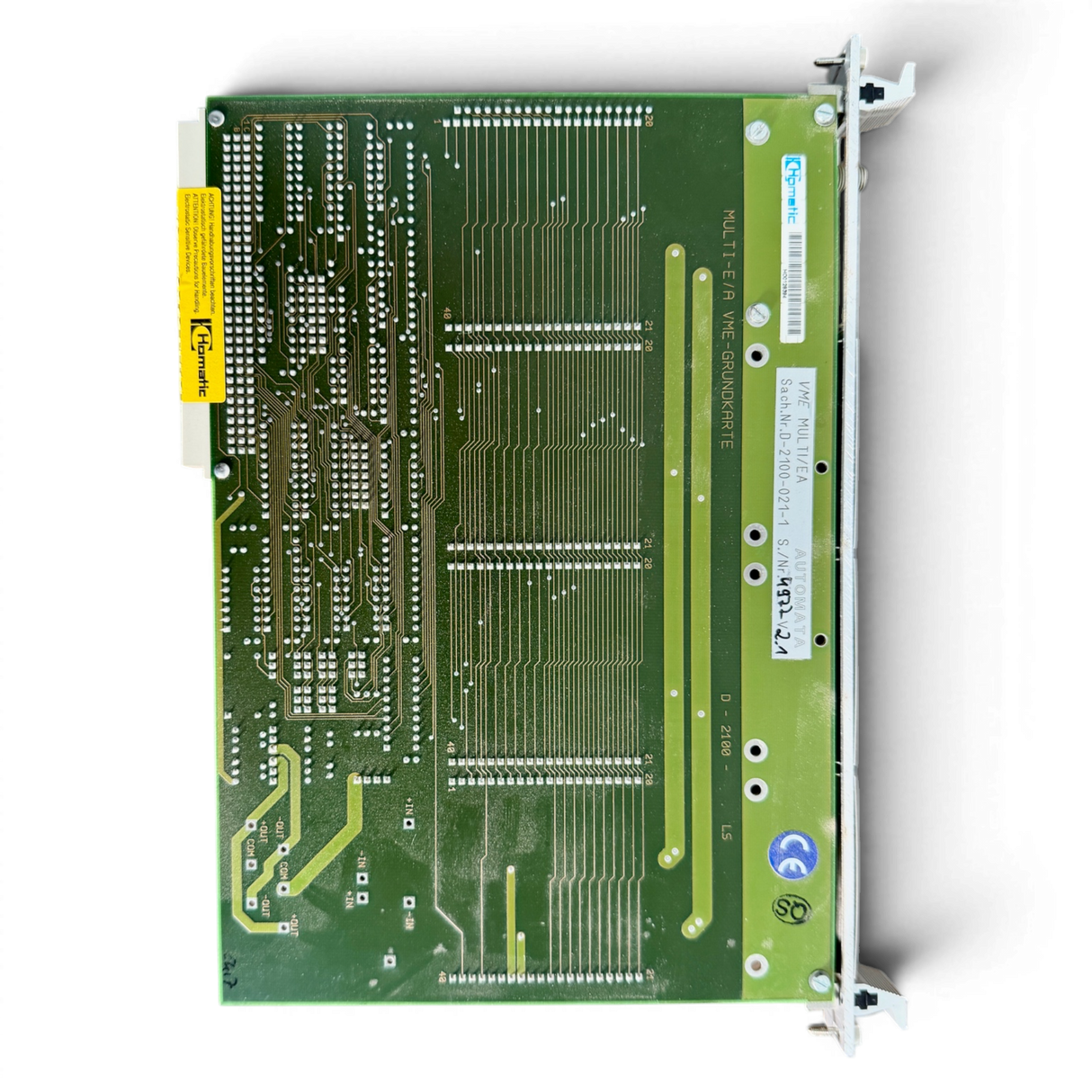

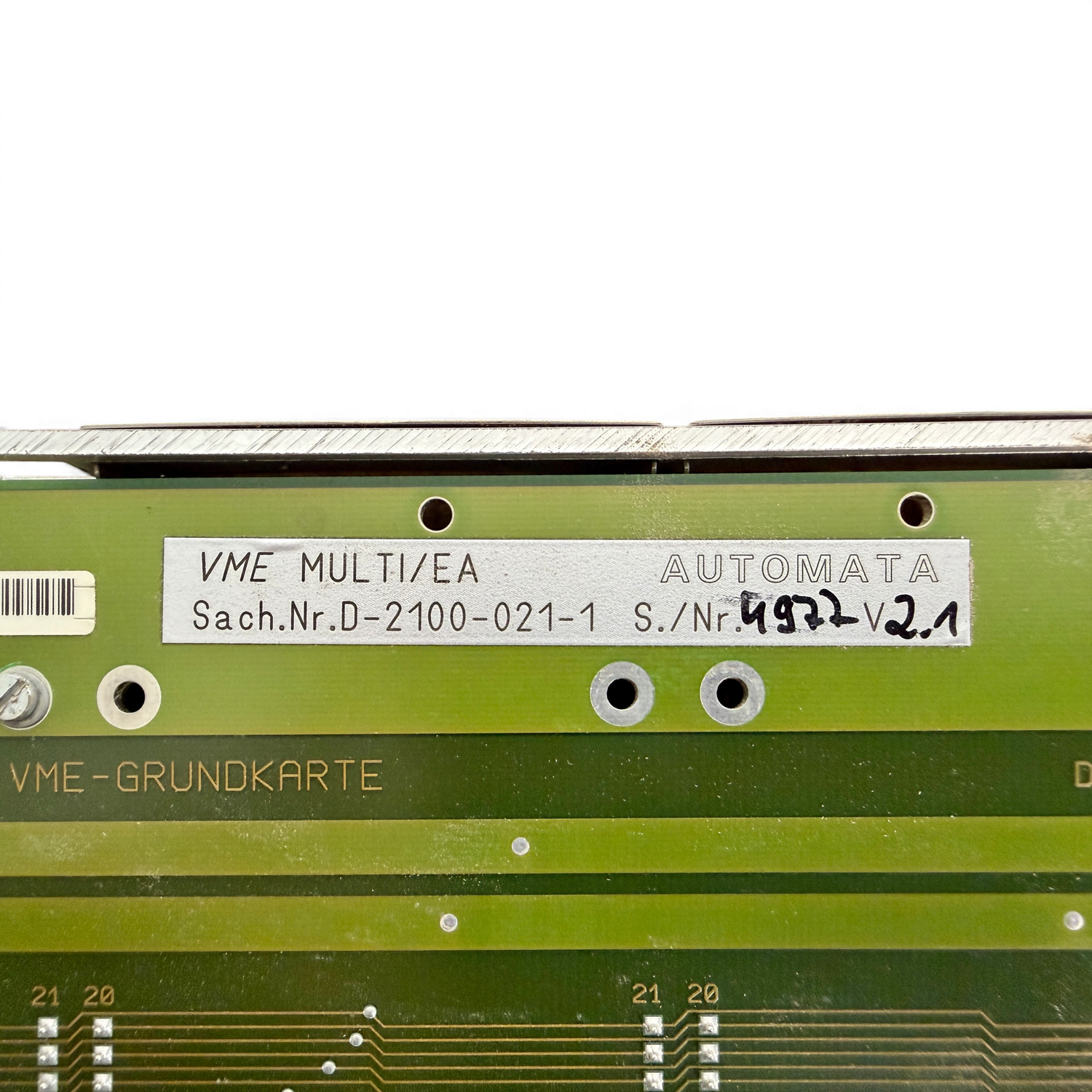

| Base card | VME MULTI/EA D-2100-021-1 |

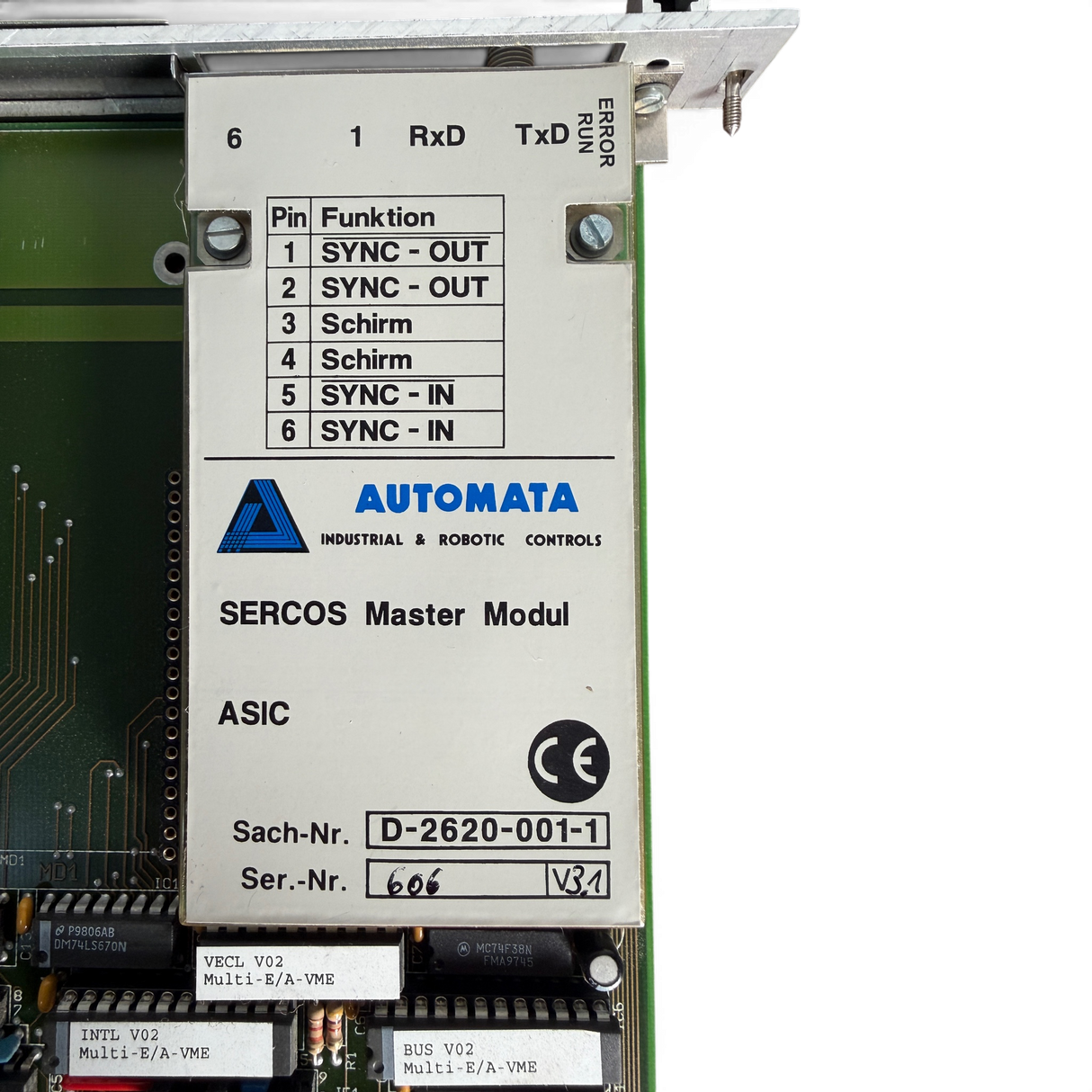

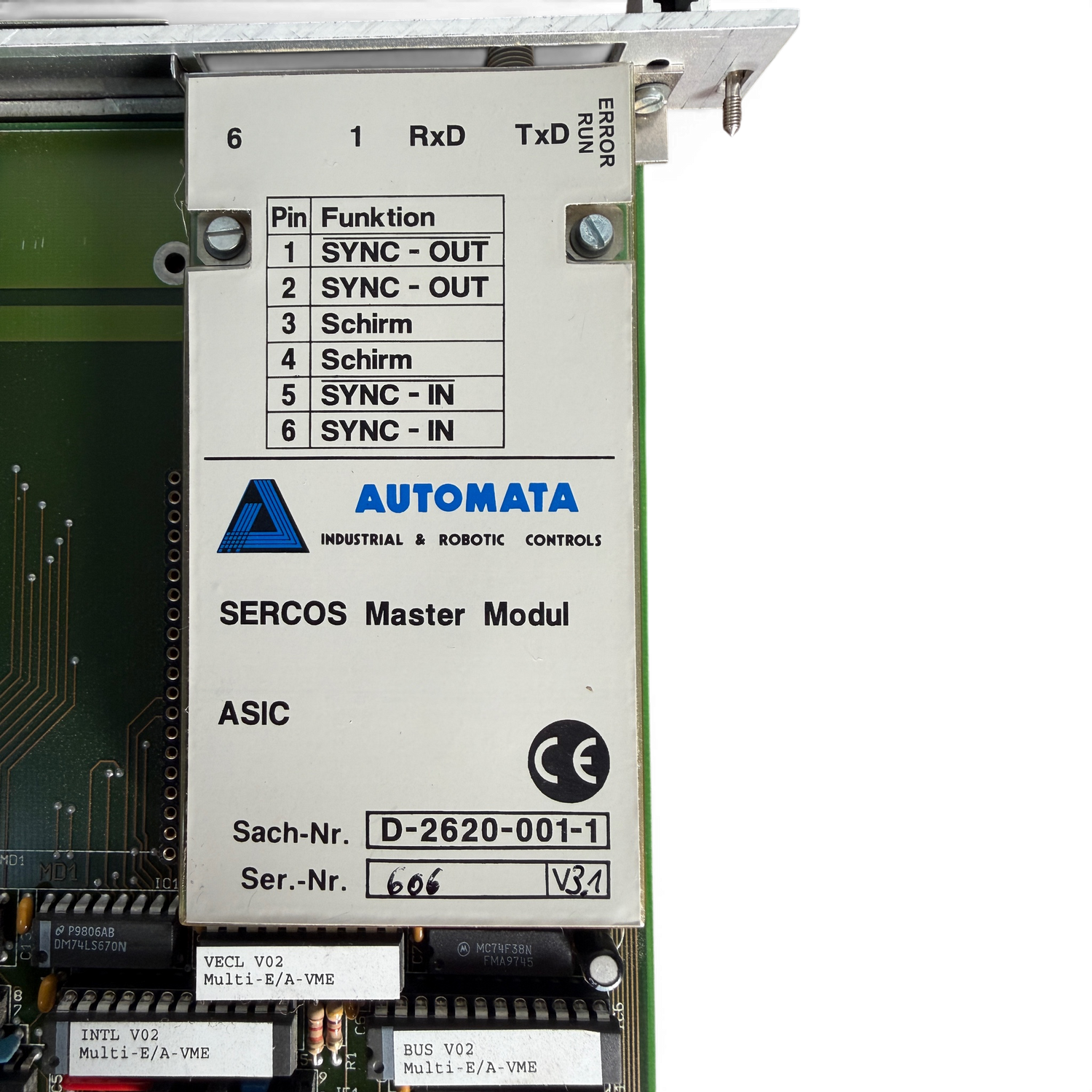

| ASIC module | SERCOS master D-2620-001-1 |
| Base card version | V2.1 |
| ASIC module version | V3.1 |
| Serial no. base card | 4972 |
| Serial no. ASIC module | 606 |

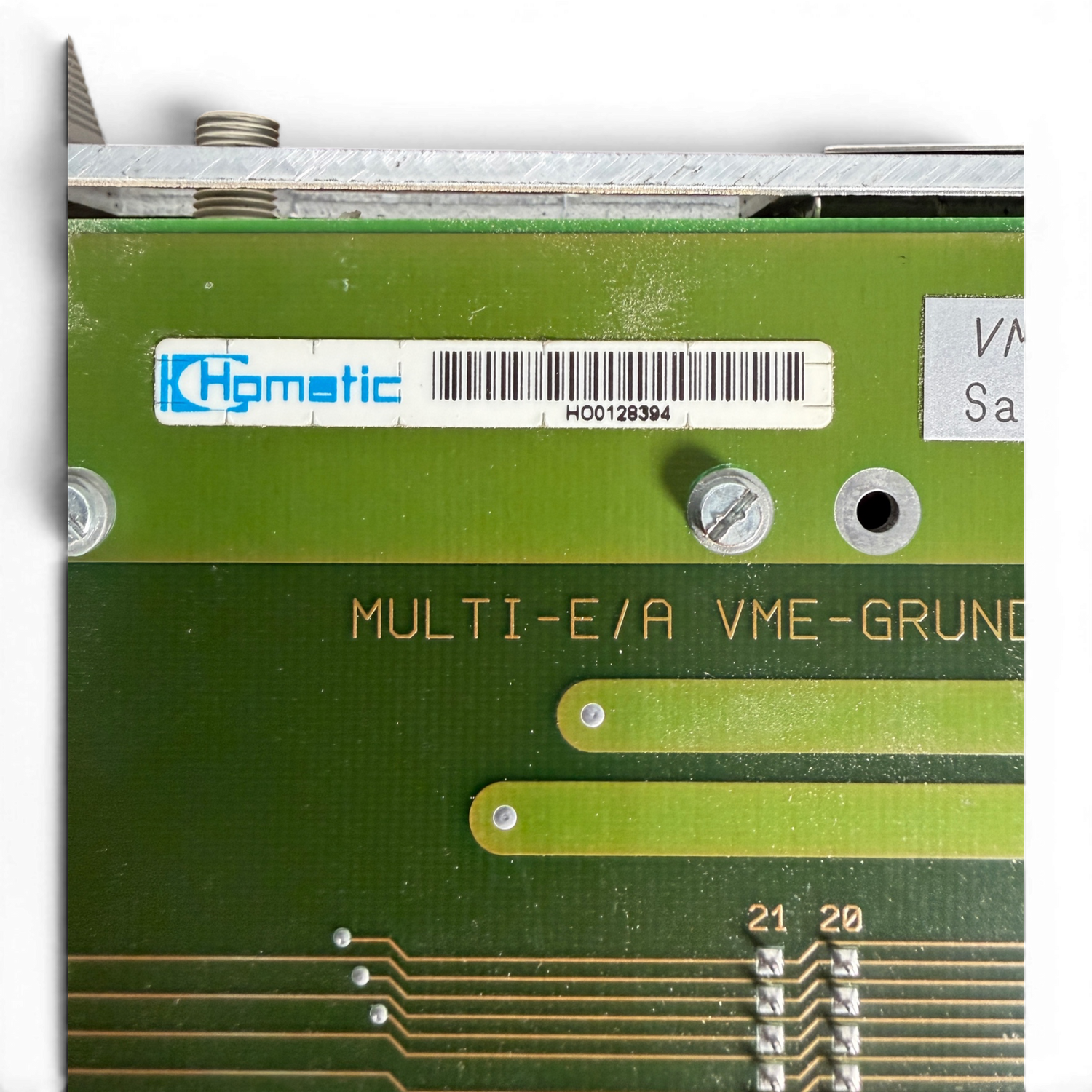

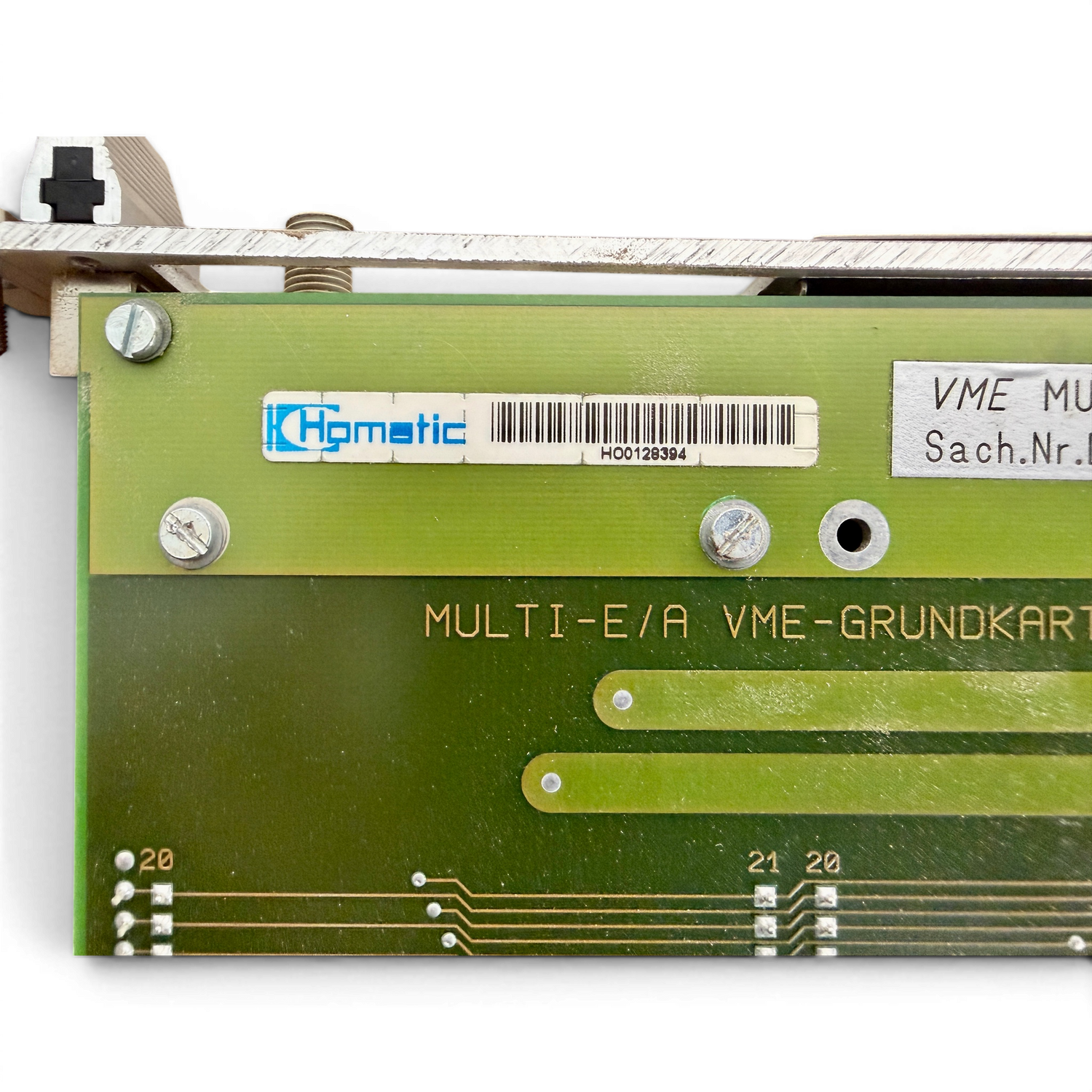

| HOMATIC barcode | H00128394 |
| Interface | SERCOS master |
| Indicators | RUN / ERROR / RxD / TxD |
| Synchronization | SYNC-IN / SYNC-OUT |
| Form factor | VME industrial card |
| Condition | Used · tested, working |
Product description

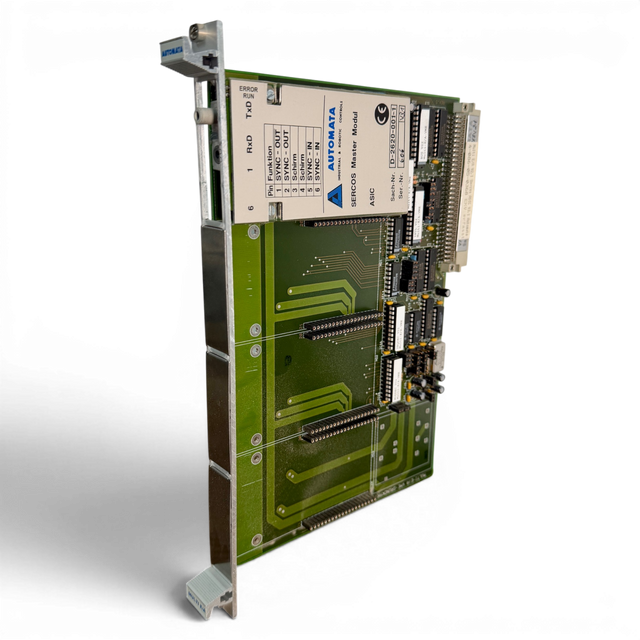

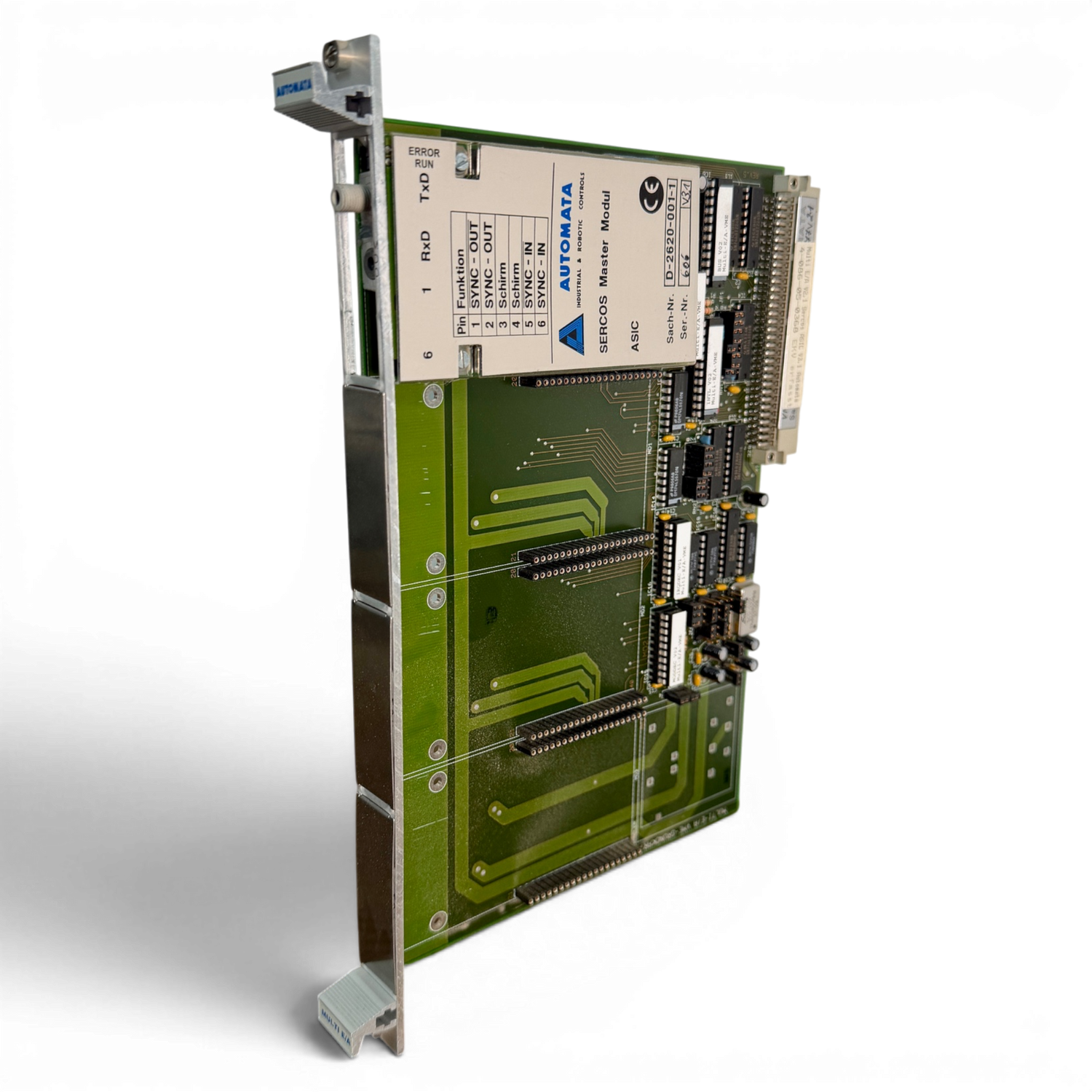

This original HOMAG MULTI-E/A VME base card, item number 4-086-05-0368, was developed for industrial CNC control and automation systems and comes from a HOMAG machine control. It is built on a robust VME industrial platform and carries an Automata (Industrial & Robotic Controls) SERCOS master module ASIC, version V3.1.

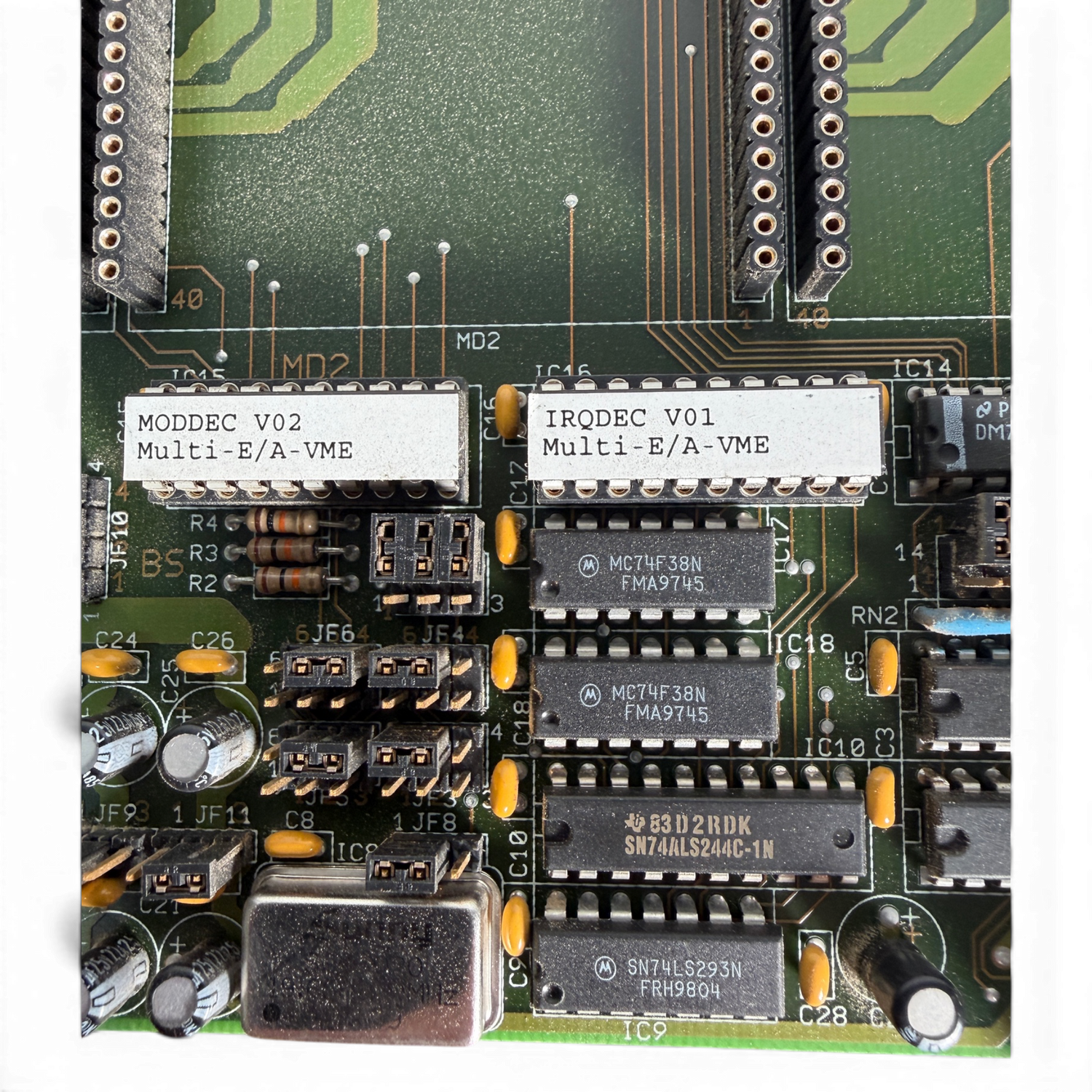

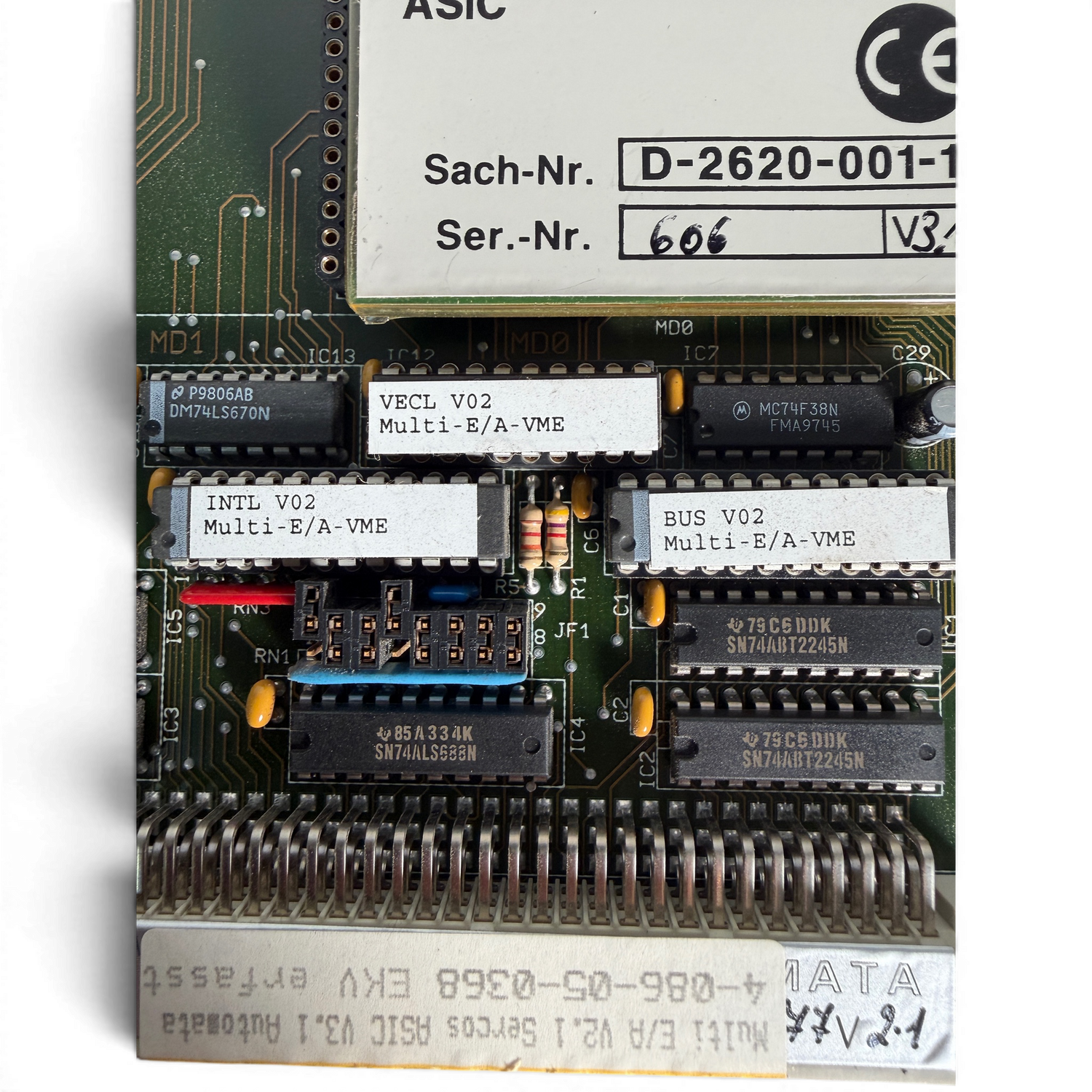

The card is the central communication and interface board in SERCOS-based CNC systems, handling synchronization, signal processing and data exchange between the control, axis drives and peripheral components. Labeled logic and EPROM chips on the board include MODDEC V02, IRQDEC V01, BUS V02, VECL V02 and INTI V02 Multi-E/A-VME.

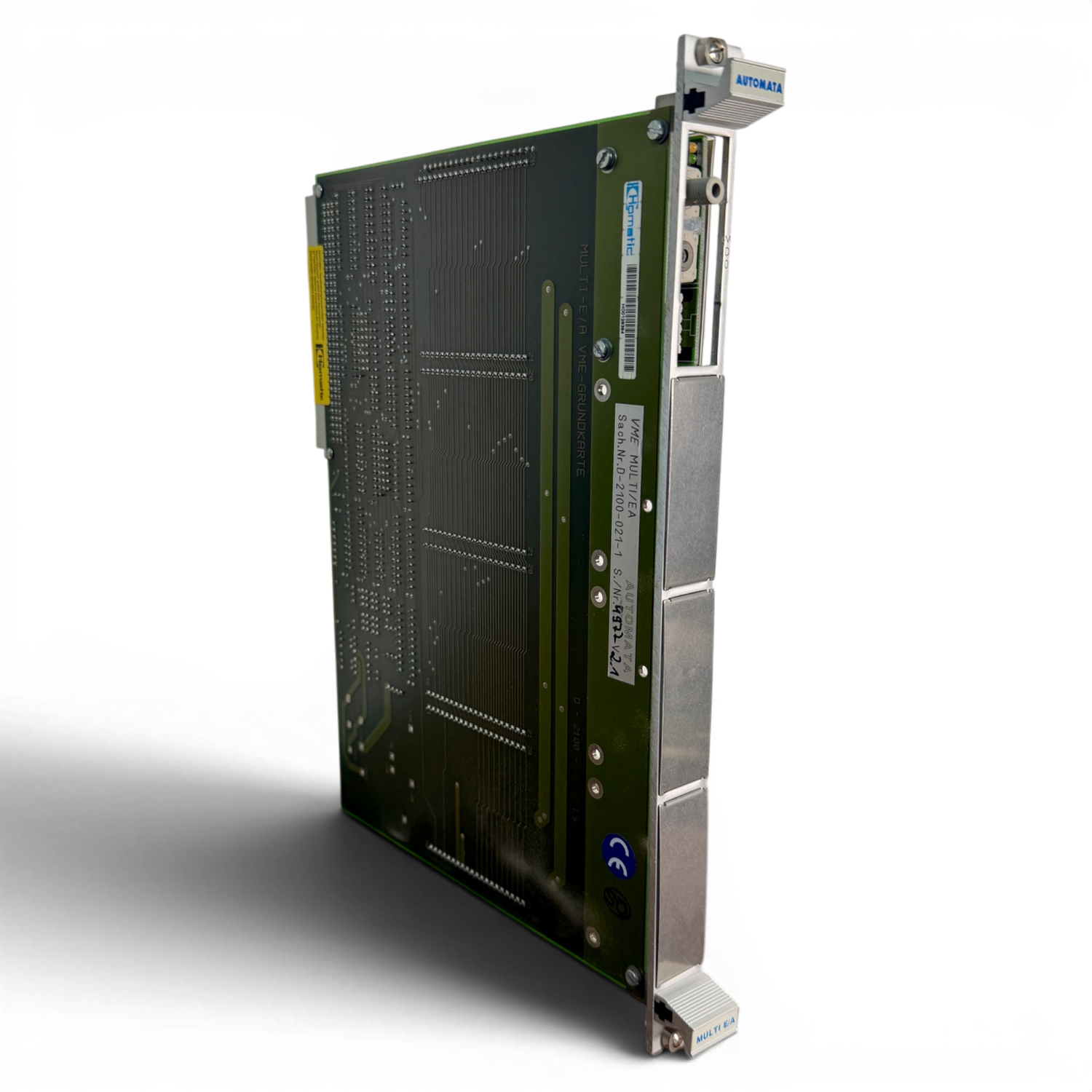

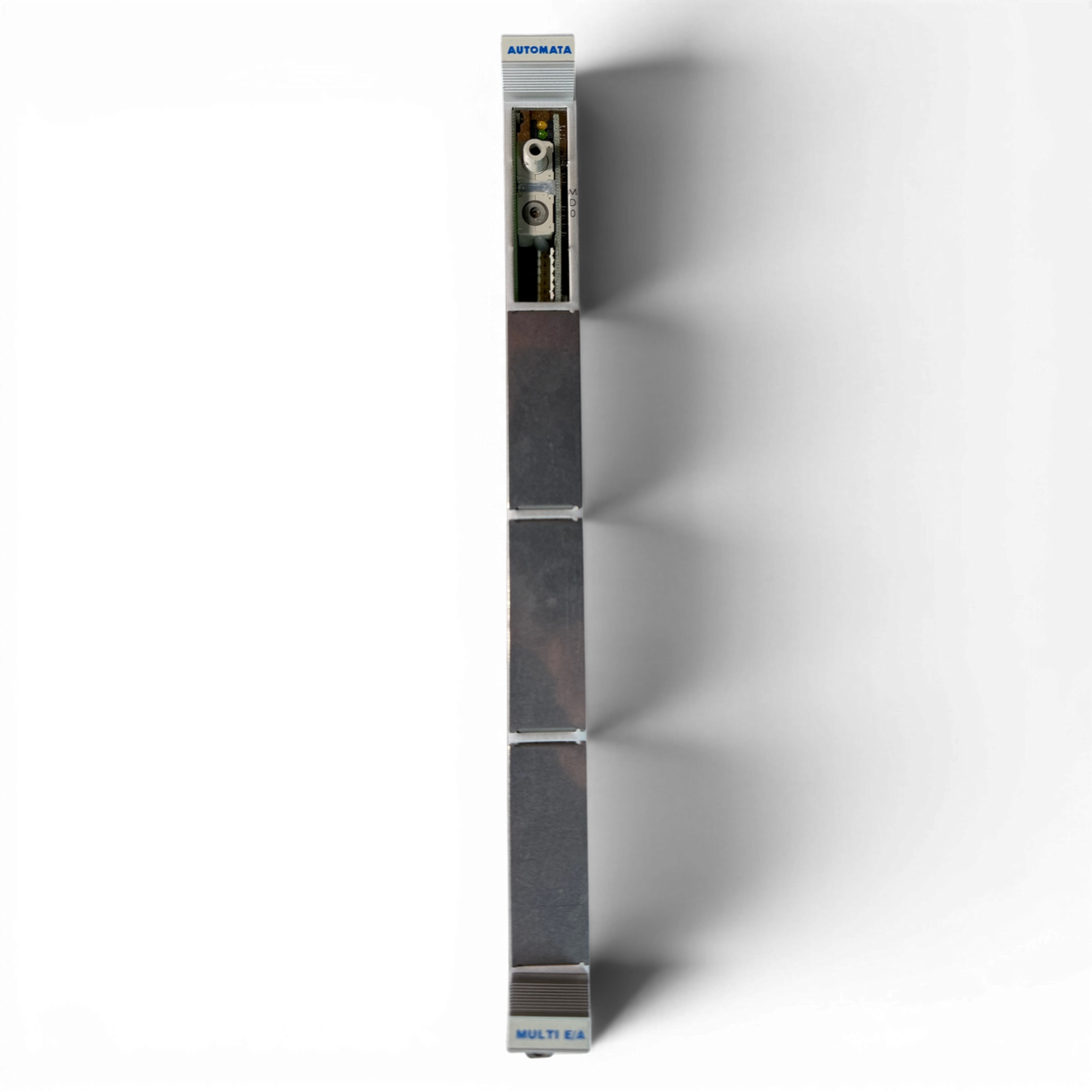

Integrated RUN, ERROR, RxD and TxD diagnostic LEDs and SYNC-IN / SYNC-OUT connectors support real-time industrial communication. Sturdy VME design with aluminum bracket and connector strip. Removed from a working system; tested and working, with signs of use and storage as shown in the photos.
Compatibility & applications
Scope of delivery
VME base card with ASIC module as pictured, without original packaging.
