HOMAG | SKU: 2-083-01-5060

HOMAG HC020 axis CPU card PLC II 16 MHz 128K Rev. 3 – HOMAG 2-083-01-5060

Name: HOMAG HC020 axis CPU card PLC II 16 MHz 128K Rev. 3 – HOMAG 2-083-01-5060
Brand: HOMAG
SKU: 2-083-01-5060
Price: 944.00 EUR
Availability: InStock

€944,00 EUR

excl. VAT Shipping calculated at checkout.

One-off item · available only once

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

HOMAG PLC CPU Card Used HOMATIC

HOMAG CPU HC020 SPS II 16 MHz 128K Rev.3 – 2-083-01-5060

Original HOMAG PLC CPU board for HOMATIC control systems (SPS II platform) with diagnostic port and LED status display, used in HOMAG woodworking machines and production lines.

2-083-01-5060

Main item no.

HC020

CPU module

SPS II

PLC platform

16 MHz

CPU clock

128K

Program memory

Before you order: compare the HOMAG number 2-083-01-5060, firmware version, PLC program version and memory addressing with your installed card. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Manufacturer	HOMAG
Module designation	CPU HC020 SPS II
HOMAG item number	2-083-01-5060 / 2083015060
Platform	SPS II / HOMATIC
Revision	Rev.3
CPU clock	16 MHz
Program memory	128K
Firmware	NEC V.11.10
Firmware number	3-012-05-1150
Firmware date	08.08.1997
Base module	SPS-BUS-MODUL rev.04
PCB number	2-083-01-5041
Diagnostic port	D-sub diagnostic port
LED indicators	AEN · SE · W1 · W2 · IRQ · D0 · D1 · OR · ERR
Connectors	Multi-pin backplane and PLC connectors
Barcode / inventory	H00117874
Condition	Used · tested

Product description

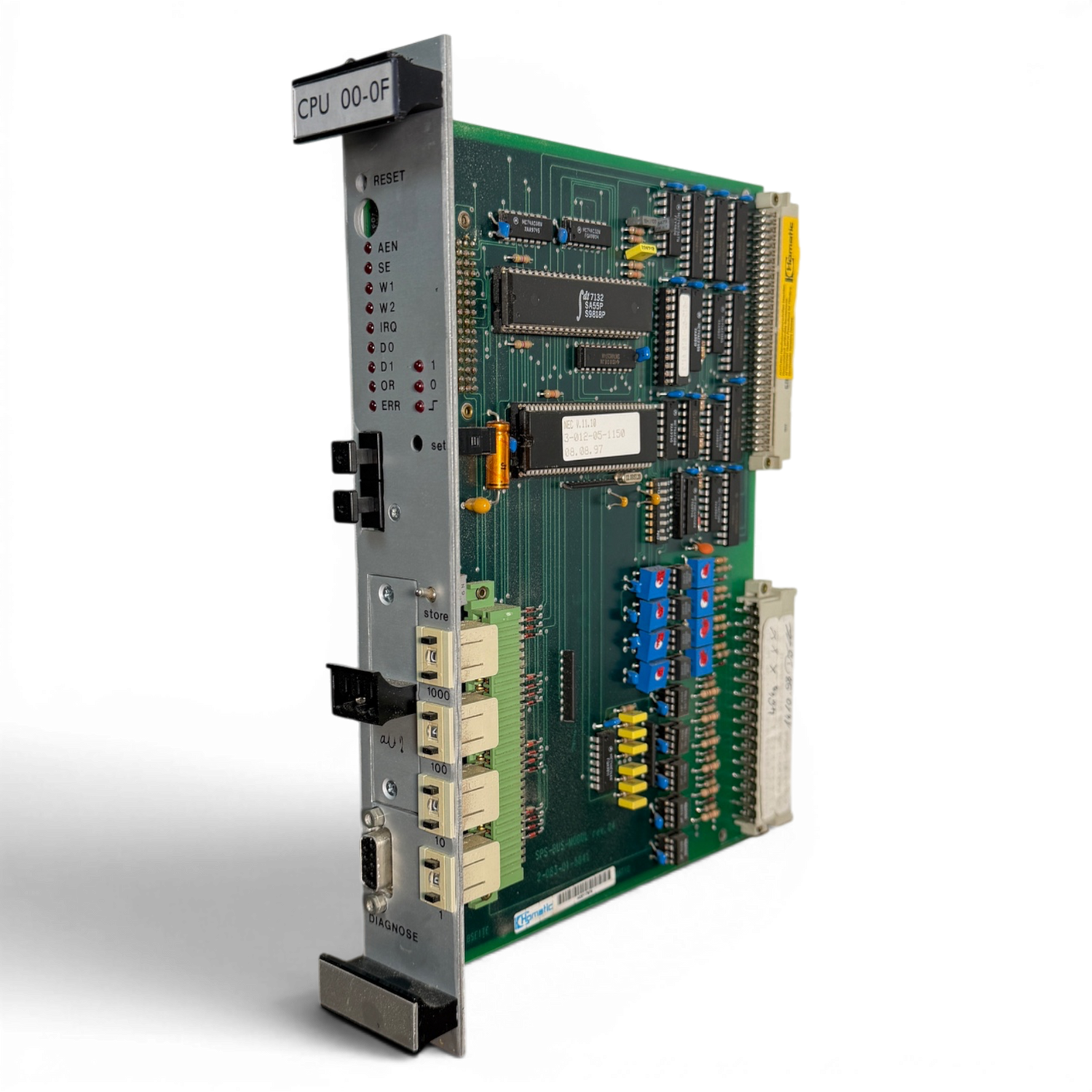

An original HOMAG CPU HC020 SPS II control board, HOMAG item number 2-083-01-5060, developed for HOMATIC PLC control systems and typically used in HOMAG woodworking machines and production lines.

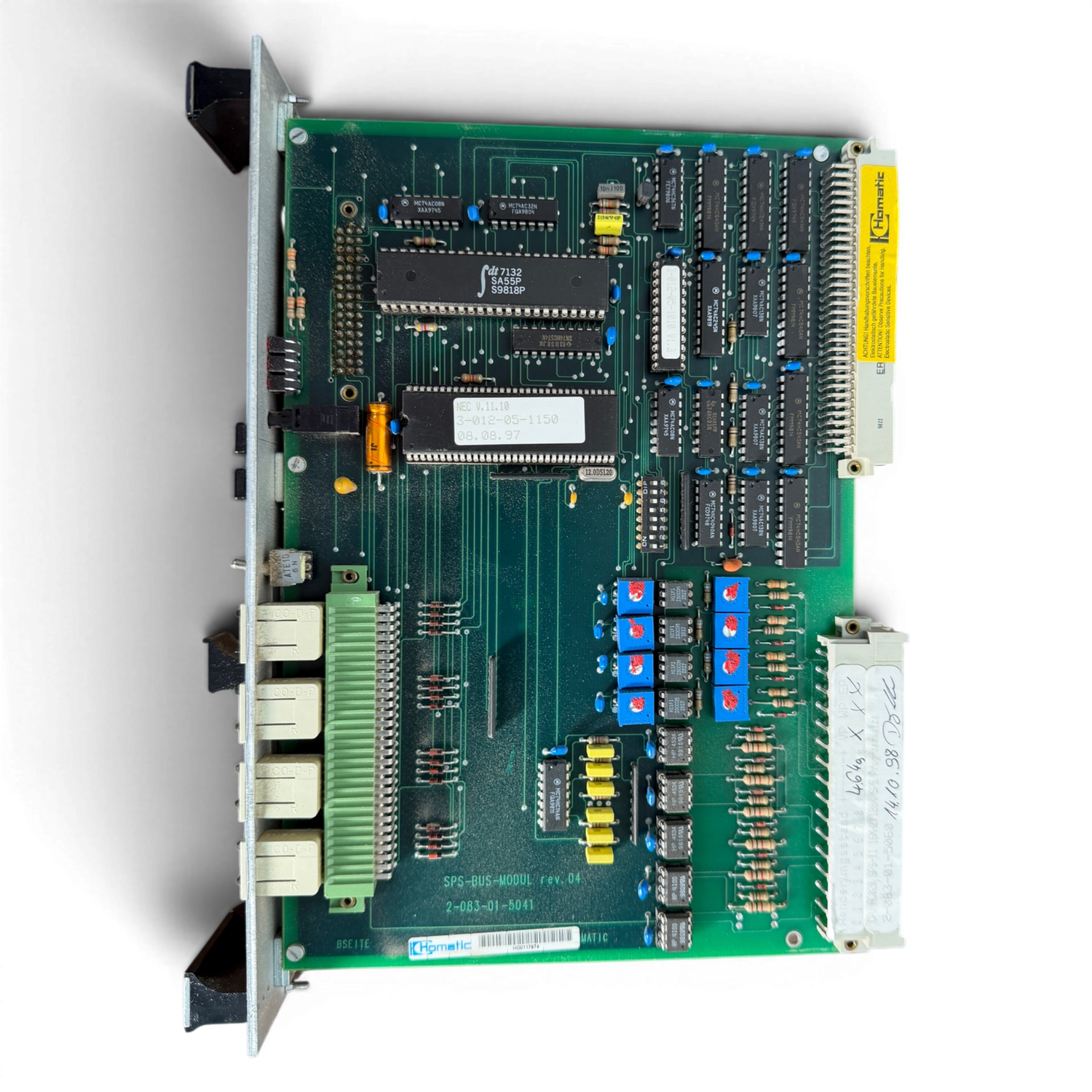

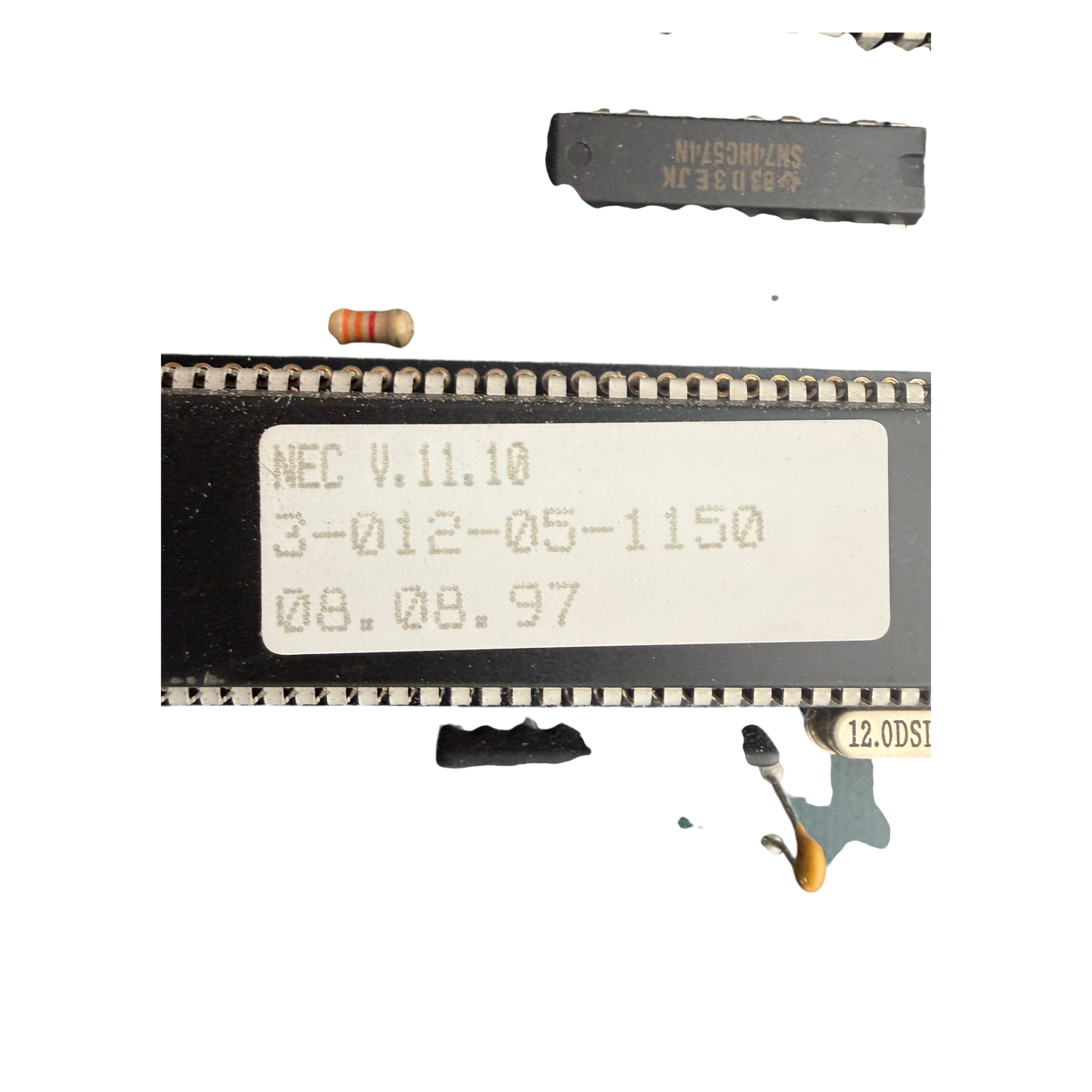

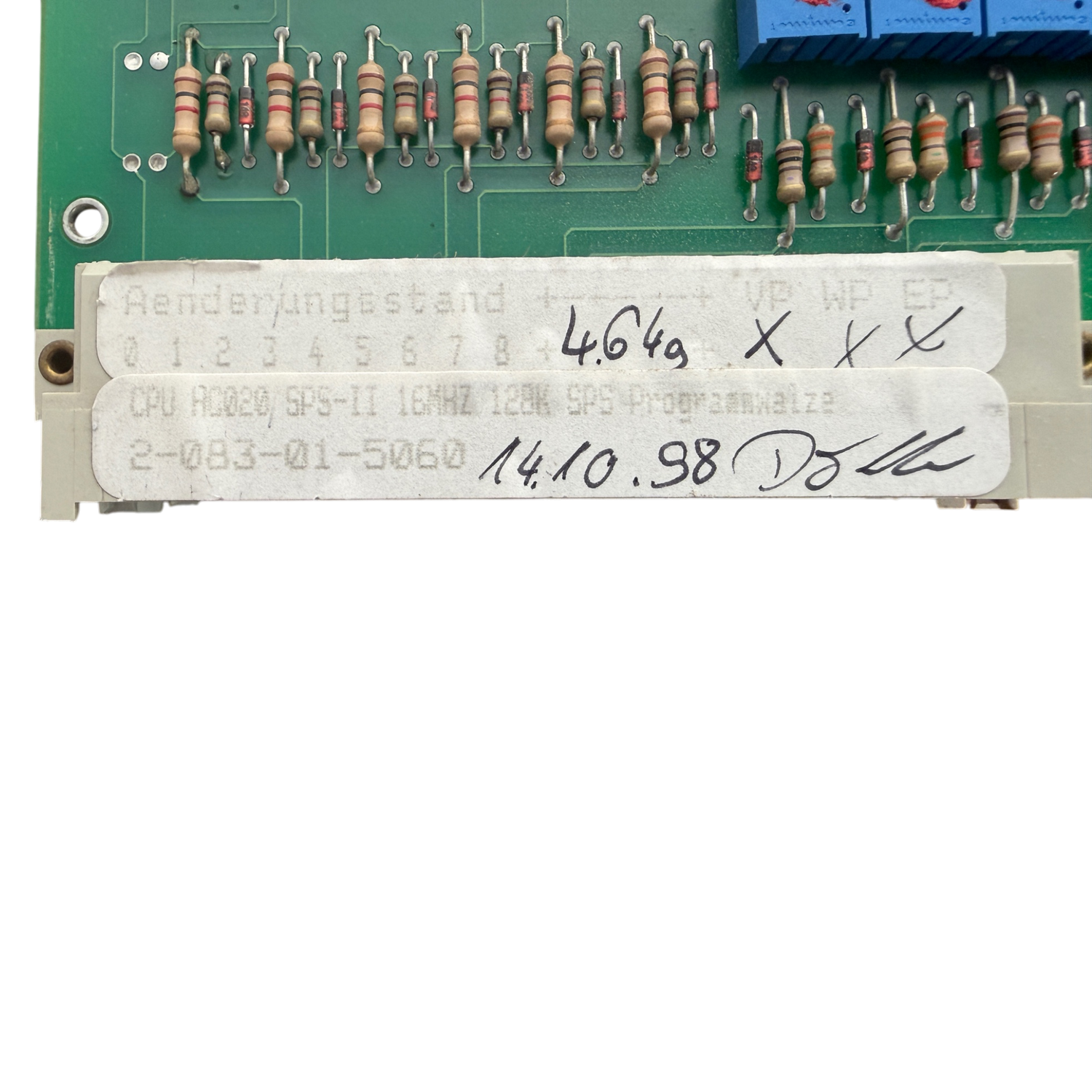

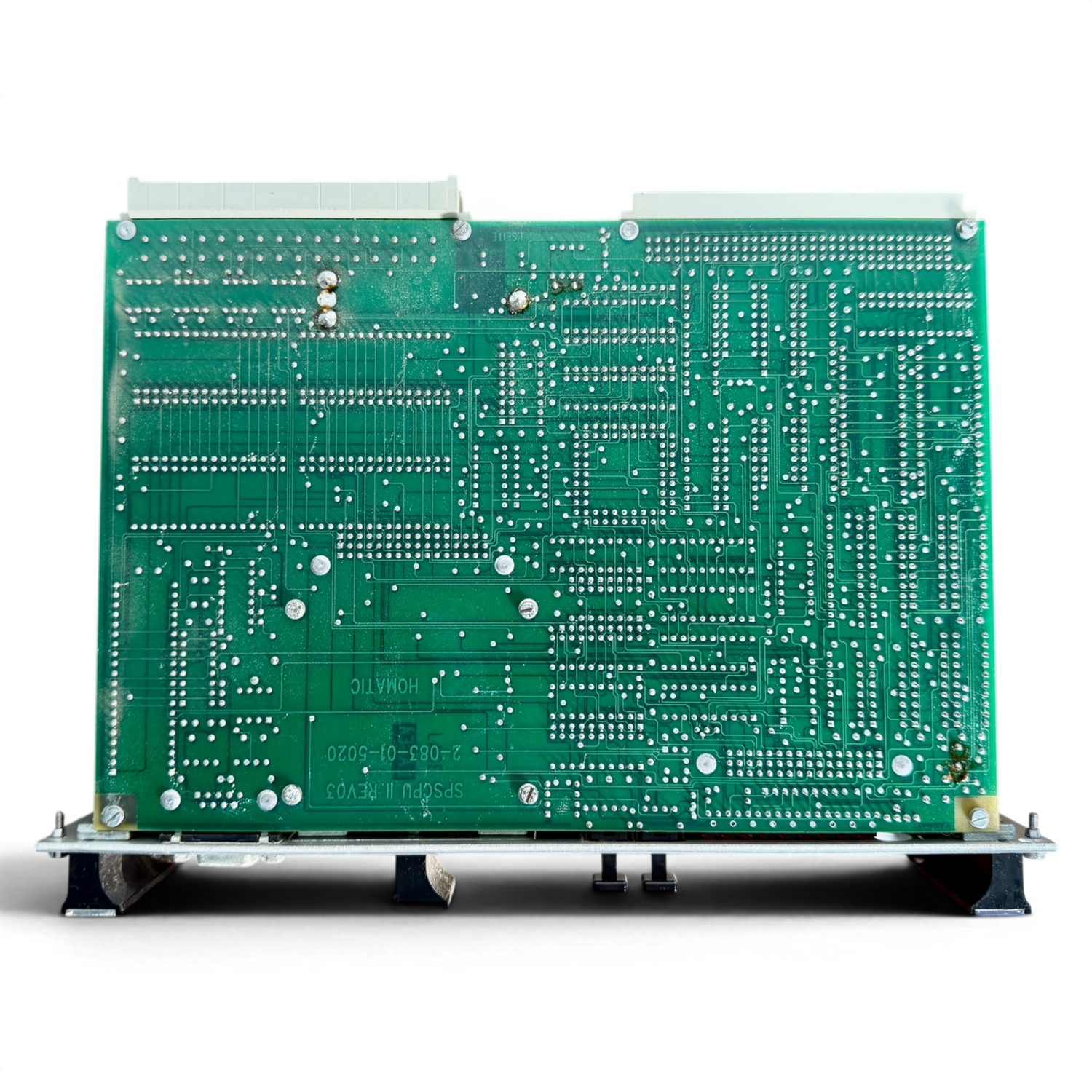

The card is the CPU module of the SPS II architecture and handles central control, communication and diagnostic functions in the machine control. The board label clearly reads “CPU HC020 SPS-II 16MHZ 128K SPS Programmwalze” with main number 2-083-01-5060. It carries an NEC firmware chip marked NEC V.11.10 (internal number 3-012-05-1150, dated 08.08.97) plus numerous logic, memory and interface chips for PLC program and I/O processing.

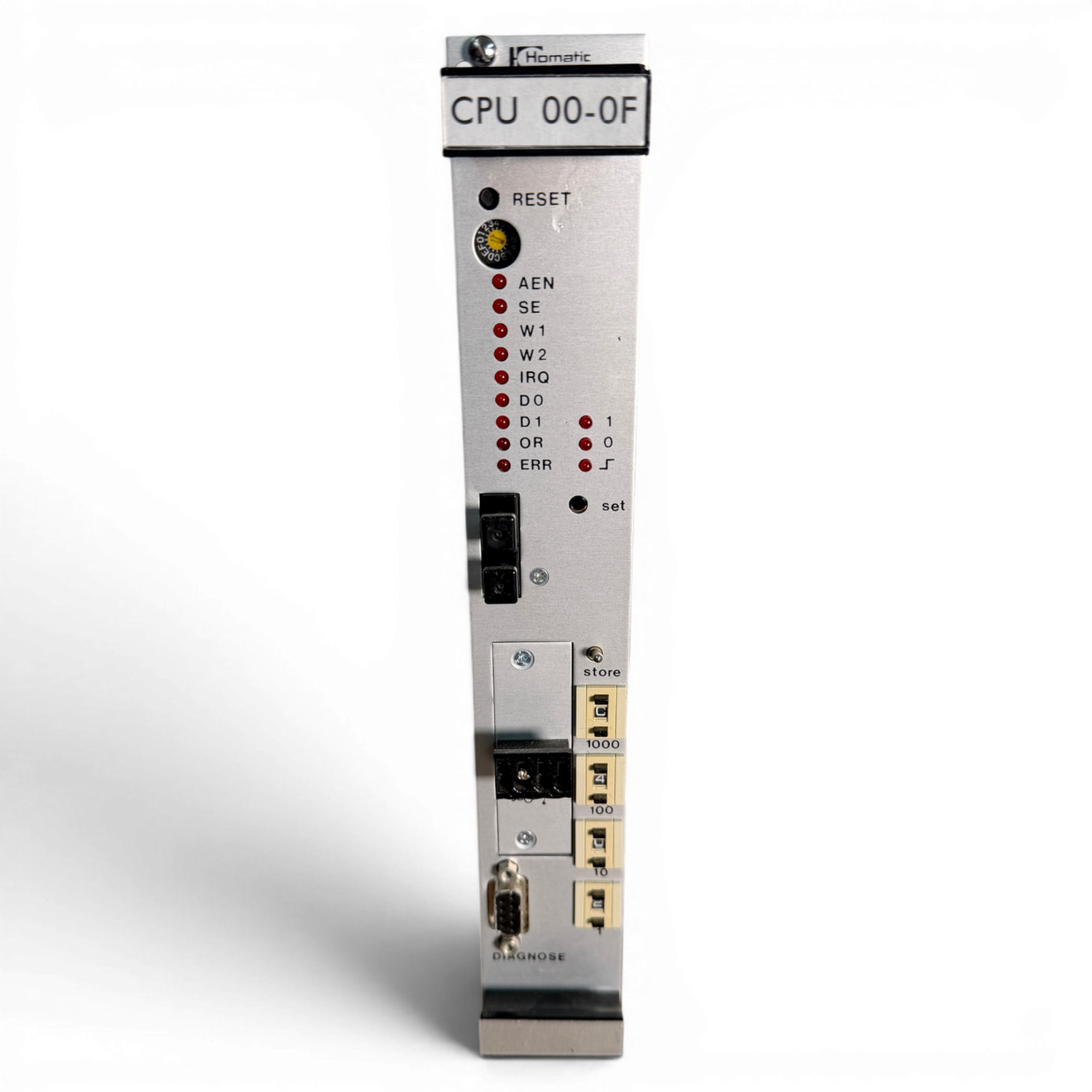

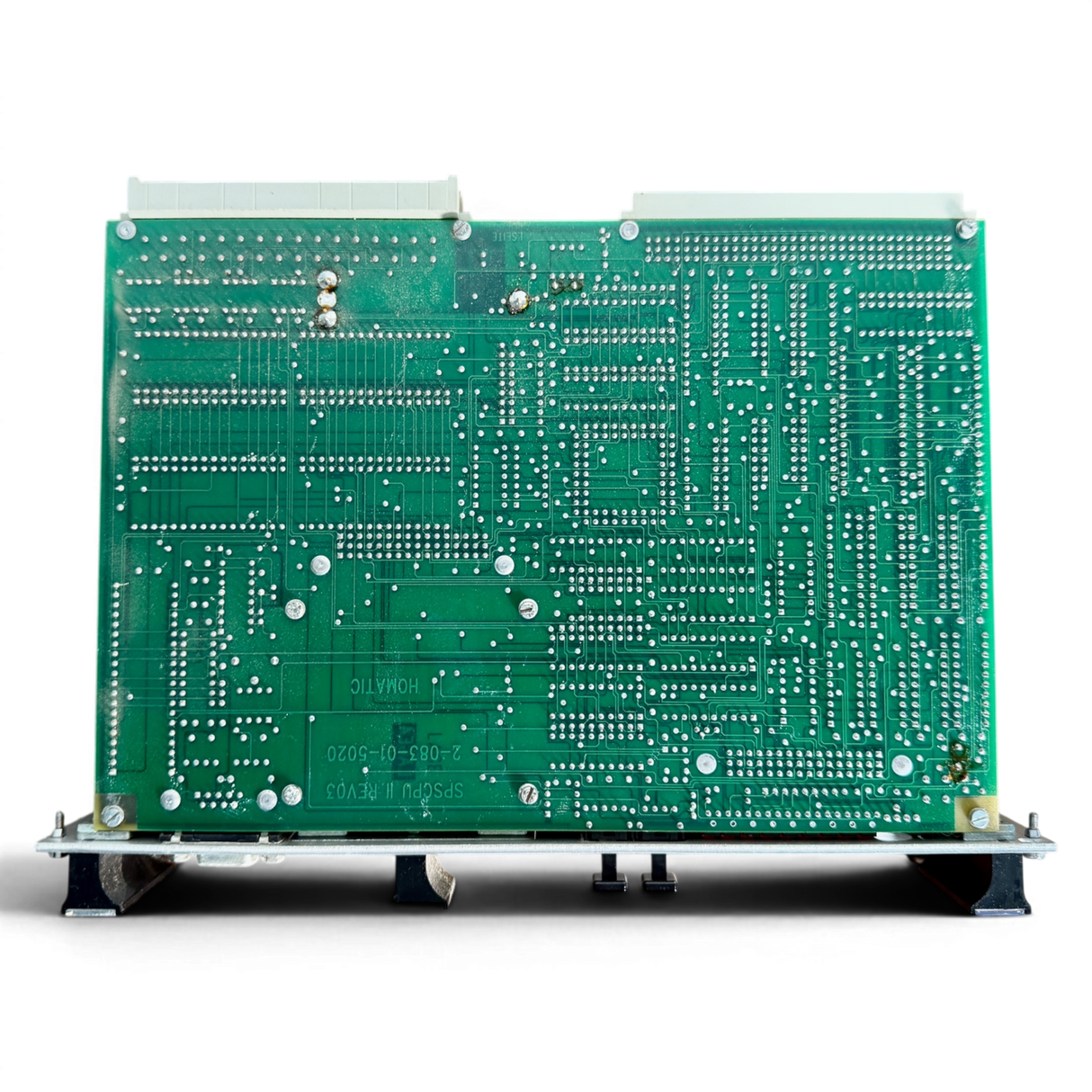

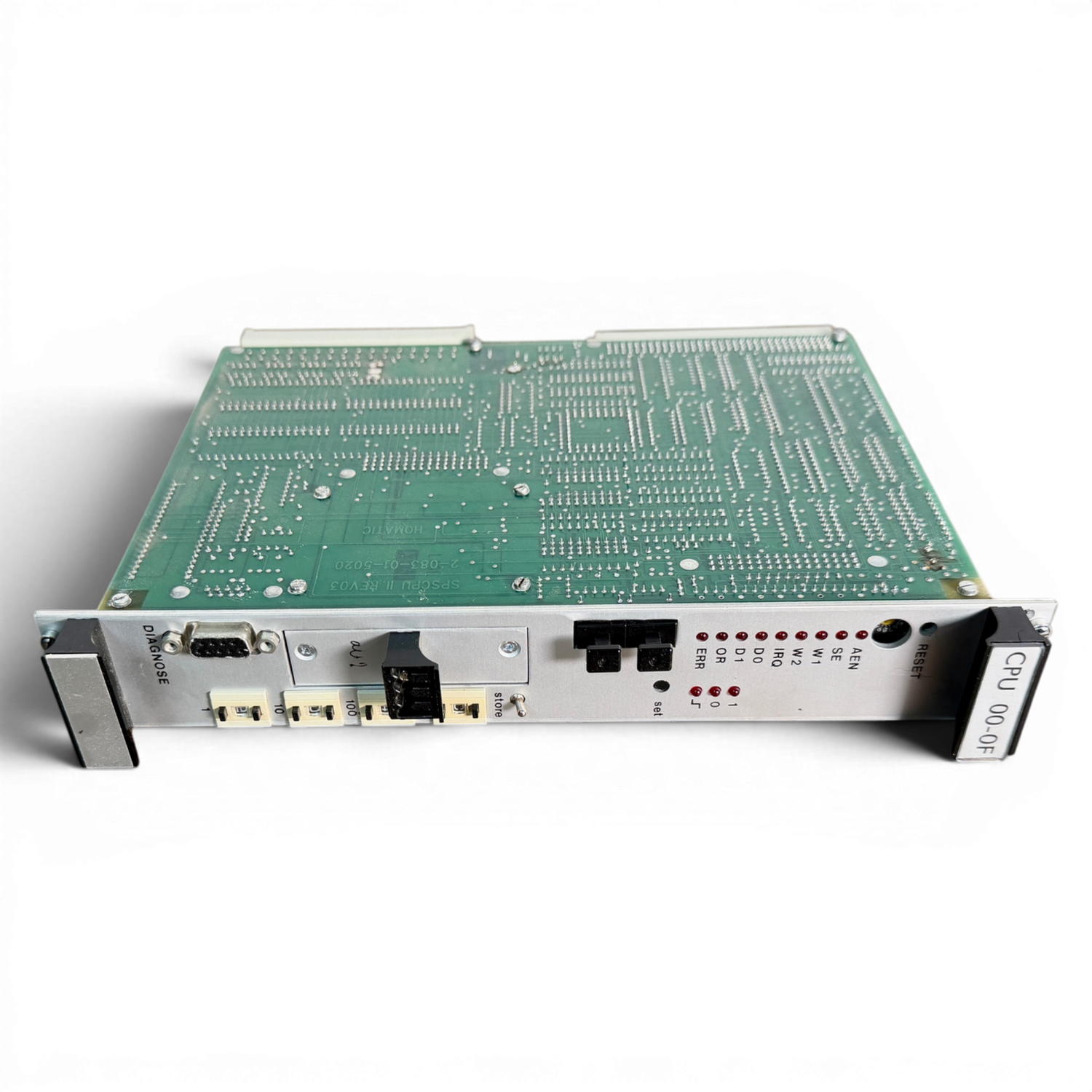

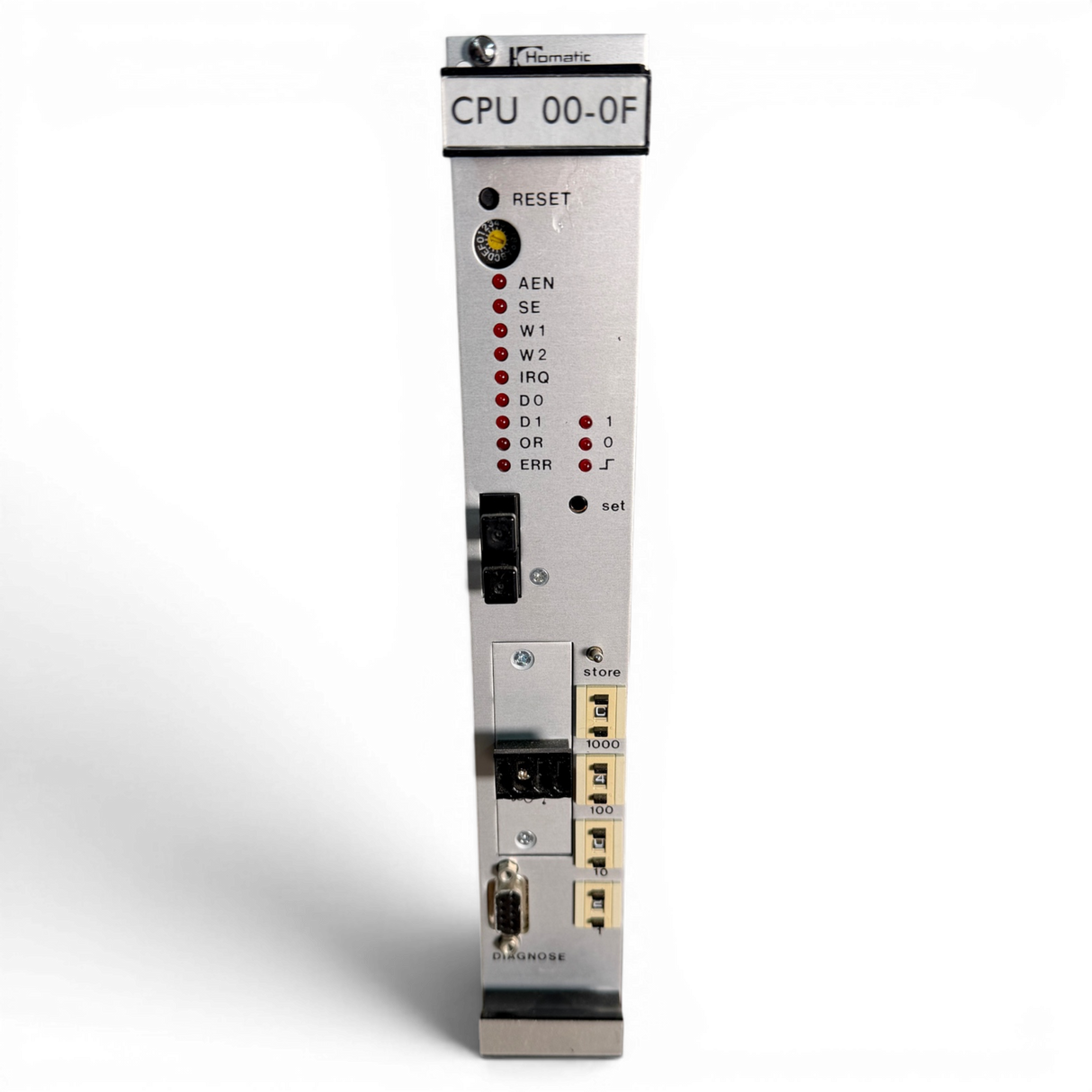

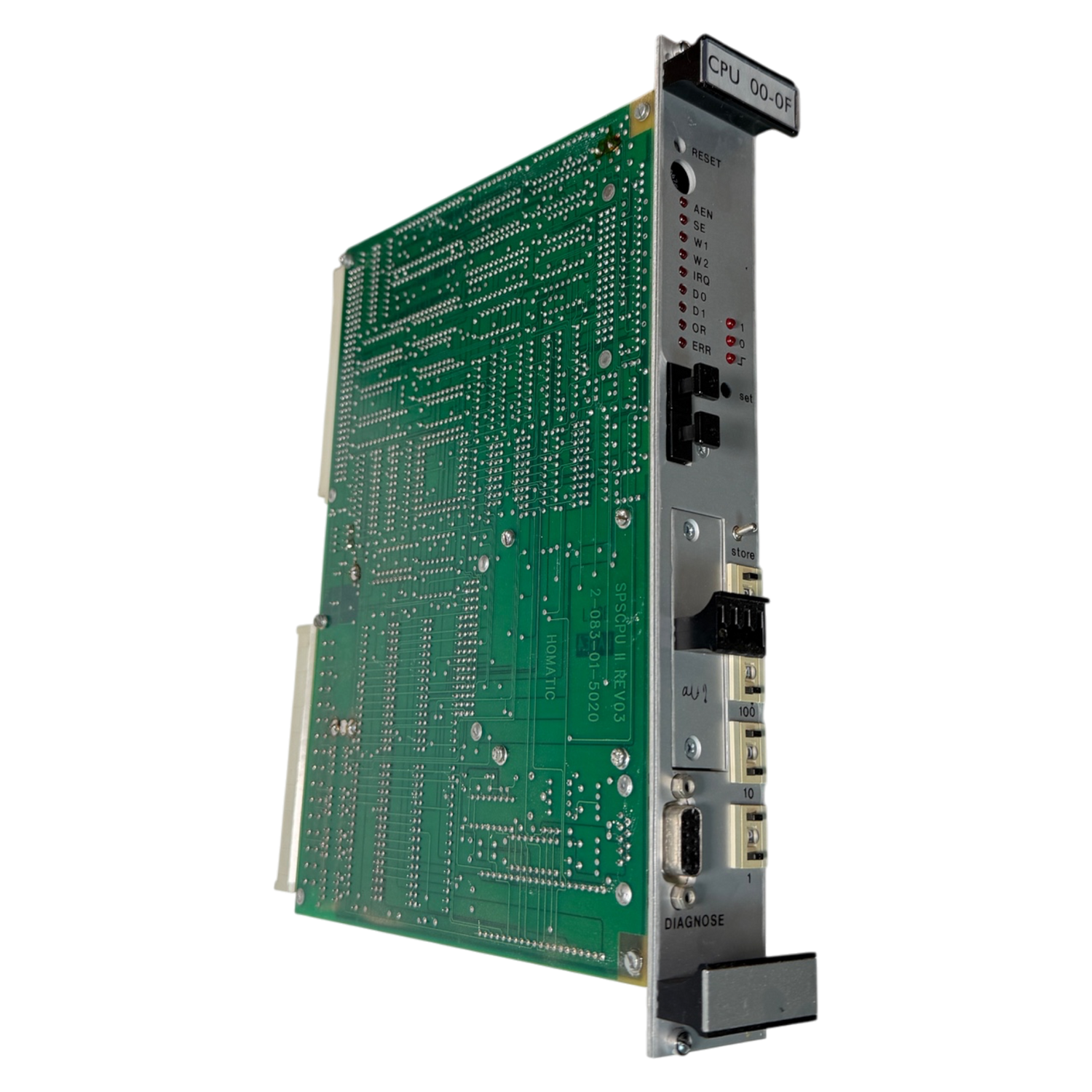

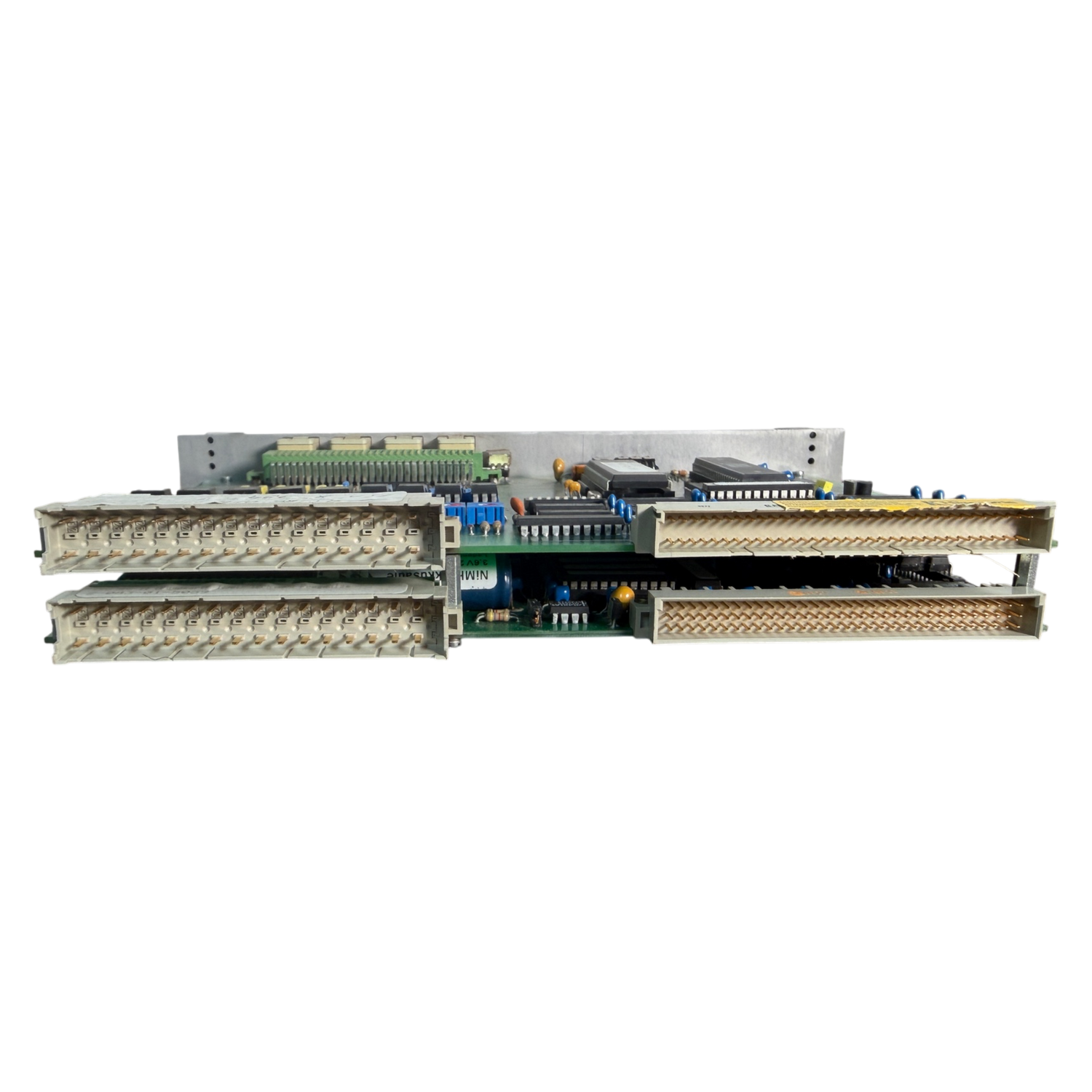

The front panel is well equipped for diagnostics: status LEDs for AEN, SE, W1, W2, IRQ, D0, D1, OR and ERR, a serial diagnostic port, address / memory selector DIP switches, RESET and SET functions and a STORE switch for memory and program management. Several industrial connectors integrate the card into HOMATIC backplane systems and PLC extensions; trimmers allow adjustment. The PCB is additionally marked SPS-BUS-MODUL rev.04, base PCB number 2-083-01-5041.

Used original HOMAG CPU board from industrial service, in good visual condition with age-related storage and handling marks; labels, firmware versions, connectors and front panel elements as shown in the original photos. Ideal as a replacement part or reserve board for older HOMAG controls and HOMATIC PLC systems.

Compatibility & applications

HOMAG HOMATICHC020SPS IIPLC CPU moduleMachine controlCNC control

SPS II revisions and program memories can differ; please check firmware version, PLC program version, memory addressing and machine configuration before replacement.

Scope of delivery

1x HOMAG CPU HC020 SPS II control board, item number 2-083-01-5060, 16 MHz / 128K / Rev.3, exactly as pictured.

Shipping to the USA & worldwide

In stock in Germany and shipped via FedEx or UPS, usually on the day of your order. Transit to the US typically takes 2–5 business days with full tracking. Import duties and fees follow the US regulations in force on the import date and are settled by the importer. More background on availability and pricing of legacy CNC electronics: read our guide for US customers.

Shipping, duties and warranty at a glance: Shipping to the USA.
