EATON NZM2 Main Switch / Switch-Disconnector with Rotary Handle for...
EATON NZM2 Main Switch / Switch-Disconnector with Rotary Handle and Base – Part No. 266006
EATON Moeller NZM2 series main switch / switch-disconnector with rotary drive and mounted base, suitable for IMA 610 and comparable machines.
| Manufacturer | EATON |
| Part No. | 266006 |
| Series / size | NZM2 |
| Further ID / order No. | PN2-200 |
| Standard | IEC EN 60947-3 |
| Device type | Switch-disconnector |
| Rated operational voltage Ue | 690 V AC |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Frequency | 50/60 Hz |
| Short-time withstand current Icw | 35 kA |
| Poles | 3 |
| Operation | Rotary handle with mounted base |

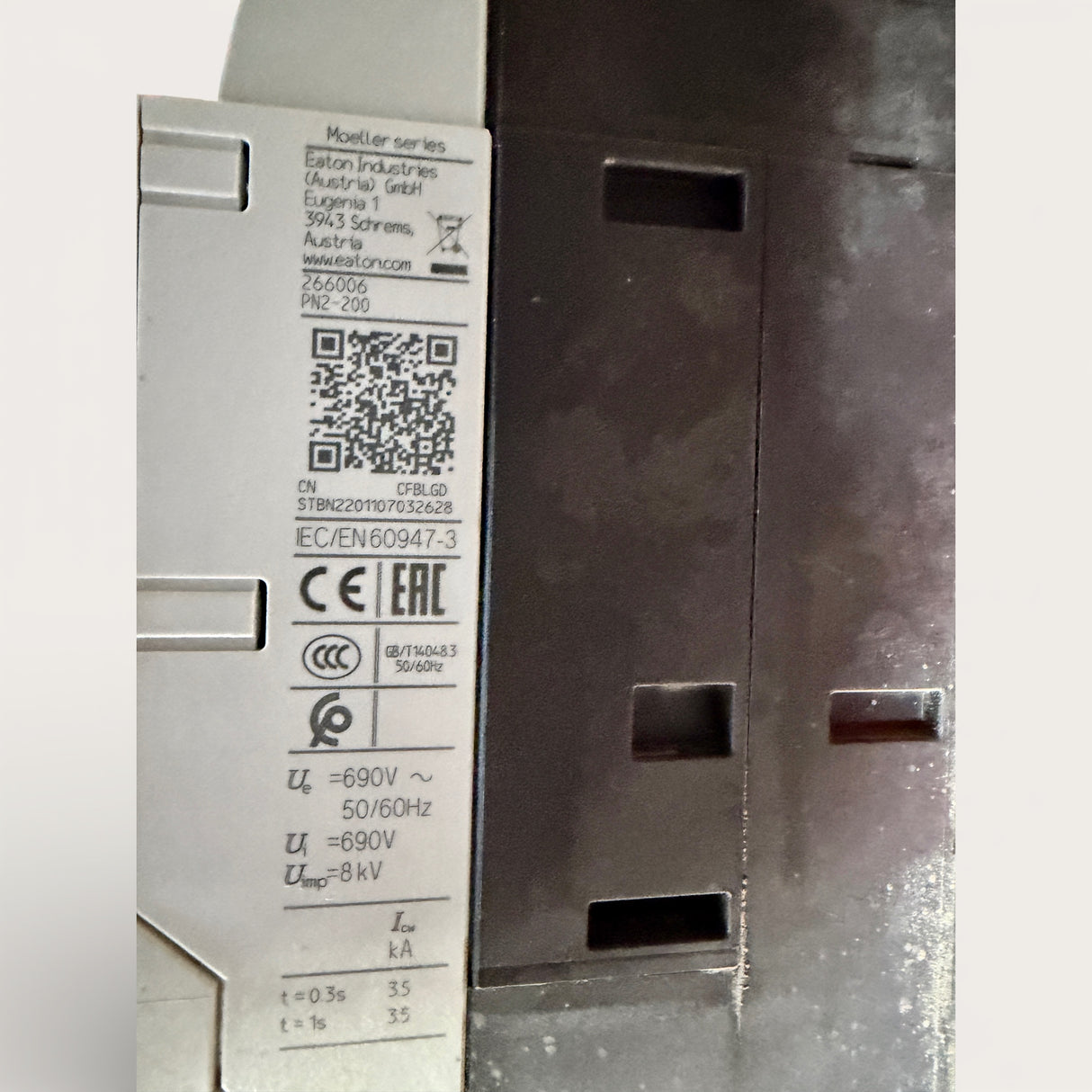

| Serial / production data | See nameplate and QR code |
| Weight | approx. 2.5 kg |
| Dimensions | approx. 220 × 150 × 320 mm |
| Condition | Used · 2 – Good |
Product description
Heavy-duty main switch / switch-disconnector from the EATON Moeller NZM2 series with rotary drive and mounted base. Designed for safe manual main-switch operation in industrial machines and control cabinets.
The unit is a ready main-switch solution including mechanical rotary drive and mounting foot; the mounted base fits machines such as the IMA 610 and comparable systems. High voltage rating up to 690 V for demanding installations. Used, tested and fully functional, with signs of use as shown in the photos.
Compatibility & applications
Scope of delivery
1 × EATON NZM2 switch-disconnector with rotary handle and base – exactly the unit pictured.
