DIA router bit 53 x 20.9, cutting diameter 16 mm, shank 20 mm – part 4164260728

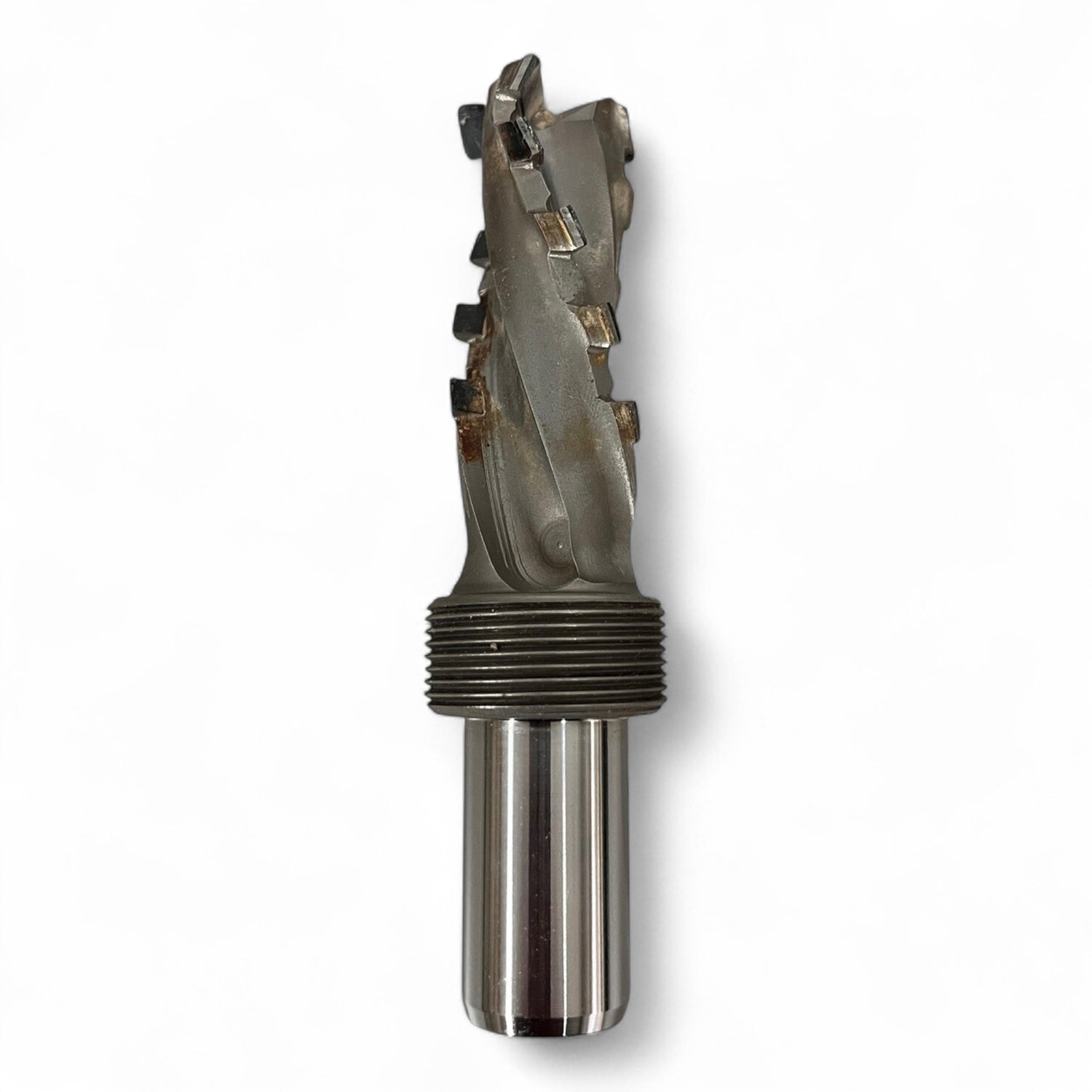

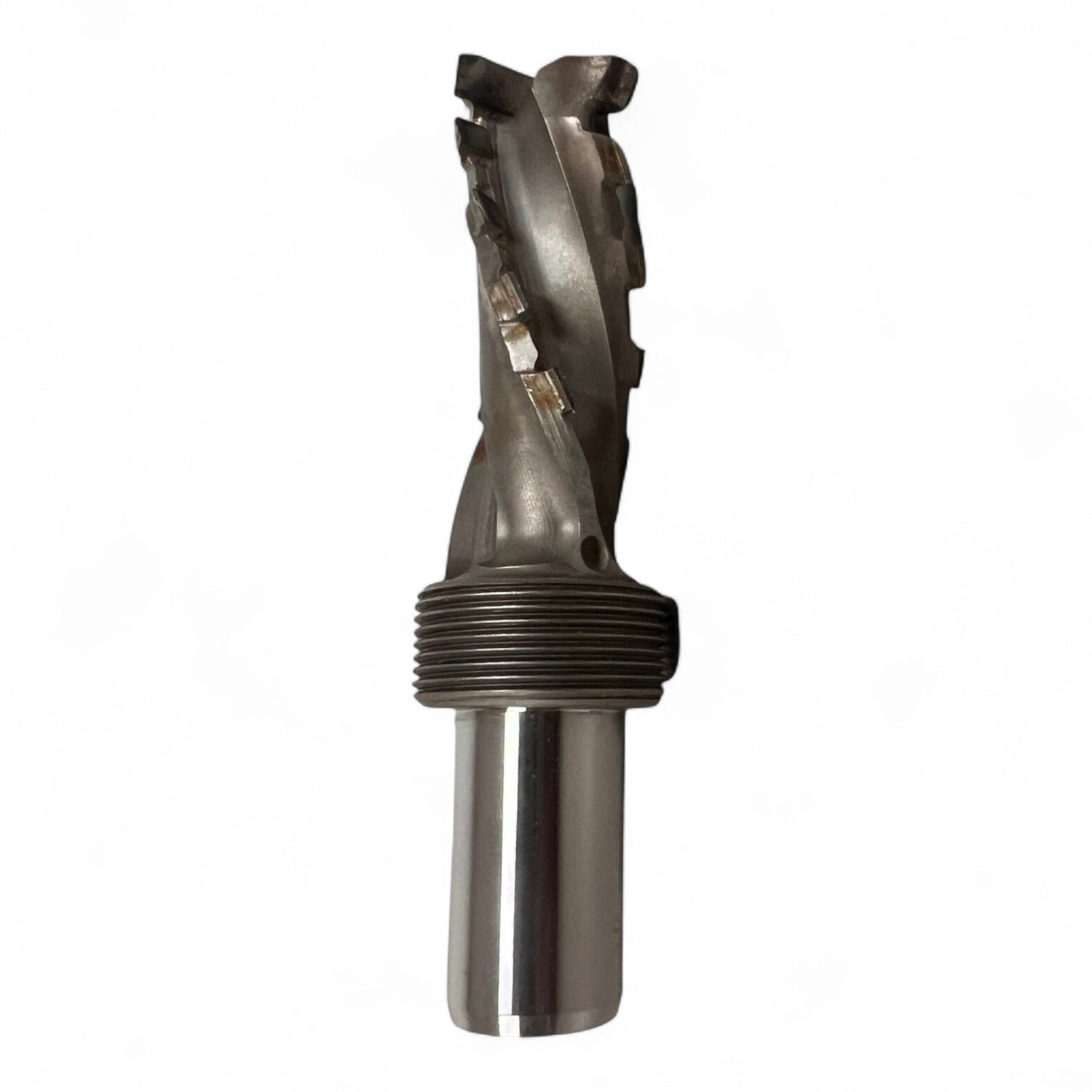

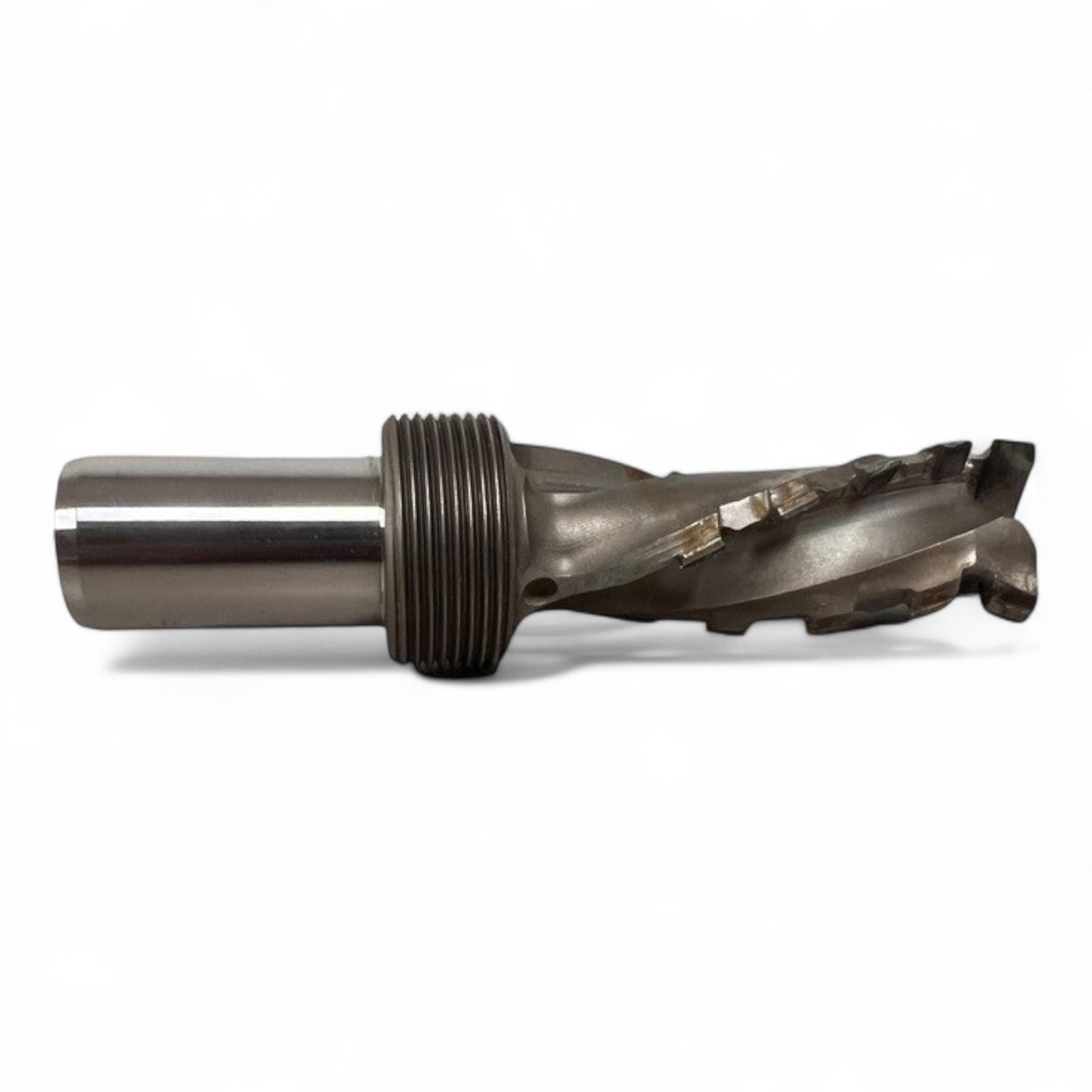

PCD Router Bit 53 x 20.9 with Cutting Diameter 16 mm and Shank 20 mm

Article number: 4164260728

Description:

This DIA router bit with carbide or PCD-tipped cutting edges is a powerful tool for industrial woodworking. The router bit is suitable for precise applications on CNC-controlled machining centers. The spirally arranged cutting edges ensure particularly clean chip evacuation and smooth running at high cutting speeds. The shank diameter is 20 mm, the cutting length is approx. 53 mm, and the maximum cutting diameter is 16 mm.

Technical Features:

• Router bit type: Diamond-tipped (DIA)
• Cutting diameter:    16.0 mm
• Shank diameter:      20.0 mm

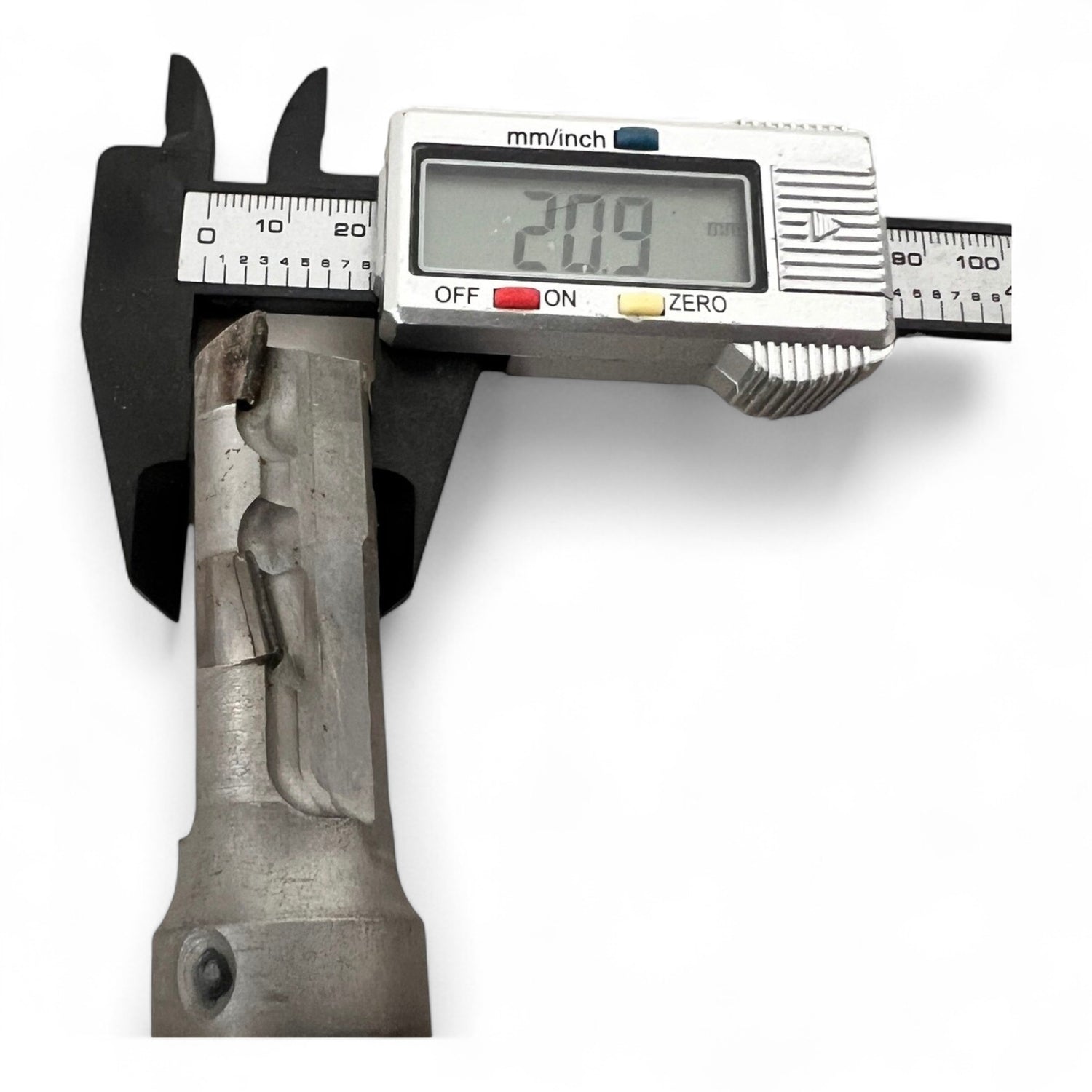

• Mounting diameter:    20.9 mm

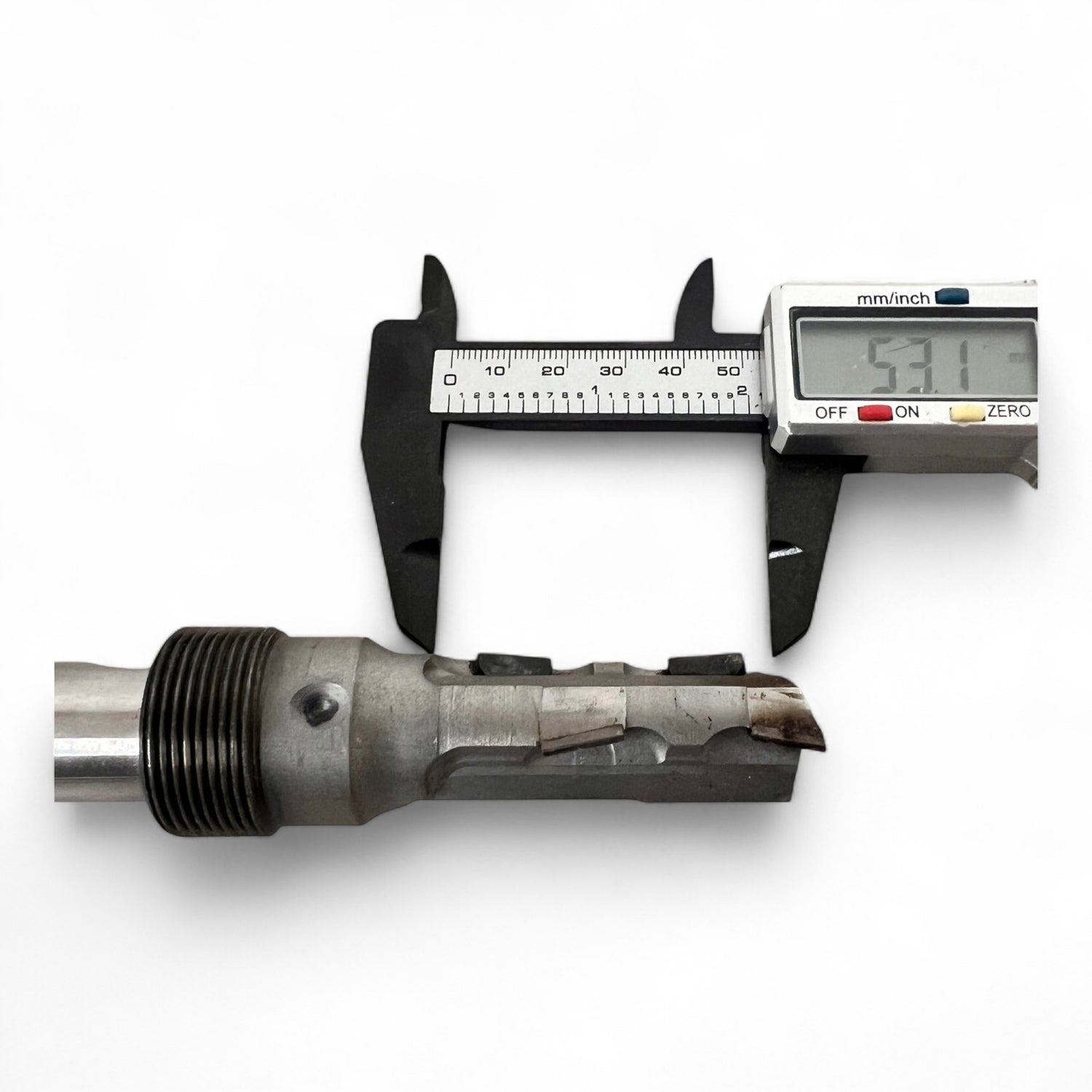

• Cutting length:        53.1 mm
• Maximum speed:      24,000 RPM

Features and Benefits:

• Robust diamond tipping for long tool life and high cutting quality
• Exact and smooth surfaces thanks to precisely ground cutting edges
• Spiral arrangement for vibration-free work
• Excellent for CNC machining centers
• Ideal for milling contours, grooves, and profiles

Areas of Application:

• Furniture production and high-end woodworking
• Production of precise grooves and fits
• Use in automated CNC milling centers for wood and wood-based materials

Scope of delivery:

1 piece of DIA router bit as pictured. Delivery without original packaging.

Note:

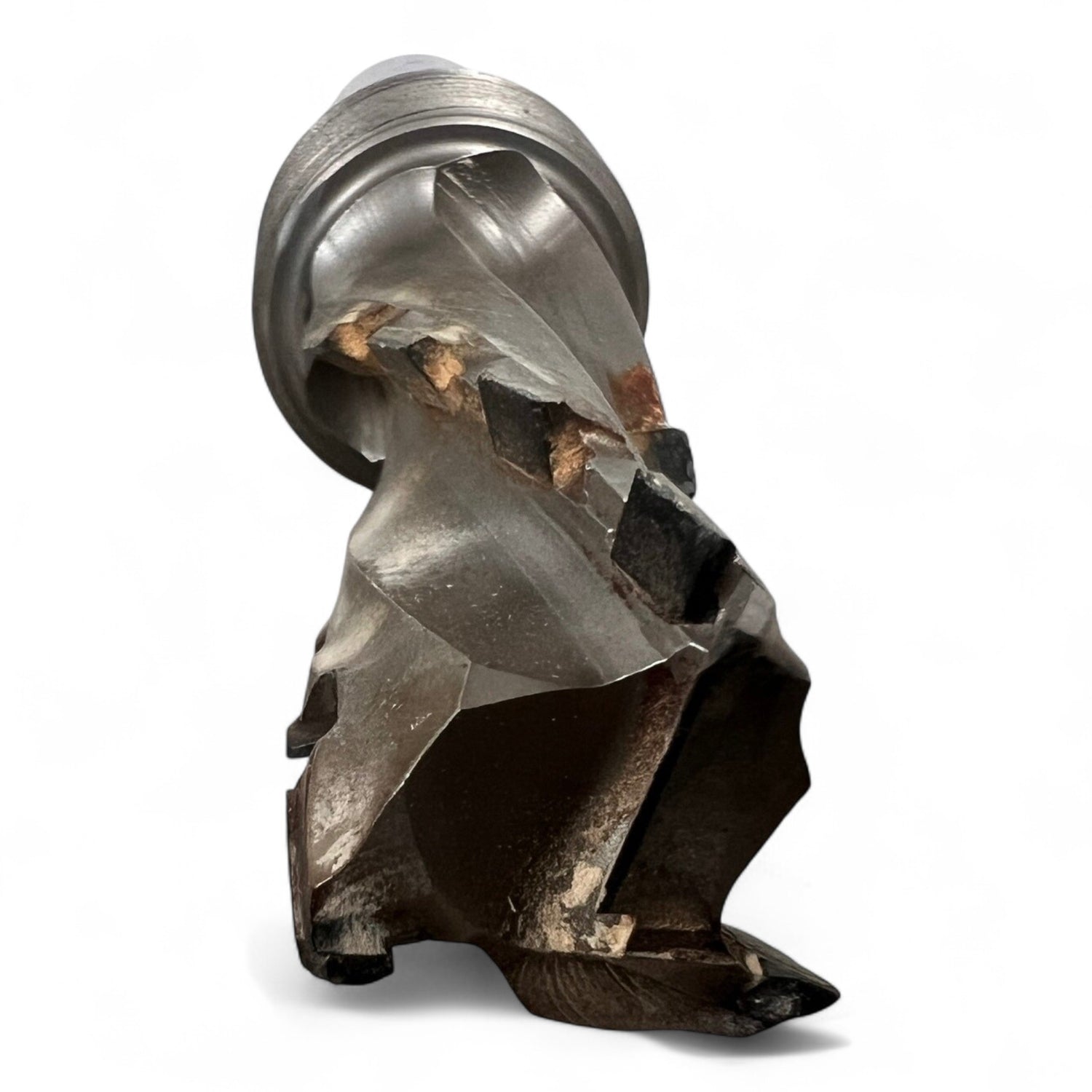

Used condition with clear signs of wear and partially damaged cutting edges. The router bit comes from industrial use and is explicitly sold as used.

Technical data:

Article number         4164260728

Commodity code/TARIC      82077031

Shipping weight         approx. 0.60 kg
