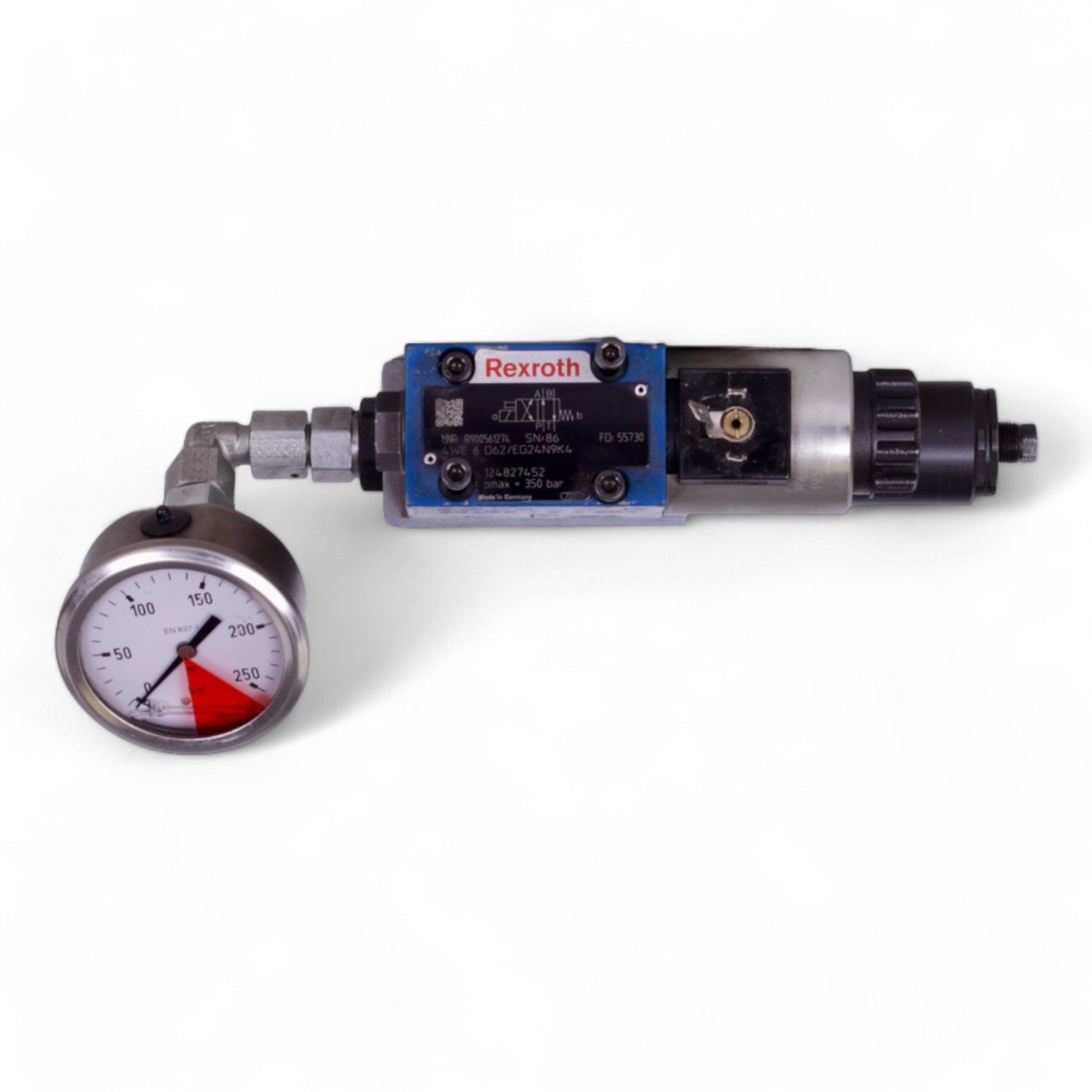

Bosch Rexroth 4/2-Way Solenoid Valve 4WE 6 D6X/EG24N9K4

Bosch Rexroth 4/2-Way Solenoid Valve 4WE 6 D6X/EG24N9K4

Part number: R900561274

Serial number: 86

FD: 55730

Description:

The Bosch Rexroth 4/2-way solenoid valve 4WE 6 D6X/EG24N9K4 is a direct-operated spool valve of nominal size 6, specially designed for use in hydraulic systems. It is used to control the start, stop, and direction change of fluid flow. With a maximum operating pressure capacity of up to 350 bar and a coil voltage of 24 V DC, the valve offers a reliable and powerful solution for industrial applications.

Technical data:

• Type: 4WE 6 D6X/EG24N9K4

• Part number: R900561274

• Serial number: 86

• FD: 55730

• Nominal size: 6

• Maximum operating pressure: 350 bar

• Maximum flow rate: 80 l/min

• Coil voltage: 24 V DC

• Switching positions: 2 (4/2-way)

• Connection diagram: ISO 4401-03-02-0-05

• Weight: approx. 1.5 kg

Features:

• Direct-operated valve for fast response times

• Solenoid actuation for reliable oil flow switching

• Robust and durable construction

• Compact design for easy integration

Areas of application:

This valve is ideally suited for hydraulic systems in industrial applications such as mechanical engineering and manufacturing plants, where precise control of fluid flow is required.

Note:

This is a tested, functional used part from an operating system. Errors and omissions excepted.
