HSK 63 E ER 40 LEUCO Collet Chuck A=76 N=24,000, 3-20 mm with 8 mm End Mill NL=38 mm with Coating Part No. 6340838

LEUCO HSK 63 E ER 40 Collet Chuck A=76 N=24,000 Part No. HSK63E-ER40-76



Manufacturer LEUCO

Description Collet chuck ER40

Part No. HSK63E-ER40-76

Description

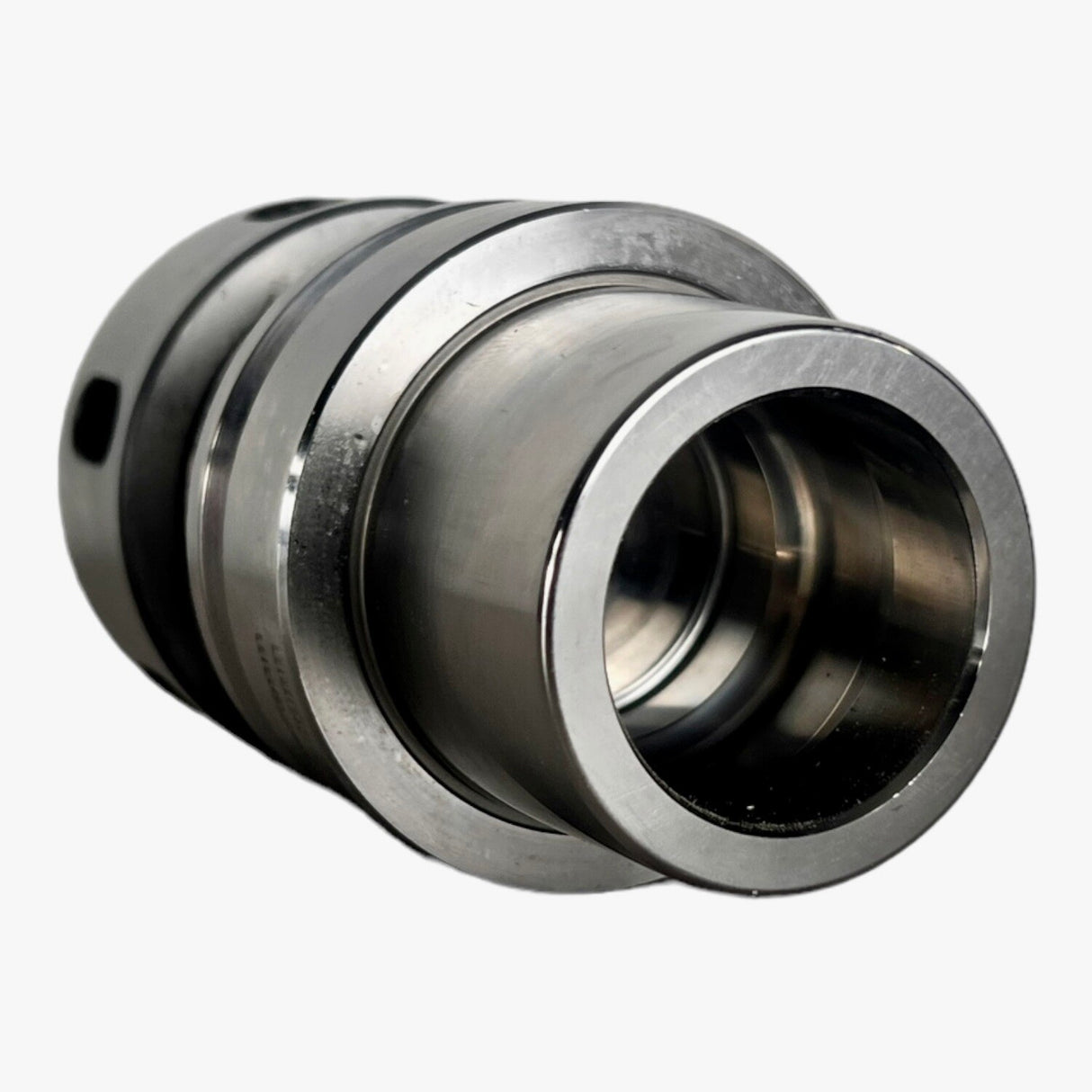

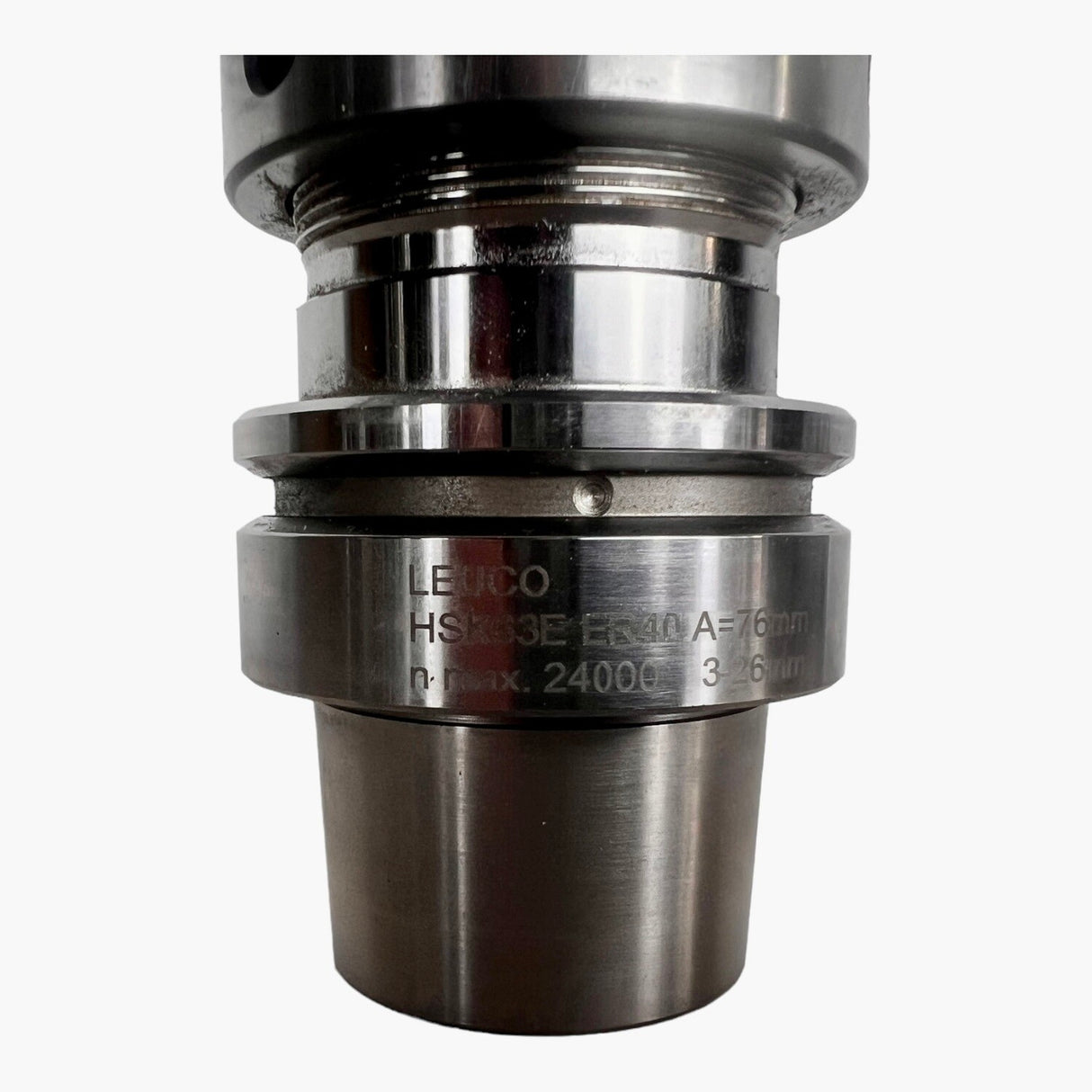

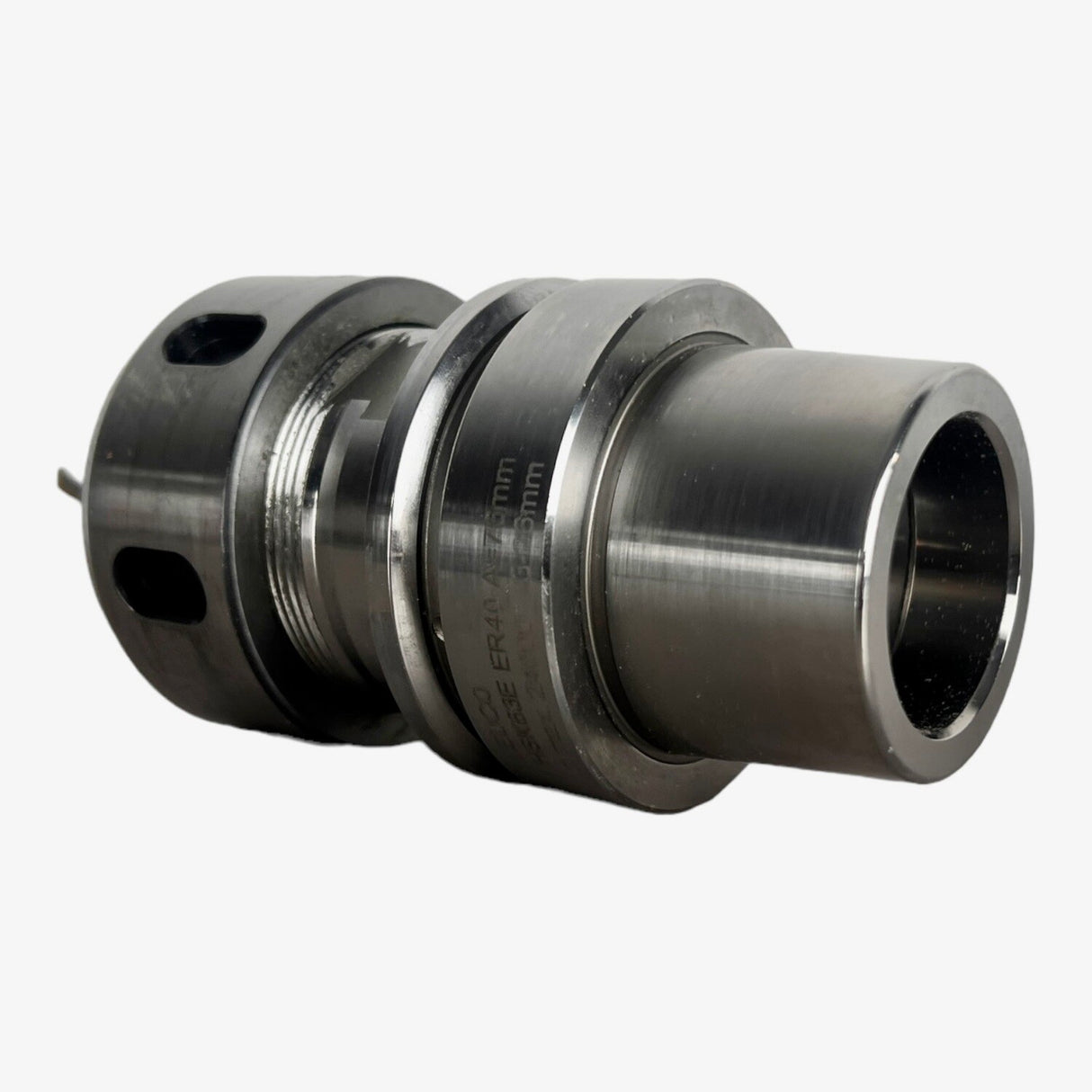

For sale is a high-quality LEUCO collet chuck with HSK 63 E taper and ER40 clamping system for CNC machining centers. The tool holder is precision-manufactured and designed for speeds up to 24,000 min⁻¹. The high-quality workmanship and polished surface ensure high concentricity and optimal machining quality.

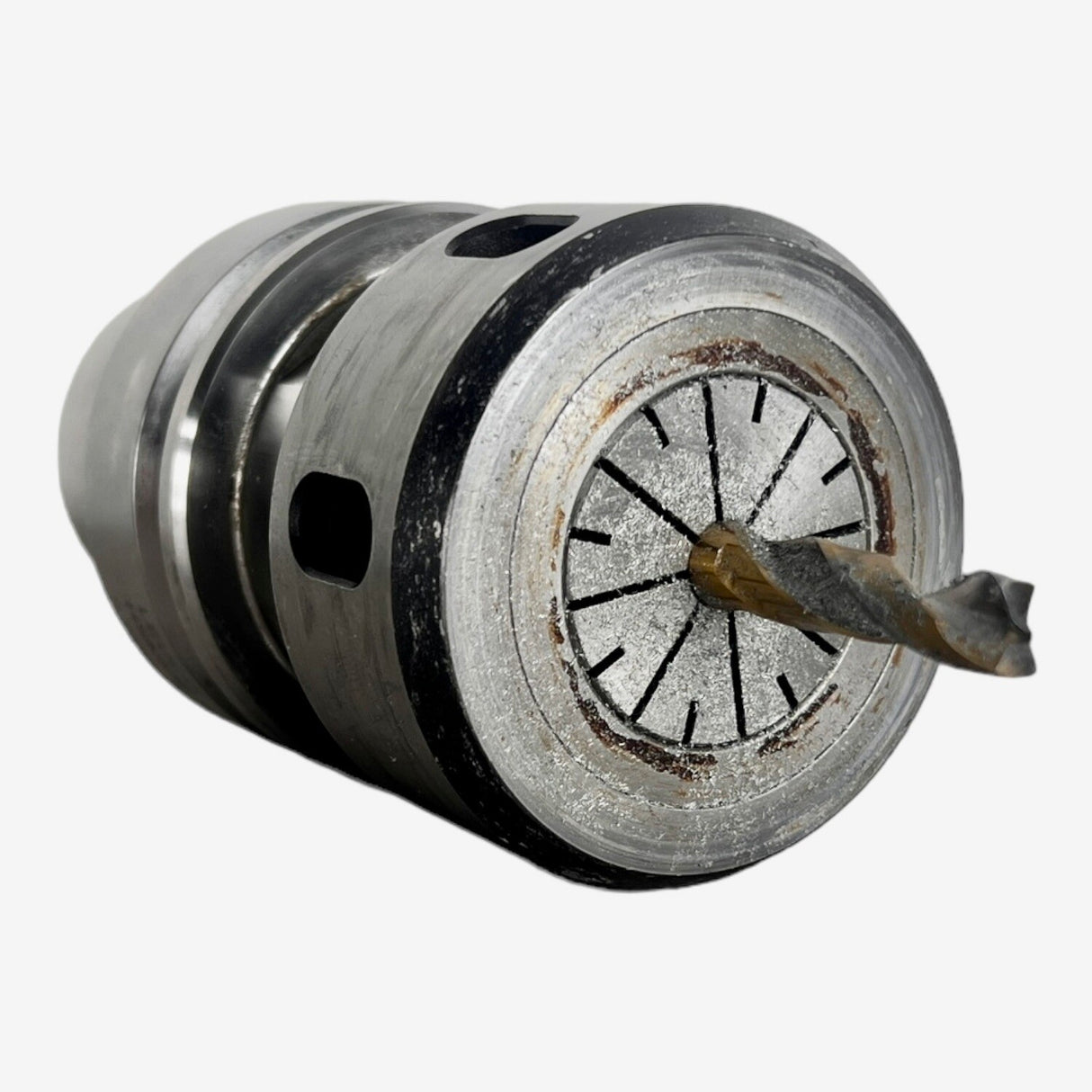

The collet chuck allows for secure clamping of shank tools with cylindrical shanks in a clamping range of 3 to 26 mm. The holder is compatible with hollow taper shank systems according to DIN 69893 and is suitable for both clockwise and counter-clockwise rotation.

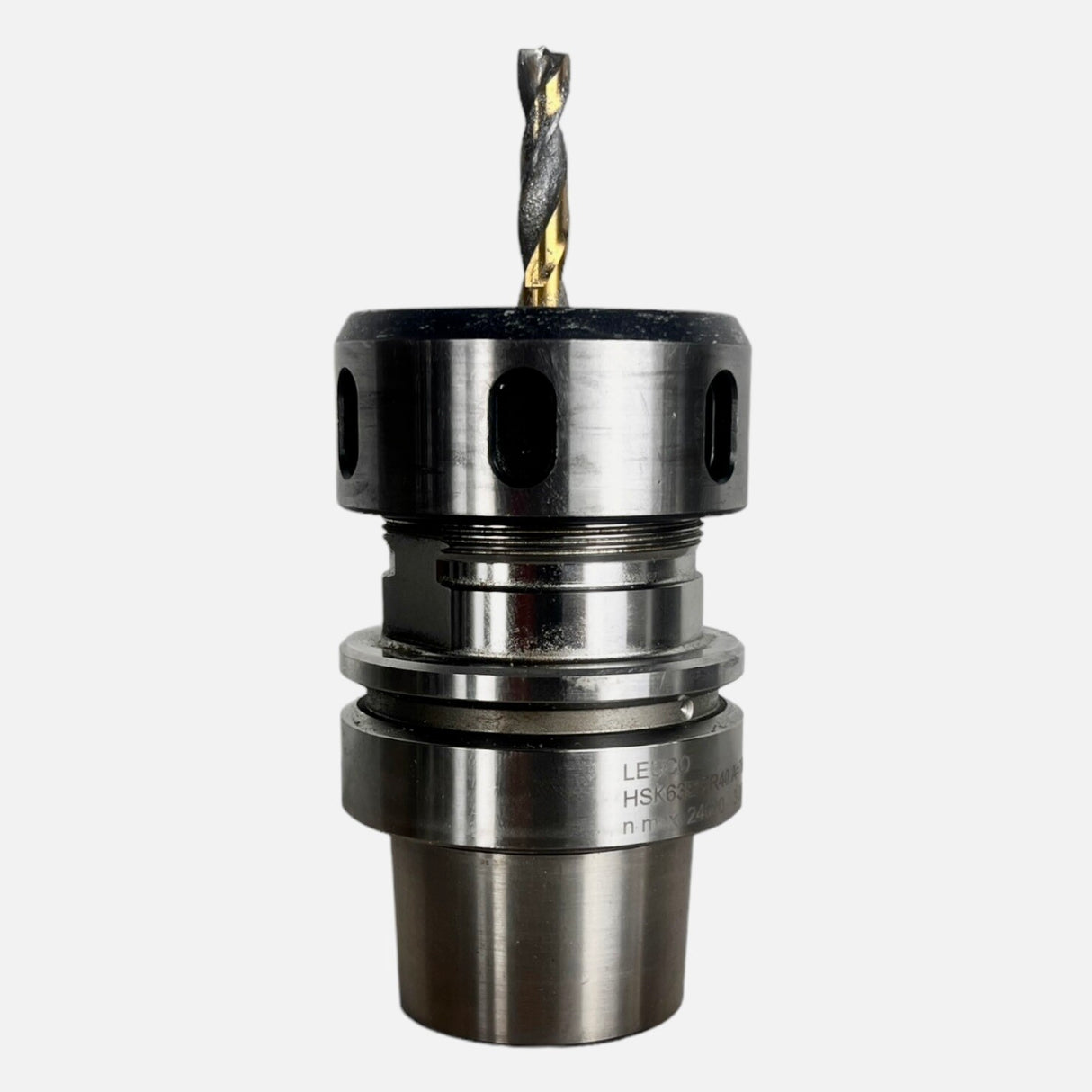

The scope of delivery also includes a clamped milling tool with an 8 mm diameter and a useful length of 38 mm with coating. The scope of delivery is exactly as shown in the picture.

The excellent damping properties of the clamping system reduce vibrations. This leads to improved surface quality and minimizes chatter marks during machining.

Measurement errors reserved. The dimensions of the clamped tools are non-binding.



Technical Data



Type

HSK 63 E ER 40 Collet Chuck

Standard

DIN 69893

Dimension A

76 mm

Clamping range

3 – 26 mm

Maximum speed

24,000 min⁻¹

Direction of rotation

suitable for clockwise and counter-clockwise rotation

Surface

polished

Material

high-quality tool steel

Additional tool

Milling cutter Ø 8 mm

Usable length of milling cutter

38 mm

Coating

coated milling cutter



Special Features



high-quality machined base body

including clamping nut for versatile application

polished surface for optimal performance

high concentricity

very good damping properties

reduction of vibrations and chatter marks

Recommended maximum clamping length is 55 mm, in exceptional cases up to a maximum of 60 mm.

To minimize installation dimensions, we recommend removing any existing adjusting screw on CNC milling cutters.

Condition

Used.

Normal signs of wear from industrial use may be present.

Scope of delivery

HSK 63 E ER40 collet chuck

Clamping nut

Milling cutter Ø 8 mm L 38 mm coated

Scope of delivery as pictured.

Area of application

Tool holder for CNC machining centers for holding shank tools with cylindrical shanks. Suitable for milling operations in wood, plastic, and metal processing.



Brief description

LEUCO HSK 63 E ER40 collet chuck A=76 for CNC machining centers, clamping range 3–26 mm, suitable for speeds up to 24,000 min⁻¹. Includes coated milling cutter Ø 8 mm with 38 mm usable length.

Part No. HSK63E-ER40-76
