Rexroth Indramat DKC02.3-100-7-FW EcoDrive03 Servo Drive 100 A SERCOS · without Firmware Module

Name: Rexroth Indramat DKC02.3-100-7-FW EcoDrive03 Servo Drive 100 A SERCOS · without Firmware Module
Brand: Rexroth Indramat
SKU: DKC02.3-100-7-FW-GEBR
Price: 1290.00 EUR
Availability: InStock

€1.290,00 EUR

excl. VAT Shipping calculated at checkout.

In stock · ships immediately

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

Rexroth Indramat EcoDrive03 SERCOS 100 A Without firmware module

Rexroth Indramat EcoDrive03 Servo Drive DKC02.3-100-7-FW

SERCOS interface · 100 A rated current · 3 AC 380–480 V · DC bus 700 V · supplied without firmware module

100 A

Rated current

3 AC 380–480 V

Line supply

700 V

DC bus

SERCOS

Interface

IP20

Protection class

Important before you buy

This unit is supplied without firmware module. An EcoDrive03 servo drive only works with a plugged-in firmware module of the FWA-ECODR3 series. Transfer the module from your old unit – that way you keep the firmware version proven on your machine and avoid any version conflict with the control and axis. If you need a module, we carry the FWA-ECODR3-SMT in versions 01VRS-MS and 02VRS-MS as a separate item in the shop.

Which module was fitted in which unit, and how to tell the two versions apart, is covered in our knowledge base: EcoDrive03 firmware module – versions and assignment.

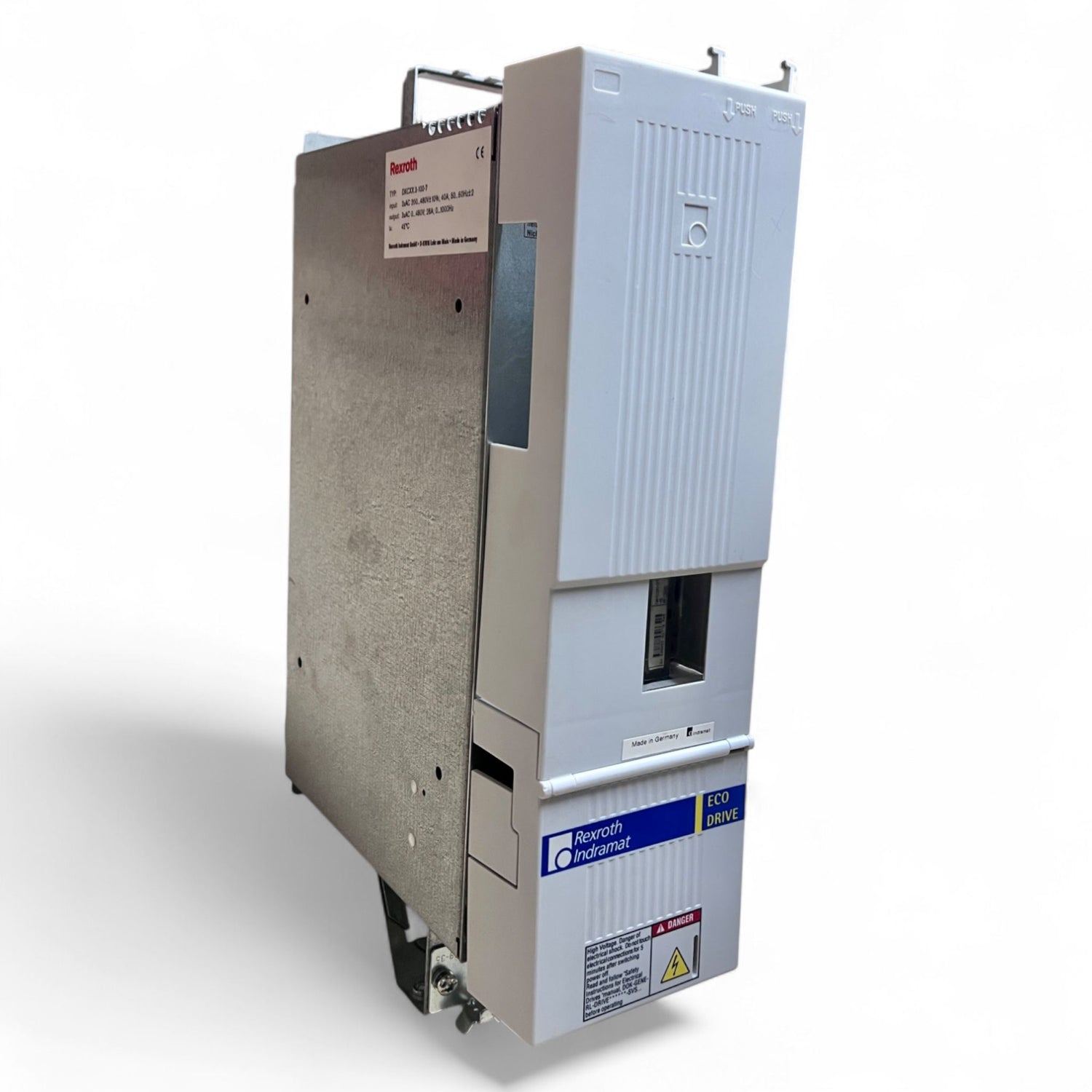

The photos show the current condition as shipped: the firmware module is removed and the slot behind the front cover is empty.

Cosmetic condition: On some units – not all – the tabs on the hinge of the plastic front cover are slightly damaged. The close-up of the hinge shows this on one affected unit as an example; it is not representative of all units offered. The cover stays in place and opens and closes; function, connections and electronics are not affected. We mention it for completeness – it is purely cosmetic.

Technical data

Manufacturer	Rexroth Indramat (Bosch Rexroth)
Type designation	DKC02.3-100-7-FW
Series	EcoDrive03
Material no.	279430 or R911279430
Rated current	100 A
Input voltage	3 AC 380–480 V, 50–60 Hz
DC bus rated voltage	700 V
Command communication	SERCOS interface via fiber optic cable, X20 TX / X21 RX
Encoder connections	Feedback 1 (X4), Feedback 2 (X8), 15-pin D-sub each
Serial interface	X2 "Com." · RS232 / RS485
Display & controls	H1 7-segment display, S1 reset, S2/S3 address setting
Power connections	Line L1/L2/L3 · motor A1/A2/A3
Protection class	IP20, control cabinet mounting
Approvals	CE · cULus Listed Industrial Control Equipment
Basic dimensions (W × H × D)	105 × 360 × 270 mm
Weight	approx. 9.7 kg
Condition	2 - Good - · Tested
Cosmetic notes	Mounting marks; on some units slightly damaged hinge tabs on the front cover – no technical impact

Product description

The DKC02.3-100-7-FW is the large servo drive of the Rexroth Indramat EcoDrive03 series. It powers and controls a servo motor with up to 100 A rated current, runs directly on 3 AC 380–480 V three-phase line power and operates with a DC bus rated voltage of 700 V. Command communication with the higher-level CNC or PLC runs over the SERCOS interface via fiber optic cable; commissioning is done through serial interface X2.

Drives of this series are found in HOMAG and WEEKE CNC machining centers for woodworking, in CNC machine tools and in packaging and special-purpose machines. The plug-in terminal blocks allow a defective predecessor unit to be swapped without rewiring.

The units offered come from running machines, were in operation until removal and show, if anything, light, purely cosmetic marks. Nameplate, material number and serial number are present and legible in the photos. Every unit has been inspected and tested in-house. The serial number of the unit shipped is documented on the packing slip.

Scope of delivery

Included	Servo drive DKC02.3-100-7-FW, supplied as shown
Not included	Firmware module FWA-ECODR3, available separately
Also not included	Fiber optic cables, motor and line cables, original packaging
Commissioning	By qualified personnel, parameter setup on the machine side

Applications

EcoDrive03 DKC02.3-100-7-FW SERCOS HOMAG WEEKE BP 155 · BOF CNC machine tools Special-purpose machinery Replacement part / retrofit
