br-automation | SKU: MDA163-0

B&R Maestro relay output module MDA163-0 for HOLZMA, HOMAG, WEEKE – tested, in stock

Name: B&R Maestro relay output module MDA163-0 for HOLZMA, HOMAG, WEEKE – tested, in stock
Brand: br-automation
SKU: MDA163-0
Price: 129.00 EUR
Availability: InStock

€129,00 EUR

excl. VAT Shipping calculated at checkout.

In stock · ships immediately

We pack your order on the day you place it. The carrier collects it on the next working day.

Delivery date for your postcode

Germany: 2–3 working days
EU: 3–5 working days
Worldwide: on request

Secure payment

You choose your payment method at checkout.

No PayPal account? Via the cart you can also pay by credit card or with any of the other methods shown.

Your payment data is processed in encrypted form. We do not store any credit card data.

B&R Relay Output Module Used HOLZMA · HOMAG · WEEKE

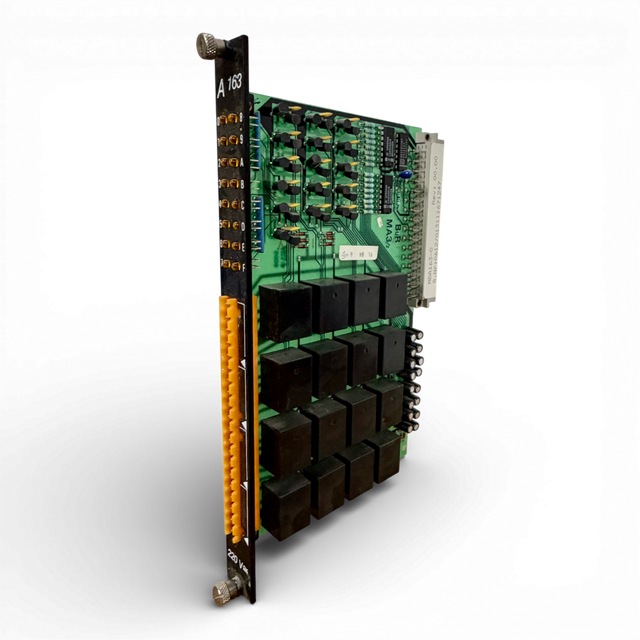

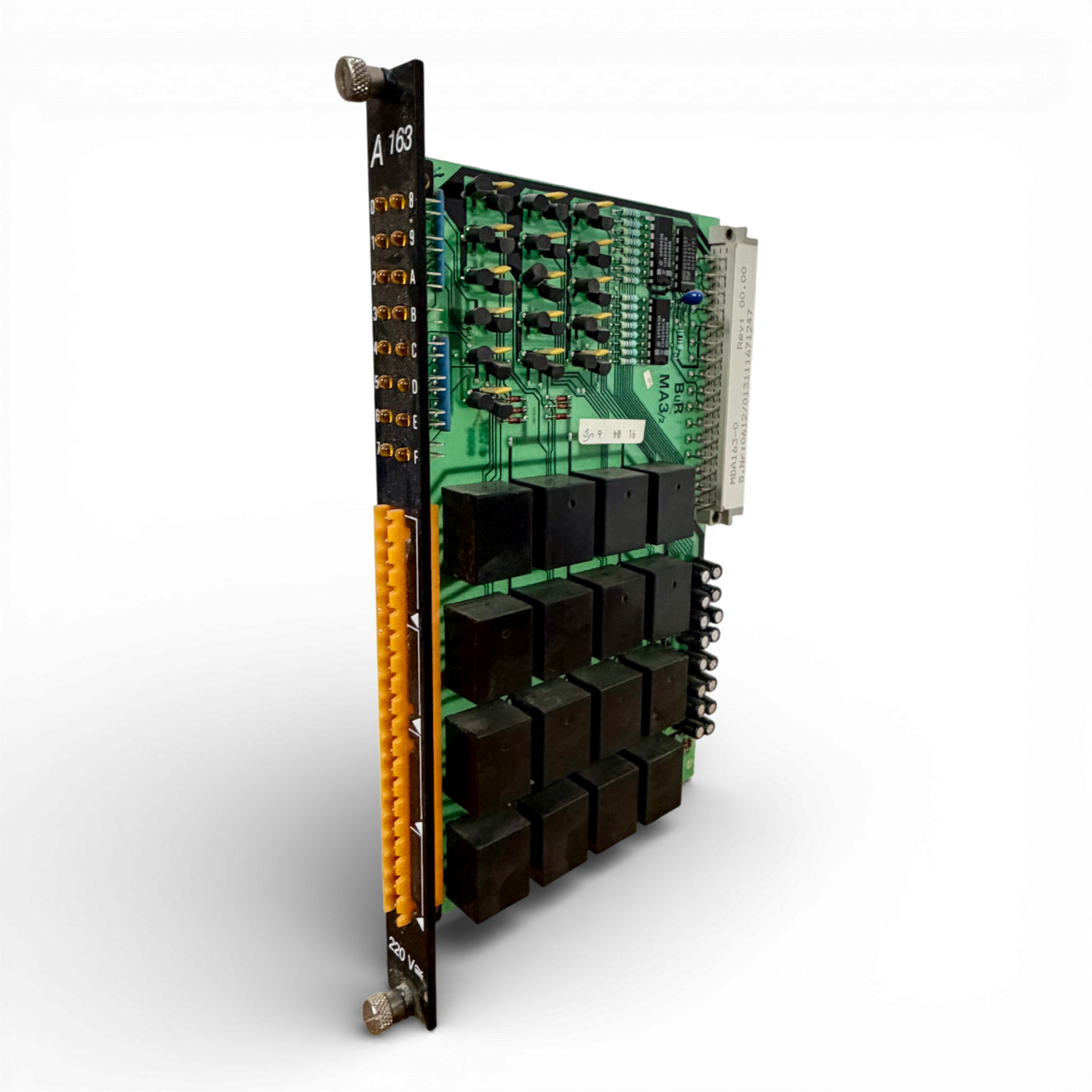

B&R Maestro Relay Output Module MDA163-0

Original multi-channel relay output card for B&R Maestro backplane systems, used in HOLZMA, HOMAG and WEEKE CNC controls.

MDA163-0

Item number

Rev. 00.00

Revision

LZ-12H-K

Takamisawa relays

12 V DC

Relay coil voltage

A 163

Front marking

Before you order: compare the item number MDA163-0 and the revision on your module's label. Send us a photo of your label and we confirm the fit before shipping.

Technical data

Item number	MDA163-0
Manufacturer	B&R Bernecker & Rainer
Designation	Relay output module, Maestro system
Revision	Rev. 00.00

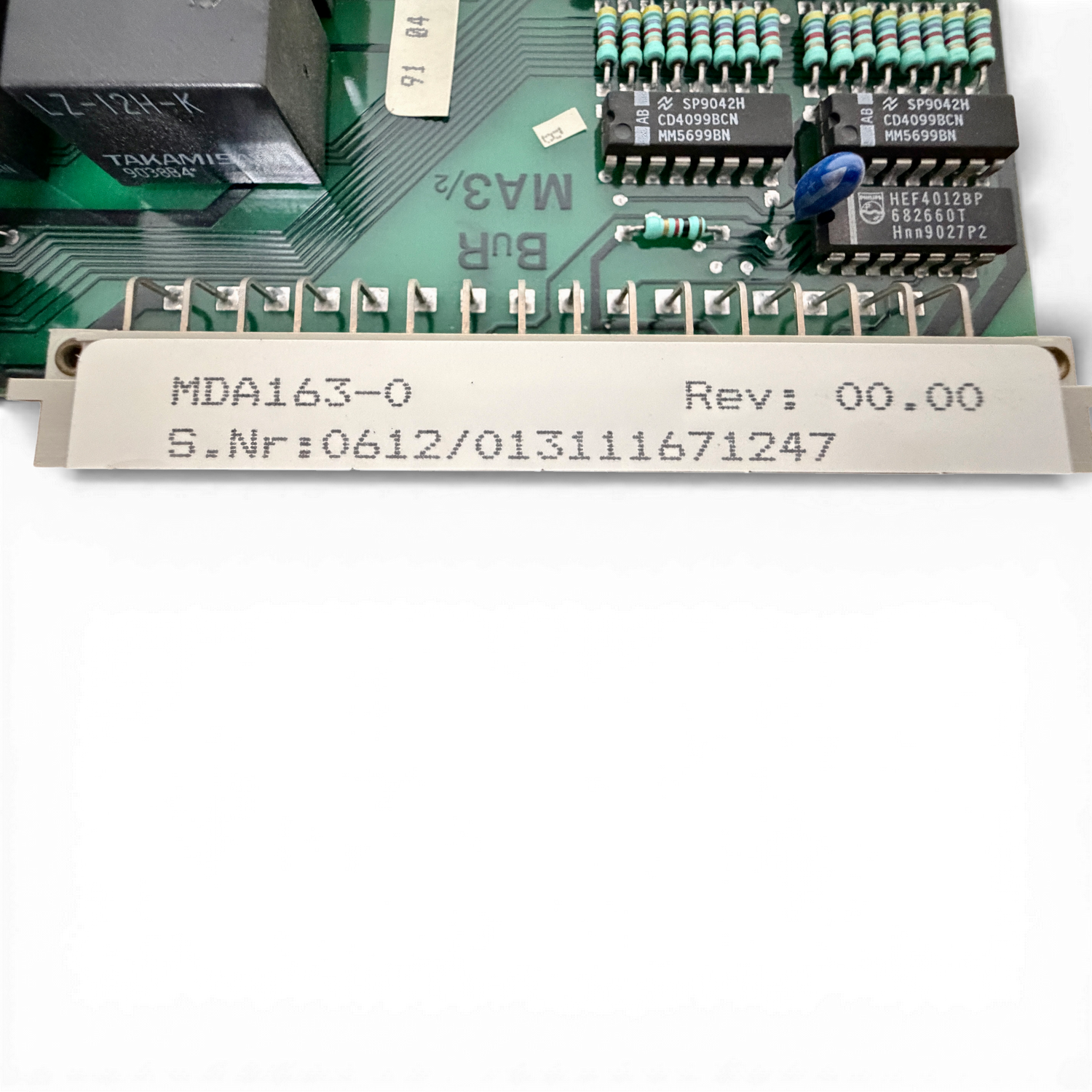

Serial number	S.Nr. 0612 / 013111671247
Front marking	A 163
Output type	Potential-free relay contacts, multi-channel
Relay type	Takamisawa LZ-12H-K, 12 V DC
Switching	Electromechanical

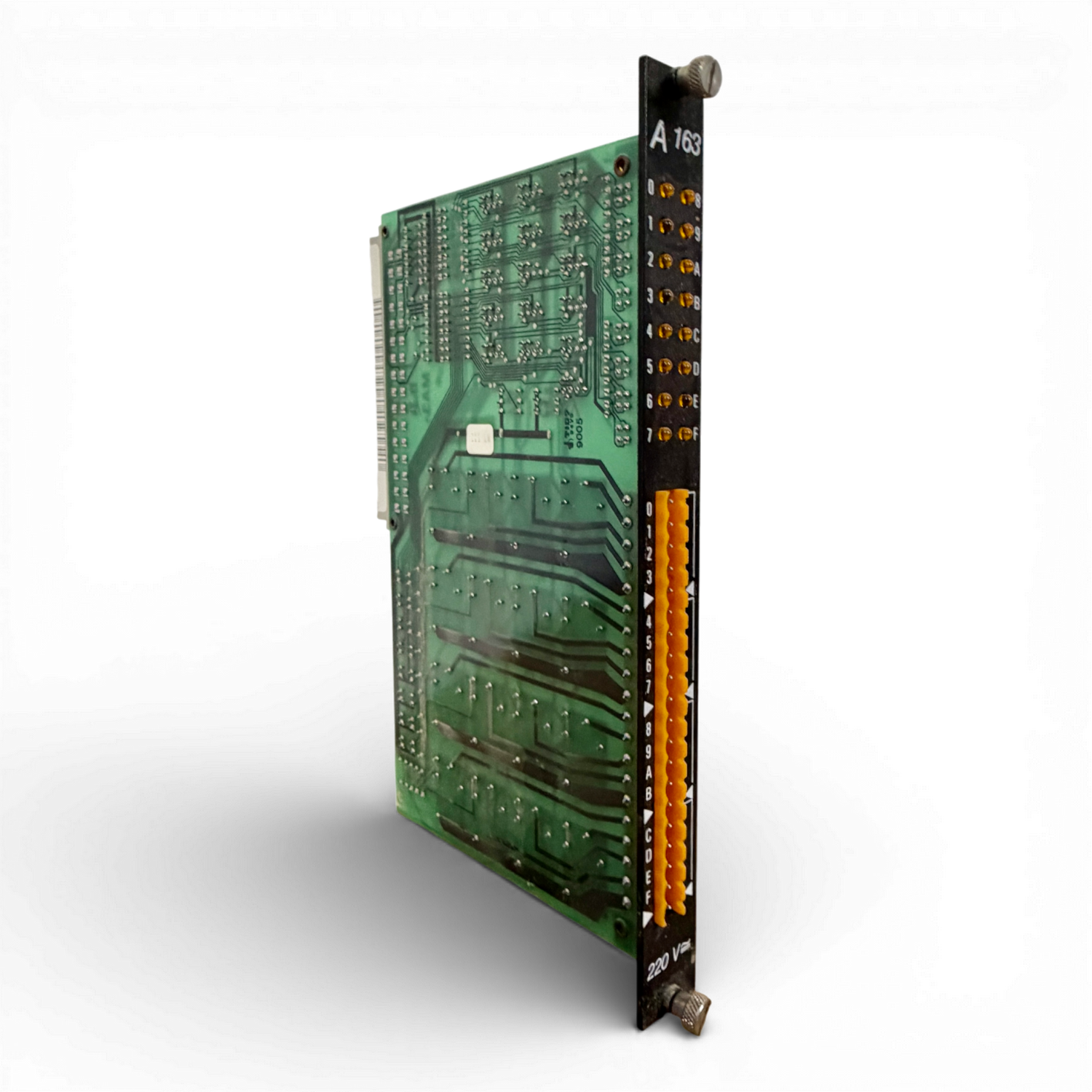

Diagnostics	LED per channel

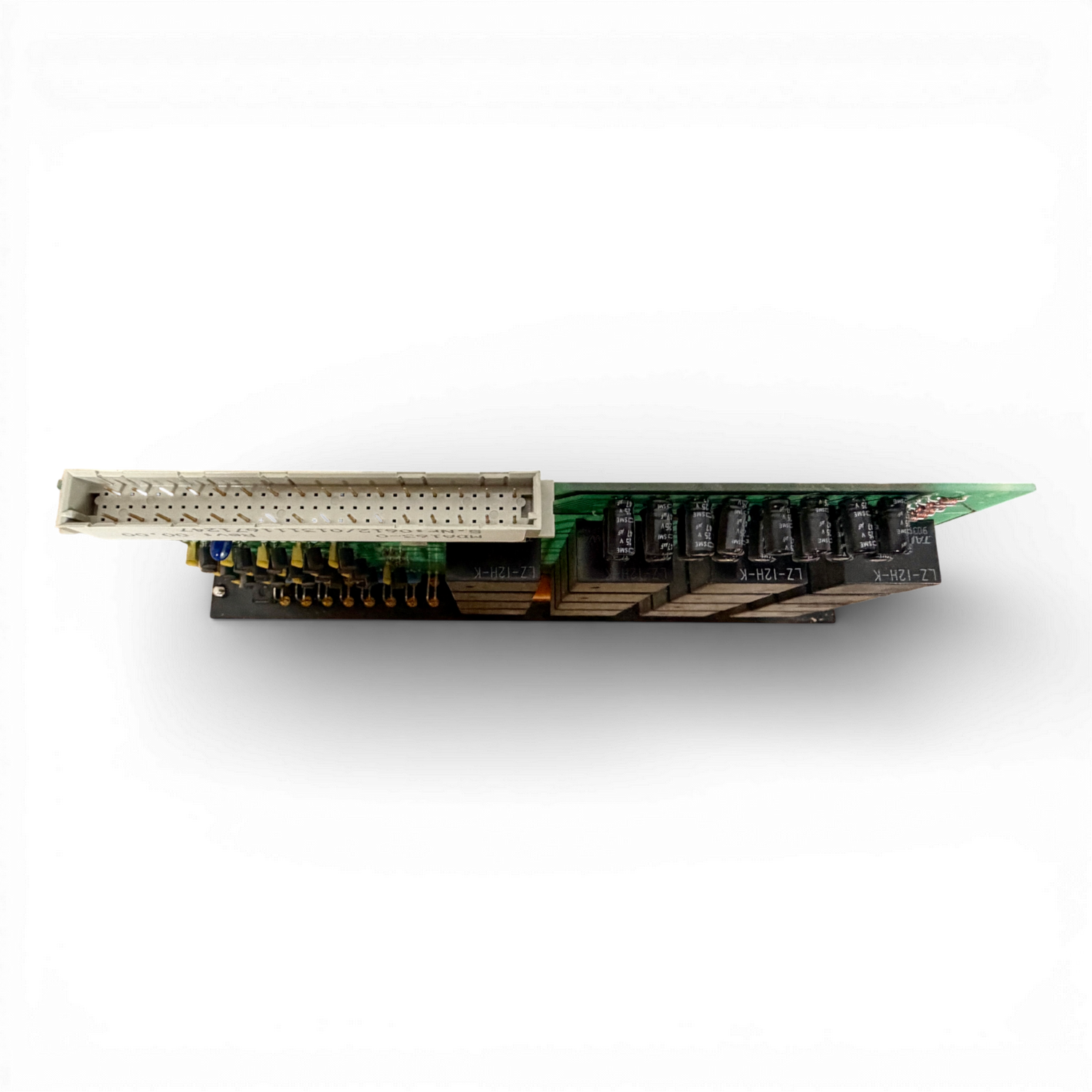

Connection	Backplane connector, numbered terminal strip
Design	Slide-in module with front panel
Dimensions	approx. depth 120 mm, height 200 mm, length 220 mm
Condition	Used · 2 – Good

Product description

The B&R Maestro MDA163-0 is an original relay output module built as an industrial plug-in card for central control systems. As a multi-channel relay card, it switches external loads through galvanically isolated relay contacts.

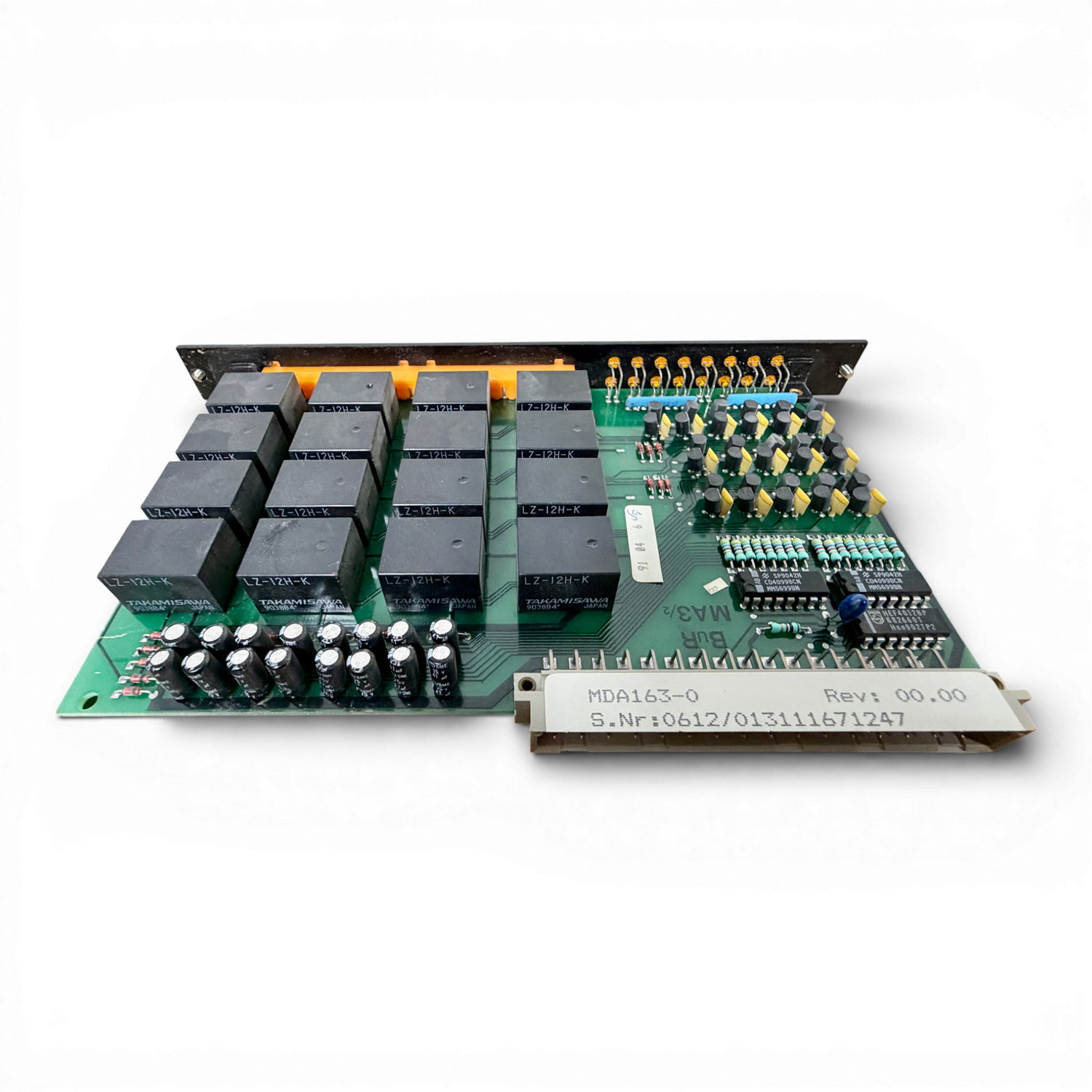

The board carries industrial relays from Takamisawa, type LZ-12H-K, rated for a 12 V DC control voltage. They typically switch valves, contactors, solenoids, motor enables and other industrial actuators. The front panel has one status LED per channel, so each switching state is visible at a glance, plus a numbered terminal strip for clear channel assignment.

The module serves as the interface between control logic and field components and is well suited for applications that need galvanic isolation or higher switching voltages. Used, from an industrial environment, with age-related cosmetic signs of use and no visible damage to the board, relays or contacts.

Compatibility & applications

HOLZMAHOMAGWEEKEB&R MaestroCNC woodworking machineryIndustrial automation

Scope of delivery

1 × B&R relay output module MDA163-0 as shown.
