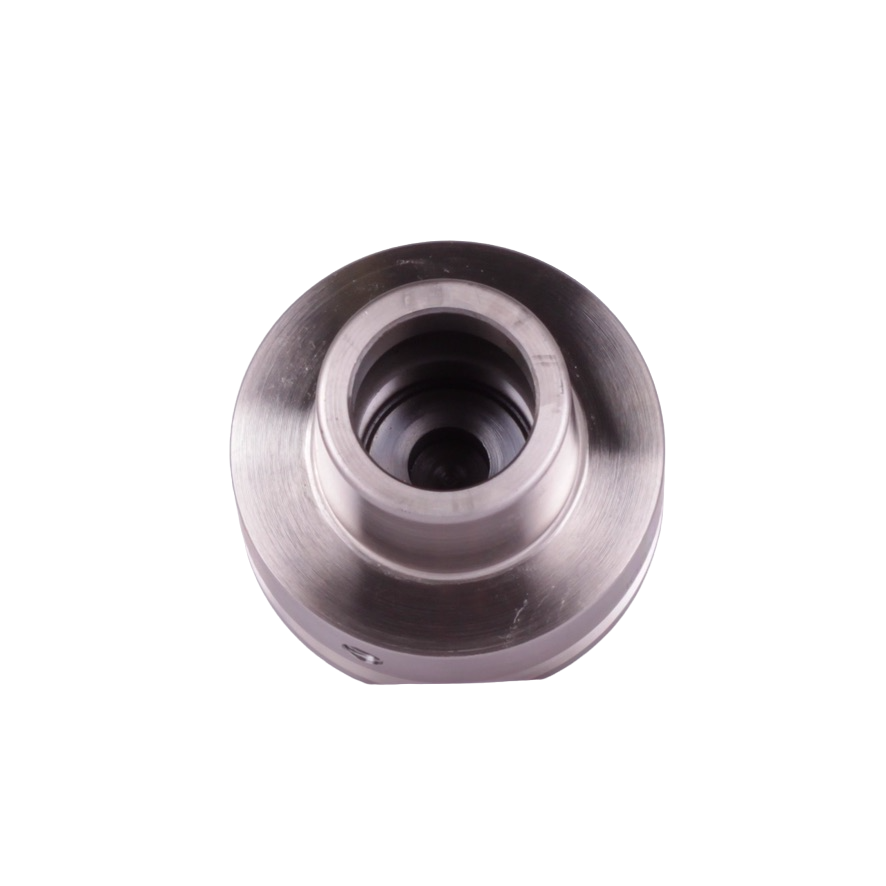

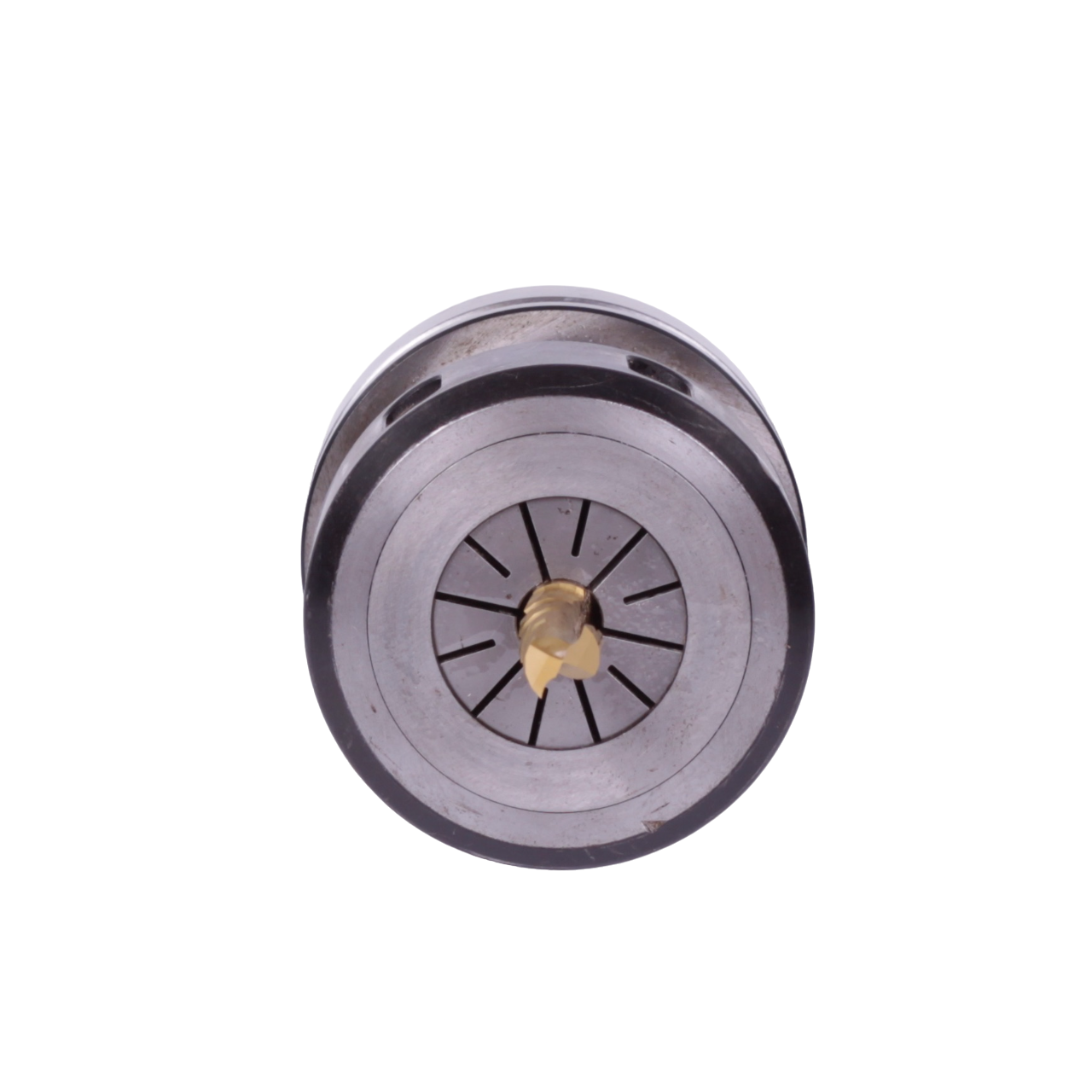

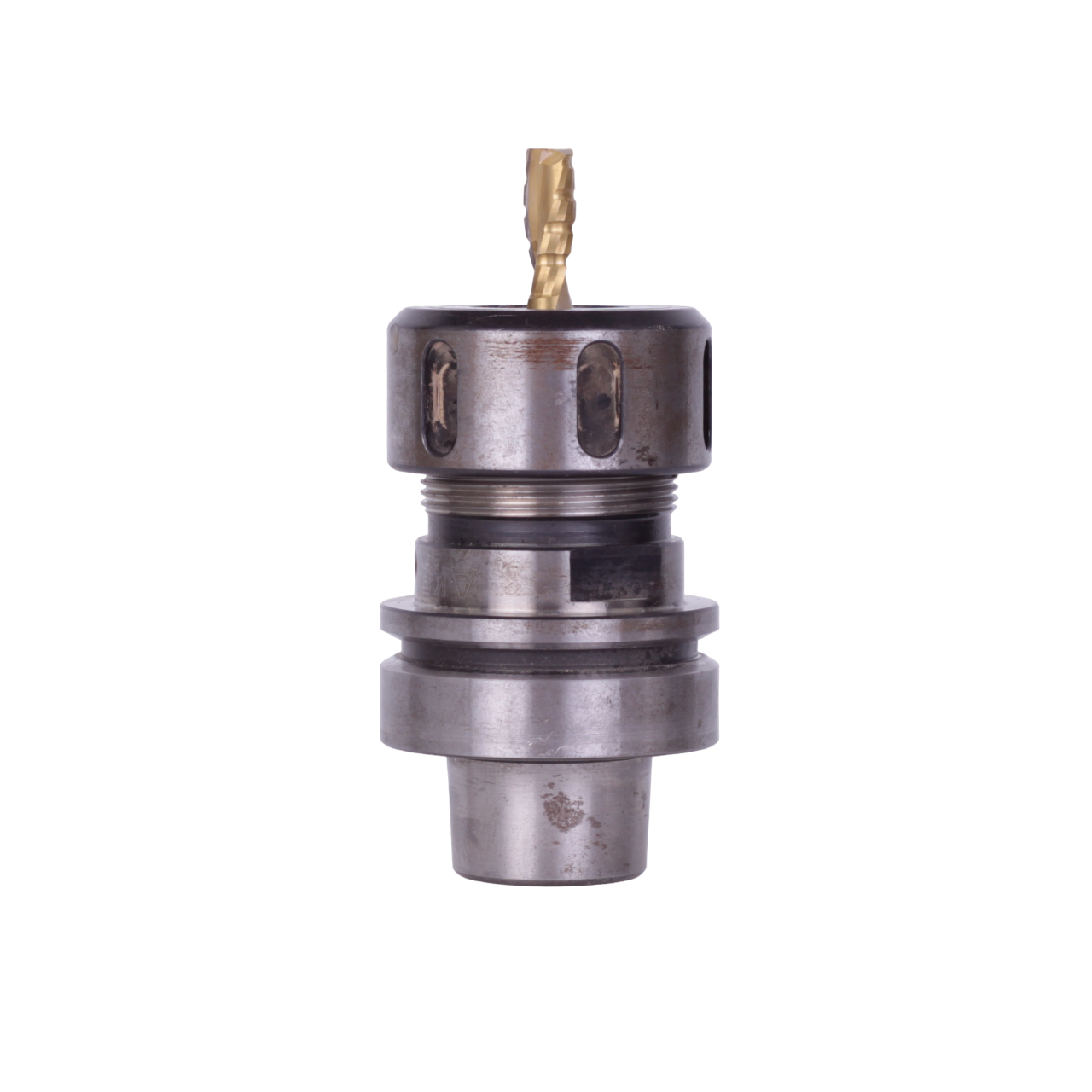

HSK 63 F Collet Chuck DIA End Mill 30 x 9 mm Part No. 3009



Collet Chuck HSK 63 F with Bore Mount Article No. HSK63F-25



Manufacturer unknown

Description Collet chuck with bore mount

Article No. HSK63F-25



Description



For sale is a high-quality collet chuck with HSK 63 F taper for CNC machining centers. The tool holder is finely balanced and designed for speeds up to 24,000 rpm. The precise manufacturing from high-quality steel ensures smooth running, resulting in high machining quality and long tool life.

The holder is suitable for clockwise and counter-clockwise rotation and allows for secure clamping of tools in the clamping range of 2 to 25 mm. The collet chuck is compatible with HSK 63 F tool holders in both fixed and swiveling versions.

The item is new, but may show slight signs of storage. These do not affect the function or usability.



Technical Data



Type

HSK 63 F

Dimension A

76 mm

Diameter D

60 mm

Diameter D1

63 mm

Diameter D2

38 mm

Dimension I

18 mm

Clamping range

2 – 25 mm

Maximum speed

24,000 rpm

Suitable for

HSK 63 F fixed

HSK 63 F swivel

Tool holder

End mill 30 x 9 mm

Material

high-quality steel

Design

finely balanced for high speeds



Condition



New.

The holder may show slight signs of storage, which do not affect its function.



Notes on Tool Holders and Tools



Tool holders and tools may show signs of wear, discoloration, engravings or slight corrosion marks. These do not affect the function. For protection, the tools are sometimes treated with an anti-corrosion agent, which may appear brownish in the photos.

If tools are damaged or can only be used to a limited extent, this will be expressly mentioned. Tools may be used and are often not resharpened. The condition of wear and any resharpening are the responsibility of the buyer.

The item is delivered in the condition shown in the photos. Before commissioning, we recommend removing the existing anti-corrosion agent.



Area of Application



Tool holder for CNC machining centers with HSK 63 F spindle taper for holding tools with cylindrical shank in the clamping range of 2 to 25 mm.



Highlights



HSK 63 F precision tool holder

finely balanced for high speeds up to 24,000 rpm

Clamping range 2 – 25 mm

suitable for clockwise and counter-clockwise rotation

high-quality steel for high stability

suitable for CNC machining centers



Brief Description



HSK 63 F collet chuck with clamping range 2 – 25 mm, finely balanced and suitable for speeds up to 24,000 rpm. Tool holder for CNC machining centers.

Article No. HSK63F-25
